PCE Instruments PCE-LDC 15 Coolant tester Gas, Air pressure USB interface

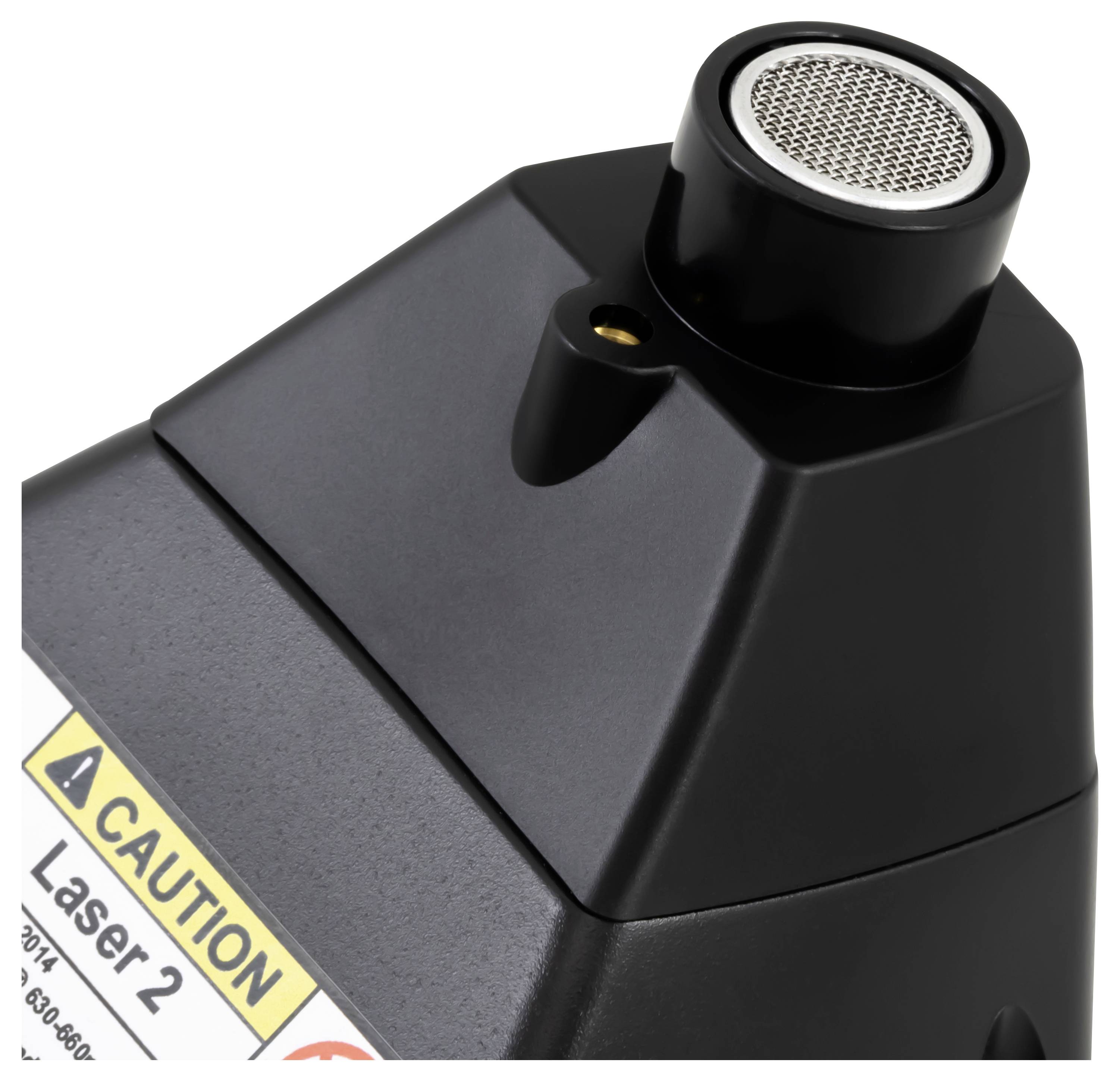

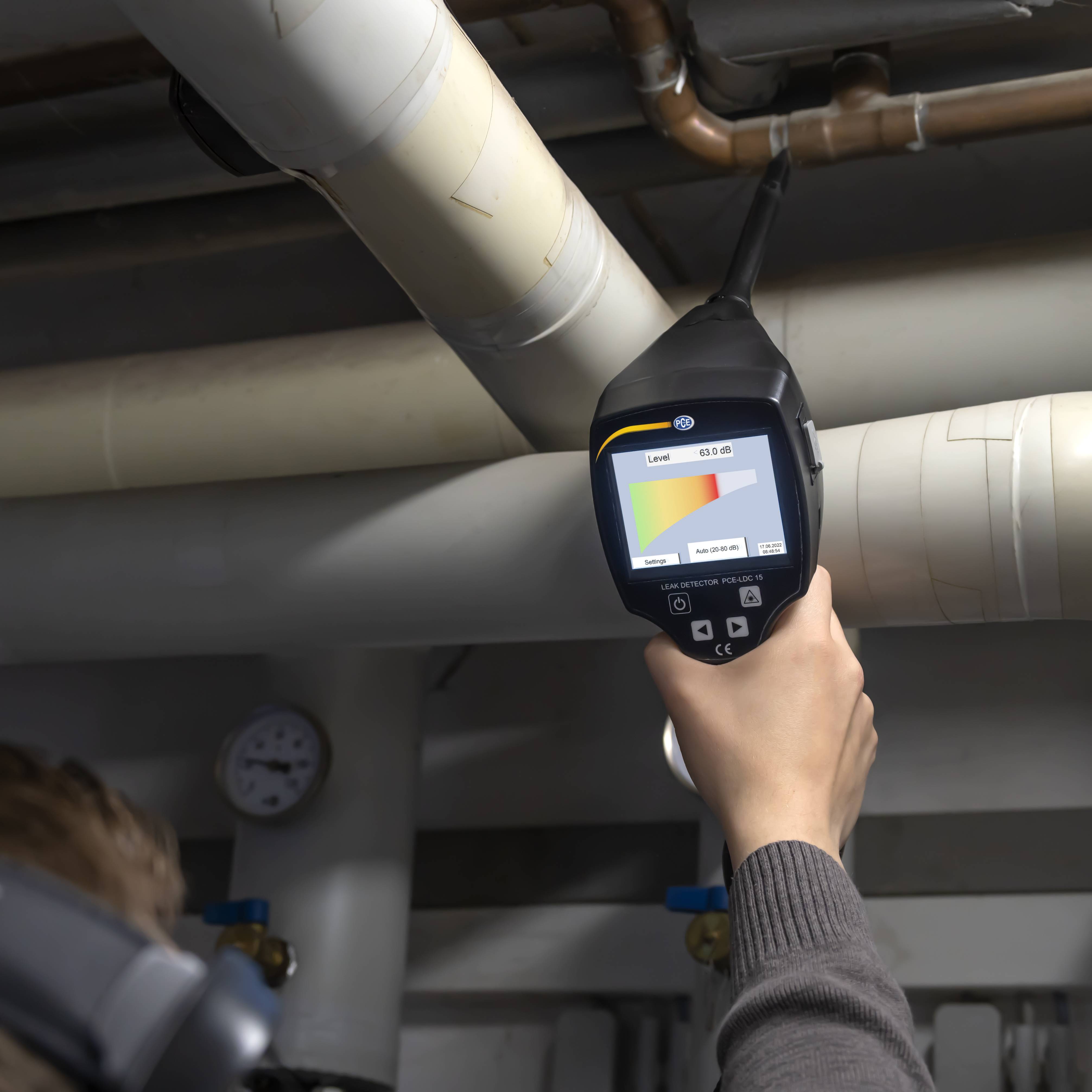

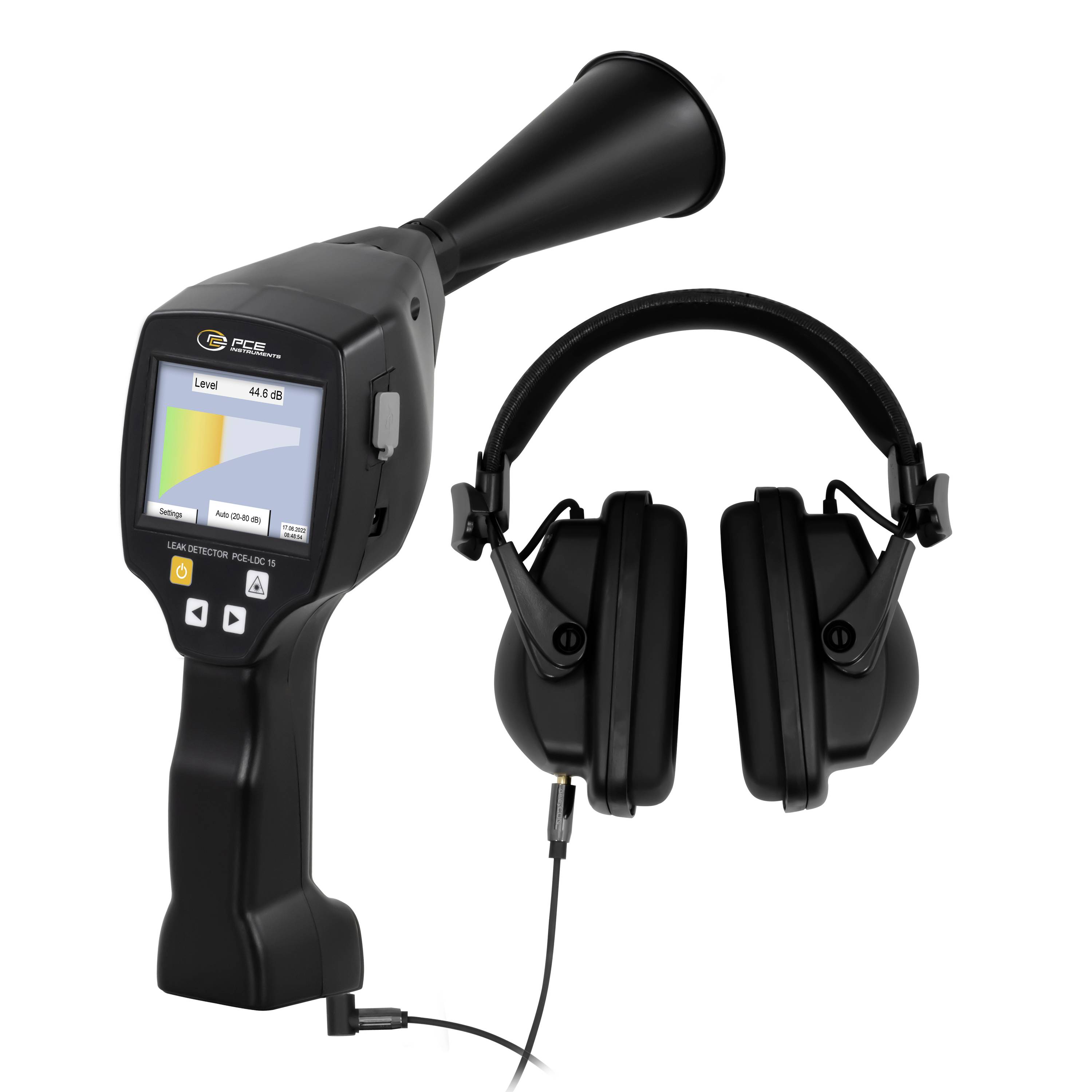

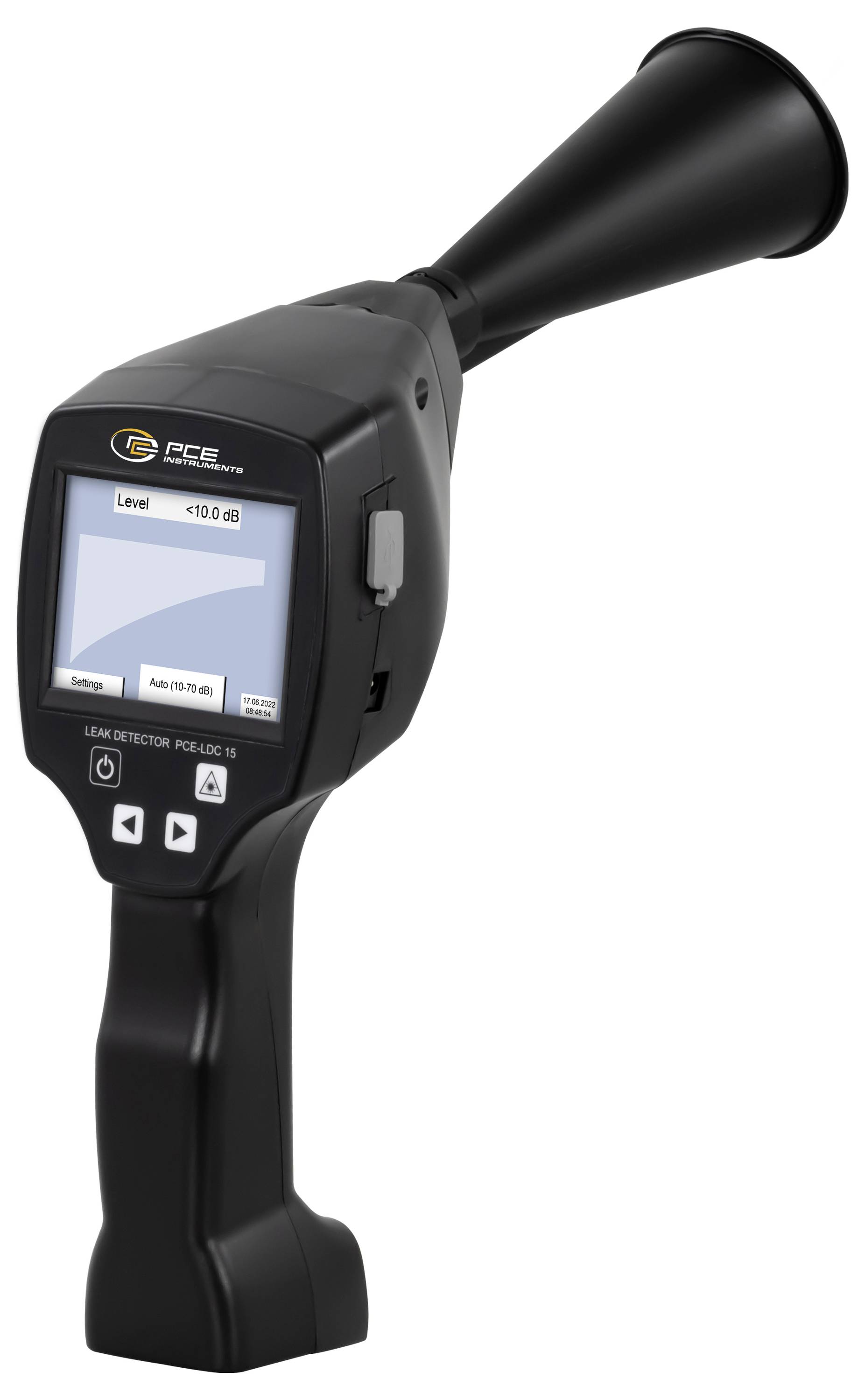

The leakage detector is used in various areas of industry. For example, the leak detector is used in compressed air, gas, steam and vacuum systems, as well as in refrigeration systems and door seals. The operating frequency of the leak detector is 40 kHz (± 2 kHz). The soundproof headphones at the leakage detector ensure that they can also be used in extremely loud environments. The leakage detector is used everywhere where gases can escape from leaks in piping systems. The noises caused by discharge are often in the ultrasonic range and are therefore not audible to the human ear. The leakage detector picks up this ultrasound via the bell and converts the inaudible ultrasound in audible frequencies. The laser pointer installed in the leakage detector allows an exact sighting of the leakage. The bell of the leak detector was designed in such a way that it is able to record sound waves and bundle them in such a way that it acts like a directional microphone and suppresses other interferences.

This text is machine translated.
