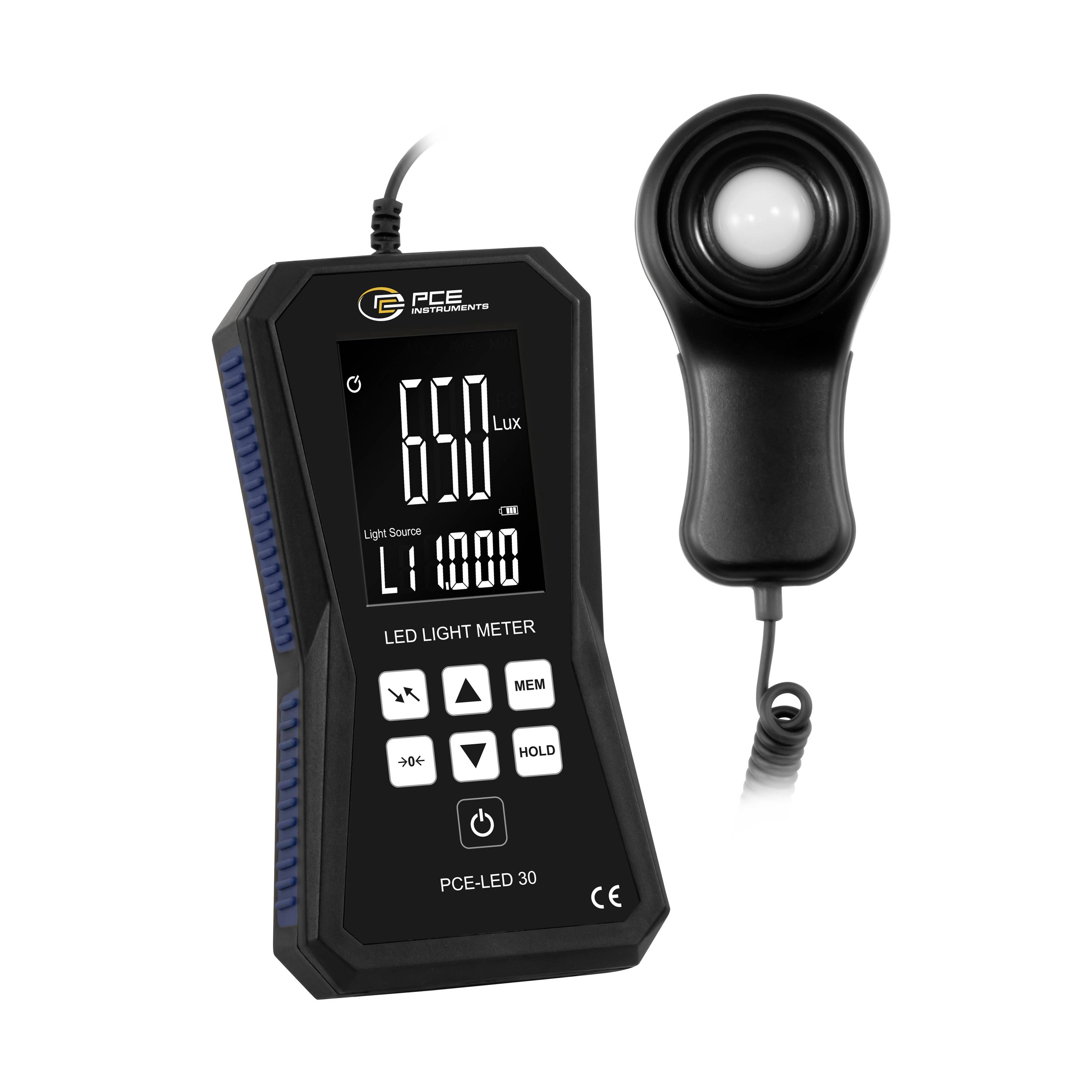

PCE Instruments PCE-LED 30 PCE-LED 30 LED lux meter 40 - 400000 lx
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE LED 30
- Ergonomically shaped light sensor
- Accuracy aligned with LED white light
- Battery status display
- Auto switch-off
- Overload display

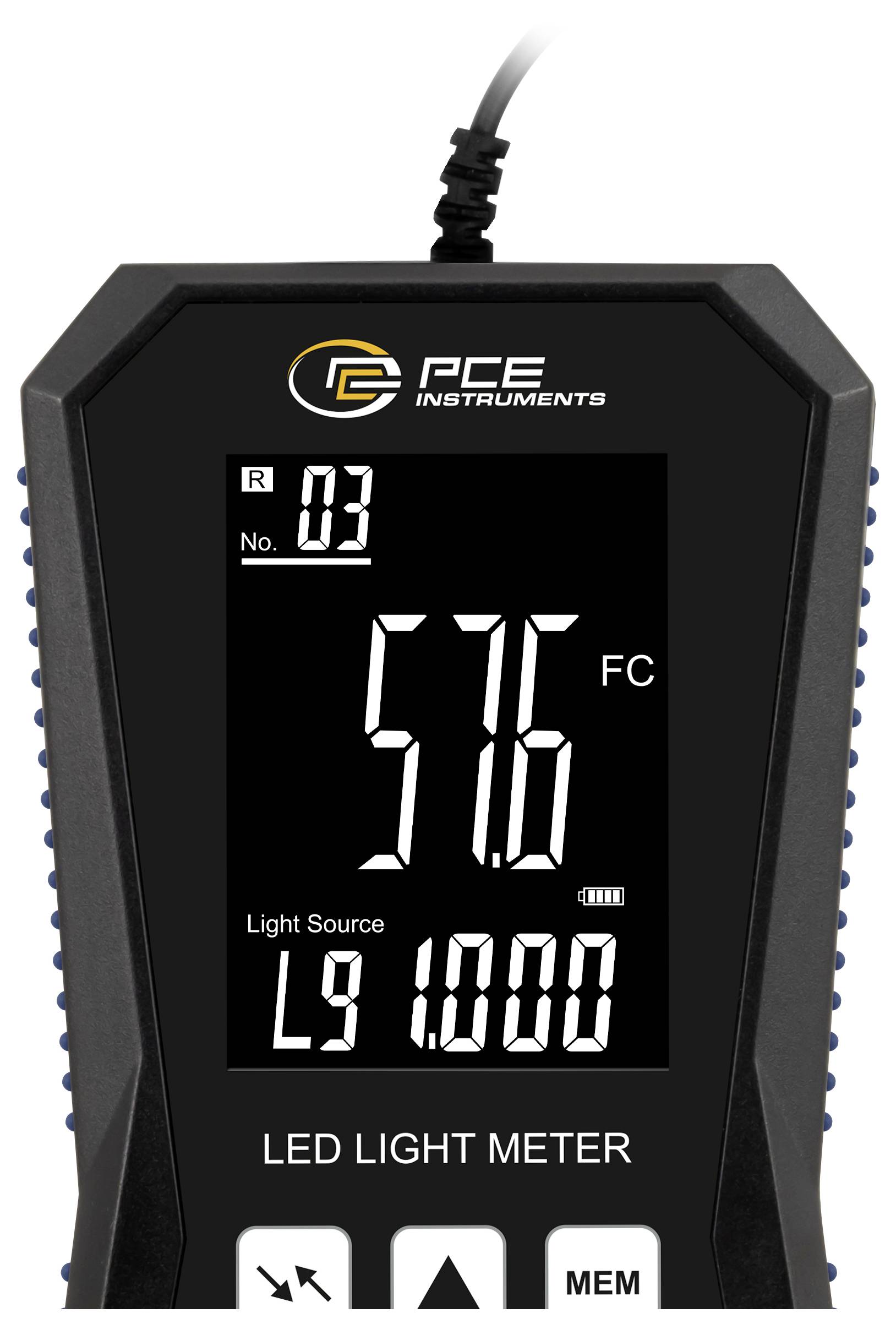

- Selectable measurement of lux or fc
- MIN- / MAX- / AVG-HOLD
- 2.5 measurements per second
- Zeroing
- Automatic range selection
- For measurement at LED bulbs
Technical specifications
- Illumination strength
- Measuring range 0 lx ... 40 lx
- Resolution 0.01 lx
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 40 lx ... 400 lx
- Resolution 0.1 lx
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 400 lx ... 4000 lx
- Resolution 1 lx
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 4000 lx ... 40000 lx
- Resolution 1 lx
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 40000 lx ... 400000 lx
- Resolution 1 lx
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 0 fc ... 40 fc
- Resolution 0.01 fc
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 40 fc ... 400 fc
- Resolution 0.1 fc
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 400 fc ... 4000 fc
- Resolution 1 fc
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- Illumination strength
- Measuring range 4000 fc ... 40000 fc
- Resolution 1 fc
- Accuracy ±3 % from MW. @ LED bulb 2856 K, other visible light: ±6 % of MW.
- General Technical Data
- Measurement functions MIN, MAX, HOLD, average value
- Units lx, fc
- Display type LCD
- Display size 2.8 inches
- Measurement rate 2.5/s.
- Storage medium Internal memory
- Memory capacity: 99 values
- Standard(s) JIS C1609:1993, CNS 5519
- Sensor silicon photodiode with built-in filter
- Automatically switches off approx. 5 min.
- Automatic switch-off deactivated Yes
- Sensor length 12 cm
- Light source Measurable: White LED and any other visible light
- Reproducibility ±3 % (with a standard incandescent bulb at 2856 K and white LED light) ±6 % with other visible light sources
- Sensor cable length: 1.5 m
- Menu language English (US)
- Protection class (device) IP52
- Weight 311.5 g
- 166 x 90 x 36 mm
- Operating conditions 5 ... 40 °C , 0 ... 70 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 70 % r.F.

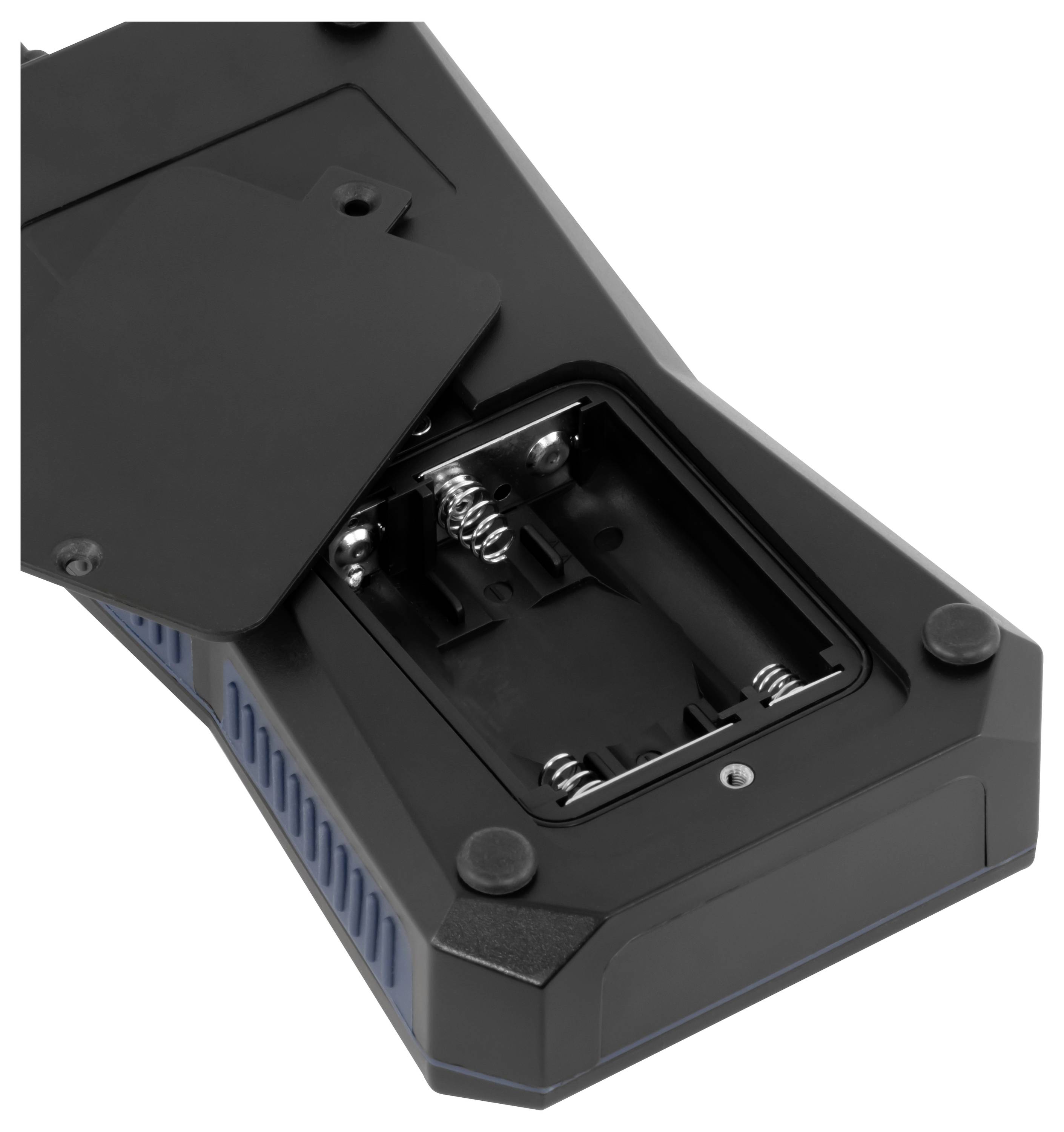

- Battery: 3x 1.5 V AA battery , alkaline-manganese
- Product type
LED lux meter
- Reading type
Light intensity
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 166 x 90 x 36 mm
- Display
LCD
- Weight
311.5 g
- Features
Suitable for LED lighting
Data logger
- Illuminance reading range
40 - 400000 lx
- Illuminance reading range (max.)
400000 lx
- Illuminance reading range (min.)
40 lx
- Illuminance reading accuracy
3 %
- Width
90 mm
- Height
36 mm
- Length
166 mm
Documents & Downloads
Datasheet
Datasheet 3324686 PCE Instruments PCE-LED 30 PCE-LED 30 LED lux meter 40 - 400000 lx
User & Safety Instructions
User & Safety Instructions 3324686 PCE Instruments PCE-LED 30 PCE-LED 30 LED lux meter 40 - 400000 lx
Description

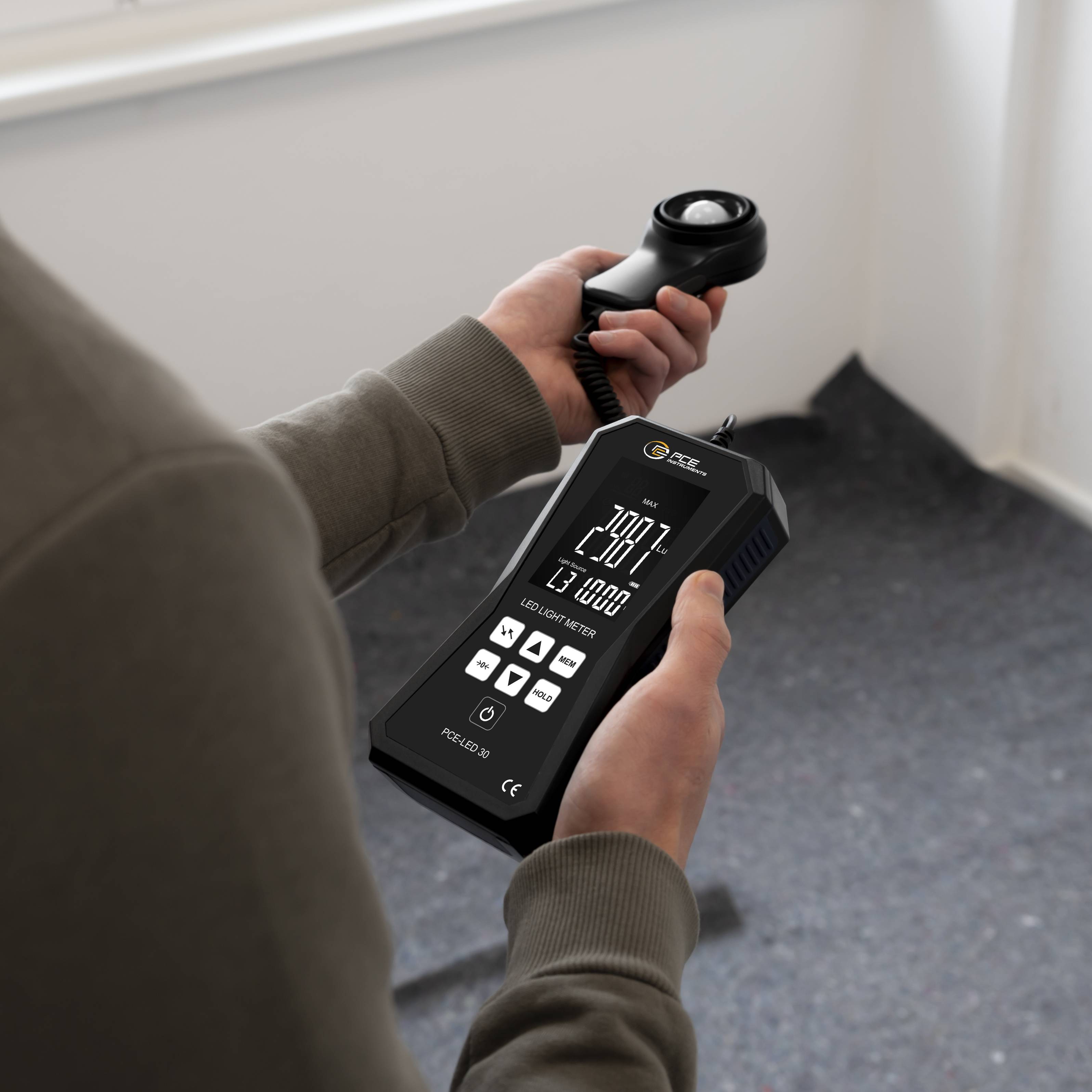

A luxmeter is used anywhere where a light check is necessary or recommended. The external light sensor from the Luxmeter can be positioned according to your needs. The cable of the sensor has a length of approx. 1.5 meters. Different work or production projects require different lighting conditions. The lighting conditions can be created by using different light bulbs. In the further course you will find the recommendations of the light conditions in schools, factories or offices. Our Luxmeter can show the measured values in the display directly after switching on. The functions installed in the device can also be activated or deactivated by various pre-settings. Among these functions is the normal HOLD function, with which the measuring value is frozen in the display. Furthermore, the extreme values and the average value can be frozen on the display. Other Luxmeter features include zero reset, automatic cut-off and automatic range selection.
Measurements can be made in Lux or in Foodcandle with the LED Luxmeter. The device is operated only with the seven buttons; WAS one-handed operation is possible. Our LED Luxmeter is a battery-operated handheld device, which allows mobile measurements.

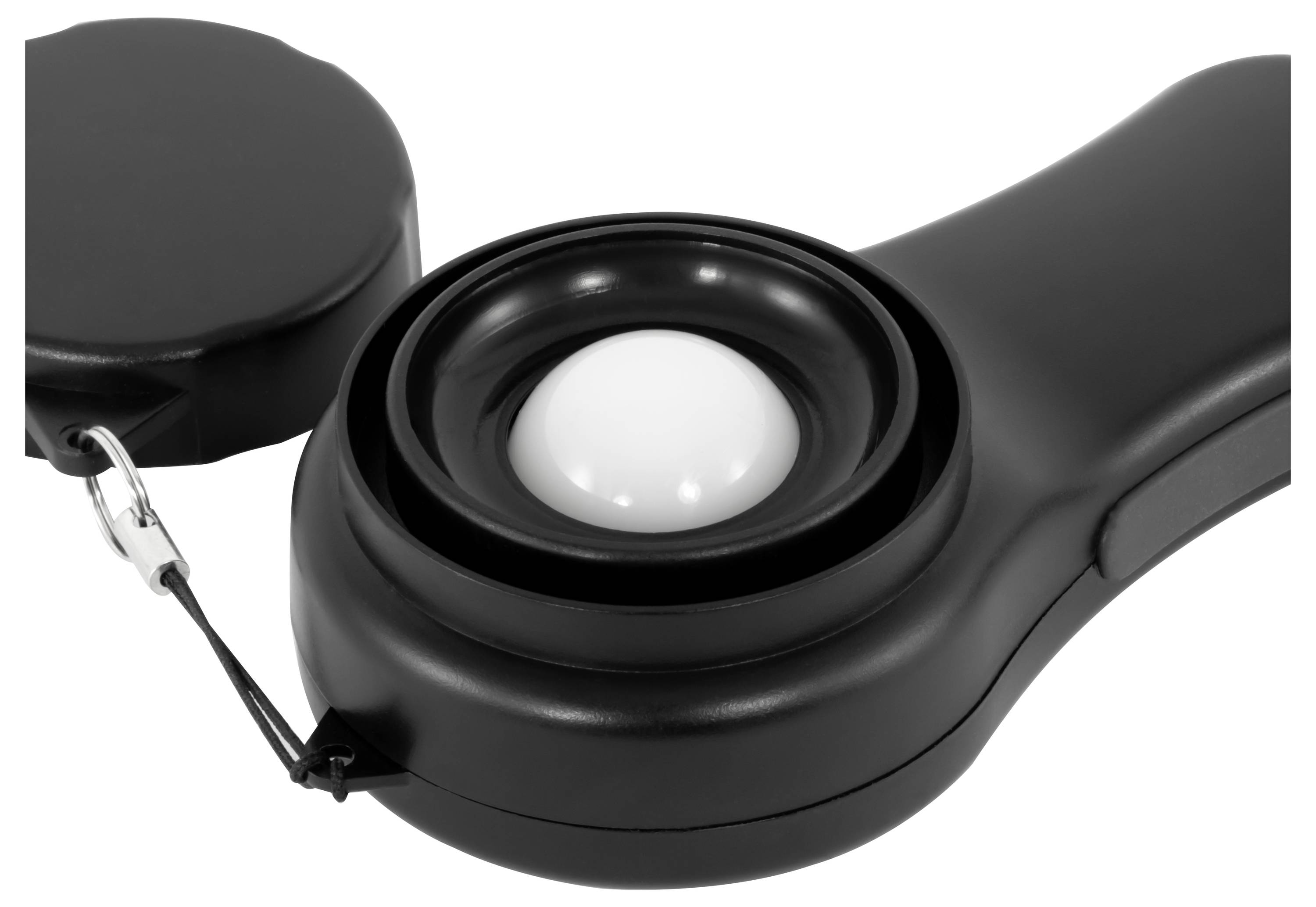

The external Luxmeter sensor has a large exposure area. It is located on a wound-up power cable, which reaches a length of approx. 1.5 meters in the pulled-out state. On the light sensor there is a protective cap that protects the sensor from damage and wear. If the device is not to be used for a long time, it should always be placed on the sensor. The protective cap is also needed if the LED Luxmeter is to be zeroed.
This text is machine translated.
Measurements can be made in Lux or in Foodcandle with the LED Luxmeter. The device is operated only with the seven buttons; WAS one-handed operation is possible. Our LED Luxmeter is a battery-operated handheld device, which allows mobile measurements.
The external Luxmeter sensor has a large exposure area. It is located on a wound-up power cable, which reaches a length of approx. 1.5 meters in the pulled-out state. On the light sensor there is a protective cap that protects the sensor from damage and wear. If the device is not to be used for a long time, it should always be placed on the sensor. The protective cap is also needed if the LED Luxmeter is to be zeroed.
This text is machine translated.
Features
- Battery status display
- Auto switch-off
- Overload display
- Zeroing
- Automatic range selection

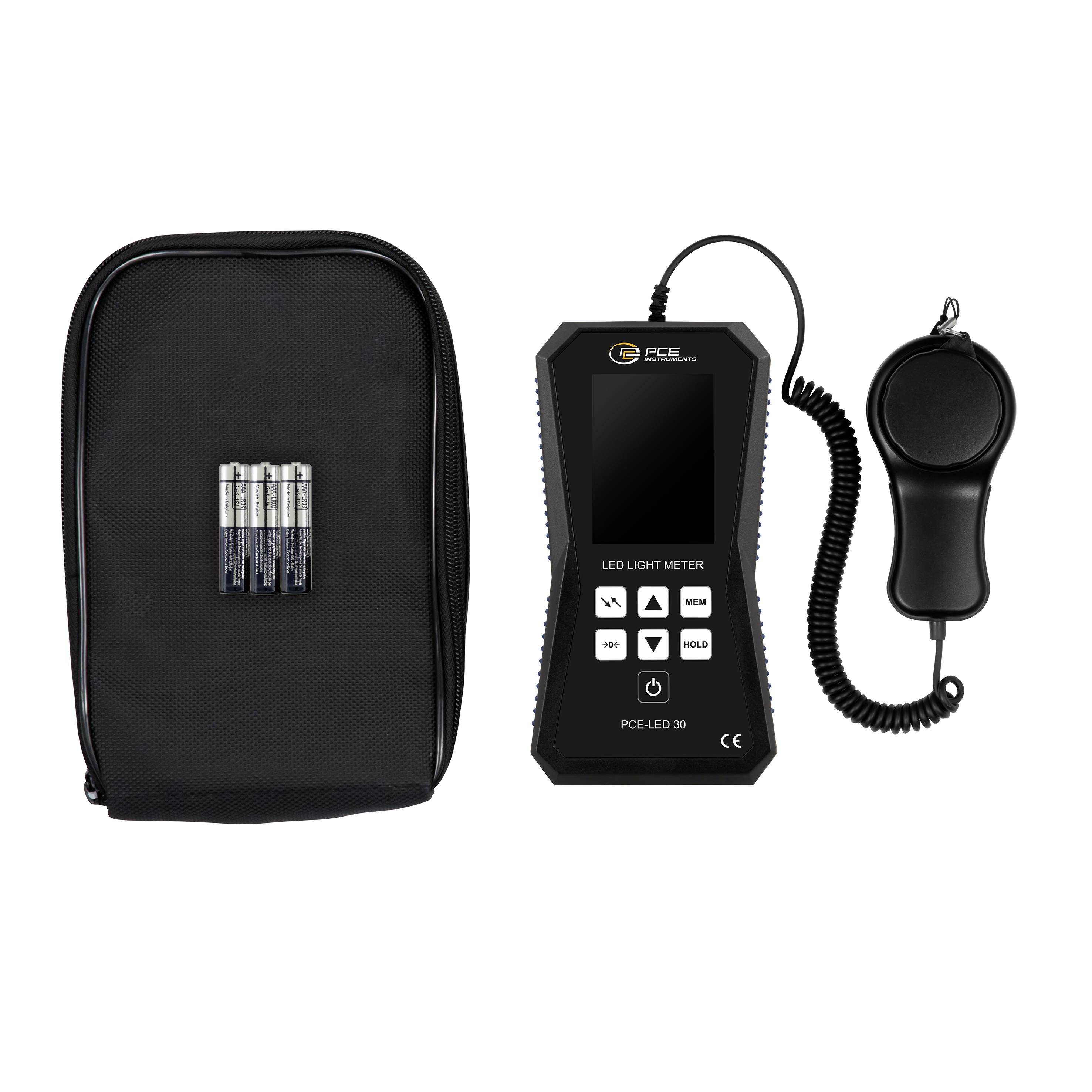

Scope of delivery
- 1 x Lux meter PCE LED 30
- 1 x light sensor with protective cap
- 3 x battery 1.5 V AA
- 1 x appliance bag
- 1x user manual
