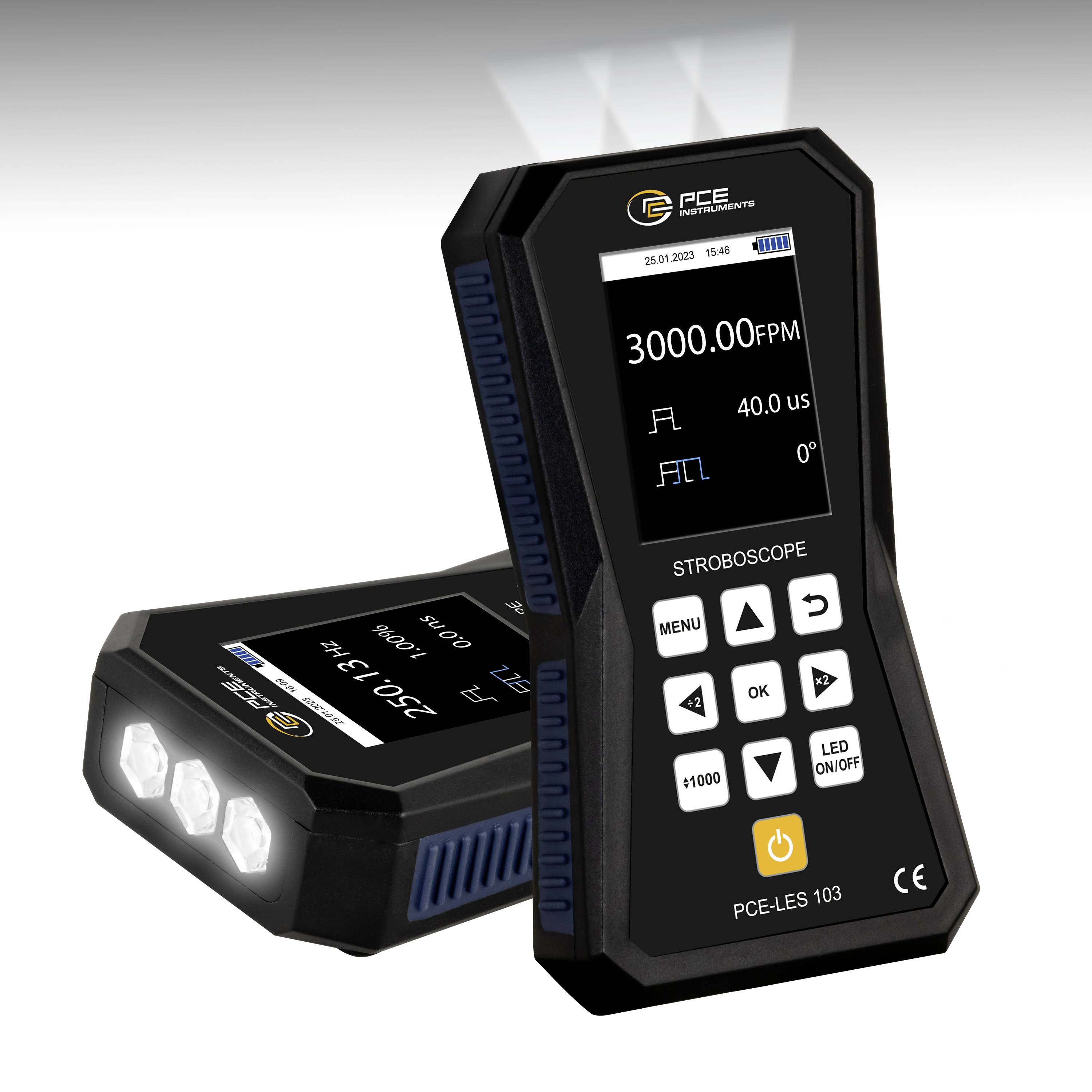

Two black handheld stroboscope devices with digital displays and control buttons; one shows 3000.0 RPM and 40.0 µs, the other has three LED lights.

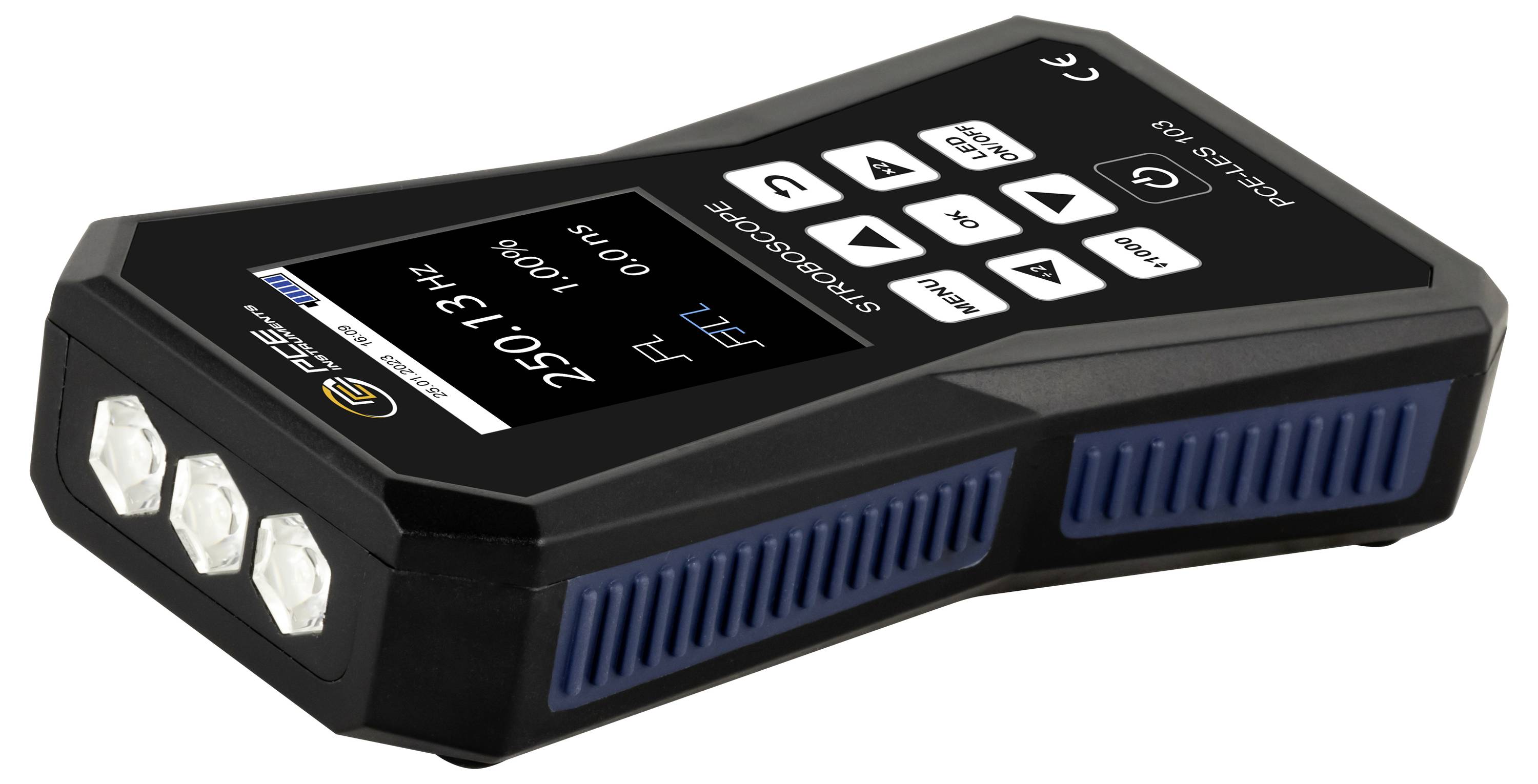

Black handheld industrial meter with display, keypad, and three front lenses/LEDs, shown in angled product view on a white background

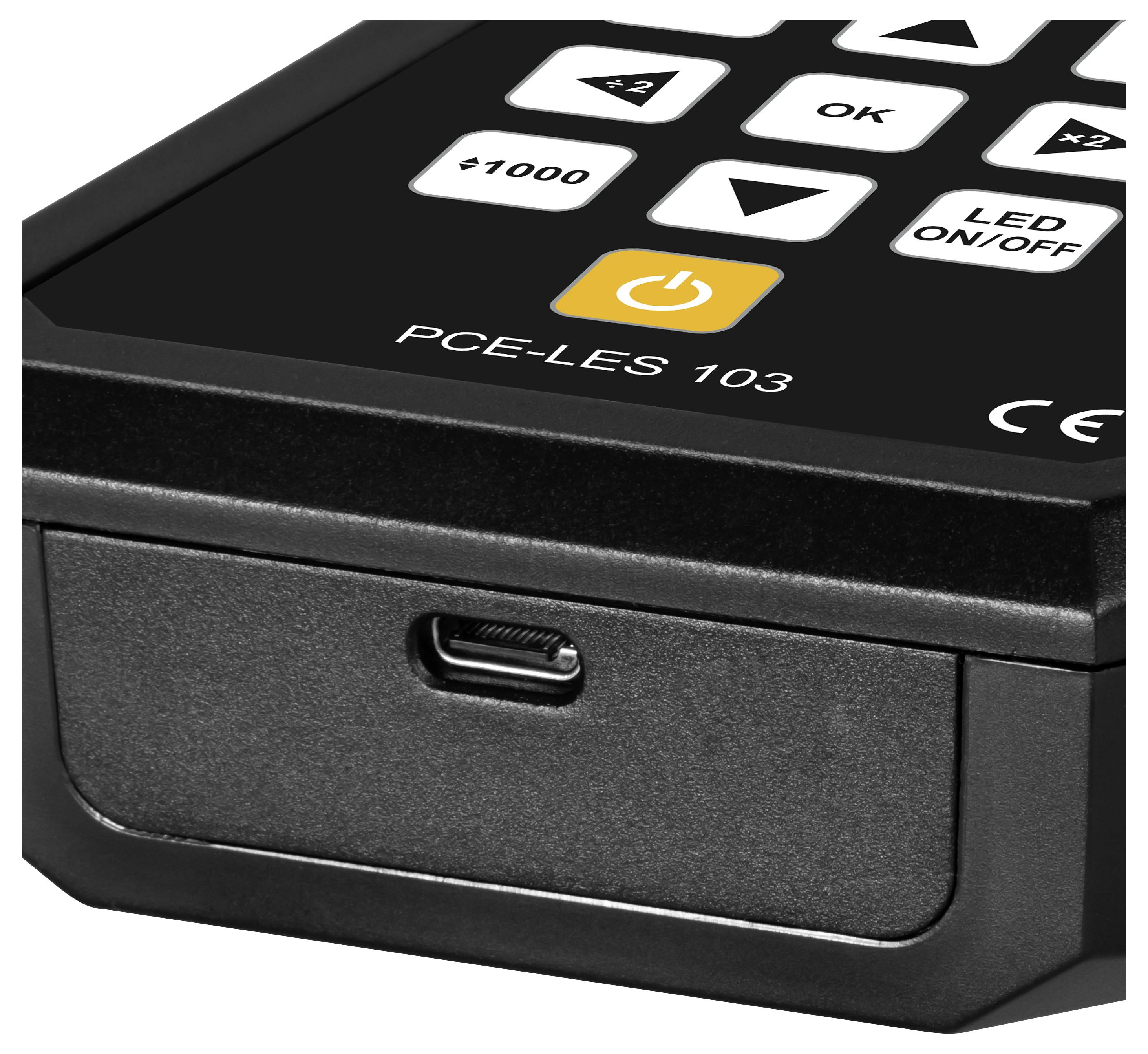

Close-up of a black PCE-LES 103 device control panel with arrow, OK, LED on/off, and power buttons above a front USB port.

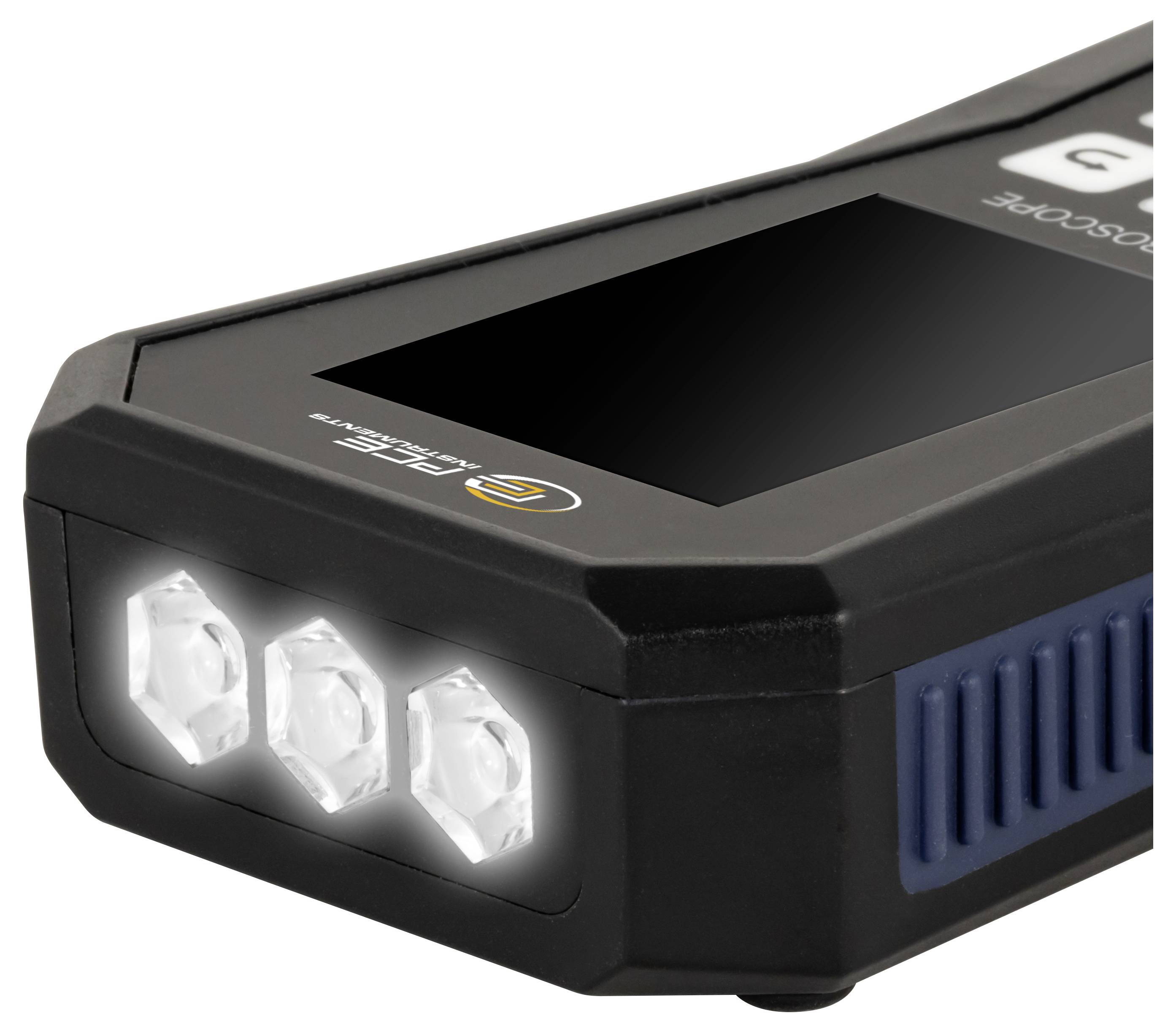

Compact black rechargeable LED work light with three front bulbs and a blue side grip, shown in close-up on a white background.

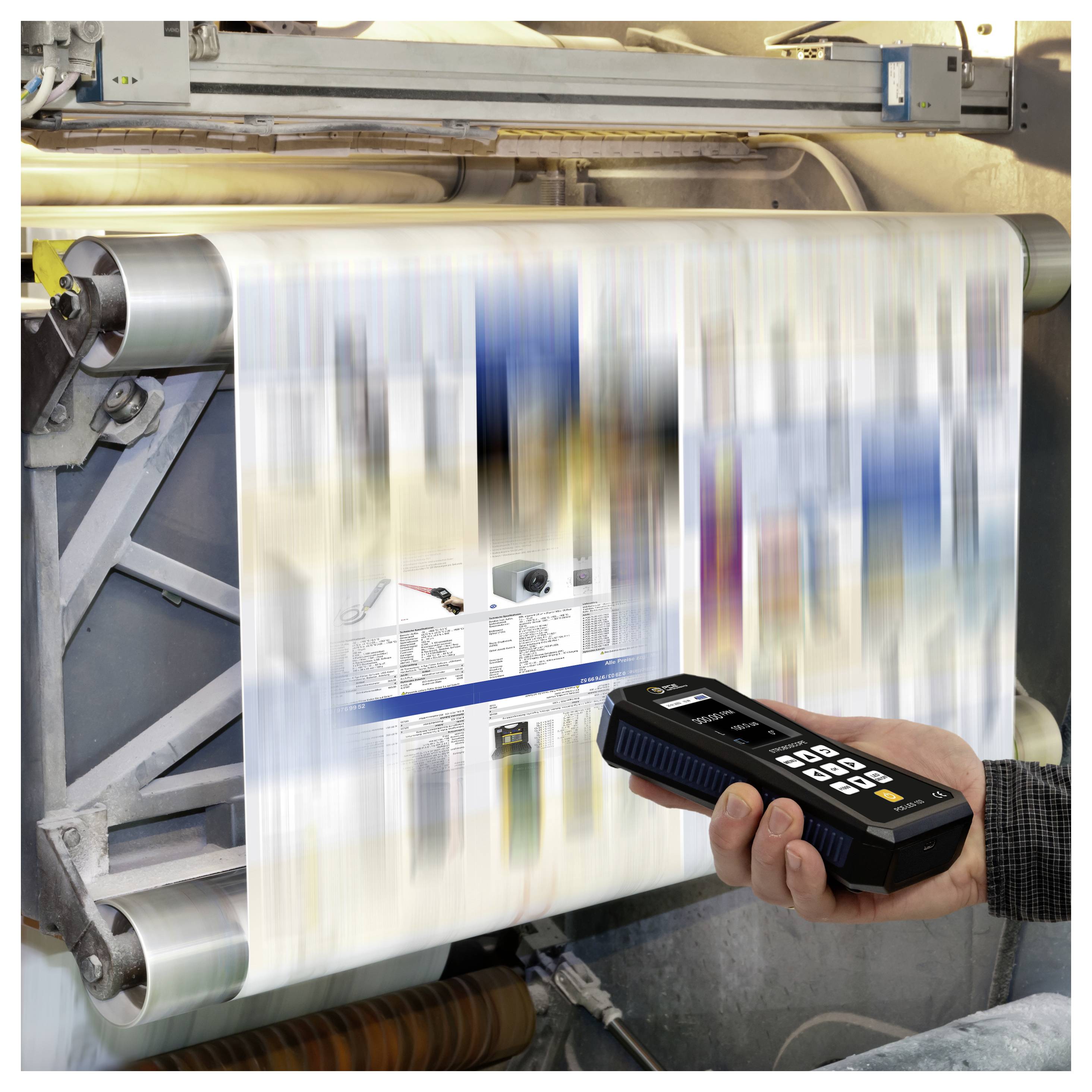

Printing press producing a blurred newspaper roll while a hand-held scanner inspects the moving sheet.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LES 103

Bright 3 high-Power LEDs
Flash frequency can be set in FPM and Hz
6160 lux at 30 cm / 1000 Hz
Digital pulse-width modulation
Phase shift - 360 ° ... + 360 °
Quick adjustment x2 and ÷2 buttons
Intuitive control buttons and clear display

Technical specifications

Frequency
Measurement range +60 FPM ... +999.99 FPM
Resolution 0.01 FPM
Accuracy 0.001 %
Frequency
Measuring range +10000 FPM ... +300000 FPM
Resolution 0.1 FPM
Accuracy 0.001 %
Frequency
Measuring range +1 Hz ... +5000 Hz
Resolution 0.01 Hz
Accuracy 0.001 %
General Technical Data
Display type TFT color display
Display size 2.8 inches
Operating time 4.5 h
Operating time additional information at flash frequency 100 Hz, 1 %, display brightness 70 %
Automatic shutdown adjustable 2 ... 10 min.
Automatic switch-off deactivated Yes
Light intensity 11730 lux @ 20cm @ 1000Hz 1%
6160 lux @ 30cm @ 1000Hz 1%
2650 lux @ 50cm @ 1000Hz 1%
Light colour 6500 K
Phase shift -360 ... 360 °
Pulse width 0.01 … 1 % of pulse duration
Resolution 0.01%
0.01 º … 3.60 º of 360 º
Resolution 0.01 º
Menu language German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese
Protection class (device) IP52
Voltage supply: 5V DC / 2A
Connector type
Weighs 284 g.
Dimensions (L x W x H) 165 x 90 x 35 mm
Operating conditions -20 ... 60 °C , 35 ... 85 % r.F.
Storage conditions -20 ... 60 °C , 35 ... 85 % r.F.

Operating voltage: 5 V DC

Product type: LED strobe

Colour: Cool white

: n.rel.

Dim: (L x W x H) 165 x 90 x 35 mm

Weight: 284 g

LEDs: 3 pc(s)

Flash rate: 100 flashes/min

Width: 90 mm

Height: 35 mm

Length: 165 mm

Documents & Downloads

Datasheet

Datasheet 3192976 PCE Instruments PCE-LES 103 LED strobe No. of LEDs (details):3 pc(s) Cool white

User & Safety Instructions

User & Safety Instructions 3192976 PCE Instruments PCE-LES 103 LED strobe No. of LEDs (details):3 pc(s) Cool white

Description

The movement analysis of rotating machines is quick and easy with our stroboscope. The stroboscope is equipped with 3 high-power LEDs that together produce a light intensity of 11730 Lux at 20 cm/1000 Hz. With the stroboscope, you can set the flash frequency precisely in FPM as well as in Hz. And this is small, handy and battery independent of mains supply.

The intuitive operation of the strobe is done via the 10 buttons, thus enabling quick adjustments. The phase shift allows a variable shift of the observation point. With the pulse width the duration and thus also the intensity of the flash frequency can be adjusted. In the settings menu, you can select the display brightness or the display mode after an inactive time. WAS extends the battery life. The stroboscope is delivered with a USB-C charging cable in a service case.

The stroboscope is an indispensable tool for monitoring and inspection of production plants, e.g. in the printing and textile industries. Also for general maintenance and inspection tasks in all industrial areas. The stroboscope also enables contact-free speed and vibration measurement: If the strobe's lightning frequency matches the movement frequency, the test object appears standing.
