PCE Instruments PCE-LES 103UV-385-ICA LED strobe No. of LEDs (details):3 pc(s) UV/blacklight
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LES 103UV-385-ICA
- 3 UVA high-power LEDs
- Light color: 380 ... 390 nm
- Flash frequency can be set in FPM and Hz
- Intensity: 317 μW/cm² at 30 cm
- Digital pulse-width modulation
- Phase shift: 360 ° ... + 360 °
- Quick adjustment x2 and ÷2 buttons
- Intuitive control buttons and clear display

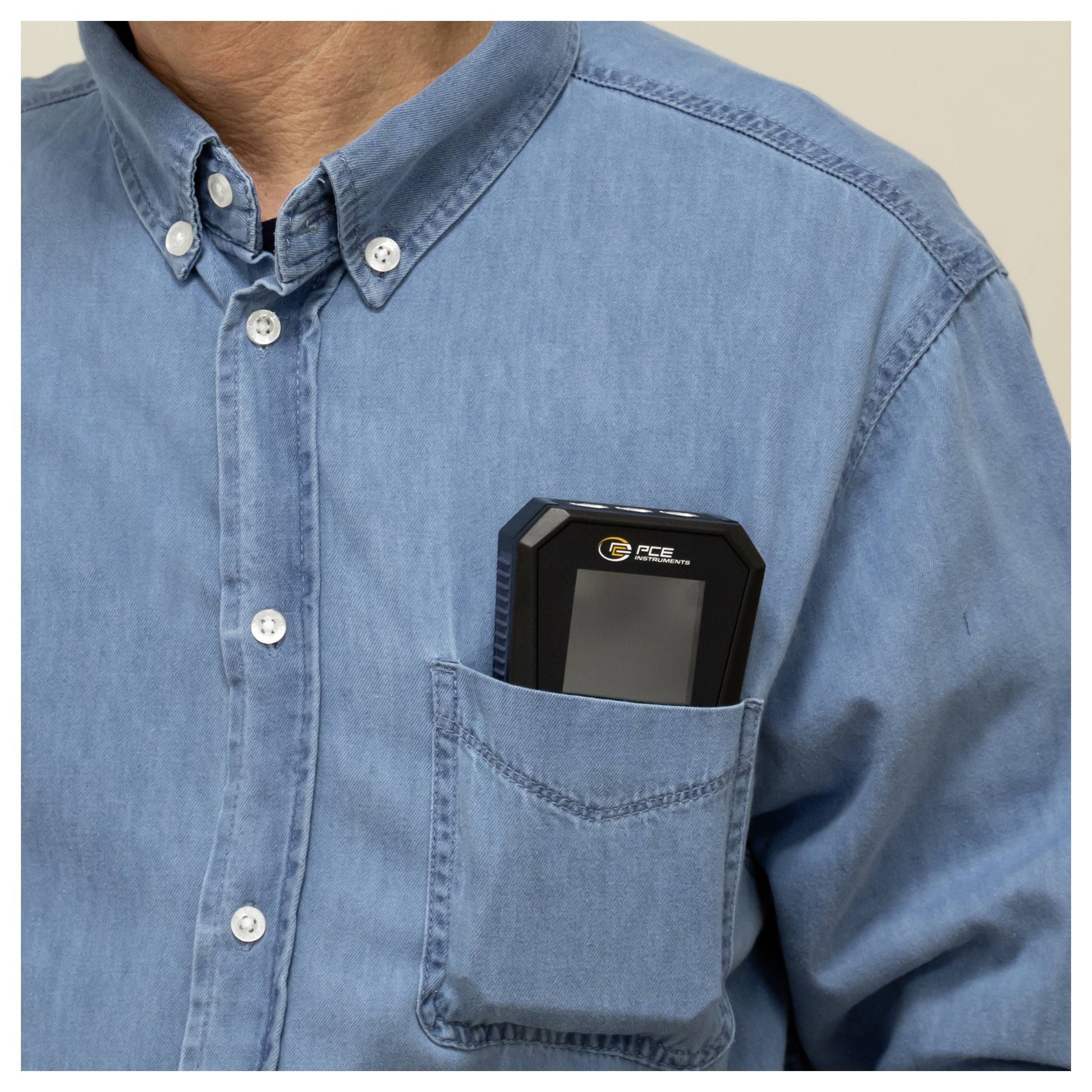

- Pocket size
- Incl. ISO calibration certificate
Technical specifications
- Frequency
- Measuring range 60 ... 9999.99 FPM
- Resolution 0.01 FPM
- Accuracy ±0.003% of the setting or ±1 LSD
- Frequency
- Measuring range 10000 ... 300000 FPM
- Resolution 0.1 FPM
- Accuracy ±0.003% of the setting or ±1 LSD
- Frequency
- Measuring range 1 ... 5000 Hz
- Resolution 0.01 Hz
- Accuracy ±0.003% of the setting or ±1 LSD
- General Technical Data
- Display type LC-color display
- Display size 2.8 inches
- Storage medium Internal memory
- Operating time 4.5 h
- Operating time additional information at flash frequency 100 Hz, 1 %, display brightness 70 %
- Automatic shutdown of ... to 2 ... 10 min.
- Automatic switch-off deactivated Yes
- Brightness 635 μW/cm2 @ 20 cm @ 1000 Hz, 1 %,317 μW/cm2 @ 30 cm @ 1000 Hz, 1 %,115 μW/cm2 @ 50 cm @ 1000 Hz, 1 %,
- Light color UV light (380 ... 390 nm)
- Phase shift -360 ... 360 °
- Pulse width 0.01 … 1 % of pulse duration,Resolution: 0.01 %,,0.01 º … 3.60 º of 360 º,Resolution: 0.01 º
- Menu language Turkish, English (US), Polish, Spanish, German, Chinese, Russian, French, Italian, Dutch
- Protection class (device) IP52
- Voltage supply: 5V DC / 2A
- Battery/battery 1 x 7.4 V internal , lithium-ion battery
- Capacity 2200 mAh
- Operating conditions -20 ... 60 °C , 35 ... 85 % r.F.
- Storage conditions -20 ... 60 °C , 35 ... 85 % r.F.
- Dimensions ( L x W x H ) 165 x 90 x 35 mm
- Weighs 284 g.
- Operating voltage
5 V DC
- Product type
LED strobe
- Colour
UV/blacklight
- Dim
(L x W x H) 165 x 90 x 35 mm
- Weight
284 g
- LEDs
3 pc(s)
- Flash rate
300000 flashes/min
- Width
90 mm
- Height
35 mm
- Length
165 mm
Documents & Downloads
Datasheet
Datasheet 3812866 PCE Instruments PCE-LES 103UV-385-ICA LED strobe No. of LEDs (details):3 pc(s) UV/blacklight
User & Safety Instructions
User & Safety Instructions 3812866 PCE Instruments PCE-LES 103UV-385-ICA LED strobe No. of LEDs (details):3 pc(s) UV/blacklight
Description

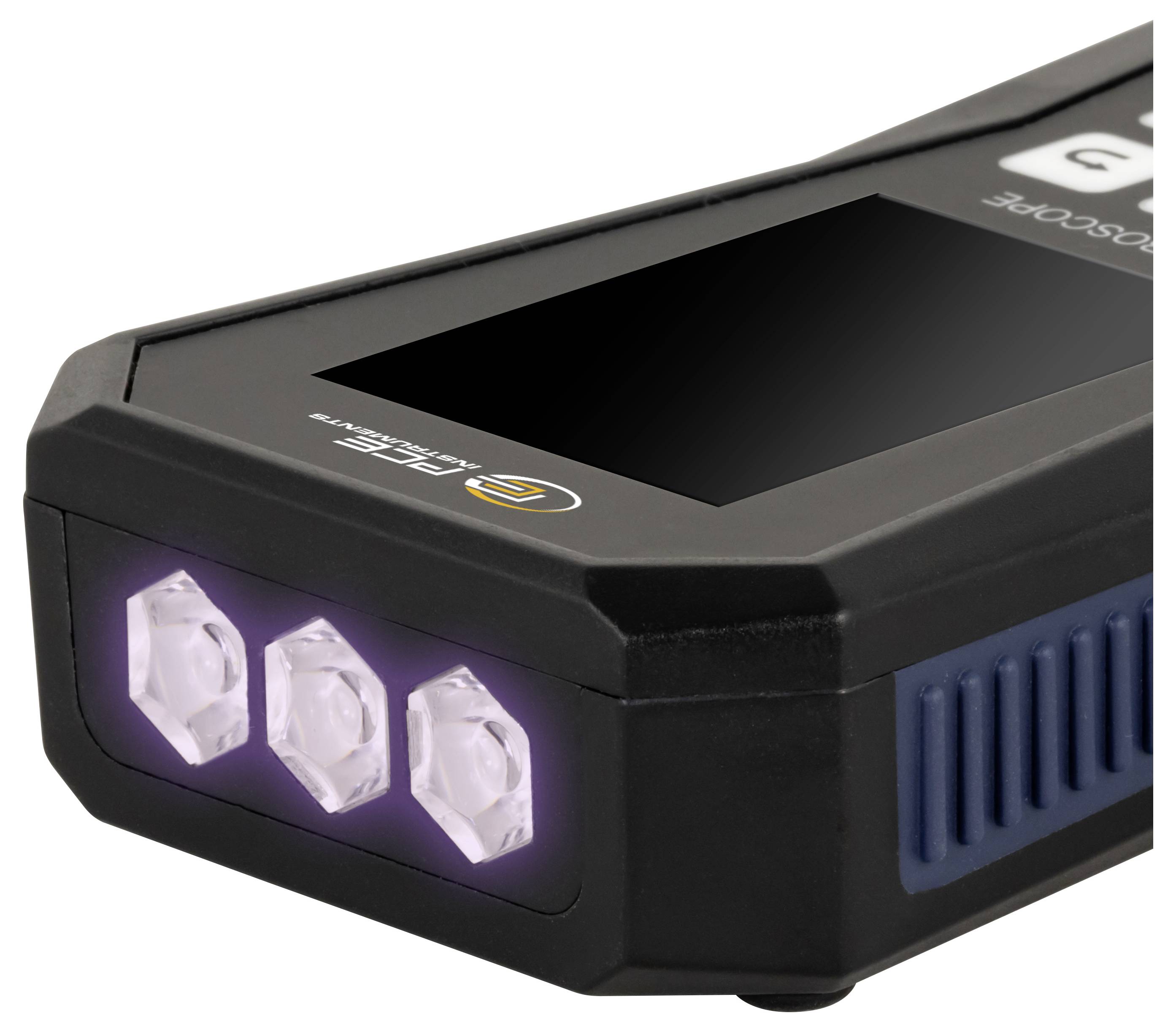

The movement analysis of rotating machines is quick and easy with our stroboscope. The UV stroboscope is equipped with 3 high-power UVA LEDs (385 nm) that together produce a light intensity of 317 μW/cm2 at a distance of 30 cm. The stroboscope enables setting the flash frequency in FPM and Hz. The stroboscope is small in pocket size and is independent of mains power supply due to the battery.

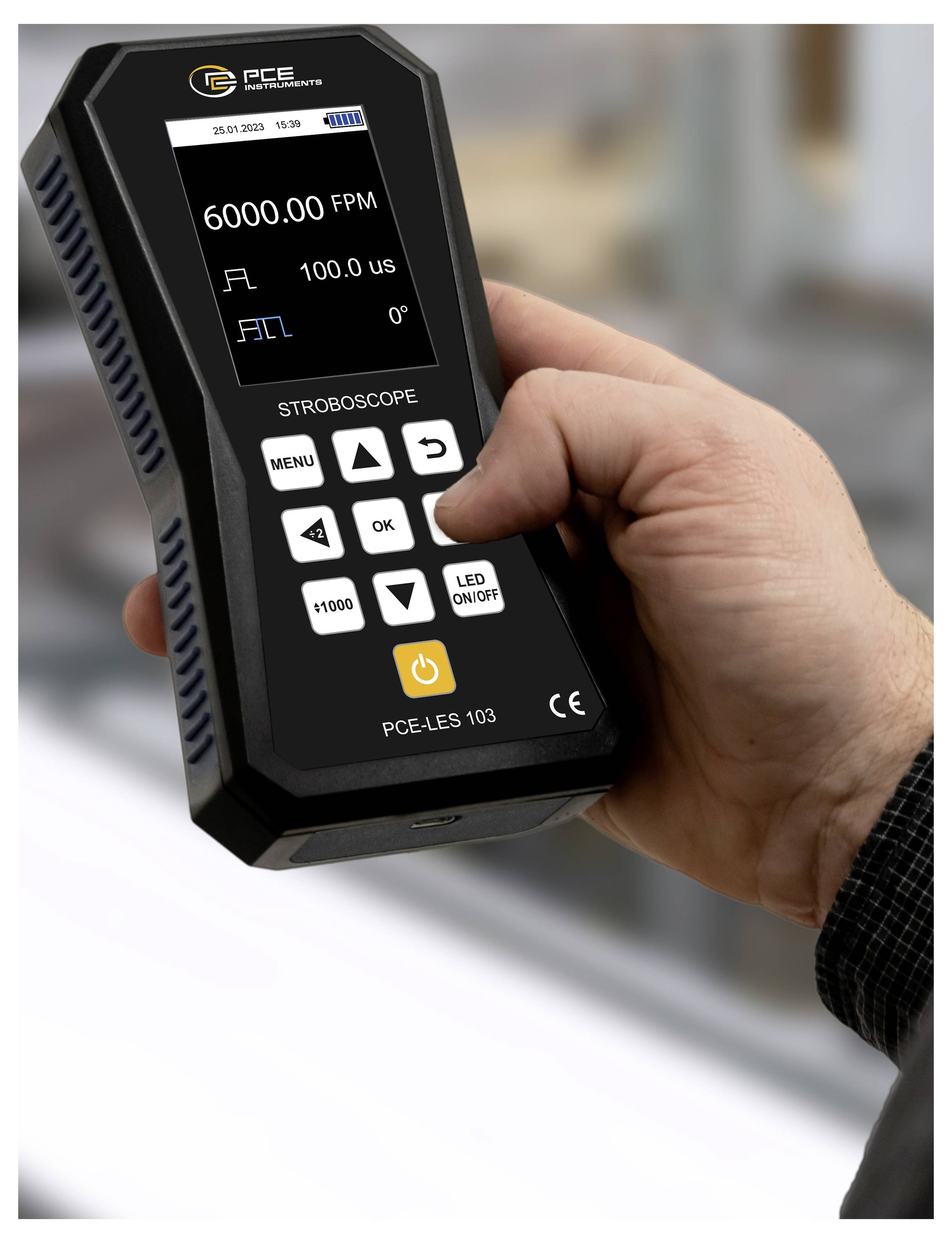

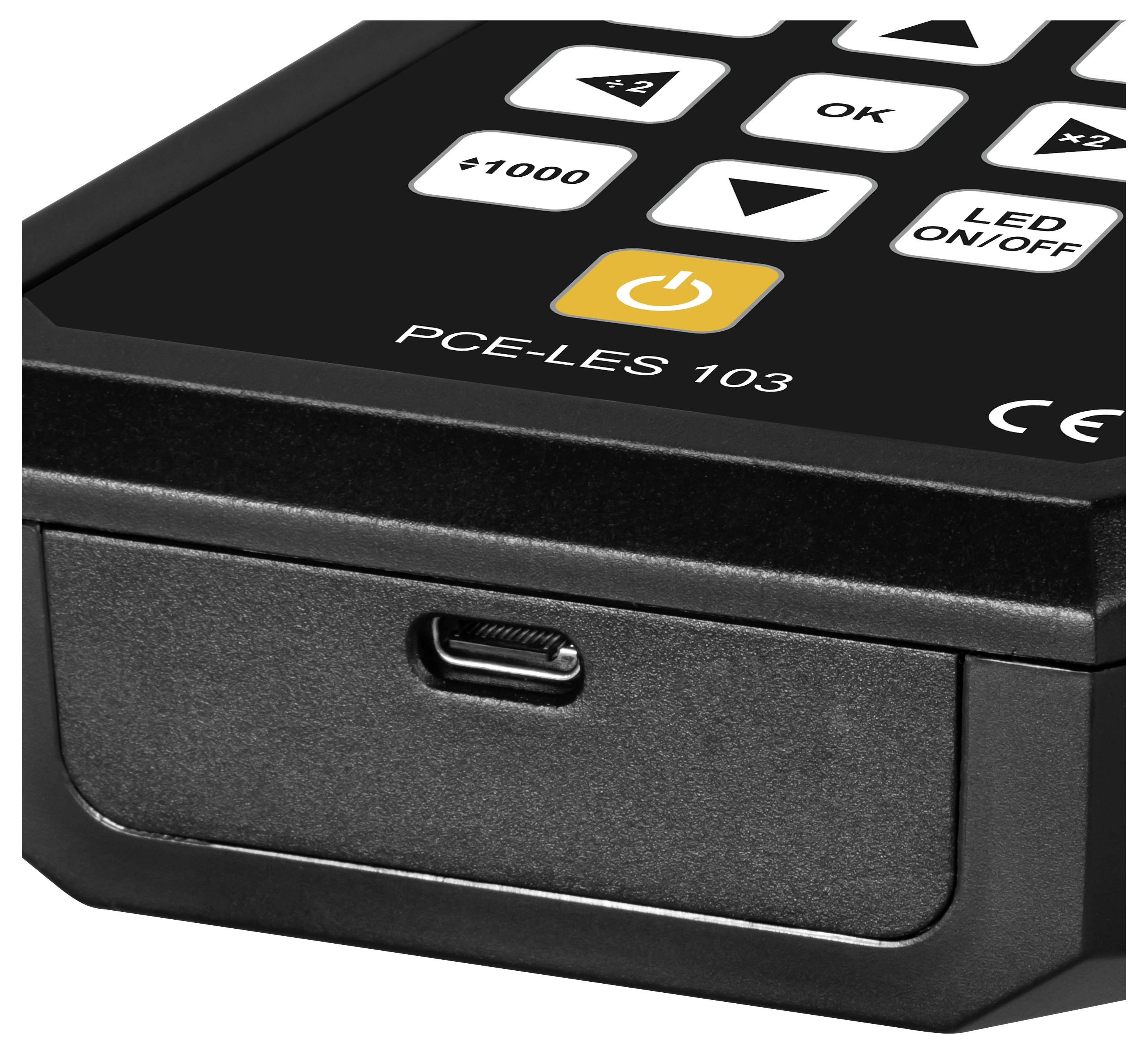

The UV strobe is operated intuitively via 10 buttons, enabling fast settings. The observation point can be moved variable with the phase shift. With the pulse width the duration and with it the intensity of the flash frequency can be set. In the settings menu, you can select the display brightness as well as a switch-off of the display after an inactive time. WAS leads to an extension of the battery life. The stroboscope is delivered with a USB-C charging cable in a service case.
For the monitoring and inspection of production plants, e.g. in the printing and textile industries, stroboscopes are indispensable tools. Also for general maintenance and inspection tasks in all industrial areas. They also enable contact-free speed and vibration measurement: If the flash frequency of the UV strobe matches the movement frequency, the object to be measured appears standing.
This text is machine translated.
The UV strobe is operated intuitively via 10 buttons, enabling fast settings. The observation point can be moved variable with the phase shift. With the pulse width the duration and with it the intensity of the flash frequency can be set. In the settings menu, you can select the display brightness as well as a switch-off of the display after an inactive time. WAS leads to an extension of the battery life. The stroboscope is delivered with a USB-C charging cable in a service case.
For the monitoring and inspection of production plants, e.g. in the printing and textile industries, stroboscopes are indispensable tools. Also for general maintenance and inspection tasks in all industrial areas. They also enable contact-free speed and vibration measurement: If the flash frequency of the UV strobe matches the movement frequency, the object to be measured appears standing.
This text is machine translated.
Scope of delivery
- 1 x UV stroboscope PCE-LES 103UV-385-ICA
- 1 x USB-C cable
- 1 x quick start guides
- 1 x Service case

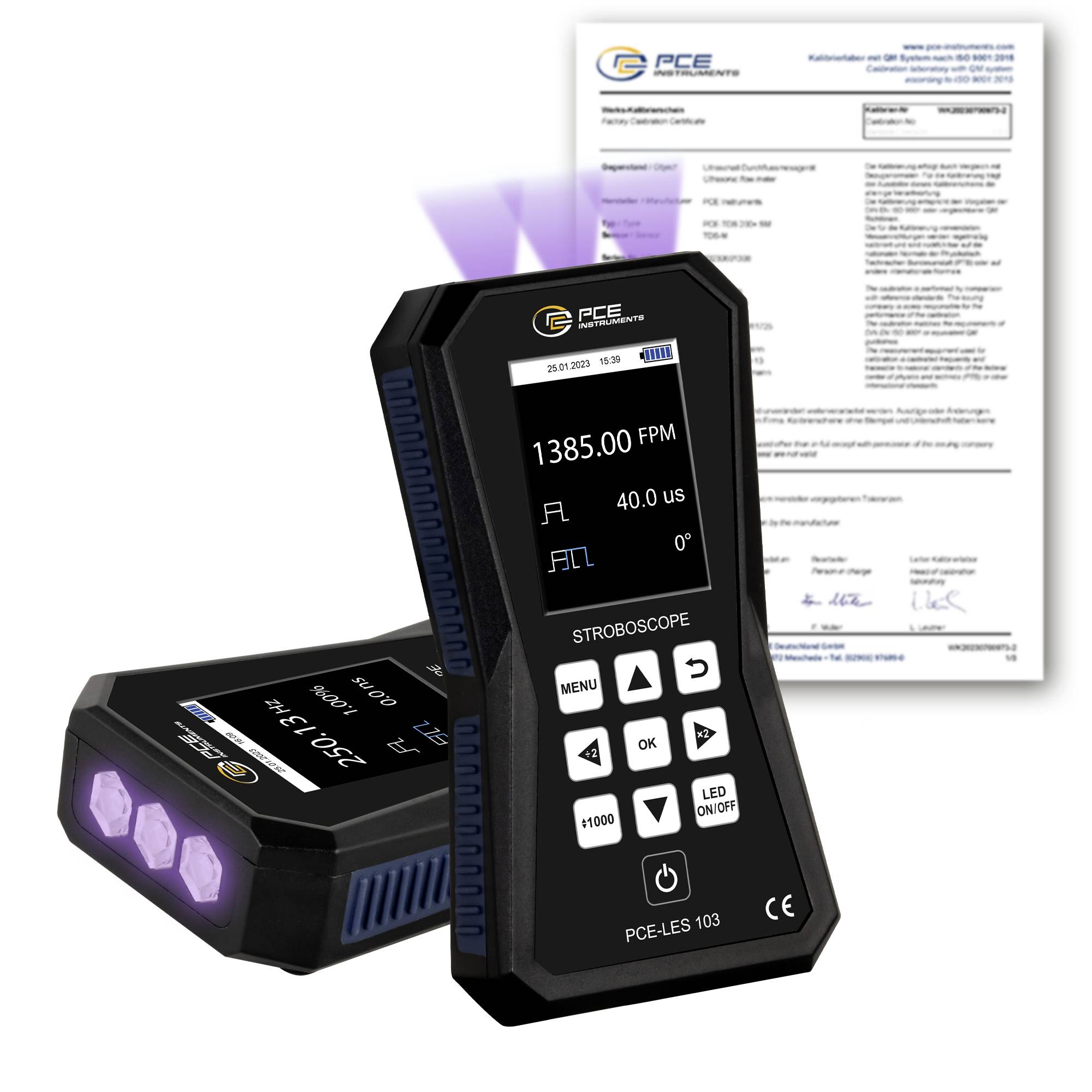

- 1 x ISO calibration certificate
