PCE Instruments PCE-LES 308-ICA LED strobe No. of LEDs (details):8 pc(s) White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LES 308-ICA

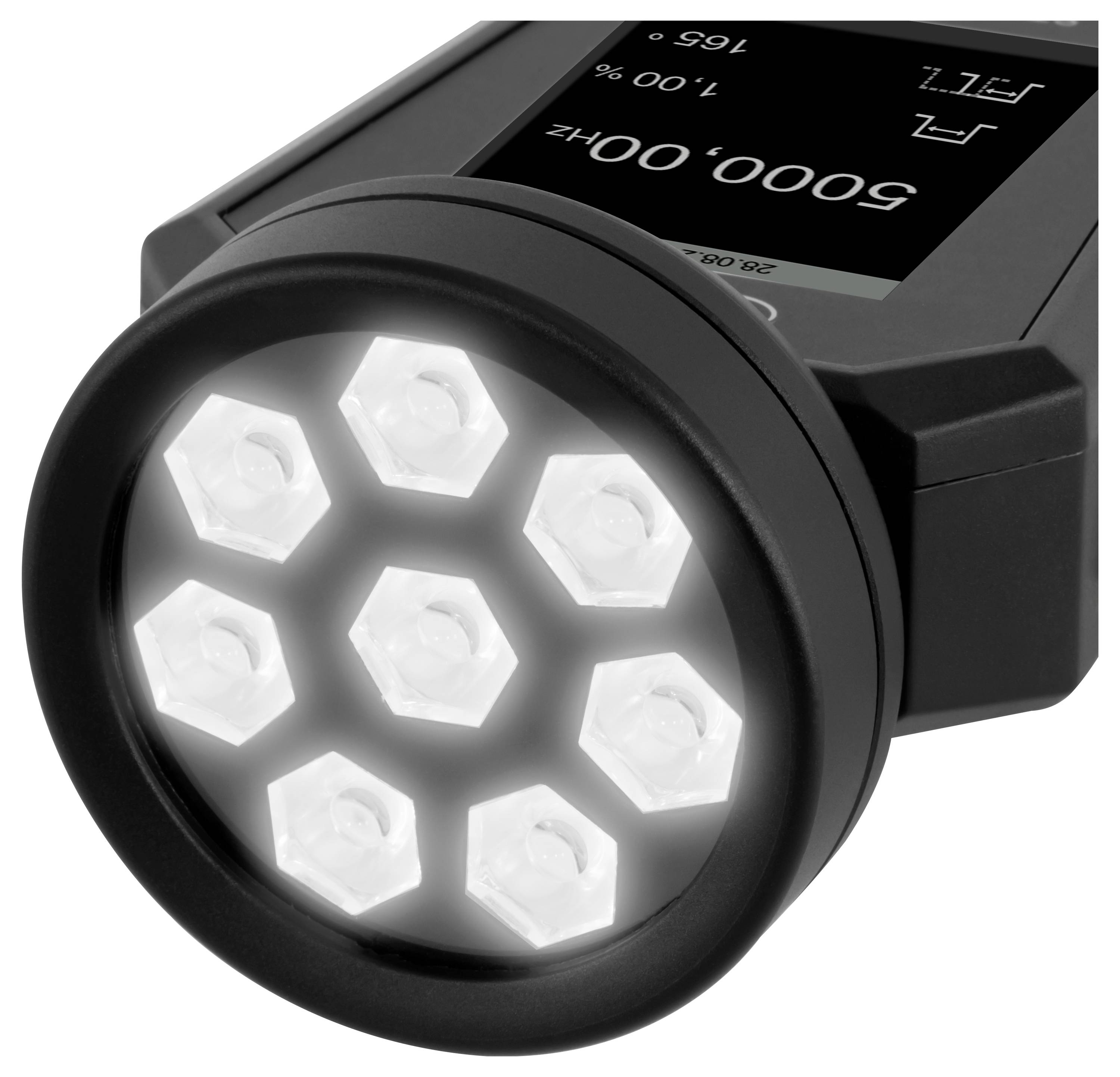

- Bright 8 high-Power LEDs
- Flash frequency can be set in FPM and Hz
- 9150 lux at 30 cm / 1000 Hz
- Digital pulse-width modulation
- Phase shift 360 ° ... + 360 °
- Quick adjustment x2 and ÷2 buttons
- Intuitive control buttons and clear display
- Pocket size

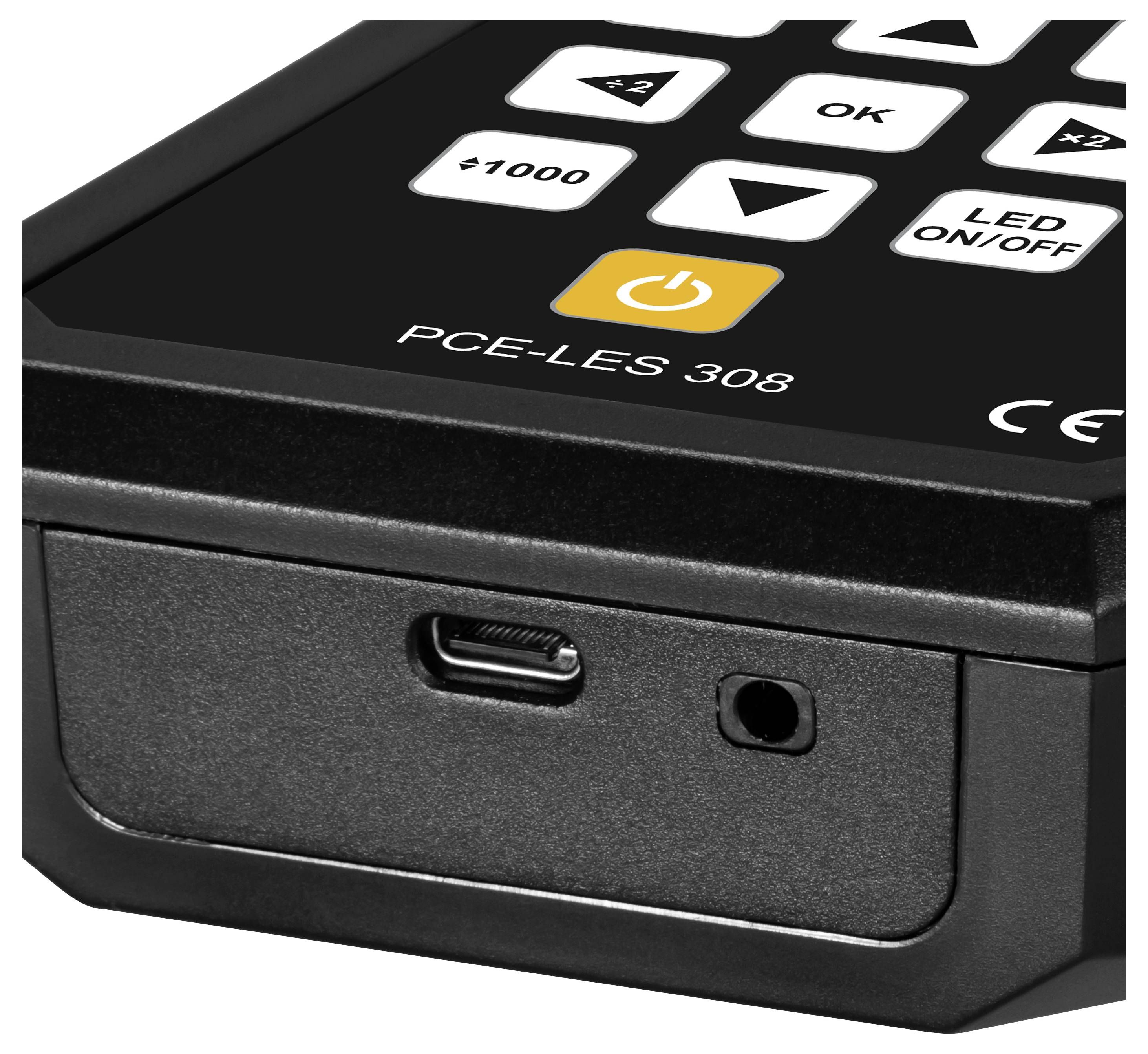

- External trigger input and output
- Route measurement
- Slow-motion mode

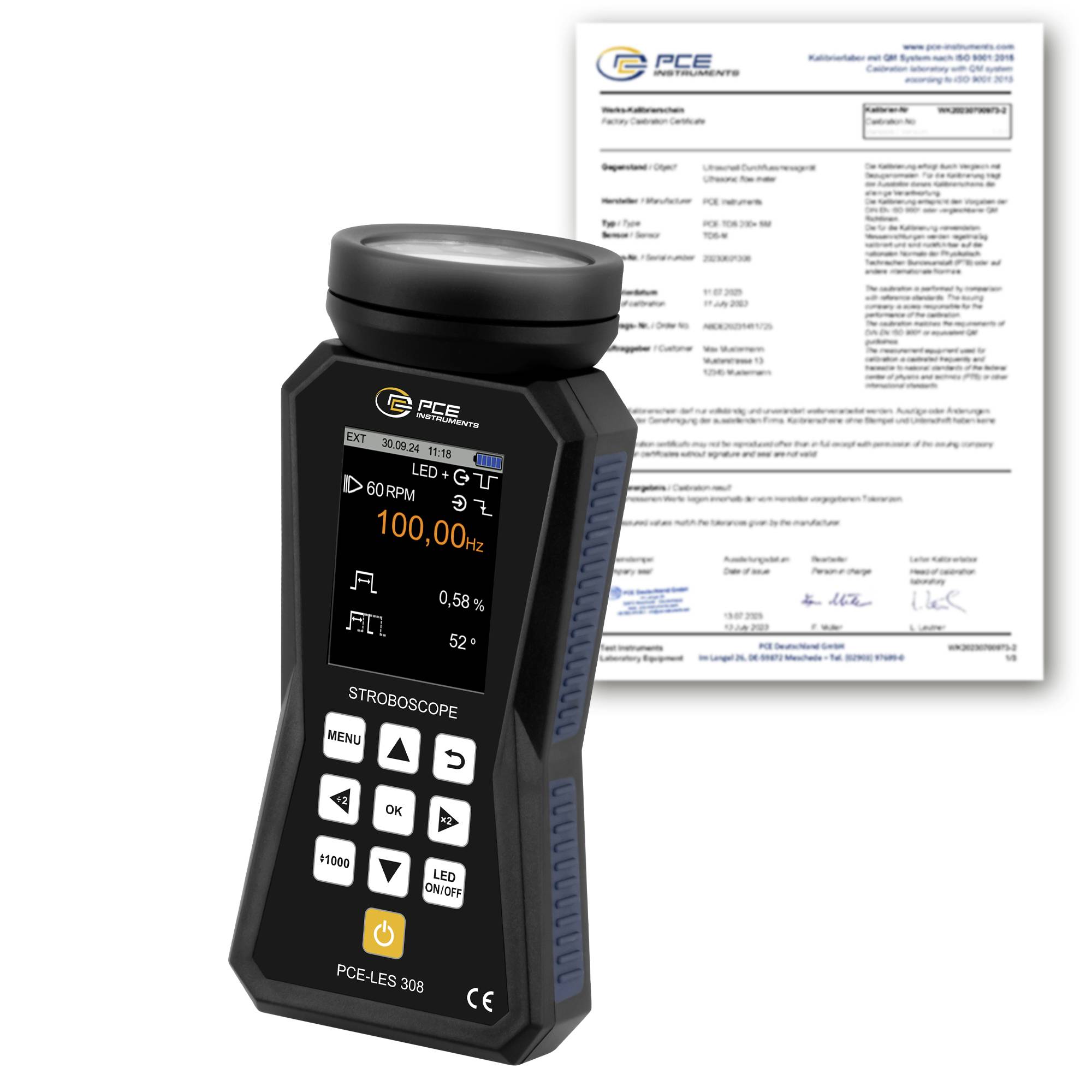

- Incl. ISO calibration certificate
Technical specifications
- Frequency
- Measuring range 60 ... 9999.99 FPM
- Resolution 0.01 FPM
- Accuracy ±0.003% of the setting or ±1 LSD
- Frequency
- Measuring range 10000 ... 300000 FPM
- Resolution 0.1 FPM
- Accuracy ±0.003% of the setting or ±1 LSD
- Frequency
- Measuring range 1 ... 5000 Hz
- Resolution 0.01 Hz
- Accuracy ±0.003% of the setting or ±1 LSD
- General Technical Data
- Display type LC-color display
- Display size 2.8 inches
- Storage medium Internal memory
- Operating time 4.5 h
- Operating time additional information at flash frequency 100 Hz, 1 %, display brightness 70 %
- Automatic shutdown of ... to 2 ... 10 min.
- Automatic switch-off deactivated Yes
- Light intensity 17670 lux @ 20 cm @ 1000 Hz 1%,9150 lux @ 30 cm @ 1000 Hz 1%,4100 lux @ 50 cm @ 1000 Hz 1%
- Light colour 6200 K
- Phase shift -360 ... 360 °
- Pulse width 0.01 … 1 % of pulse duration,Resolution: 0.01 %,0.01 º … 3.60 º of 360 º,Resolution: 0.01 º,
- Trigger input: Permitted input: NPN signal, 24 V DC, sensor supply: 24 V / 100 mA for external sensors, output: Open drain output, up to 24 V, 50 mA
- Route measurement Up to 15 routes, 10 machines per route, 5 points per machine
- Menu language Turkish, English (US), Polish, Spanish, German, Chinese, Russian, French, Italian, Dutch
- Protection class (device) IP52
- Voltage supply: 5 V DC / 2 A
- Battery/battery 1 x 7.4 V internal , lithium-ion battery
- Capacity 2200 mAh
- Operating conditions -20 ... 60 °C , 35 ... 85 % r.F.
- Storage conditions -20 ... 60 °C , 35 ... 85 % r.F.
- Dimensions ( L x W x H ) 165 x 90 x 35 mm
- Weighs 284 g.
- Operating voltage
5 V DC
- Product type
LED strobe
- Colour
White
- Dim
(L x W x H) 165 x 90 x 35 mm
- Weight
284 g
- LEDs
8 pc(s)
- Flash rate
300000 flashes/min
- Width
90 mm
- Height
35 mm
- Length
165 mm
Documents & Downloads
Datasheet
Datasheet 3812873 PCE Instruments PCE-LES 308-ICA LED strobe No. of LEDs (details):8 pc(s) White
User & Safety Instructions
User & Safety Instructions 3812873 PCE Instruments PCE-LES 308-ICA LED strobe No. of LEDs (details):8 pc(s) White
Description
The movement analysis of rotating machines is quick and easy with our stroboscope. The stroboscope is equipped with 8 high-Power LEDs that together produce a light intensity of 17670 Lux at 20 cm/1000 Hz.
With the stroboscope, you can set the flash frequency precisely in FPM as well as in Hz. The stroboscope is small in pocket size and does not require mains power by the battery.
The intuitive operation of the strobe is done via the 10 buttons, thus enabling quick adjustments. The phase shift allows a variable shift of the observation point. With the pulse width the duration and thus also the intensity of the flash frequency can be adjusted. In the settings menu, you can select the display brightness or the display mode after an inactive time. WAS extends the battery life. The stroboscope is delivered with a USB-C charging cable in a service case.
When Input Trigger Mode is activated, the unit synchronizes the flash rate of the LEDs (or with the output trigger signal) using the supplied input trigger signal. A rising or falling edge of the signal to be synchronized can be selected. In the output trigger mode, the device generates a PWM signal with the selected frequency, the selected pulse ratio and the selected phase shift.

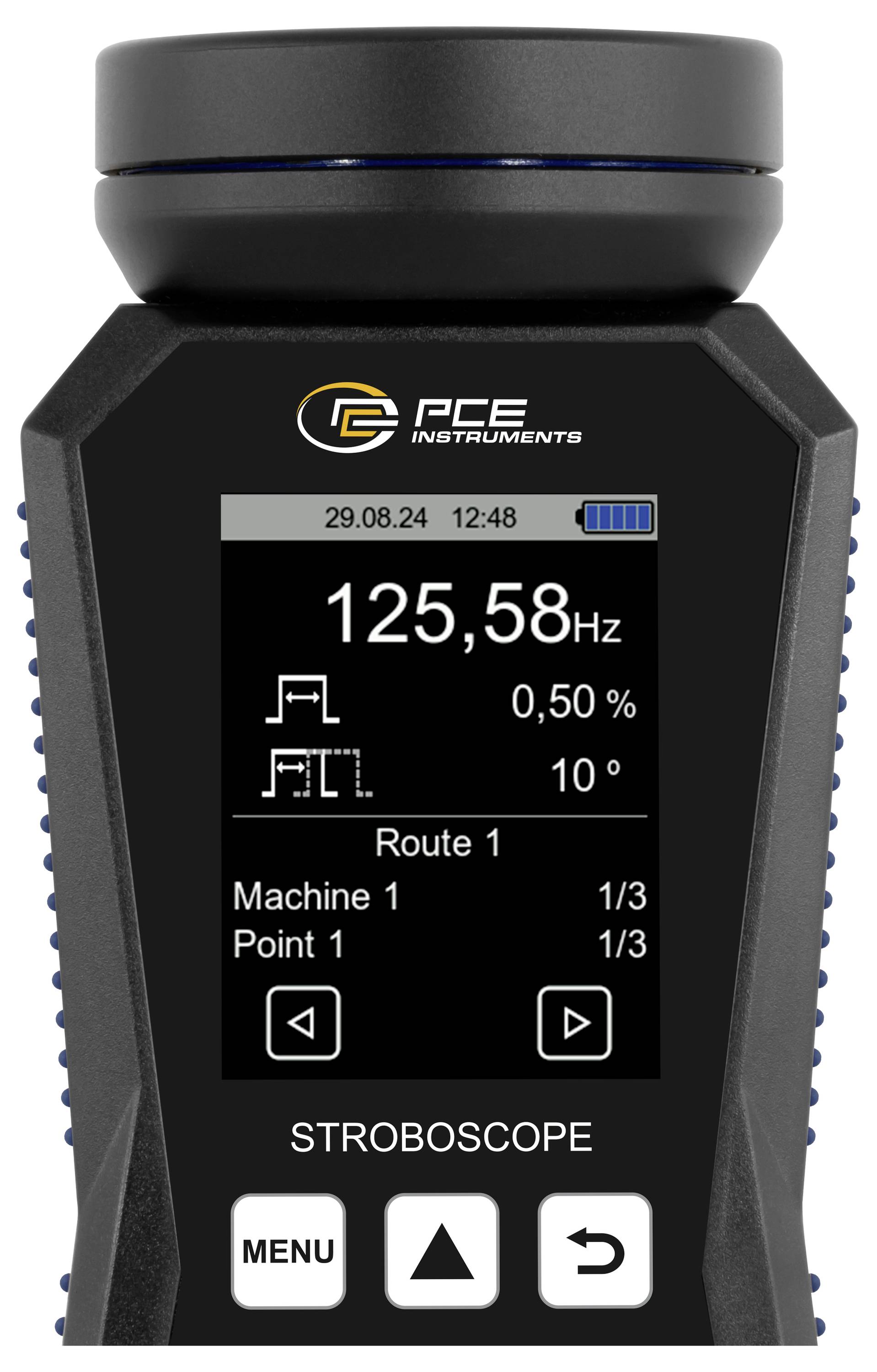

Route measurement mode allows you to use a set of predefined settings for frequency, duty cycle and phase shift and navigate from one point to the next without having to manually adjust the values at each point. The device enables the storage of up to 15 routes with up to 10 machines per route and up to 5 points per machine.
Stroboscope are essential tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. Also for general maintenance and inspection tasks in all industrial areas. They also enable contact-free speed and vibration measurement: If the strobe's flash rate matches the movement frequency, the test object appears standing.
This text is machine translated.
With the stroboscope, you can set the flash frequency precisely in FPM as well as in Hz. The stroboscope is small in pocket size and does not require mains power by the battery.
The intuitive operation of the strobe is done via the 10 buttons, thus enabling quick adjustments. The phase shift allows a variable shift of the observation point. With the pulse width the duration and thus also the intensity of the flash frequency can be adjusted. In the settings menu, you can select the display brightness or the display mode after an inactive time. WAS extends the battery life. The stroboscope is delivered with a USB-C charging cable in a service case.
When Input Trigger Mode is activated, the unit synchronizes the flash rate of the LEDs (or with the output trigger signal) using the supplied input trigger signal. A rising or falling edge of the signal to be synchronized can be selected. In the output trigger mode, the device generates a PWM signal with the selected frequency, the selected pulse ratio and the selected phase shift.
Route measurement mode allows you to use a set of predefined settings for frequency, duty cycle and phase shift and navigate from one point to the next without having to manually adjust the values at each point. The device enables the storage of up to 15 routes with up to 10 machines per route and up to 5 points per machine.
Stroboscope are essential tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. Also for general maintenance and inspection tasks in all industrial areas. They also enable contact-free speed and vibration measurement: If the strobe's flash rate matches the movement frequency, the test object appears standing.
This text is machine translated.
Scope of delivery
- 1 x stroboscope PCE-LES 308-ICA
- 1 x USB-C cable
- 1 x quick start guides

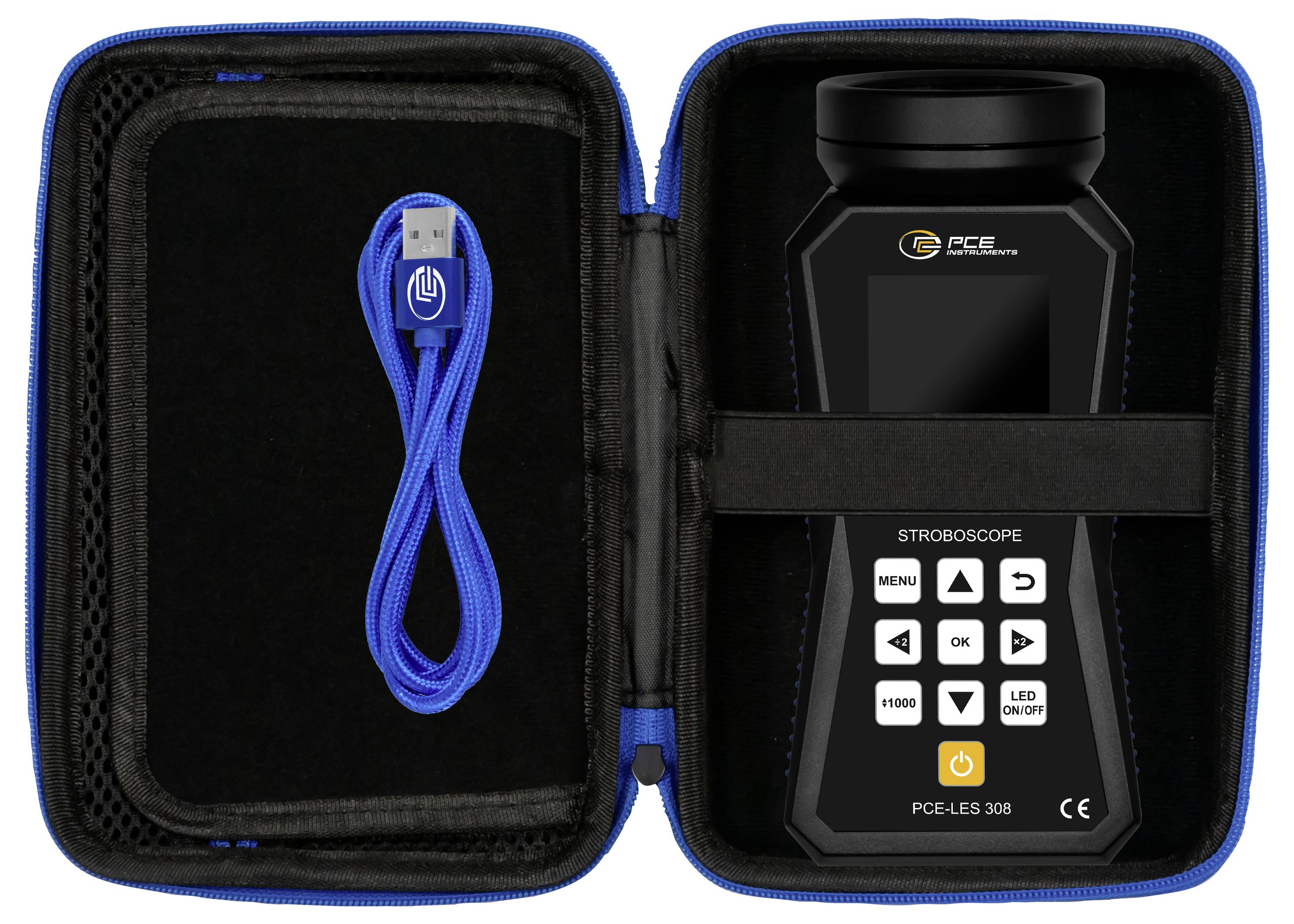

- 1 x Service case
- 1 x ISO calibration certificate
