PCE Instruments PCE-LES 350 LED strobe No. of LEDs (details):144 pc(s) Cool white

The stroboscope offers the option of capturing and analyzing fast movements precisely. With a measurement range from 50 to 12000 FPM and a high accuracy of 0.01%, movements at different speeds can be examined with high precision.

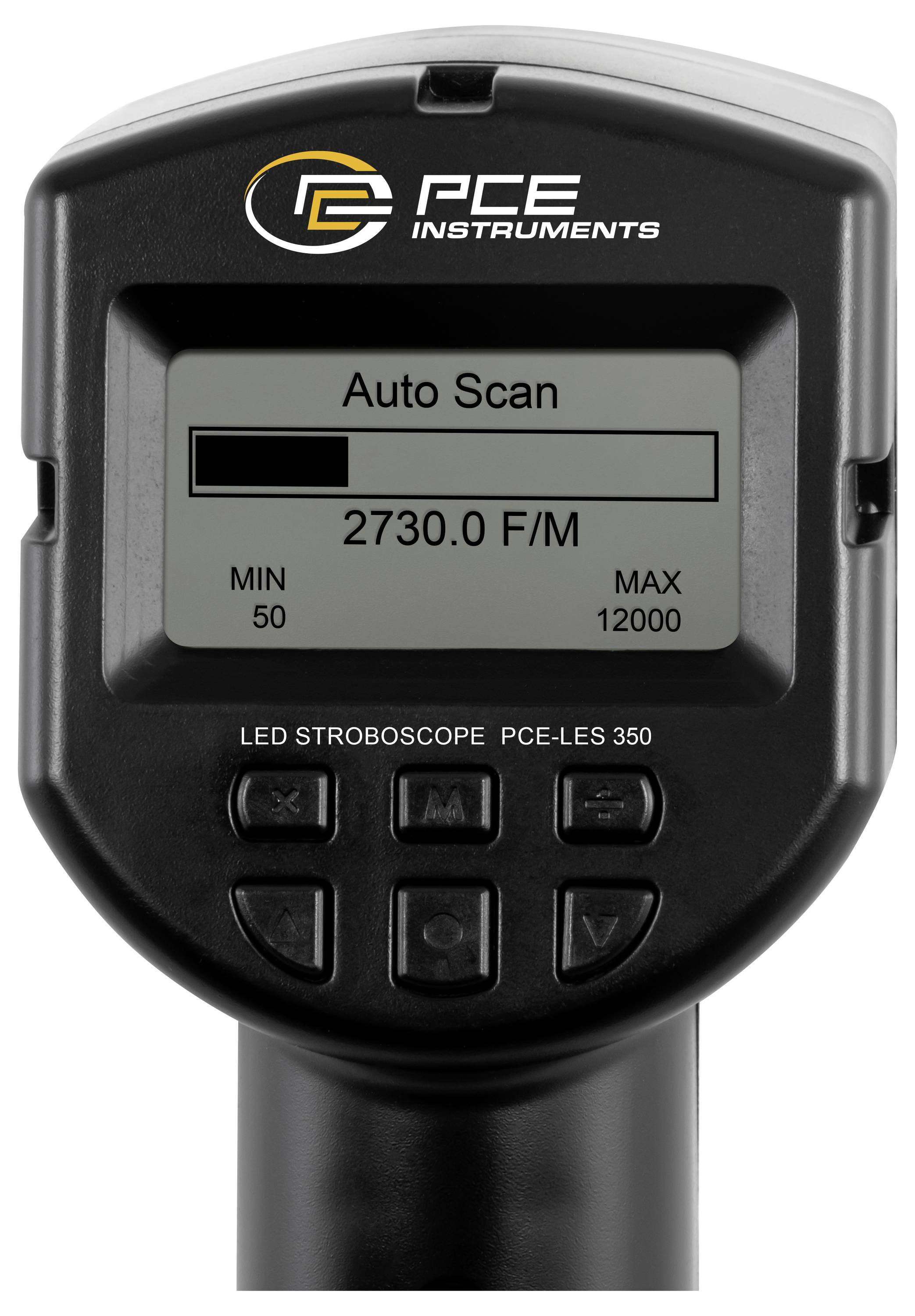

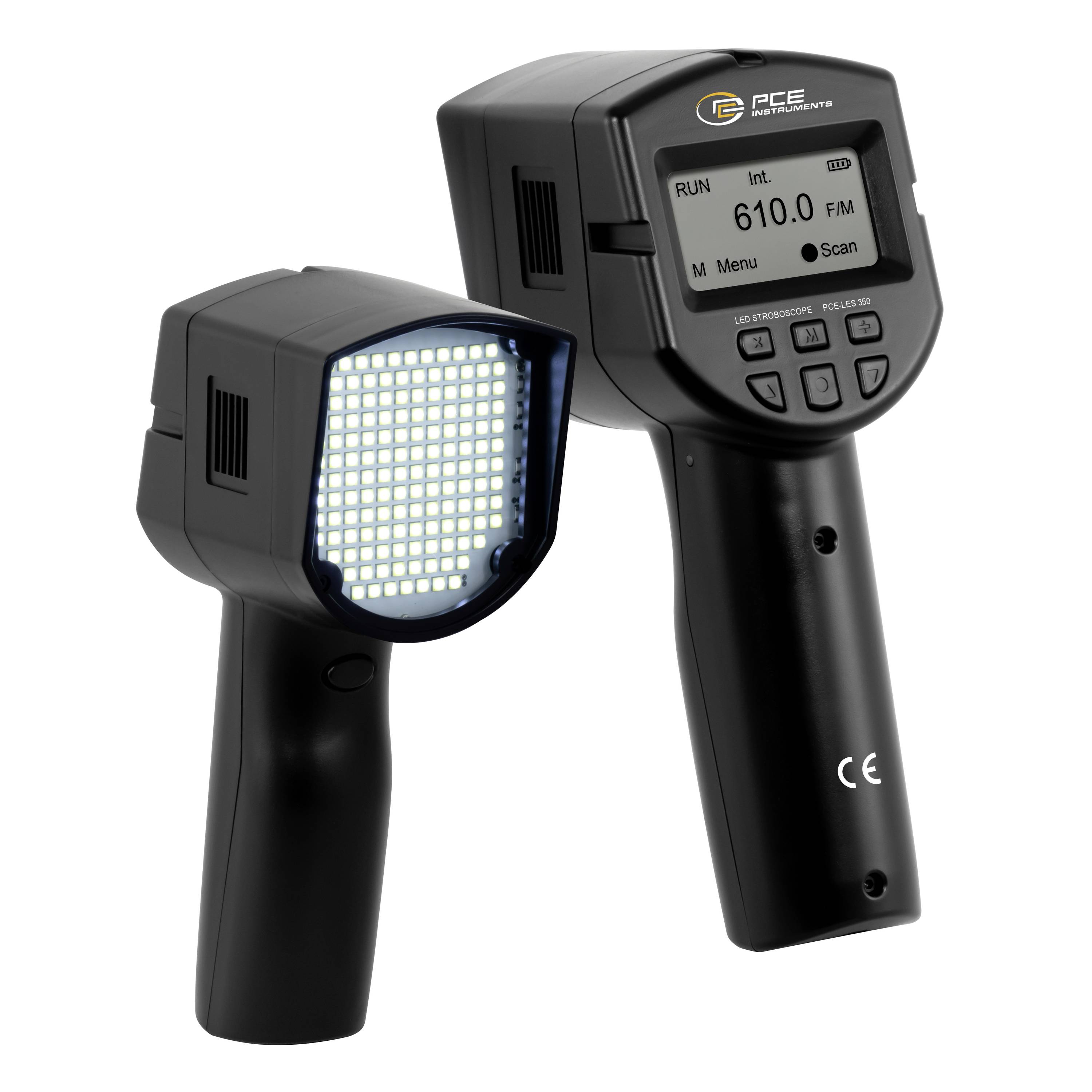

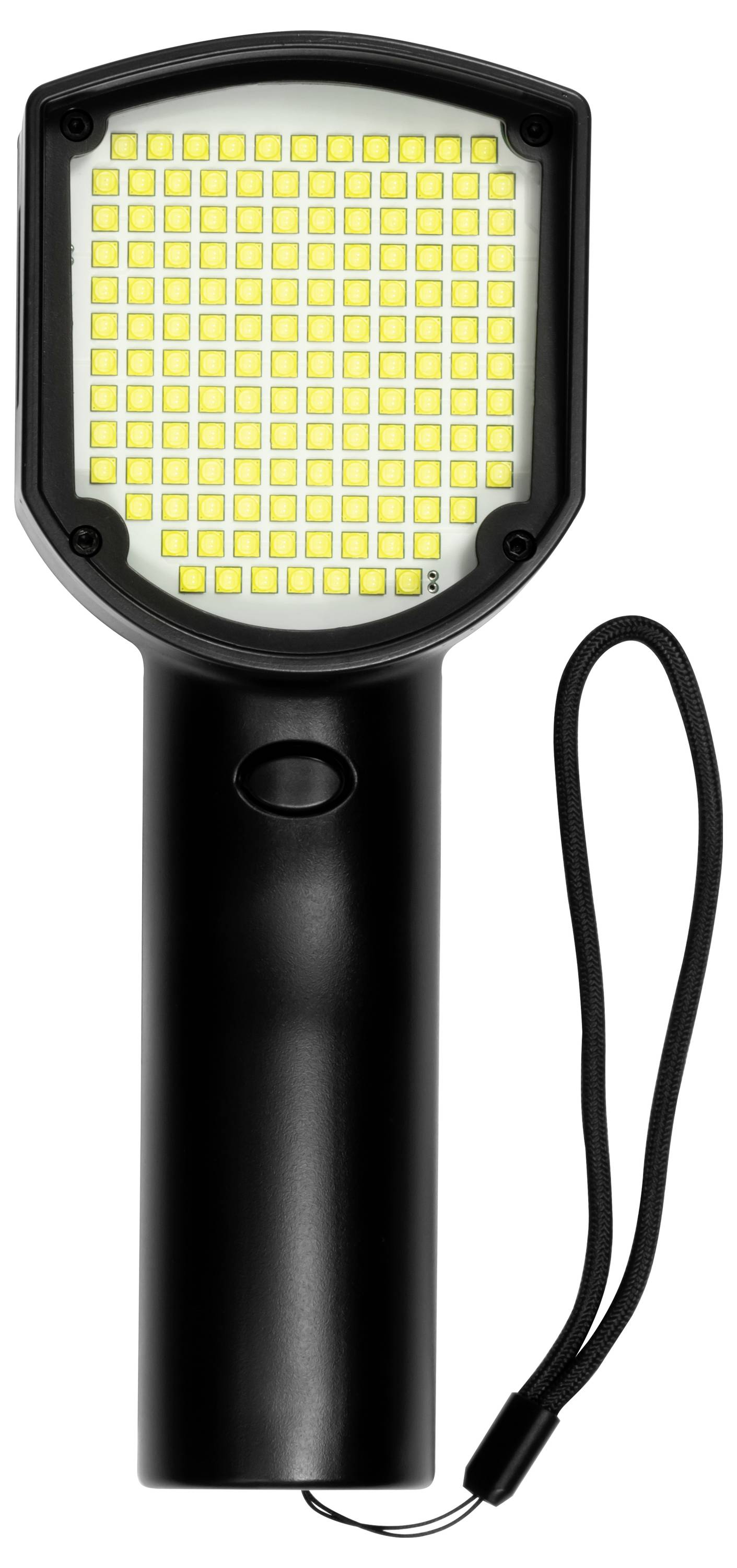

The stroboscope generates short, intensive flashes of light with 144 high power LEDs and are emitted at regular intervals. These flashes are synchronized with the motion or machine to be examined, giving the impression that the movement is frozen or moving extremely slowly. This phenomenon is based on the proven principle of stroboscopy, in which the eye perceives only intermittent images of fast moving objects by discrete light flashes. The illuminance is 6270 lux at 12000 FPM and 20 cm apart. The measurements are simplified by the Auto Scan function, which increases the flash rate step by step in order to quickly establish the synchronicity.

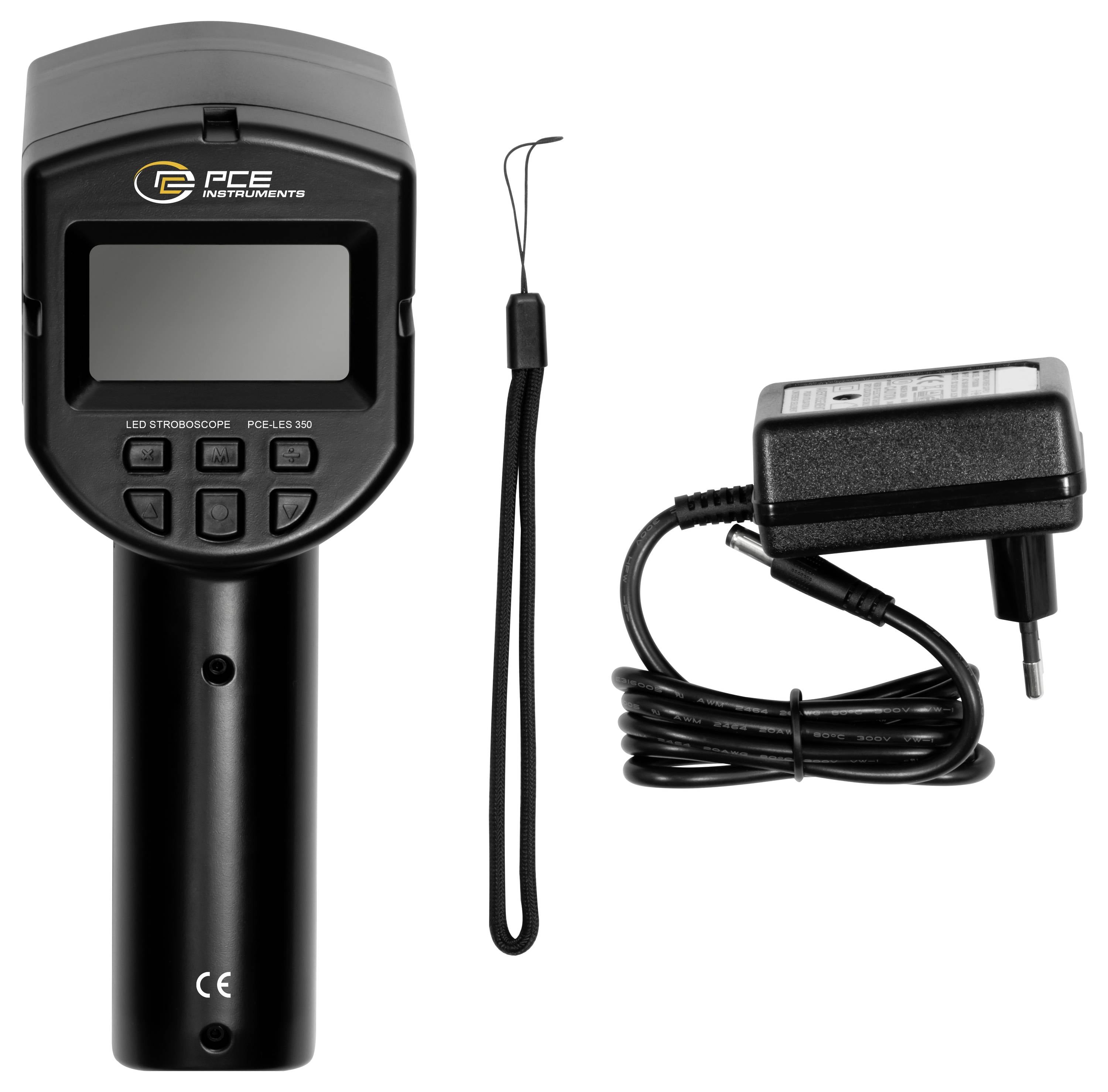

For a simple setting of the flash rate, the stroboscope offers options in steps of 1 as well as the option of doubling or halving the flash frequency. The flash rate can be selected in FPM, Hz or m/min depending upon the requirement. In order to save energy and extend the battery life, it is equipped with an automatic switch-off and an adjustable flash duration of 1 to 250 minutes. Our handy stroboscope can be used in various areas such as industry, science and research, as well as in the music industry. Equipped with a rechargeable 12 V battery, it offers an operating time of approx. 4 hours.
