PCE Instruments PCE-LES 400-ICA LED strobe No. of LEDs (details):20 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

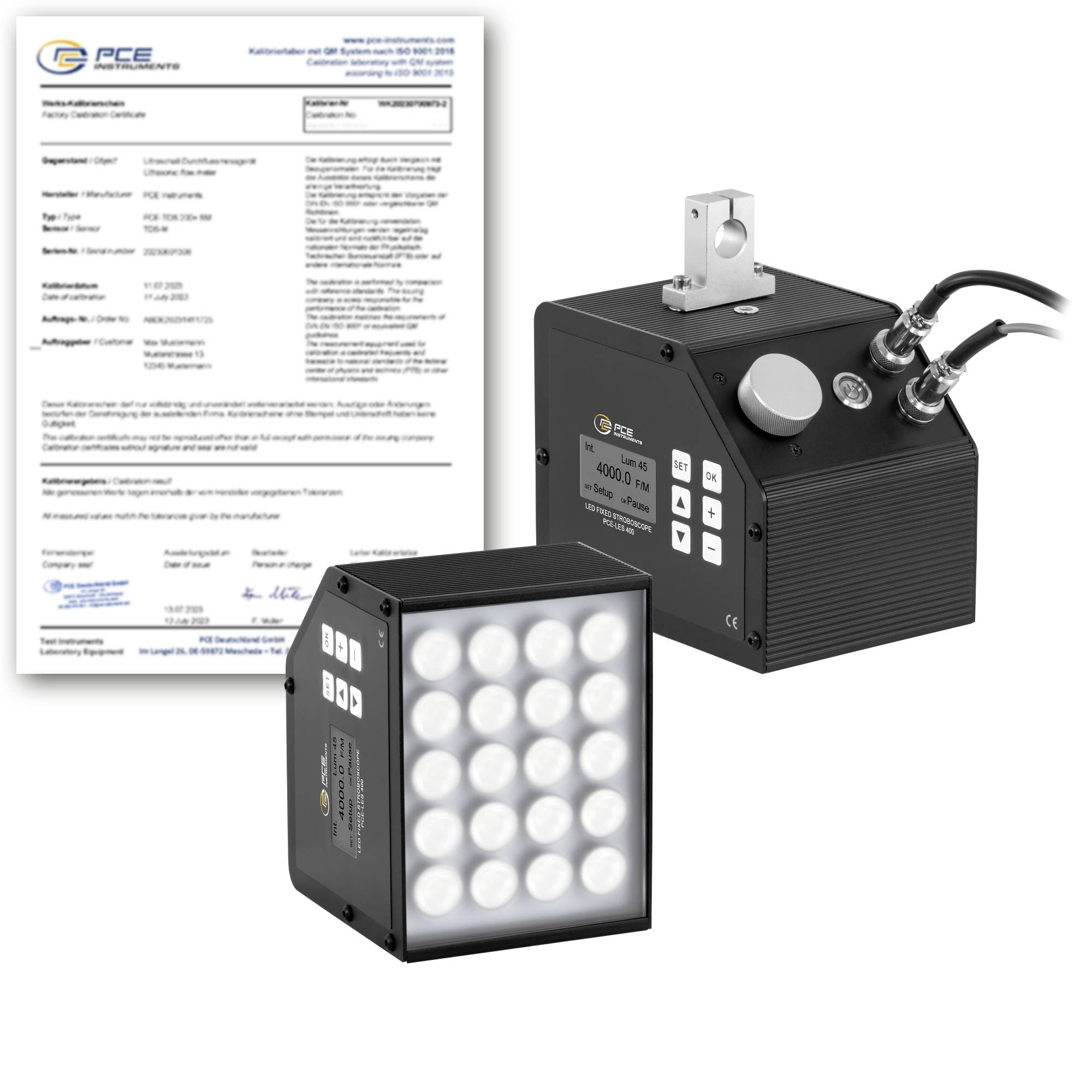

PCE Instruments Stationary LED Stroboscope PCE-LES 400-ICA
- Frequency: 50 ... 36000 FPM
- Doubling/dividing the FPM
- Light source 20 LED's
- 2.4 " LCD display
- Flash frequency units: FPM, Hz, m/min.
- Illuminance: 1590 Lux @ 36000 FPM/10 cm
- Phase shift: 0 ... 359 °
- Flash duration 1 ... 3 %, max. 100µs
- Trigger input
- Incl. ISO calibration certificate
Technical specifications
- Frequency
- Measuring range 50 ... 36000 FPM
- Resolution 0.1 FPM
- Accuracy ±0.01 % from MW.
- Frequency
- Measuring range 1 ... 600 Hz
- Resolution 0.01 Hz
- Accuracy ±0.01 % from MW.
- General Technical Data
- Unit(s) Hz, f/m, m/min
- Display type Graphic LCD
- Display size 2.4 inches
- Light source 20 LED's
- Light intensity 1590 Lux @ 36000 FPM/10 cm
- Phase shift 0 ... 359 °
- Pulse-width flash duration 1 ... 3 %, max. 100 µs
- Trigger greater than + 2.5 V peak, 20 µs min. Pulse width, sensor supply 12 V, 50 mA
- Menu language English (US), Chinese
- Protection class (device) IP20
- Power supply: 220 V AC, 50Hz
- Socket type Safety plug
- Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 150 x 115 x 130 mm
- Weight 1280 g.
- Operating voltage
220 V AC
- Product type
LED strobe
- Dim
(L x W x H) 150 x 130 x 115 mm
- Weight
1280 g
- LEDs
20 x
- Flash rate
36000 flashes/min
- Width
130 mm
- Height
115 mm
- Length
150 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812606 PCE Instruments PCE-LES 400-ICA LED strobe No. of LEDs (details):20 x
User & Safety Instructions
User & Safety Instructions 3812606 PCE Instruments PCE-LES 400-ICA LED strobe No. of LEDs (details):20 x
Description
A stationary LED stroboscope is a device for fixed installation that generates fast flashes and durable LEDs. With a large measuring range of 50 ... 36,000 FPM, a high resolution of 0.1 FPM and an accuracy of 0.01%, it offers accurate and reliable measurements.
Our stationary LED stroboscope can be triggered both internally and externally and supports four external trigger modes. The sensor supply is 12 V and 50 mA with a minimum pulse width of 20 µs. The flash duration varies between 1 and 3% of the period with a maximum duration of 100 µs. A phase shift of 0 ... 359° is adjustable and enables a flexible adaptation to different requirements. With a luminosity of 1590 lux at 36,000 FPM and a light source from 20 LEDs, this fixed LED stroboscope delivers intensive and clear light flashes. The 2.4-inch LC-display provides for a user-friendly use. In addition, the device can double or halve the frequency of the light flashes (FPM), WAS makes fast adjustments possible. The compact dimensions of 150 x 115 x 130 mm enable an easy mounting on an aluminum groove profile. The power is supplied via 220 V AC at 50 Hz, WAS ensures a stable and reliable operation.
Our stationary LED stroboscopes are used in the industry for machine monitoring and quality control, in scientific research for motion analysis, and in medicine for special diagnostic procedures. Their reliability, energy efficiency, long life and low heat generation make them a versatile and efficient solution for various applications.
This text is machine translated.
Our stationary LED stroboscope can be triggered both internally and externally and supports four external trigger modes. The sensor supply is 12 V and 50 mA with a minimum pulse width of 20 µs. The flash duration varies between 1 and 3% of the period with a maximum duration of 100 µs. A phase shift of 0 ... 359° is adjustable and enables a flexible adaptation to different requirements. With a luminosity of 1590 lux at 36,000 FPM and a light source from 20 LEDs, this fixed LED stroboscope delivers intensive and clear light flashes. The 2.4-inch LC-display provides for a user-friendly use. In addition, the device can double or halve the frequency of the light flashes (FPM), WAS makes fast adjustments possible. The compact dimensions of 150 x 115 x 130 mm enable an easy mounting on an aluminum groove profile. The power is supplied via 220 V AC at 50 Hz, WAS ensures a stable and reliable operation.
Our stationary LED stroboscopes are used in the industry for machine monitoring and quality control, in scientific research for motion analysis, and in medicine for special diagnostic procedures. Their reliability, energy efficiency, long life and low heat generation make them a versatile and efficient solution for various applications.
This text is machine translated.

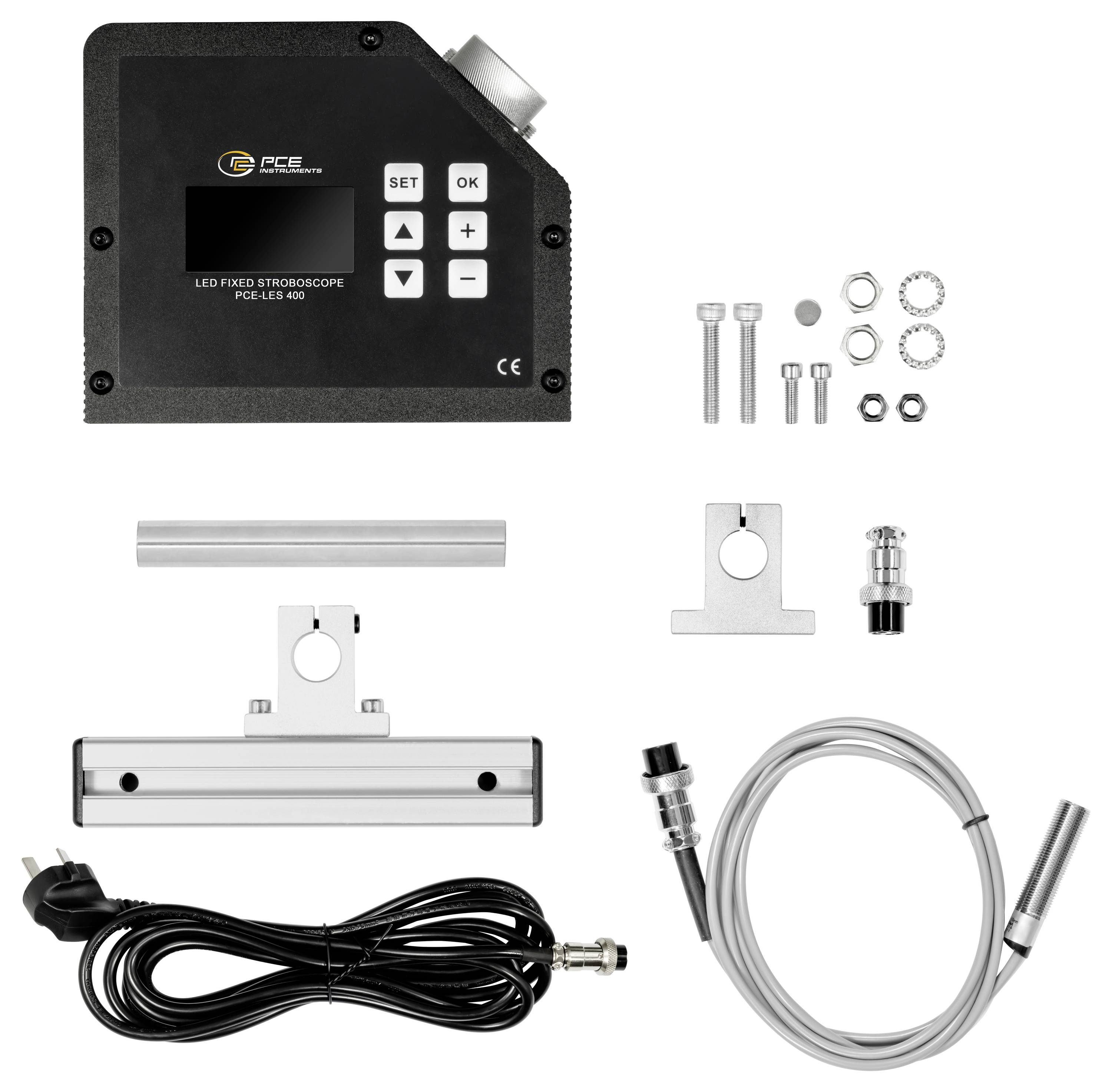

Scope of delivery
- 1 x stationary LED-stroboscope PCE-LES 400-ICA
- 1 x Alu slot profile
- 1 x 4-pin coupling
- 1 x connection cable

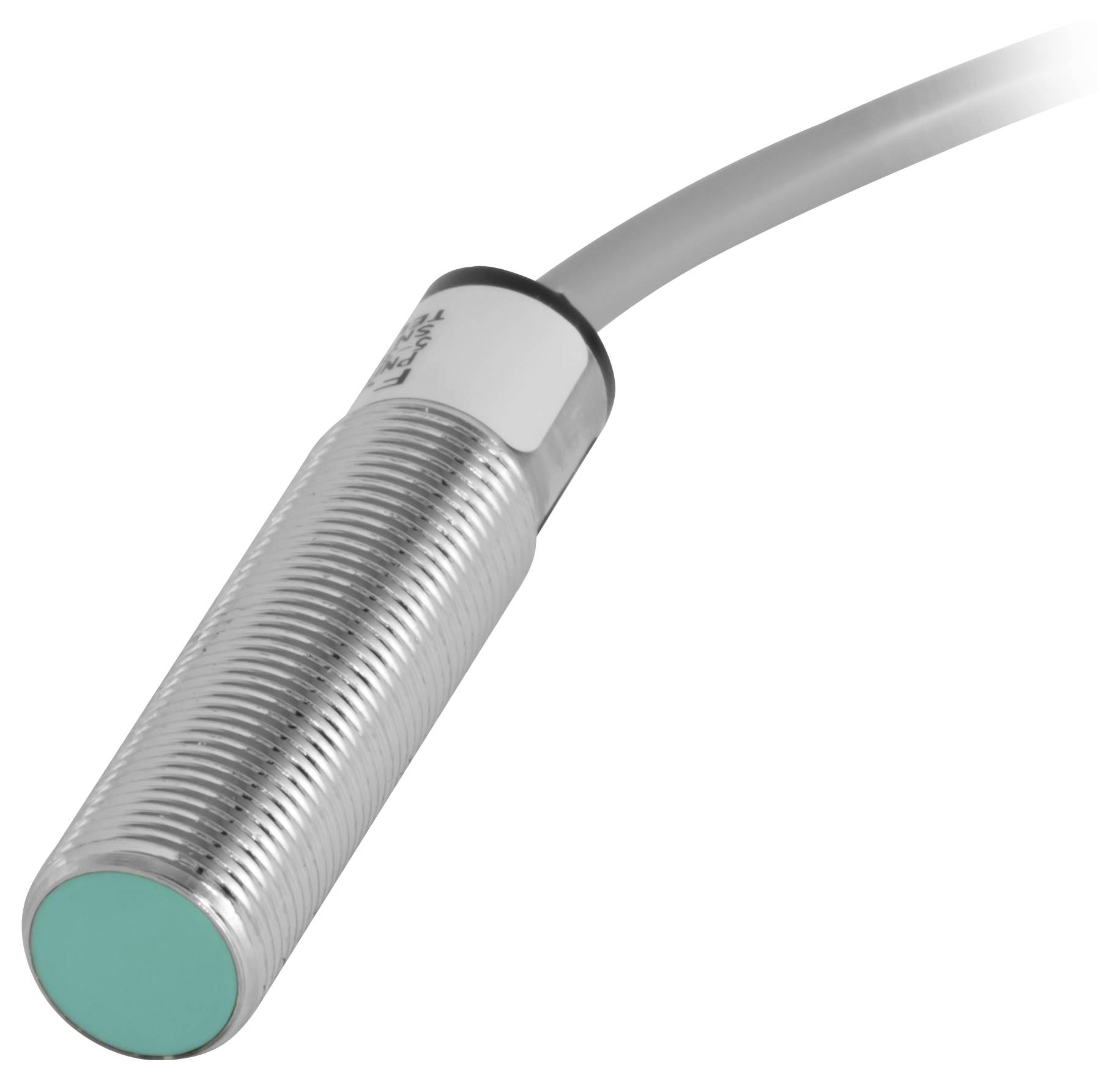

- 1 x external trigger sensor
- 1 x mounting screws
- 1 x operating instructions
- 1 x ISO calibration certificate
