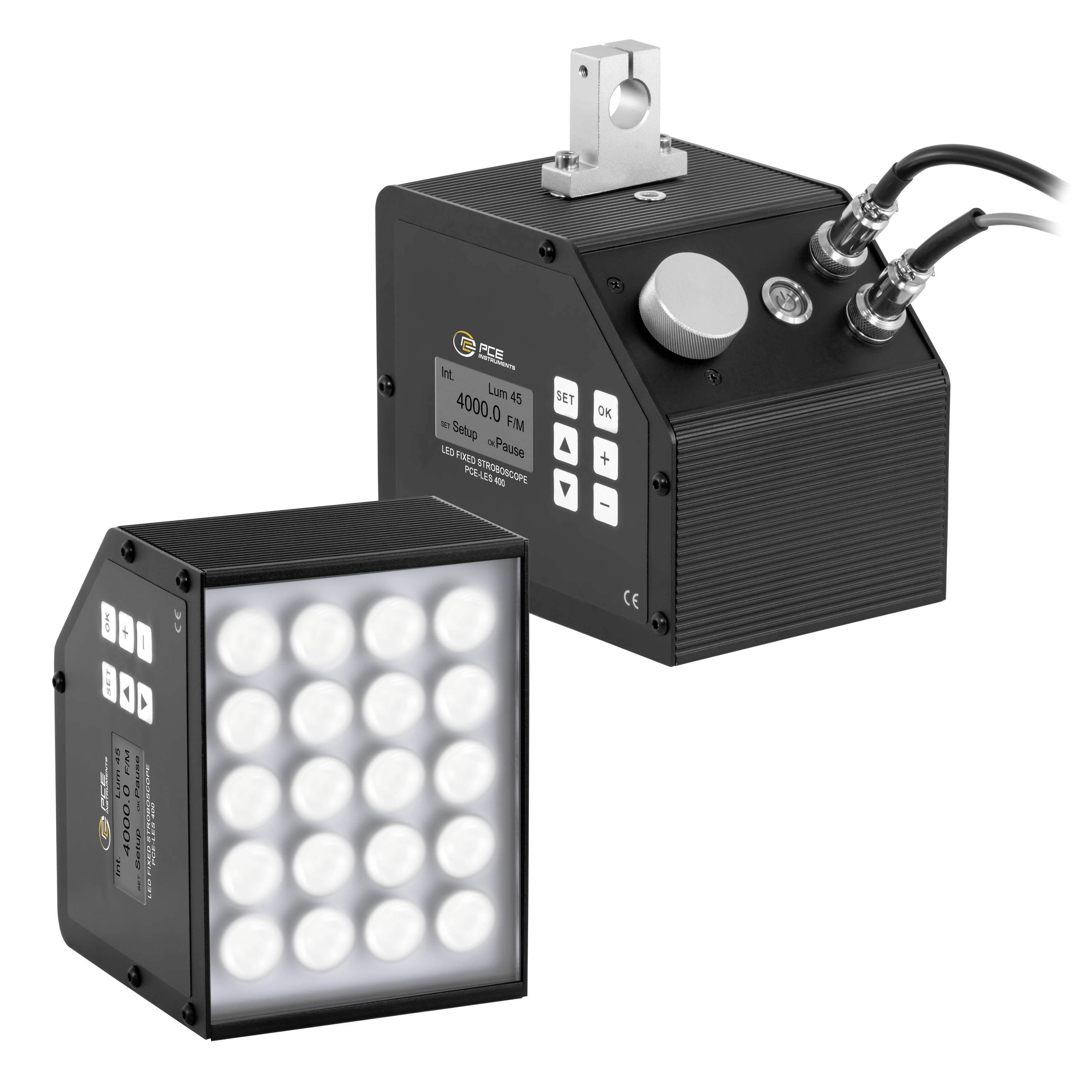

Two black industrial machine vision strobe lights with LED arrays, control buttons, and connected cables on a white background.

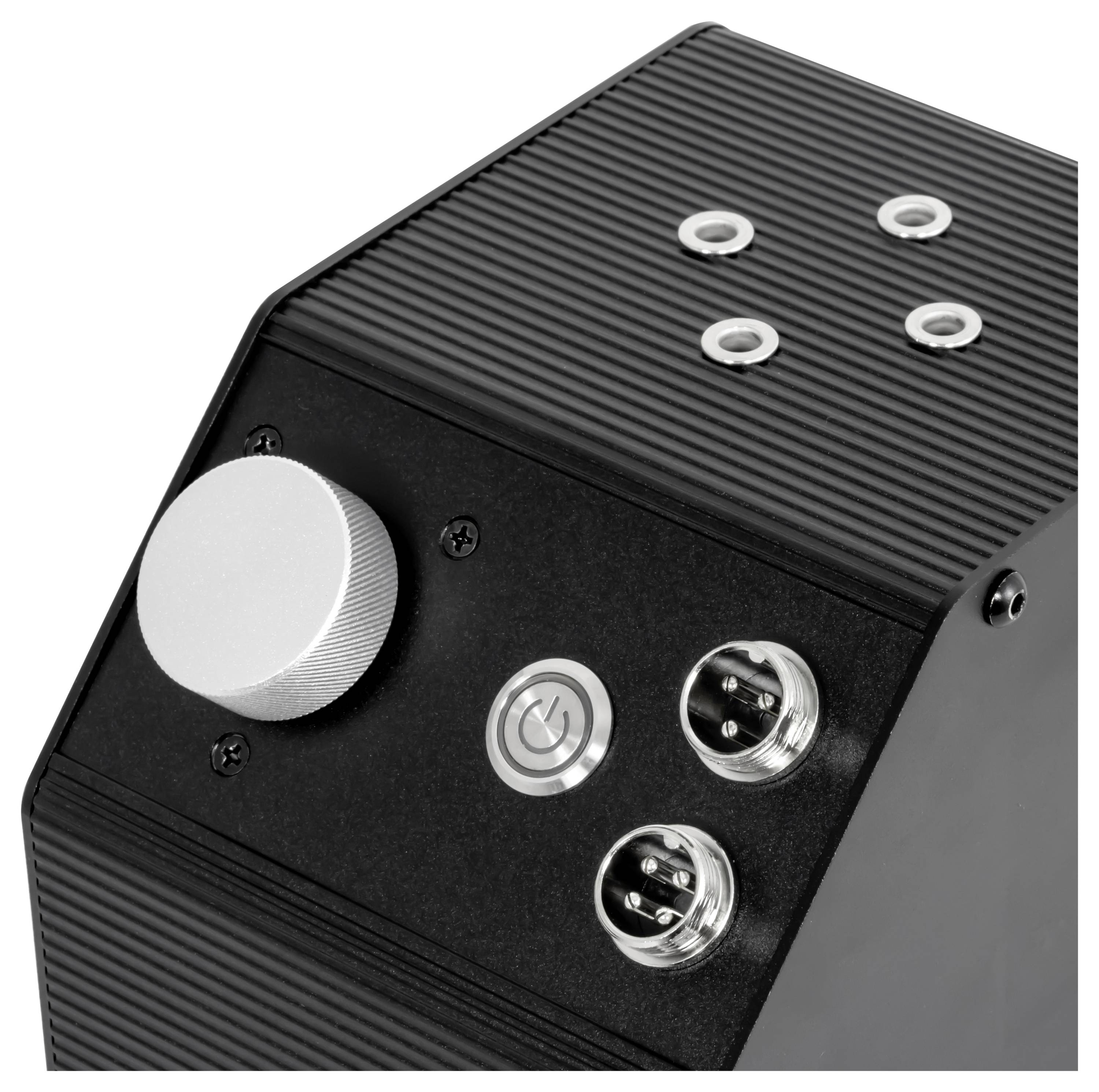

Black electronic device or control box with a large silver knob, power button, two metal connectors, and four mounting holes on top.

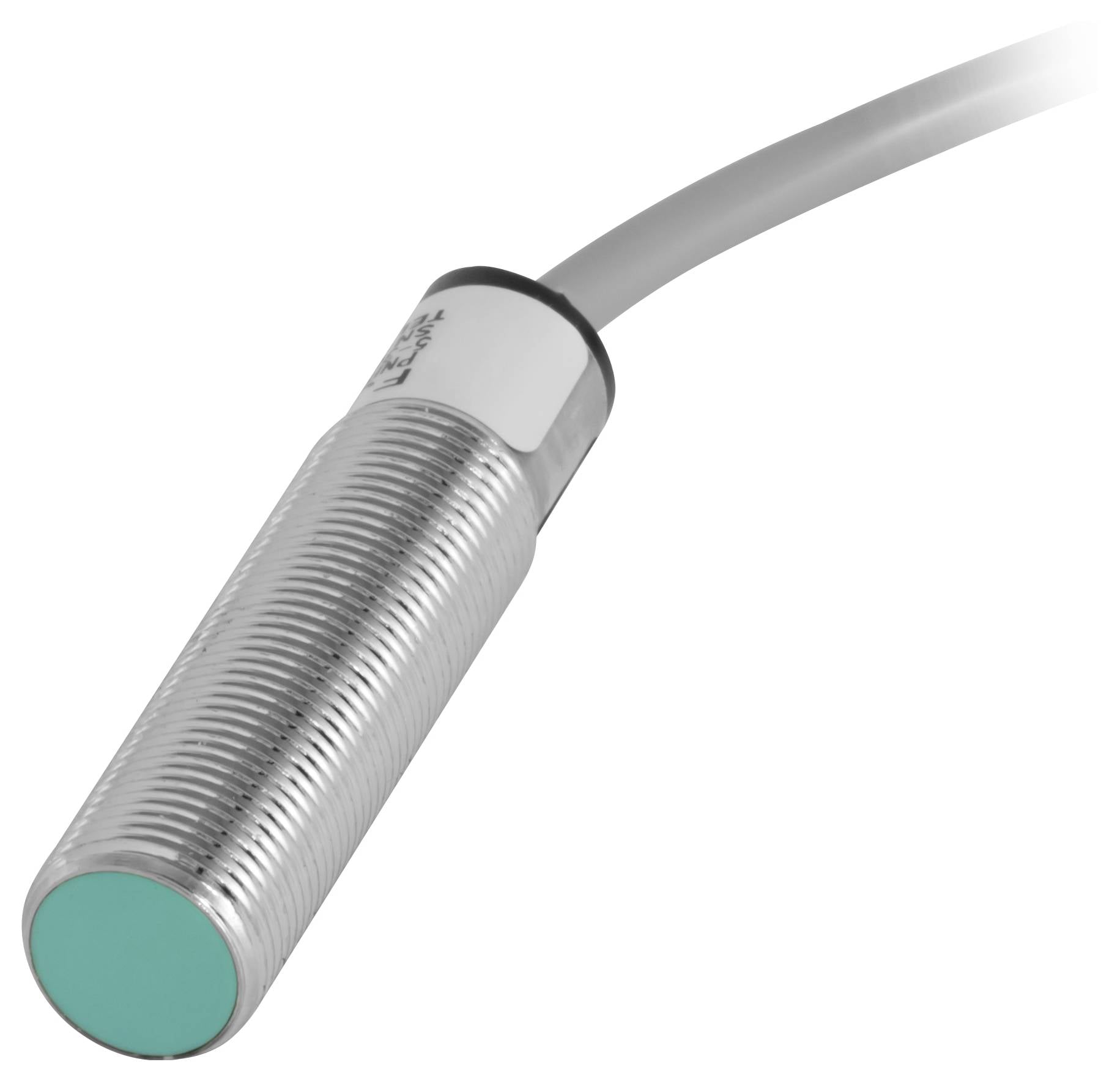

Cylindrical threaded metal proximity sensor with attached cable, shown against a white background.

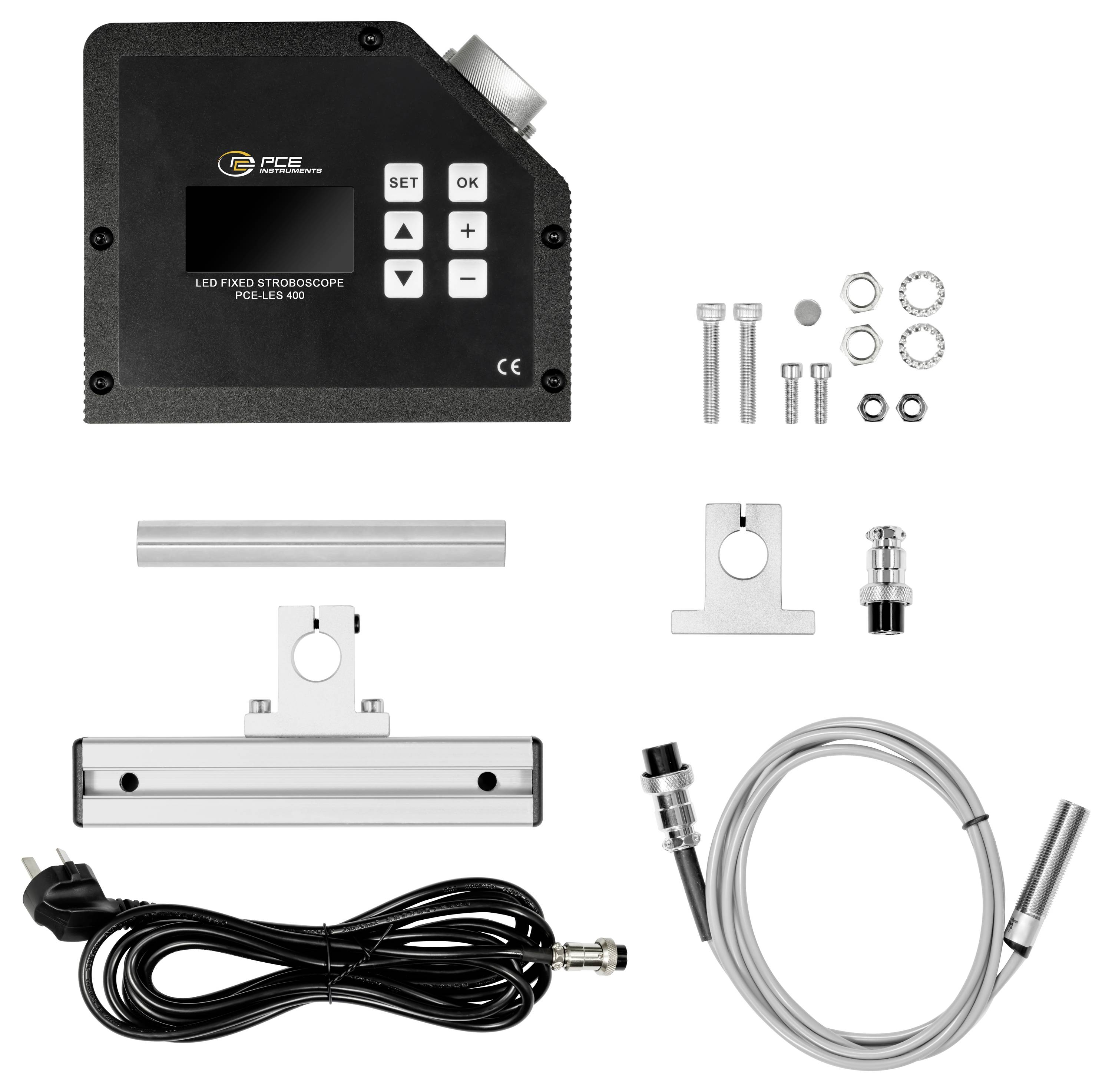

PCE LED fixed stroboscope unit with mounting brackets, screws, cables, and sensor accessories laid out on a white background.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LES 400

Frequency: 50 ... 36000 FPM
Doubling/dividing the FPM
Light source 20 LED's
2.4 " LCD
Flash frequency units: FPM, Hz, m/min.
Illuminance: 1590 Lux @ 36000 FPM/10 cm
Phase shift: 0 ... 359 °
Flash duration 1 ... 3 %, max. 100µs
Trigger input

Technical specifications

Frequency
Measuring range 50 ... 36000 FPM
Resolution 0.1 FPM
Accuracy ±0.01 % from MW.
Frequency
Measuring range 1 ... 600 Hz
Resolution 0.01 Hz
Accuracy ±0.01 % from MW.
General Technical Data
Units Hz, f/m, m/min.
Display type Graphic LCD
Display size 2.4 inches
Light intensity 1590 Lux @ 36000 FPM/10 cm
Phase shift 0 ... 359 °
Pulse-width flash duration 1 ... 3 %, max. 100 µs
Light source 20 LED's
Trigger input greater than + 2.5 V peak, 20 µs min. Pulse width
Sensor supply 12 V/50 mA
Menu language English (US), Chinese
Protection class (device) IP20
Power supply: 220 V AC, 50Hz
Socket type Safety plug
Weight 1280 g.
Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
Dimensions ( L x W x H ) 150 x 115 x 130 mm

Operating voltage: 220 V AC

Product type: LED strobe

Colour: Cool white

Dim: (L x W x H) 150 x 115 x 130 mm

Weight: 1280 g

LEDs: 20 pc(s)

Flash rate: 36000 flashes/min

Width: 115 mm

Height: 130 mm

Length: 150 mm

Documents & Downloads

Datasheet

Datasheet 3324688 PCE Instruments PCE-LES 400 LED strobe No. of LEDs (details):20 pc(s) Cool white

User & Safety Instructions

User & Safety Instructions 3324688 PCE Instruments PCE-LES 400 LED strobe No. of LEDs (details):20 pc(s) Cool white

Description

A stroboscope is a device for fixed installation that generates fast light flashes with energy-efficient and durable LEDs. With a large measuring range of 50 ... 36,000 FPM, a high resolution of 0.1 FPM and an accuracy of 0.01%, it offers accurate and reliable measurements.

Our stroboscope can be triggered internally or externally and supports four external trigger modes. The sensor supply is 12 V and 50 mA with a minimum pulse width of 20 µs. The flash duration varies between 1 and 3% of the period with a maximum duration of 100 µs. A phase shift of 0 ... 359° is adjustable and enables a flexible adaptation to different requirements. With a luminosity of 1590 lux at 36,000 FPM and a light source from 20 LEDs, this stroboscope delivers intensive and clear flashes of light. The 2.4-inch LC-display provides for a user-friendly use. In addition, the device can double or halve the frequency of the light flashes (FPM), WAS makes fast adjustments possible. The compact dimensions of 150 x 115 x 130 mm enable an easy mounting on an aluminum groove profile. The power is supplied via 220 V AC at 50 Hz, WAS ensures a stable and reliable operation.

Our stroboscopes are used in the industry for machine monitoring and quality control, in scientific research for motion analysis, and in medicine for special diagnostic procedures. Their reliability, energy efficiency, long life and low heat generation make them a versatile and efficient solution for various applications.
