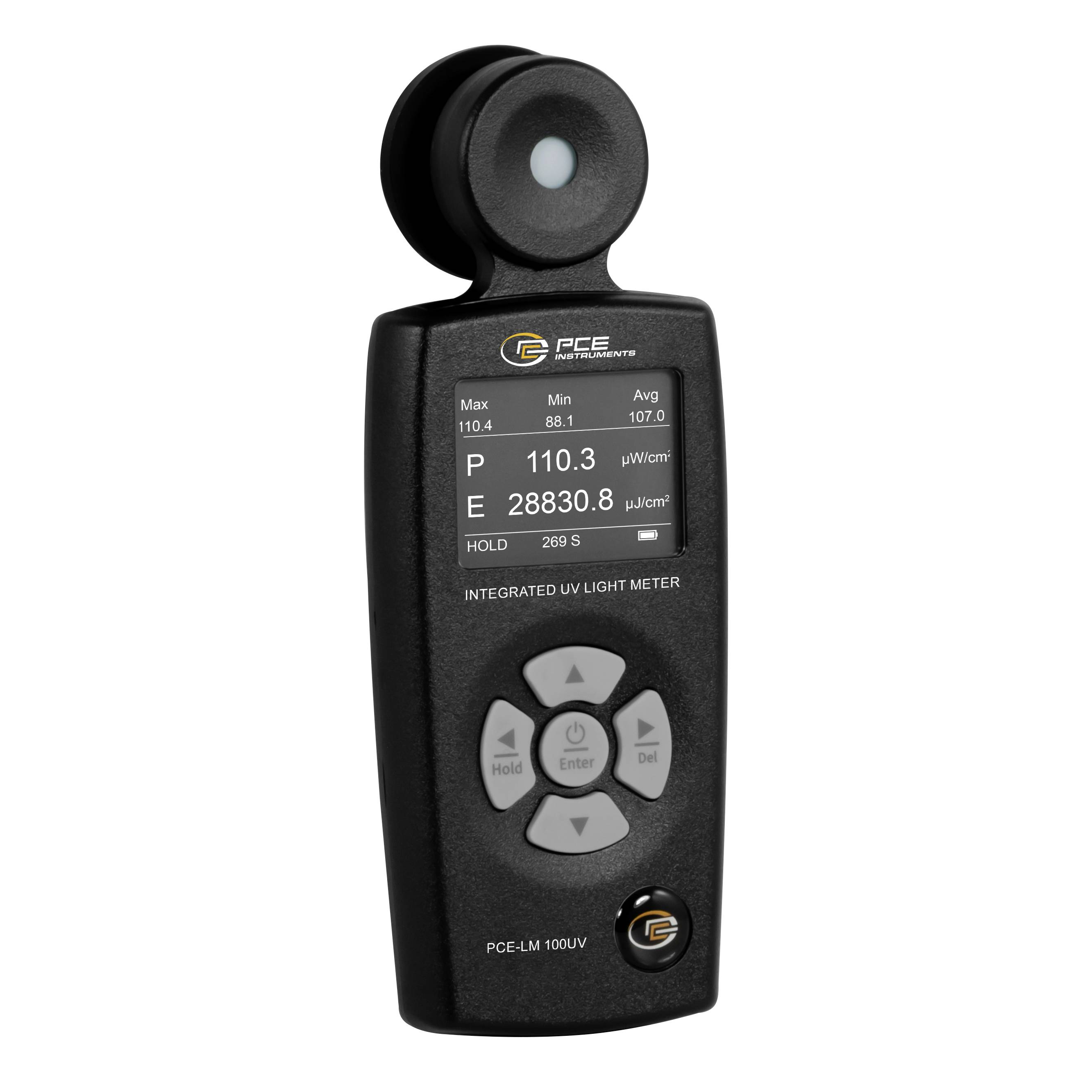

Handheld integrated UV light meter showing digital readings and control buttons on a black device<br>

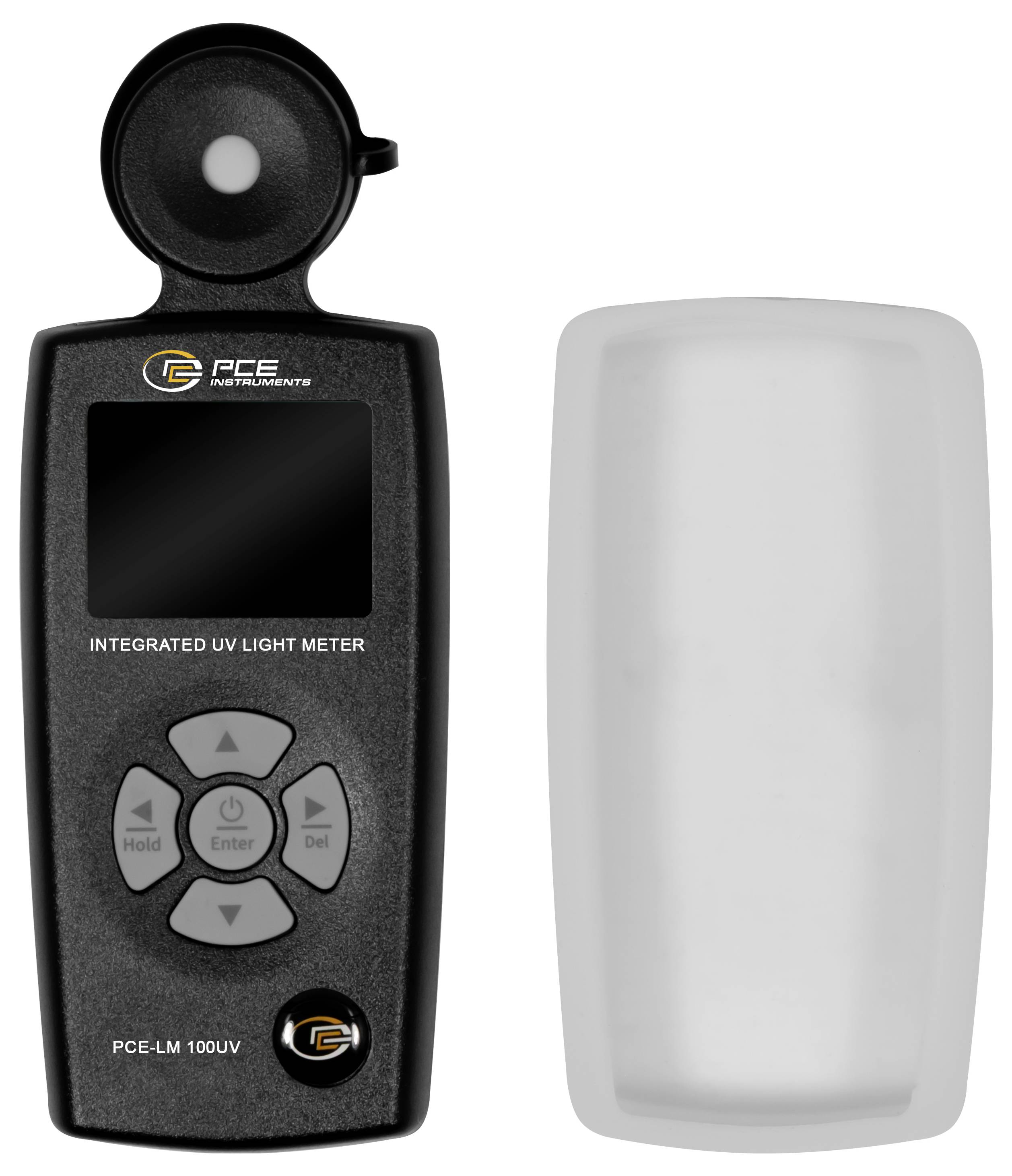

Handheld integrated UV light meter with sensor cap beside a white calibration cover.

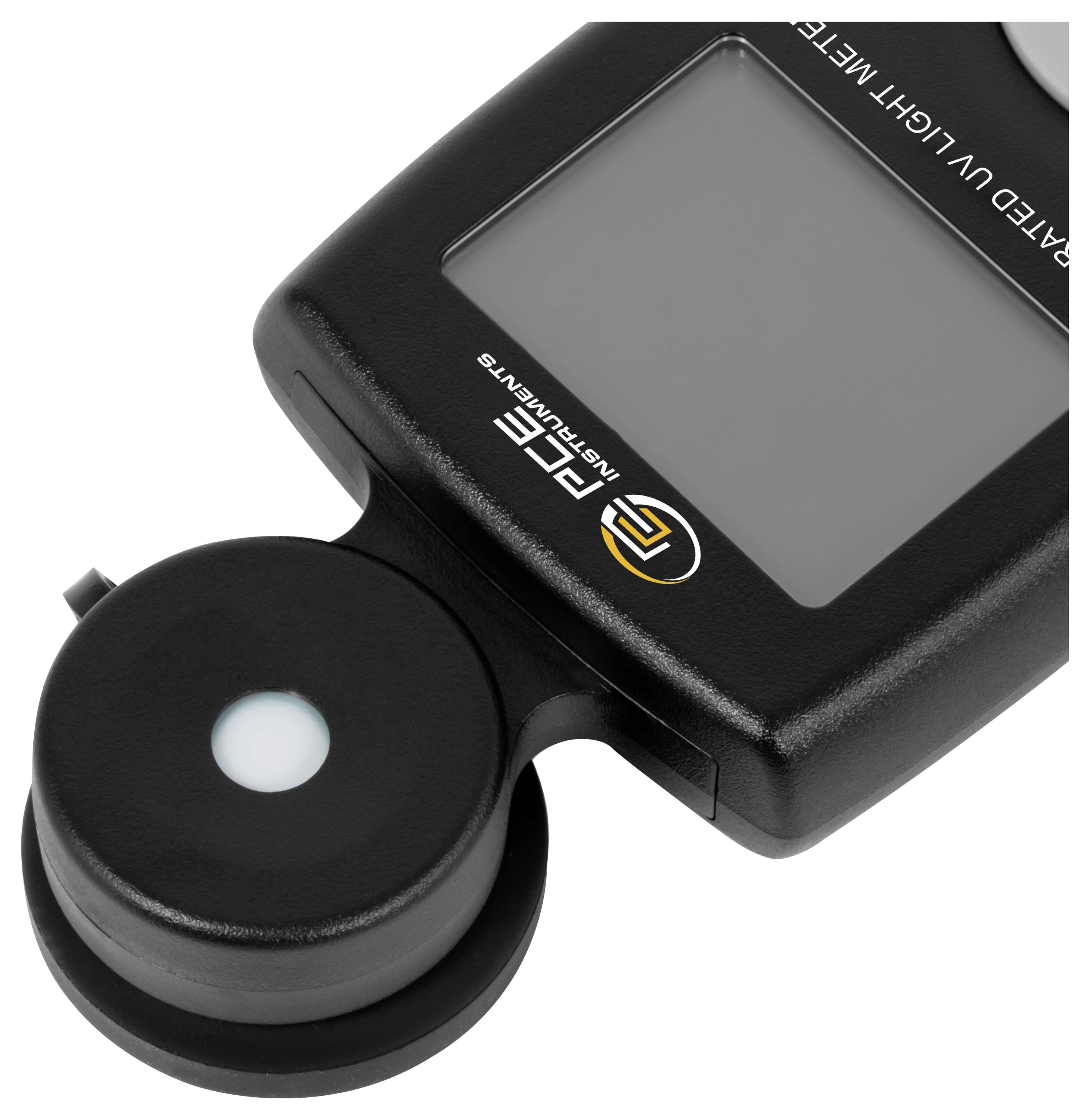

Black handheld sensor device with a round probe attached, shown close up on a white background.<br>

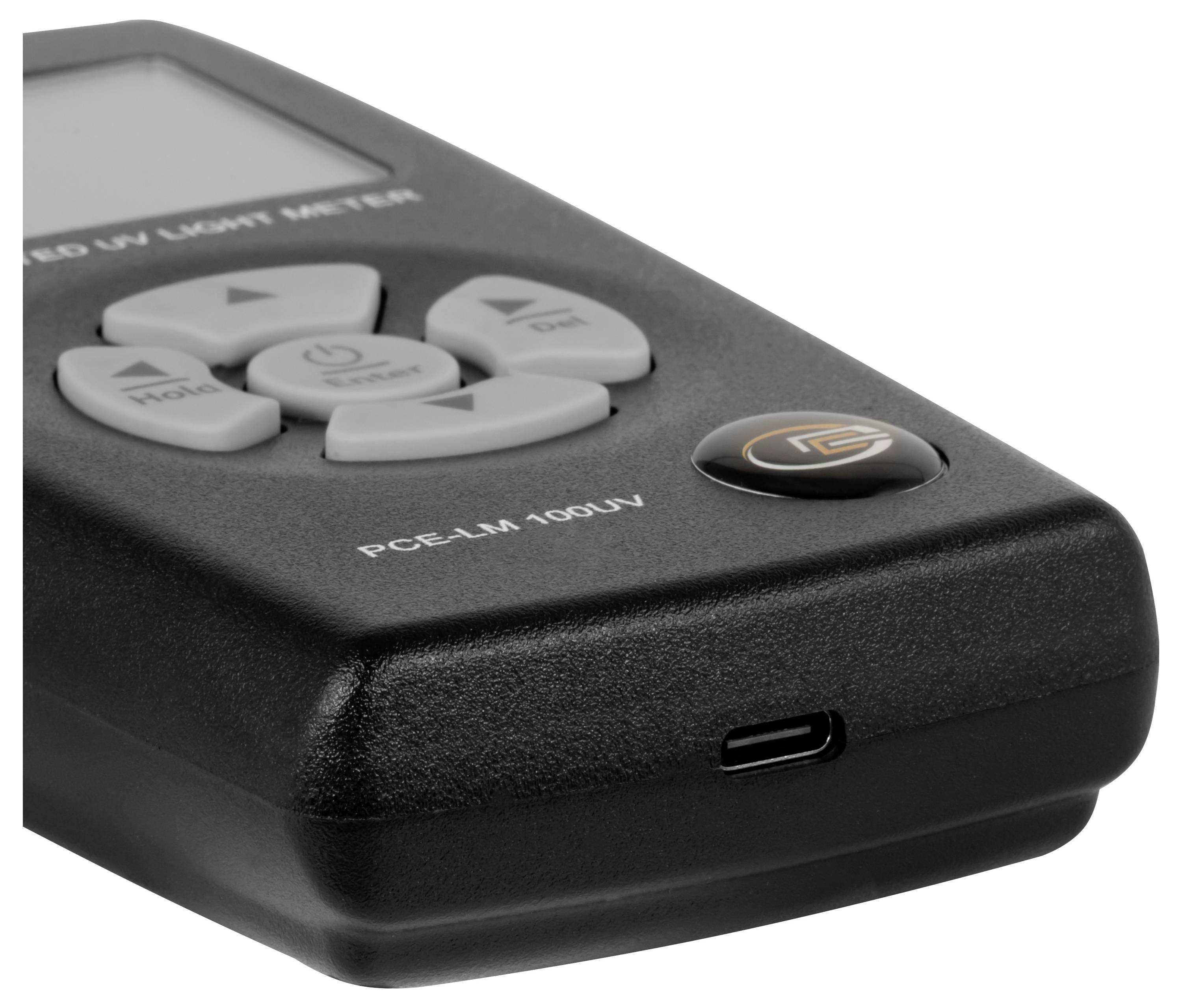

Close-up of a black handheld remote control with directional buttons, a center 'power' button, and a front USB-C port.

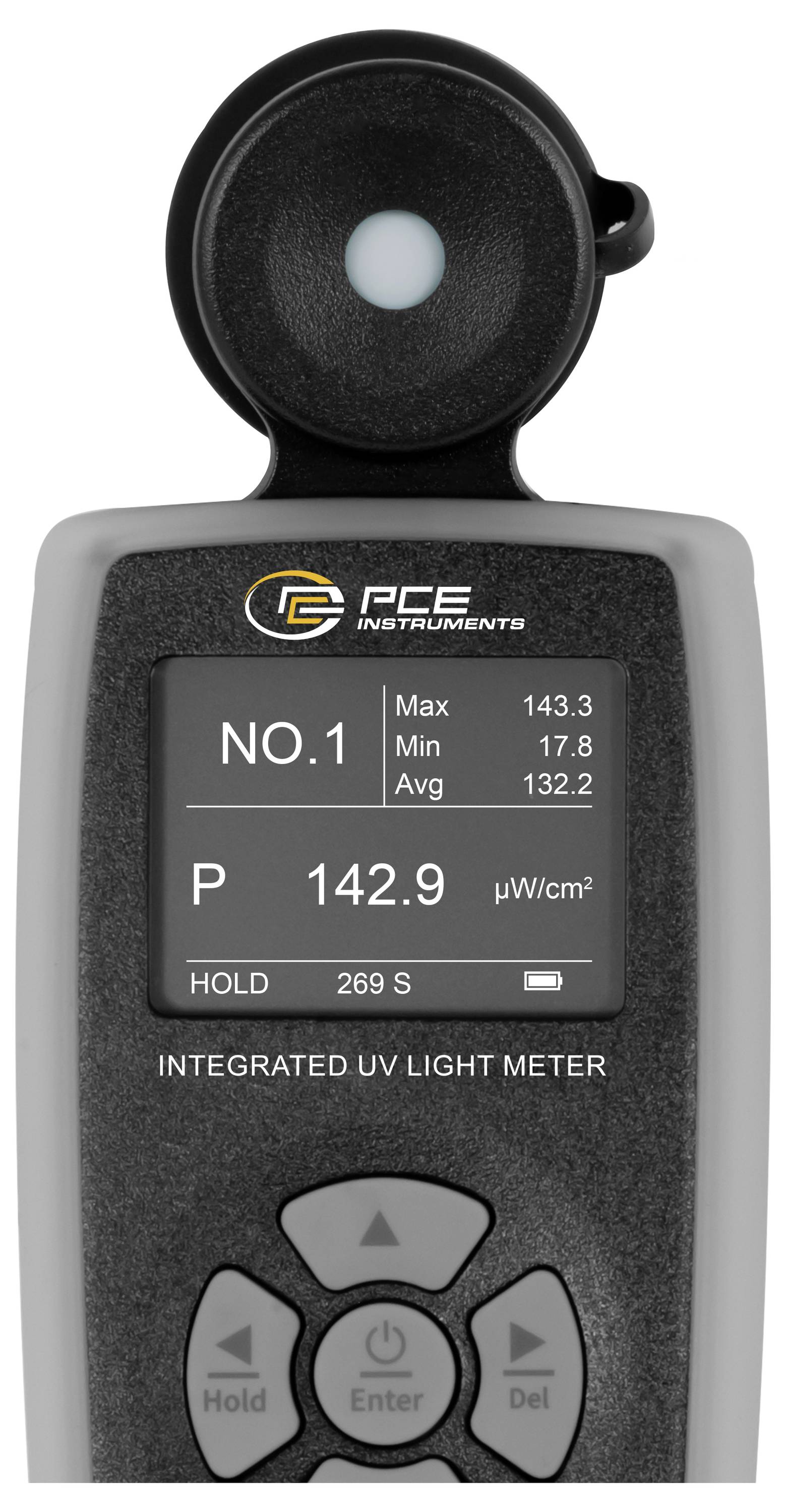

Handheld integrated UV light meter displaying a reading of 142.9 µW/cm², with max, min, and average values shown on the screen.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LM 100 UV

Spectral sensitivity: 230 nm to 280 nm, peak at 254 nm
Automatic data storage
USB interface with PC software for data export and creating reports
Display of real-time, maximum, minimum and average values
Displays measurement time and energy

Technical specifications

Radiation
Measuring range 0 ... 50 µW/cm²
Resolution 0.1 µW/cm2
Accuracy ±4 μW/cm2
Radiation
Measuring range 50 ... 20000 µW/cm²
Resolution 0.1 µW/cm2
Accuracy ±8 % from MW.
Radiation
Measuring range 0 ... 9999999 μJ/cm²
Resolution 0.1 μJ/cm2
General Technical Data
Unit(s) µW/cm², mW/cm², W/m²
Display type LCD with lighting
Display size 2.16 inches
Display resolution 240 x 160 pixels
Storage medium Internal memory
Storage capacity of 9 records
Interface USB-C
Norm(s) JJJG 879-2015, BW/T 367-2012
Response time 0.5s
Spectral range 230 ... 280 nm
Additional Description Longwave response error: 60%,Cosine characteristic: 10%,Linearity error: ±1%,Short-term instability: ±1% (30 minutes after start-up),Fatigue characteristics: Attenuation 2%,Error of : ±0.1% of full scale value
Menu language English (US), English (GB), Chinese
Protection class (device) IP20
Voltage supply: 5 V DC
Battery 2 x 1.5 V AA battery , alkaline-manganese
Capacity 2970 mAh
Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 190 x 75 x 30 mm
Weight 194 g.

Product type: UV meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 190 x 75 x 30 mm

Display: LCD

Weight: 194 g

Features: Data logger

Width: 75 mm

Height: 30 mm

Length: 190 mm

Interfaces: USB-C

Documents & Downloads

Datasheet

Datasheet 3812955 PCE Instruments PCE-LM 100UV PCE-LM 100UV UV meter

User & Safety Instructions

User & Safety Instructions 3812955 PCE Instruments PCE-LM 100UV PCE-LM 100UV UV meter

Description

The UV light measuring device is specially designed for the precise measurement of UVC radiation and is particularly suitable for applications where the effectiveness of UV disinfection and sterilization processes must be controlled. Spectral sensitivity is in the range from 230 nm to 280 nm, with a peak at 254 nm. This means that the device Ideal is tuned to the measurement of the wavelength relevant for many UVC applications.

High-precision UVC filter and a professional UV sensor reduce interference from other wavelengths. Apart from the real time value, the measuring device also displays maximum, minimum and average values. Additionally, the measuring time and the energy consumed are displayed, which enables the reliable monitoring and documentation of UVC radiation.

Automatic data storage ensures that readings are preserved even during long periods of unattended measurements. The device can be connected to a PC via the USB interface. The suitable PC software makes possible the export of data as well as the creation of reports, WAS is especially helpful for quality control, test protocols and regular documentation.

The UVC meter is intended for testing and monitoring UV disinfection systems. It is used to control the radiation intensity of UVC sources and to reliably evaluate the given dose for effective disinfection. Typical applications include medical facilities, laboratories, pharmaceutical companies, food processing and water, air and surface disinfection systems. As a result of compliance with the JJG 879-2015 and WS/T 367-2012 standards, this measuring device is suitable for standard-compliant tests of UVC radiation in disinfection and sterilization applications.
