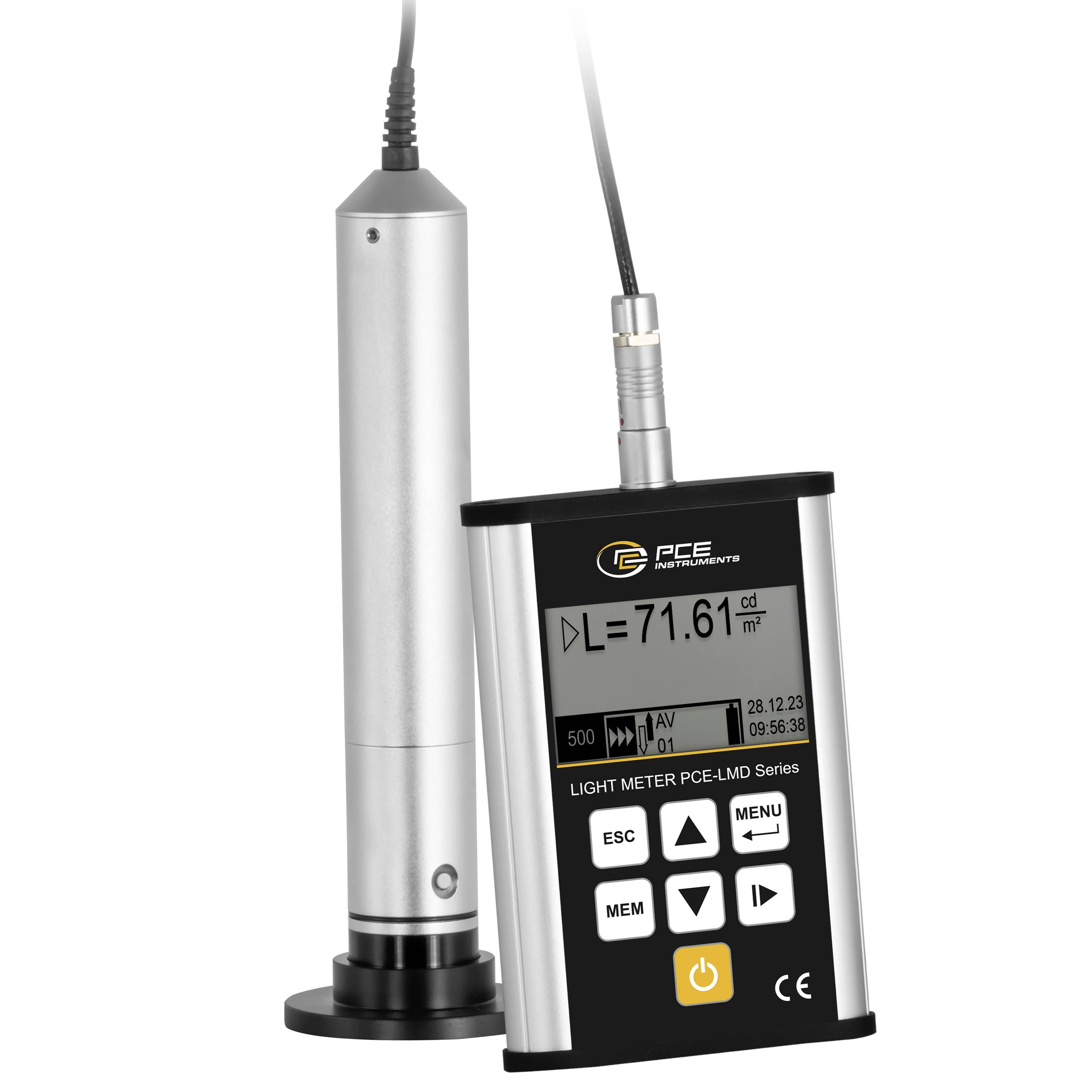

Handheld PCE light meter with external sensor probe, showing a reading of 71.61 and a control keypad on the device.

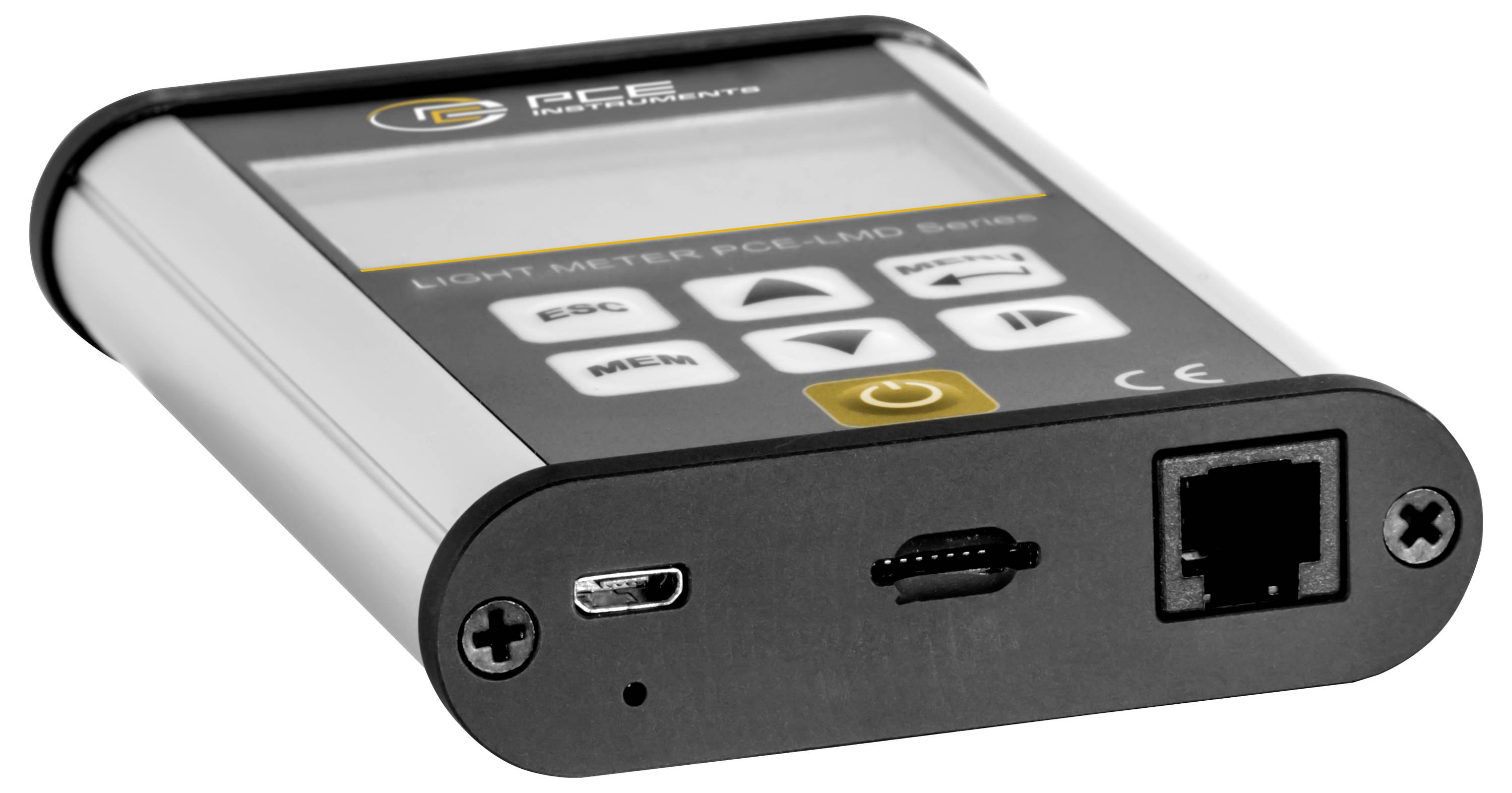

Portable electronic meter with screen and keypad, showing front ports including USB, mini-USB, and Ethernet jack.<br>

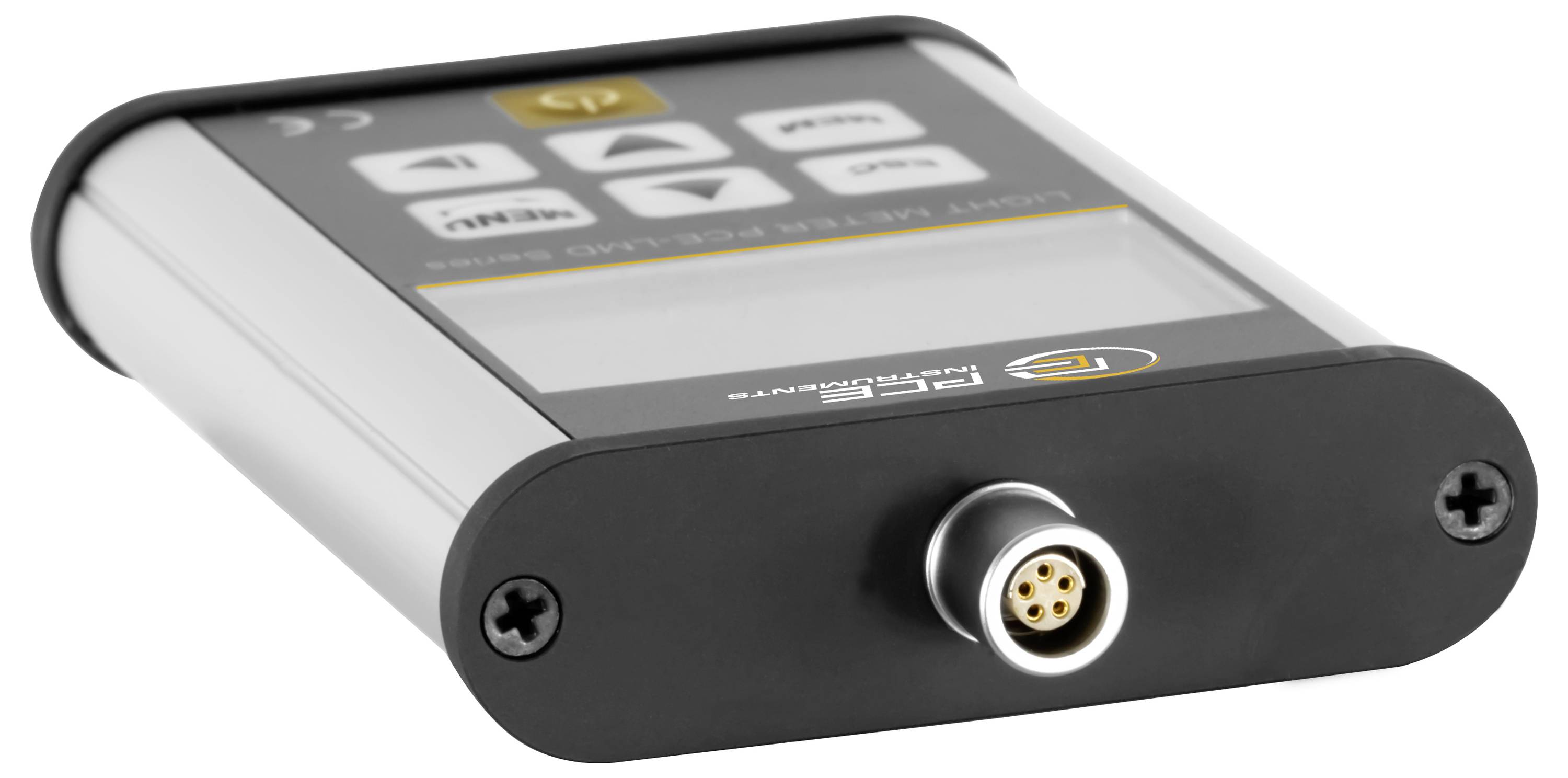

Handheld electronic device with a display and five-button control panel, shown at an angle with a circular connector port on the end.

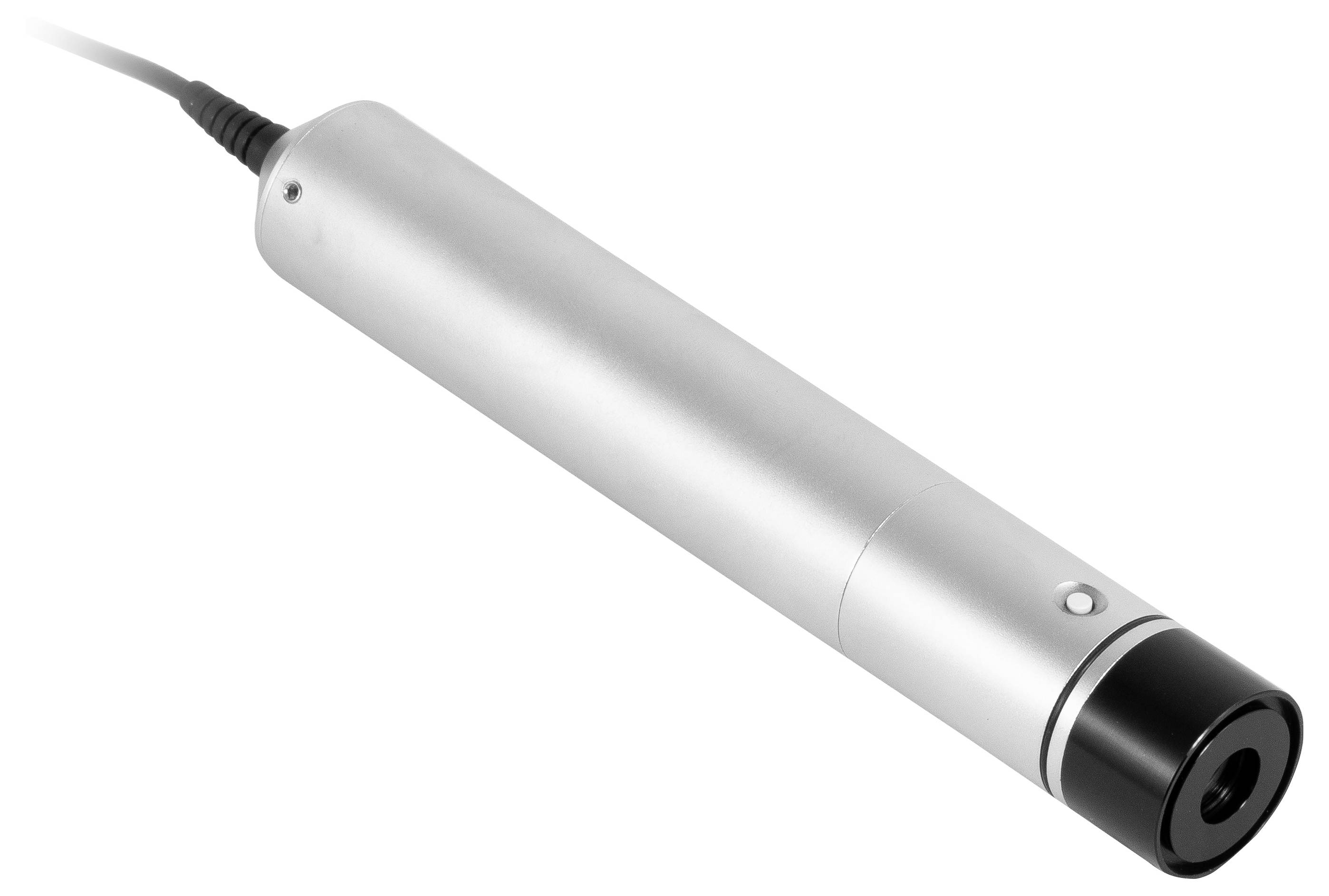

Silver cylindrical handheld device with a cable attached at one end and a black tip at the other, shown on a white background.

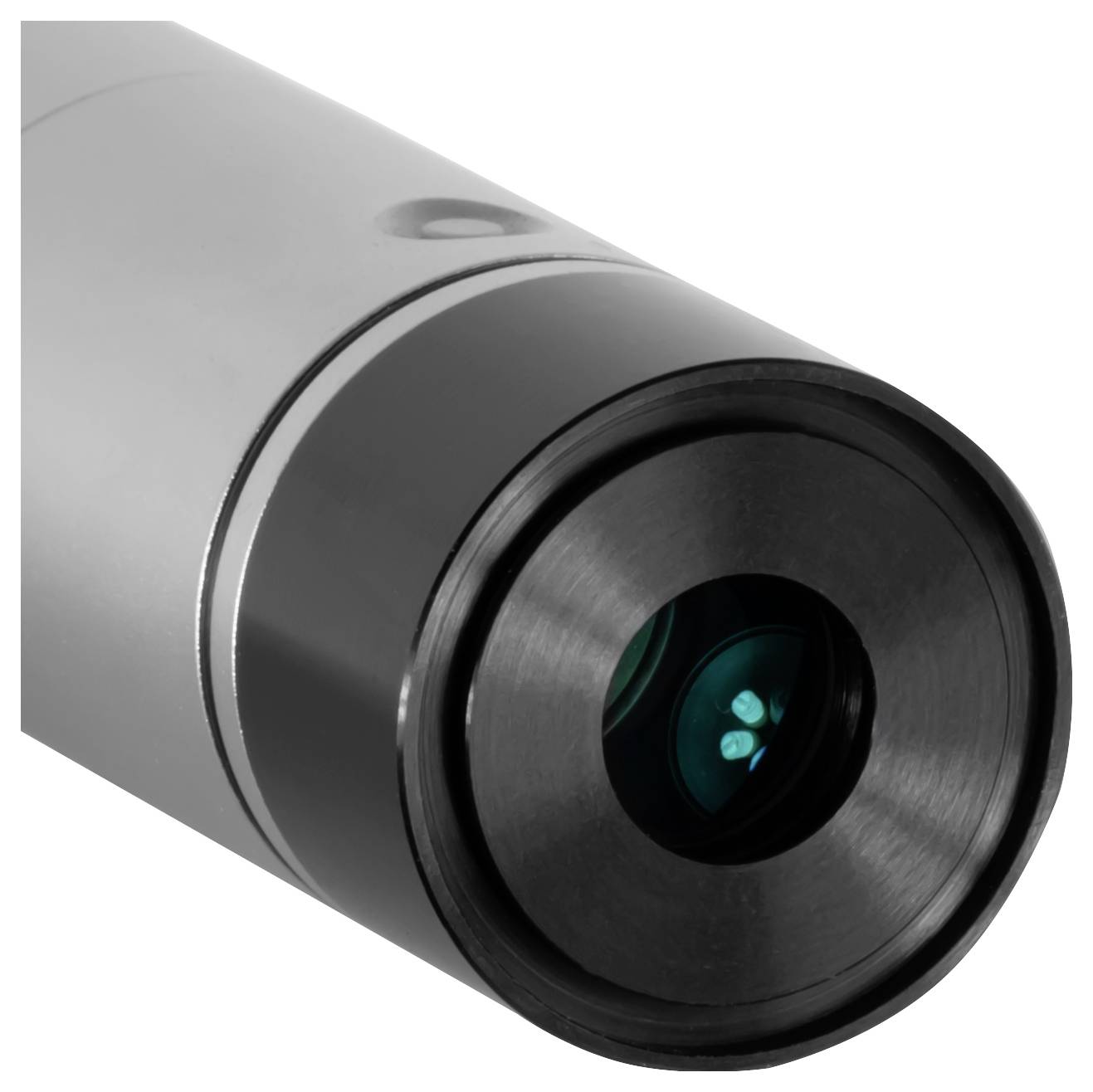

Close-up of a cylindrical camera lens or optical sensor with a black front element and visible teal reflections.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LMD 100

Accuracy class A according to DIN 5032-7
Large measuring range: 0.00 ... 50000 cd/m²
External sensor with multifunction button
8 GB measured value memory

Technical specifications

Light density
Measuring range 0 cd/m² ... +500 cd/m²
Resolution 0.01 cd/m²
Accuracy of total error at +10 ... +40°C: 2.5%
Total error at -10 ... +50°C: 3%
CLASS A (CIE, DIN 5032-7)
Light density
Measuring range +500 cd/m² ... +50000 cd/m²
Resolution 1 cd/m²
Accuracy of total error at +10 ... +40°C: 2.5%
Total error at -10 ... +50°C: 3%
CLASS A (CIE, DIN 5032-7)
General Technical Data
Display type LCD
Display update rate 1 x per second
Measurement rate 1 Hz
Storage intervals of 1 s.
Storage intervals of up to 60 s.
Storage capacity: 8 GB
Operating time 23 h
Measurement field: 10 mm
Measurement angle 1 °
Protection class (device) IP20
Weighs 172 g.
Dimensions (L x W x H) 118 x 74 x 21 mm
Other dimensions Probe dimensions: Ø 25 x 160 mm
Operating conditions -10 ... 50 °C , 90 % r.h.
Storage conditions -10 ... 50 °C , 90 % r.h.

Product type: Lux meter

Reading type: Light intensity

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 118 x 74 x 21 mm

Display: LCD

Weight: 1.4 kg

Features: Suitable for LED lighting
Data logger

Illuminance reading range: 500 - 50000 lx

Illuminance reading range (max.): 50000 lx

Illuminance reading range (min.): 500 lx

Illuminance reading accuracy: 2.5 %

Width: 74 mm

Height: 21 mm

Length: 118 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 3192925 PCE Instruments PCE-LMD 100 PCE-LMD 100 Lux meter 500 - 50000 lx

User & Safety Instructions

User & Safety Instructions 3192925 PCE Instruments PCE-LMD 100 PCE-LMD 100 Lux meter 500 - 50000 lx

Description

The Luxmeter is for the measurement of luminance of self-illuminating surfaces, such as monitor matrices, TV devices, Negoscopes, Reading boards, etc. The measuring device ensures an exact measurement, regardless of the spatial distribution of the measured luminance or background lighting of the surface to be tested. It is essential for the control of medical screens and negatives. The unit cd/m² sets the photometric size cd (abbreviation for candela) in relation to the area of the display, expressed in square meters. Another feature of the Luxmeter is the integrated measured value memory. Use this function to save and record measurement results automatically. The Luxmeter creates a text document in which the measured values are stored one after the other.

Due to its technical parameters, the Luxmeter is classified in Class A according to DIN 5032-7 and TC-2.2 CIE. The probe is equipped with a multifunction button, which can be used to trigger a measurement, save results and set the desired measurement method, for example to test the grayscale playback from monitors as per DICOM GSDF 1) function.
