PCE Instruments PCE-LMDC 200 PCE-LMDC 200 Lux meter 100 lx (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-LMDC 200
- Luminosity 100 lx
- Colour temp. 3000 K
- Working period 1 min.
- Check the input voltage
- Suitable for PCE-LMD 200
- Ø Probe 44 mm Ø Reception field 12.5 mm
Technical specifications
- General Technical Data
- Luminosity 100 lx
- Colour temp. 3000 K
- Accuracy ±0.1 % (max. ±0.3 %)
- After 3000 periods or 1 year ±1 %
- Protection class (device) IP20
- POWER SUPPLY 12V DC 0.6 A
- Connector type for device Euro plug
- Weight 650 g
- Device weight supplied with 1310 grams
- Device weight with delivery scope and packaging 1450 g
- Dimensions (L x W x H) 110 x 80 x 80 mm
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Languages of the instructions English
- Product type
Lux meter
- Reading type
Light intensity
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 110 x 80 x 80 mm
- Display
LCD
- Weight
650 g
- Features
Suitable for LED lighting
- Illuminance reading range
100 lx (max)
- Illuminance reading range (max.)
100 lx
- Illuminance reading accuracy
0.1 %
- Reading category
Ohne Messkategorie
- Width
80 mm
- Height
80 mm
- Length
110 mm
- Interfaces
Europlug
Documents & Downloads
Datasheet
Datasheet 3192927 PCE Instruments PCE-LMDC 200 PCE-LMDC 200 Lux meter 100 lx (max)
User & Safety Instructions
User & Safety Instructions 3192927 PCE Instruments PCE-LMDC 200 PCE-LMDC 200 Lux meter 100 lx (max)
Description

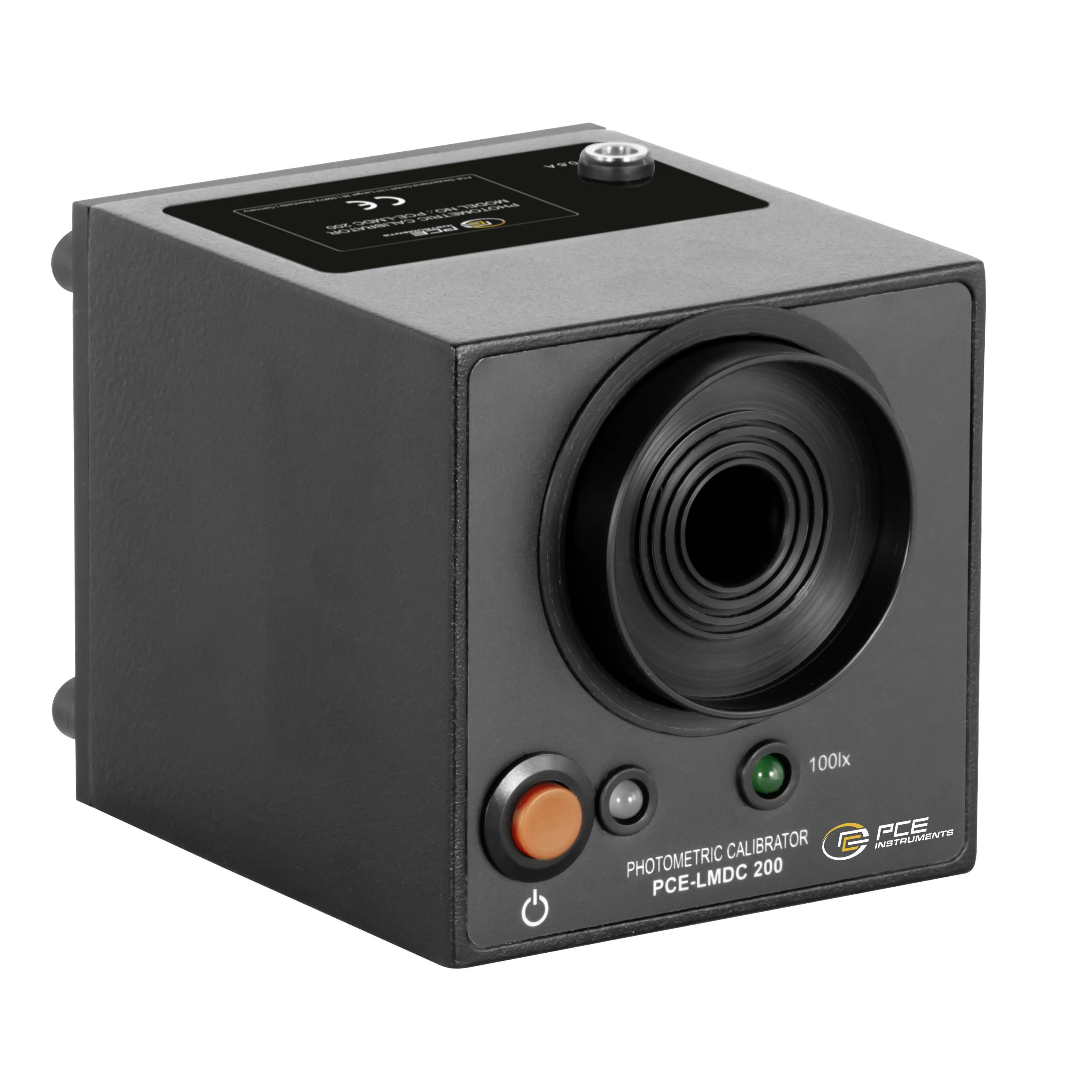

The calibrator for light measuring devices is characterized by its precise properties. The light intensity of the calibrator is fixed at 100 lux and ensures a reliable and exact adjustment of the light sensors. Light measuring devices that are controlled and adjusted with the calibrator provide reliable measuring values under real conditions. Another important feature of the calibrator is its defined light color of 3000 Kelvin. This color temperature of the calibrator light source is adapted to the common lighting conditions and thus enables realistic calibration. The operating period of the calibrator is 1 minute. This short period of time ensures that the calibrator light source is not subject to unnecessary wear.
In addition, the calibrator includes an input voltage check to ensure that the calibrator is operating in optimal conditions. This function helps to eliminate possible sources of error and to ensure the accuracy of the light output. Overall, this calibrator is a reliable and precise solution for calibration of light meters, especially the PCE-LMD 200. The carefully defined properties enable the instruments to be precisely adapted to different lighting conditions, ensuring the reliability of light measurements.
This text is machine translated.
In addition, the calibrator includes an input voltage check to ensure that the calibrator is operating in optimal conditions. This function helps to eliminate possible sources of error and to ensure the accuracy of the light output. Overall, this calibrator is a reliable and precise solution for calibration of light meters, especially the PCE-LMD 200. The carefully defined properties enable the instruments to be precisely adapted to different lighting conditions, ensuring the reliability of light measurements.
This text is machine translated.
Scope of delivery

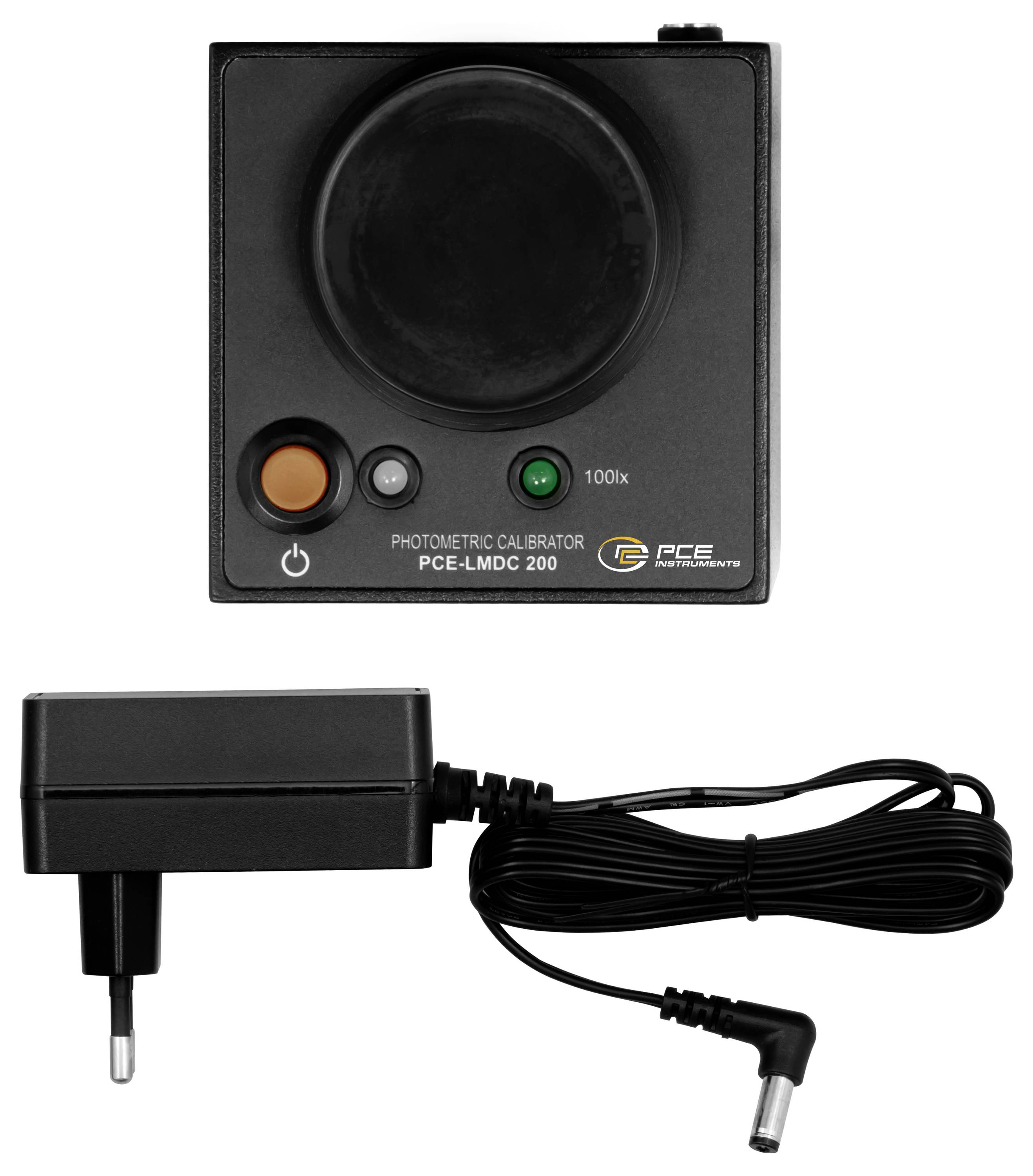

- 1 x calibrator / PCE-LMDC 200 simulator
- 1 power unit
- 1 x Wooden storage box
- 1x user manual
