PCE Instruments PCE-LT 12 Handheld multimeter Digital Display (counts): 1999
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE-LT 12
- Extensive network connection testing
- Telephone connection check
- Acoustic cable finder function
- Robust housing for mobile use
- Voltage, current, resistance measurement
- Non-contact voltage detection
Technical specifications
- Measurement function AC measuring range Resolution Accuracy 200 mV 0.1 mV ±(0.8 % + 5 digits) 2 V 1 mV ±(0.8 % + 5 digits) 20 V 0.01 V ±(0.8 % + 5 digits) 200 V 0.1 V ±(0.8 % + 5 digits) 750 V 1 V ±(0.8 % + 5 digits) Maximum input voltage 750 VAC Frequency range: 40 ... 400 Hz conversion RMS Direct voltage Measurement range Resolution accuracy 200 mV 0.1 mV ±(0.5 % + 5 digits) 2 V 1 mV ±(0.5 % + 5 digits) 20 V 0.01 V ±(0.5 % + 5 digits) 200 V 0.1 V ±(0.5 % + 5 digits) 1000 V 1 V ±(0.8 % + 5 digits) Maximum input voltage 1000VDC Alternating current Measuring range Resolution accuracy 200 µA 0.1 µA ±(1.5 % + 5 digits) 2000 µA 1 µA ±(1.5 % + 5 digits) 20 mA 0.01 mA ±(1.5 % + 5 digits) 200 mA 0.1 mA ±(1.5 % + 5 digits) 2 A 0.001 A ±(3.0 % + 5 digits) 20 A 0.01 A ±(3.0% + 5 digits) Overload protection at µA, mA 200 mA / 1000 V. Overload protection fuse for A: 10 A / 500 V. Fuse maximum input current µA: 2000 µA maximum input current mA: 200 mA maximum input current A: 10 A. Frequency range: 40 ... 400 Hz Conversion RMS Measuring function DC current Resolution reading range Accuracy 200 µA 0.1 µA ±(1.2 % + 5 digits) 2000 µA 1 µA ±(1.2 % + 5 digits) 20 mA 0.01 mA ±(1.2 % + 5 digits) 200 mA 0.1 mA ±(1.2 % + 5 digits) 2 A 0.001 A ±(2.0 % + 5 digits) 20 A 0.01 A ±(2.0 % + 5 digits) Overload protection at µA, mA 200 mA / 1000 V. Overload protection fuse for A: 10 A / 500 V. Fuse maximum input current µA: 2000 µA maximum input current mA: 200 mA maximum input current A: 10 A. Measurement function Resistance Measurement range Resolution accuracy 200 Ω 0.1 Ω ±(1.0 % + 5 digits) 2 kΩ 0.001 kΩ ±(1.0 % + 5 digits) 20 kΩ 0.01 kΩ ±(1.0 % + 5 digits) 200 kΩ 0.1 kΩ ±(1.0 % + 5 digits) 2 MΩ 0.001 MΩ ±(1.0 % + 5 digits) 20 MΩ 0.01 MΩ ±(1.0% + 5 digits) Diode measurement Measurement range Resolution Accuracy indicates the forward voltage 1 mV Continuity testing Measurement range Resolution Accuracy of signal tone at< 70 Ω 0.1 Ω Other specifications Measuring range selection automatically and manually Measurement with receiver Detection of cable bridgesDetection of cable routing Measurement with network function Detection of open and closed circuits Incorrect connection"Split Pair " "Reverse " connectionNetwork integration testingScreen test Other measurement function "NCV " detectionTelephone connection Check LCD display1999 digit overload display "OL " Automatically switches off after 15 minutes of inactivity Fuses F10A / 500 V, F200mA/1000A Battery indicator Display when battery is discharged Power supply 9 V block battery Operating conditions 0 ... 40 °C -10 ... 50 °C Dimensions 195 x 92 x 55 mm Weight approx. 400 g (with batteries)
- Voltage reading range DC (min.)
200 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
200 mV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
200 µA
- A DC reading range (max.)
20 A
- A AC reading range (min.)
200 µA
- Amperage reading range AC (max.)
20 A
- Measurement type (details)
True RMS
- Height
55 mm
- Width
92 mm
- Length
195 mm
- Weight
400 g
Manufacturer's standards (no certificate)
- Current reading
AC/DC
- Type
PCE-LT 12
- Display
Digital
- Display (counts)
1999
- Dim
(L x W x H) 195 x 92 x 55 mm
Documents & Downloads
Datasheet
Datasheet 2452503 PCE Instruments PCE-LT 12 Handheld multimeter Digital Display (counts): 1999
User & Safety Instructions
User & Safety Instructions 2452503 PCE Instruments PCE-LT 12 Handheld multimeter Digital Display (counts): 1999
Description

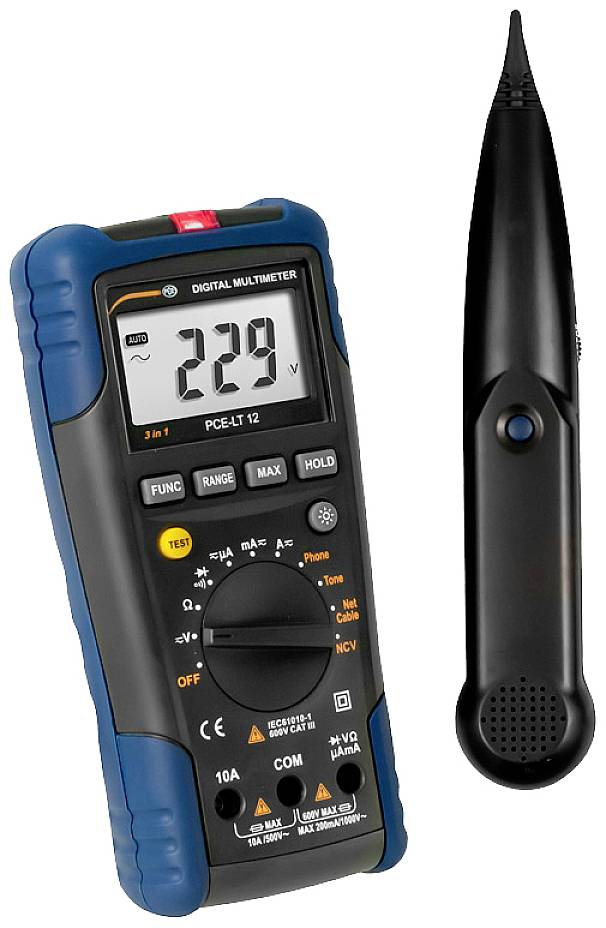

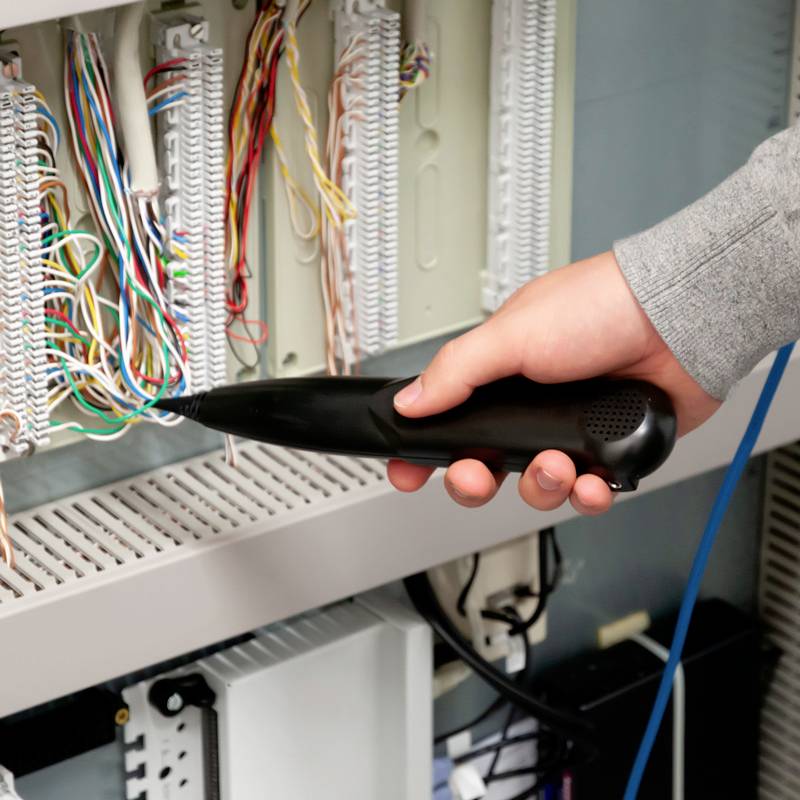

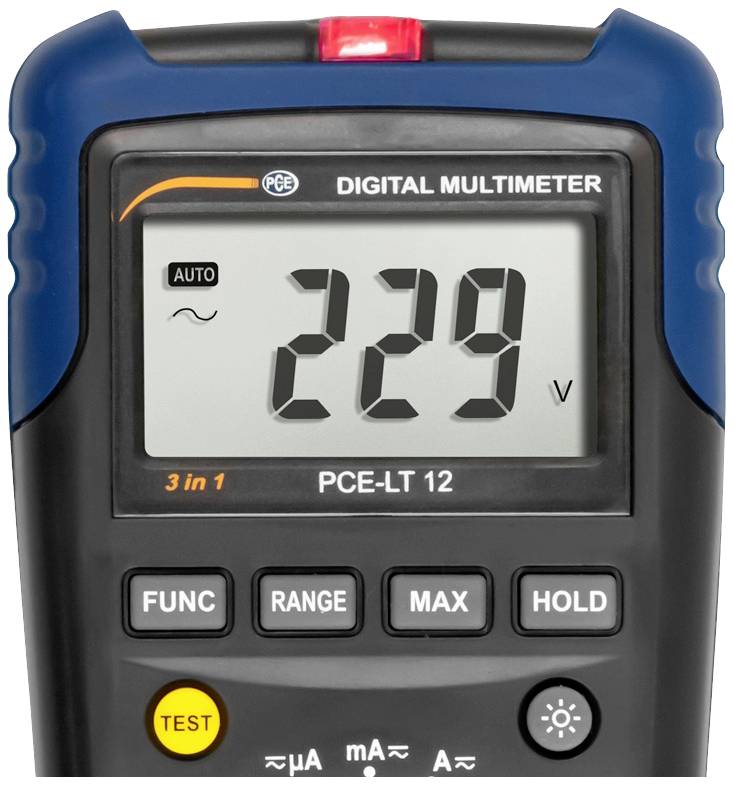

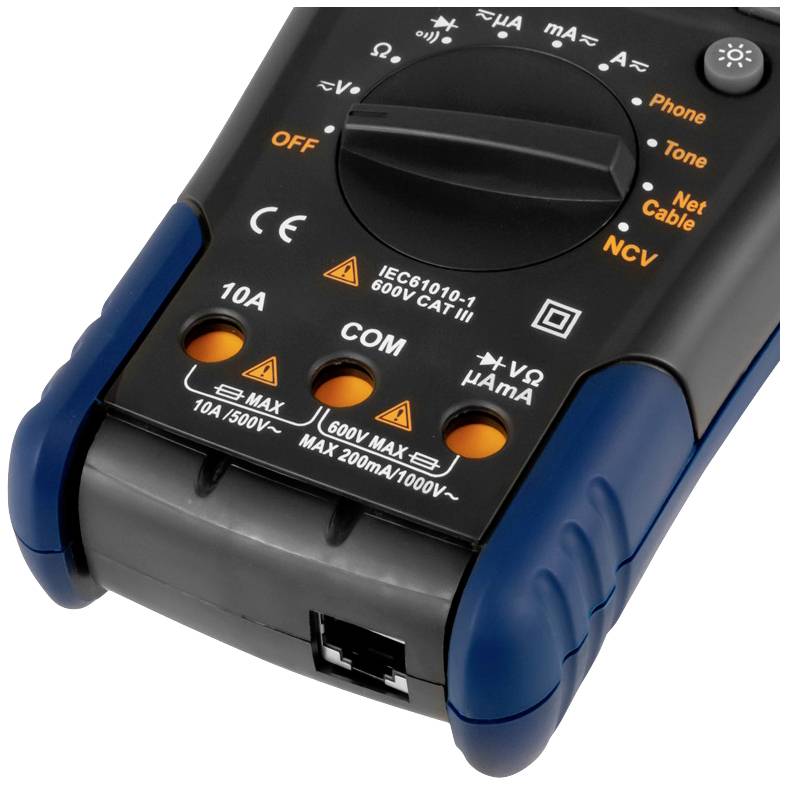

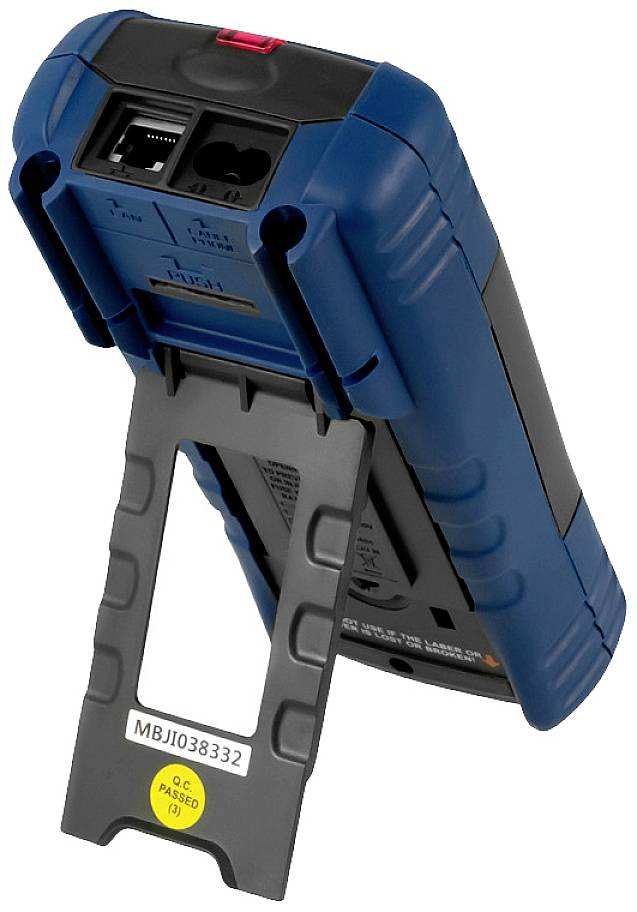

Ammeter with many measurement functions / for the electrician and IT staff / Analysis of network connection cables / Telephone connection test / Voltage and current measurement / NCV / Background lighting The ammeter is a versatile measuring instrument. In addition to the standard voltage and current measurements, the ammeter also has a network analysis. With this network analysis, the ammeter can be used, for example, to check LAN connections for correct wiring and function. This ammeter can also be used to check the function of telephone connections. If cables cannot be found again, the ammeter also helps here. Thanks to the ammeter's cable finder function, the operator can find the cable he is looking for in no time at all. To do this, the ammeter must be connected to the connection of a line. The ammeter now acts as a transmitter. With the supplied receiver, the desired cable can now be easily found in, for example, a wiring harness or behind walls with the ammeter. To check whether a voltage is present on a line, the ammeter has an NCV (Not Connected Voltage) function. With this function, the ammeter only needs to be held to the line. Both acoustically and visually, the ammeter signals to the operator that there is a voltage on the line. Thanks to this contactless measurement function, the ammeter reduces occupational accidents through electric shocks.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x ammeter PCE-LT 12
- 1 x receiver
- 1 x pair of test leads
- 1 x Strang connection adapter
- 2 x 9 V block batteries
- 1x user manual
