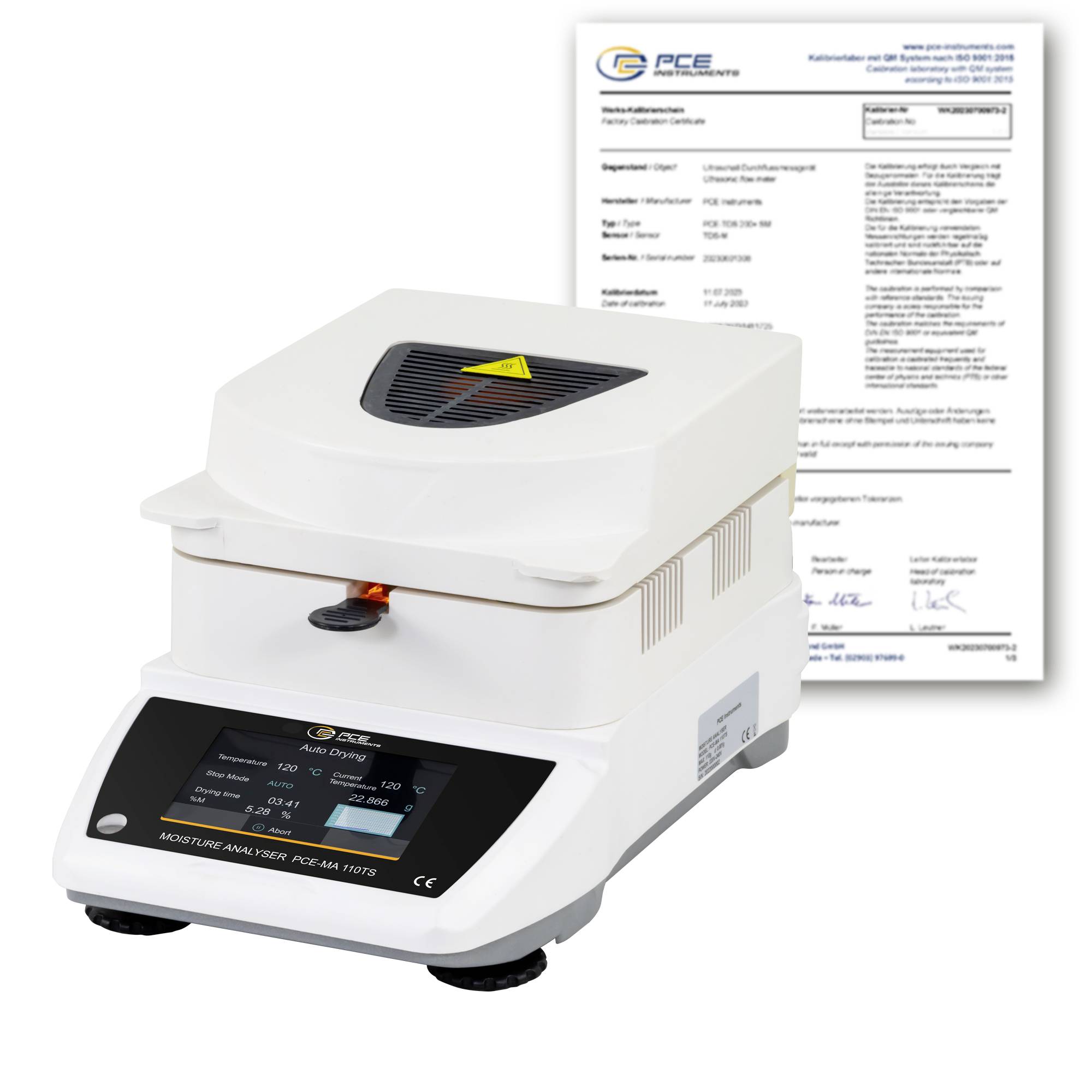

Benchtop moisture analyzer with touchscreen display and heated chamber, shown with a calibration or compliance certificate behind it.<br>

White medical device with top vent and warning symbol, rear power switch and inlet, and a serial port on the lower front.

Close-up of a device corner with a circular button or sensor and the partial label 'MOIST' on a black-and-white panel.

Close-up of a glowing orange spiral heating element inside a metal appliance housing.

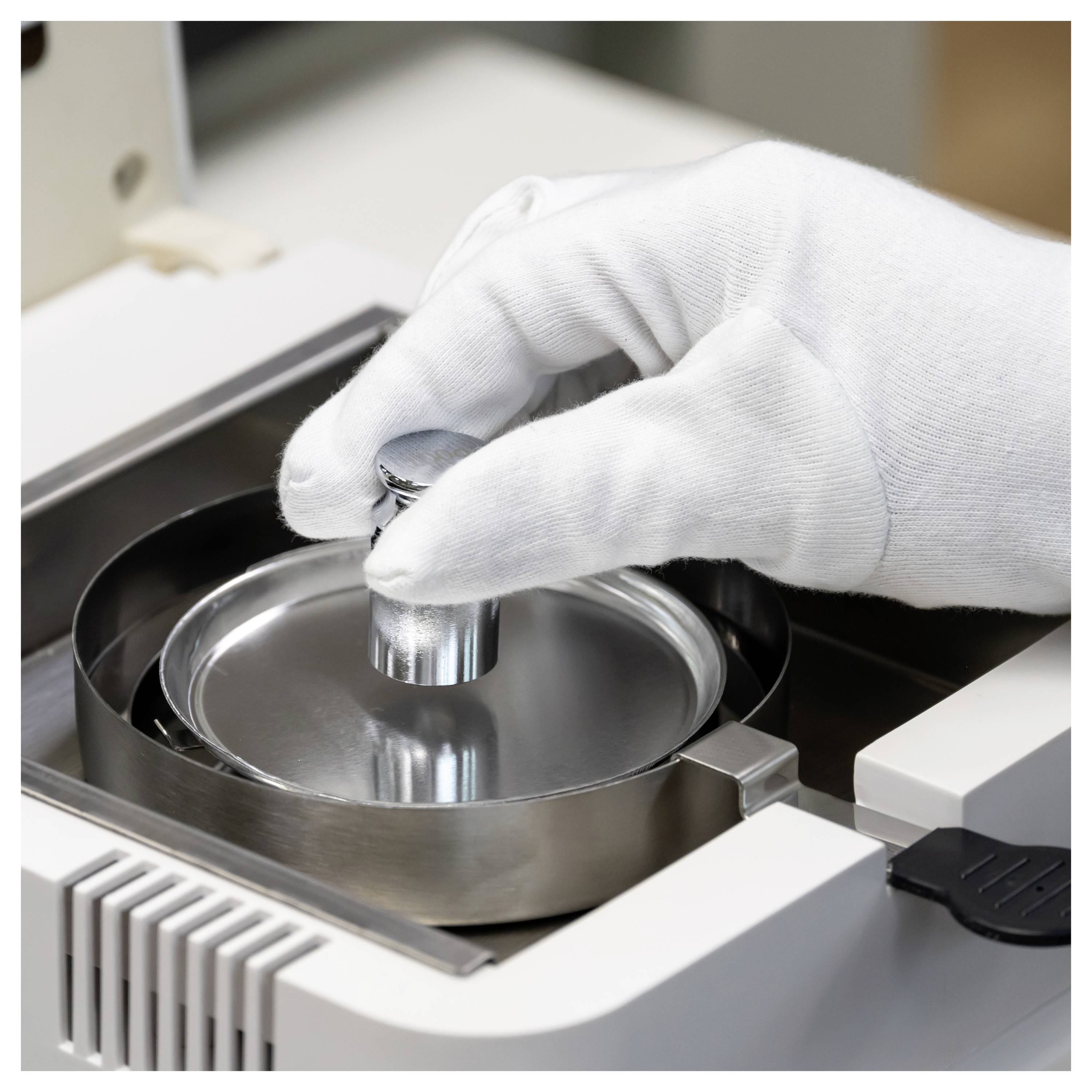

Gloved hand places a sample on a laboratory instrument’s circular metal stage for measurement or testing.

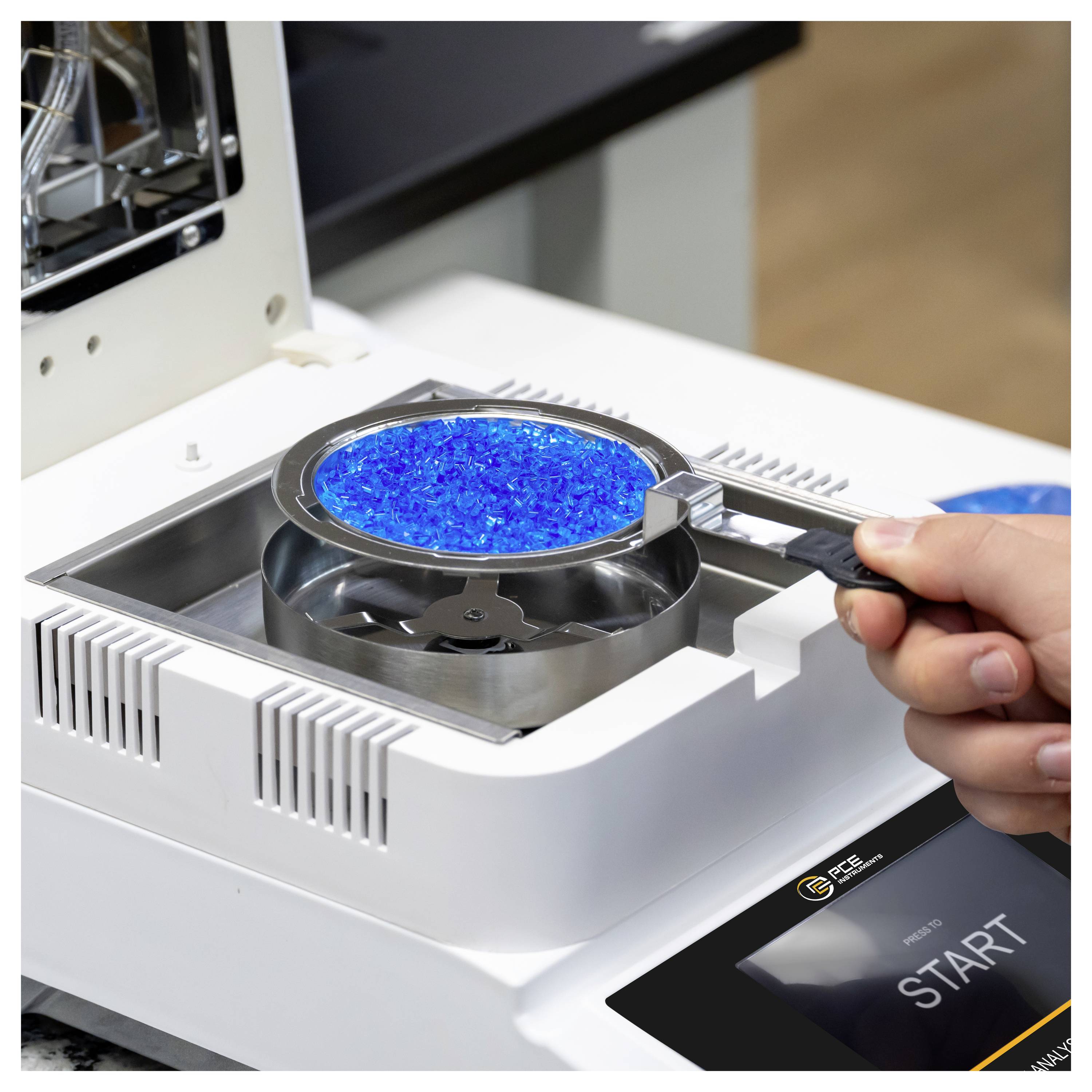

Hand holds a pan of blue granules over a laboratory analyzer with a START button, suggesting sample preparation or testing.

Stainless steel and plastic replacement parts for a popcorn machine, including a bowl, tray, ring, lid, axle cap, and three-legged hub.

Moisture analyzer kit with digital analyzer unit, power cord, sample pans, adapter ring, and small accessory parts.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE instruments humidity tester with touch-screen PCE-MA 110TS-ICA

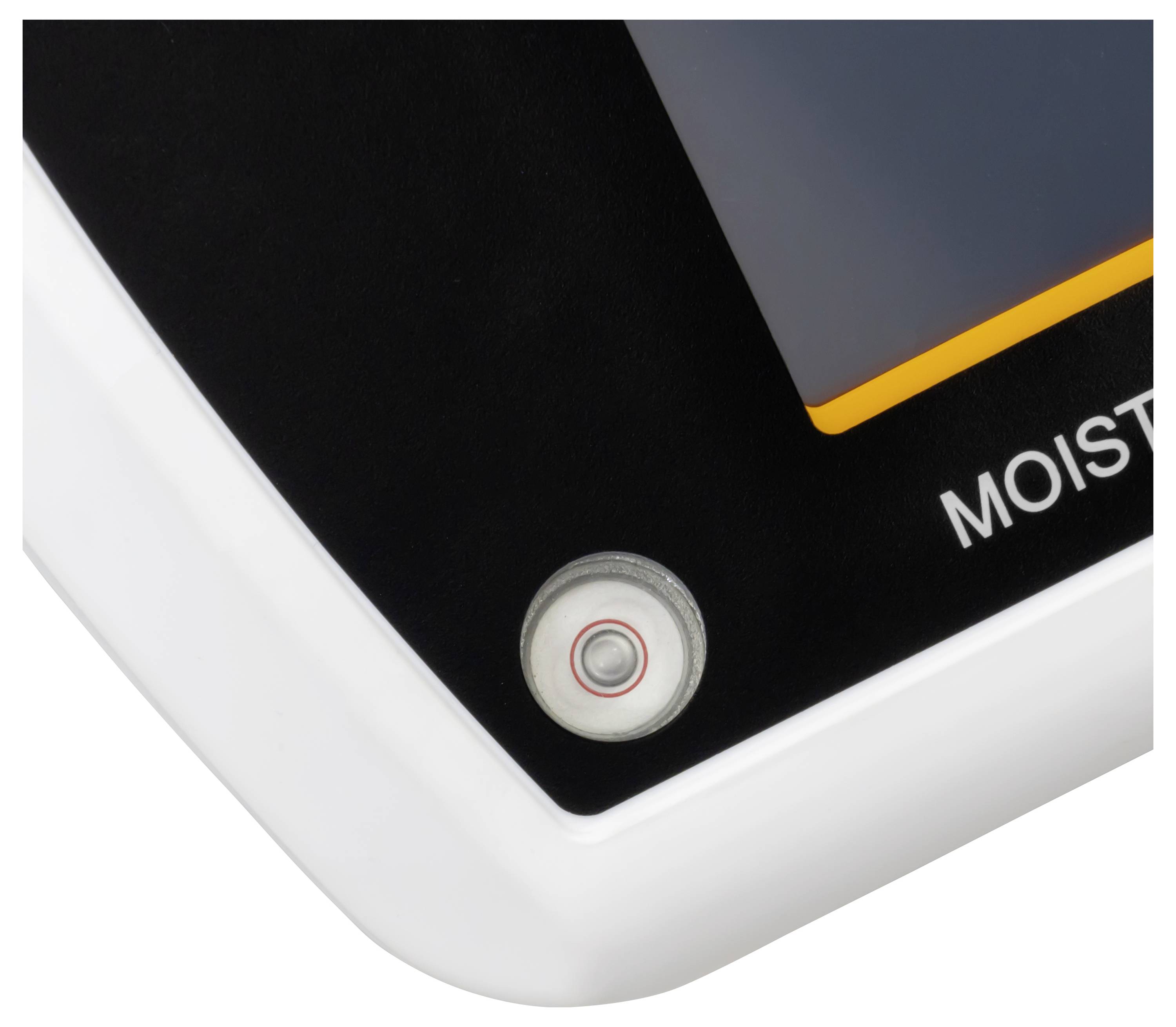

Spirit level for leveling the humidity level
Storage for 32 drying
5-inch touch screen for easy operation

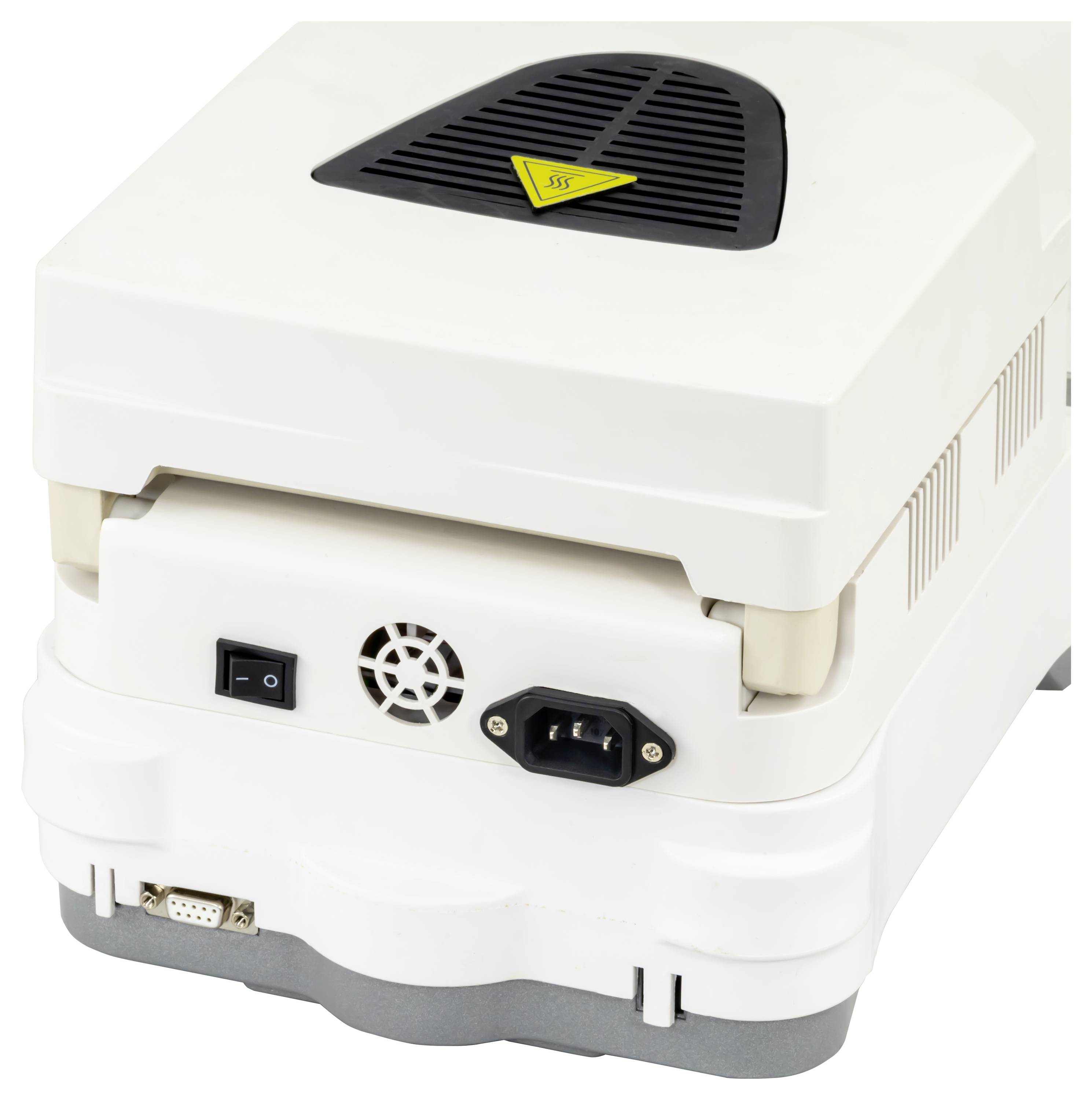

RS 232 interface for connection to a PC

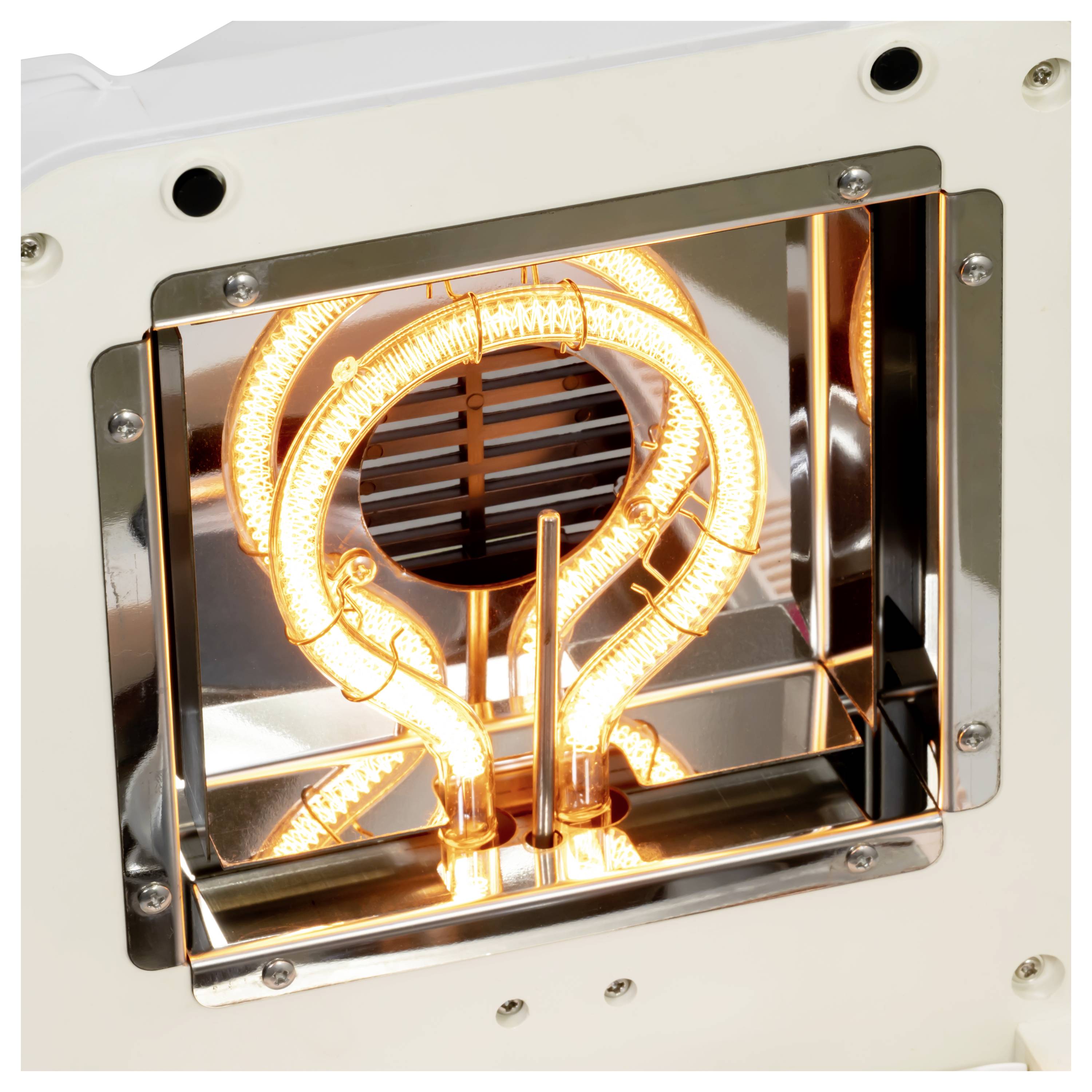

Halogen lamp as heating element Ø90 mm
Optionally with ISO calibration certificate
Optionally with PC software
11 menu languages
Incl. ISO calibration certificate

Technical specifications

Humidity absolute
Measuring range 0 ... 100 %.
Resolution 0.01 %.
Weighing range
Measuring range [Max] 110 g
Resolution [d] 0.001 g
Accuracy 0.003 g
General Technical Data
Display Type Touch Display
Display size 5 inches
Memory capacity: 32 values
Interface RS232
Heating element halogen lamp
Heating temperature 1 40 ... 165 °C
Dimensions halogen lamp Ø 90 mm
Drying time 1 ... 99 mins.
Menu language Chinese, English (US), German, Spanish, Italian, Portuguese, Dutch, French, Russian, Polish, Turkish
Protection class (device) IP20
Power supply 220 ... 240 V AC, 50 / 60 Hz
Connector type cold-device plug
Operating conditions 5 ... 40 °C , 0 ... 85 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 370 x 215 x 195 mm
Weight 4500 g

Product type: Moisture meter

Measurement type (details): Invasive

Temperature: 40 - 165 °C

: Manufacturer's standards (no certificate)

Suitable for: Grain
Building materials

Interfaces: RS 232

Power supply (details): 220 - 240 V AC

Dim: (L x W x H) 370 x 215 x 195 mm

Weight: 4.5 kg

Display (details): 5" touchscreen for easy operation

Calibration service: Incl. ISO calibration certificate

Calibration range: Humidity

Moisture reading range (max.) (misc.): 100 %

Moisture reading range (min) (misc.): 0 %

Width: 215 mm

Height: 195 mm

Length: 370 mm

Power supply: 220 - 240 V

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812610 PCE Instruments PCE-MA 110TS-ICA Moisture meter

User & Safety Instructions

User & Safety Instructions 3812610 PCE Instruments PCE-MA 110TS-ICA Moisture meter

Description

The grain humidity meter with touch screen has a humidity measuring range of 0 … 100%. The grain humidity meter is operated via the 5 inch touch screen. In order to determine the moisture content with the grain humidity meter with touch screen, a sample is evenly distributed on the sample bowl. The sample tray is then placed in the grain moisture meter with a touch screen and closed. After setting all parameters, the grain moisture meter with the touch screen starts the measurement.

The moisture content of the grain humidity meter with touch screen determines the measured weight difference, relative to the weight before and after drying of the sample. The adjustable temperature range for the grain humidity meter with touch screen is between 40 … 165 °C. Thus, a specific drying temperature can be selected for the sample on the grain moisture meter with touch screen. The drying temperature is generated by means of the integrated halogen lamp with a diameter of 90 mm.

The drying process of the sample makes the grain humidity meter with touch screen suitable for use in many areas. Thus, the grain humidity meter with touch screen is used in laboratories for measuring the humidity of different powders, in the final quality control for determining the humidity of granulates, or on farms for determining the moisture content of oats, cereals or wheat.

Via the RS 232 Modbus interface in the grain humidity meter with touch screen the measured values can be transferred on a PC and analyzed The grain humidity meter with touch screen is also equipped with software. If required, the grain humidity meter with touch screen can be equipped with an optional ISO calibration certificate.

If you have any further questions about the grain moisture meter with touch screen, please check the following technical data or use our contact form. Our technicians and engineers will be pleased to advise you on the grain humidity meters with touch screen or all other products in the field of control technology, laboratory technology, measuring instruments or scales of PCE Deutschland GmbH

This text is machine translated.

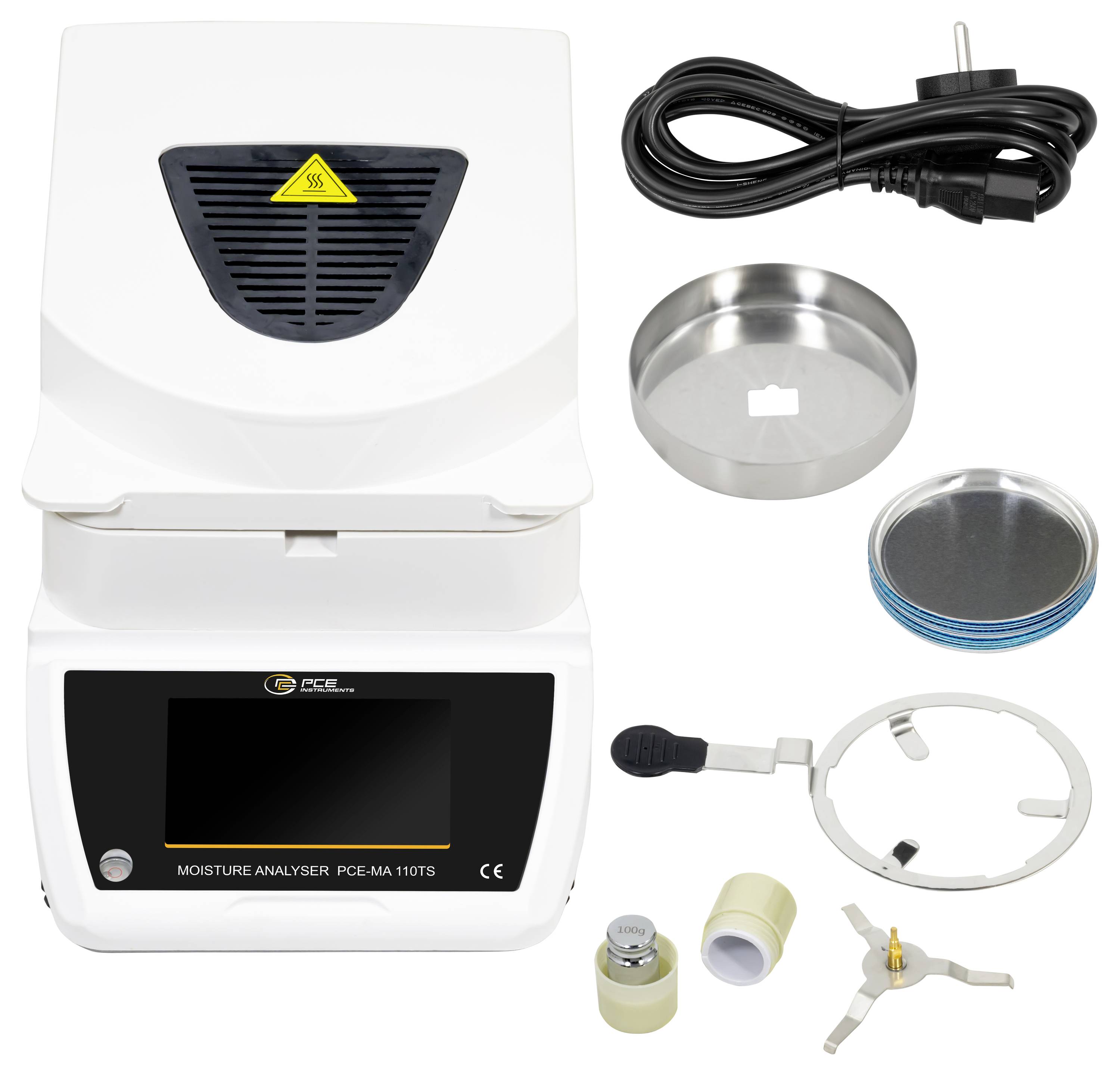

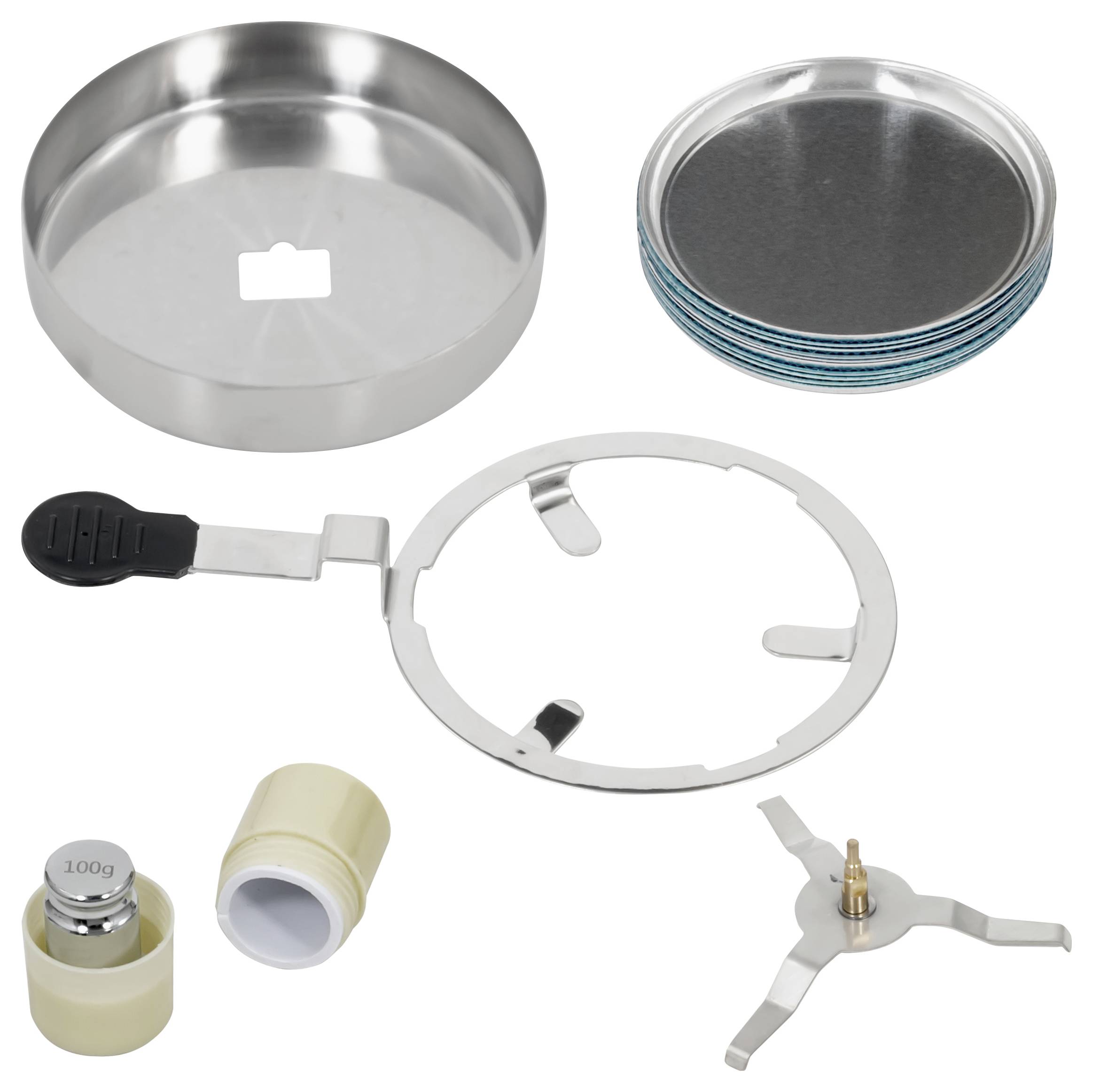

Scope of delivery

1 x grain humidity meter with touch screen PCE-MA 110TS-ICA
10 x sample tray
1 x sample tray holder
1 x sample tray handle
1 x cold-device cables
1x user manual
1 x ISO calibration certificate

Description

Scope of delivery

1 x grain humidity meter with touch screen PCE-MA 110TS-ICA
10 x sample tray
1 x sample tray holder
1 x sample tray handle
1 x cold-device cables
1x user manual
1 x ISO calibration certificate
