PCE Instruments PCE-MA 110TS Moisture meter Temperature reading

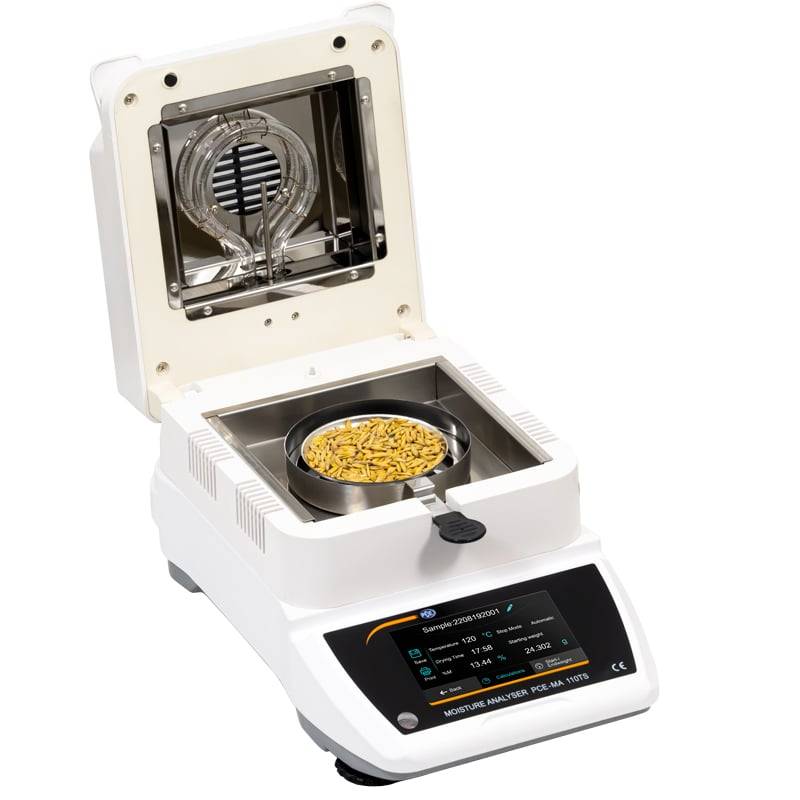

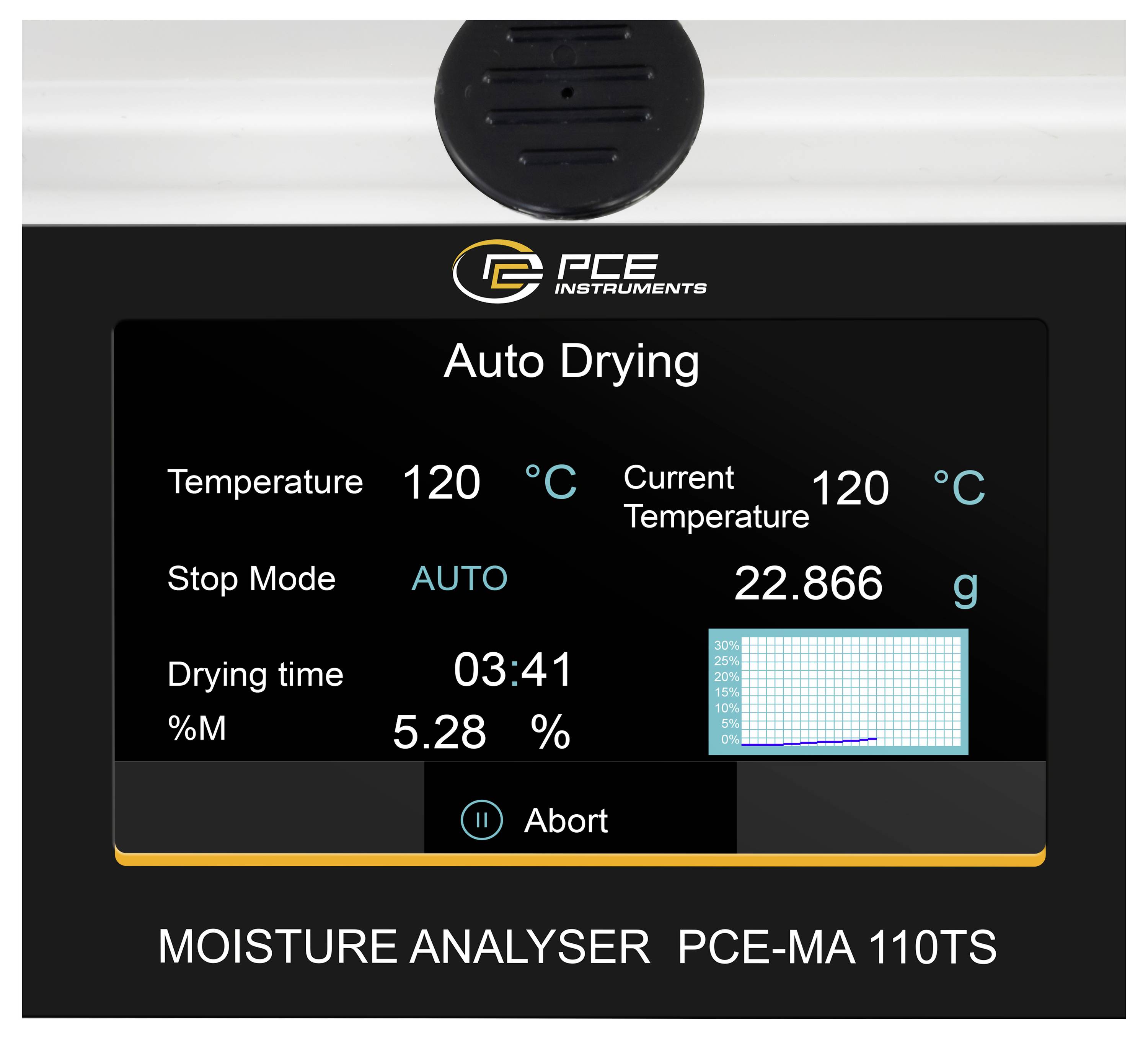

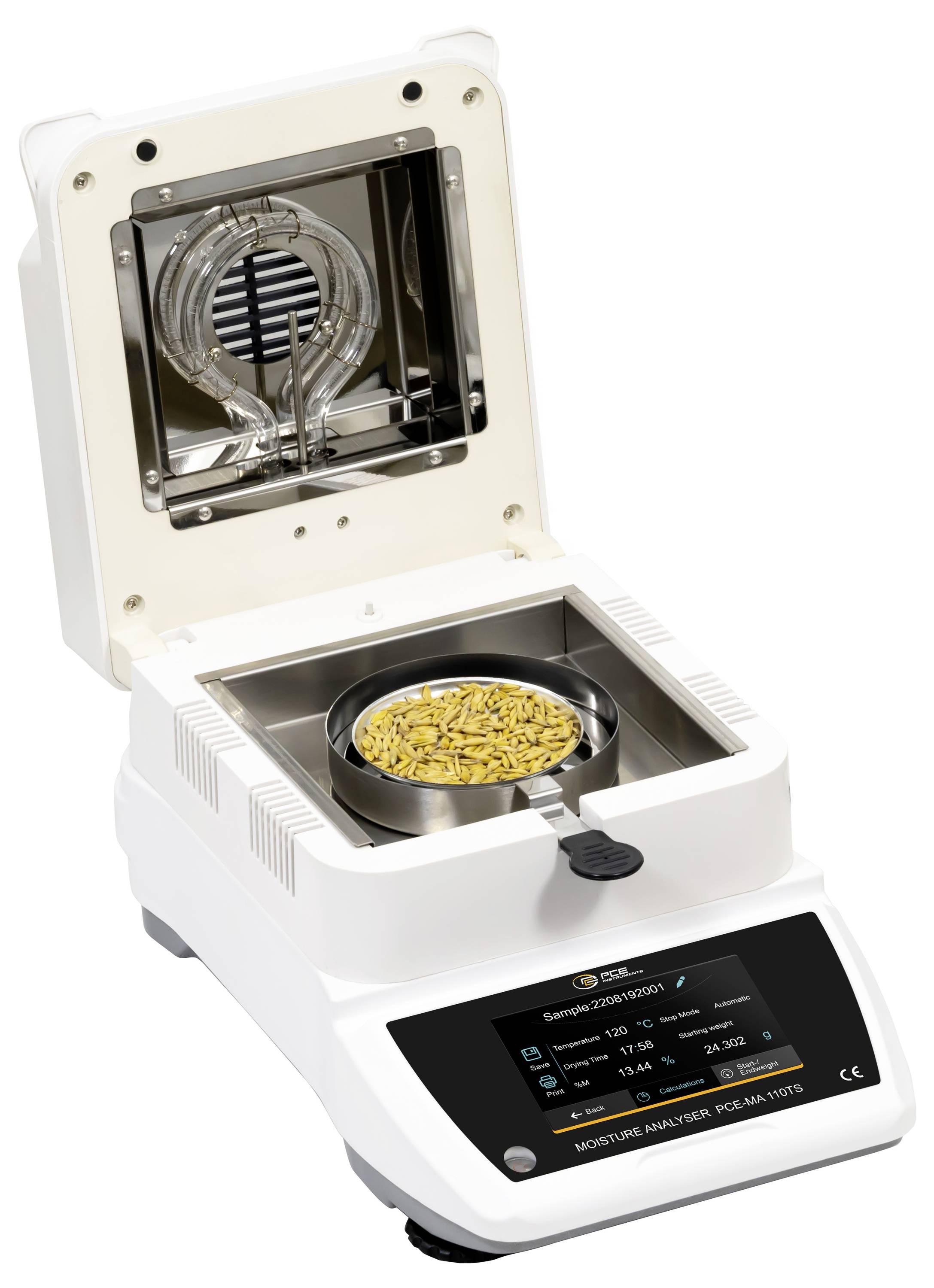

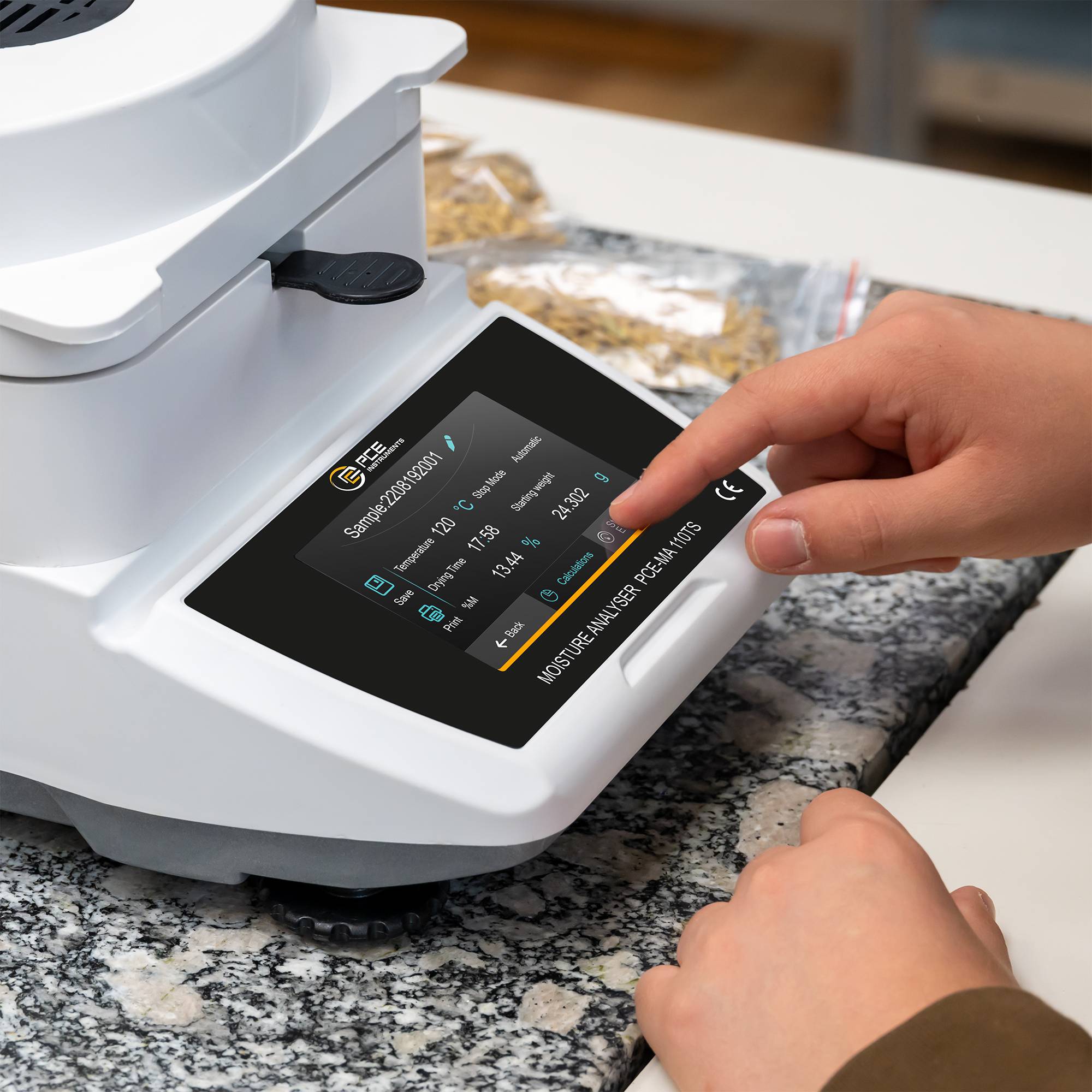

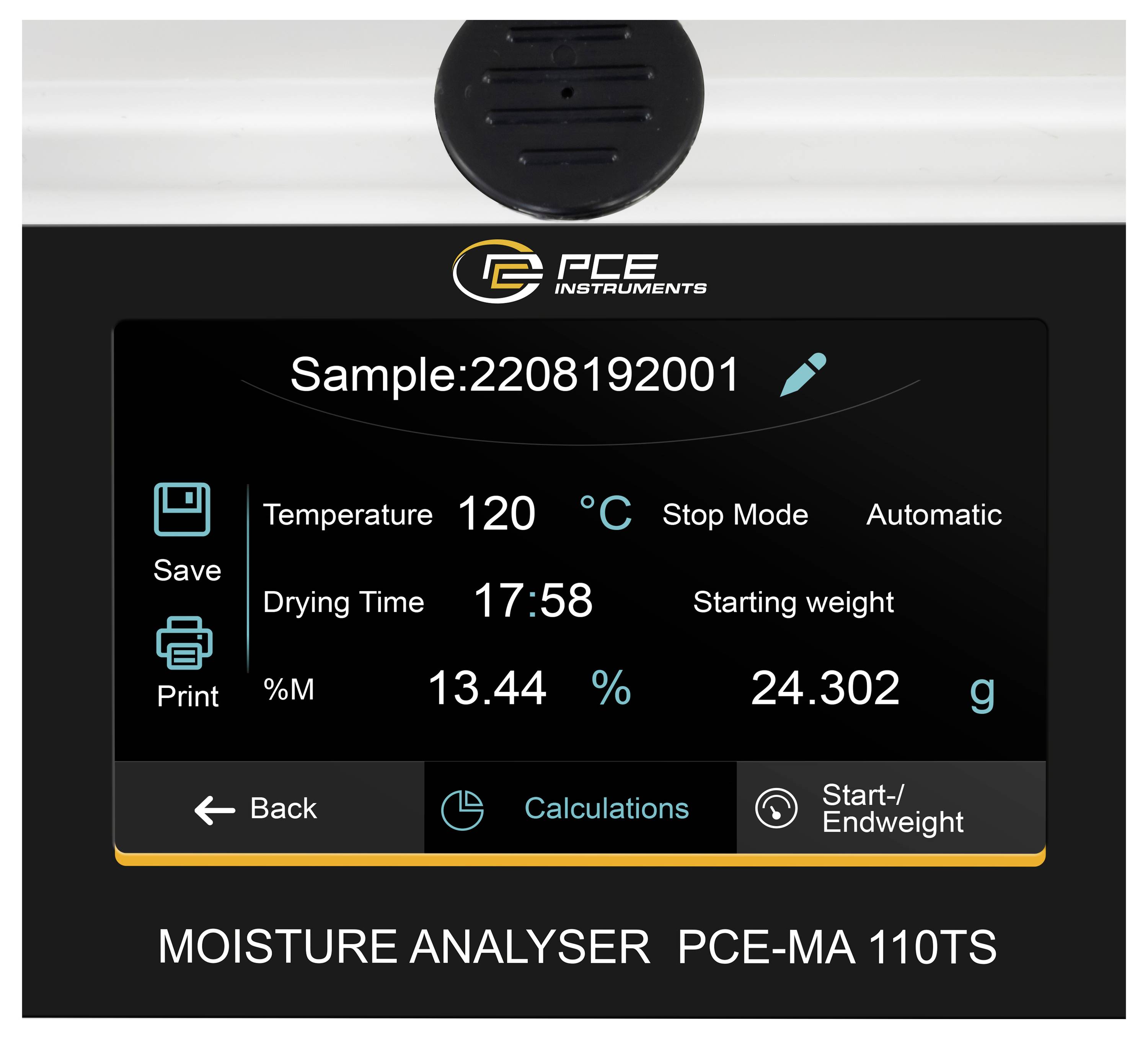

The grain humidity meter has a humidity measuring range of 0 … 100 %. The grain humidity meter is operated via the 5" touch-screen. In order to determine the moisture content with the grain moisture meter, a sample is evenly distributed on the sample bowl. The sample tray is then placed in the grain moisture meter and closed. After all parameters have been set, the grain humidity meter starts the measurement.The moisture content of the grain humidity meter is determined by the measured difference in weight, relative to the weight before and after drying the sample. The adjustable temperature range for the grain humidity meter is between 40 … 165 °C. Thus, a specific drying temperature can be selected for the sample on the grain moisture meter. The drying temperature is generated by means of the integrated halogen lamp with a diameter of 90 mm. The drying process of the sample makes the grain humidity meter suitable for use in many different areas. Thus, the grain humidity meter is used in laboratories for measuring the moisture of different powders, in the final quality control for determining the humidity of granulates, or on farms to determine the moisture content of oats, cereals or wheat. Via the RS 232 Modbus interface in the grain humidity meter, the measured values can be transferred to a PC and analyzed The grain humidity meter also comes with software that matches the grain size. If necessary, the grain humidity meter can be equipped with an optional ISO calibration certificate. If you have any further questions about the PCE-MA 110TS grain humidity meter, please refer to the following technical data or use our contact form. Our technicians and engineers will be happy to advise you on the grain humidity meters or all other products in the field of control technology, laboratory technology, measuring instruments or scales of PCE Deutschland GmbH
