PCE Instruments PCE-MA 200TS Moisture meter Temperature reading

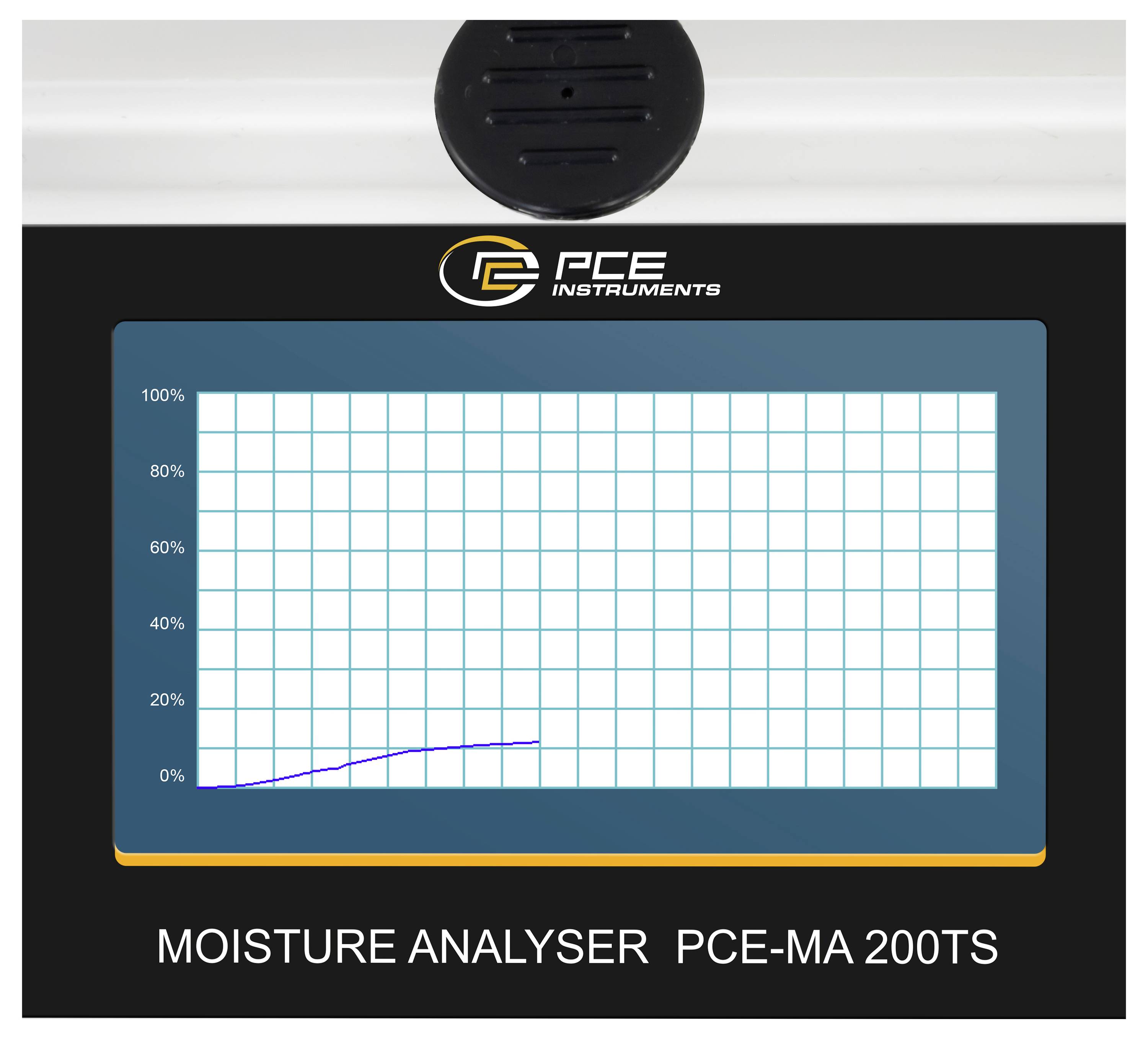

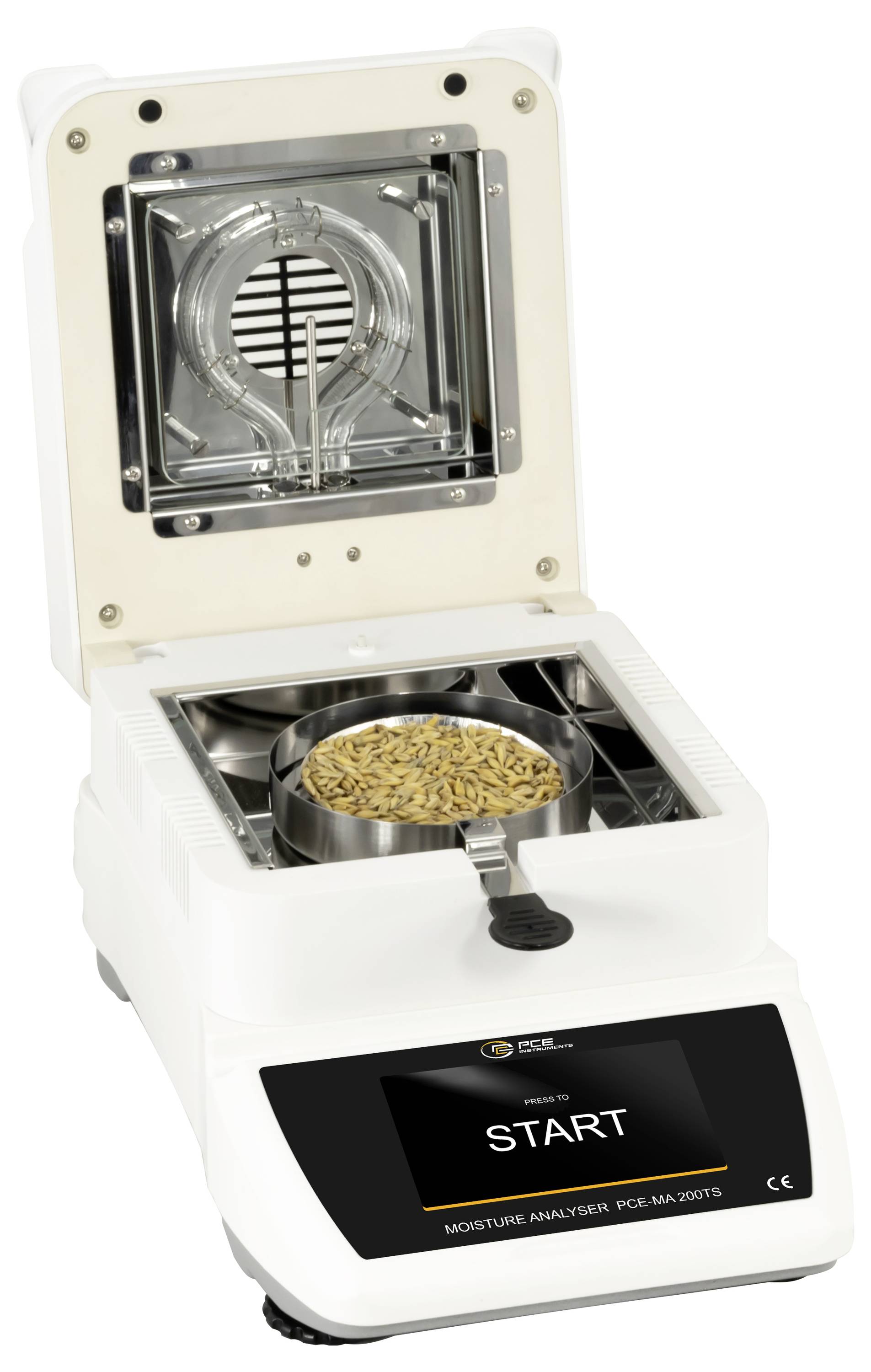

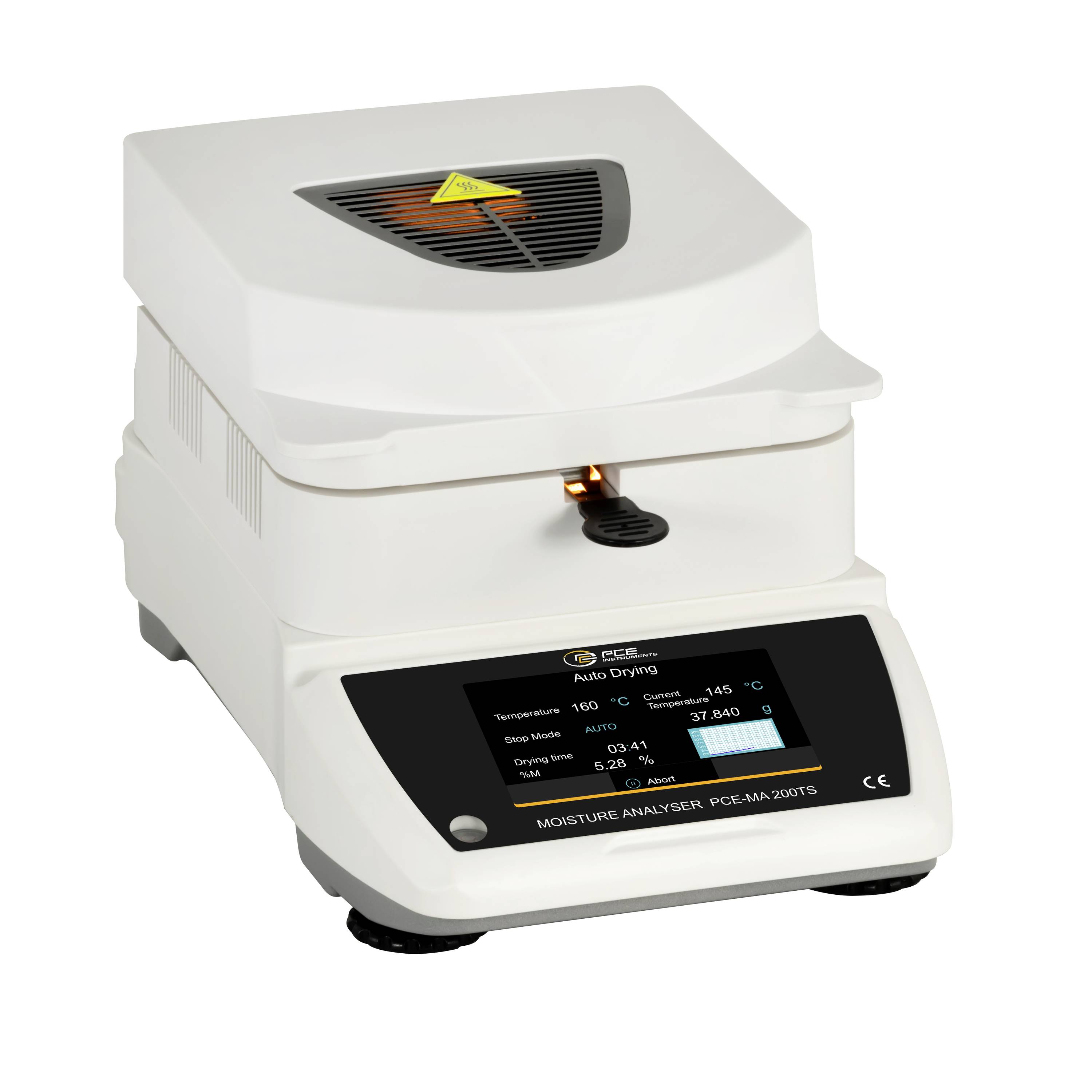

The moisture meter has a measuring range of 0 … 100 % absolute humidity. The humidity determiner is used over the 5"-large touch-screen. In order to measure the moisture content with the moisture receiver, a sample is distributed evenly on the sample shell. The sample tray is then placed in the moisture determiner and closed. After setting all parameters, the moisture determiner begins the measurement.

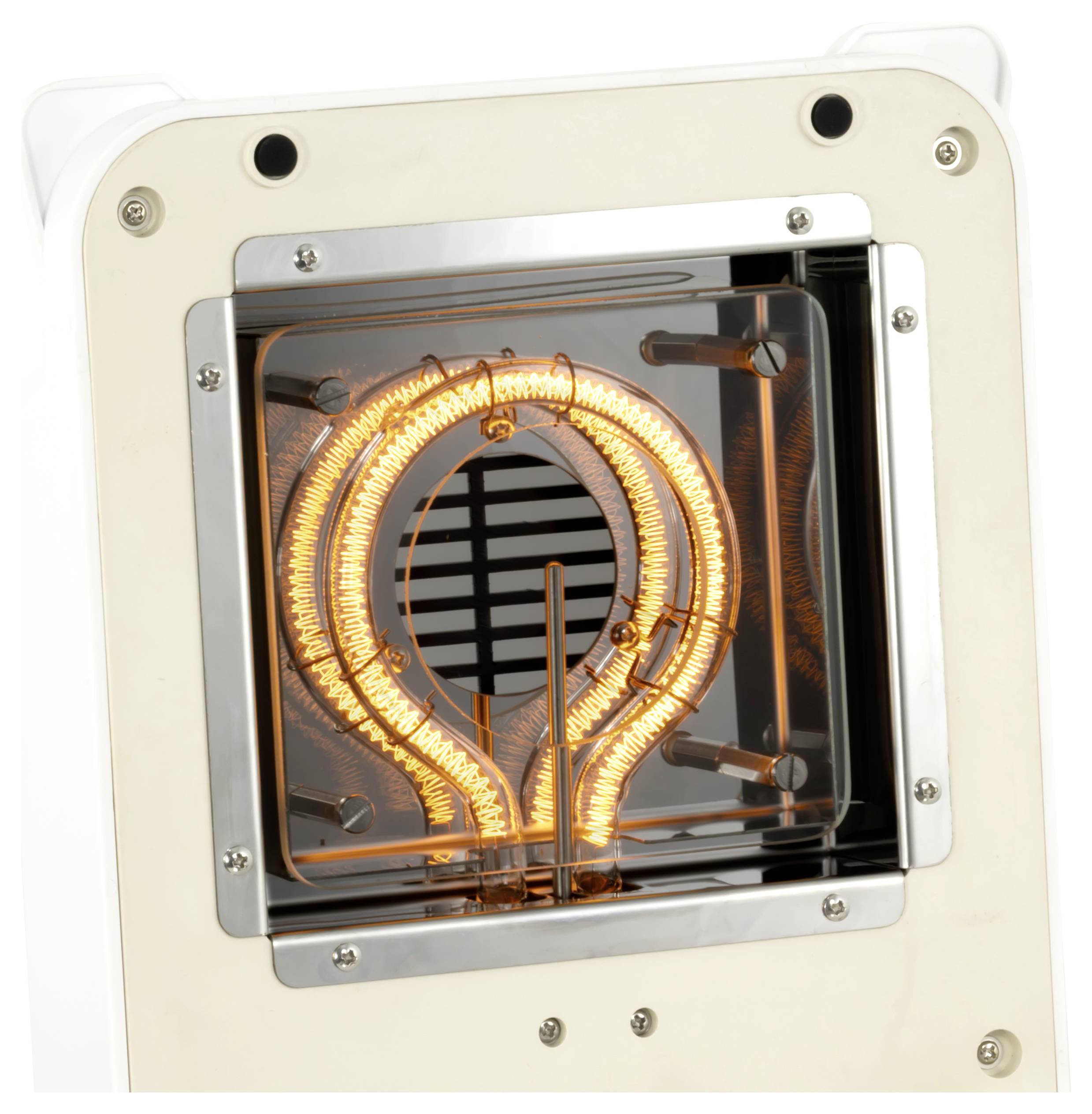

The moisture content is determined by the moisture determinant of the measured difference in weight, relative to the weight before and after drying of the sample. The adjustable temperature range for the moisture determiner is between 40 … 165 °C. Thus, a specific drying temperature can be selected for the sample in the moisture analyzer. The drying temperature is generated by means of the integrated halogen lamp with a diameter of 90 mm.

The drying process of the sample makes it suitable for use in many different areas. Thus, the moisture determiner is used, for example, in laboratories for measuring the humidity of different powders, in the final quality control for determining the humidity of granulates, or on farms for determining the moisture content of oats, cereals or wheat.

A major advantage over devices with capacitive measurement methods is that the humidity tester works independent of characteristics and delivers more accurate results.

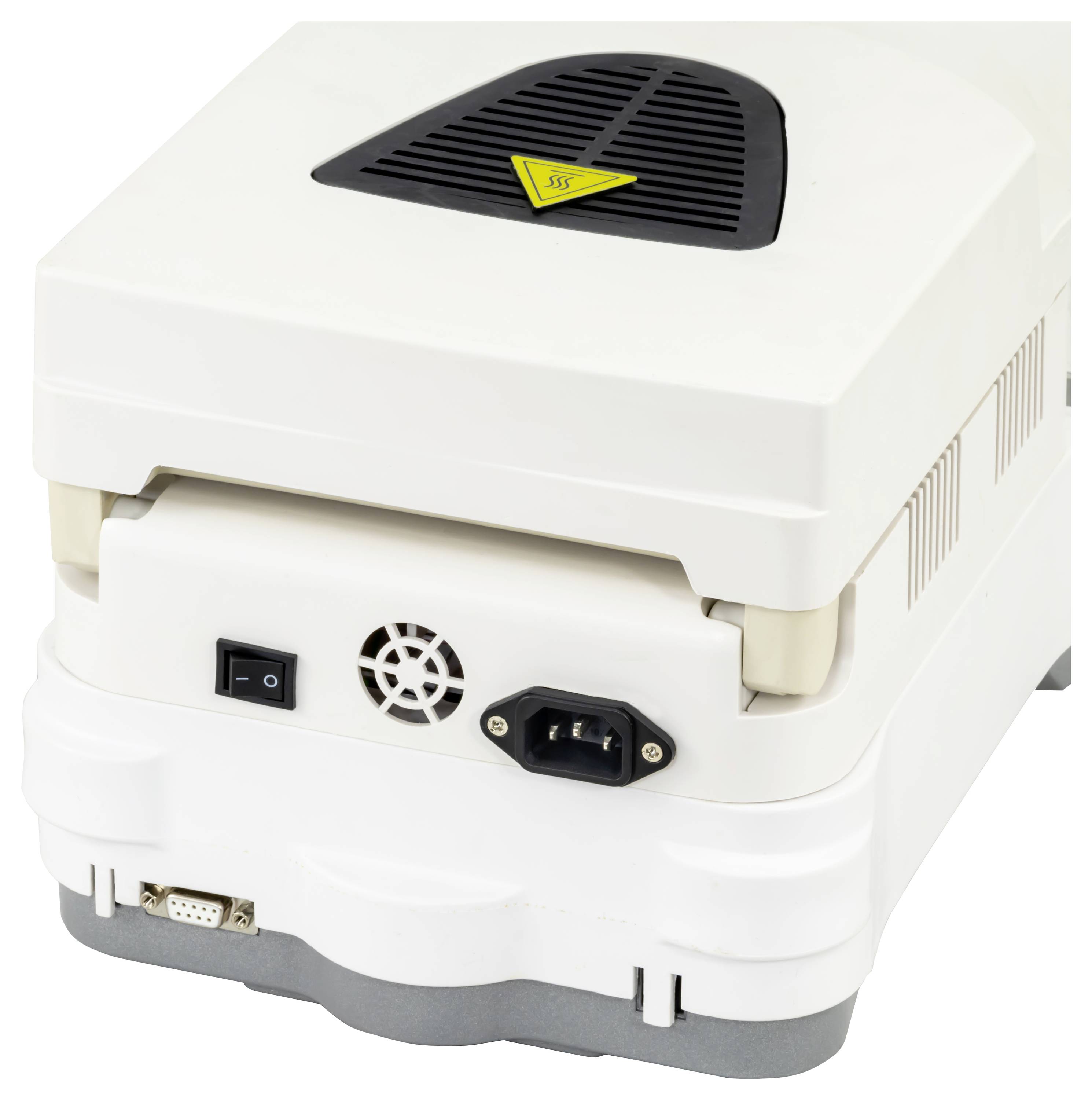

Via the serial RS232 interface of the humidity determiner the measured values can be transferred on a PC and analyzed. For this, a suitable software is available optionally for the humidity determiner. If necessary, the moisture conditioner can be supplied with an ISO calibration certificate.

This text is machine translated.
