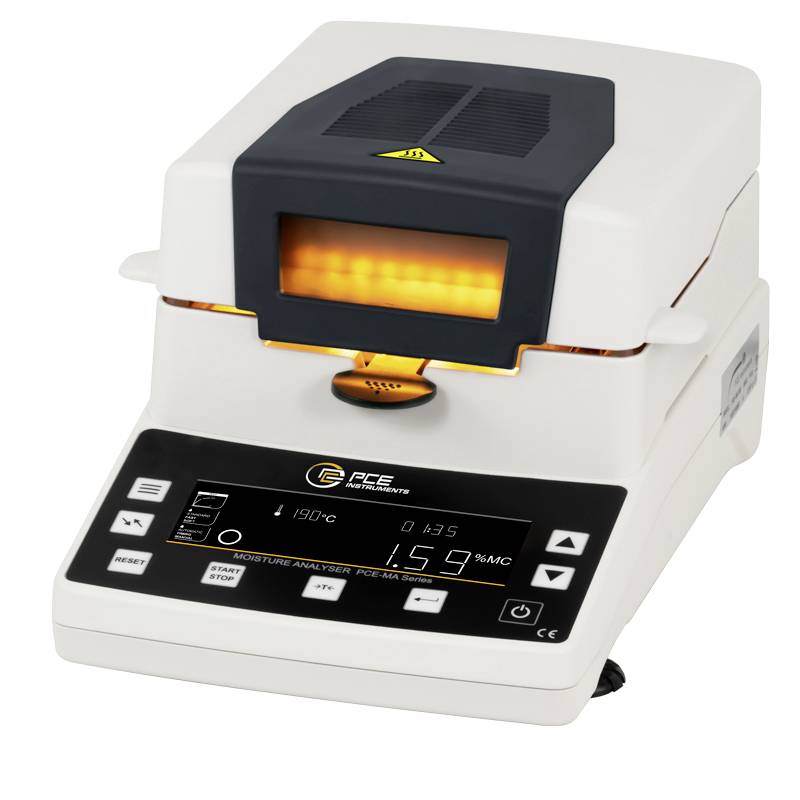

PCE moisture analyzer with heated chamber open, digital control panel showing 15.9% MC and 190°C settings.

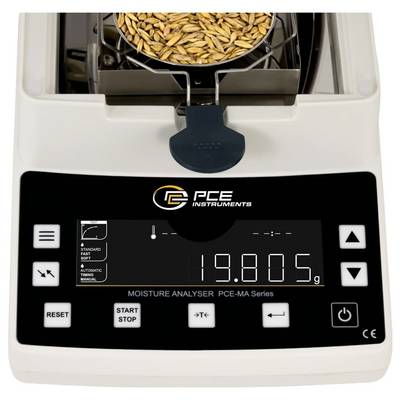

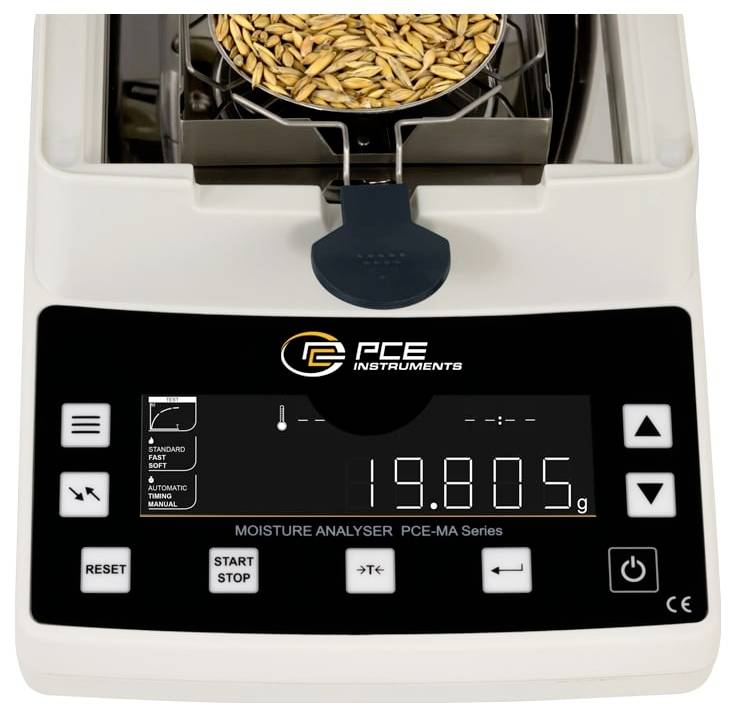

Moisture analyzer showing a grain sample in the top chamber and a digital display reading 19.805 g.

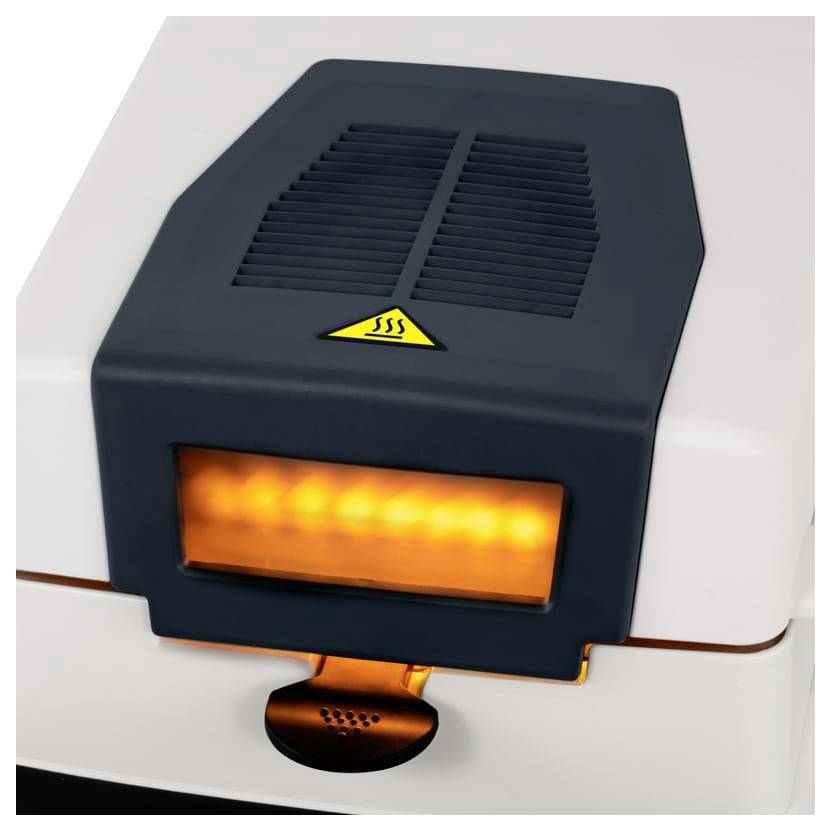

Small black portable heater with glowing orange front panel and heat warning symbol on top, sitting on a white surface.

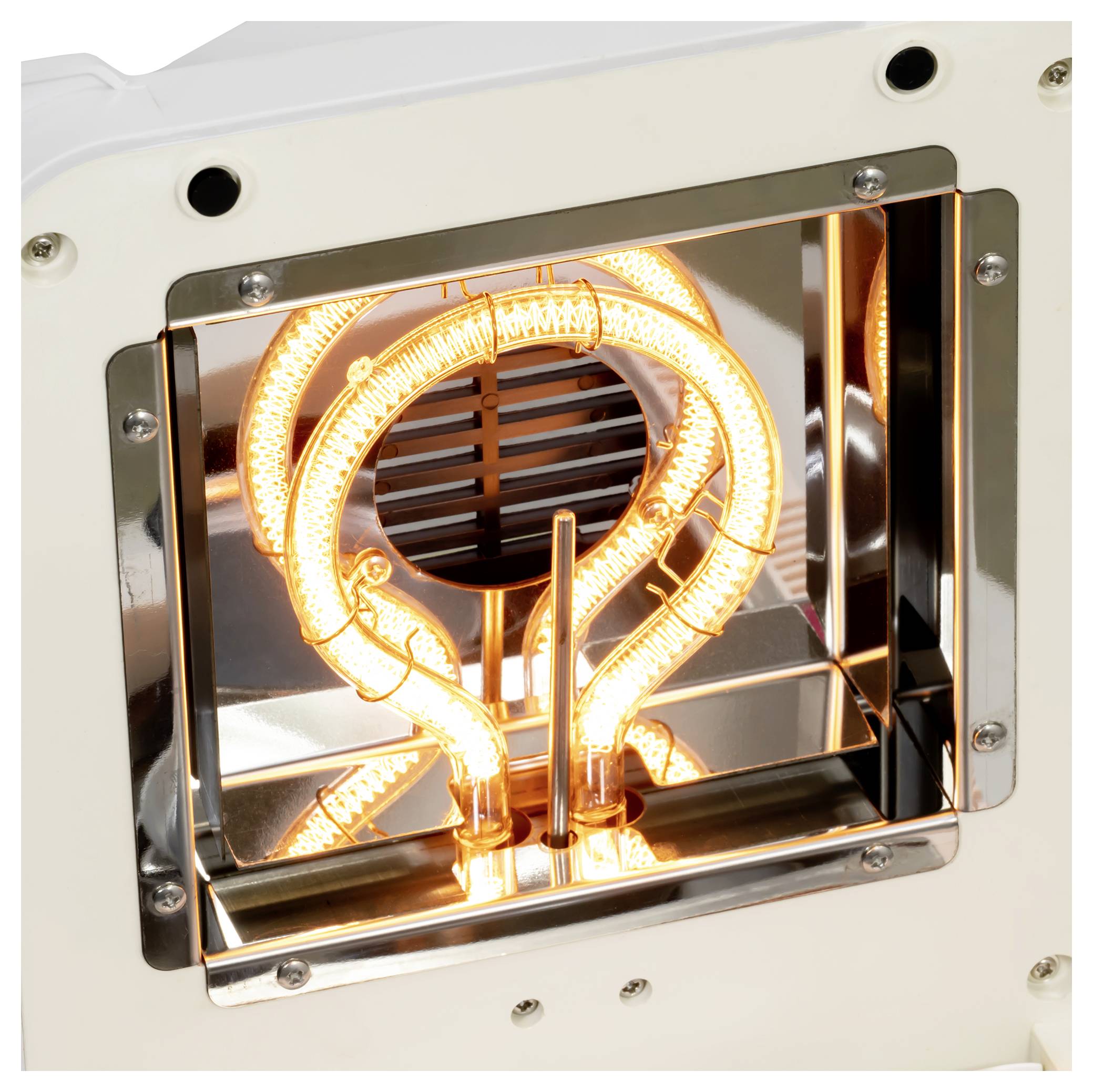

Close-up of a glowing electric heating element inside a metal housing, with mirrored reflective panels and a central support rod.

A finger presses the ‘NATURAL WATER RECYCLE’ control on a lab analyzer, which displays 74.3 mg and is heating a sample chamber.

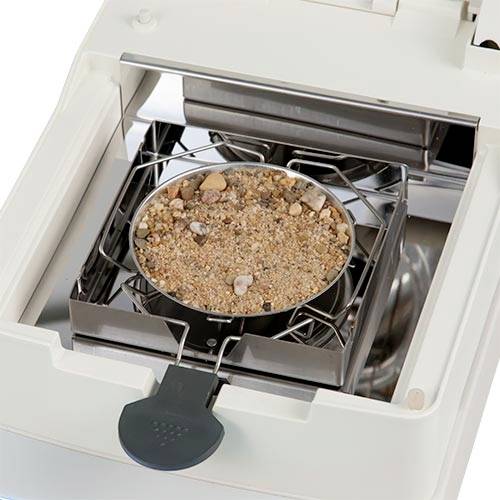

Metallic device with heated sand on a grid, presumably for drying or heating, in a laboratory environment.

A person is operating a digital laboratory device for moisture measurement. The display shows 59.9 percent. A glass with white granulate stands beside it.

A laboratory technician in a white lab coat is working with a thermomixer device, with samples placed on a rack. Laboratory equipment is visible in the background.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-MA 202 Moisture scales Weight range 200 g Readability 0.01 g

Weighing range 200 g
Readability: 10 mg / 0.01 g
Heating chamber for determining the humidity
RS-232 interface
Storage for up to 15 drying programs
Adjustable heating time
simple operation
Calibration function for re-adjustment

Technical specifications

Technical data Weighing range 200 g Readability 10 mg / 0.01 g Heating element Halogen lamp Temperature range +40 ... +199 °C Heating time 1 ... 199 min adjustable Humidity measuring range 0 ... 100 %. Readability 0.1% Storage 15 drying programs Interface RS-232 Display LCD, 9 membrane keys Power supply 220 V/50 Hz Dimensions 200 x 180 x 380 mm

Weight range: 200 g

Product type: Moisture scales

Weight resolution: 0.01 g

Readability: 0.01 g

Display: Digital

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 200 x 380 x 180 mm

Weight: 4400 g

Width: 380 mm

Height: 180 mm

Length: 200 mm

Type: PCE-MA 202

Features: Calibratable

Suitable for: Grain
Wood
Straw
Building materials

Features: Temperature reading

Power supply: PSU

Documents & Downloads

Datasheet

Datasheet 2452509 PCE Instruments PCE-MA 202 Moisture scales Weight range 200 g Readability 0.01 g

User & Safety Instructions

User & Safety Instructions 2452509 PCE Instruments PCE-MA 202 Moisture scales Weight range 200 g Readability 0.01 g

Description

Humidity balance PCE-MA 202 Measuring range 200 g / Readability 10 mg / 0.01 g / Heating chamber for determining the humidity / RS-232 interface / Internal memory for 15 drying programs / Calibration function with the humidity balance PCE-MA 202 different materials can be weighed and their moisture content determined. For this purpose, the moisture balance has a heating chamber, which can be heated up to 199 °C with halogen lamps. In this chamber, the moisture balance dries the weighing material and then calculates the moisture content from the difference in weight. With the humidity balance, the smallest weight differences can be determined thanks to a readability of 0.01 g. The results are shown on the large LCD display. Up to 15 different drying programs can be stored in the moisture balance memory. This makes the moisture balance ideal, for example, for quality control of granules, pellets or feed. In addition, the humidity balance can also be connected to a PC via the RS-232 interface. With the supplied 100 g weight and the integrated calibration function, the humidity balance can be adjusted at any time.
