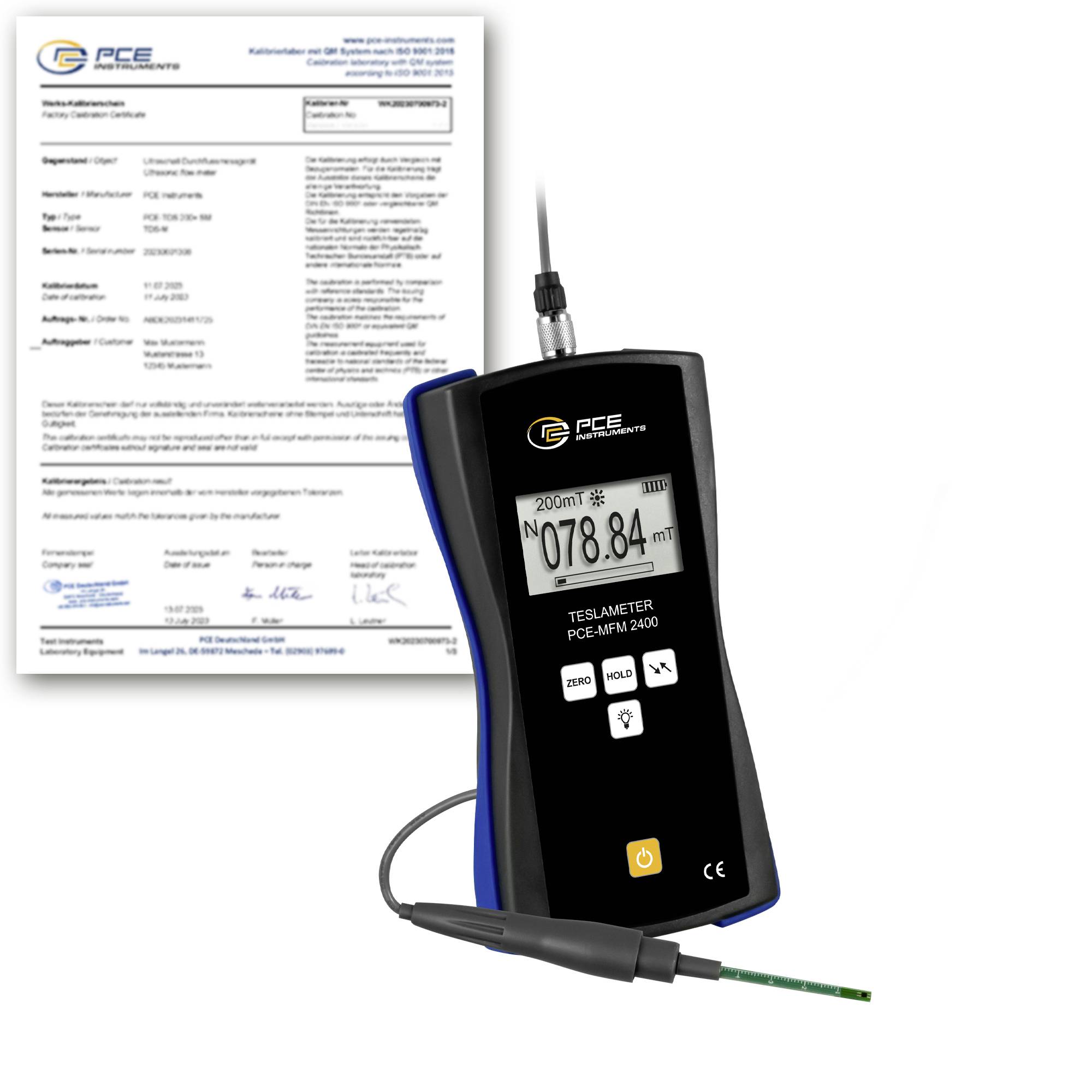

Handheld PCE test meter with probe, showing a reading of 078.84, beside a calibration certificate.

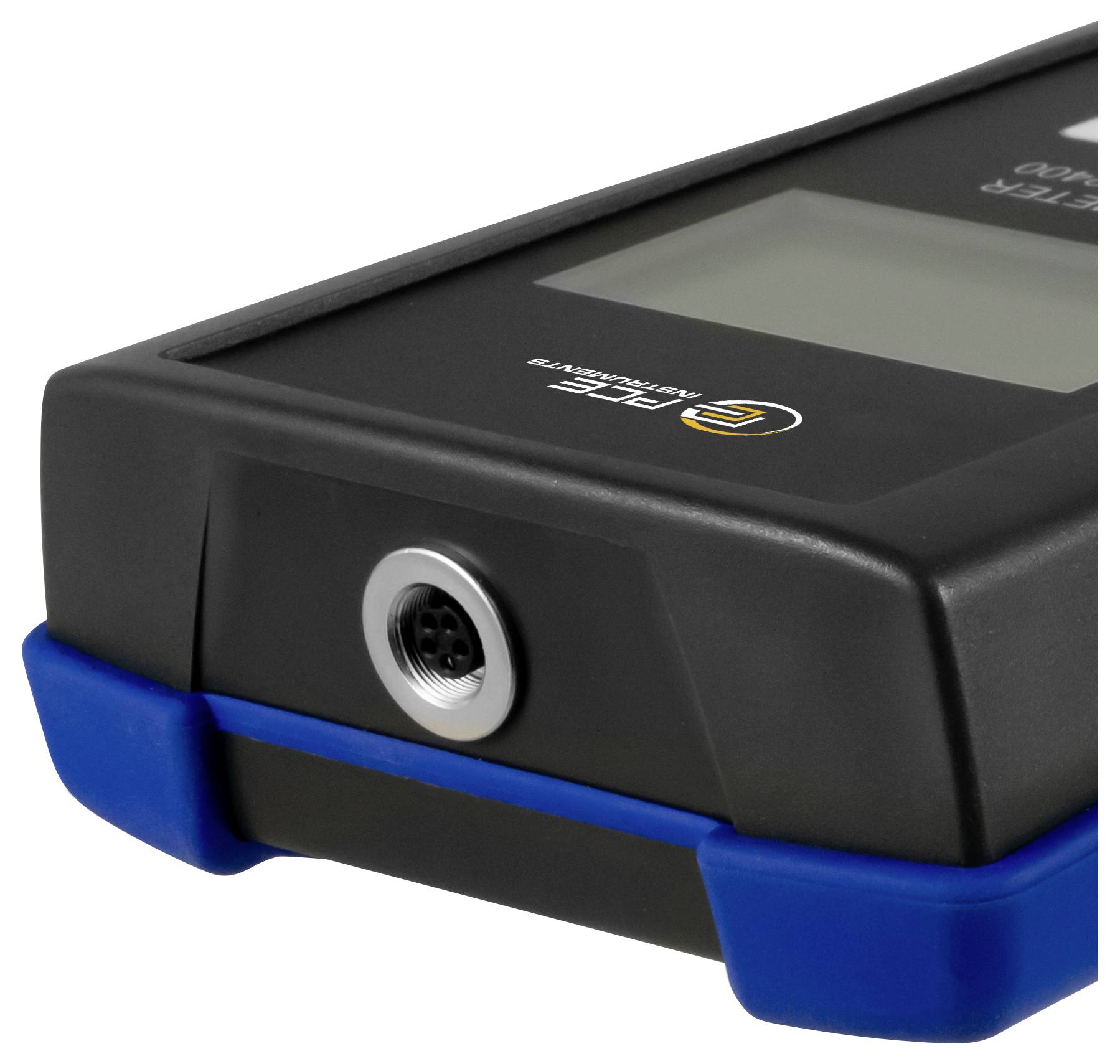

Close-up of a black handheld electronic device with a display and circular connector port, accented by blue protective side grips.<br>

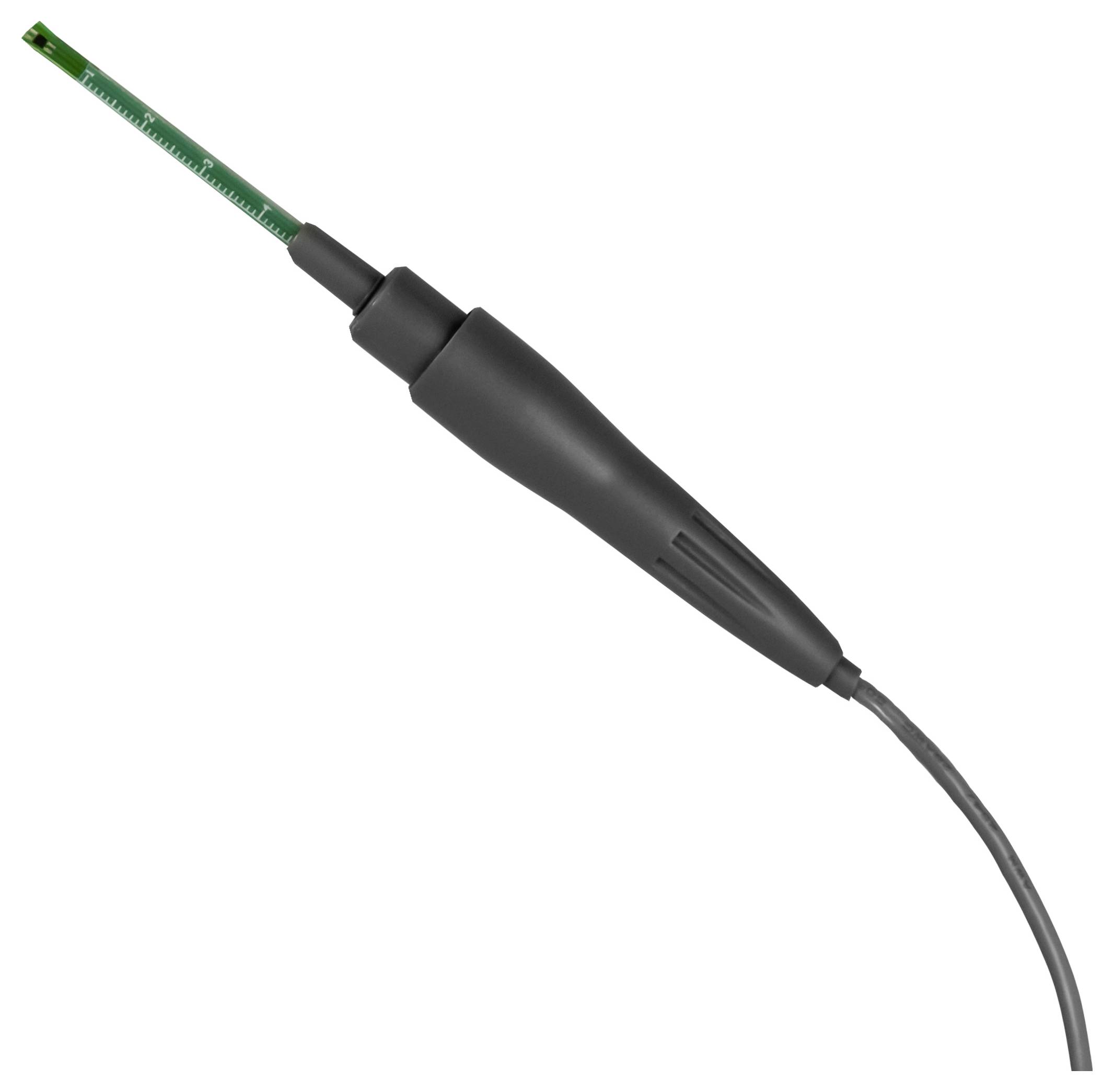

Black wired electronic probe with a green sensor tip, shown on a white background.<br>

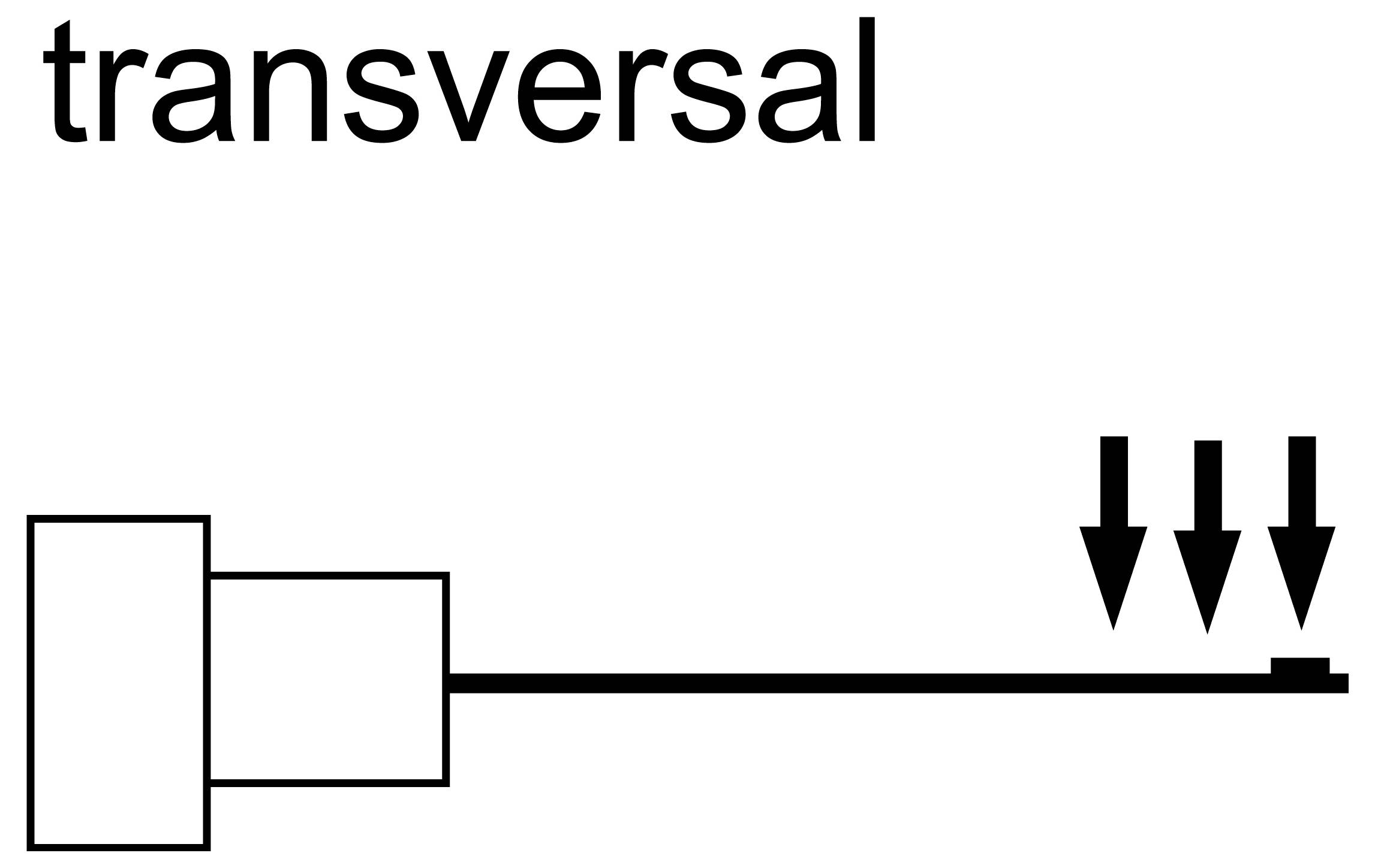

Diagram labeled 'transversal' showing a horizontal line crossing two vertical lines, with three downward arrows on the right indicating the transversal direction.

Person using a handheld digital thickness gauge to measure machinery components inside an industrial machine.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MFM 2400-ICA

Very precise measurement technology
Measurement range up to 24,000 G and 2,400 MT
Transverse sensor
For measuring static magnetic fields
Automatic power off

Technical specifications

Magnetic field DC
Measuring range 0 ... 200 Mt
Resolution 0.01 mT
Accuracy ±1 % from MW.
General Technical Data
Measuring functions HOLD
Measurement rate 1 Hz
Sensor Hall sensor
Automatically switches off approx. 5 min.
Cable length 1 m
Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
Capacity 640 mAh
Dimensions ( L x W x H ) 185 x 97 x 40 mm
Weight 310 g.

Magnetic flux density: 2400 µT

Display (details): Digital

Product type: Magnetic field tester

Power supply (details): 9 V

Dim: (L x W) 97 mm x 40 mm

Weight: 310 g

Width: 40 mm

Length: 97 mm

Documents & Downloads

Datasheet

Datasheet 3812878 PCE Instruments PCE-MFM 2400-ICA Magnetic field tester

User & Safety Instructions

User & Safety Instructions 3812878 PCE Instruments PCE-MFM 2400-ICA Magnetic field tester

Description

With a measuring range of 2,400 MT, the magnetic field meter covers a large area of measuring tasks. The magnetic field meter has an accuracy of 1 %. Thus the magnetic field meter is a very precise measuring agent. The magnetic field meter can, for example, test relays and permanent magnets for the existing magnetic field. As such, the magnetic field meter is used in production processes or in quality control.

With the backlighting in the magnetic field meter, the readings are always easy to read, even in poor lighting. Thanks to the automatic shutoff function, the magnetic field meter turns off automatically after 5 minutes. This ensures that the magnetic field meter battery does not discharge completely.
