PCE Instruments PCE-MFM 2500 Magnetic field tester with data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MFM 2500
- Measuring range: 0 ... 2500 Mt

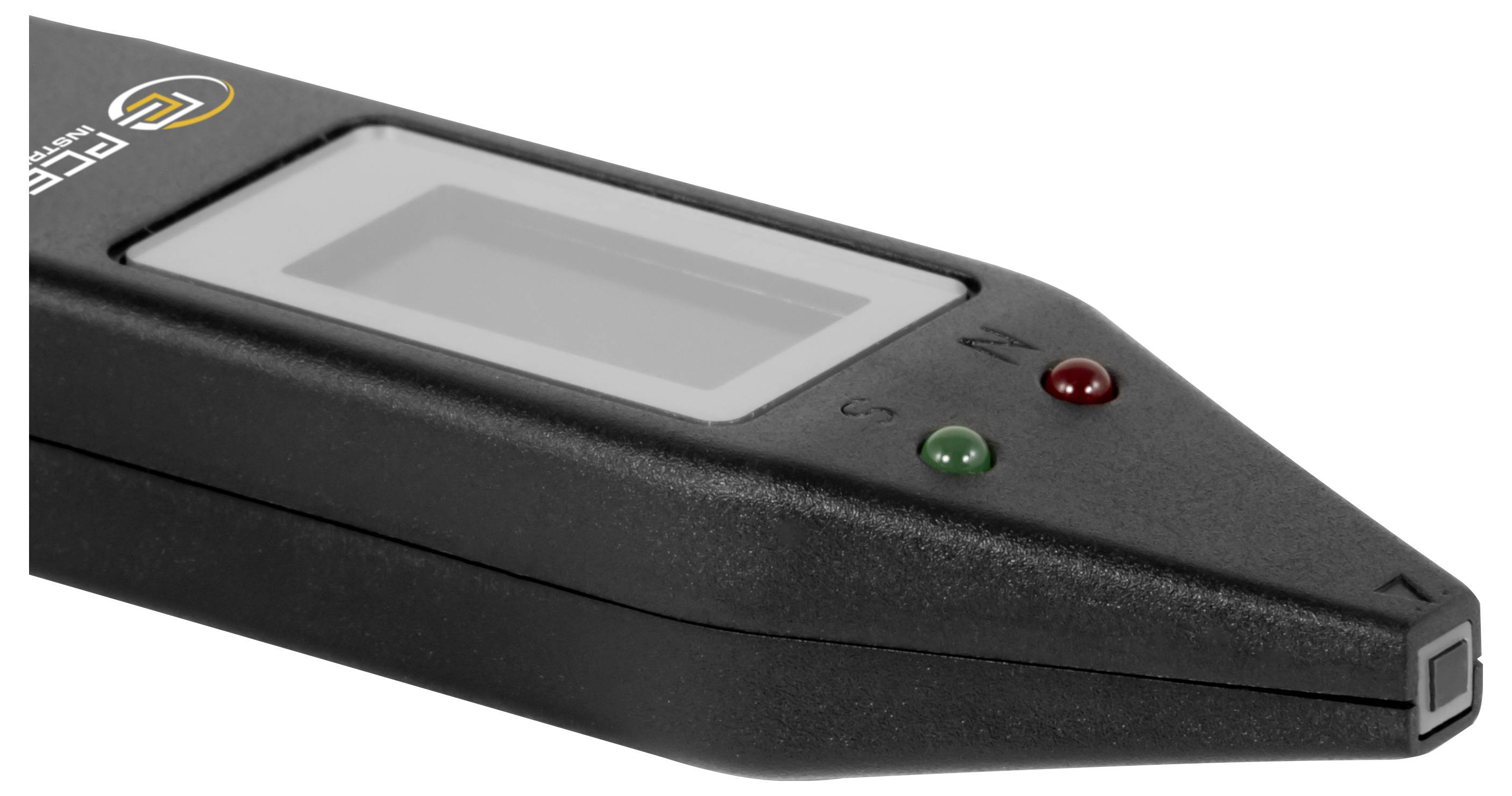

- LED display for magnetic field polarity (red for north, green for south)
- Backlit LC display
- Measuring function HOLD
- Point adjustment ZERO
- Units: Mt, GS
- Compact, handy design
Technical specifications
- Magnetic field DC
- Measuring range 0 ... 2500 Mt
- Resolution 0.01 mT
- Accuracy ±(5 % from MW. +0.005 MT)
- General Technical Data
- Measuring functions HOLD
- Unit(s) Mt, GS
- Display type LCD with lighting
- Display size 1 inches
- Standard(s) IEC 610601-1
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply batteries

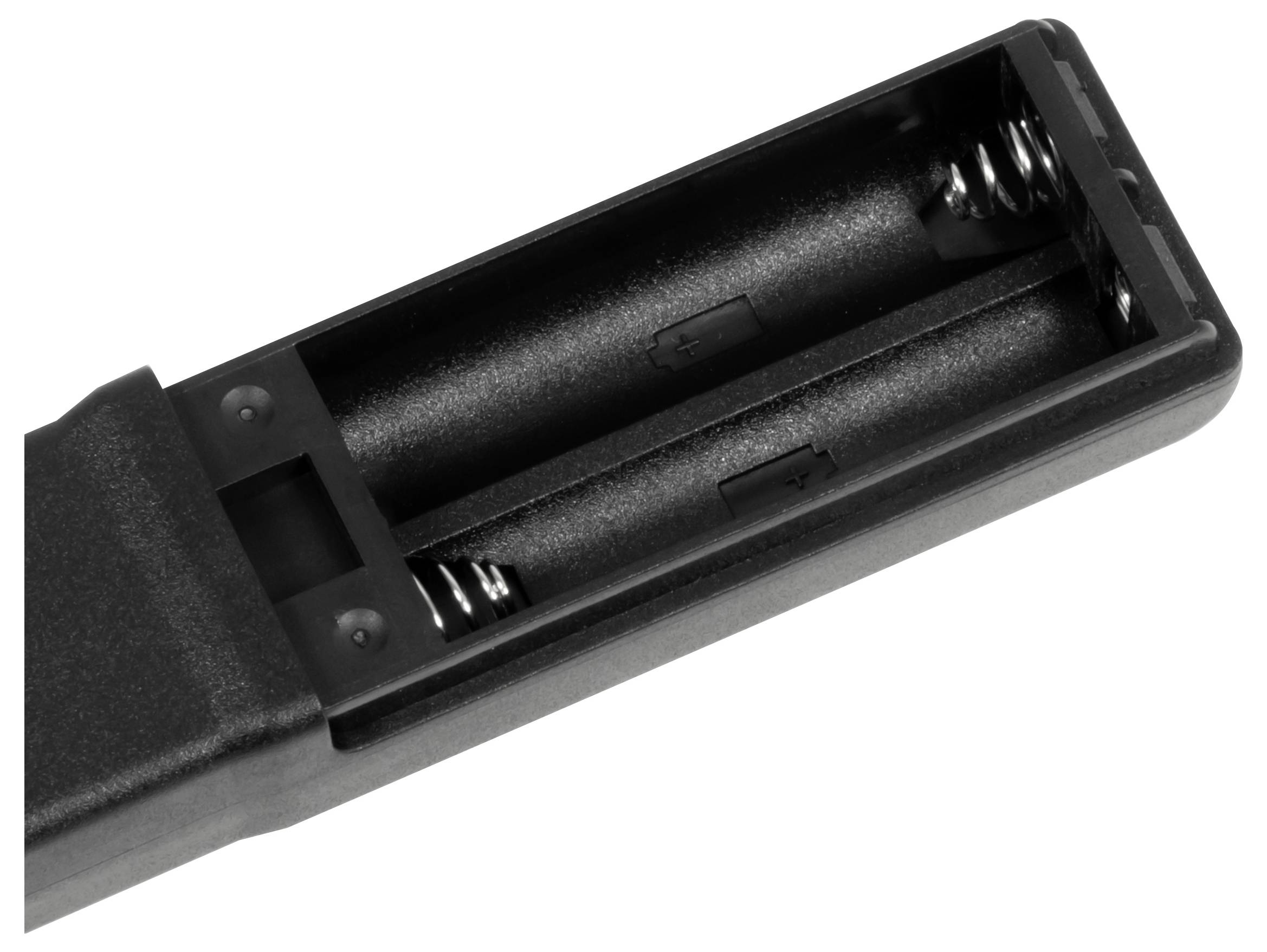

- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1270 mAh
- Operating conditions 0 ... 50 °C , 20 ... 85 % r.F.
- Storage conditions 0 ... 50 °C , 20 ... 85 % r.F.
- Dimensions ( L x W x H ) 180 x 26 x 17 mm
- Weight 37.5 g
- Product type
Magnetic field tester
- Power supply (details)
2 x 1.5 V
- Dim
(L x W) 180 mm x 26 mm
- Weight
37.5 g
- Features
with data logger
- Width
26 mm
- Length
180 mm
Documents & Downloads
Datasheet
Datasheet 3812956 PCE Instruments PCE-MFM 2500 Magnetic field tester with data logger
User & Safety Instructions
User & Safety Instructions 3812956 PCE Instruments PCE-MFM 2500 Magnetic field tester with data logger
Description

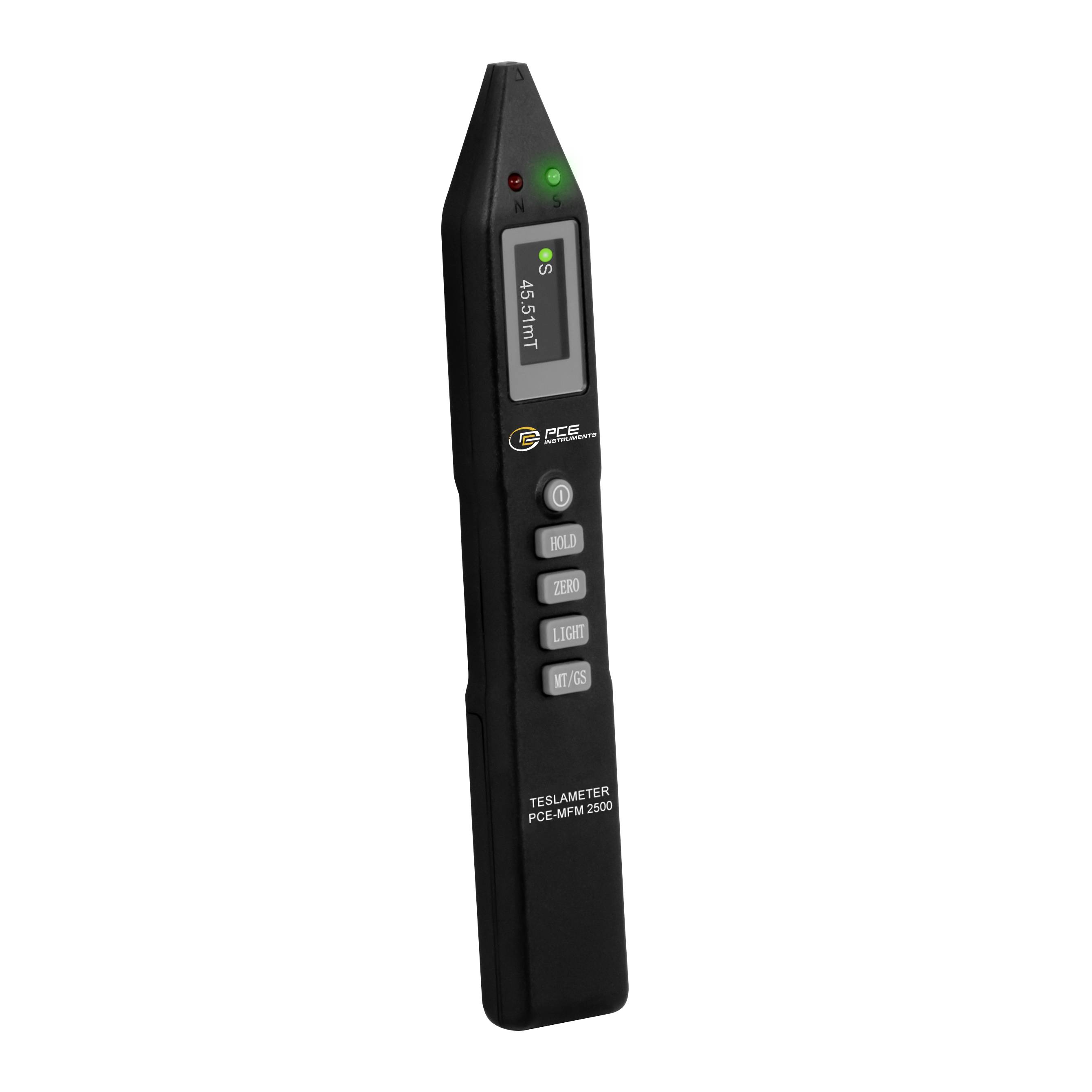

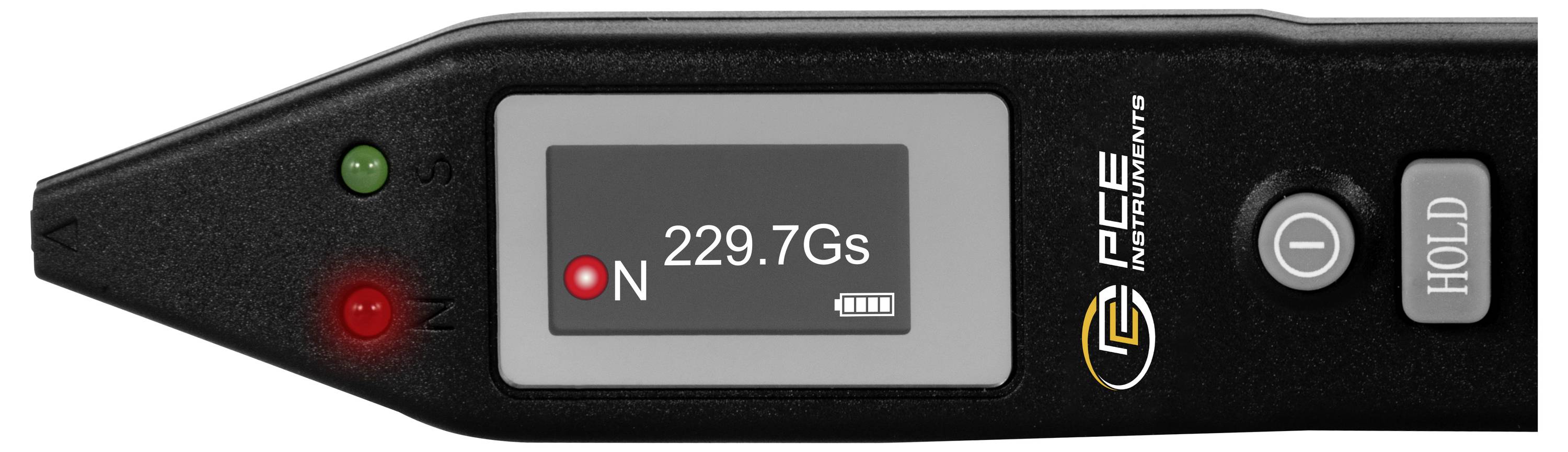

The magnetic field strength meter is a portable measuring device for a precise recording of magnetic field strengths as well as for determining the magnetic polarity. The device works with an integrated Hall sensor, which reliably measures the magnetic flux density and manages without wear-resistant replacement parts. The results are displayed on an illuminated LC display representing the magnetic field strength in Millitesla (MT); a switching to Gauss (GS) is also envisaged. An LED display also informs about the polarity of the magnetic field (red for North pole, green for South pole) and thus provides for a clear mapping of the field direction.
The magnetic field strength meter has functions such as HOLD for data storage and ZERO for setting points, as a result of which stable and reproducible measurements are supported. The measurement range is typically 0 … 2500 mT, with an accuracy of ±(5% v. MW. +0.005 MT). The power is supplied by batteries and allows mobile use.
The magnetic field strength meter is used in industrial measurement applications, research and development as well as in quality assurance. Typical applications include the measurement of magnetic fields on permanent magnets, electric motors, transformers and electromagnetic components. In addition, the magnetic field strength meter is used in teaching and in experimental test structures to demonstrate and analyze electromagnetic connections in practice.
This text is machine translated.
The magnetic field strength meter has functions such as HOLD for data storage and ZERO for setting points, as a result of which stable and reproducible measurements are supported. The measurement range is typically 0 … 2500 mT, with an accuracy of ±(5% v. MW. +0.005 MT). The power is supplied by batteries and allows mobile use.
The magnetic field strength meter is used in industrial measurement applications, research and development as well as in quality assurance. Typical applications include the measurement of magnetic fields on permanent magnets, electric motors, transformers and electromagnetic components. In addition, the magnetic field strength meter is used in teaching and in experimental test structures to demonstrate and analyze electromagnetic connections in practice.
This text is machine translated.
Scope of delivery

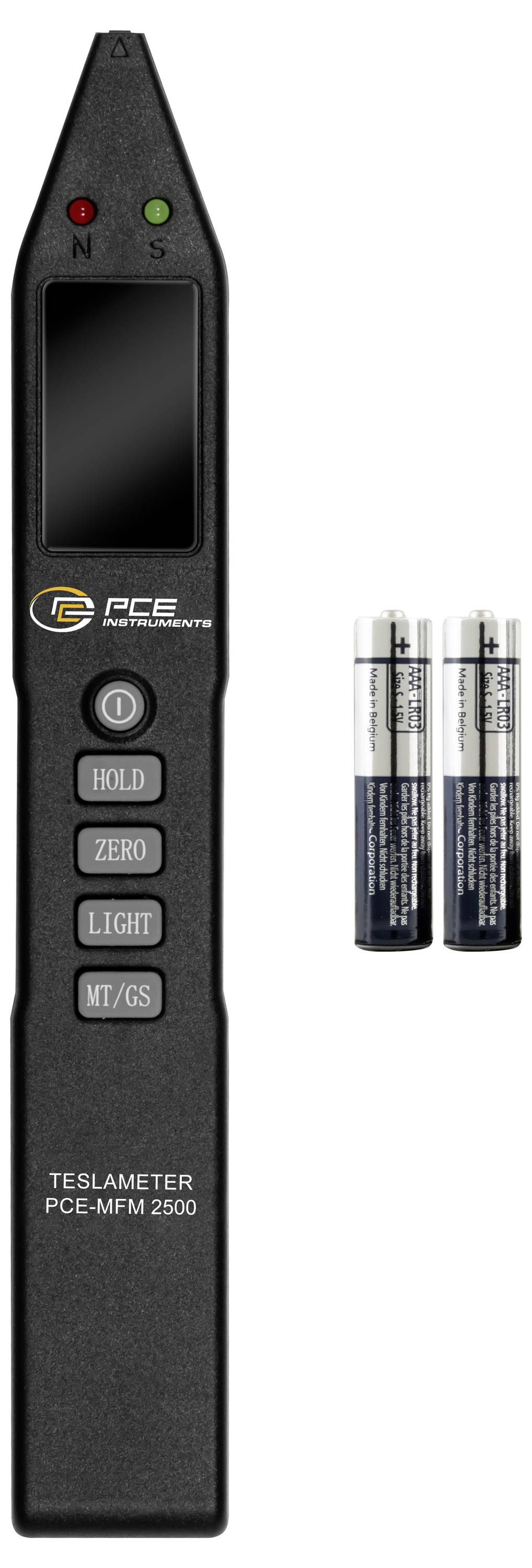

- 1 x Magnetic field strength meter PCE-MFM 2500
- 2 x 1.5 V AAA batteries
- 1x user manual
