PCE Instruments PCE-MFM 3000-ICA Magnetic field tester with data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

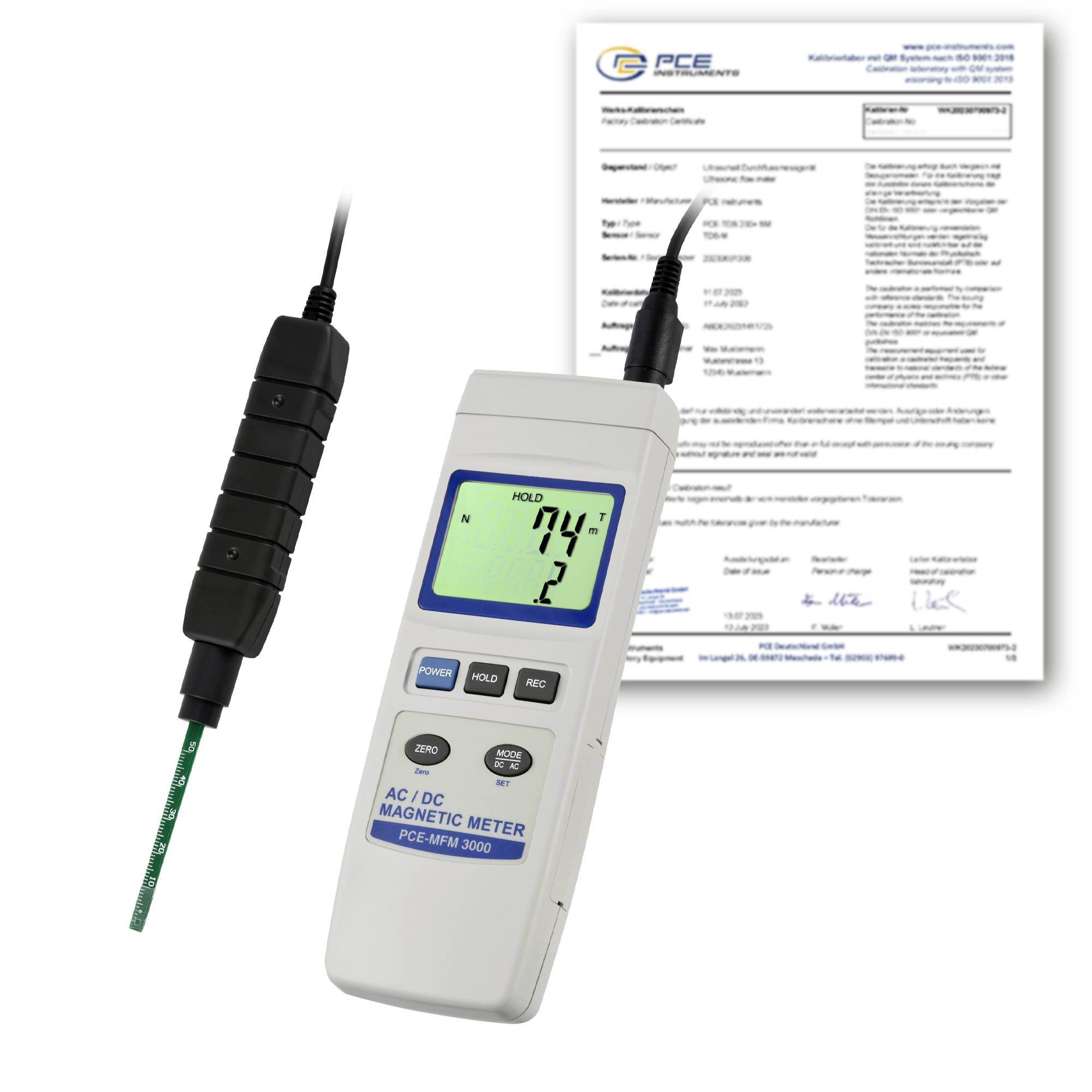

PCE instruments magnet intensity meter PCE-MFM 3000-ICA
- Handy measuring device with external sensor
- Static and alternating magnetic fields can be measured
- Highly accurate hall sensor
- Various units can be selected (G / MT)
- Data hold function
- Automatic switch-off for battery protection

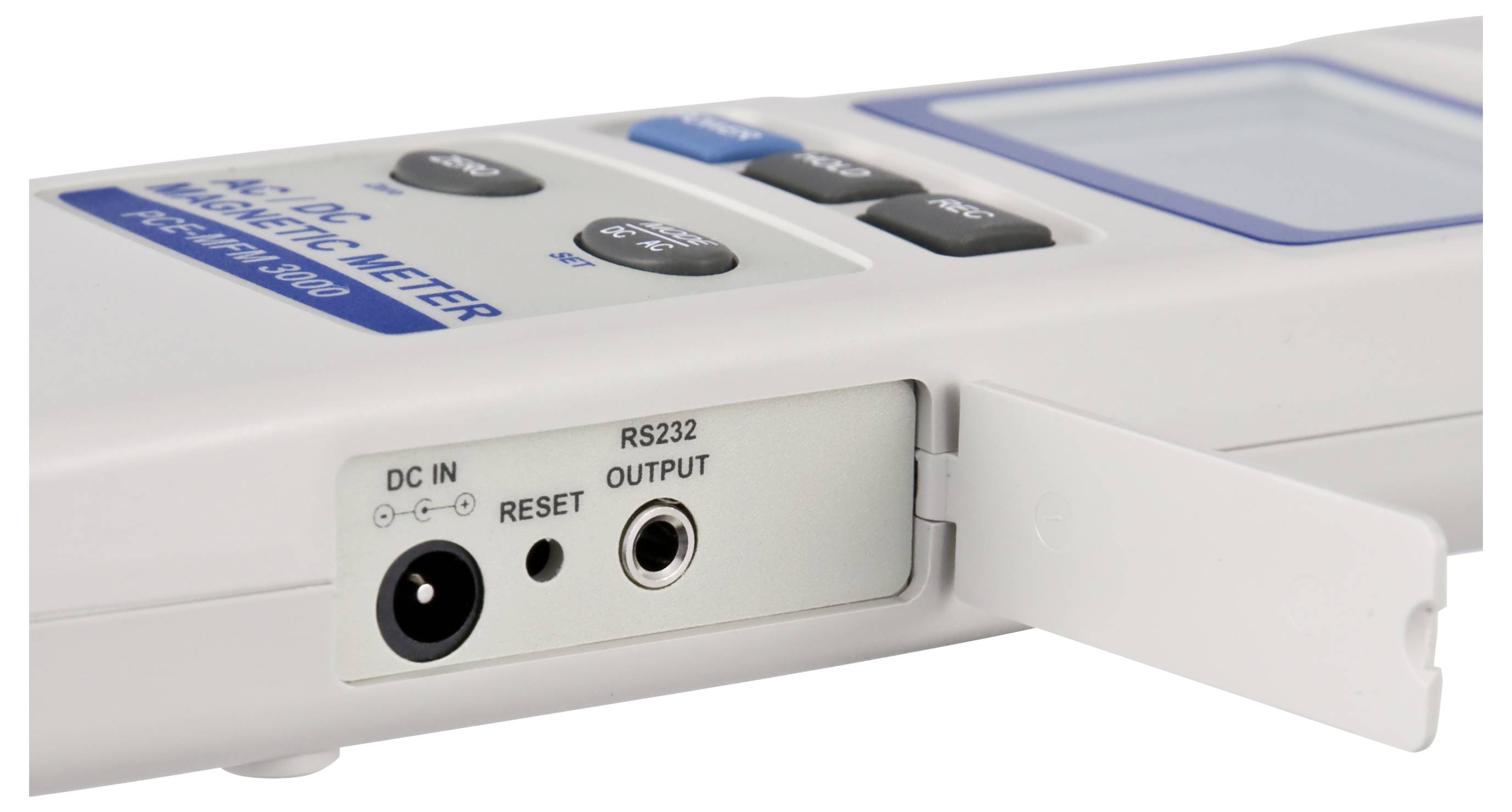

- RS232 Interface
- Max. Min. storage function
- Incl. ISO calibration certificate
Technical specifications
- Magnetic field AC
- Measuring range 0 ... 150 Mt
- Resolution 0.01 mT
- Accuracy ±5 % from MW. +20 digits (at 23 ±5 °C)
- Frequency range 50 ... 60 Hz
- Magnetic field AC
- Measuring range 0 ... 1500 Mt
- Resolution 0.1
- Accuracy ±5 % from MW. +20 digits (at 23 ±5 °C)
- Magnetic field AC
- Measuring range 0 ... 1500 G
- Resolution 0.1 g
- Accuracy ±5 % from MW. +20 digits (at 23 ±5 °C)
- Magnetic field AC
- Measuring range 0 ... 15000 G
- Resolution 1 g
- Accuracy ±5 % from MW. +20 digits (at 23 ±5 °C)
- Magnetic field DC
- Measuring range 0 ... 300 Mt
- Resolution 0.01 mT
- Accuracy ±5 % from MW. +10 digits (at 23 ±5 °C)
- Magnetic field DC
- Measuring range 0 ... 3000 Mt
- Resolution 0.1 mT
- Accuracy ±5 % from MW. +10 digits (at 23 ±5 °C)
- Magnetic field DC
- Measuring range 0 ... 3000 G
- Resolution 0.1 g
- Accuracy ±5 % from MW. +10 digits (at 23 ±5 °C)
- Magnetic field DC
- Measuring range 0 ... 30000 G
- Resolution 1 g
- Accuracy ±5 % from MW. +10 digits (at 23 ±5 °C)
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD
- Measuring direction Uniaxial
- Frequency 50 ... 60 Hz
- Display type LCD
- Measurement rate 1 Hz
- Sensor Hall sensor
- Dimensions 195 x 25 x 19 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
- Capacity 640 mAh
- Operating conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 198 x 68 x 30 mm
- Weight 275 g
- Magnetic flux density
3000 µT
- Display (details)
Two-line LCD display
- Product type
Magnetic field tester
- Frequency range
50 - 60 Hz
- Power supply (details)
9 V
- Dim
(L x W) 195 mm x 25 mm
- Weight
275 g
- Features
with data logger
- Width
25 mm
- Length
195 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812615 PCE Instruments PCE-MFM 3000-ICA Magnetic field tester with data logger
User & Safety Instructions
User & Safety Instructions 3812615 PCE Instruments PCE-MFM 3000-ICA Magnetic field tester with data logger
Description

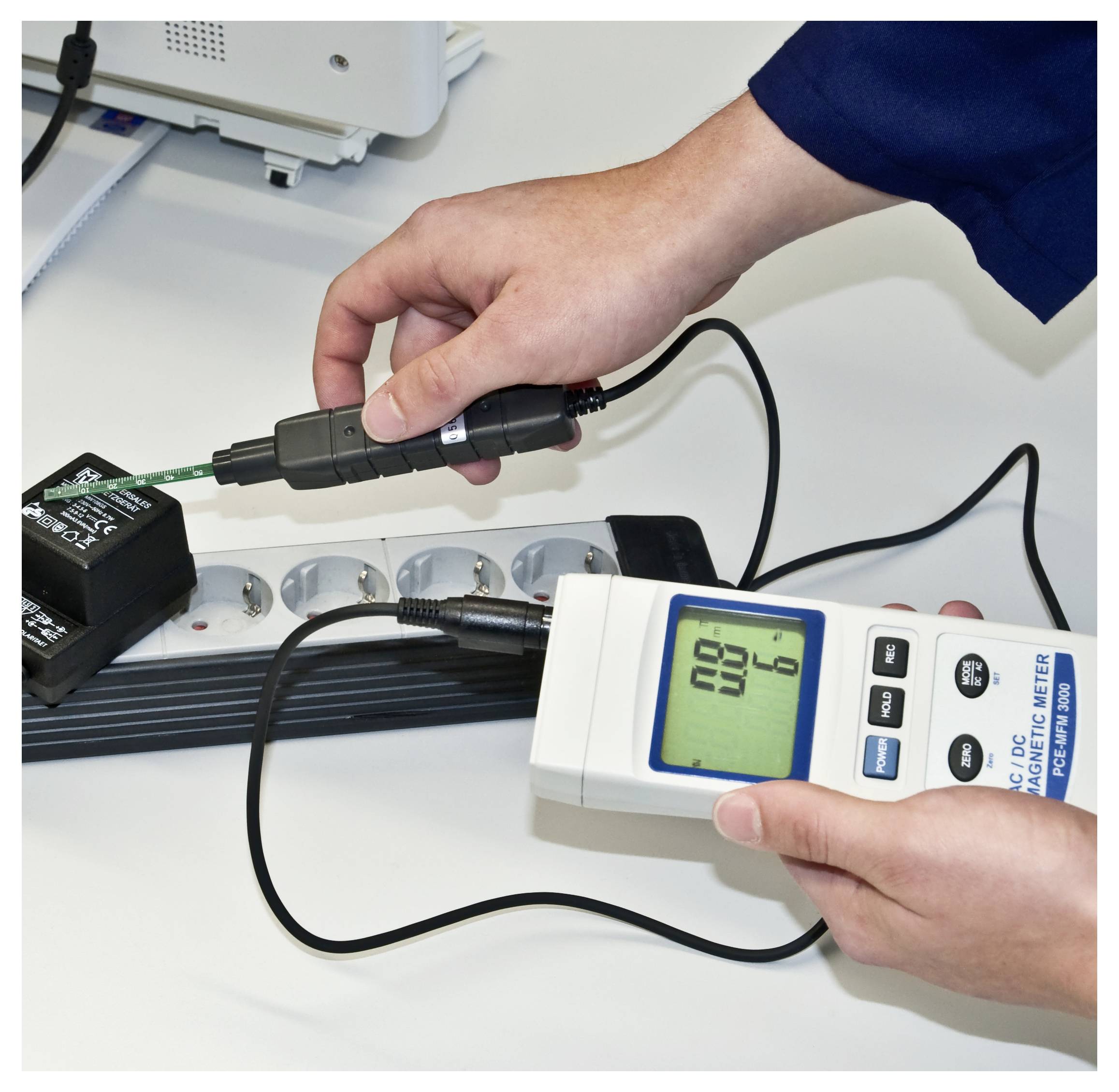

The magnetic strength meter is suitable for measuring static as well as changing magnetic fields. This makes the magnetic field strength meter ideal for testing solenoid valves or relays, for example. Particularly in the industrial area, where the function must be checked quickly, whether a valve still functions correctly or a relay still switches.
The magnetic strength meter measures the built-in magnetic field through a casing. It is therefore no longer necessary to open the device and the function can be checked very quickly and accurately.

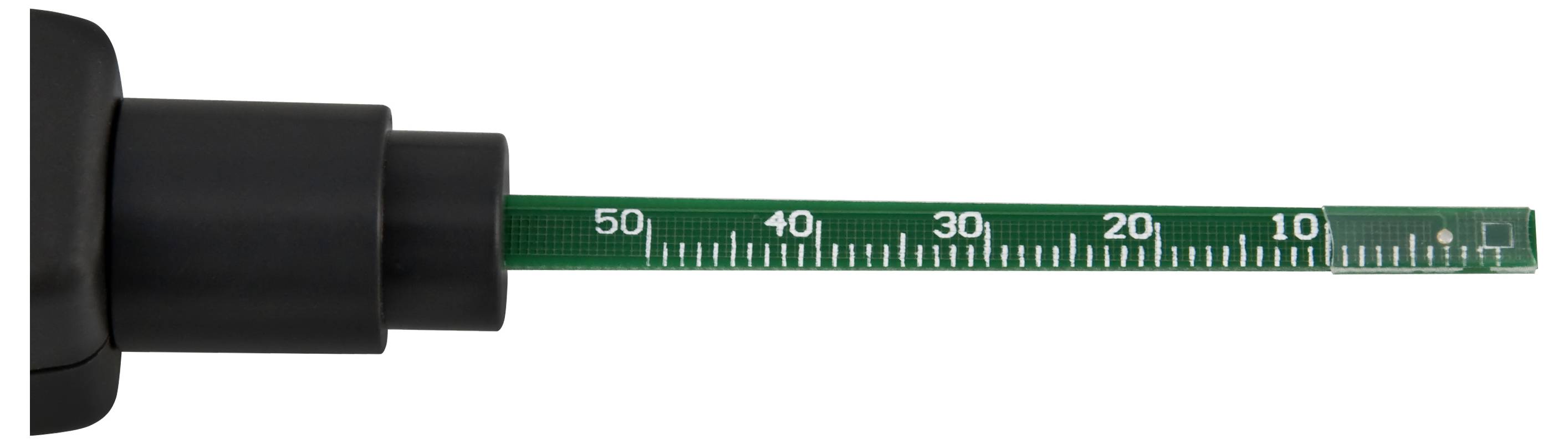

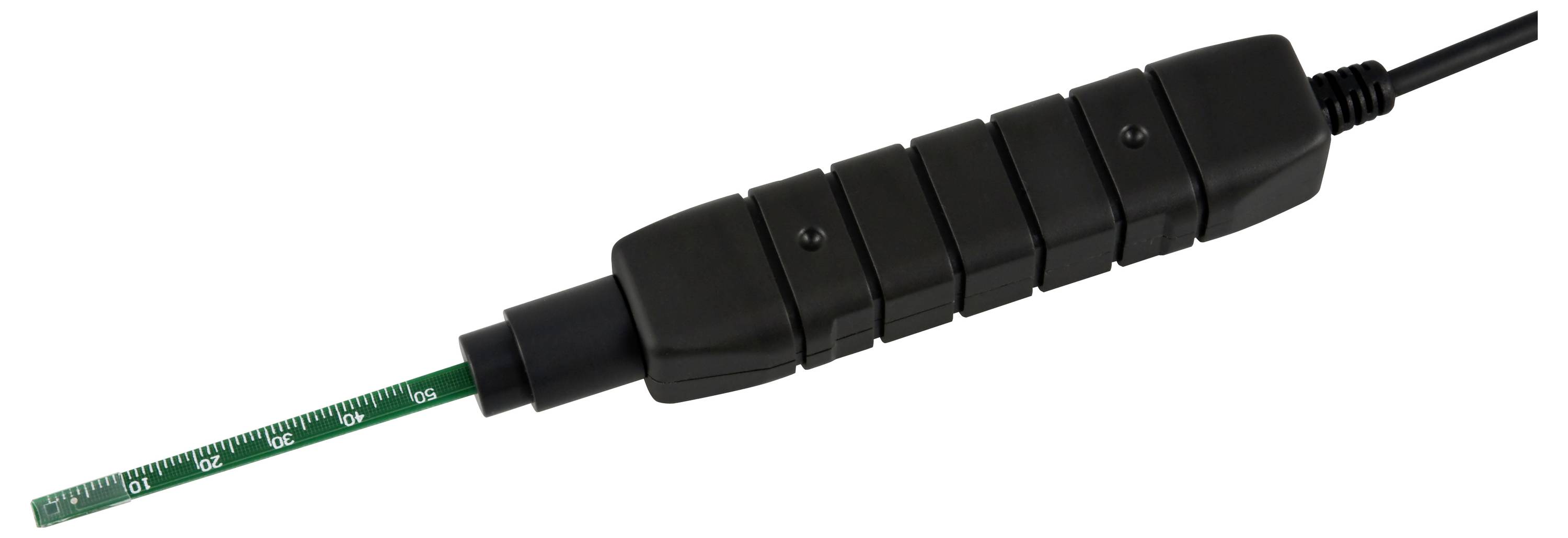

Due to the very flat measuring tip, the external probe of the magnetic strength meter can penetrate into a measured object even through small openings. This is a particular advantage when measuring transformers with air coils. The magnetic strength meter is also suitable for explaining and demonstrating the behavior of a magnetic field, because the numerical display clearly shows an increase or decrease in the field strength. Because of the small measurement range of the magnetic strength meter, this device is well equipped to measure small magnetic fields. Especially small magnetic clamps or magnetic guide rails have a relatively weak magnetic field and can be detected with this measuring device.
This text is machine translated.
The magnetic strength meter measures the built-in magnetic field through a casing. It is therefore no longer necessary to open the device and the function can be checked very quickly and accurately.
Due to the very flat measuring tip, the external probe of the magnetic strength meter can penetrate into a measured object even through small openings. This is a particular advantage when measuring transformers with air coils. The magnetic strength meter is also suitable for explaining and demonstrating the behavior of a magnetic field, because the numerical display clearly shows an increase or decrease in the field strength. Because of the small measurement range of the magnetic strength meter, this device is well equipped to measure small magnetic fields. Especially small magnetic clamps or magnetic guide rails have a relatively weak magnetic field and can be detected with this measuring device.
This text is machine translated.

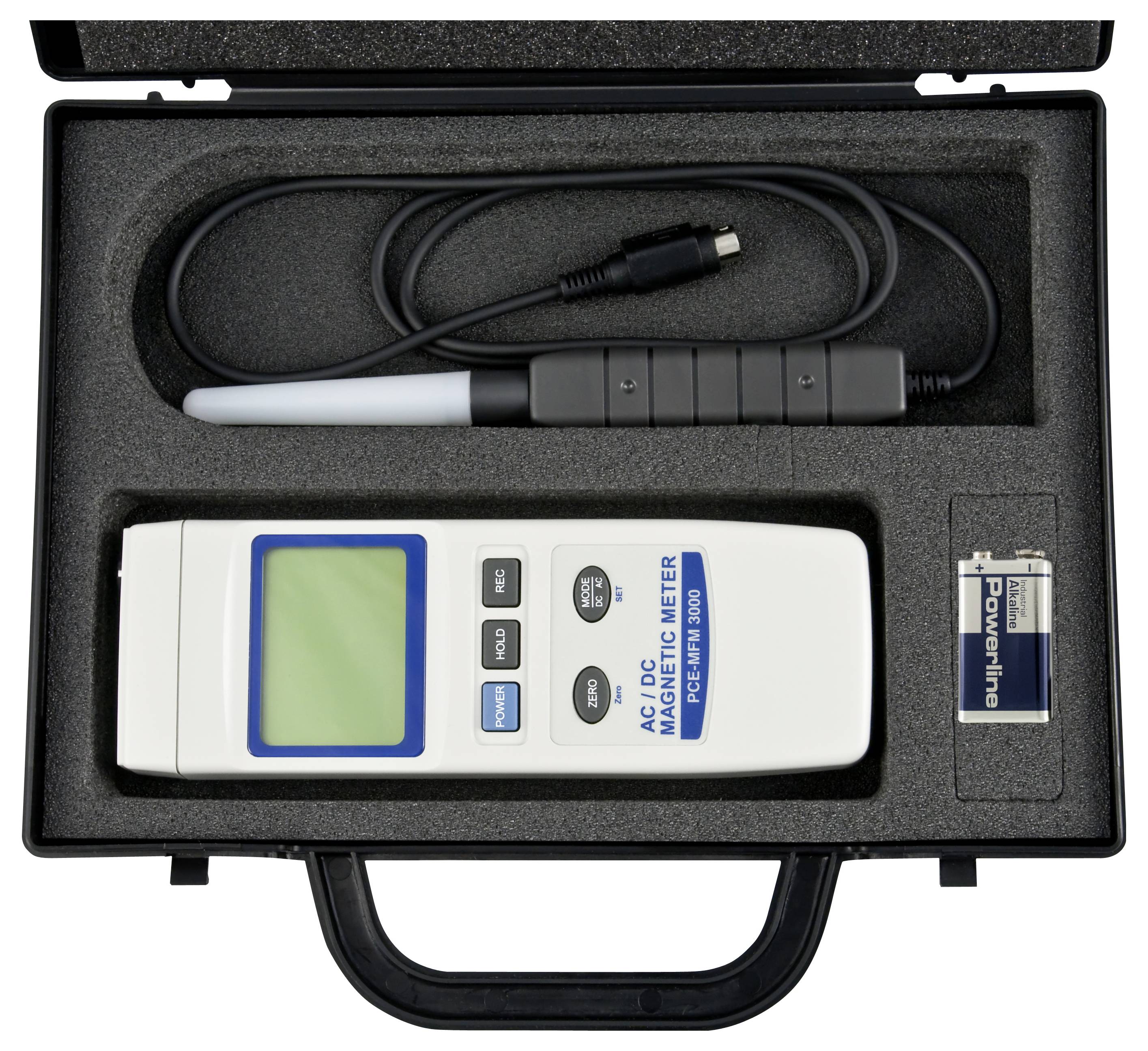

Scope of delivery
- 1 x magnet thickness meter PCE-MFM 3000-ICA
- 1 x probe
- 1 x 9 V battery
- 1 x Equipment case
- 1x user manual
- 1 x ISO calibration certificate
