PCE Instruments PCE-MFM 3500-ICA Magnetic field tester with data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Magnetic field intensity meter PCE-MFM 3500-ICA
- Adjustable alarm function
- Data storage with PC-connection
- Temperature reading
- Switchable AC / DC measurement
- Sensor alignment with level is possible
- Rubber protective cover for the handheld device
- Incl. ISO calibration certificate
Technical specifications
- Measuring function DC milli Tesla
- Measurement range 300.00 mT
- Resolution 0.01 mT
- Accuracy ±(4% + 10 digits)
- Measuring function DC milli Tesla
- Measurement range 2000.0 mT
- Resolution 0.1 mT
- Accuracy ±(4% + 10 digits)
- Measuring function DC milli Tesla
- Measuring range 2000.1:3000.0 mT
- Resolution 0.1 mT
- Accuracy -
- Measuring function DC Gauss
- Measurement range 3000.0 G
- Resolution 0.1 g
- Accuracy ±(4% + 10 digits)
- Measuring function DC Gauss
- Measurement range 20000 G
- Resolution 1 g
- Accuracy ±(4% + 10 digits)
- Measuring function DC Gauss
- Measurement range 20001:30000 G
- Resolution 1 g
- Accuracy -
- Measuring function AC milli Tesla
- Measurement range 150.00 mT
- Resolution 0.01 mT
- Accuracy ±(5% + 20 digits)
- Measuring function AC milli Tesla
- Measurement range 1500.0 mT
- Resolution 0.1 mT
- Accuracy ±(5% + 20 digits)
- Measuring function AC Gauss
- Measurement range 1500.0 G
- Resolution 0.1 g
- Accuracy ±(5% + 20 digits)
- Measuring function AC Gauss
- Measurement range 15000 G
- Resolution 1 g
- Accuracy ±(5% + 20 digits)
- Accuracy conditions 23 °C ±5 °C, max. 80 % r.h.
- Temperature measuring function
- Measurement range -20:50°C
- Resolution 0.1 °C
- Accuracy: ±1.0 °C
- Temperature measuring function
- Measurement range -4:122°F
- Resolution 0.1 °F
- Accuracy +/1.8 °F
- Manual memory of up to 200 values
- Automatically stores up to 7000 values

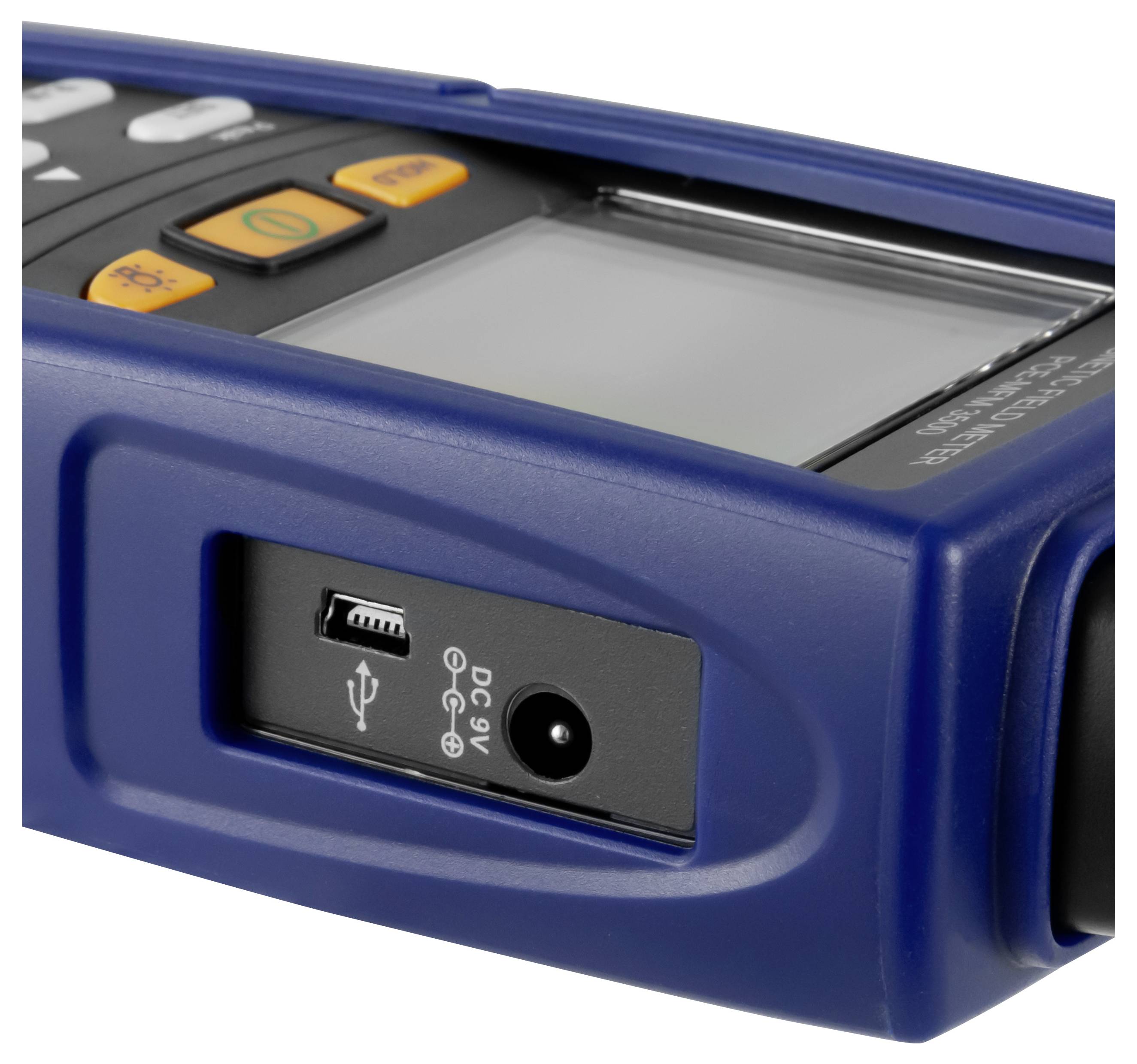

- Interface Mini-USB
- Display LCD screen
- Display digit 5
- Display 30000 counts
- Detachable sensor
- Cable length 1 m
- Automatic shut-off function can be deactivated or after 15 min.
- Power supply for batteries 6 x 1.5 V AAA
- Battery life 100 h
- Primary power supply unit 100:240 V AC
- Secondary power supply unit 9 V DC, 0.5 A
- Operating temperature 5:40 °C
- Operating humidity max. 80 % r.h.
- Storage temperature 0:50 °C
- Storage humidity max. 70 % r.F.
- Working height max. 2000 m
- Pollution degree 2
- 156 mm length
- Width 73 mm
- Height 35 mm
- Weight 320 g
- Display (details)
LC display, 5 digits, display up to 30000
- Product type
Magnetic field tester
- Frequency range
50 - 60 Hz
- Power supply (details)
100 - 240 V
- Dim
(L x W) 156 mm x 73 mm
- Weight
320 g
- Features
with data logger
- Width
73 mm
- Length
156 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812617 PCE Instruments PCE-MFM 3500-ICA Magnetic field tester with data logger
User & Safety Instructions
User & Safety Instructions 3812617 PCE Instruments PCE-MFM 3500-ICA Magnetic field tester with data logger
Description

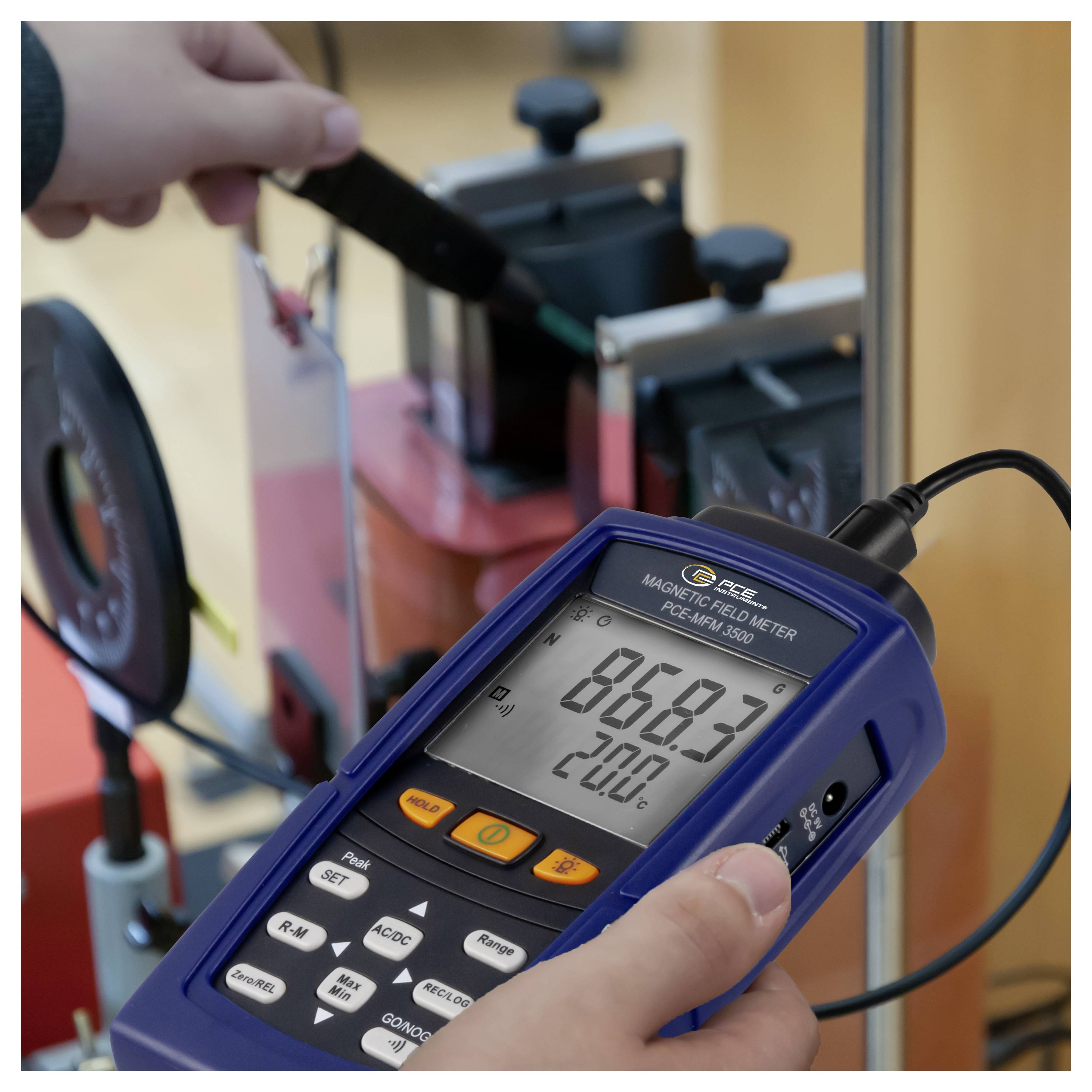

The magnetic field strength meter is a reliable measuring device for measuring the available magnetic field. This magnetic field strength meter is suitable for measuring static as well as changing magnetic fields. The flat measuring tip of the external probe in magnetic field strength meter enables the operator to carry out measurements even in very small openings.
The measurement range of up to 30,000 G for the magnetic field strength meter covers a wide range of measurement tasks. In addition to measuring the magnetic field, the magnetic field strength meter also measures the temperature at the same time. The magnetic field strength meter also has an adjustable alarm function. With this adjustable alarm function in the field strength meter, the operator is immediately warned, as soon as the set measuring value is exceeded. As an additional function the magnetic field strength meter has a memory function.
Thanks to the built-in memory, readings can be stored both automatically and manually, in which the magnetic field strength meter is stored. In order to analyze the measurement data, the magnetic field strength meter can be connected to a PC via the mini-USB interface. The software can be used to read and analyze the data stored on the magnetic field strength meter. In addition, the software can be used for live viewing and for operating the magnetic field strength meter.
This text is machine translated.
The measurement range of up to 30,000 G for the magnetic field strength meter covers a wide range of measurement tasks. In addition to measuring the magnetic field, the magnetic field strength meter also measures the temperature at the same time. The magnetic field strength meter also has an adjustable alarm function. With this adjustable alarm function in the field strength meter, the operator is immediately warned, as soon as the set measuring value is exceeded. As an additional function the magnetic field strength meter has a memory function.
Thanks to the built-in memory, readings can be stored both automatically and manually, in which the magnetic field strength meter is stored. In order to analyze the measurement data, the magnetic field strength meter can be connected to a PC via the mini-USB interface. The software can be used to read and analyze the data stored on the magnetic field strength meter. In addition, the software can be used for live viewing and for operating the magnetic field strength meter.
This text is machine translated.

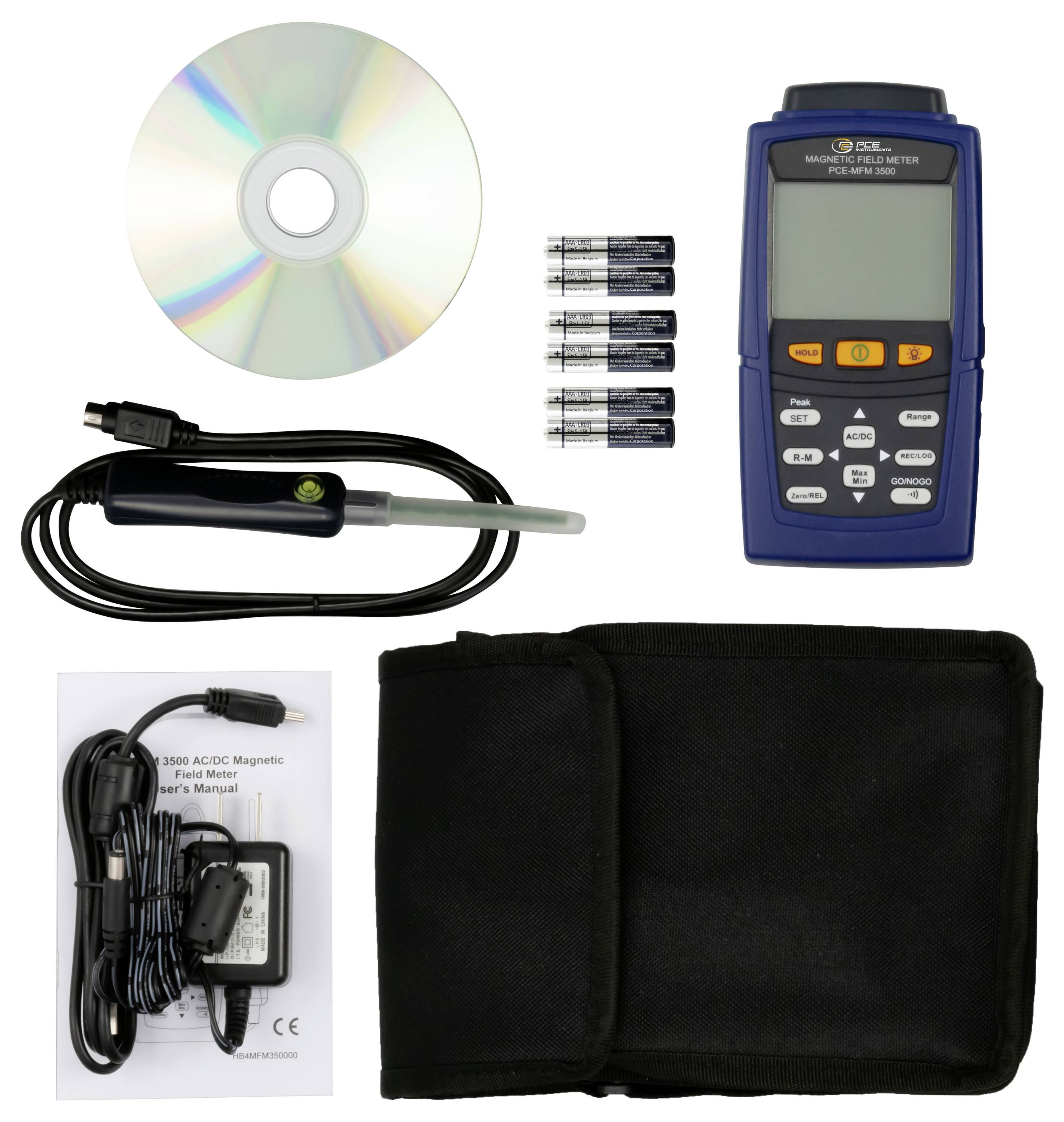

Scope of delivery
- 1 x Magnetic field intensity meter PCE-MFM 3500-ICA

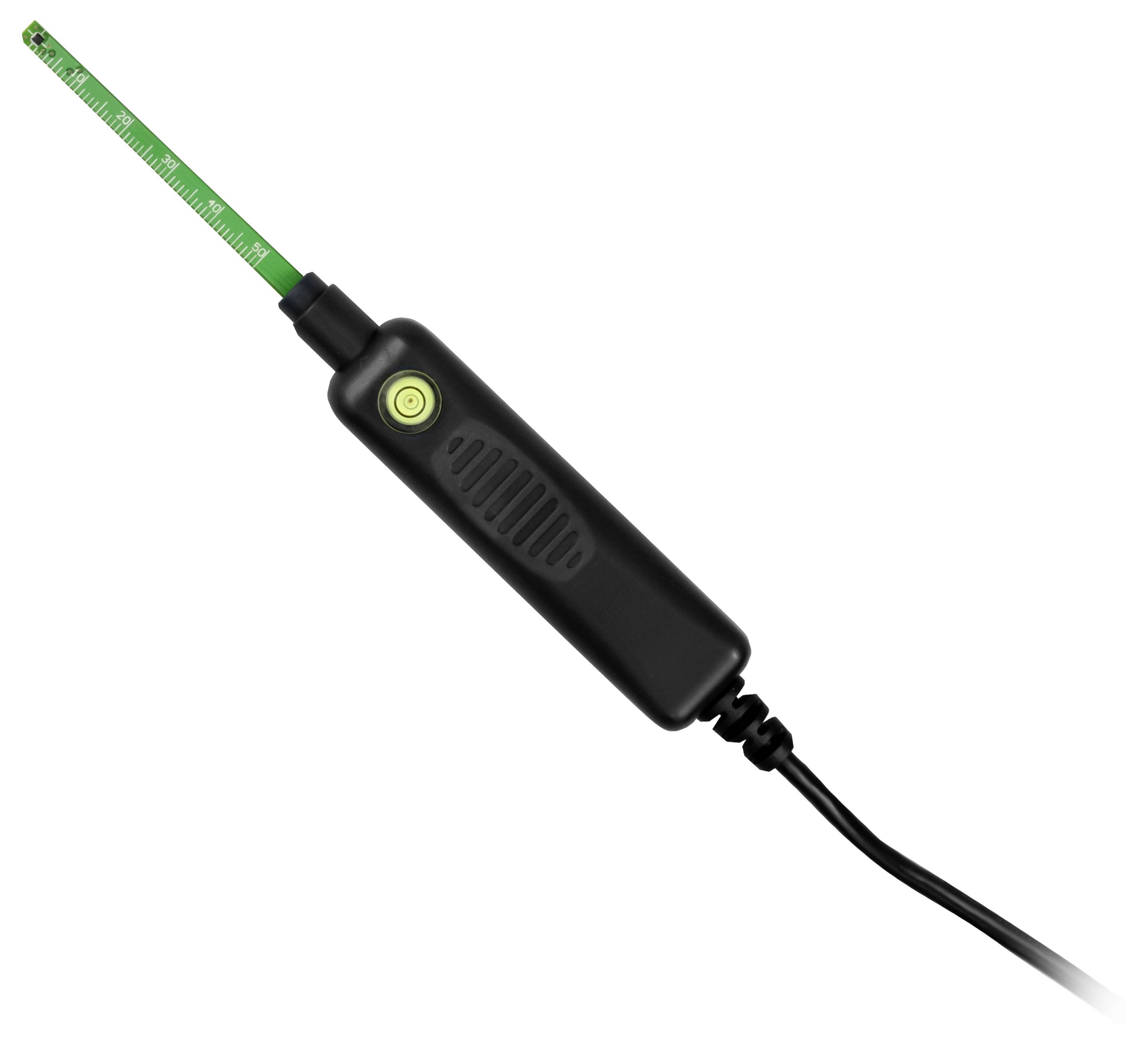

- 1 x probe
- 1 x mini USB cable
- 1 x Software-CD
- 6 x 1.5 V AAA batteries
- 1 x power supply 9 V / 0.5 A
- 1 x appliance bag
- 1x user manual

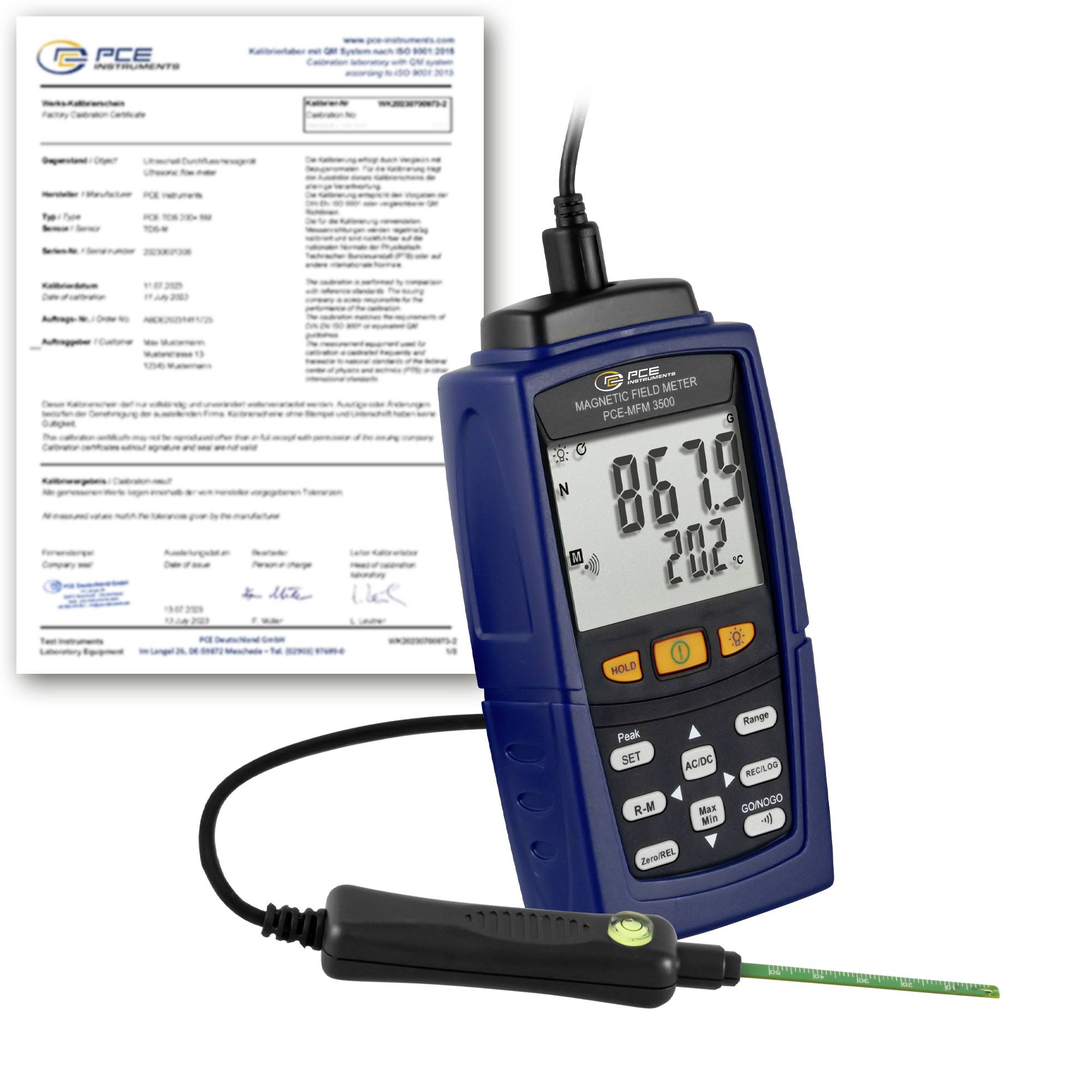

- 1 x ISO calibration certificate
