PCE Instruments PCE-MFM 3800-ICA Magnetic field tester with data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments Magnetic field meter PCE-MFM 3800-ICA
- Changeable sensor system (transverse included, Axial optional)
- Magnetic field AC and DC
- Accuracy 0 ... 2400 mT: ±1% v. MW.
- Accuracy 2400 ... 3500 mT: ±3% v. MW.
- Frequency indication
- Temperature reading
- Units: MT, G, A/cm, kA/m, OE, WB/m²
- 2.8 inches TFT color display
- Data logger: 100 series of measurements, each with up to 21,000 points
- Free PC software for evaluation, live measurement and export (.pdf and .csv)

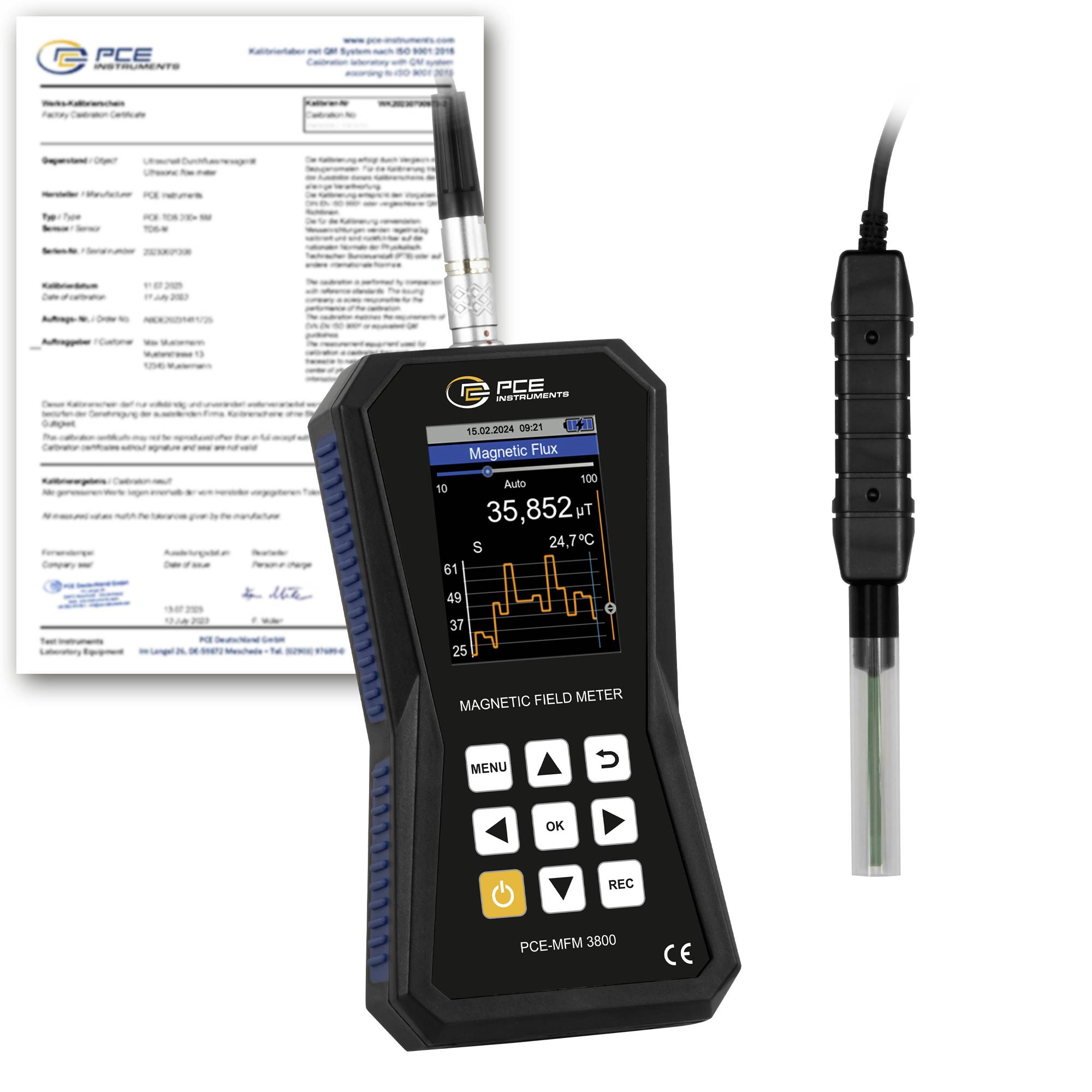

- Incl. ISO calibration certificate
Technical specifications
- Magnetic field AC
- Measuring range 10 ... 3500 Mt
- Resolution 0.01 mT
- Accuracy 0 … 2400 mT: ±1 % from MW.,2400 … 3500 mT: ±3 % from MW.
- Frequency range 10 ... 50 Hz
- Magnetic field DC
- Measuring range -3500 ... +3500 MT
- Resolution 0.01 mT
- Accuracy 0 … 2400 mT: ±1 % from MW.,2400 … 3500 mT: ±3 % from MW.
- Temperature
- Measuring range 0 ... 80 °C
- Resolution 0.1 °C
- Accuracy: ±0.4 °C
- Temperature
- Measuring range 32 ... 176 °F
- Resolution 0.18 °F
- Accuracy: ±0.72 °F
- Sensor
- Cable length 140 cm
- Additional description Tripod socket: 1/4 inch
- Shaft dimensions 57 × 4 × 1.7 mm (L × B × H)
- General Technical Data
- Measurement functions HOLD, MAX, Average value
- Unit(s) Mt, G, OE, WB/m², kA/m, A/cm
- Transversal measuring direction
- Display type LCD with lighting
- Display size 2.8 inches
- Storage medium Internal memory
- Memory capacity: 100 measurements
- Storage intervals of 1 s.
- Storage intervals of up to 24 h

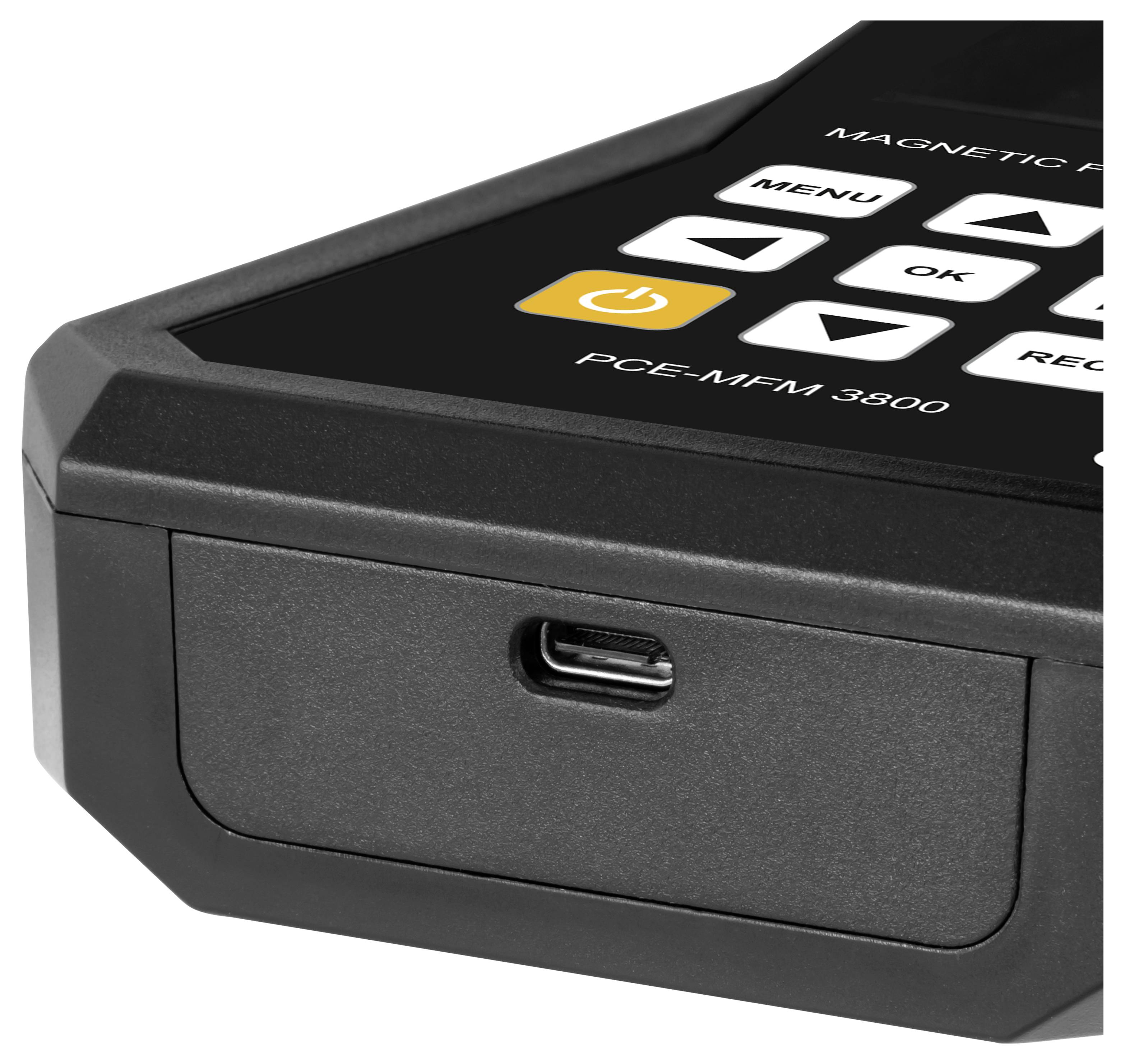

- Interface USB-C
- Operating time 24 h
- Operating time additional information depending upon screen brightness and data logger use
- Automatic shutdown of ... to 1 ... 15 min.
- Menu language German, English (GB), English (US), French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese
- Protection class (device) IP52
- Power supply USB 5 V DC, 500 mA
- Battery/Battery 1 x 3.7 V LP785060 , Lithium-polymer battery
- Capacity 2500 mAh
- Power 9.25 Wh
- Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Dimensions ( L x W x H ) 168 x 85 x 32 mm
- Weight 248 g.
- Display (details)
LCD with 2.8" lighting
- Product type
Magnetic field tester
- Frequency range
10 … 5000 Hz
- Power supply (details)
3.7 V
- Dim
(L x W) 168 mm x 85 mm
- Weight
248 g
- Features
with data logger
- Width
85 mm
- Length
168 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812618 PCE Instruments PCE-MFM 3800-ICA Magnetic field tester with data logger
User & Safety Instructions
User & Safety Instructions 3812618 PCE Instruments PCE-MFM 3800-ICA Magnetic field tester with data logger
Description
**Precise magnetic field meter for DC and AC applications**
The PCE‑MFM 3800 is a precise magnetic field meter for detecting direct fields (DC) and alternating fields (AC) up to 3500 MT. With a consistent resolution of 0.01 MT, it enables reliable measurements from very weak to strong magnetic fields. In addition, the device detects ambient temperatures from 0 to 80 °C in order to better assess thermal influences.
**Accuracy depends on measuring range**
Depending on the field strength, the following accuracy specifications apply to the magnetic field meter:
0 ... 2400 mT: ±1% of reading
2400 ... 3500 mT: ±3% of reading
These range data facilitate the evaluation of the measurement results across the entire DC spectrum.
**Flexible AC/DC measurement with three operating modes**
The magnetic field meter offers three modes for detecting magnetic field types:
DC mode for direct fields, AC mode for alternating fields and automatic AC/DC detection for independent identification of the field type.
The automatic range selection ensures that the appropriate measuring range is always used.
**Unit conversion directly in the device**
The magnetic field meter supports several magnetic units, including MT, G, OE, WB/m², kA/m and A/cm.
The conversion between flux density (MT) and field strength (A/cm) is done automatically on the basis of the vacuum permeability:
1 A/cm corresponds in air to a flux density of 0.1257 MT. This allows measured values to be read directly in the desired unit without any additional effort.

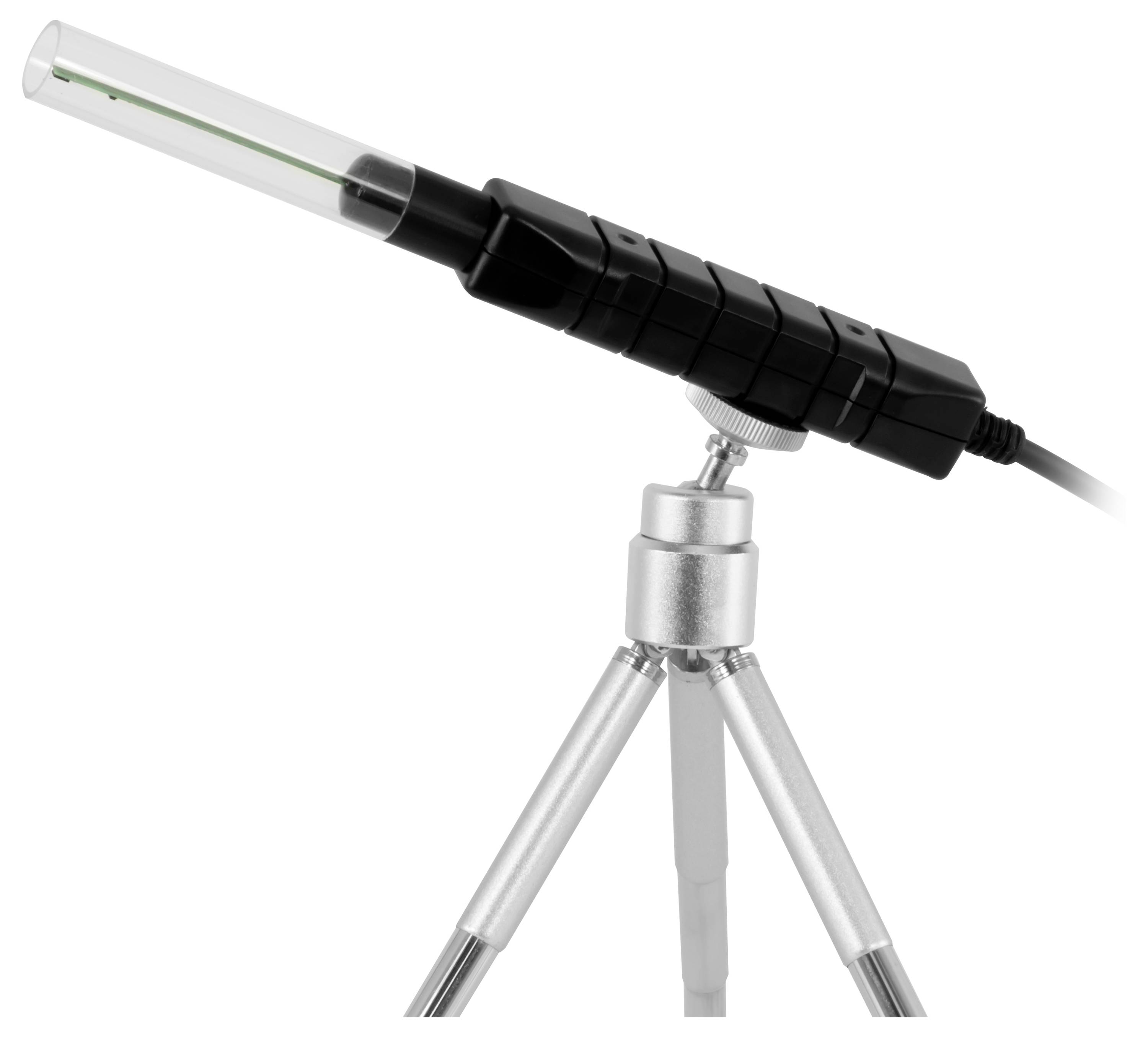

**Modular sensor system for versatile applications**
The PCE‑MFM 3800 has a modular sensor system with push‑pull connector that enables rapid and safe sensor replacement. A transverse probe is included; an axial probe can also be connected. The modular concept allows the magnetic field meter to be flexibly adapted to different measurement tasks and installation situations.
**Colour display, data memory and USB‑C for easy evaluation**

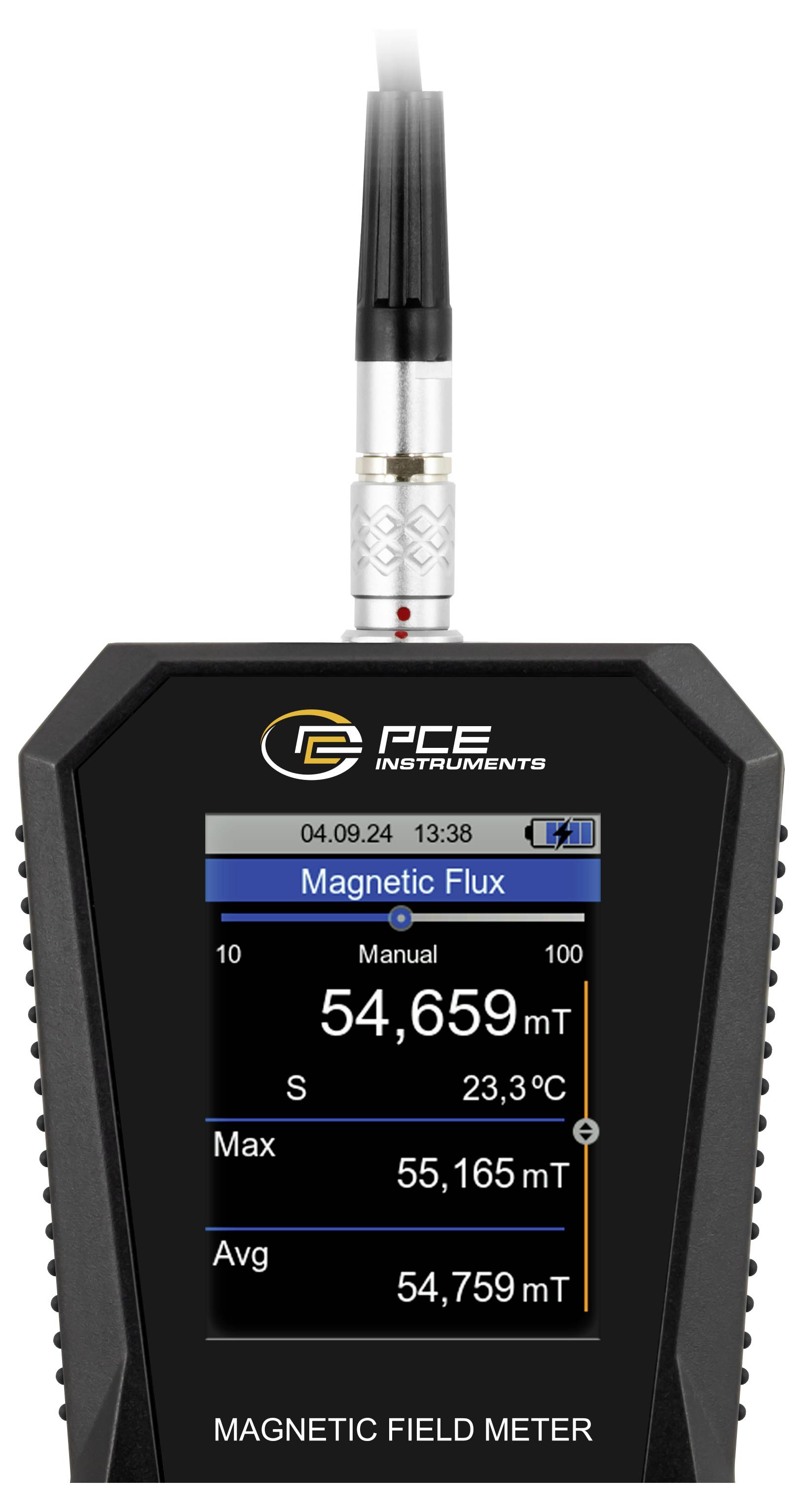

The 2.8-inch color display provides a clear representation of real-time values, trend gradients, and maximum and average measurements.
**Other features:**
Data logger: 100 series of measurements, each with up to 21,000 points
USB‑C interface for fast data transfer
Free PC software for evaluation, live measurement and export (.pdf and .csv)
Thus the magnetic field meter is best suited for documentation, analysis and quality control.
**Suitable for industry, laboratory and development**
Thanks to its wide measuring range, high resolution and extended operating temperature range, the magnetic field meter is suitable for:
Residual magnetism testing
Analysis of permanent magnets
Testing of magnetic clamping devices
Material and component test
AC field measurements
Research and development tasks
This text is machine translated.
The PCE‑MFM 3800 is a precise magnetic field meter for detecting direct fields (DC) and alternating fields (AC) up to 3500 MT. With a consistent resolution of 0.01 MT, it enables reliable measurements from very weak to strong magnetic fields. In addition, the device detects ambient temperatures from 0 to 80 °C in order to better assess thermal influences.
**Accuracy depends on measuring range**
Depending on the field strength, the following accuracy specifications apply to the magnetic field meter:
0 ... 2400 mT: ±1% of reading
2400 ... 3500 mT: ±3% of reading
These range data facilitate the evaluation of the measurement results across the entire DC spectrum.
**Flexible AC/DC measurement with three operating modes**
The magnetic field meter offers three modes for detecting magnetic field types:
DC mode for direct fields, AC mode for alternating fields and automatic AC/DC detection for independent identification of the field type.
The automatic range selection ensures that the appropriate measuring range is always used.
**Unit conversion directly in the device**
The magnetic field meter supports several magnetic units, including MT, G, OE, WB/m², kA/m and A/cm.
The conversion between flux density (MT) and field strength (A/cm) is done automatically on the basis of the vacuum permeability:
1 A/cm corresponds in air to a flux density of 0.1257 MT. This allows measured values to be read directly in the desired unit without any additional effort.
**Modular sensor system for versatile applications**
The PCE‑MFM 3800 has a modular sensor system with push‑pull connector that enables rapid and safe sensor replacement. A transverse probe is included; an axial probe can also be connected. The modular concept allows the magnetic field meter to be flexibly adapted to different measurement tasks and installation situations.
**Colour display, data memory and USB‑C for easy evaluation**
The 2.8-inch color display provides a clear representation of real-time values, trend gradients, and maximum and average measurements.
**Other features:**
Data logger: 100 series of measurements, each with up to 21,000 points
USB‑C interface for fast data transfer
Free PC software for evaluation, live measurement and export (.pdf and .csv)
Thus the magnetic field meter is best suited for documentation, analysis and quality control.
**Suitable for industry, laboratory and development**
Thanks to its wide measuring range, high resolution and extended operating temperature range, the magnetic field meter is suitable for:
Residual magnetism testing
Analysis of permanent magnets
Testing of magnetic clamping devices
Material and component test
AC field measurements
Research and development tasks
This text is machine translated.

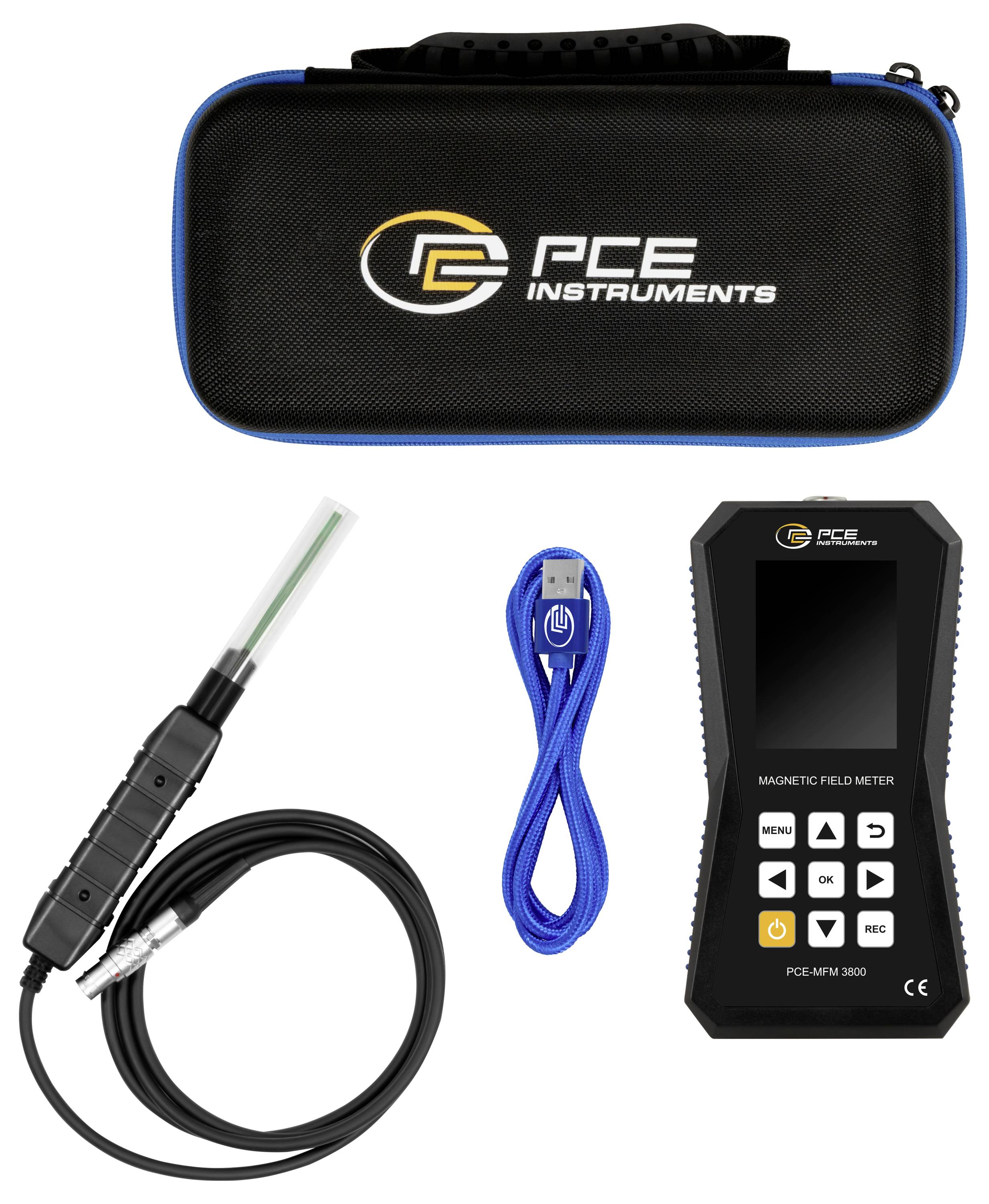

Scope of delivery
- 1 x Magnetic field meter PCE-MFM 3800-ICA
- 1 x Hall sensor (transverse)
- 1 x USB-C cable
- 1x user manual
- 1 x appliance bag
- 1 x ISO calibration certificate
