PCE Instruments PCE-MFM 4000-ICA Magnetic field tester with data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

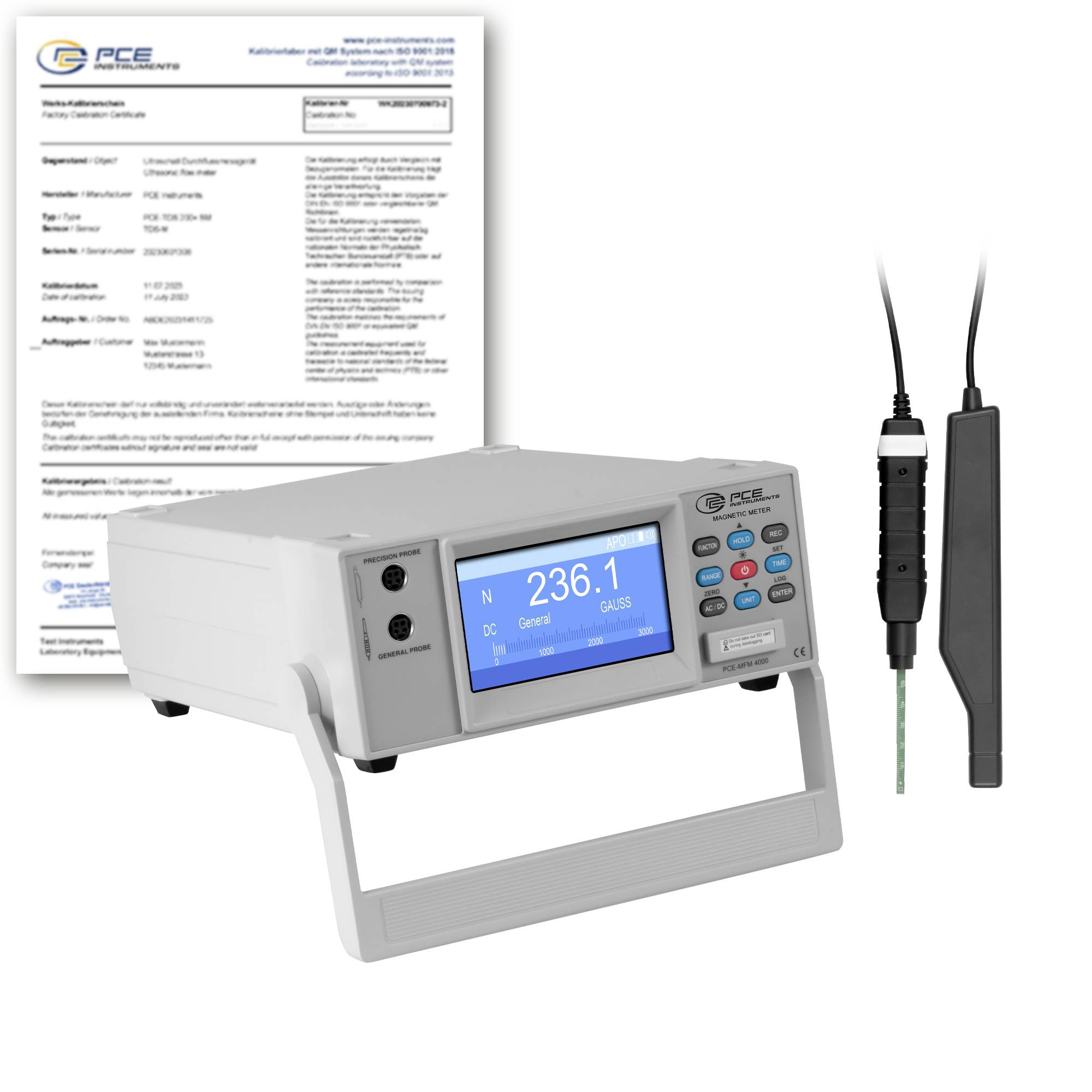

PCE instruments magnet intensity meter PCE-MFM 4000-ICA
- Desktop unit with 2 sensors
- For static and changing magnetic fields
- Highly accurate hall sensor
- Different units can be selected (mg / µT)
- Data storage on SD memory card
- Automatic power off
- Serial interface
- Max. Min. Hold function
- Incl. ISO calibration certificate
Technical specifications
- Magnetic field AC
- Measuring range 0 ... 150 Mt
- Resolution 0.01 mT
- Accuracy ±(5 % from MW. 10 digits)
- Frequency range 50 ... 60 Hz
- Magnetic field AC
- Measuring range 0 ... 1500 Mt
- Resolution 0.1 mT
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field AC
- Measuring range 0 ... 1500 G
- Resolution 0.1 g
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field AC
- Measuring range 0 ... 15000 G
- Resolution 1 g
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field DC
- Measuring range -300 ... +300 Mt
- Resolution 0.01 mT
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field DC
- Measuring range -3000 ... +3000 Mt
- Resolution 0.1 mT
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field DC
- Measuring range -3000 ... +3000 G
- Resolution 0.1 g
- Accuracy ±(5 % from MW. 10 digits)
- Magnetic field DC
- Measuring range -30000 ... +30000 G
- Resolution 1 g
- Accuracy ±(5 % from MW. 10 digits)
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD
- Measuring direction Uniaxial
- Frequency 50 ... 60 Hz
- Display type LCD
- Measurement rate 1 Hz
- Storage medium: SD-card,
- Memory capacity (additional information) Data logger individual value memory
- Storage intervals of 1 s.
- Storage intervals of up to 3600 s.
- Sensor Hall sensor
- Dimensions of precision sensor 195 x 25 x 19 mm, standard sensor 177 x 29 x 17 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Battery 6 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 292 x 236 x 98 mm
- Weight 275 g
- Magnetic flux density
300 µT
- Display (details)
LCD
- Product type
Magnetic field tester
- Frequency range
50 - 60 Hz
- Power supply (details)
1.5 V
- Dim
(L x W) 177 mm x 29 mm
- Weight
275 g
- Features
with data logger
- Width
29 mm
- Length
177 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812621 PCE Instruments PCE-MFM 4000-ICA Magnetic field tester with data logger
User & Safety Instructions
User & Safety Instructions 3812621 PCE Instruments PCE-MFM 4000-ICA Magnetic field tester with data logger
Description

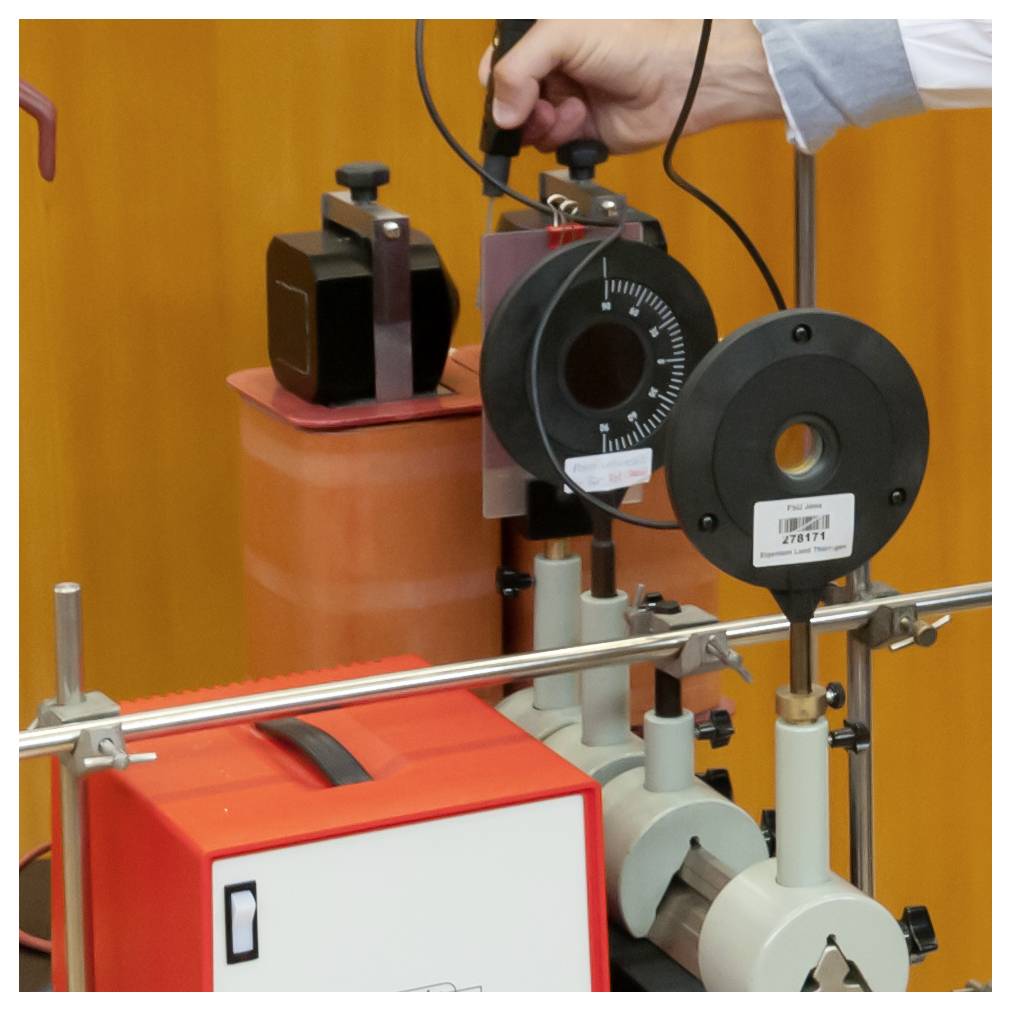

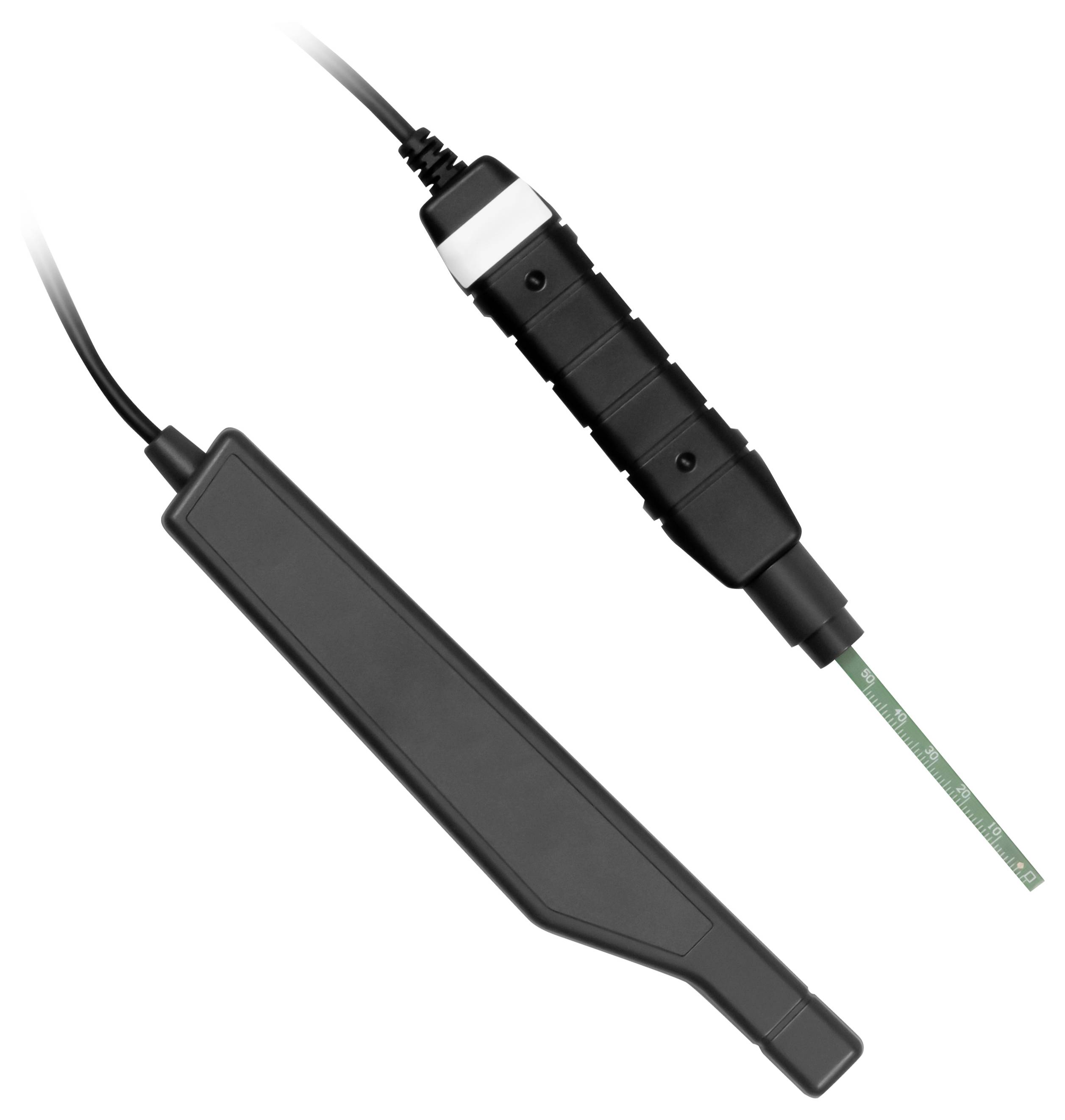

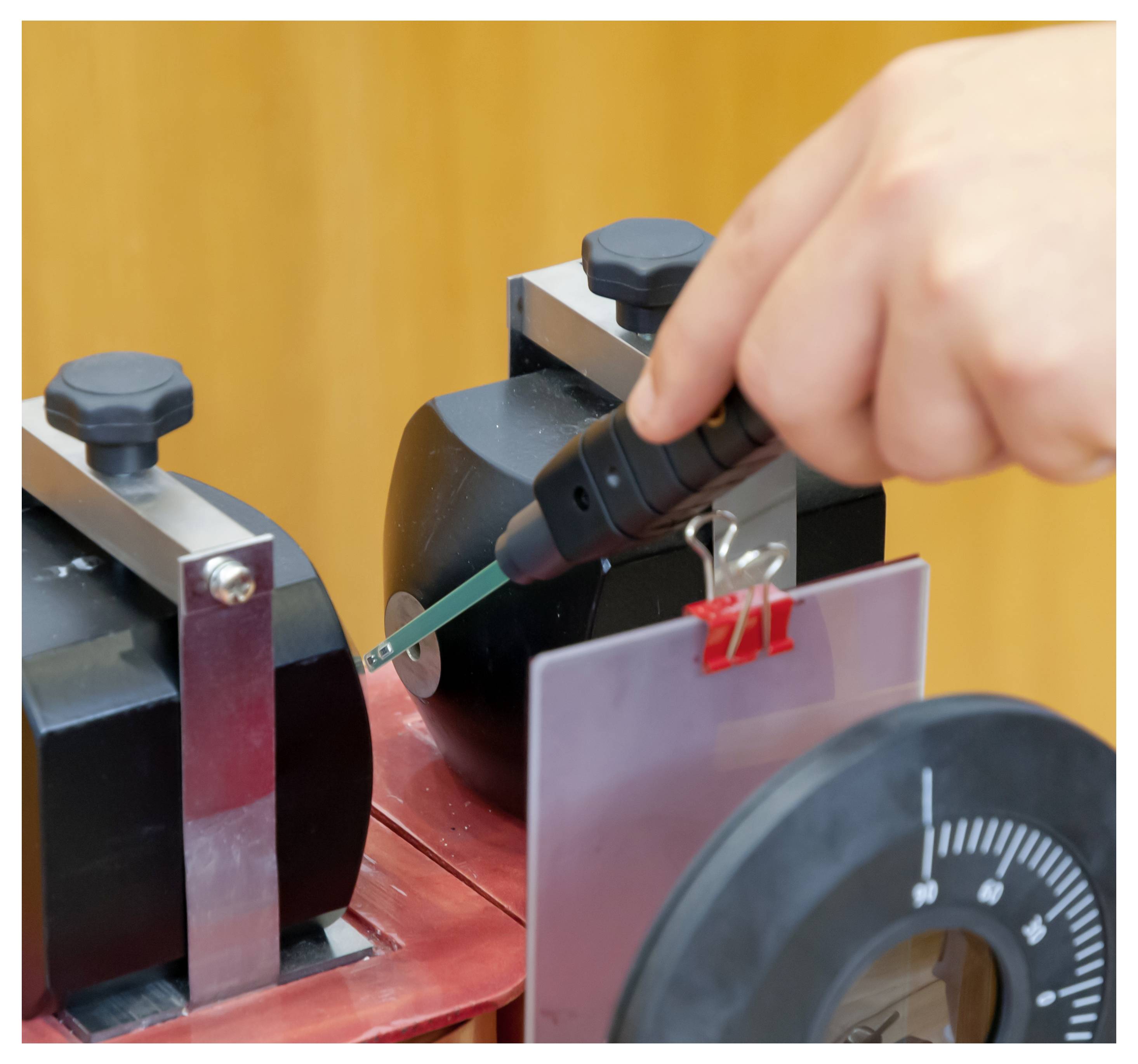

The magnetic strength meter is used in the laboratory and in quality assurance, in order to measure the strength of magnetic fields. The magnetic field meter is delivered with two different sensors. A magnetic field sensor is available for general measurements in the Gauss and Millitestla area and a precision sensor for measurements in the fields of milligauss and microTesla. The sensors on the magnetic strength meter have an automatic temperature compensation. The magnetic field meter can be used for measuring AC and DC magnetic fields.

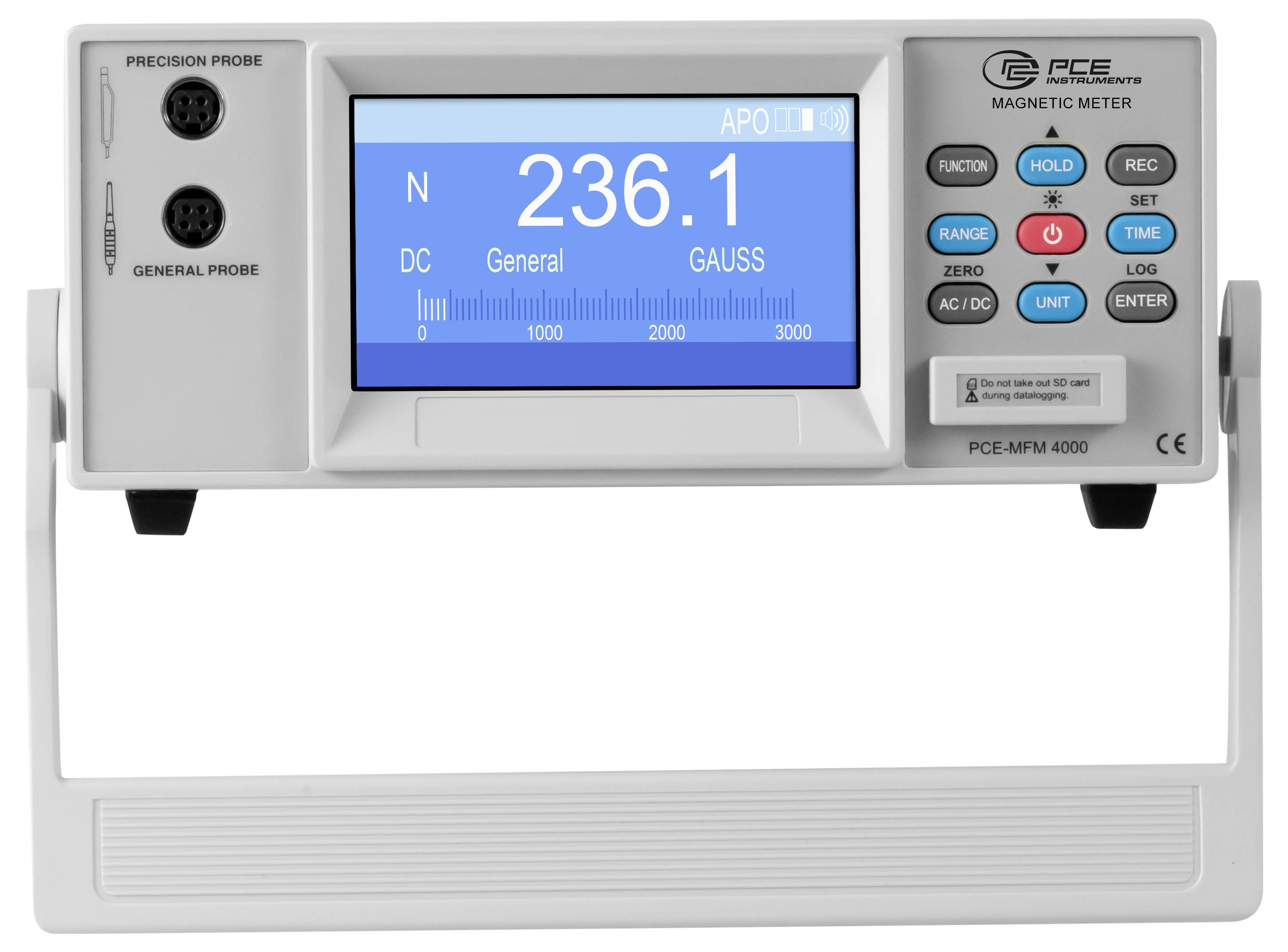

The display next to the measured value indicates the polarity of the DC magnetic field. This precise magnetic strength meter can be connected to a PC via serial interface for measurement analysis. The magnetic field strength meter also has a data logging function. The magnetic strength meter is thus able to store the measured values on an SD memory card at a pre-set interval during the measurement. In addition to the interval saving, up to 99 individual measurements can be saved in the memory at the push of a button.
The measurement data are stored by the magnetic field strength meter on the SD-card in excellent format. This has the advantage that no further software must be used for the magnetic strength meter. The magnetic strength meter is supplied as a table device and is particularly suitable for stationary measurements in QA, test laboratory or in research. The bright display of the magnetic field meter is easily readable at all times and displays all the necessary information on the magnetic field strength. The magnetic field strength meter also has an automatic shutdown. Power is supplied to the magnetic field strength meter by 6 x 1.5 V AA batteries or via 9 V plug-in power supply.
This text is machine translated.
The display next to the measured value indicates the polarity of the DC magnetic field. This precise magnetic strength meter can be connected to a PC via serial interface for measurement analysis. The magnetic field strength meter also has a data logging function. The magnetic strength meter is thus able to store the measured values on an SD memory card at a pre-set interval during the measurement. In addition to the interval saving, up to 99 individual measurements can be saved in the memory at the push of a button.
The measurement data are stored by the magnetic field strength meter on the SD-card in excellent format. This has the advantage that no further software must be used for the magnetic strength meter. The magnetic strength meter is supplied as a table device and is particularly suitable for stationary measurements in QA, test laboratory or in research. The bright display of the magnetic field meter is easily readable at all times and displays all the necessary information on the magnetic field strength. The magnetic field strength meter also has an automatic shutdown. Power is supplied to the magnetic field strength meter by 6 x 1.5 V AA batteries or via 9 V plug-in power supply.
This text is machine translated.

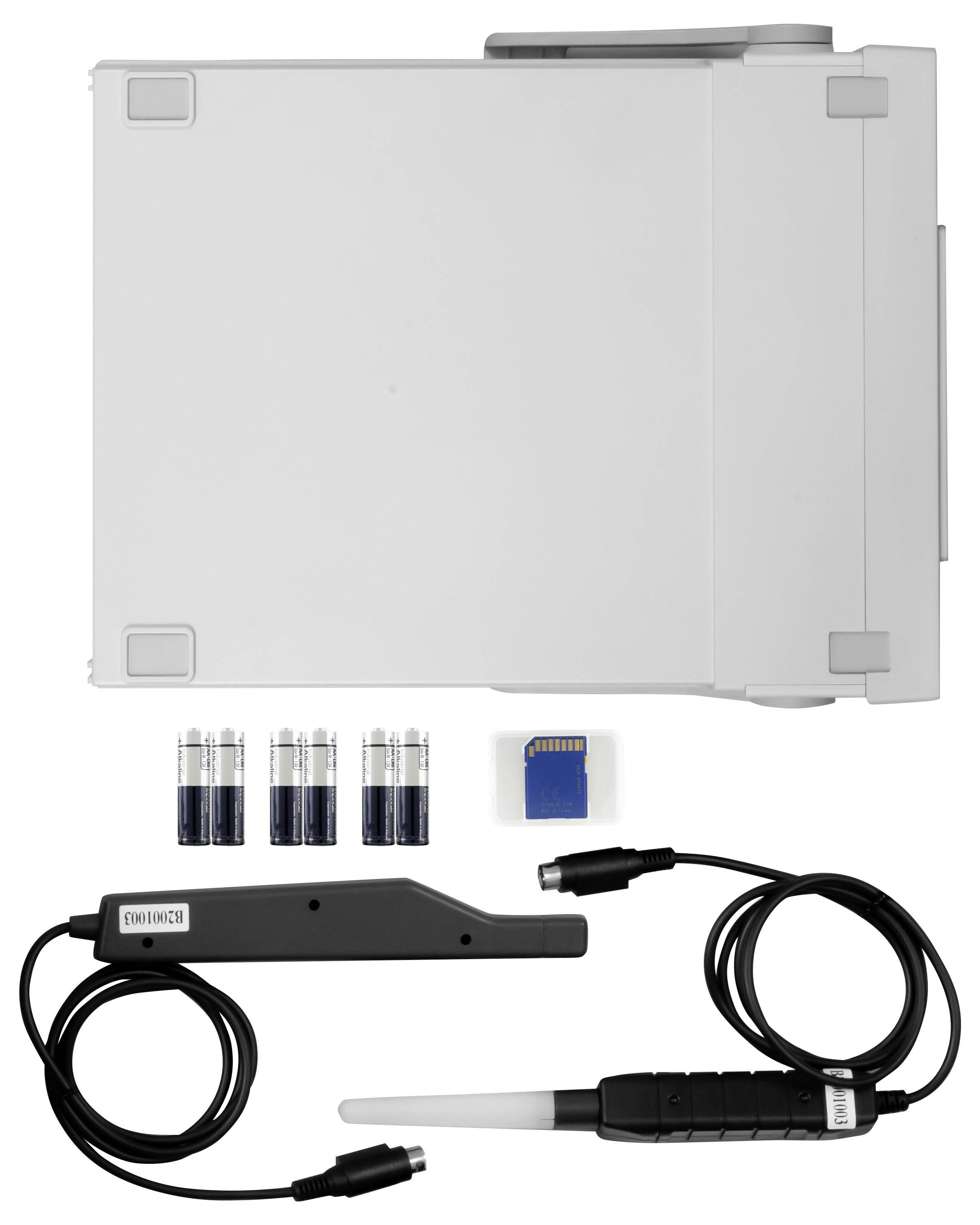

Scope of delivery
- 1 x magnet thickness meter PCE-MFM 4000-ICA
- 1 x Standard sensor
- 1 x precision sensor
- 1 x SD memory card
- 6 x 1.5 V AA batteries
- 1x user manual
- 1 x ISO calibration certificate
