PCE Instruments PCE-MFM 4000 Magnetic field tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

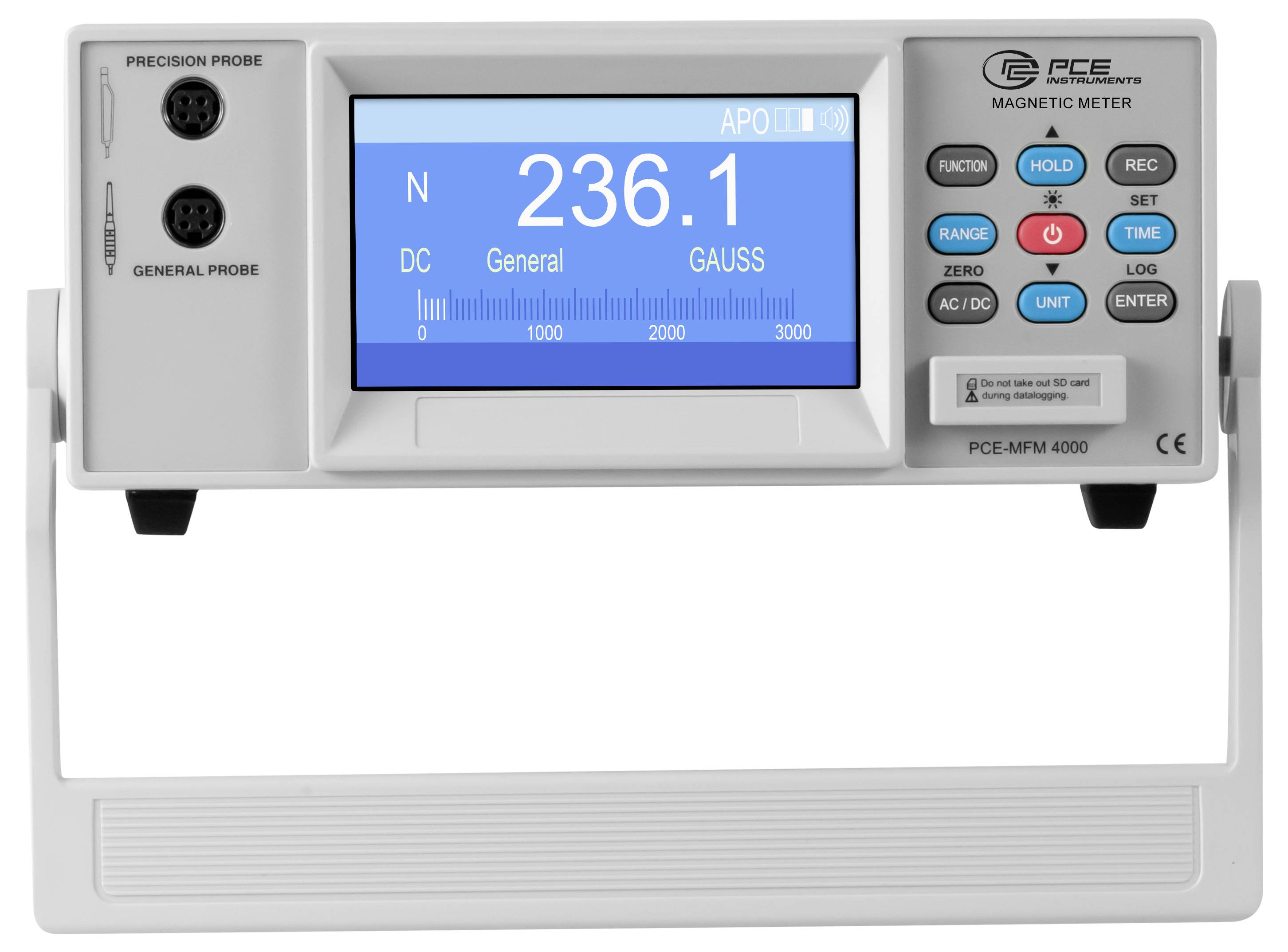

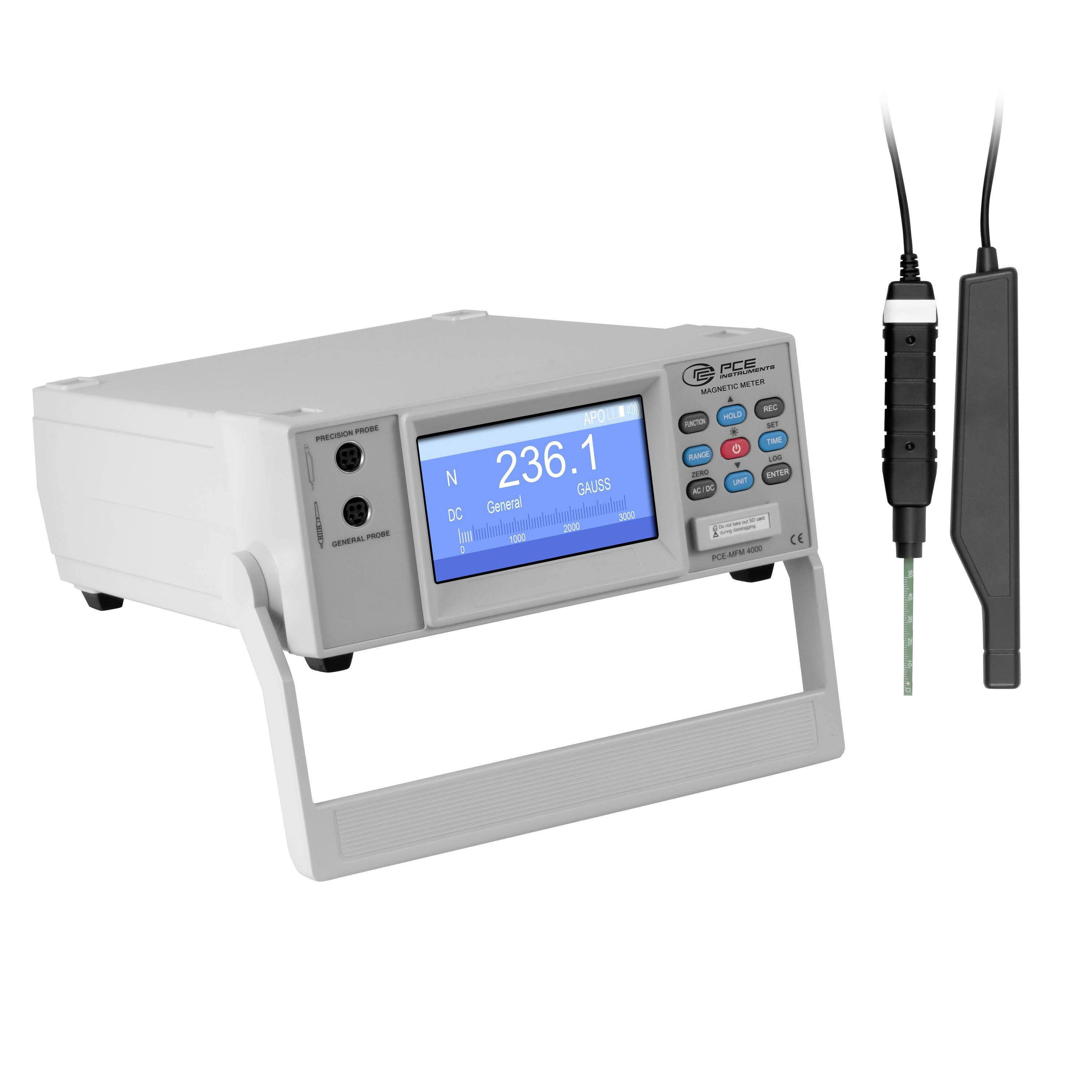

Gaussmeter PCE-MFM 4000
- Desktop device with 2 sensors
- For static and changing magnetic fields
- High-precision Hall sensor
- Different units can be selected (mg / µT)
- Data memory on SD memory card
- Automatic switch-off
- Serial interface
- Max.- Min.- Hold function
Technical specifications
- Measuring function DC magnetic field Precision sensor Measurement range ± 30µT ± 300 µT ± 300 mg ± 3000 mg Resolution 0.01 µT 0,1µT 0.1 mg 1 mg Accuracy ± (2% v.MB. + 2 mg) @± 100µT / 1000 G. Measuring function DC magnetic field standard sensor Measurement range ± 300 MT ± 3000 MT ± 3000 G ± 30000 G. Resolution 0.01 MT 0.1 MT 0.1 G 1 G Accuracy ± (5% v MW. + 10 DGT) Measurement function AC magnetic field Precision sensor 50 / 60 Hz Measurement range 30µT 300 µT 300 mg 3000 mg Resolution 0.01 µT 0,1µT 0.1 mg 1 mg Accuracy ± (2% v.MB. + 2 mg) @0 ... 100µT / 1000 g Measurement function AC magnetic field standard sensor 50 / 60 Hz Measurement range 150 MT 1500 MT 1500 G 15000 G. Resolution 0.01 MT 0.1 MT 0.1 G 1 G Accuracy ± (5% v MW. + 10 DGT) General Technical Data Measurement rate 1 second Measuring direction Uniaxial Display LCD Functions Data Hold / Max.- Min.Memory Storage Data logger Single value storage Storage rate Data logger 1, 2, 5, 10, 30, 60, 120.30,600,1800,3600 s Serial interface Ambient conditions 0 ... 50 °C / max. 85 % RH Power supply 6 x 1.5 V AA batteries Optional 9 V power supply Power consumption 138 mA Device dimensions 292 x 236 x 98 mm Precision sensor 195 x 25 x 19 mm Standard sensor 177 x 29 x 17 mm Weight 275 g
- Magnetic flux density
300 µT
- Product type
Magnetic field tester
- Dim
(L x W) 292 mm x 98 mm
- Weight
275 g
- Width
98 mm
- Length
292 mm
Documents & Downloads
Datasheet
Datasheet 2452515 PCE Instruments PCE-MFM 4000 Magnetic field tester
User & Safety Instructions
User & Safety Instructions 2452515 PCE Instruments PCE-MFM 4000 Magnetic field tester
Description

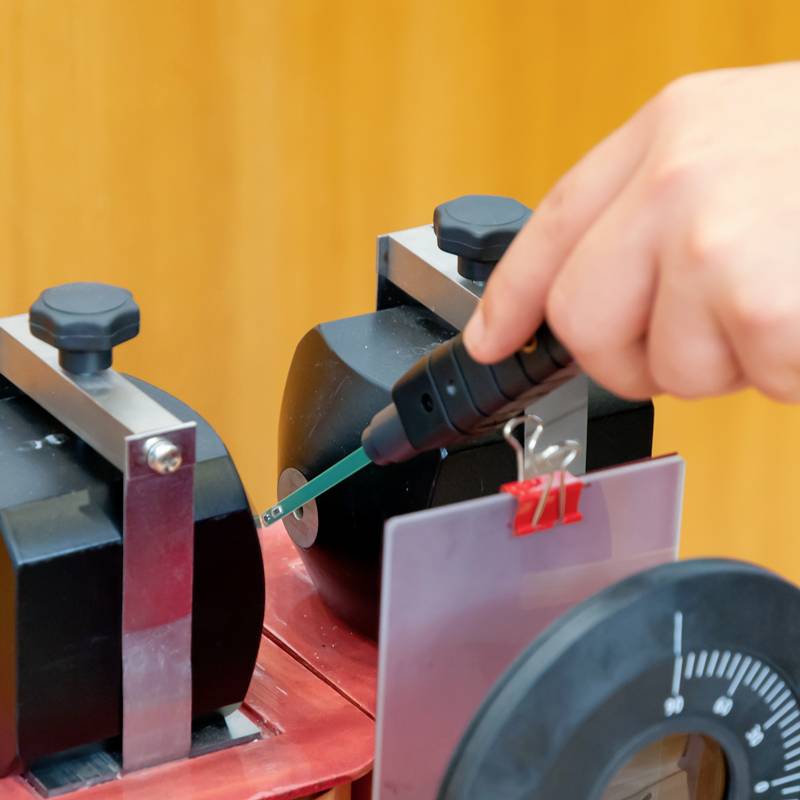

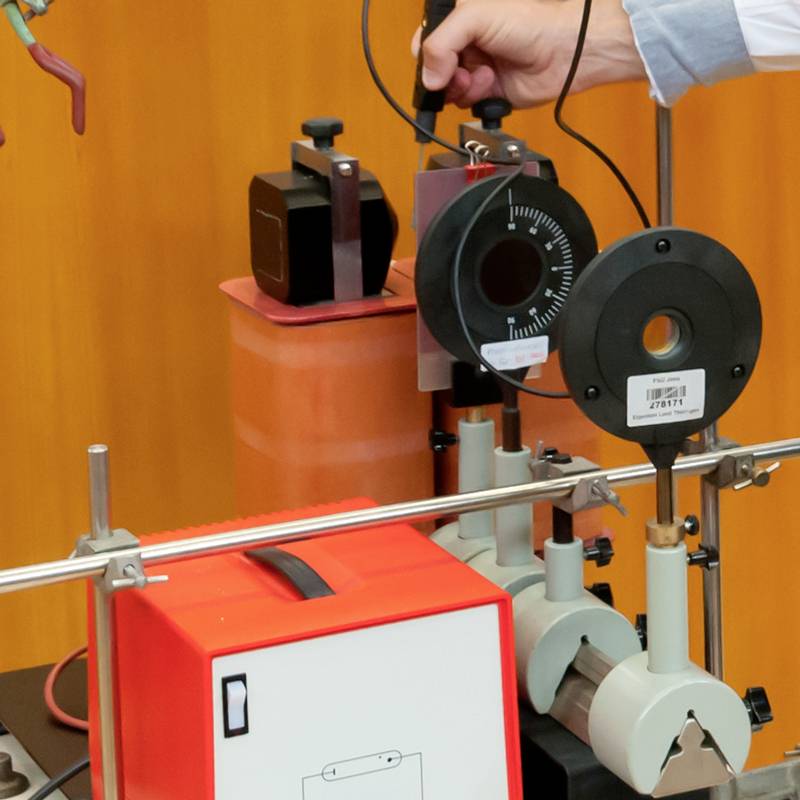

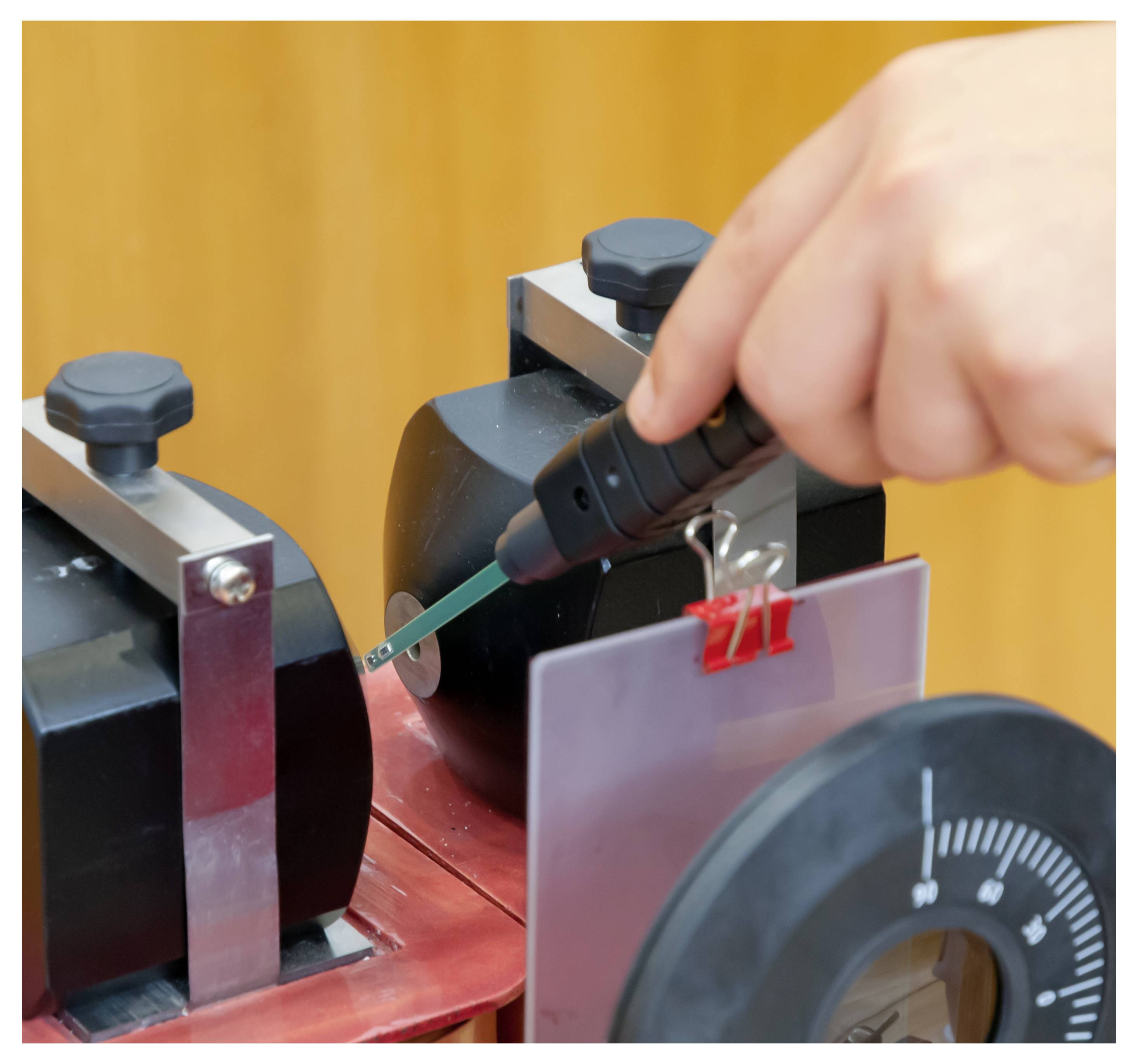

Gaussmeter for AC and DC magnetic fields / Precision and standard sensor / LC display / SD data logger / serial interface / desktop device The gaussmeter is used in the laboratory and in quality assurance to measure the strength of magnetic fields. The gaussmeter is supplied with two different sensors. A magnetic field sensor is available for general measurements in the Gauss and Millitestla range, as well as a precision sensor for measurements in the milligrams and microTesla ranges. The sensors of the gaussmeter have automatic temperature compensation. The gaussmeter can be used for measurements of DC and AC magnetic fields. On the display next to the measured value, the gaussmeter indicates the polarity of the DC magnetic field. For measuring value analysis, this precise gaussmeter can be connected to a PC via serial interface. The gaussmeter also has a data-loggingfunction. The gaussmeter is thus able to store the measured values on an SD memory card at a pre-set interval during the measurement. In addition to interval storage, up to 99 individual measurements can be stored in memory by pressing a button. The measuring data are stored by the gaussmeter on the SD card in Excel format. This has the advantage that no other software for the gaussmeter has to be used. The gaussmeter is supplied as a table top device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the gaussmeter is easy to read at all times and represents all the necessary information on the magnetic field strength. The gaussmeter still has an automatic shut-off function. The gaussmeter is powered by 6 x 1.5 V AA batteries or by a 9 V mains adapter.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Gaussmeter PCE-MFM 4000

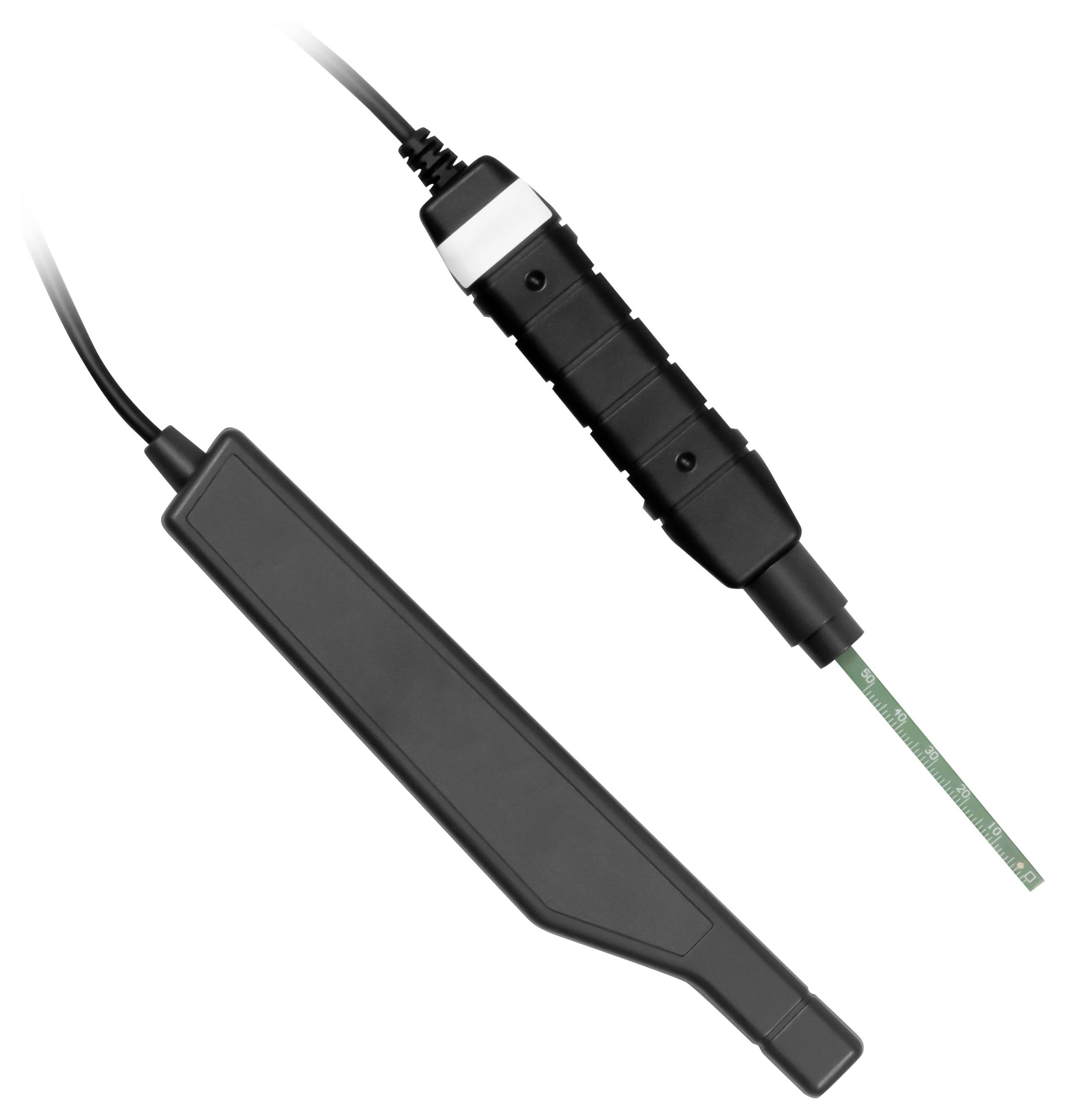

- 1 x standard sensor
- 1 x precision sensor
- 1 x SD memory card
- 6 x 1.5 V AA batteries
- 1x user manual
