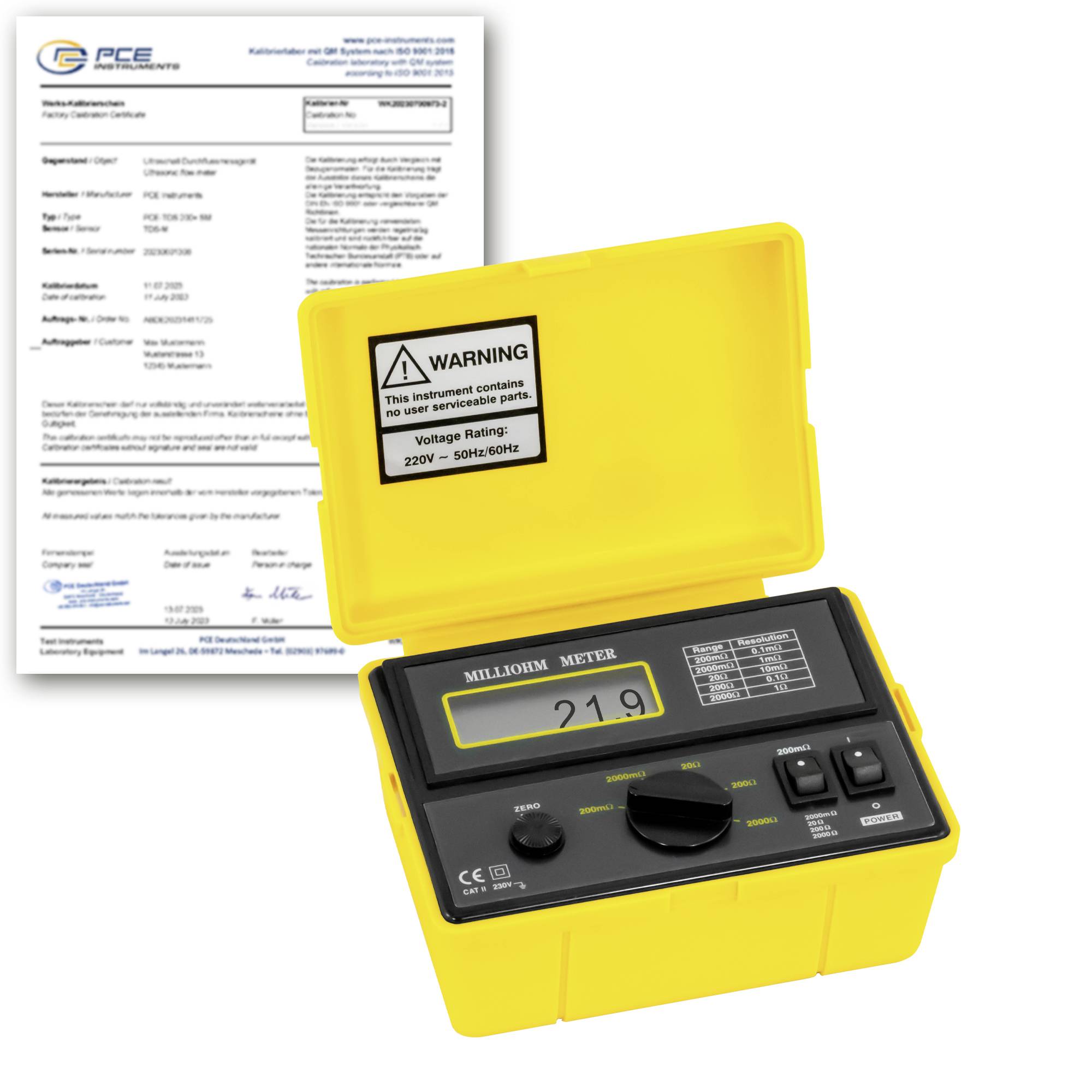

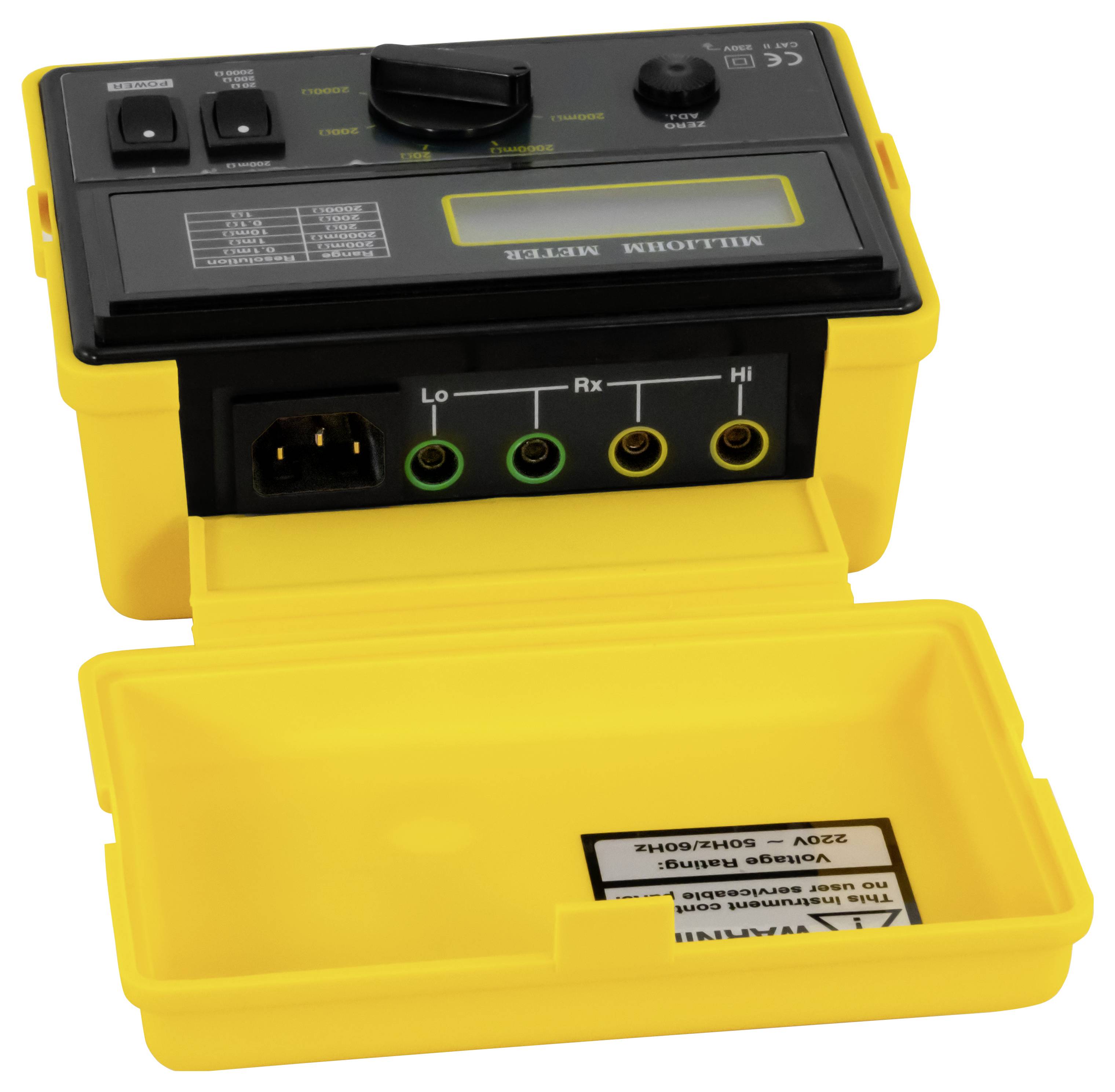

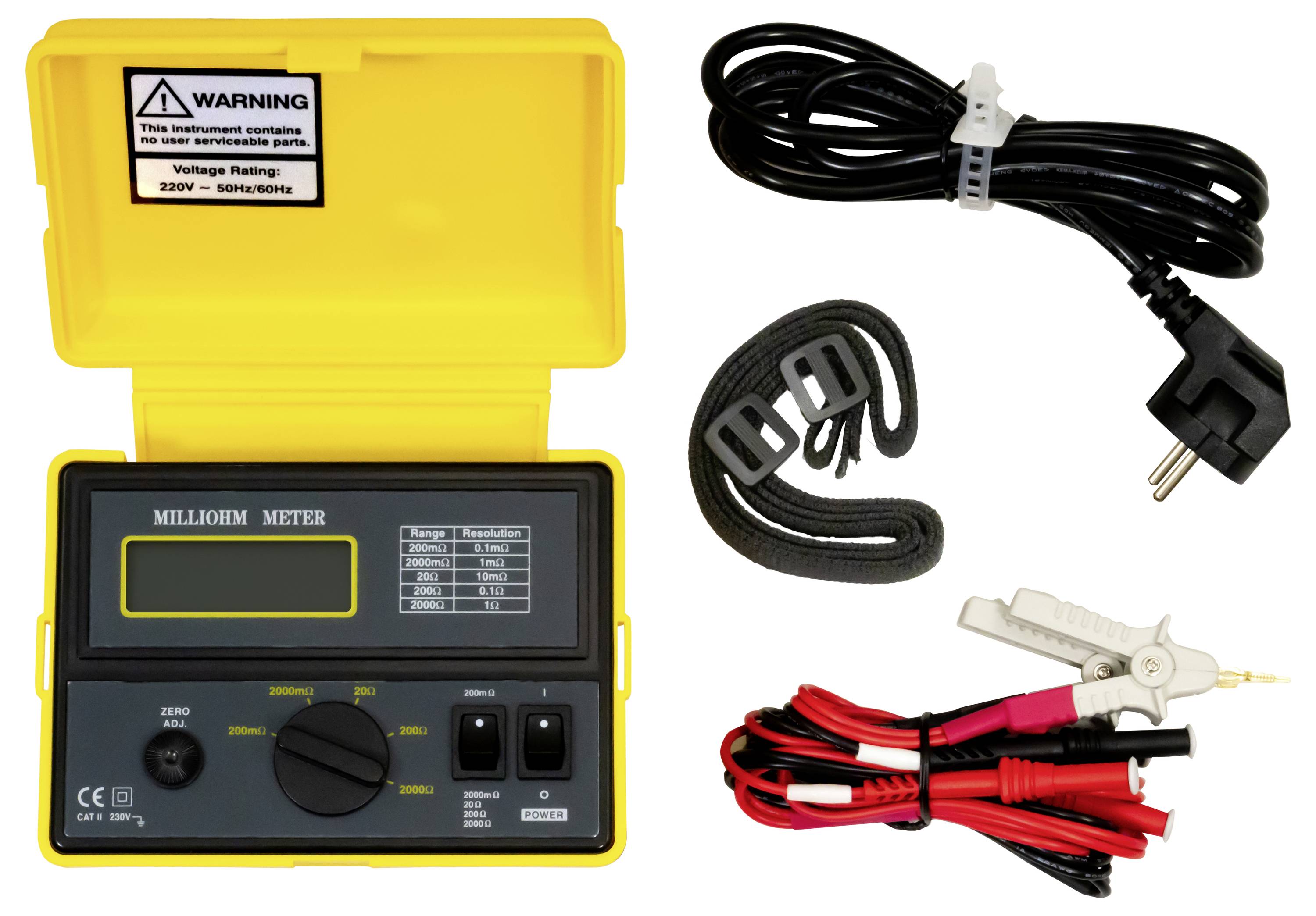

PCE Instruments PCE-MO 2001-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω

This milliohm meter in the splash-protected housing enables resistance measurements from 100 μΩ to 2000 Ω. The measured values are indicated on the milliohm meter via a 3½-digit, very easy to read LCD display. In order to determine the measuring value, a constant current is applied to the object to be measured and the voltage drop is measured over the object to be measured. With the milliohm meter, resistance measurement can be performed on coils, generators, transformers, circuits, for example of parallel and branch circuits, and switches and relays. The milliohm meter also measures binding energy in mines, airplanes, track systems, ships and electrical installations in households and industry. Continuity tests on ring systems (ring bus) in household and industry are not a problem for the milliohm meter. This makes it possible, for example, to test the compression elements of overhead lines or to carry out test and maintenance work on switching cabinets. Using the milliohm meter components such as fuses, connectors, contacts, etc. can also be tested for function. The robust rubber housing makes the milliohm meter a reliable companion in the harsh everyday life of plant builders and electrical installers. The Milliohm meter is always delivered with factory calibration. As an optional accessory, the measuring device can also be laboratory calibrated and equipped with a certificate in accordance with ISO.

This text is machine translated.
