PCE Instruments PCE-MO 2002-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

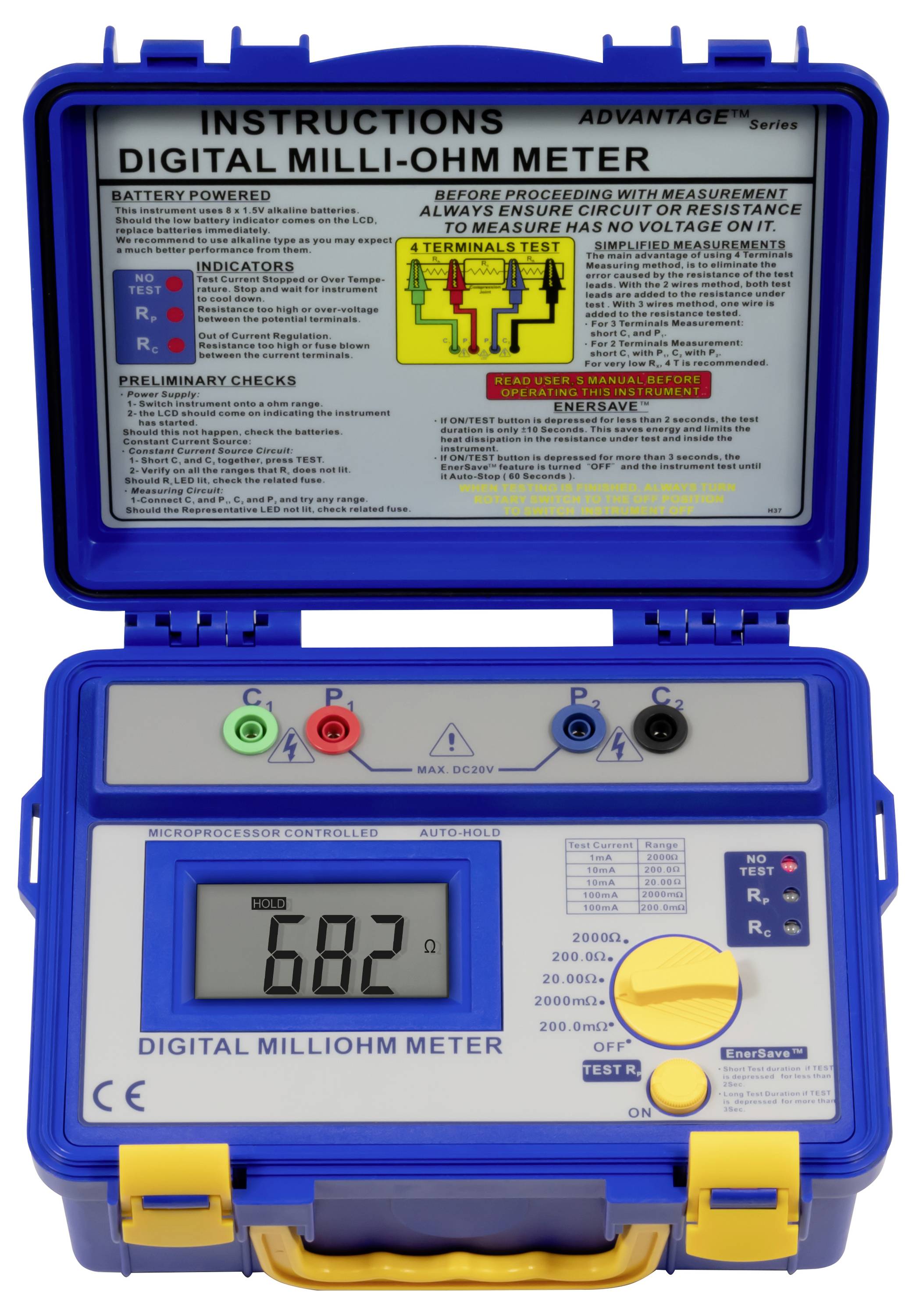

PCE instruments Milli-ohmmeter PCE-MO 2002-ICA
- Four-wire measuring system
- 5 selectable measurement ranges
- 3 Test streams with over temperature protection
- Overvoltage protection of the measuring inputs
- Large LCD display
- O-ring sealed housing
- Exclusion of the measuring lead resistance
- Auto hold and Auto off function
- LED indication when the measured value is exceeded
- very light, robust and compact
- simple operation
- Security IEC-1010-1; CAT IV 20 V.
- Incl. ISO calibration certificate
Technical specifications
- Resistor
- Measuring range 100 ... 200 mΩ
- Resolution 100 mΩ
- Accuracy ±0.5% of mw., ±2 digits over the entire operating temperature range of -15 ... +55 °C
- Resistor
- Measuring range 100 ... 2000 mΩ
- Resolution 1 mΩ
- Accuracy ± 0.5% of mw., ±2 digits over the entire operating temperature range of -15 ... +55 °C
- Resistor
- Measuring range 100 ... 20 Ω
- Resolution 10 mΩ
- Accuracy ± 0.5% of mw., ±2 digits over the entire operating temperature range of -15 ... +55 °C
- Resistor
- Measuring range 100 ... 200 Ω
- Resolution 100 mΩ
- Accuracy ± 0.5% of mw., ±2 digits over the entire operating temperature range of -15 ... +55 °C
- Resistor
- Measuring range 100 ... 2000 Ω
- Resolution 1 Ω
- Accuracy ± 0.5% of mw., ±2 digits over the entire operating temperature range of -15 ... +55 °C
- General Technical Data
- Measuring functions HOLD
- Display type LCD
- Standard(s) IEC 1010-1
- Safety standard CAT IV 20 V.
- Measuring method 4-conductor method for mΩ measurement
- Test current 1 mA: 2000 Ω,10 mA: 200 Ω / 20 Ω,100 mA: 2000 mΩ / 200 mΩ,Accuracy: ±0.1 %
- Menu language English (US), English (GB)
- Protection class (device) IP65
- Protection class (additional information) Only when the lid is closed
- Power supply batteries
- Battery 8 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions -15 ... 55 °C , 20 ... 93 % r.F.
- Storage conditions -20 ... 65 °C , 20 ... 93 % r.F.
- Dimensions ( L x W x H ) 245 x 190 x 115 mm
- Weighs 1578 g.
- Product type
Ohmmeter
- Reading type
Resistance
Resistance
- Continuity testing
30 Ω
ISO standards
- Reading range - resistance
2000 Ω
IP65
- Power supply (details)
1.5 V
- Dim
(L x W x H) 245 x 190 x 115 mm
- Weight
1578 g
- Display type
LCD
- Insulation resistance (max.)
2000 Ω
- Calibration service
Incl. ISO calibration certificate
- Width
190 mm
- Height
115 mm
- Length
245 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812628 PCE Instruments PCE-MO 2002-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
User & Safety Instructions
User & Safety Instructions 3812628 PCE Instruments PCE-MO 2002-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
Description

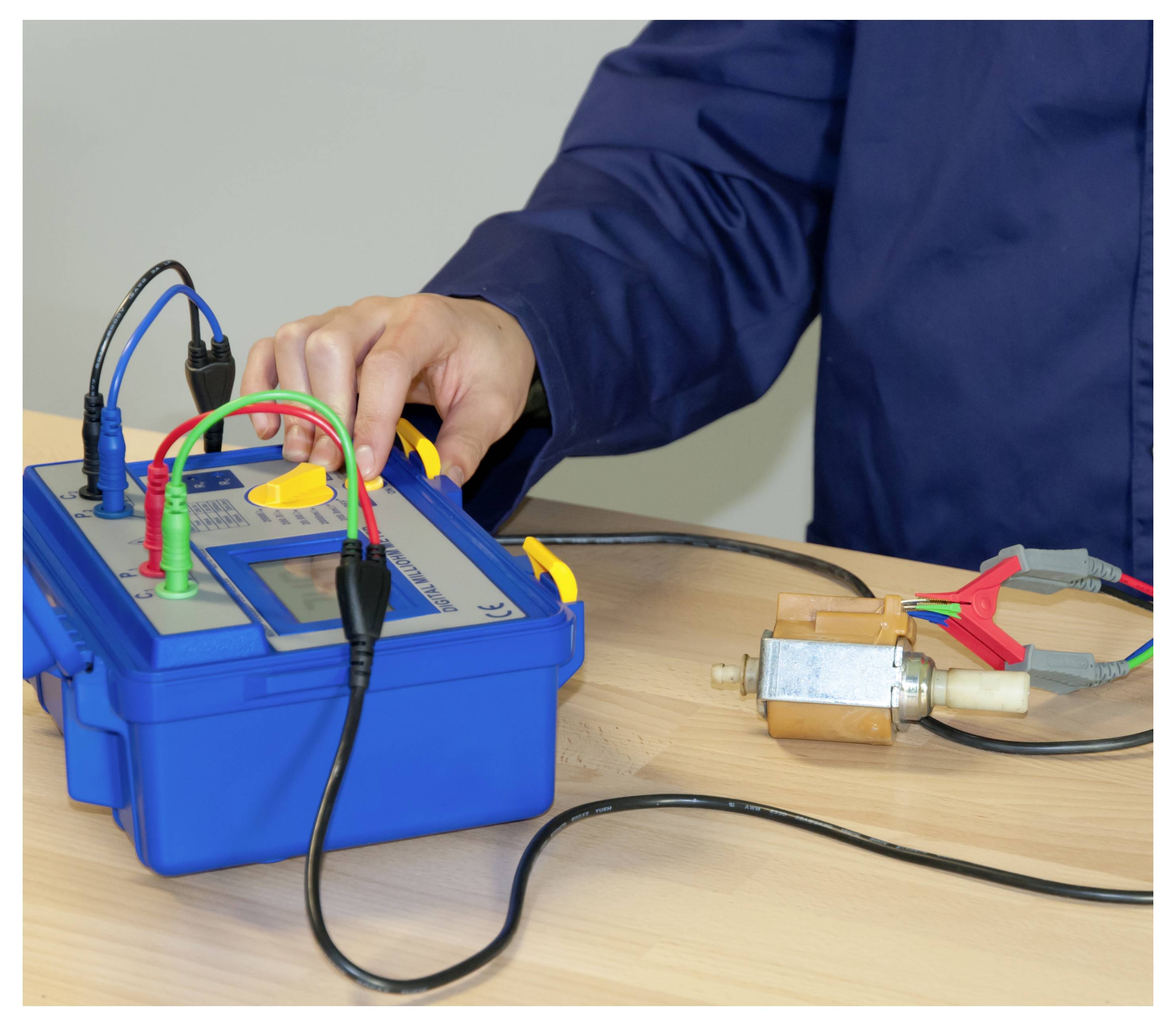

This milliohm meter in the splash-protected housing enables resistance measurements from 100 µΩ to 2000 Ω. The measured values are indicated on the milliohm meter via a 3½-digit, very easy to read LCD display. In order to determine the measuring value, a constant current is applied to the object to be measured and the voltage drop is measured over the object to be measured. The following functions and usage possibilities of the digital milliohm meter can be highlighted: Enables resistance measurement on coils, generators, transformers, circuits e.g. of parallel and sub-circuits and of switches and relays. The milliohm meter measures binding energy in mines, airplanes, track systems, ships and electrical installations in households and industry. It enables continuity tests on ring systems (ring bus) in household and industry. The Milliohm meter is always delivered with factory calibration. As an optional accessory, the measuring device can also be laboratory calibrated and equipped with a certificate in accordance with ISO.
This text is machine translated.
This text is machine translated.

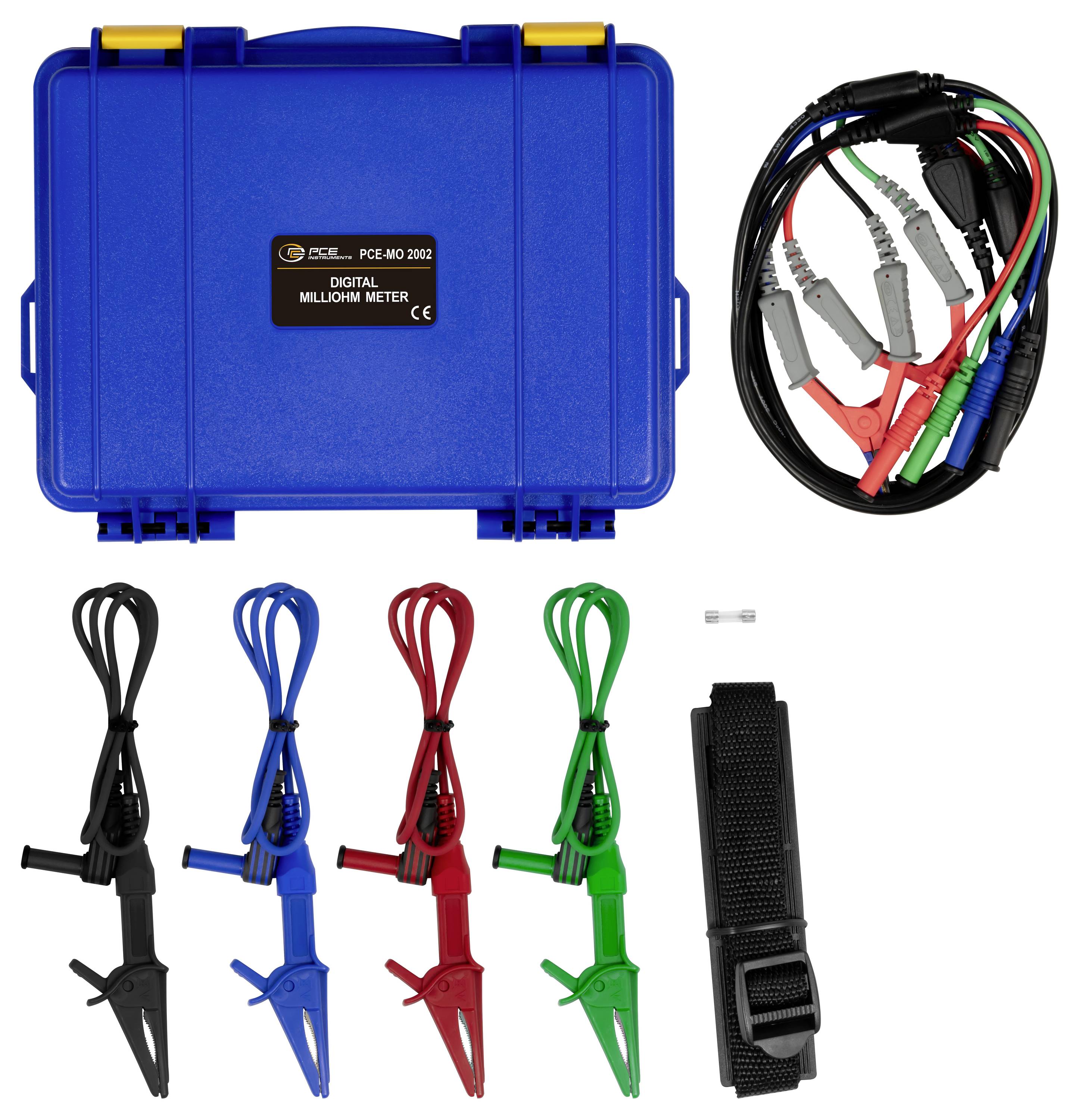

Scope of delivery
- 1 x Milli-ohmmeter PCE-MO 2002-ICA

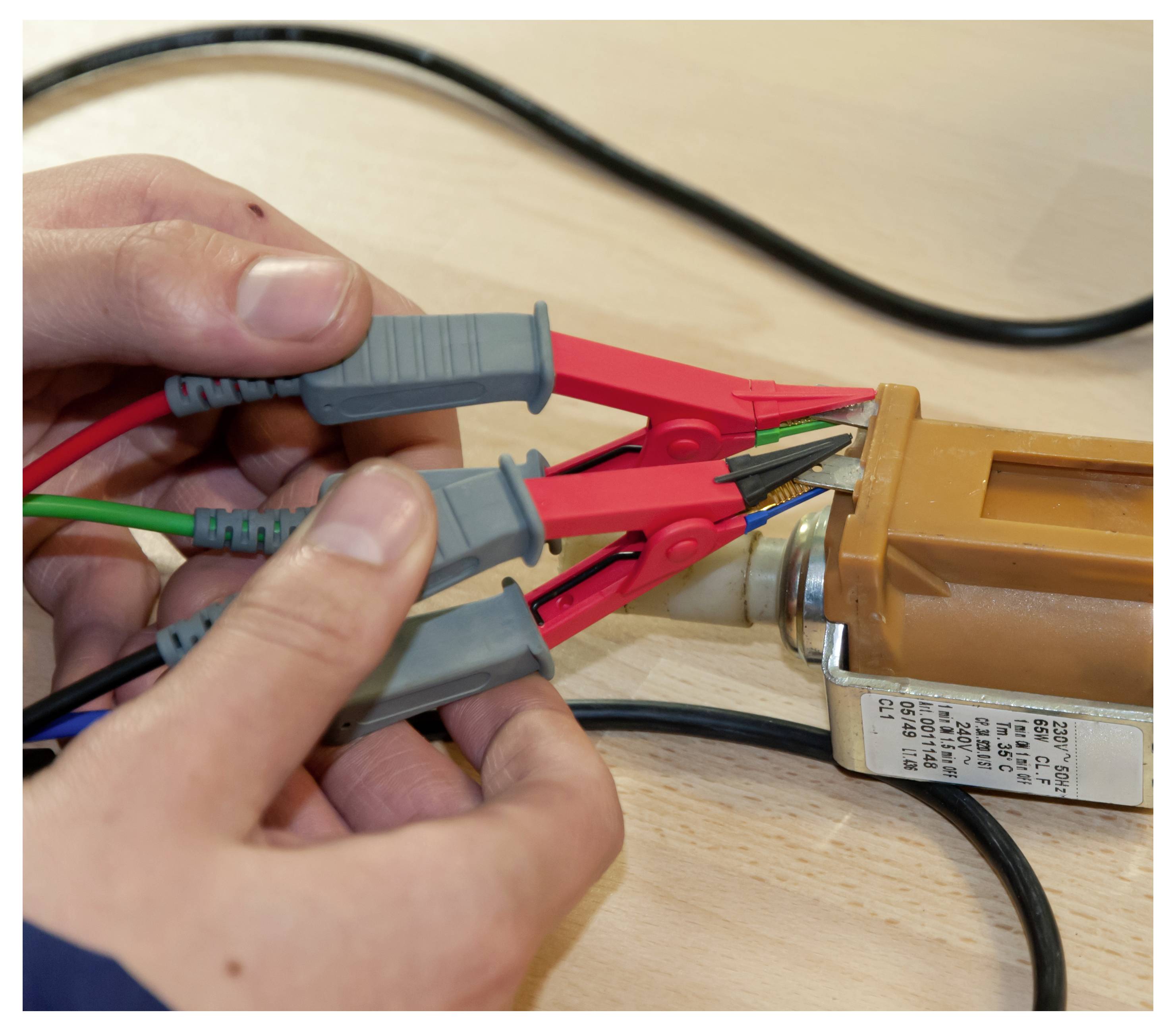

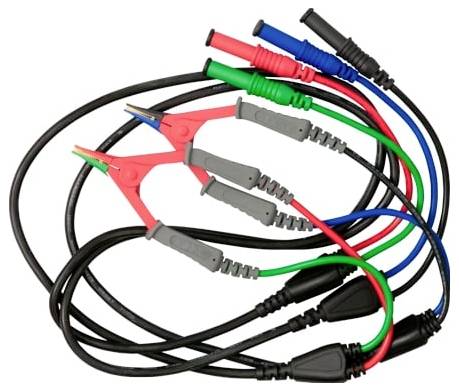

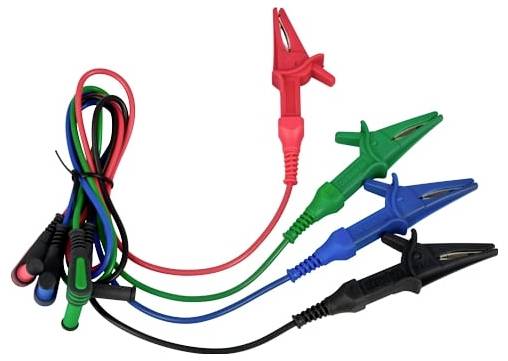

- 1 x set of test leads with Kelvin terminals
- 8 x AA 1.5 V batteries
- 1 x Microfuse
- 1 x shoulder straps
- 1 x power cable

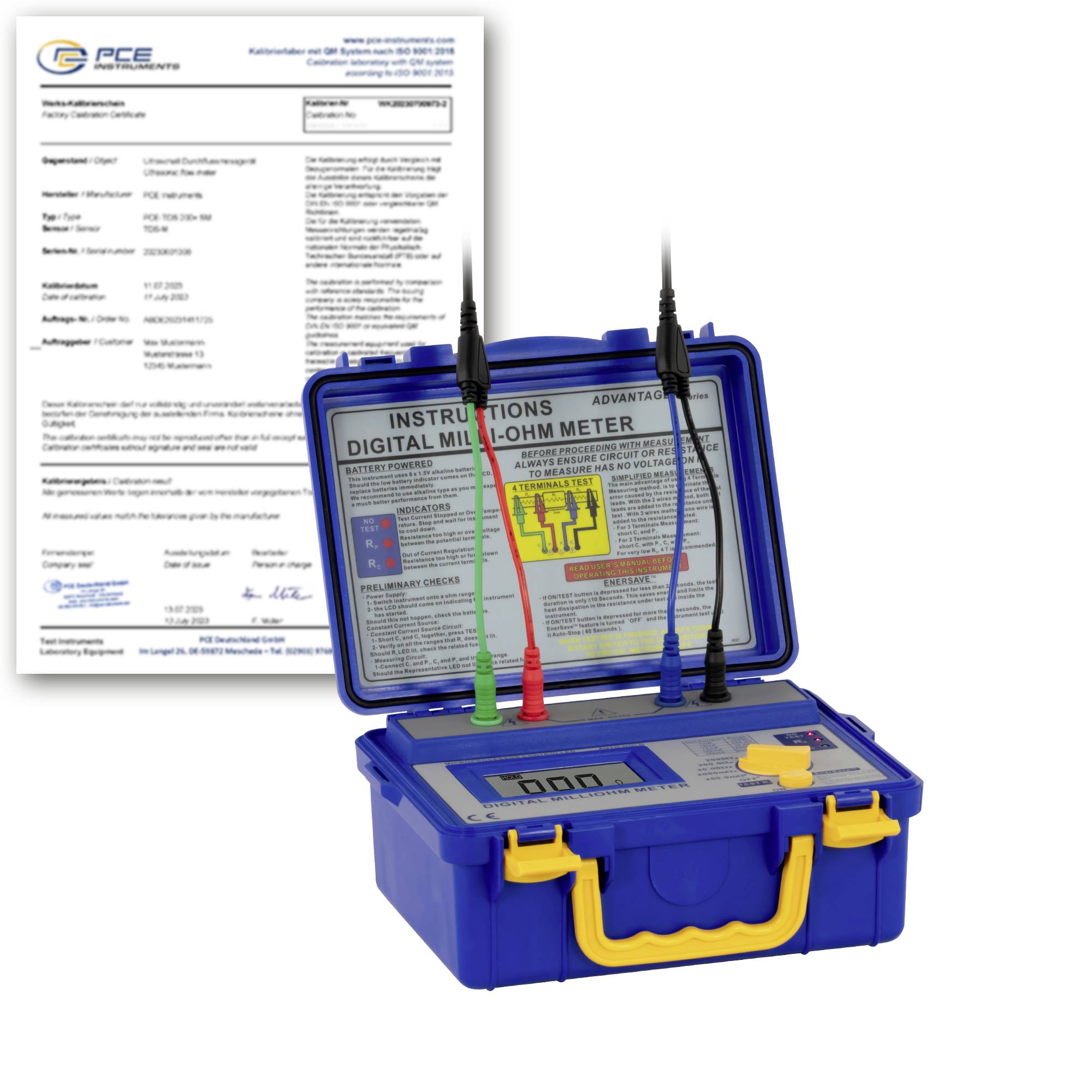

- 1 x ISO calibration certificate
