PCE Instruments PCE-MO 2002 Ohmmeter

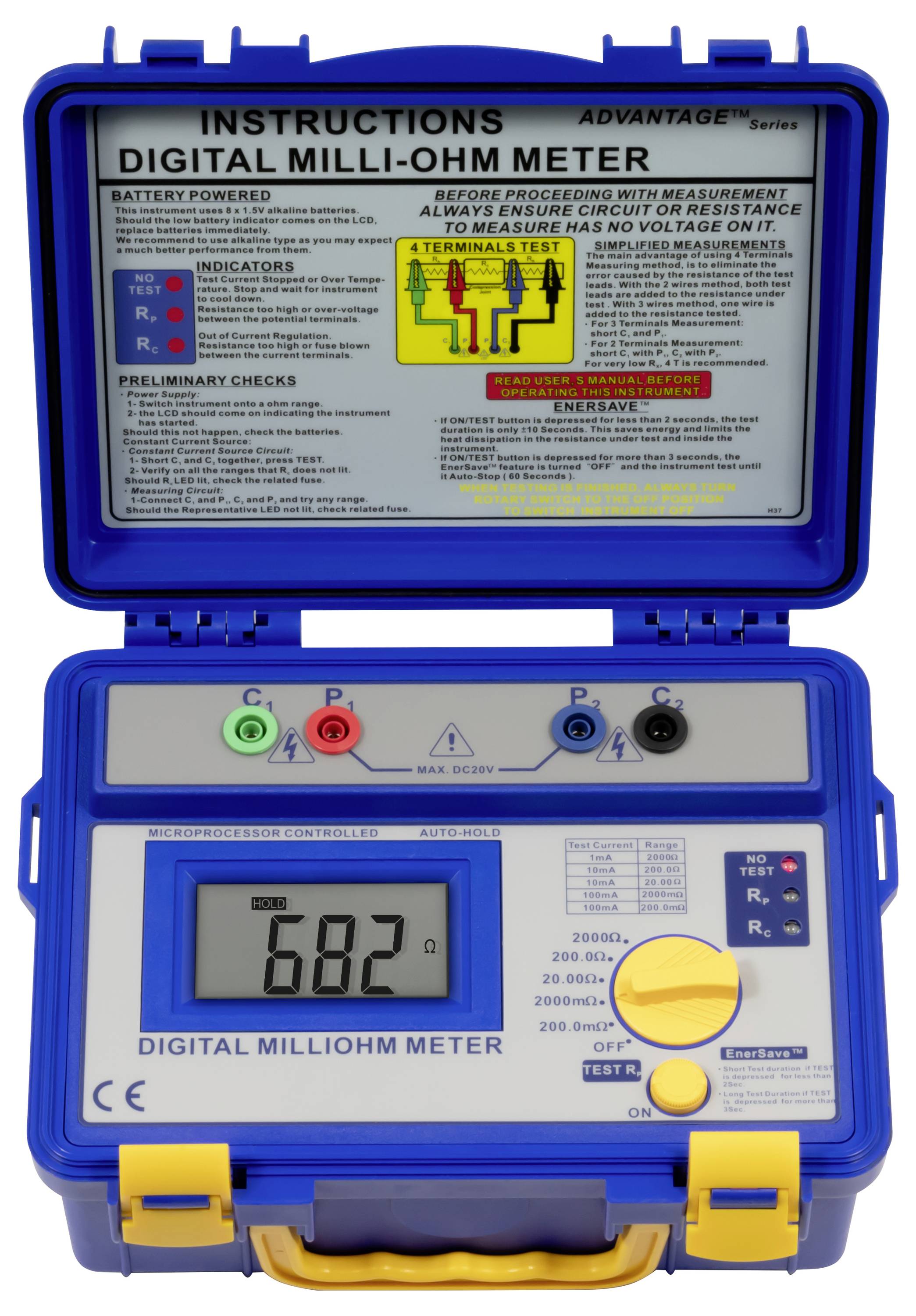

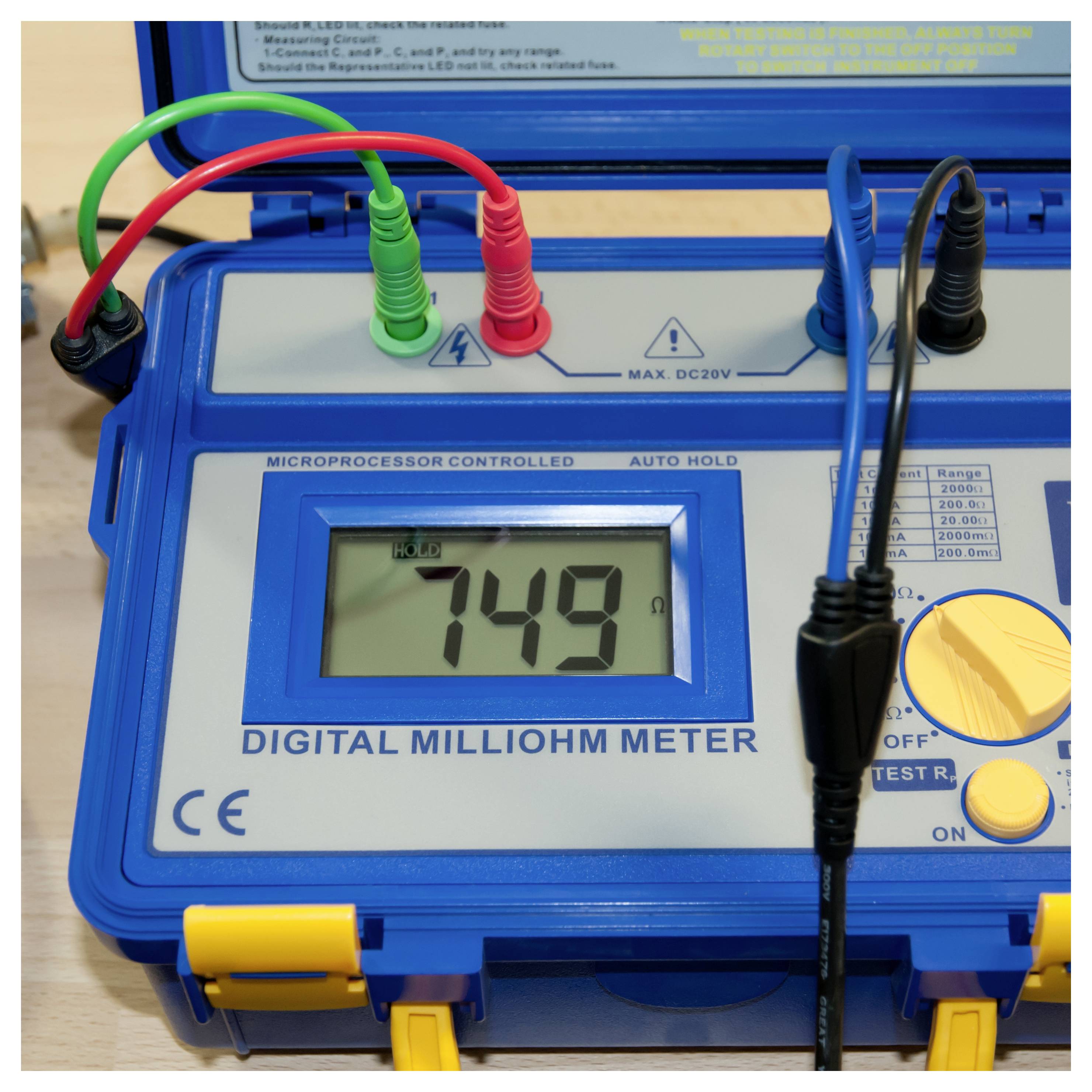

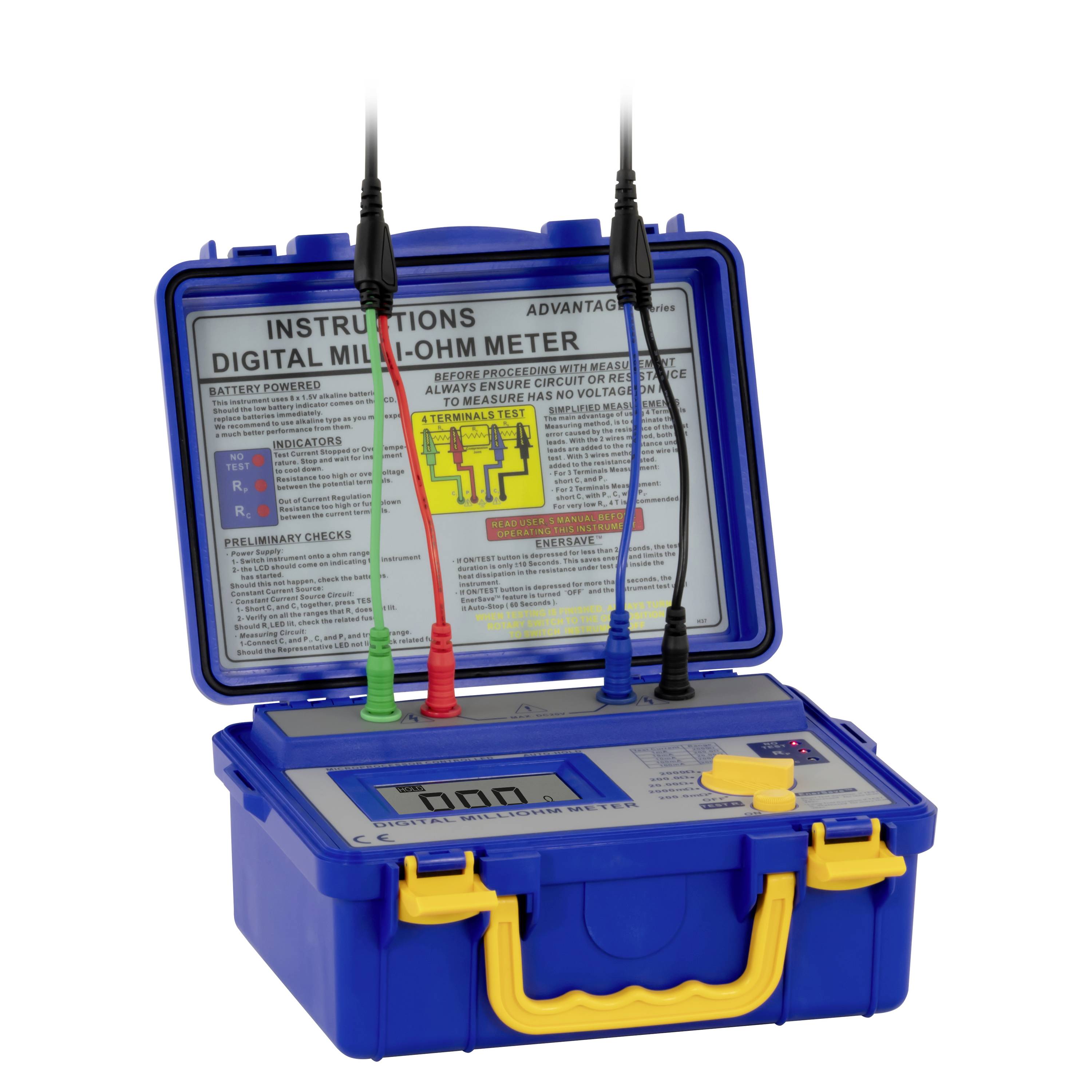

Milliohm - meter in a robust, sealed case / with the finest measuring range / LED display when measured value is exceeded / four-wire measuring system of this milliohm - meter in splash-proof housing enables resistance measurements from 100 µΩ to 2000 Ω. The measured value display at the Milliohm meter is done via a 3½-digit, very well readable, LCD display. To determine the measured value, a constant current is applied to the object to be measured and the voltage drop is measured over the object to be measured. The following functions and application possibilities of the digital Milliohm meter must be highlighted: Enables resistance measurements on coils, generators, transformers, circuits e.g. of parallel and auxiliary circuits and switches and relays the Milliohm meter PCE-MO 2002 measures the binding energy in mines, airplanes, track systems, ships and electrical installations in the household and industry. It enables continuity tests on ring systems (ring buses) in household and industry. The Milliohm meter is always supplied factory calibrated. As an optional accessory, the measuring device can also be laboratory-calibrated and equipped with a certificate according to ISO.
