PCE Instruments PCE-MO 2005-ICA Ohmmeter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

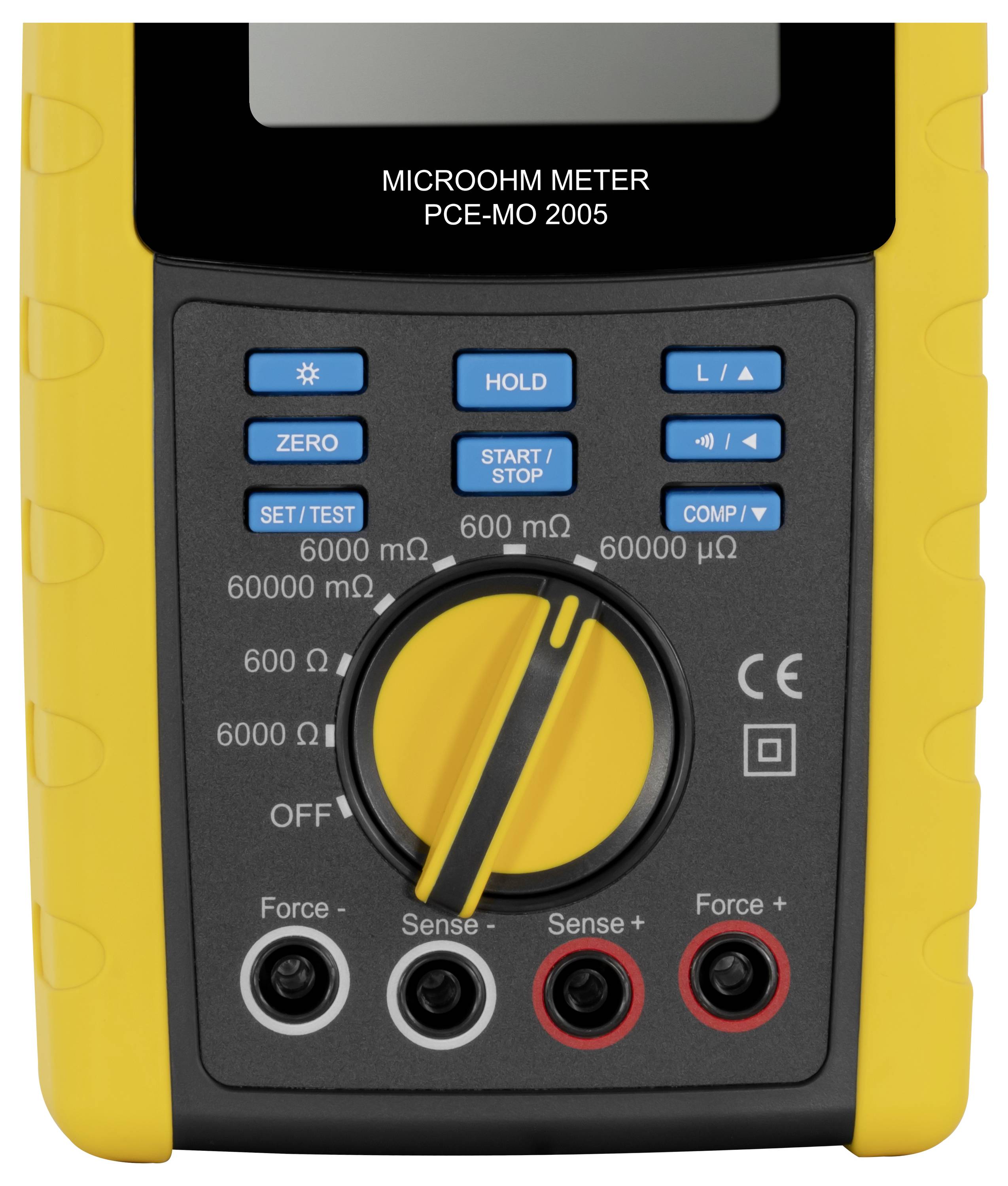

PCE instruments microohmmeter PCE-MO 2005-ICA
- 6 selectable measurement ranges
- 4-conductor measurement method
- 3.3 inch LCD
- Operating mode: Resistance or inductance
- Test current 10 A max. in the range 60000 µΩ
- Adjustable limit values
- Calculating the cable length
- Integrated surge protection
- Current and battery mode

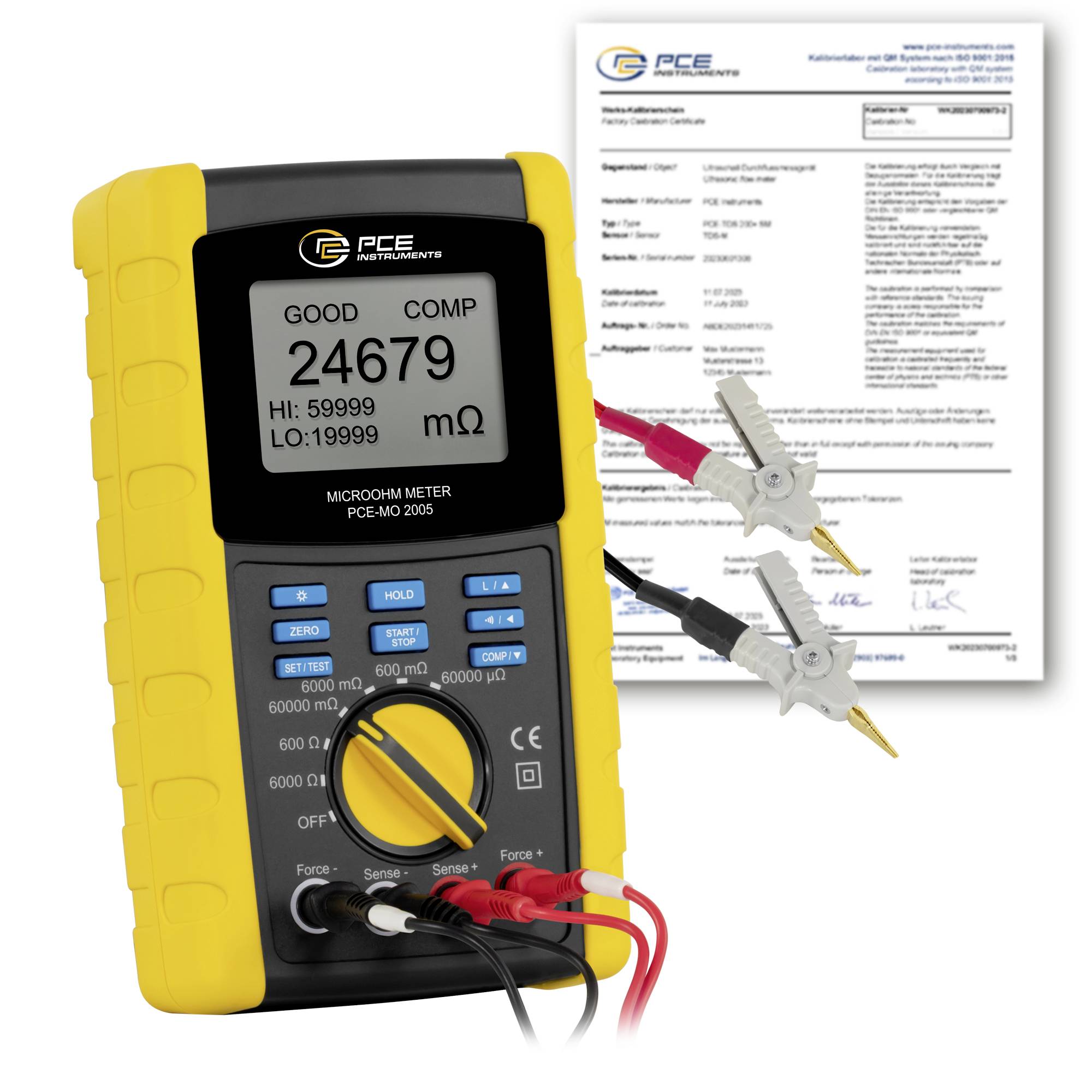

- Incl. ISO calibration certificate
Technical specifications
- Resistor
- Measuring range 0 ... 60000 µΩ
- Resolution 1 µΩ
- Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
- Resistor
- Measuring range 60000 µΩ ... 600 mΩ
- Resolution 10 µΩ
- Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
- Resistor
- Measuring range 600 ... 6000 mΩ
- Resolution 100 µΩ
- Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
- Resistor
- Measuring range 6000 ... 60000 mΩ
- Resolution 1000 µΩ
- Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
- Resistor
- Measuring range 60000 mΩ ... 600 Ω
- Resolution 10 mΩ
- Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
- Resistor
- Measuring range 600 ... 6000 Ω
- Resolution 100 mΩ
- Accuracy ±0.75 % from MW. +3 digits (@ 23 ±5 °C)
- General Technical Data
- Measuring functions HOLD
- Display type LCD with lighting
- Display size 3.3 inches
- Interface RS232
- Standard(s) EN 61010-1, EN 61325-1
- Measuring method 4-conductor method for mΩ measurement
- Test current 10 A: 60000 µΩ,1 A: 600 mΩ,100 mA: 6000 mΩ,10 mA: 60000 mΩ,1 mA: 600 Ω,100 µA: 6000 Ω
- Fuse(s) 10 A / 250 V
- Menu language English (US), English (GB)
- Protection class (device) IP30
- Power supply 100 ... 240 V AC 47/63 Hz
- Socket type Safety plug

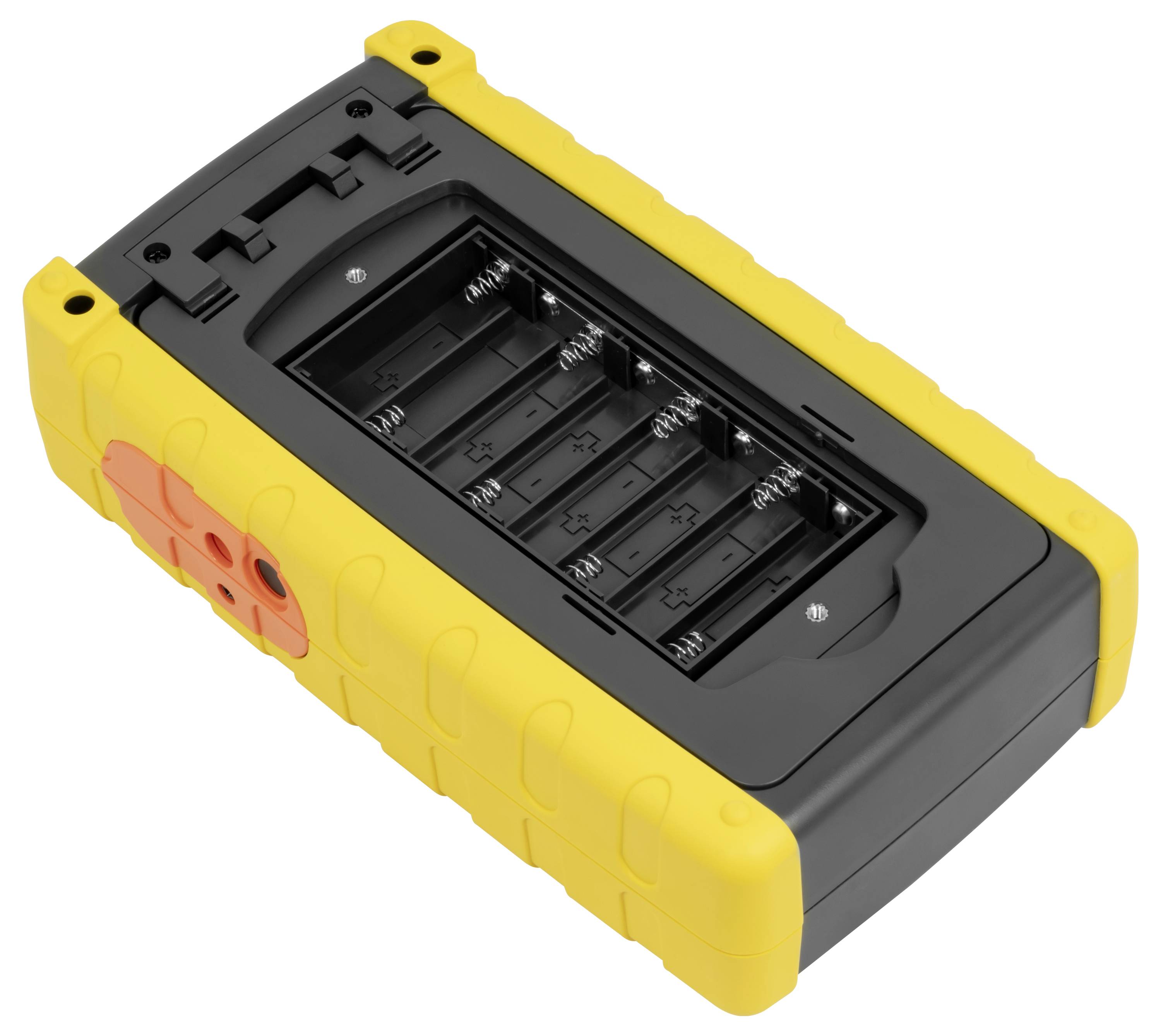

- Battery 8 x 1.5 V AA battery , carbon zinc
- Capacity 1200 mAh
- Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 220 x 125 x 64 mm
- Weighs 777 g.
- Product type
Ohmmeter
- Reading type
Resistance
ISO standards
- Reading range - resistance
0 µΩ - 6000 Ω
- Interfaces
RS232
IP30
- Power supply (details)
V/47 - 60 Hz
- Dim
(L x W x H) 220 x 125 x 64 mm
- Weight
777 g
- Display type
Digital (LCD)
- Calibration service
Incl. ISO calibration certificate
- Width
125 mm
- Height
64 mm
- Length
220 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812630 PCE Instruments PCE-MO 2005-ICA Ohmmeter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812630 PCE Instruments PCE-MO 2005-ICA Ohmmeter Calibrated to (ISO standards)
Description
The microohm meter with a measurement range from 0 µΩ to 6000 Ω measures the smallest precisely resistors and is used for checking critical connections in electronics and electrical engineering. The microohmmeter offers 6 selectable measurement ranges, uses the 4-lead measurement method and can measure both resistance and inductance. The device delivers a maximum test current of 10 A in the range of 60000 µΩ and has test currents of 10 A, 1 A, 100 mA, 10 mA and 1 mA. The 3.3 inch LCD display has a switchable backlight, which switches off automatically after 30 seconds in order to save battery power.
In addition, the microohmmeter has a comparison function that enables a fast pass/fail display and accelerates the evaluation of the test results. The cable length can be calculated by entering the resistance per meter, WAS provides precise results in cable length determination. The built-in surge protector protects the device from damage caused by high voltages, while the option for battery or mains operation offers flexibility when using. These functions make the microohmmeter a versatile and convenient tool for a wide range of applications.
This text is machine translated.
In addition, the microohmmeter has a comparison function that enables a fast pass/fail display and accelerates the evaluation of the test results. The cable length can be calculated by entering the resistance per meter, WAS provides precise results in cable length determination. The built-in surge protector protects the device from damage caused by high voltages, while the option for battery or mains operation offers flexibility when using. These functions make the microohmmeter a versatile and convenient tool for a wide range of applications.
This text is machine translated.

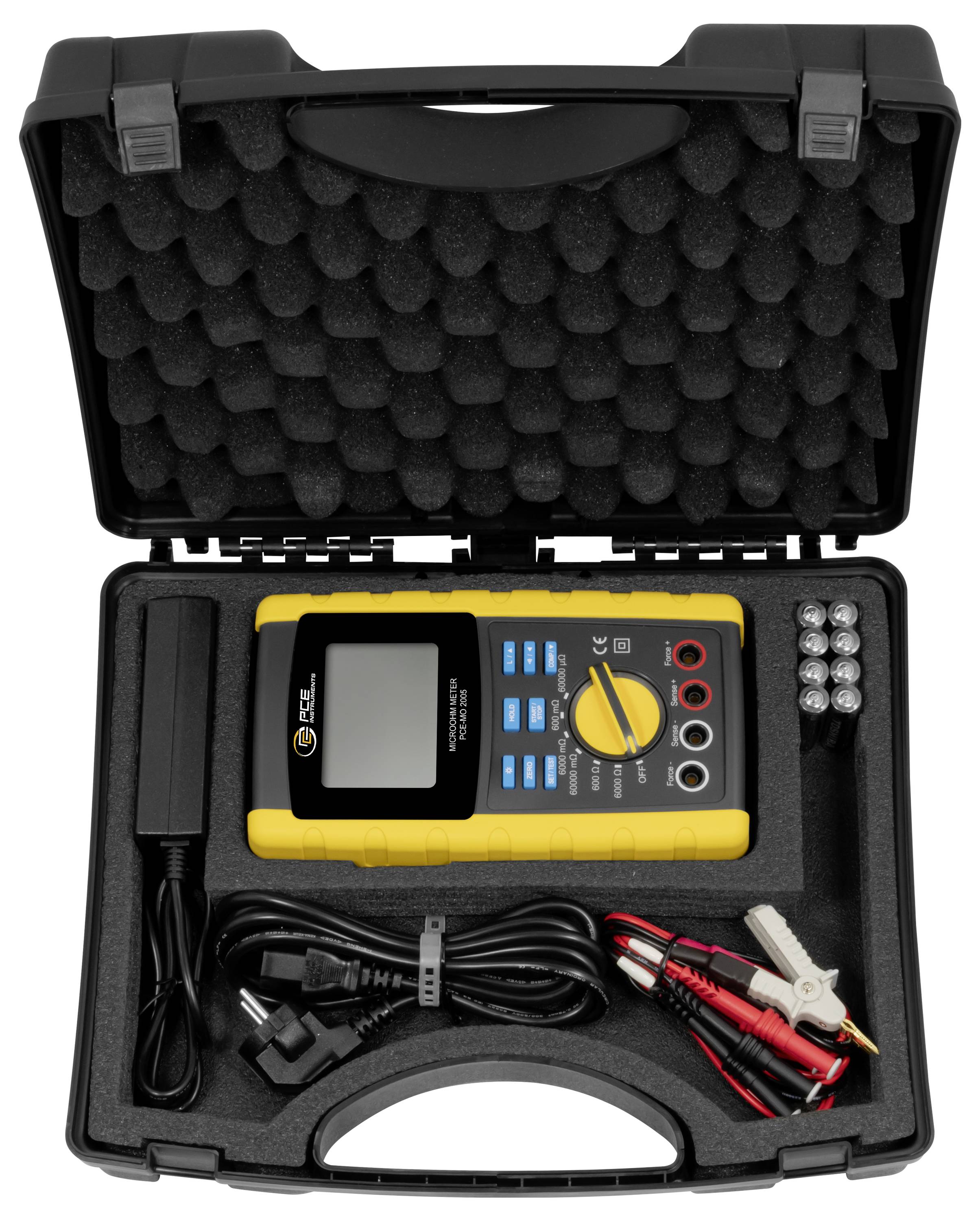

Scope of delivery
- 1 x PCE-MO 2005-ICA microohmmeter

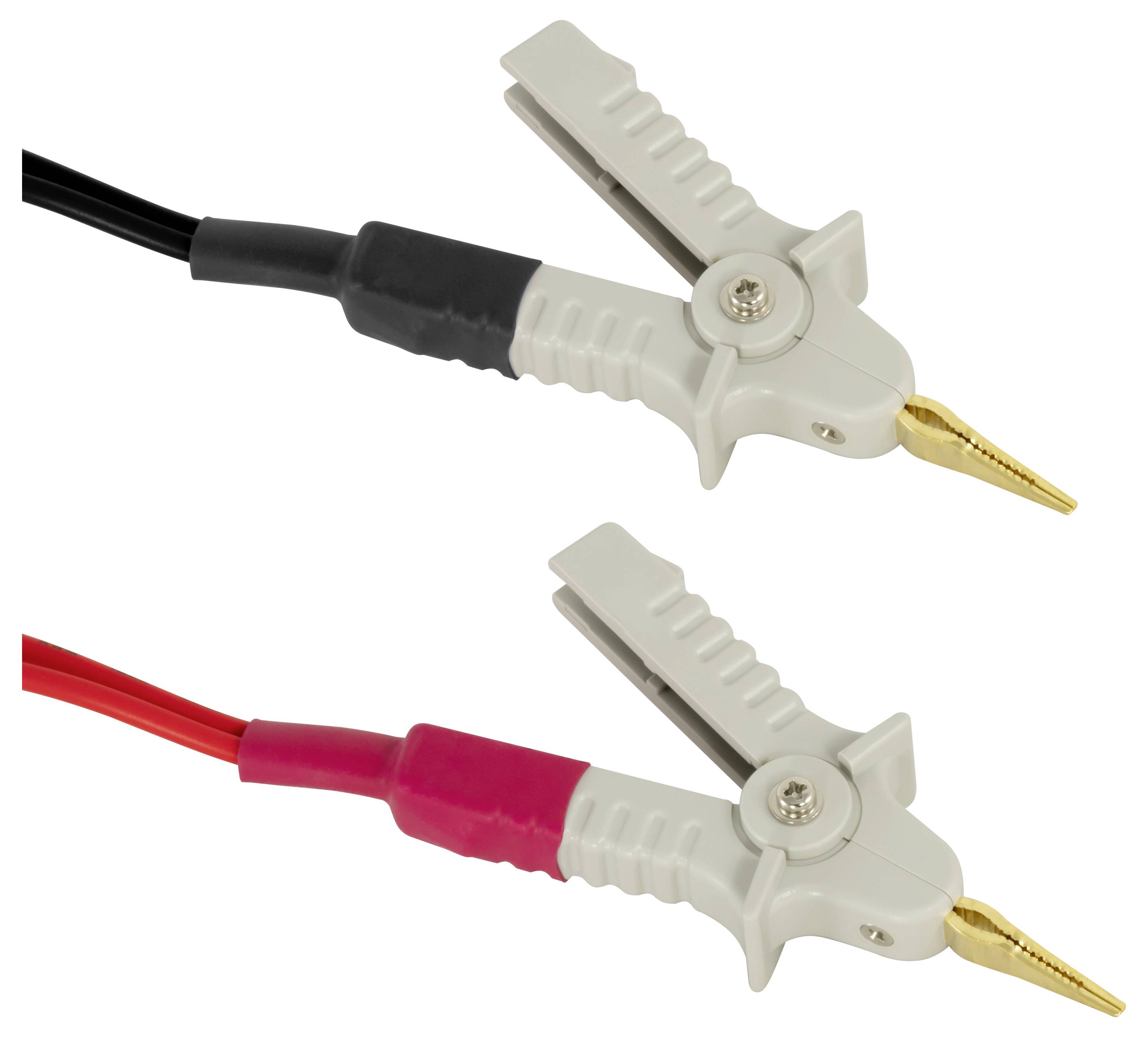

- 2 x 80 cm test leads with Kelvin clips
- 8 x batteries AA 1.5 V
- 1 x power supply 9 V, 3 A
- 1 x cold-device cables
- 1 x carry case
- 1x user manual
- 1 x ISO calibration certificate
