PCE Instruments PCE-MO 2006-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Milli-ohmmeter PCE-MO 2006-ICA
- 4-conductor measurement method
- 5 selectable measurement ranges
- MAX/MIN/HOLD FUNCTIONS
- Automatic power off
- 5.1 inch LC display with lighting
- Built-in memory
- Date and time display

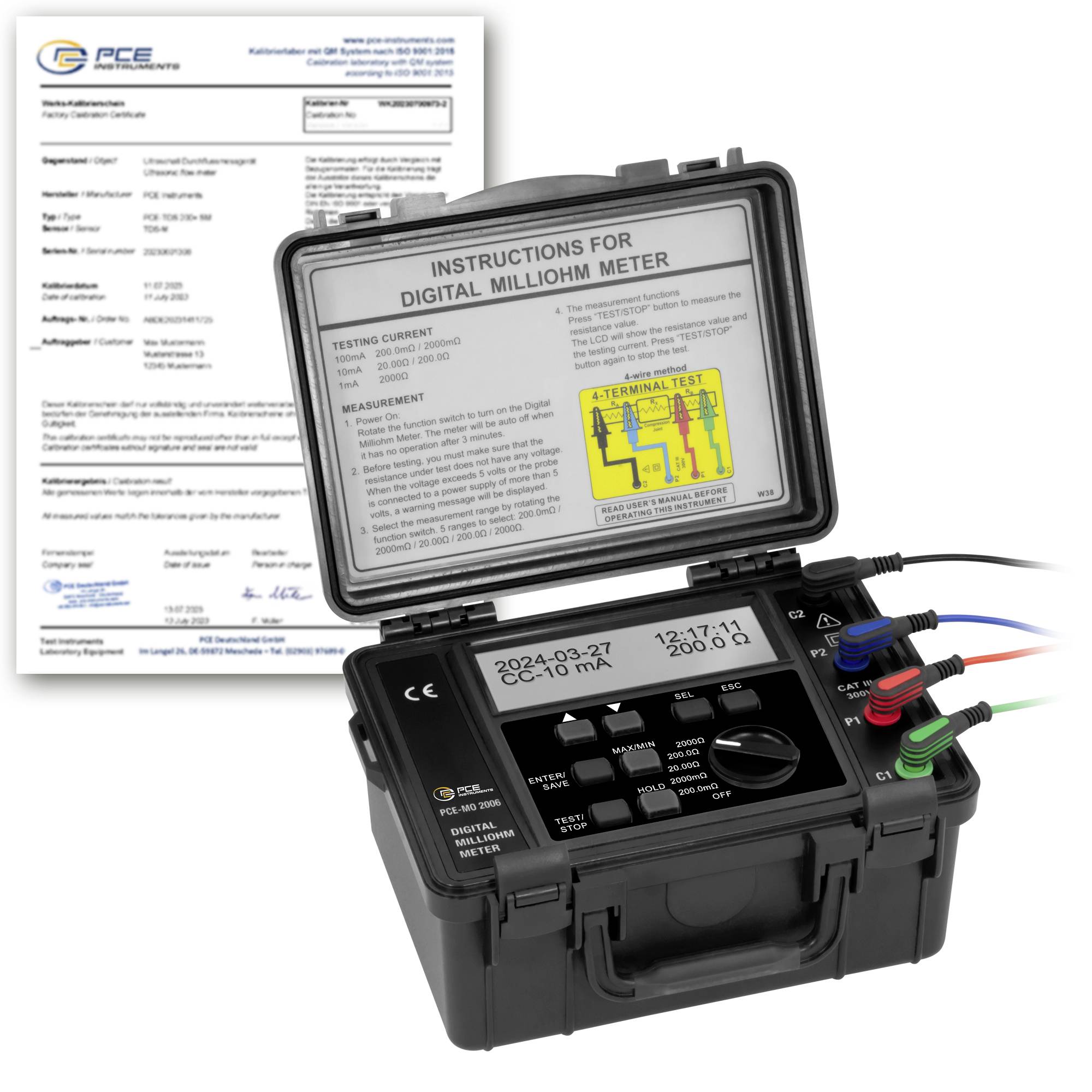

- Incl. ISO calibration certificate
Technical specifications
- Resistor
- Measuring range 0 ... 200 mΩ
- Resolution 0.1 mΩ
- Accuracy ±0.8 % from MW.
- Resistor
- Measuring range 0 ... 2000 mΩ
- Resolution 1 mΩ
- Accuracy ±0.8 % from MW.
- Resistor
- Measuring range 0 ... 20 Ω
- Resolution 10 mΩ
- Accuracy ±0.8 % from MW.
- Resistor
- Measuring range 0 ... 200 Ω
- Resolution 0.1 Ω
- Accuracy ±0.8 % from MW.
- Resistor
- Measuring range 0 ... 2000 Ω
- Resolution 1 Ω
- Accuracy ±0.8 % from MW.
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD
- Display type LCD with lighting
- Display size 5.1 inches
- Storage medium Internal memory
- Memory capacity: 200 measurements
- Standard(s) EN 61010-1, EN 61326-1
- Automatically switches off approx. 3 min.

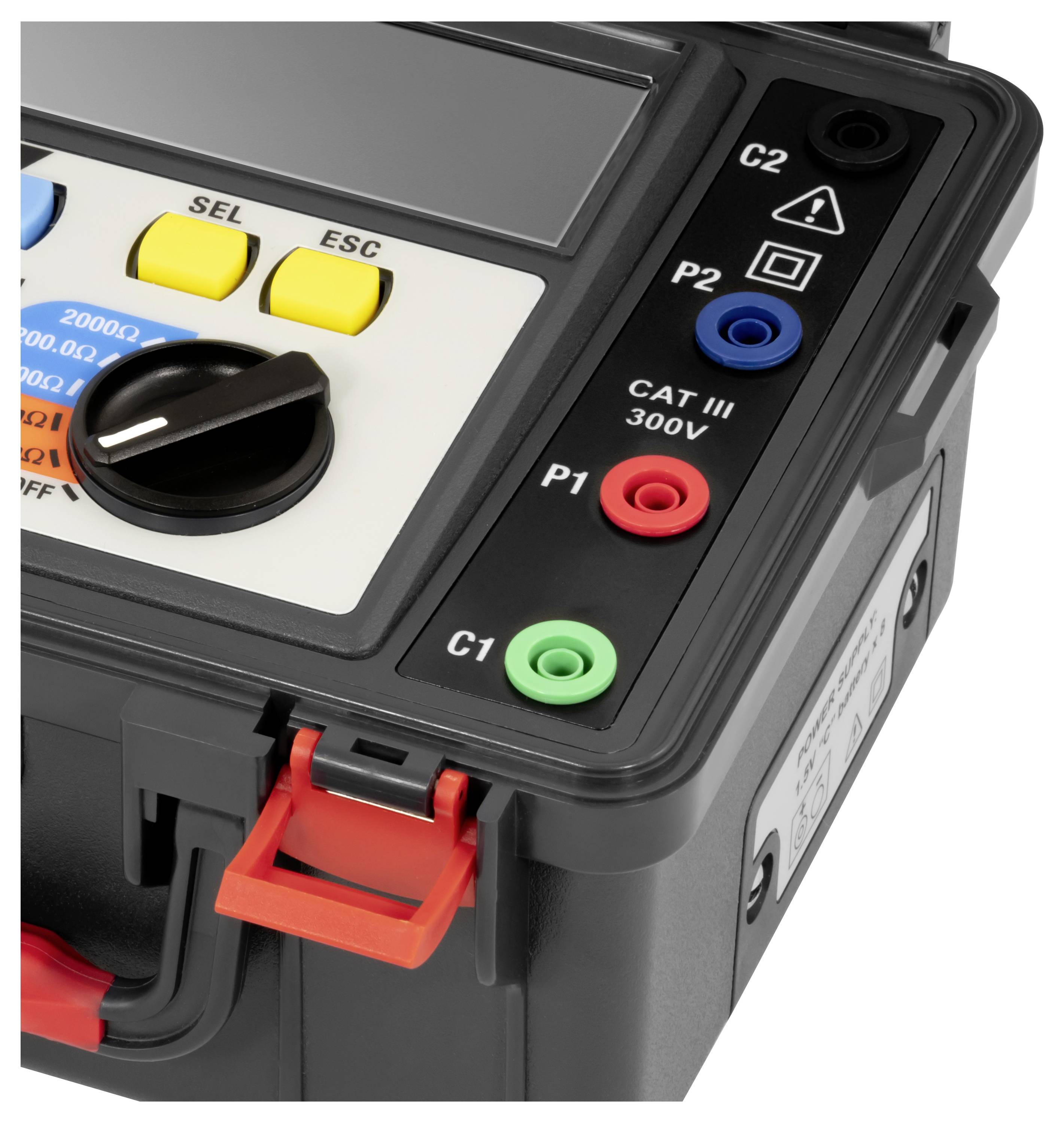

- Safety standard CAT III 300V
- Measuring method 4-conductor method for mΩ measurement
- Test current 100 mA: 200.0 mΩ / 2000 mΩ, 10 mA: 20.00 Ω / 200.0 Ω, 1 mA: 2000 Ω,
- Fuse(s) 200 mA / 600 V
- Menu language English (US)
- Protection class (device) IP65
- Protection class (additional information) Only when the lid is closed

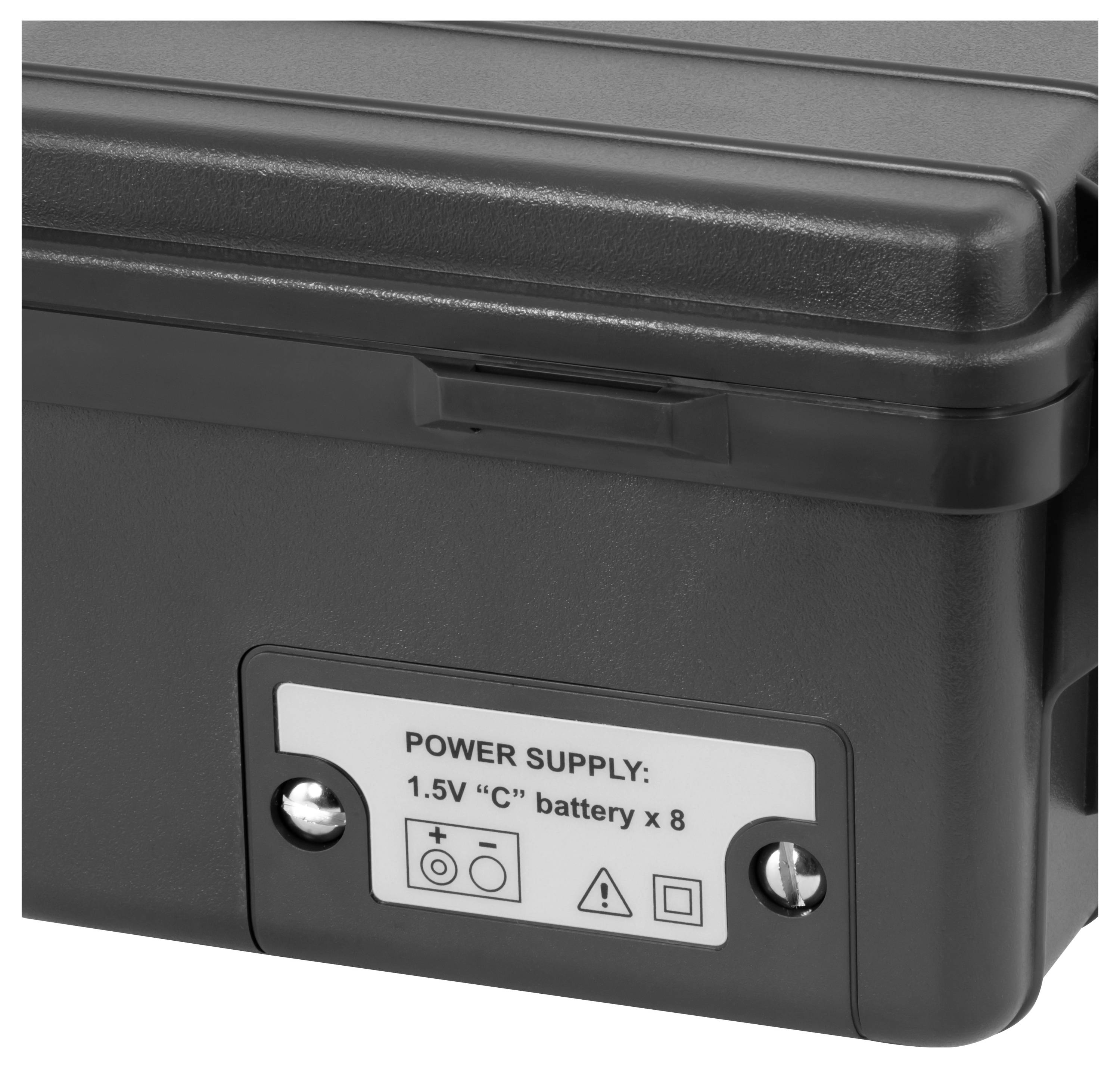

- Battery/Battery 8 x 1.5 V LR14 , Alkaline-manganese
- Capacity 7000 mAh
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 245 x 190 x 130 mm
- Weight 1500 g
- Product type
Ohmmeter
- Reading type
Resistance
ISO standards
IP65
- Power supply (details)
1.5 V
- Dim
(L x W x H) 245 x 190 x 130 mm
- Weight
1500 g
- Display type
Digital (LCD)
- Insulation resistance (max.)
2000 Ω
- Calibration service
Incl. ISO calibration certificate
- Width
190 mm
- Height
130 mm
- Length
245 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812631 PCE Instruments PCE-MO 2006-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
User & Safety Instructions
User & Safety Instructions 3812631 PCE Instruments PCE-MO 2006-ICA Ohmmeter Calibrated to (ISO standards) 2000 Ω
Description
The milliohm meter is a compact and precise measuring instrument with 5 selectable scale ranges for measuring resistors in the range of 0 mΩ ... 2000 Ω. The use of the 4-lead measurement method allows a precise current flow through the object to be measured while measuring the voltage above it. Separate connections for current and voltage minimize errors and enable accurate resistance measurements.

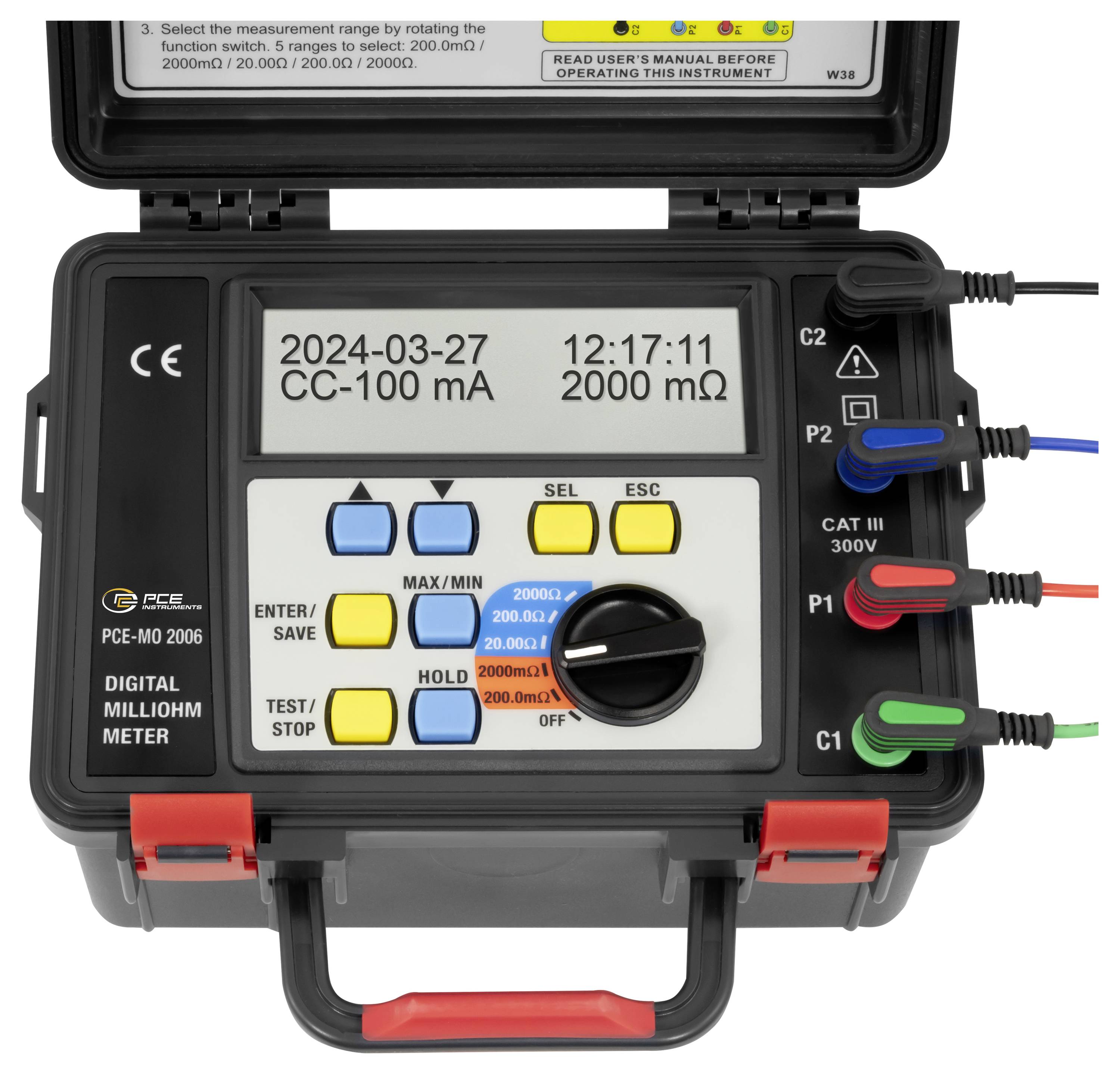

Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohm meter complies with the safety standard CAT III 300V. The device has an internal memory which can record a maximum of 200 values, which can also be called up again on the display. In addition, the MAX/MIN/HOLD functions allow you to display important values. The milliohm meter has a 5.1" LCD display with backlighting. The robust housing (protection class IP65 with the lid closed) enables use under harsh conditions, and the display with a low battery level ensures the reliability of the device.
The Milliohm meter is a compact meter for precise resistance measurements in various industries.
This text is machine translated.
Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohm meter complies with the safety standard CAT III 300V. The device has an internal memory which can record a maximum of 200 values, which can also be called up again on the display. In addition, the MAX/MIN/HOLD functions allow you to display important values. The milliohm meter has a 5.1" LCD display with backlighting. The robust housing (protection class IP65 with the lid closed) enables use under harsh conditions, and the display with a low battery level ensures the reliability of the device.
The Milliohm meter is a compact meter for precise resistance measurements in various industries.
This text is machine translated.

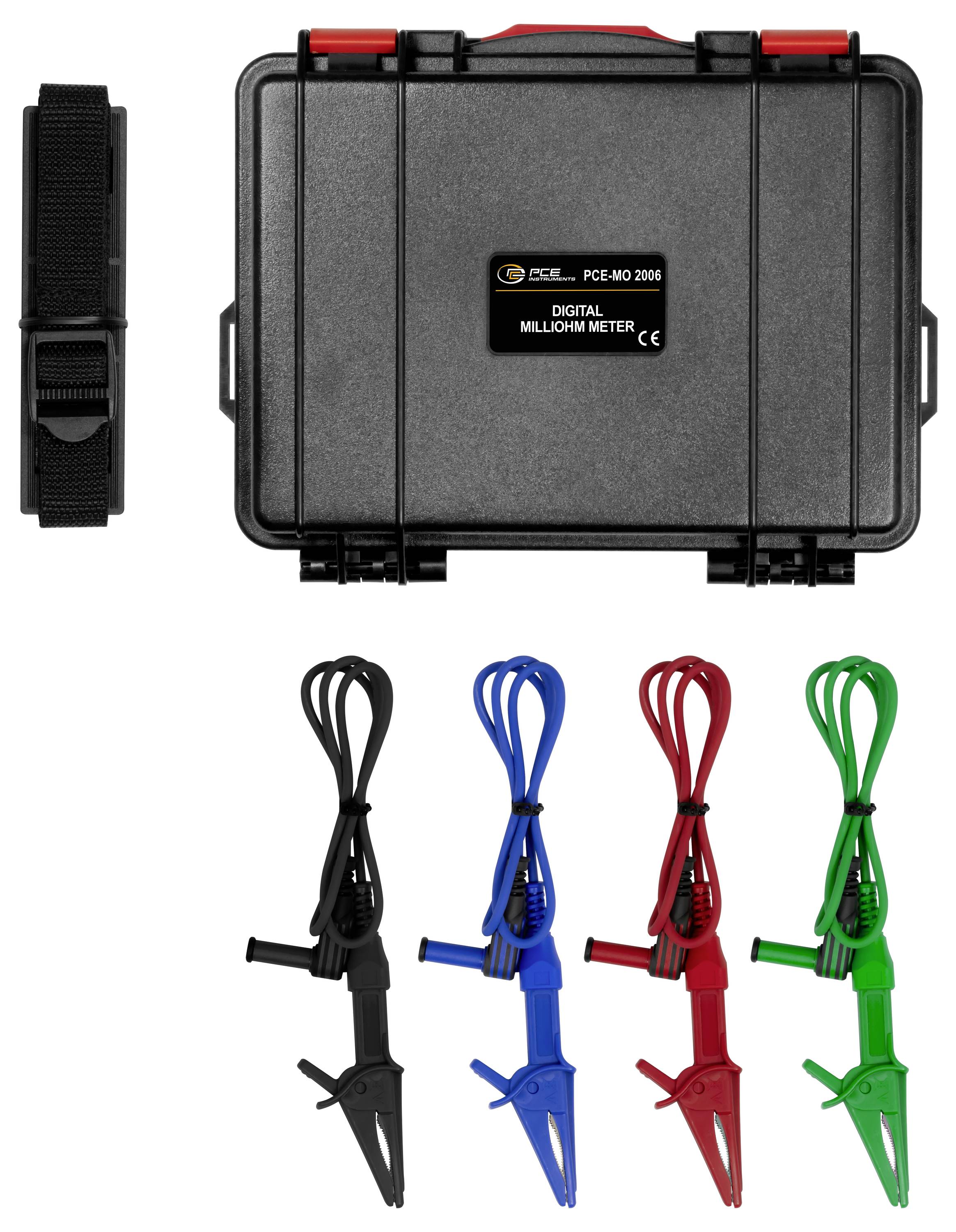

Scope of delivery
- 1 x Milli-ohmmeter PCE-MO 2006-ICA
- 4 x test leads
- 1 x shoulder straps
- 8 x LR44 1.5 V batteries
- 1x user manual
- 1 x ISO calibration certificate
