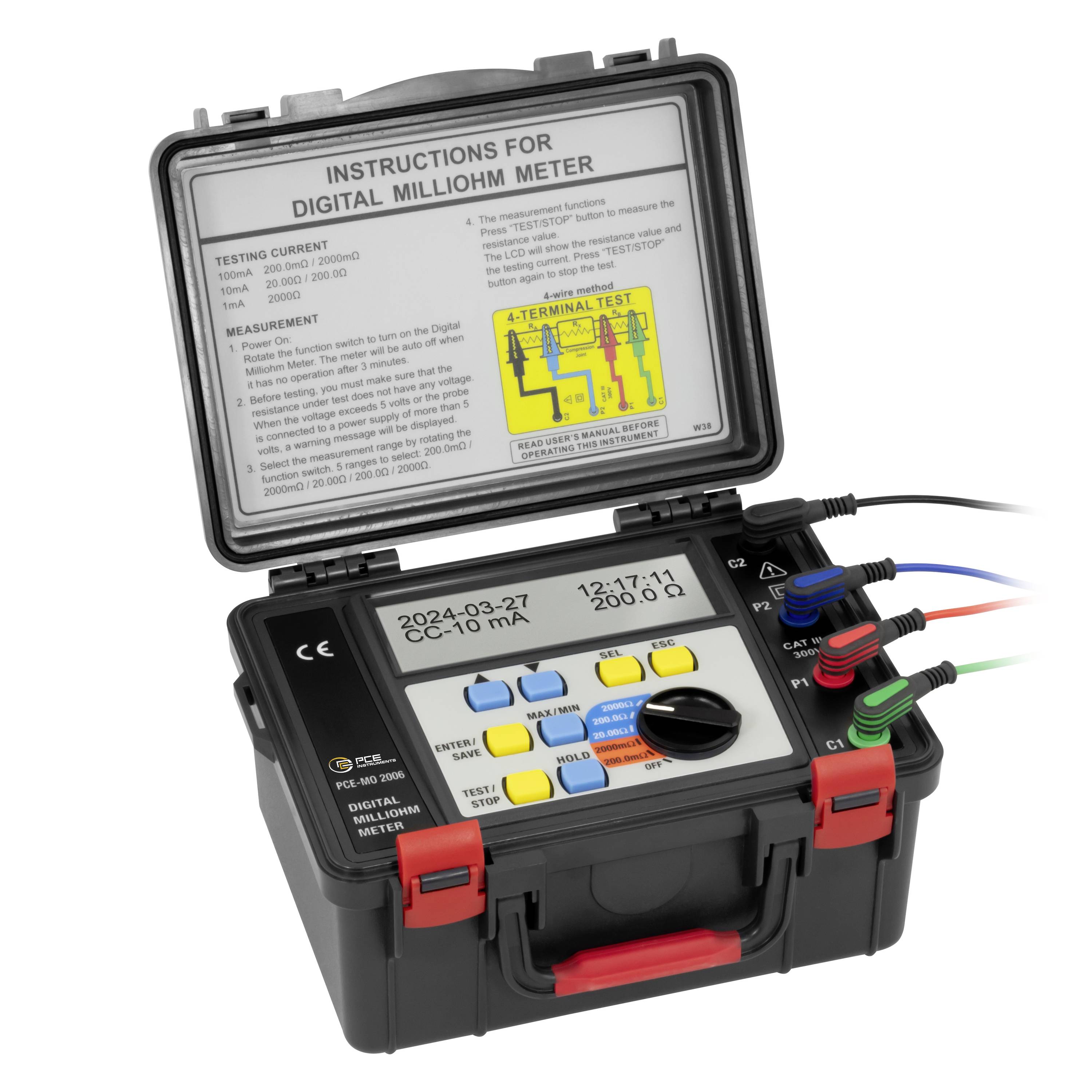

Portable digital milliohm meter in a hard case, with four test leads connected and a lid showing instructions and a 4-terminal test diagram.

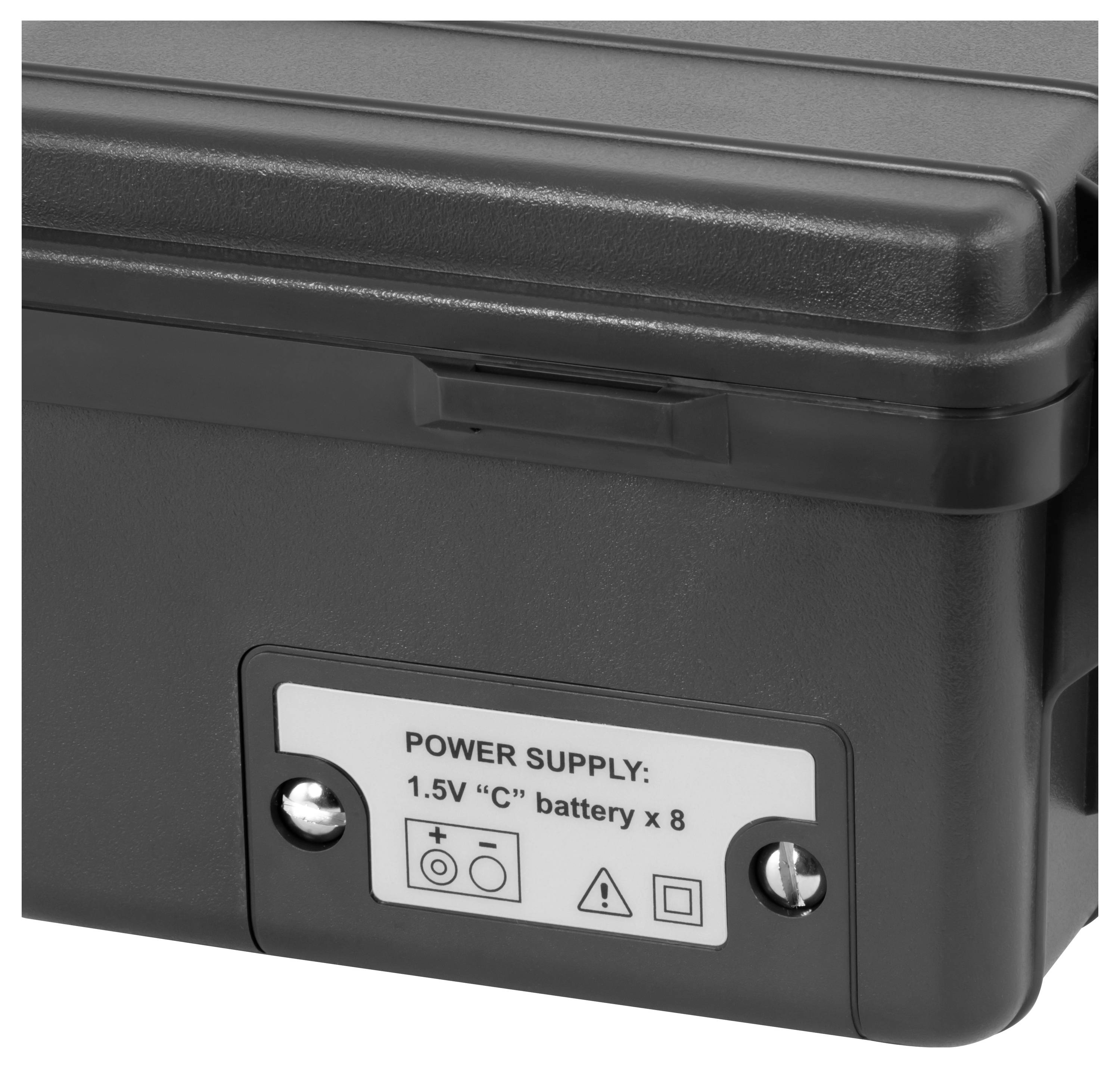

Close-up of a black device battery compartment labeled 'POWER SUPPLY: 1.5V “C” battery x 8' with polarity and warning symbols.

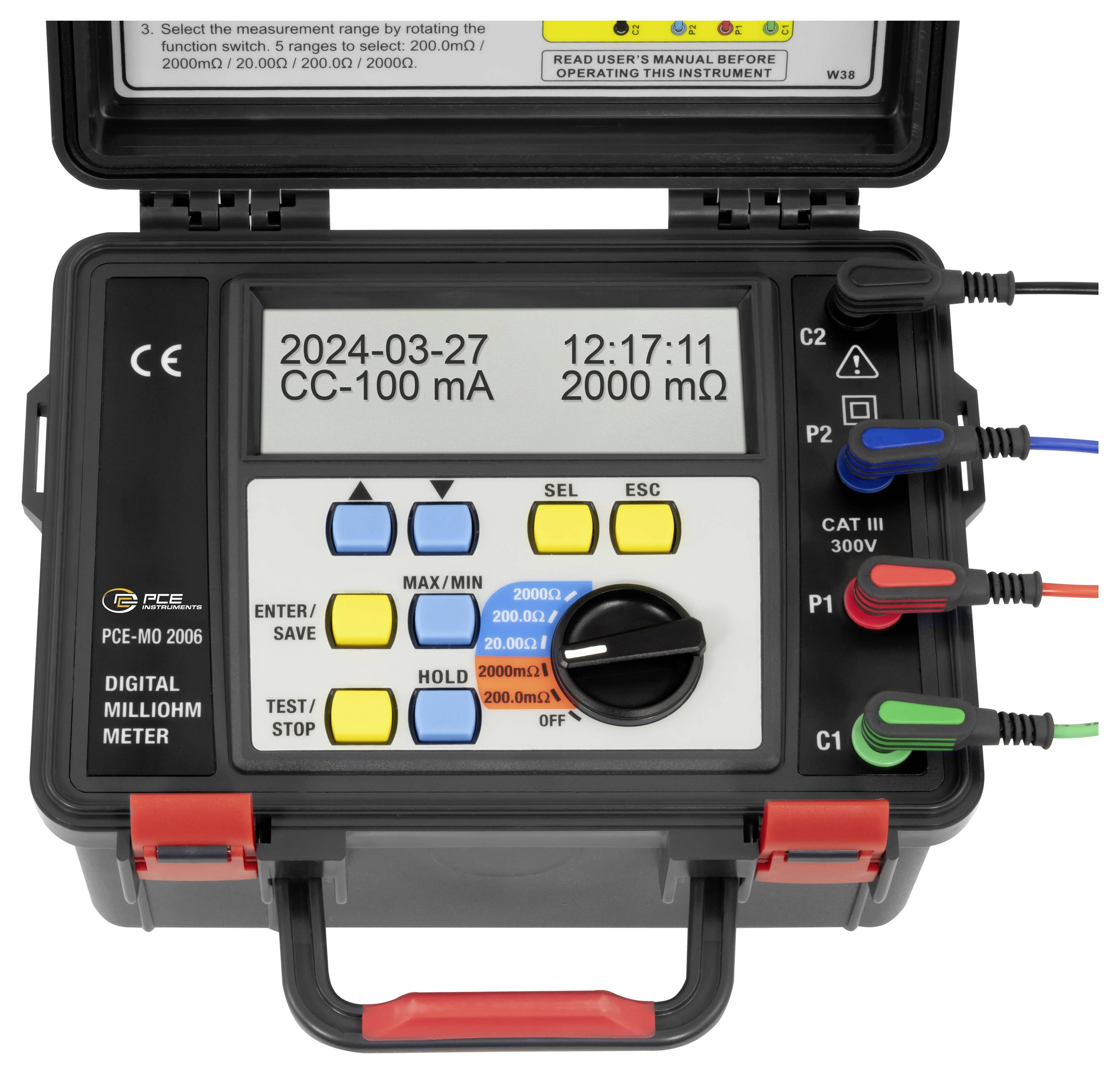

Portable digital milliohm meter with LCD showing date, time, test current 100 mA, and resistance 2000 mΩ; color-coded test leads connected.<br>

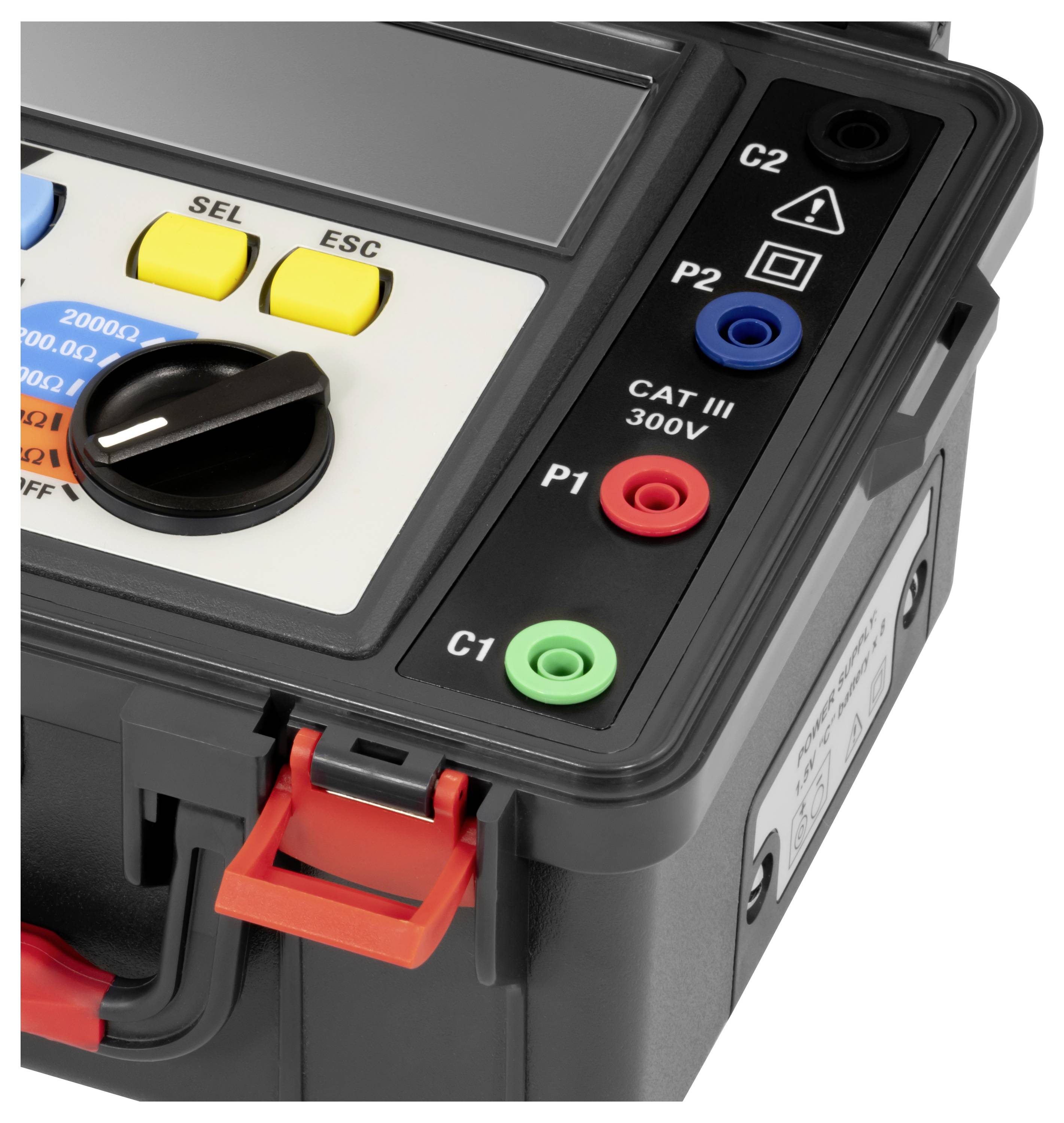

Close-up of a handheld electrical tester with labeled input jacks C1, P1, P2, C2 and a rotary selector knob.

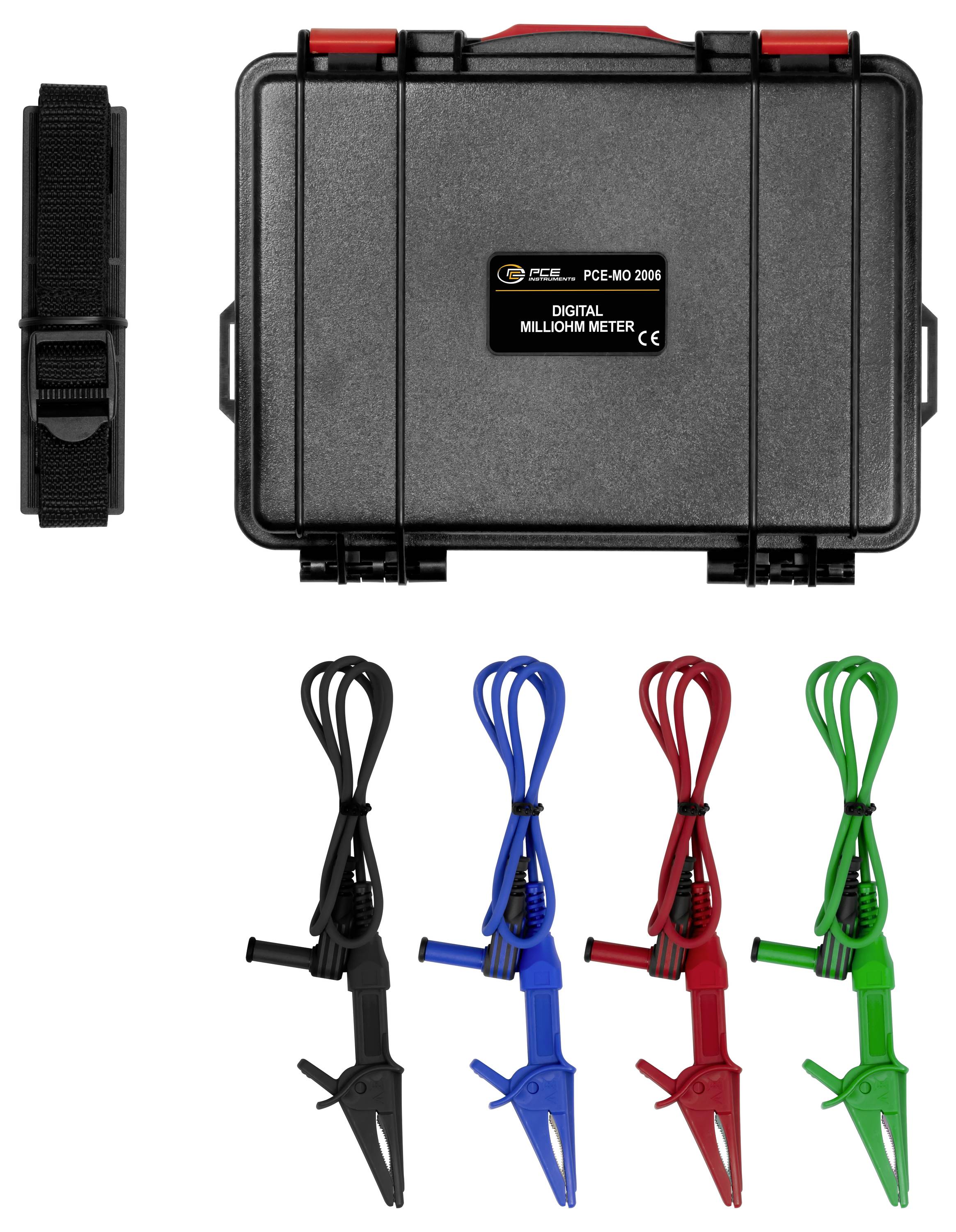

Digital milli-ohm meter kit in a black hard case, with carrying strap and four color-coded test probes: black, blue, red, and green.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MO 2006

4-conductor measurement method
5 selectable measurement ranges
MAX/MIN/HOLD FUNCTIONS
Automatic power off
Illuminated LC-Display 5.1"
Built-in memory
Date and time display

Technical specifications

Resistance
Measuring range 0 mΩ ... 200 mΩ
Resolution 0.1 mΩ
Accuracy ± 0.8% from MW.
Resistance
Measuring range 0 mΩ ... 2000 mΩ
Resolution 1 mΩ
Accuracy ± 0.8% from MW.
Resistance
Measuring range 0 Ω ... 20 Ω
Resolution 10 mΩ
Accuracy ±0.8% from MW.
Resistance
Measuring range 0 Ω ... 200 Ω
Resolution 0.1 Ω
Accuracy ±0.8% from MW.
Resistance
Measuring range 0 Ω ... 2000 Ω
Resolution 1 Ω
Accuracy ±0.8% from MW.
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Display type LCD with lighting
Display size 5.1 inches
Storage medium Internal memory
Memory capacity: 200 measurements
Standard(s) EN 61010-1, EN 61326-1
Automatically switches off approx. 3 min.
Safety standard CAT III 300V
Fuse(s) 200 mA / 600 V
Measuring method 4-conductor method for mΩ measurement
Test current 100 mA: 200.0 mΩ / 2000 mΩ, 10 mA: 20.00 Ω / 200.0 Ω, 1 mA: 2000 Ω,
Menu language English
Protection class (device) IP65
Protection class (additional information) Only when the lid is closed
Weight 1500 g
Dimensions (L x W x H) 245 x 190 x 130 mm
Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.
Battery/battery 8x 1.5 V LR14 , alkaline-manganese
Capacity 7000 mAh

Product type: Ohmmeter

Test voltage: 600 V

Reading type: Voltage
Resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 0 - 2000 MΩ

: IP65

Power supply (details): 1.5 V

Dim: (L x W x H) 245 x 190 x 130 mm

Weight: 1500 g

Display type: Digital (LCD)

Reading category: CAT III 300 V

Width: 190 mm

Height: 130 mm

Length: 245 mm

Documents & Downloads

Datasheet

Datasheet 3192931 PCE Instruments PCE-MO 2006 Ohmmeter 600 V

User & Safety Instructions

User & Safety Instructions 3192931 PCE Instruments PCE-MO 2006 Ohmmeter 600 V

Description

The milliohm meter is a compact and precise measuring instrument with 5 selectable scale ranges for measuring resistors in the range of 0 mΩ ... 2000 Ω. The use of the 4-lead measurement method allows a precise current flow through the object to be measured while measuring the voltage above it. Separate connections for current and voltage minimize errors and enable accurate resistance measurements.

Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohm meter complies with the safety standard CAT III 300V. The device has an internal memory which can record a maximum of 200 values, which can also be called up again on the display. In addition, the MAX/MIN/HOLD functions allow you to display important values. The milliohm meter has a 5.1" LCD display with backlighting. The robust housing (protection class IP65 with the lid closed) enables use under harsh conditions, and the display with a low battery level ensures the reliability of the device.

The Milliohm meter is a compact meter for precise resistance measurements in various industries.
