PCE Instruments PCE-MO 2010-ICA Ohmmeter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

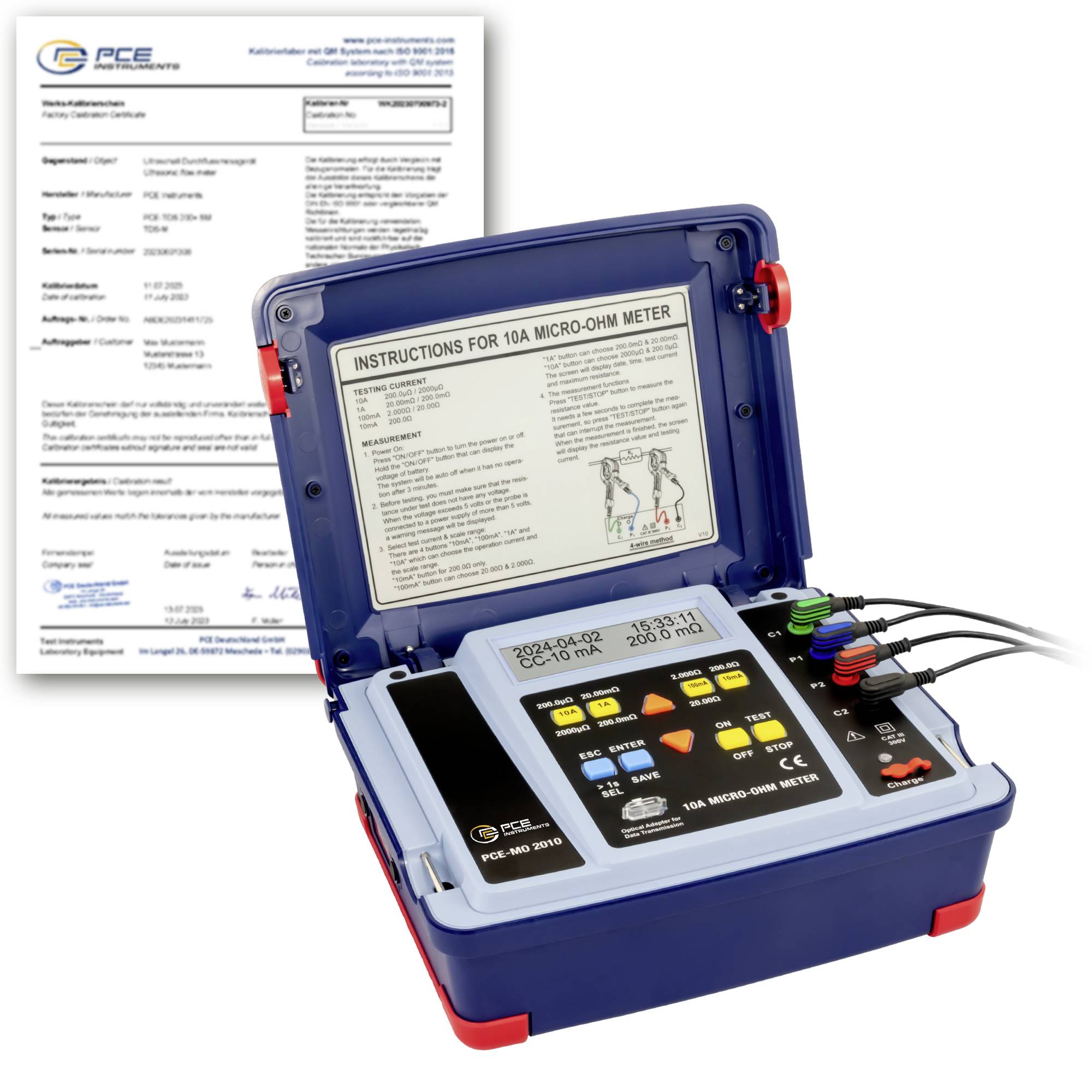

PCE instruments microohmmeter PCE-MO 2010-ICA
- 7 selectable measurement ranges
- 4-conductor measurement method
- 5.1 inch LC display with lighting
- Built-in memory
- Automatic power off
- Date and time display
- Incl. ISO calibration certificate
Technical specifications
- Resistor
- Measuring range 0 ... 200 µΩ
- Resolution 0.1 µΩ
- Accuracy ±(2% +8 digits)
- Resistor
- Measuring range 0 ... 2000 µΩ
- Resolution 1 µΩ
- Accuracy ±(2% +8 digits)
- Resistor
- Measuring range 0 ... 20 milliohms
- Resolution 0.01 mΩ
- Accuracy ±(1% +4 digits)
- Resistor
- Measuring range 0 ... 200 mΩ
- Resolution 0.1 mΩ
- Accuracy ±(1% +4 digits)
- Resistor
- Measuring range 0 ... 2 Ω
- Resolution 1 mΩ
- Accuracy ±(1% +4 digits)
- Resistor
- Measuring range 0 ... 20 Ω
- Resolution 0.01 Ω
- Accuracy ±(1% +4 digits)
- Resistor
- Measuring range 0 ... 200 Ω
- Resolution 0.1 Ω
- Accuracy ±(1% +4 digits)
- General Technical Data
- Display type LCD with lighting
- Display size 5.1 inches
- Storage medium Internal memory
- Memory capacity: 200 values
- Interface RS232
- Standard(s) IEC 61010-1, EN 61326-1
- Automatically switches off approx. 3 min.
- Safety standard CAT III 300V

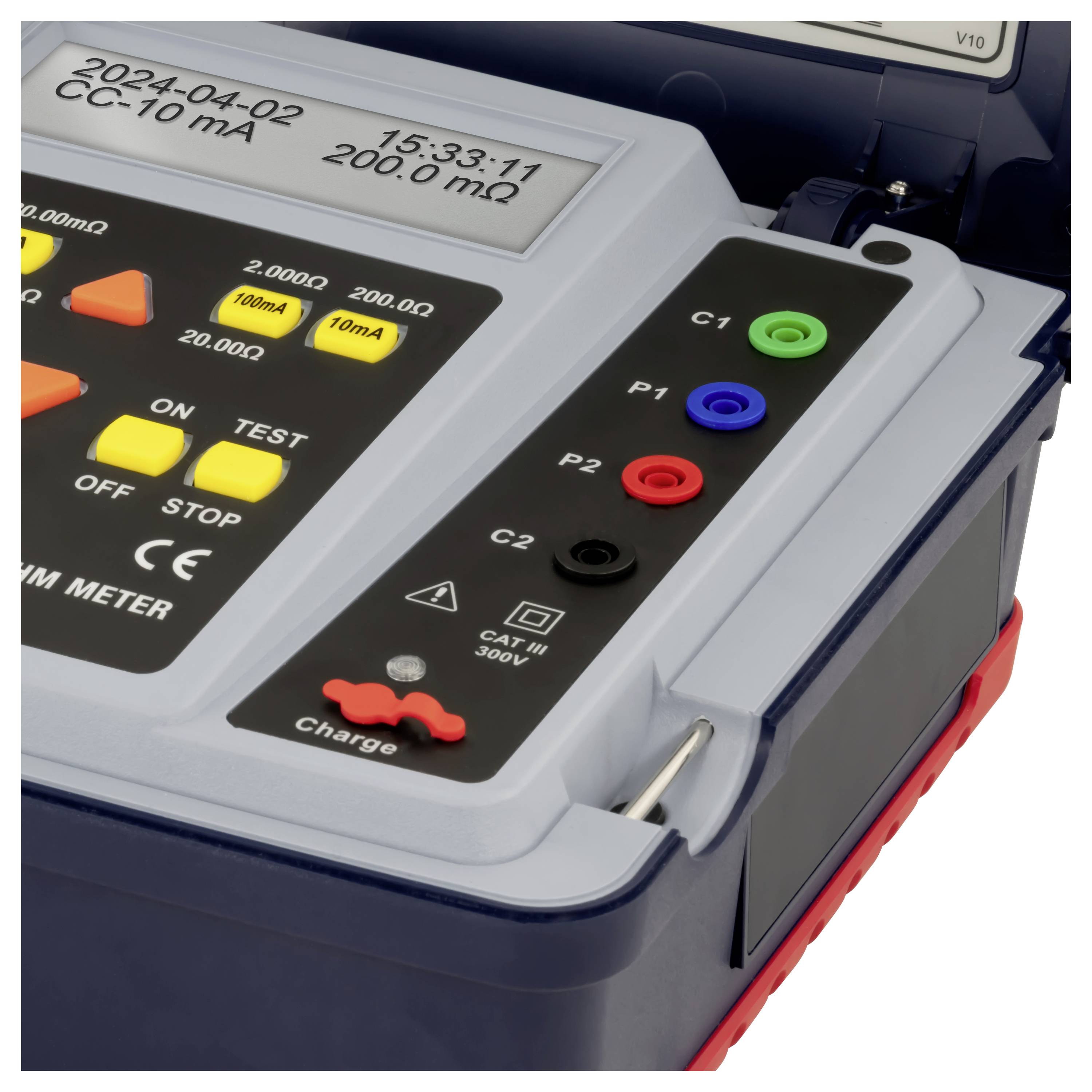

- Measuring method 4-conductor method for mΩ measurement
- Test current 10 A: 200.0 μΩ / 2000 μΩ,1 A: 20.00 mΩ / 200.0 mΩ,100 mA: 2,000 Ω / 20.00 Ω,10 mA: 200.0 Ω
- Menu language English (US)
- Protection class (device) IP30
- Power supply 24 VDC / 0.625 A
- Connector type for device Euro plug
- Capacity 5200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 40 °C , 0 ... 40 % r.F.
- Dimensions ( L x W x H ) 322 x 260 x 135 mm
- Weighs 3126 g.
- Product type
Ohmmeter
- Reading type
Resistance
Resistance
- Continuity testing
200 Ω
ISO standards
- Reading range - resistance
0 µΩ - 200 Ω
- Interfaces
RS232
IP30
- Power supply (details)
24 V DC
- Dim
(L x W x H) 322 x 260 x 135 mm
- Weight
3126 g
- Display type
Digital (LCD)
- Calibration service
Incl. ISO calibration certificate
- Width
260 mm
- Height
135 mm
- Length
322 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812633 PCE Instruments PCE-MO 2010-ICA Ohmmeter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812633 PCE Instruments PCE-MO 2010-ICA Ohmmeter Calibrated to (ISO standards)
Description
The microohmmeter with seven selectable measurement ranges from 0 µΩ to 200 µΩ, a maximum resolution of 0.1 Ω and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-lead measurement method, the microohmmeter ensures accurate measurements with the smallest resistances without influence of the cable resistance. The possible applications are therefore widely used. For example, to detect a bad contact between two measuring points, measurements on switches, continuity of ground connections or for testing metal coatings.

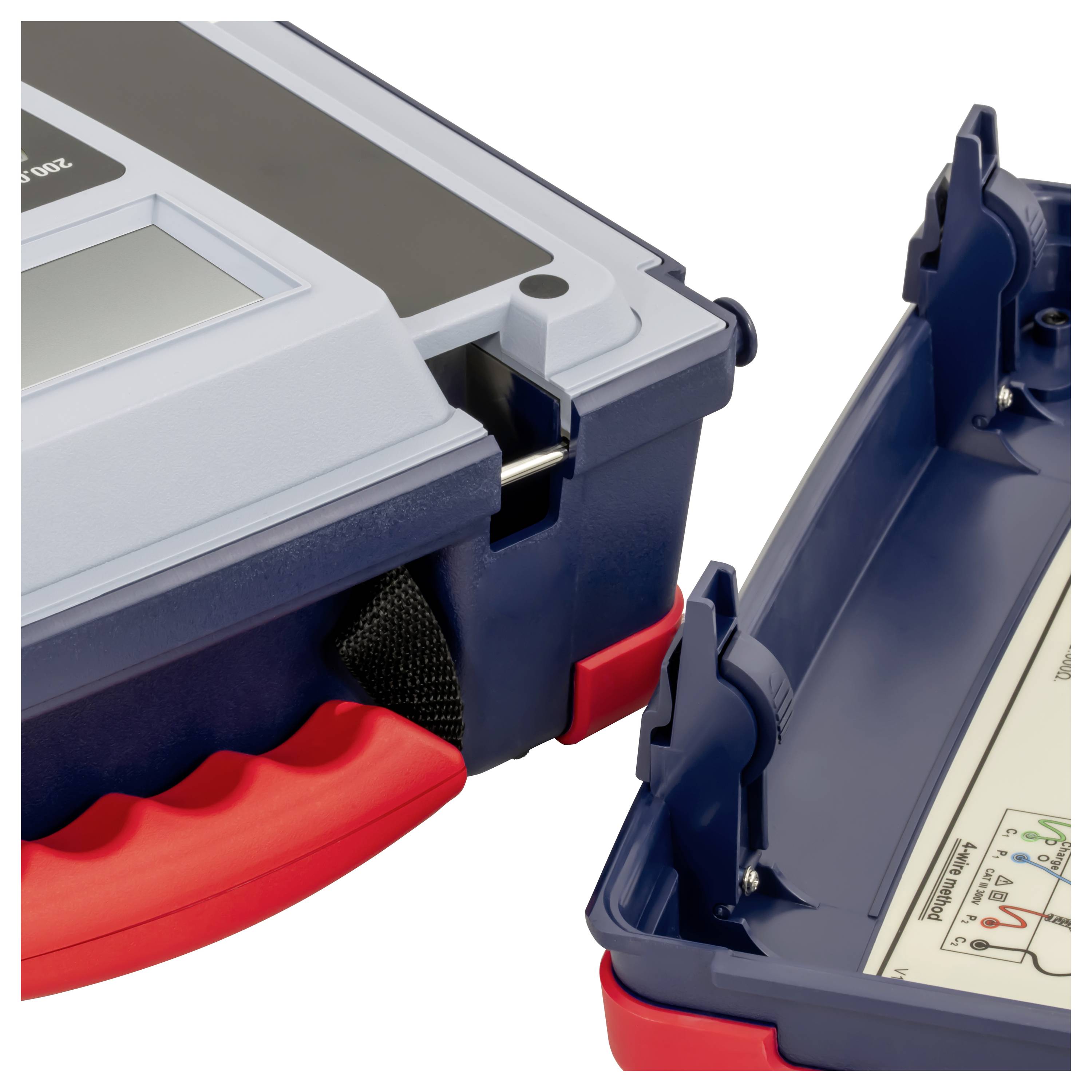

The illuminated LCD display of the micro ohm meter allows you to read the results of measurement, even in poor lighting conditions. With an internal memory for up to 200 readings and a low battery indicator, the device is easy to use and makes the microohmmeter an indispensable tool for preventive maintenance. Via the optical RS232 interface, the data can be transferred to the software and also a text document with the measurement data can be exported. The practical case and a bag for test leads make it easier to transport the instrument.
This text is machine translated.
The illuminated LCD display of the micro ohm meter allows you to read the results of measurement, even in poor lighting conditions. With an internal memory for up to 200 readings and a low battery indicator, the device is easy to use and makes the microohmmeter an indispensable tool for preventive maintenance. Via the optical RS232 interface, the data can be transferred to the software and also a text document with the measurement data can be exported. The practical case and a bag for test leads make it easier to transport the instrument.
This text is machine translated.

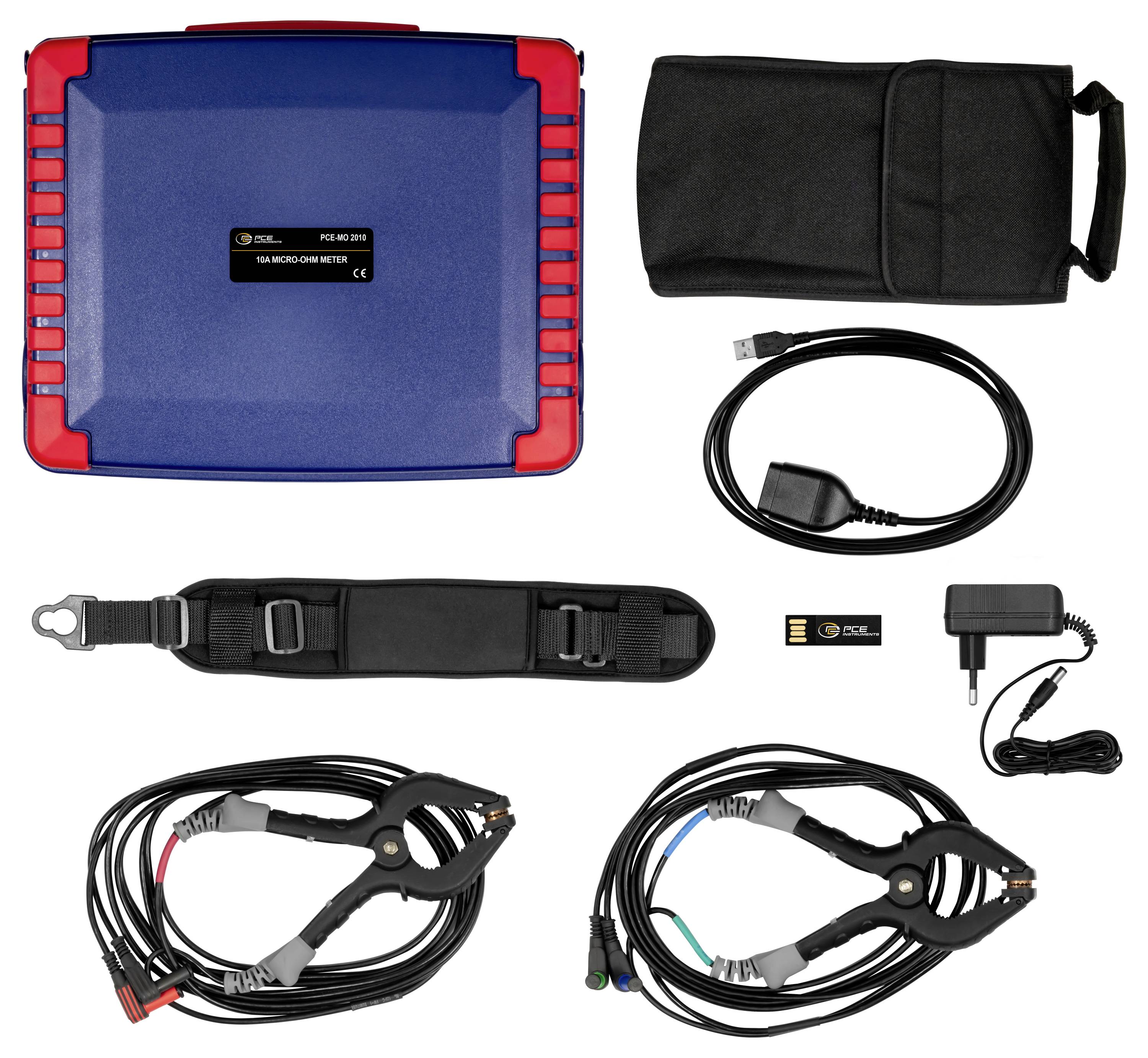

Scope of delivery
- 1 x PCE-MO 2010-ICA microohmmeter

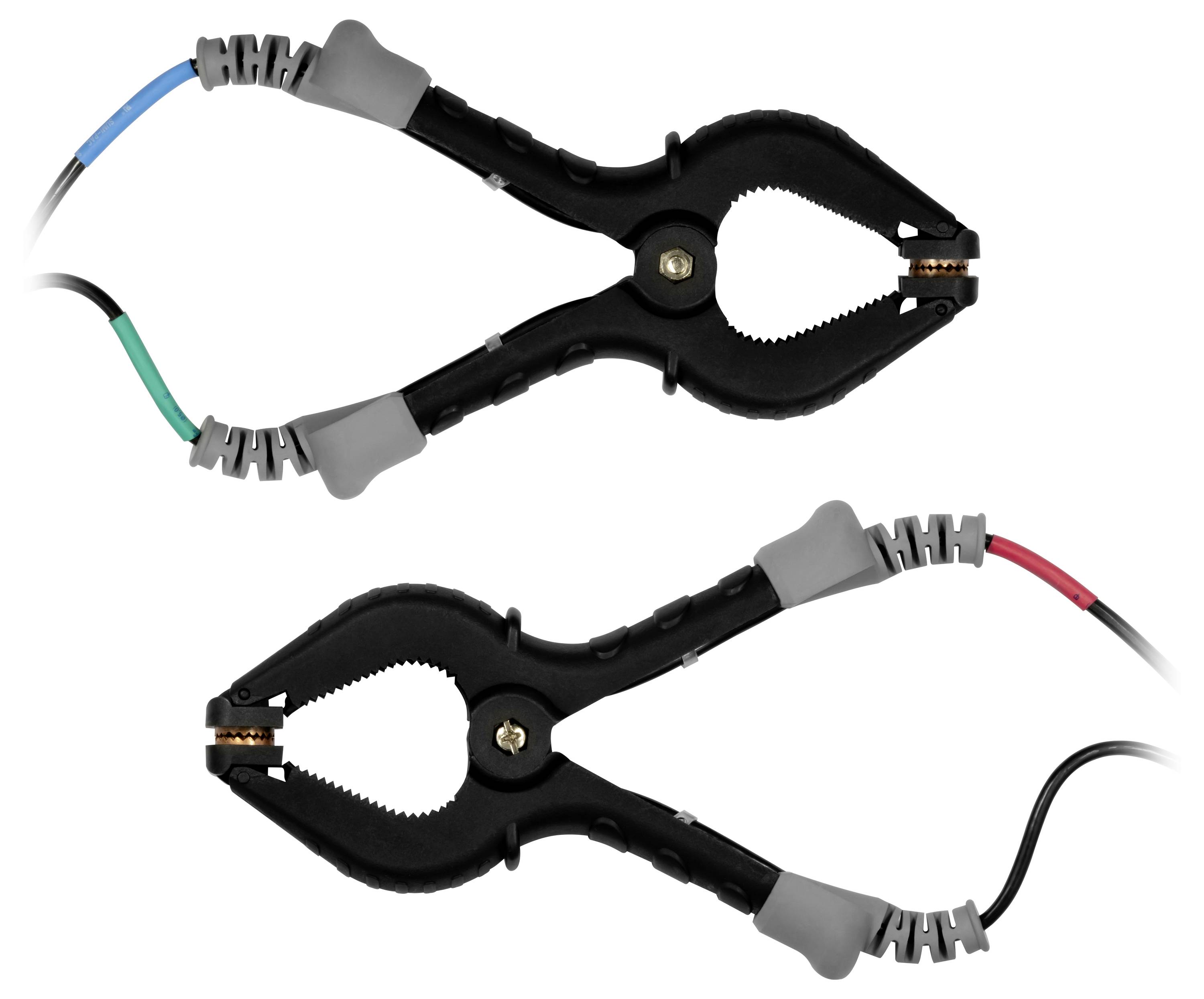

- 2 x 2.5 m test leads with Kelvin terminals
- 1 x data transfer cable
- 1 x PC software on the USB stick
- 1 x power supply 24 VDC / 0.625 A
- 1 x shoulder strap
- 1 x bag for test leads
- 1x user manual
- 1 x ISO calibration certificate
