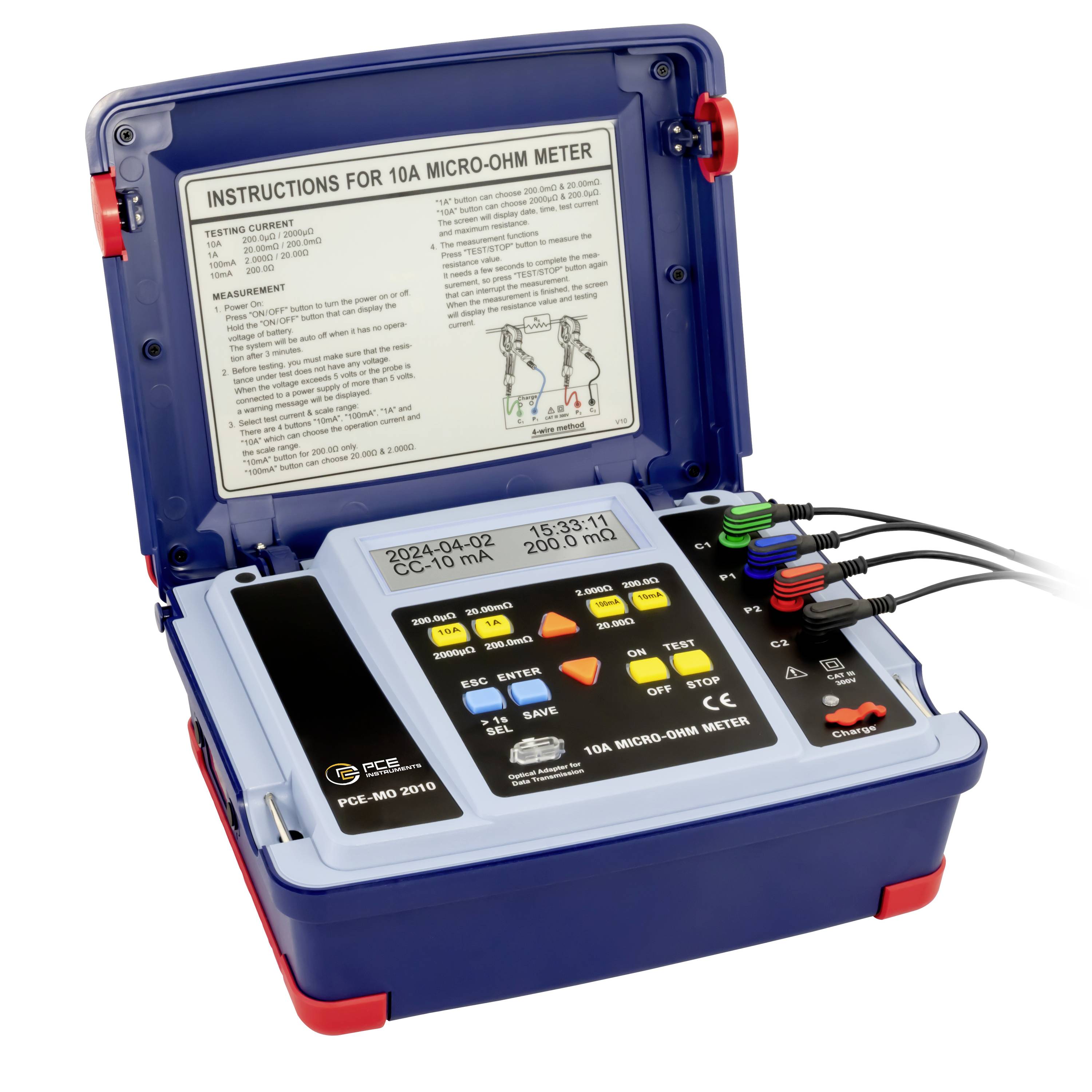

Portable 10A micro-ohm meter in an open blue carrying case, with display, control buttons, test leads, and instruction sheet visible.<br>

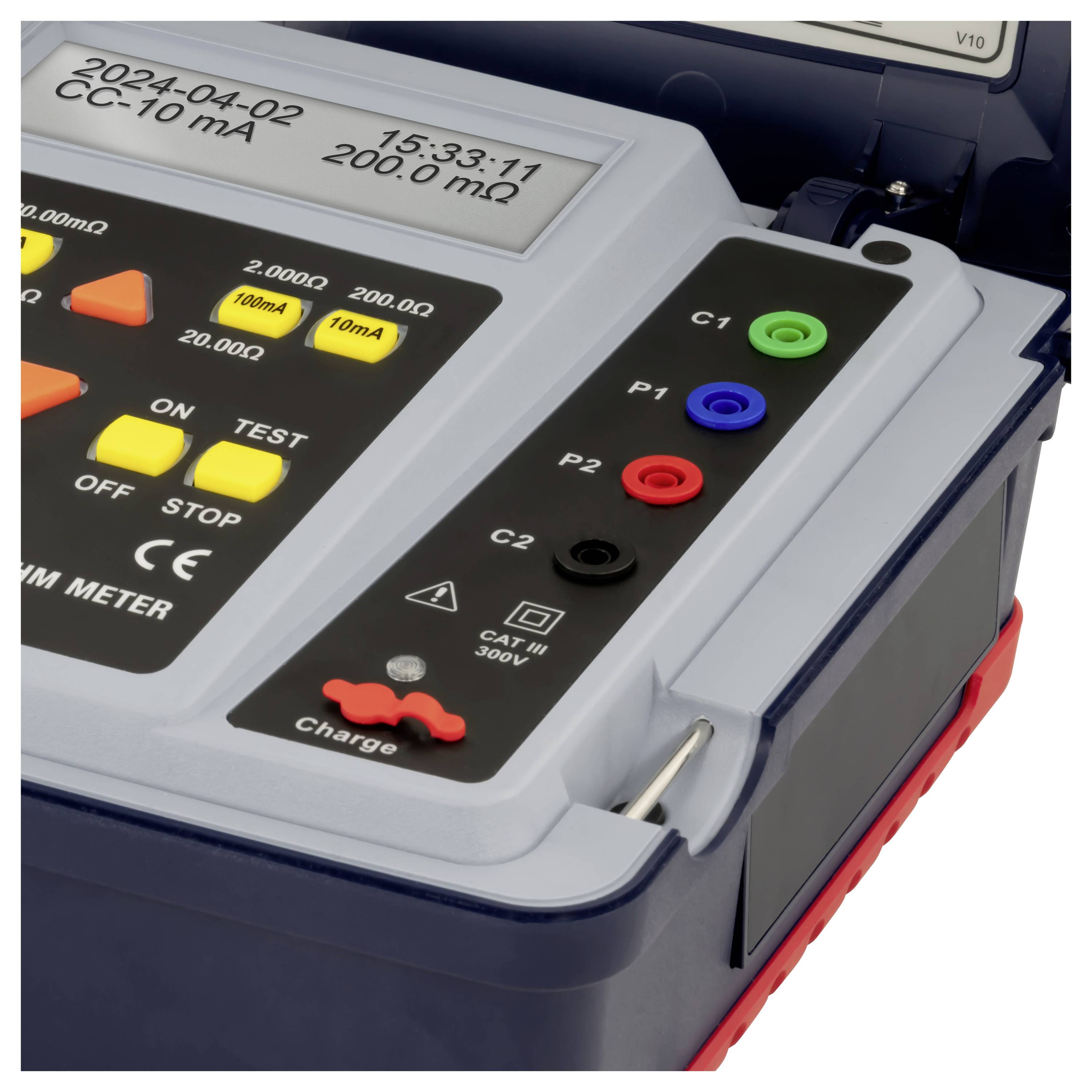

Close-up of a portable electrical meter with LCD display and colored test terminals labeled C1, P1, P2, and C2.<br>

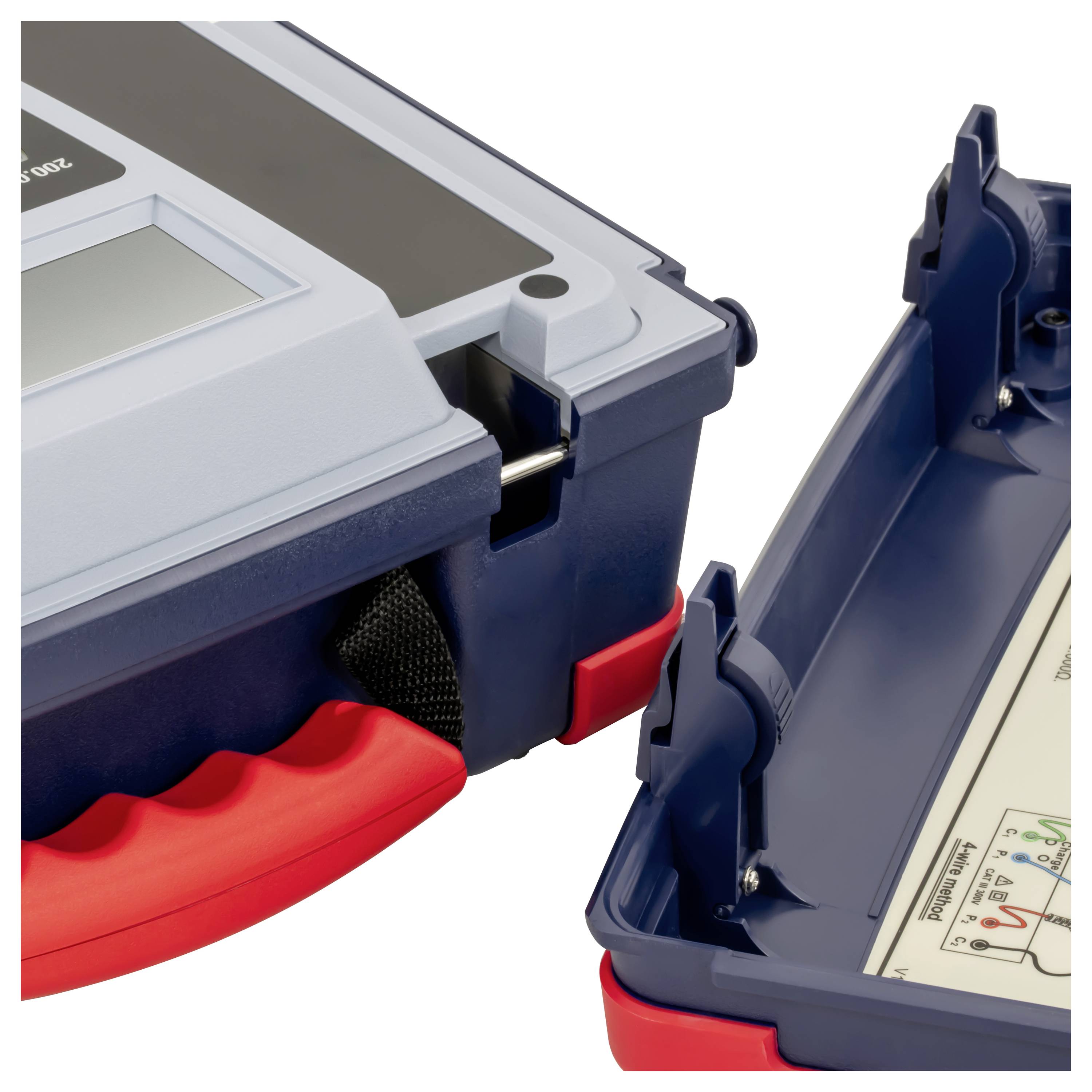

Open portable electronic device case with red handle, shown partially closed and open, revealing an interior compartment with a printed instruction label.

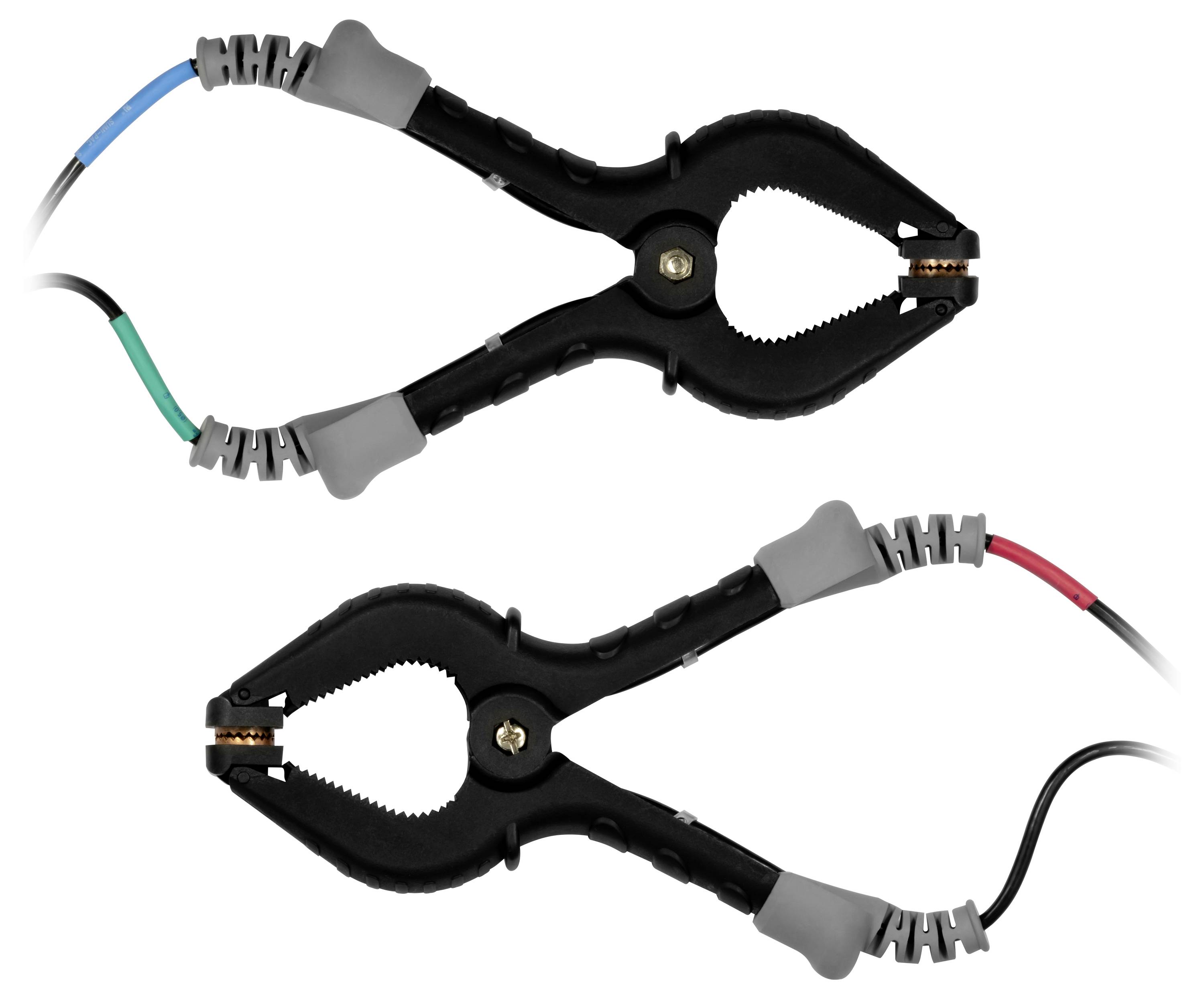

Two black insulated pliers-style electrical clips with gray grips and colored wire leads, shown open on a white background.

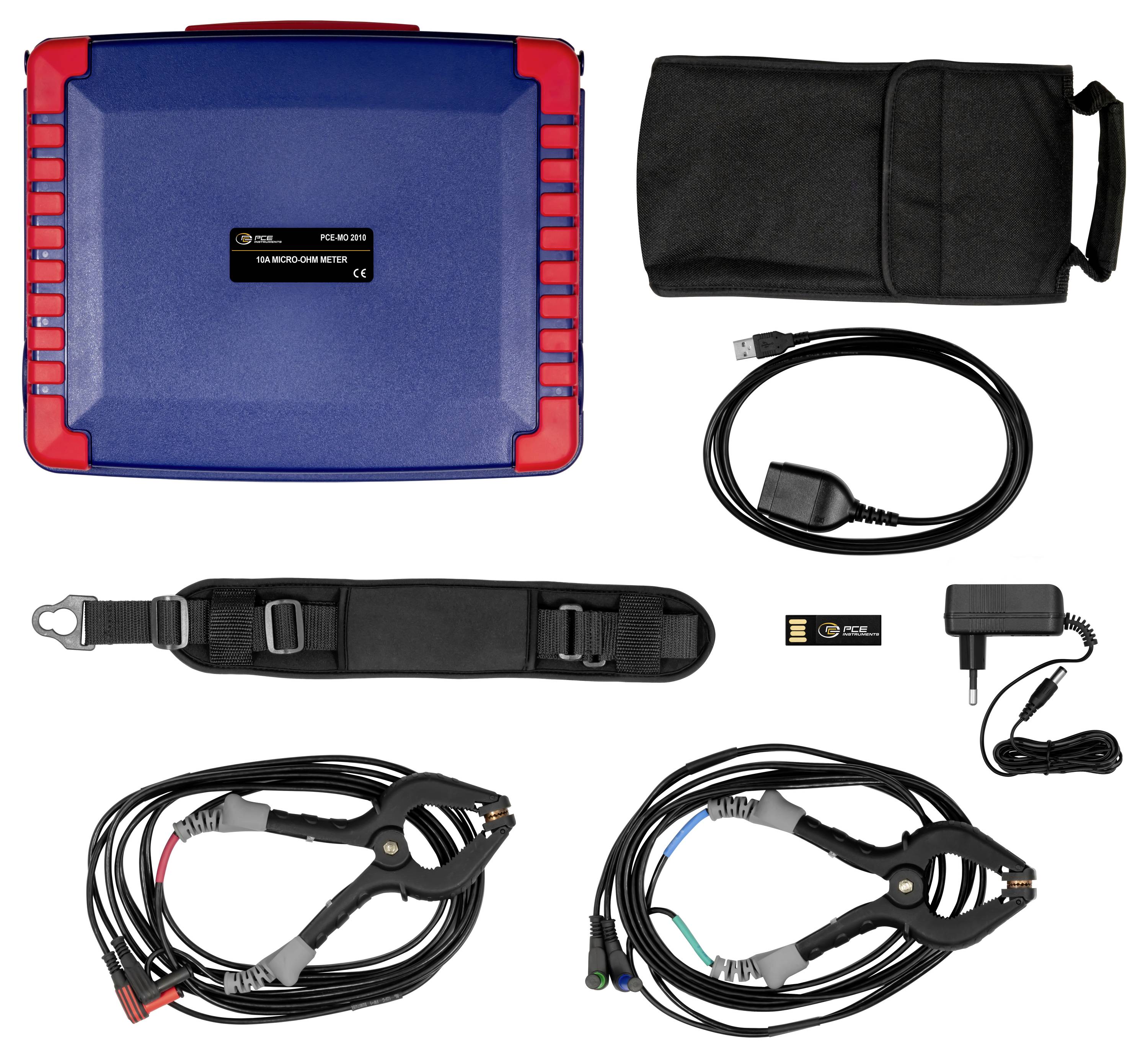

Diagnostic micro-ohmmeter kit with blue instrument case, carrying bag, USB cable, shoulder strap, power adapter, USB drive, and two clamp test lead sets.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MO 2020

7 selectable measurement ranges
4-conductor measurement method
5.1 inch LC display with lighting
Built-in memory
Automatic power off
Date and time display

Technical specifications

Resistance
Measuring range 0 µΩ ... 200 µΩ
Resolution 0.1 µΩ
Accuracy ±(2% + 8 Digit)
Resistance
Measuring range 0 µΩ ... 2000 µΩ
Resolution 1 µΩ
Accuracy ±(2% + 8 Digit)
Resistance
Measuring range 0 mΩ ... 20 mΩ
Resolution 0.01 mΩ
Accuracy ±(1% + 4 Digit)
Resistance
Measuring range 0 mΩ ... 200 mΩ
Resolution 0.1 mΩ
Accuracy ±(1% + 4 Digit)
Resistance
Measuring range 0 Ω ... 2 Ω
Resolution 1 mΩ
Accuracy ±(1% + 4 Digit)
Resistance
Measuring range 0 Ω ... 20 Ω
Resolution 0.01 Ω
Accuracy ±(1% + 4 Digit)
Resistance
Measuring range 0 Ω ... 200 Ω
Resolution 0.1 Ω
Accuracy ±(1% + 4 Digit)
General Technical Data
Display type LCD with lighting
Display size 5.1 inches
Storage medium Internal memory
Memory capacity: 200 values
Interface RS232
Standard(s) IEC61010-1, EN 61326-1
Automatically switches off approx. 3 min.
Safety standard CAT III 300V
Measuring method 4-conductor method for mΩ measurement
Test current 10 A: 200.0 μΩ / 2000 μΩ, 1 A: 20.00 mΩ / 200.0 mΩ, 100 mA: 2,000 Ω / 20.00 Ω, 10 mA: 200.0 Ω
Menu language English
Protection class (device) IP30
Power supply 24 VDC / 0.625 A
Connector type for device Euro plug
Weighs 3126 g.
Dimensions (L x W x H) 322 x 260 x 135 mm
Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
Storage conditions 0 ... 40 °C , 0 ... 40 % r.F.
Capacity 5200 mAh

Product type: Ohmmeter

Reading type: Voltage
Resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 0 - 200 MΩ

Interfaces: 1x RS 232

: IP30

Power supply (details): 24 V DC

Dim: (L x W x H) 322 x 260 x 135 mm

Weight: 3126 g

Display type: Digital (LCD)

Reading category: CAT III 300 V

Width: 260 mm

Height: 135 mm

Length: 322 mm

Documents & Downloads

Datasheet

Datasheet 3324692 PCE Instruments PCE-MO 2010 Ohmmeter

User & Safety Instructions

User & Safety Instructions 3324692 PCE Instruments PCE-MO 2010 Ohmmeter

Description

The ohmmeter with seven selectable measurement ranges from 0 µΩ to 200 µΩ, a maximum resolution of 0.1 Ω and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-conductor measurement method, the ohmmeter ensures accurate measurements with the smallest resistances without having an influence of the cable resistance. The possible applications are therefore widely used. For example, to detect a bad contact between two measuring points, measurements on switches, continuity of ground connections or for testing metal coatings.

The backlit LCD display by the ohmmeter allows for good readability of the results, even in low light conditions. With an internal memory for up to 200 readings and a low battery indicator, the device is easy to use and makes the ohmmeter an indispensable tool for preventive maintenance. Via the optical RS232 interface, the data can be transferred to the software and also a text document with the measurement data can be exported. The practical case and a bag for test leads make it easier to transport the instrument.
