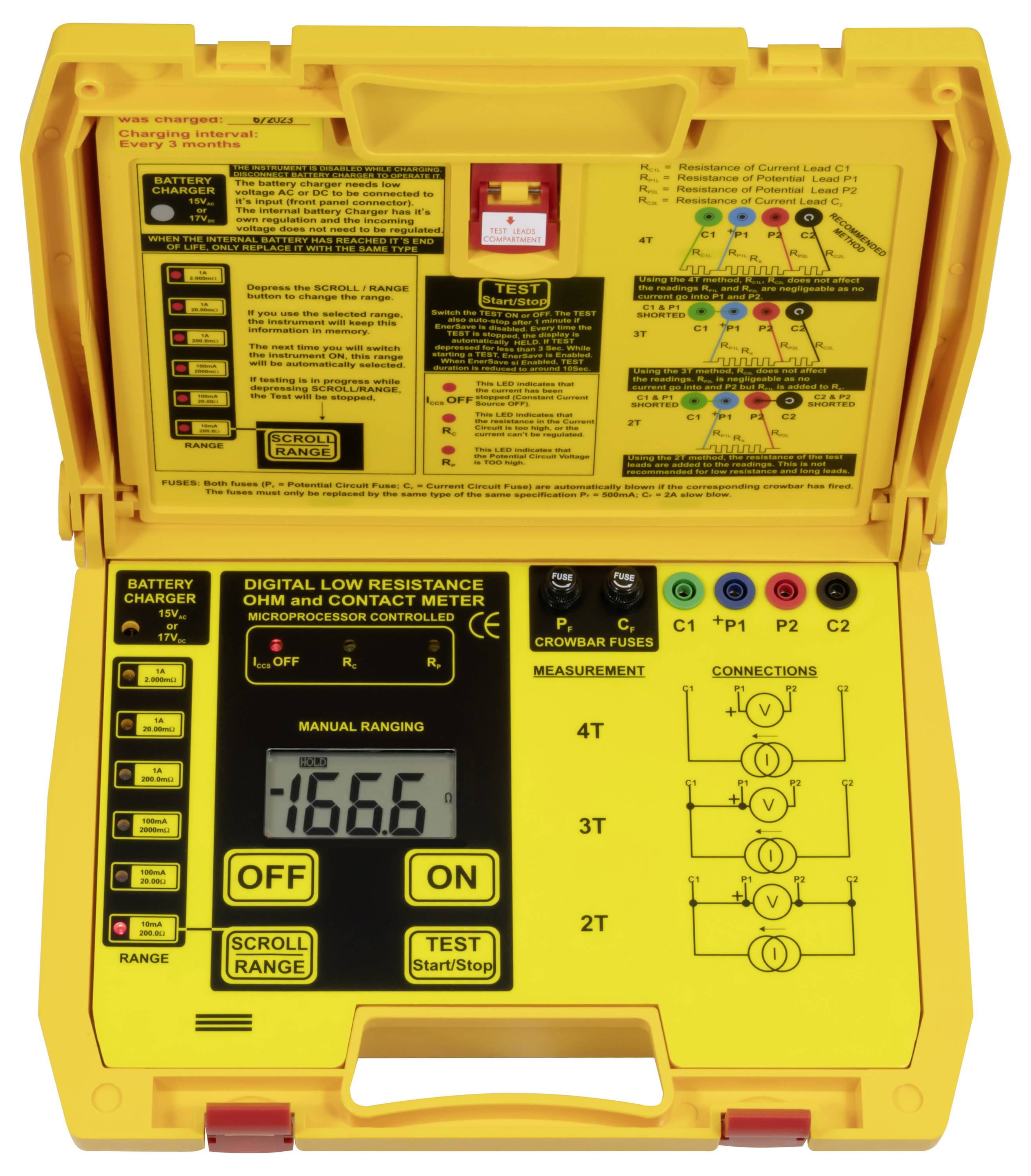

PCE Instruments PCE-MO 3001-ICA Ohmmeter Calibrated to (ISO standards) 200 Ω

The microohmmeter is designed for resistance measurement in very low ranges. This microohmmeter uses the 4-lead measurement method to rule out measuring errors through the measuring leads. Using two measuring leads, this device allows a stable current to flow through the test object with the help of a constant current source. The voltage drop is measured via two further wires.

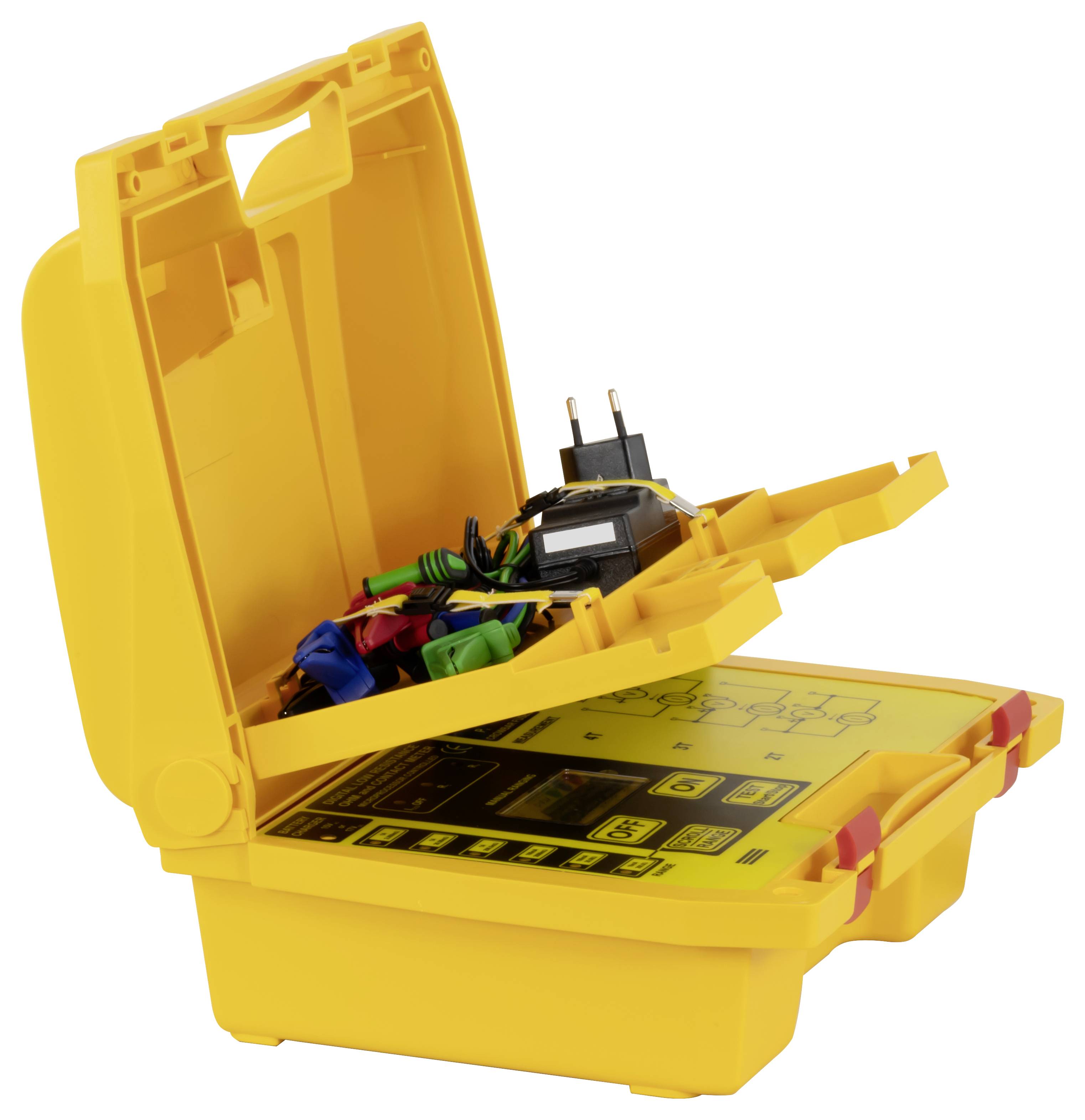

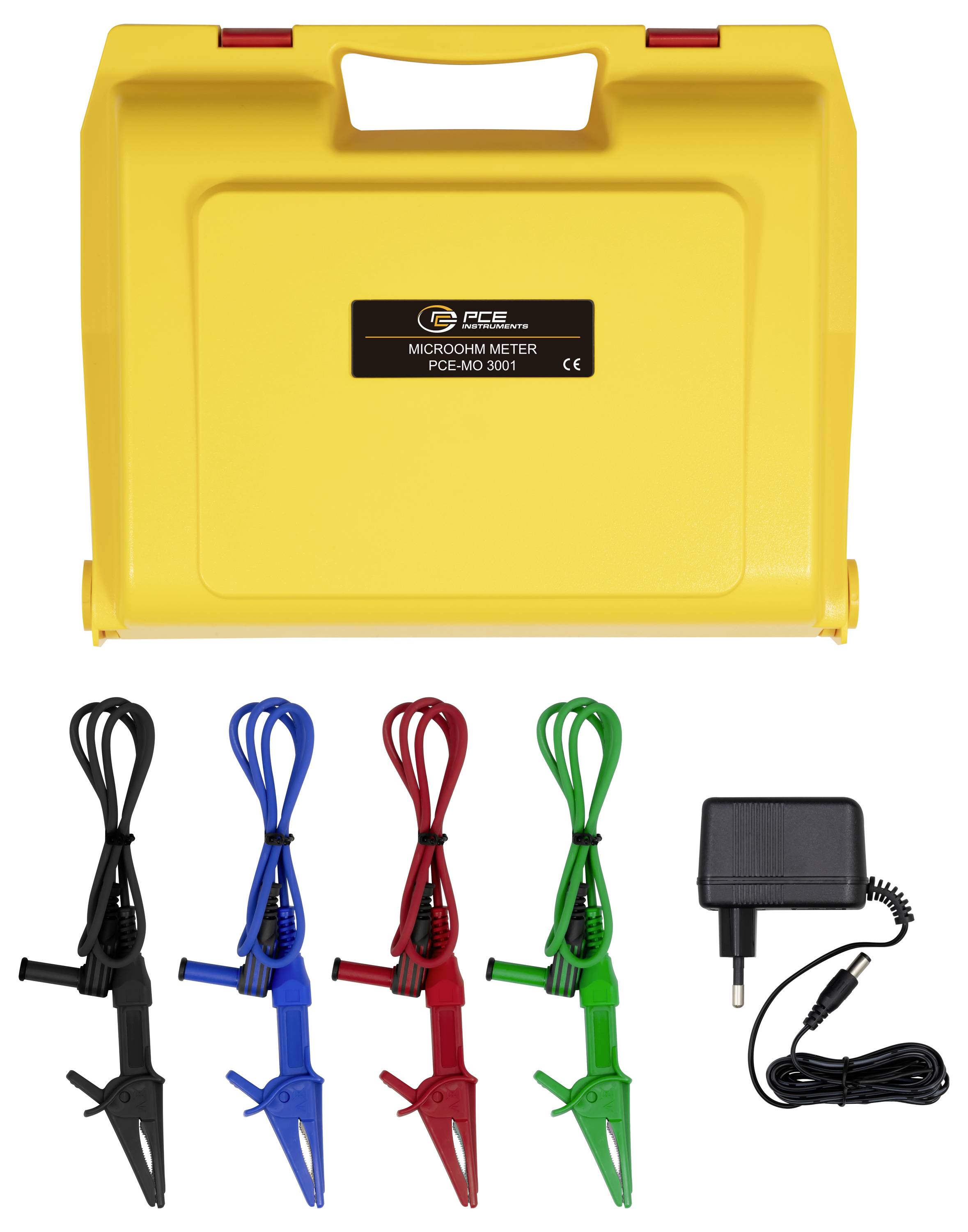

Since this microohmmeter provides six different measurement ranges with three different measuring currents, accurate results can be achieved over a wide measuring range. Thanks to a measuring current of up to 1 ampere, even the very low resistances are determined precisely. The microohmmeter designed as a carrying case and equipped with an internal rechargeable battery is well suited for mobile use. The measuring leads are also housed in the case and WAS simplifies the transport. Other advantages of this measuring device are a large LCD-display and large keys, WAS ensures an easy, fast, and above all safe use of this measuring device. An internal protective circuit prevents overheating of the microohmmeter.

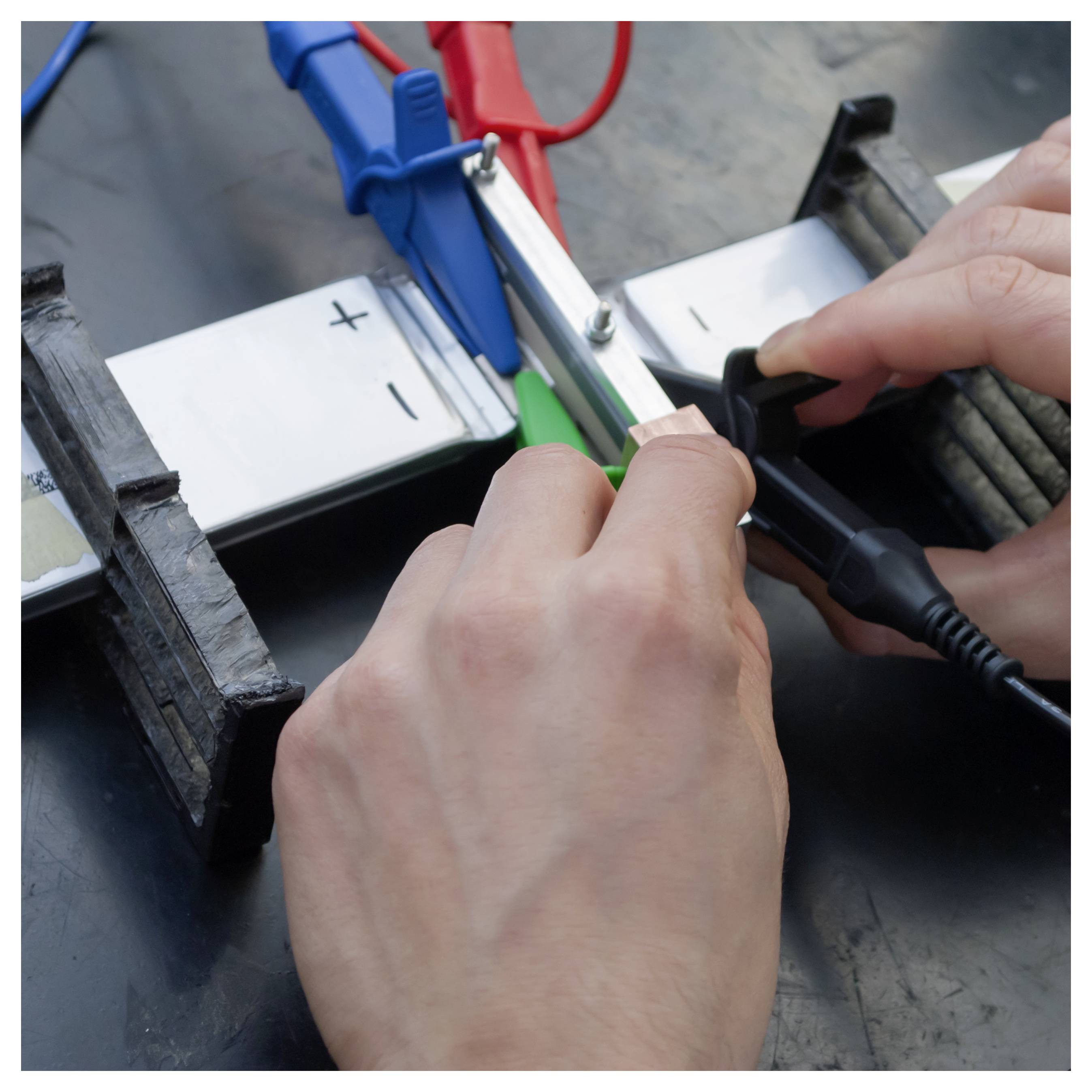

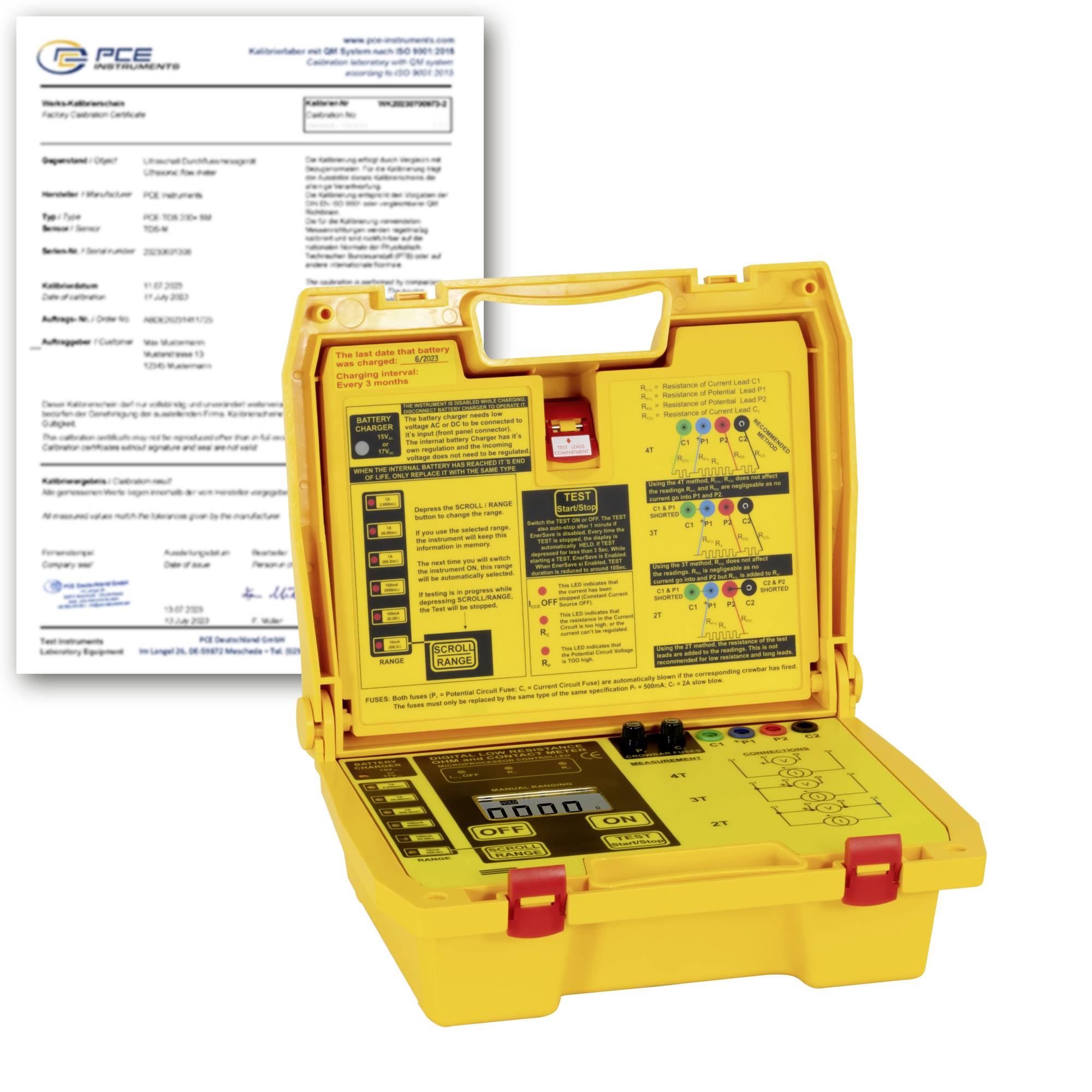

Typical application areas of the microohmmeter are, for example, measurement of the coil resistance of coils and generators, the contact resistance of switches and relays, as well as continuity tests on ring-bus systems. The microohmmeter is always delivered with factory calibration. As an optional accessory, the measuring device can also be laboratory calibrated and equipped with a certificate in accordance with ISO.
