PCE Instruments PCE-MO 3001 Ohmmeter

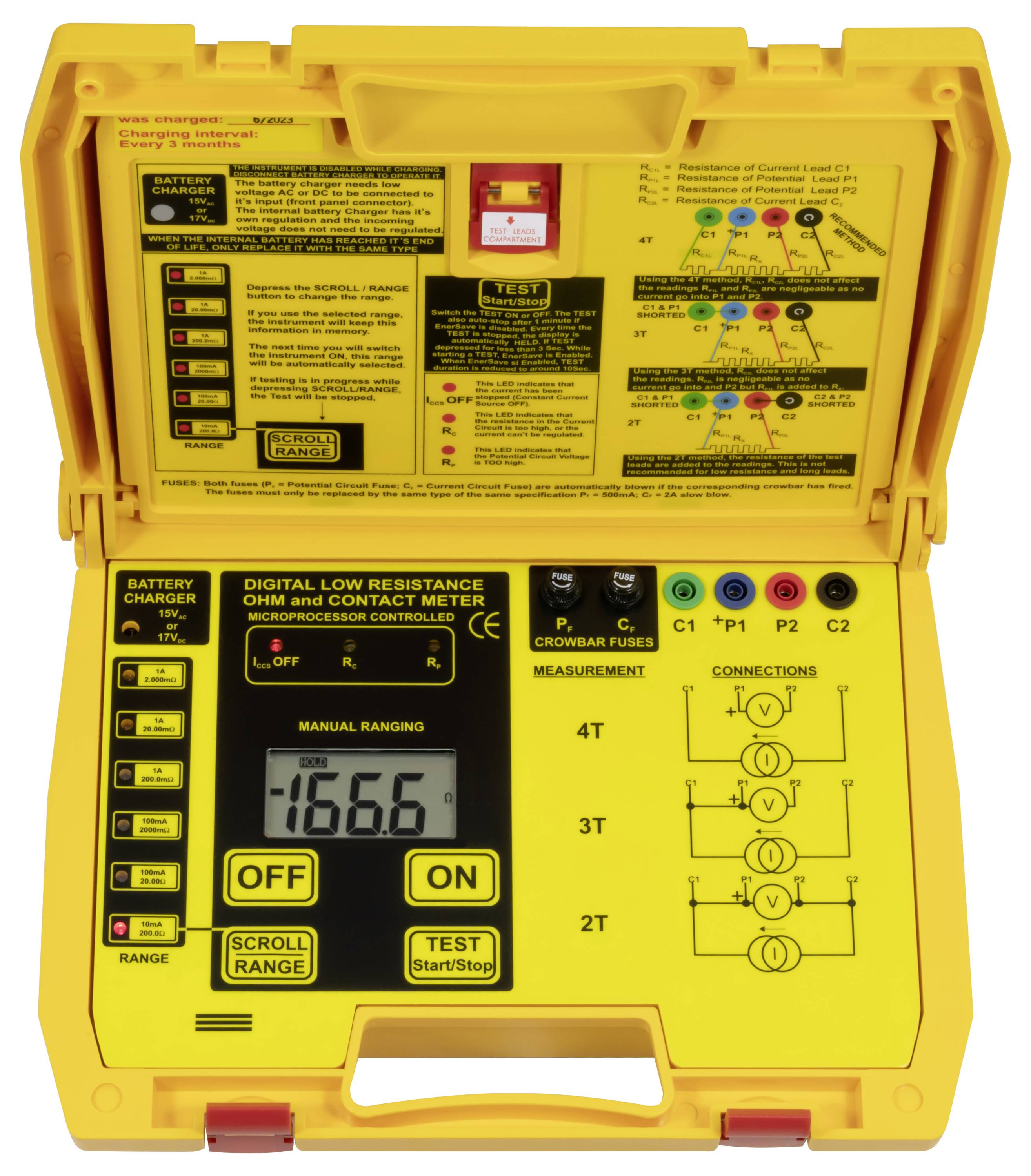

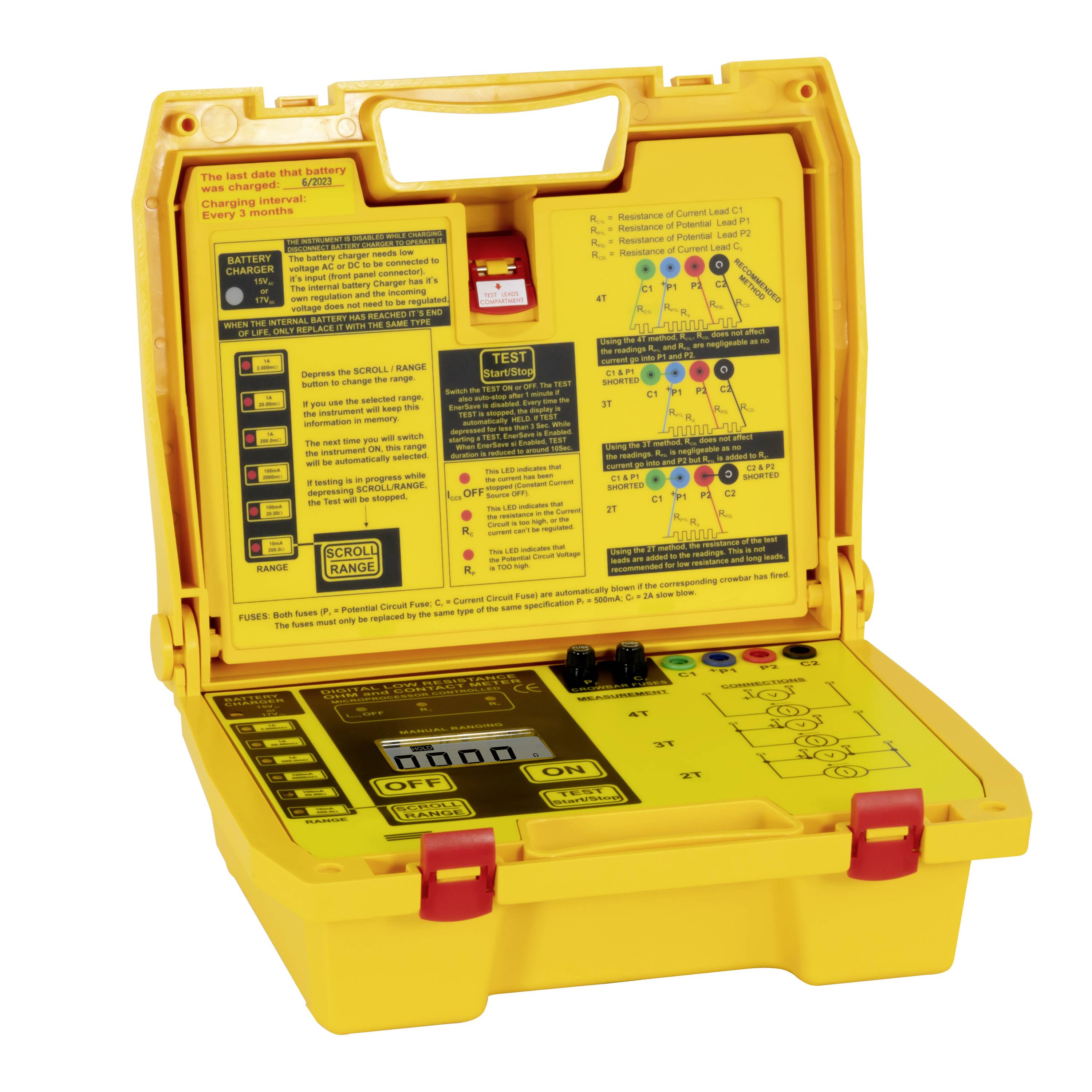

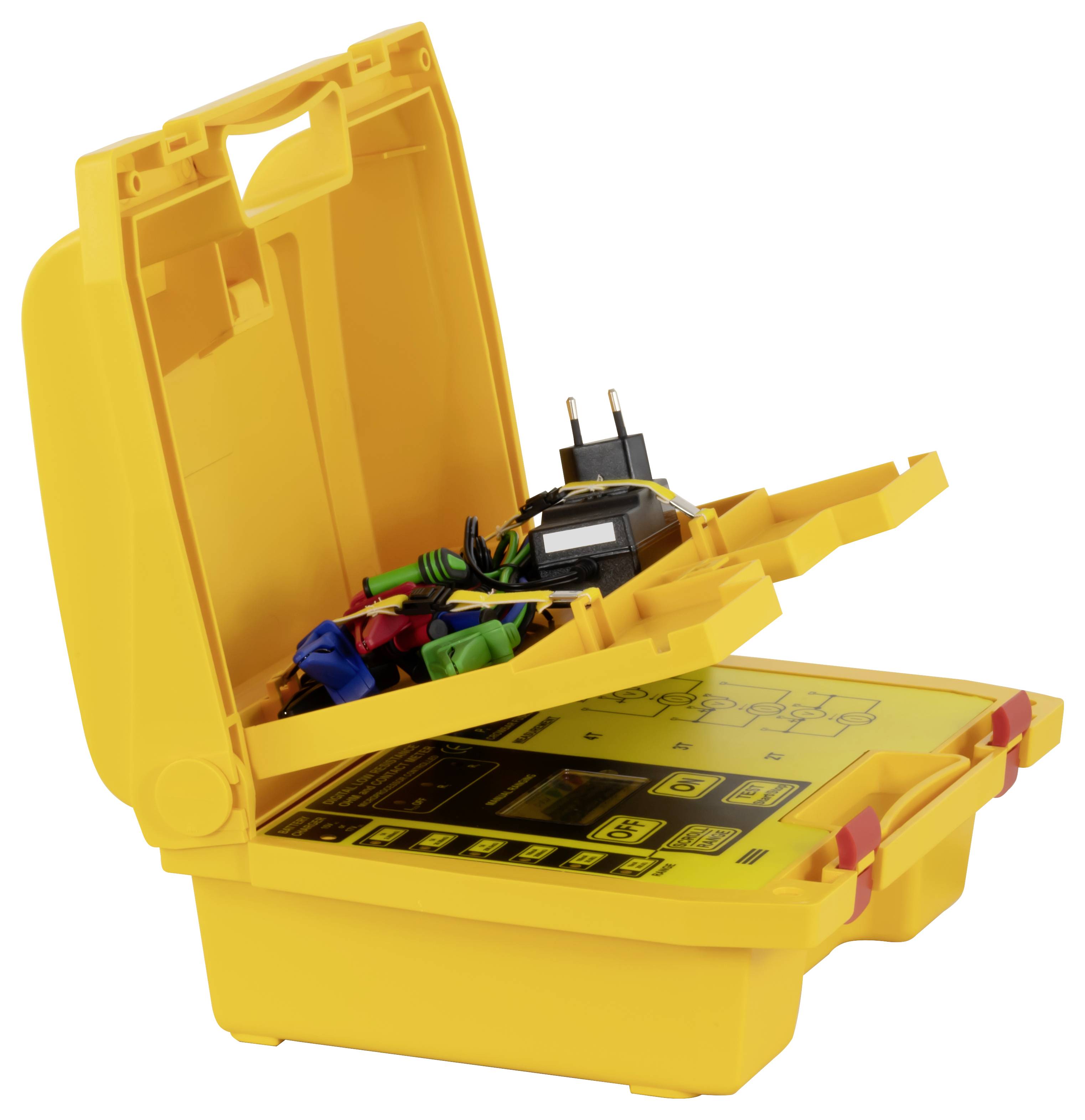

Ohm meter resolution up to 1 µΩ / robust housing / large LCD display / battery operation / internal temperature monitoring / clear the ohmmeter is designed for resistance measurement in very low ranges. This ohmmeter uses the 4-lead measurement method to prevent measuring errors from occurring through the measuring lines. This device can flow a stable current through the test object with the help of a constant current source via two measuring lines. The voltage drop is measured via two further lines. Since this ohmmeter provides six different measuring ranges with three different measuring currents, accurate results can be obtained over a wide measuring range. Thanks to a measuring current of up to 1 ampere, even very low resistances are precisely determined. Designed as a carrying case and equipped with an internal battery, the ohmmeter is well suited for mobile use. The measuring lines are also housed in the case was the transport made easier. Other advantages of this measuring device are a large LCD display and large buttons, which was designed to ensure a simple, fast and above all safe use of this measuring device. An internal protective circuit prevents overheating of the ohmmeter. Typical application areas include, for example, measuring the coil resistance on coils and generators as well as the contact resistance of switches and relays, as well as continuity tests on ring bus systems. The ohmmeter is always delivered factory calibrated. As an optional accessory, the measuring device can also be calibrated in laboratories and equipped with a certificate according to ISO.
