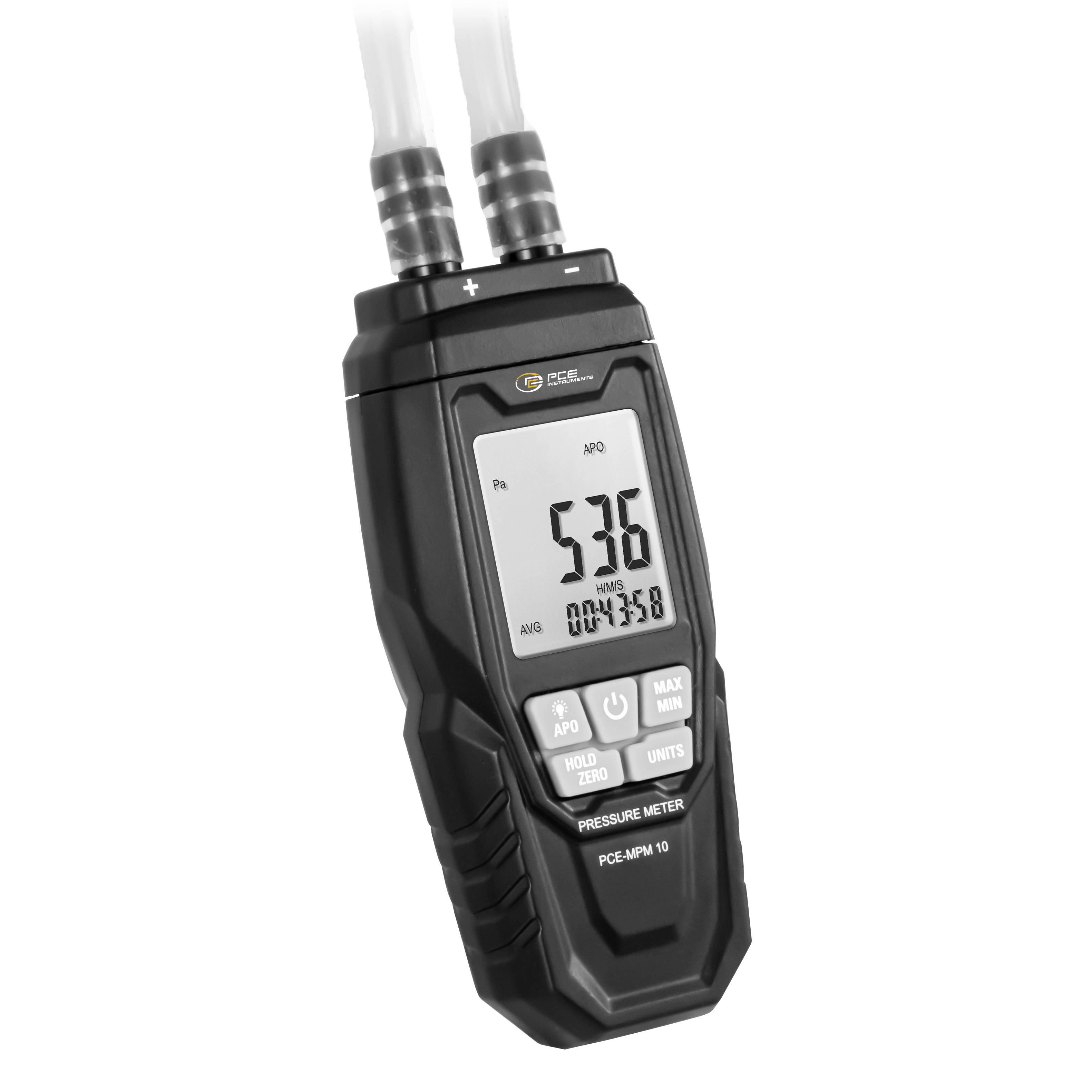

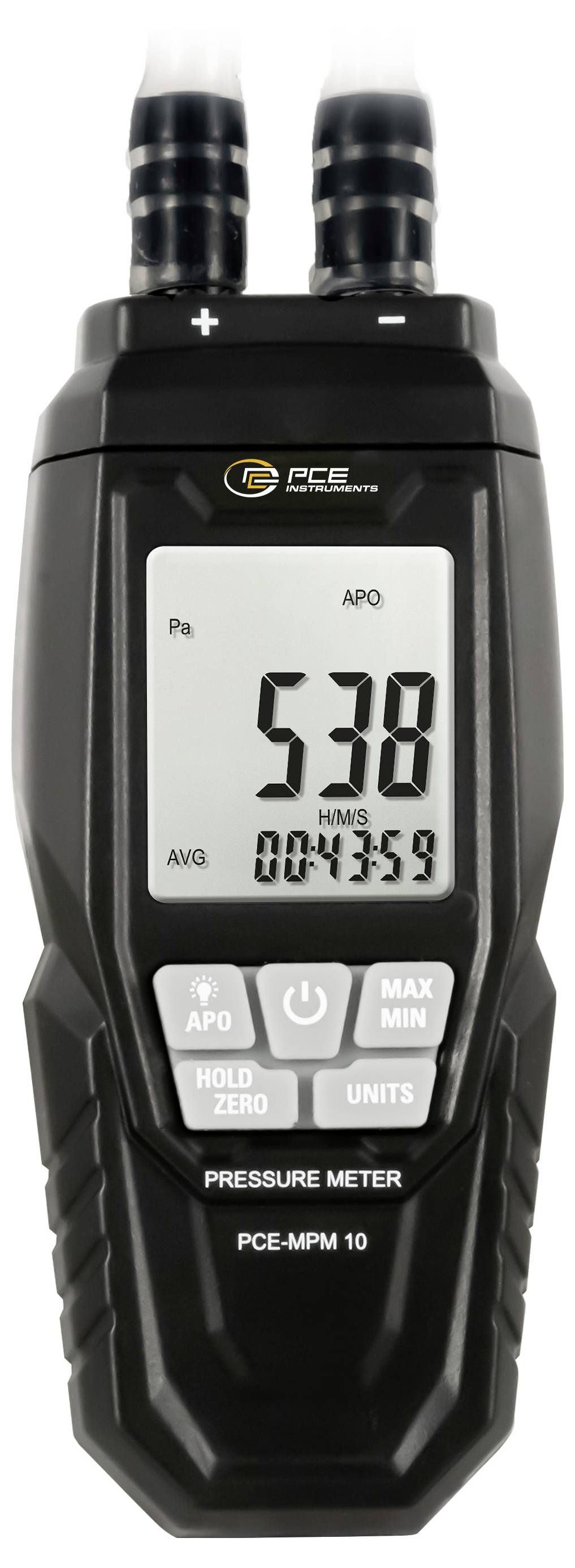

PCE Instruments PCE-MPM 10 Differential pressure gauge
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Measurement range Pa ±5000 Pa Resolution 1 Pa. Measurement range hPa ±50.00 hPa Resolution 0.01 hPa Measurement range mbar ±50.00 hPa Resolution 0.01 hPa Measurement range mmH2O ±509.9 mmH2O Resolution 0.1 mmH2O Measurement range mmHg ±37.50 mmHg Resolution 0.01 mmHg Measurement range inH2O ±20.07 inH2O Resolution 0.01 inH2O Measuring range inHg ±1,476 inHg Resolution 0.001 inHg Measuring range psi ±0.725 psi Resolution 0.001 psi Measurement range ozin² ±11.60 ozin² Resolution 0.01 ozin² Measuring range bar ±0.050 bar Resolution 0.001 bar Measurement range kPa ±5,000 kPa Resolution 0.001 kPa Other specifications Display LCD Accuracy ±0.3% of MB. @25 °C Repeatability ±0.2% of MB. (Maximum ±0.5% v.MB.) Linearity ±0.29% of MB. medium gaseous Maximum pressure 2 psi Measurement rate 2 Hz Battery status indicator Display if too low Battery voltage Measuring range exceeded "OL " display Operating conditions 0 ... 50 °C,< 90% RH, non-condensing Storage conditions -10 ... 60 °C,< 90% RH, non-condensing Hose connection 2 x 8 mm Power supply 3 x 1.5 V. Batteries dimensions 140 x 52 x 28 mm Weight 130 g
- Product type
Differential pressure gauge
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452818 PCE Instruments PCE-MPM 10 Differential pressure gauge
User & Safety Instructions
User & Safety Instructions 2452818 PCE Instruments PCE-MPM 10 Differential pressure gauge
Description

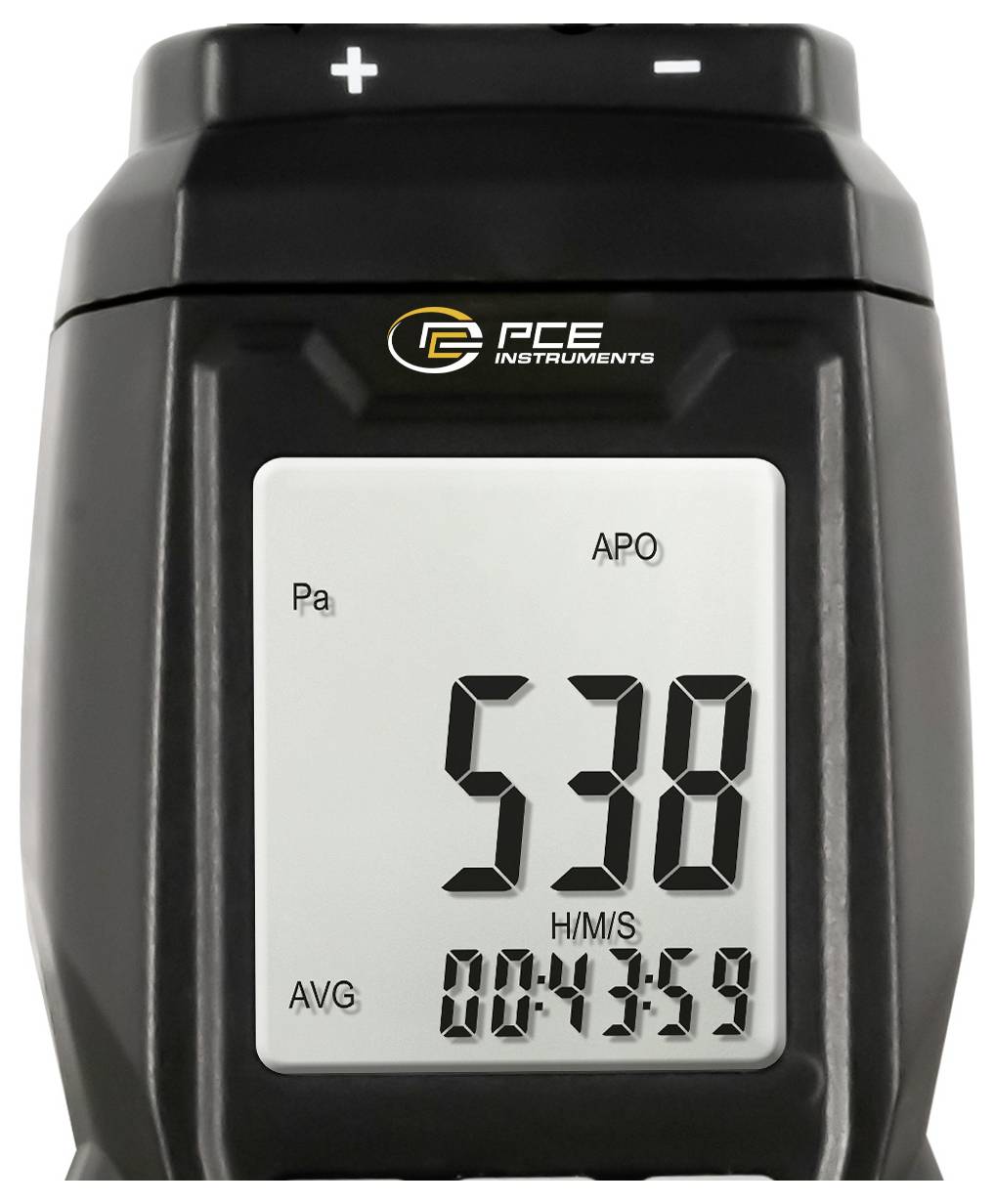

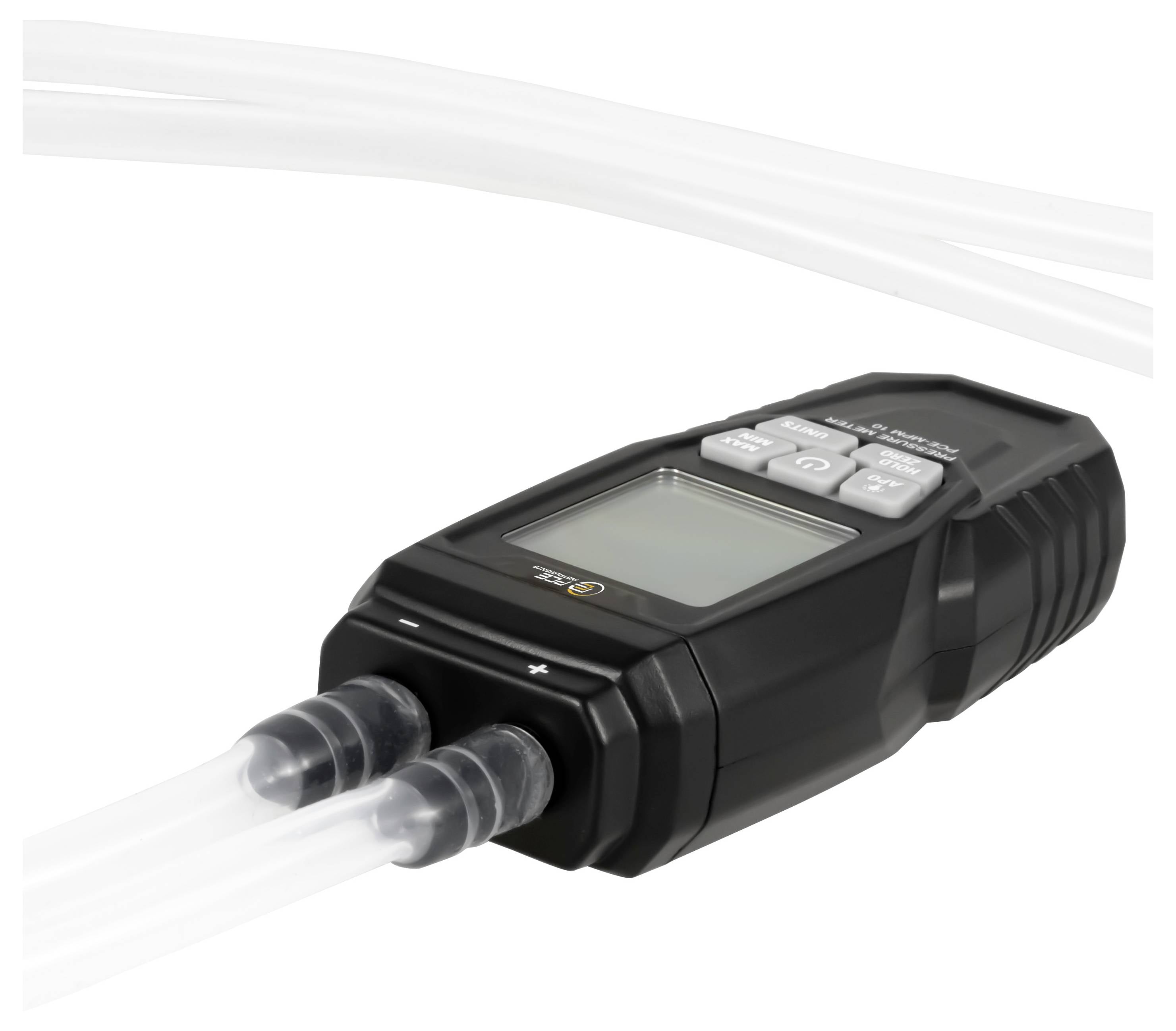

Difference Pressure meter for determination of the differential pressure / for gaseous media / LC display / Measuring range ±5000 Pa / for mobile application / 11 different pressure units the difference Pressure meter is a small and handy measuring device for determining the differential air pressure. A measuring range of ±5000 Pa is available for the difference between the pressure measuring device. The difference between the pressure gauge is connected via two hose connections with a diameter of 8 mm. After switching on, the pressure gauge difference directly indicates the differential pressure. The measured value can be displayed in 11 different pressure units. The difference pressure gauge is used, for example, in ventilation and air-conditioning technology or in educational institutions such as technical colleges and universities. In addition to the normal measured value display, the difference between the pressure gauge and the smallest, largest and average measured value can also be displayed. This makes the difference between the pressure gauge easier to analyze the measured values. In order to protect the batteries, the difference between the pressure gauge and the pressure gauge switches off automatically within five minutes.
This text is machine translated.
This text is machine translated.

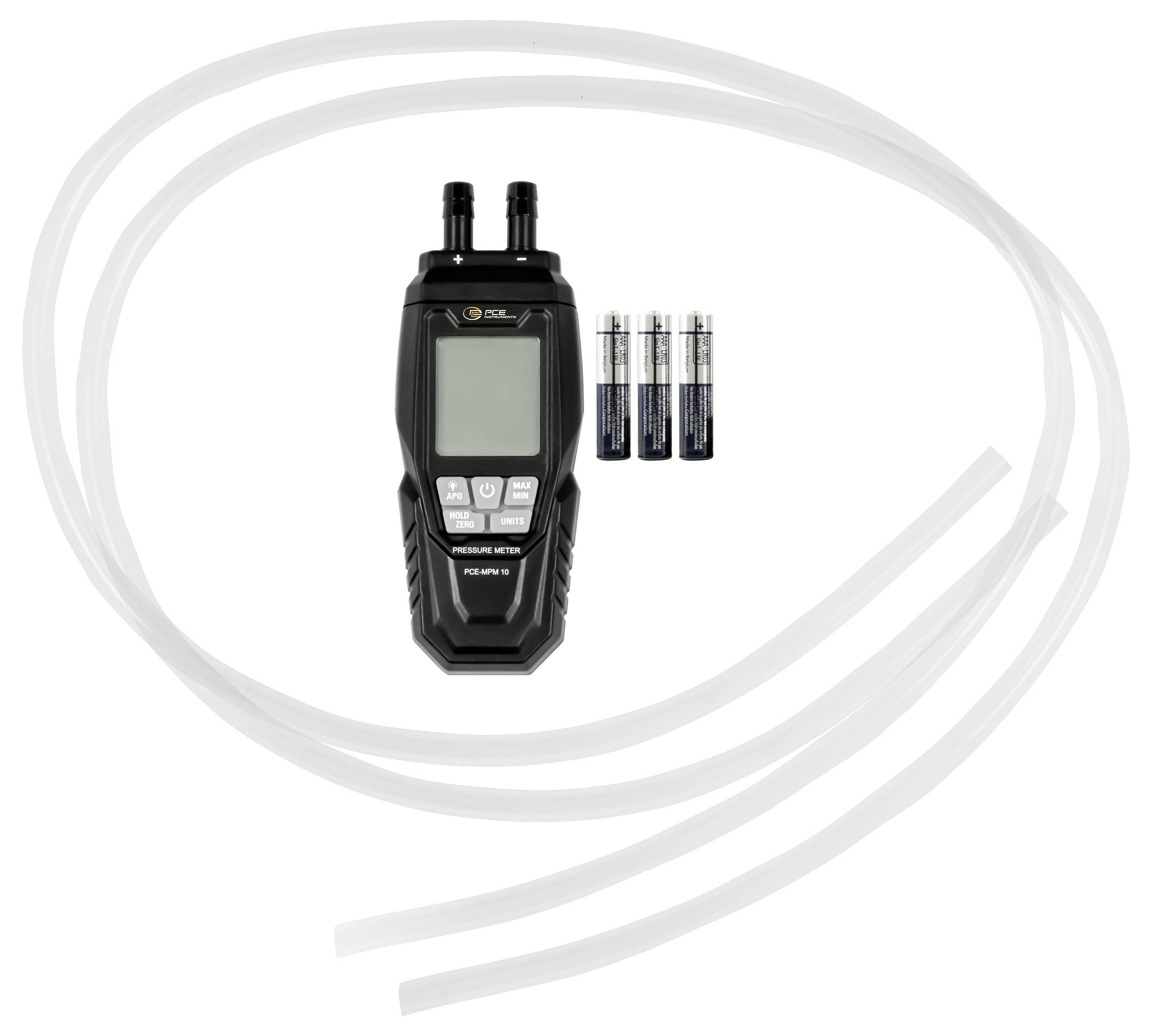

Scope of delivery
- 1 x difference pressure gauge PCE-MPM 10
- 2 x 1 m hose connection
- 3 x 1.5 V batteries
- 1x user manual
