PCE Instruments PCE-MTS500-DFG N 5K-KIT Force gauge 0 - 5000 N Manufacturer's standards (no certificate)

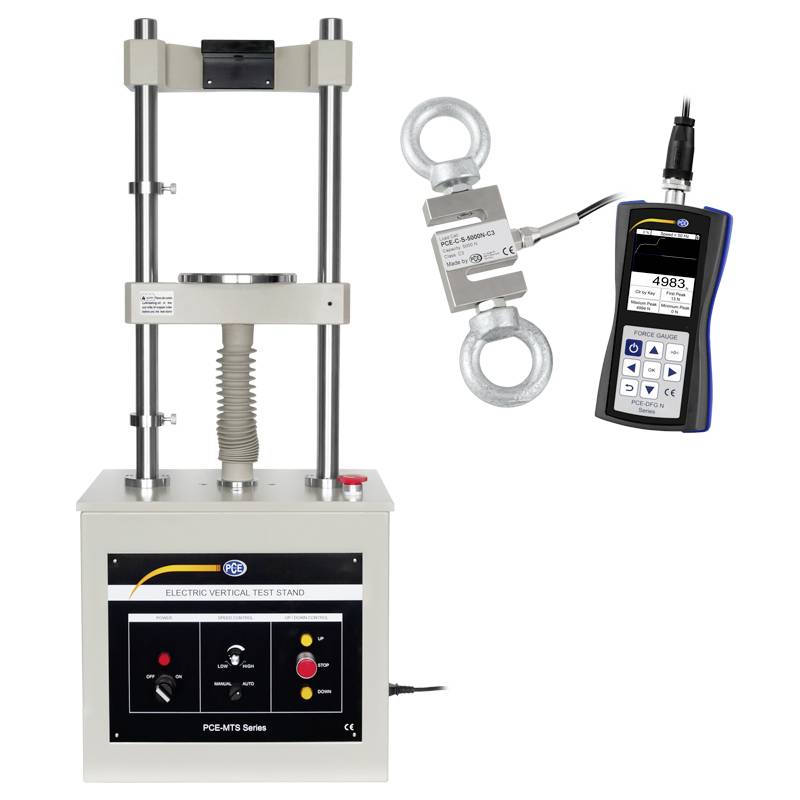

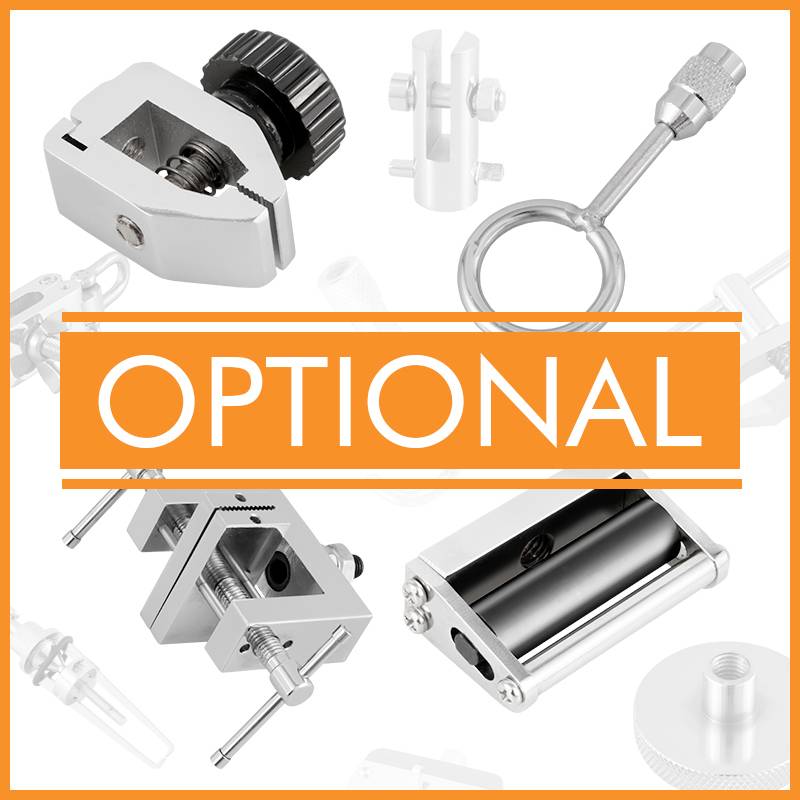

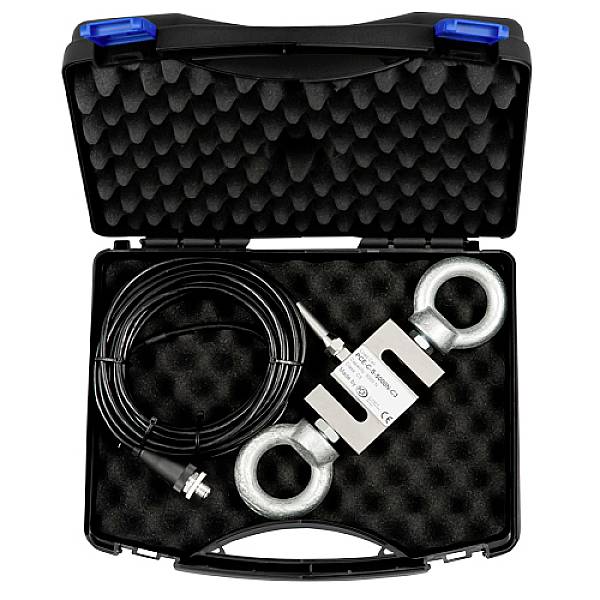

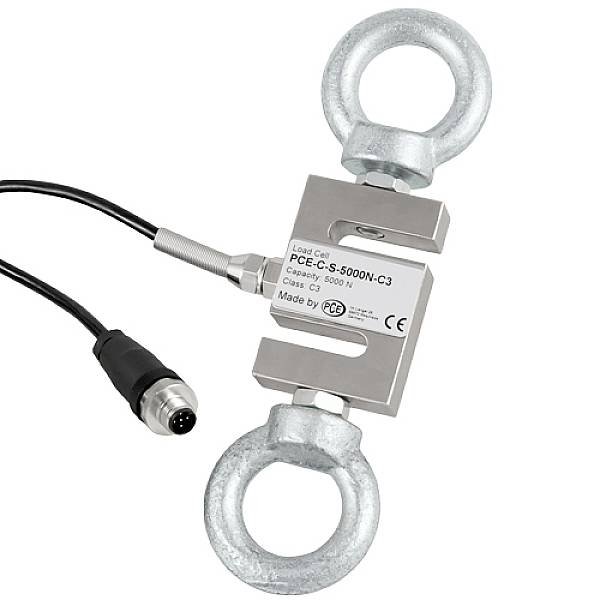

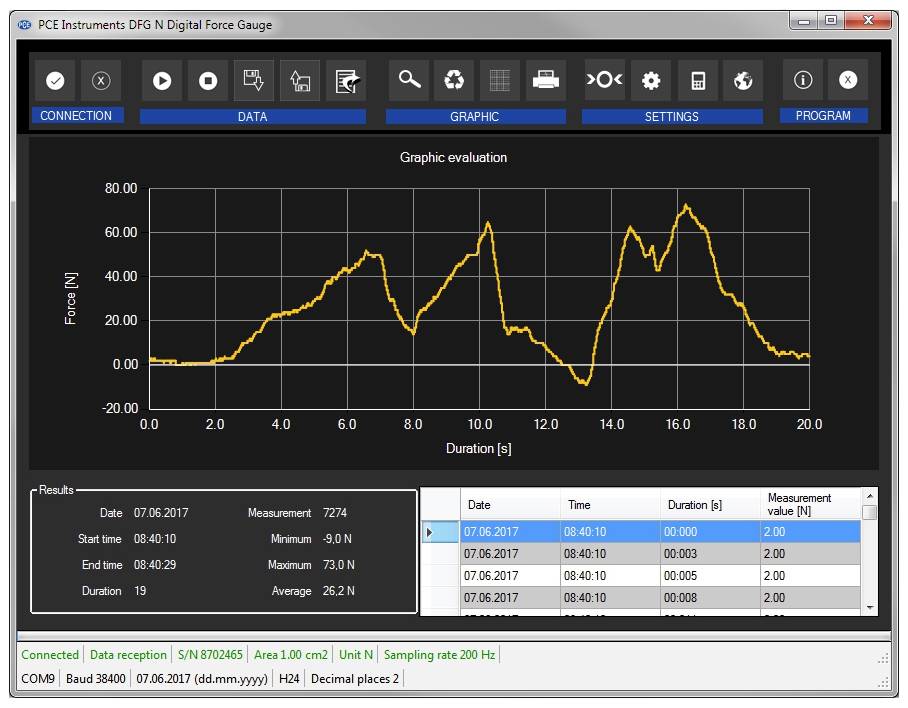

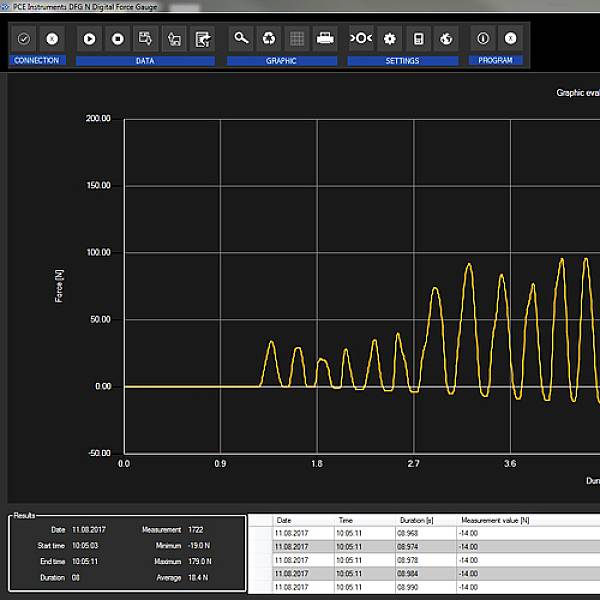

Force gauge including force measurement stand with external measurement cell and USB interface for connecting to a PC The force meter measures both tensile forces and compressive forces and this with a very high resolution. The tensile force and the pressure force are often determined in the test laboratory, e.g. for determining the distance limits, the tear-off force, the force required for operating a button or switch. The force gauge is supplied with an external measuring cell. Depending on the model, the force meter can measure up to 10000 N. 1000N, 2500N and 5000N models are also available. Different eyelets or hooks can be adapted into the measuring cells with M10 or M12 thread. However, separate devices with this thread can be mounted on the measuring cell. The force meter is equipped with a USB interface This interface enables data to be read into the PC software. It is thus possible to create measurement protocols and to save and export them. The force meter has a graphic LCD that displays the measured values numerically and in graphical form. Furthermore, the force meter is protected according to IP54 and can therefore also be used in harsh industrial environments. In the same way, trains and pressure tests can also be conducted outdoors in poor weather conditions without any problems. Various force test stands are available for adaptation to the force meter. The internal measured value storage and the hooks, extensions and tips included in the delivery round off the efficiency of this force meter. You can also trust proven industrial quality in the measurement of forces. A special feature of the PCE-DFG N force meter is that the measuring cells can be changed among the models. By entering the sensitivity in mV/V, all measuring cells can be used with only one handheld device. Motorized test bench up to 5000 N, all force measuring instruments of the PCE series with internal and external force measuring cell adaptable, large stroke distance, adjustable feed speed Our motorized test bench can be coupled and operated in a wide range of variants with our power measuring devices, the PCE series. The motorized test bench allows you to be as good as all of your pressure and tractive force applications and to be carried out with repeat precision. The use of the motorized test bench offers the operator the most precise equality of the test bench and sample. The maximum load range of the motorized test bench is 500 kg. The use of the motorized test bench requires a power connection. The feed speed can be adjusted between 30 mm/min and 230 mm/min. The precise and point-exact measuring procedure is thus guaranteed, with the motorized test bench. The force-way test stand is compatible with the following series of devices: PCE-FB series, PCE-FM series, PCE-DFG series and the PCE-PTR 200. Wherever the human body reaches its limits in terms of force measurement, the motorized test bench comes into play. The user of the motor test stand is obliged to draw up a hazard analysis. If it is found that the nature of the application and the samples poses a risk to the user, a safety device may be required - in particular for the electromotive test frames.
