PCE Instruments PCE-N50B Digital display
EAN:
Part number:
Item no:
Technical specifications
- RS 485 Modbus RTU master interface Number of slave devices / registers 10 Operating conditions 0 ... 50 °C / max. 80 % r.h. Storage conditions -25 ... 70 °C / max. 80 % r.h. Protection class Front: IP65 Back: IP20 Power supply 90 ... 250V AC Power consumption max. 7 VA Connectivity Screw connections Voltage supply: Max. 2.5 mm² Signal input: Max. 1.5 mm² Panel cut-out 90.5 x 90.5 mm Dimensions 96 x 96 x 81 mm Weight approx.: 400 g
- Product type
Digital display
- Type
PCE-N50B
- Display technology
LCD, graphic
- Recess width
90.5 mm
- Recess height
90.5 mm
- Dim
(L x W x H) 81 x 96 x 96 mm
- Weight
400 g
- Width
96 mm
- Height
96 mm
- Length
81 mm
- Interfaces
RS485
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452778 PCE Instruments PCE-N50B Digital display
Description

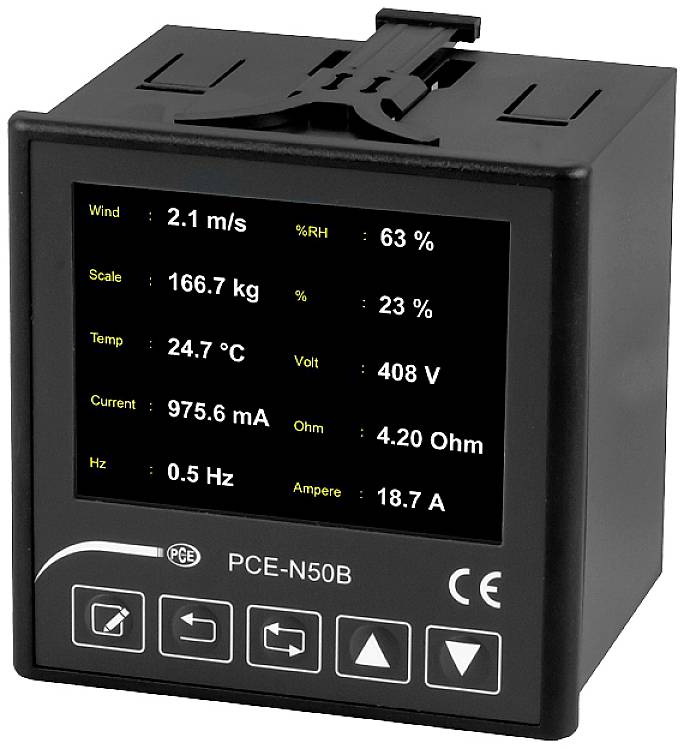

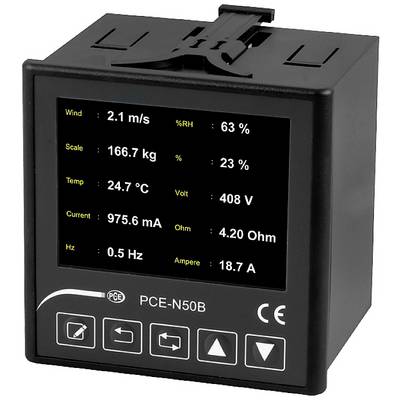

Installation display Digital installation display for 10 slave devices / 3," graphic LCD / 90.5 x 90.5 mm panel cut-out / single or multiple display / IP65 the installation display has a RS485 model bus interface. This digital Modbus installation display can display the measured data of up to 10 slave devices or registers. The Modbusmaster has a 3," LCD display as a built-in display. Here, individual measured values and also several measured values can be displayed simultaneously. The digital installation display is mounted in a 90.5 x 90.5 mm control panel section. The text before the measured value can be individually set for each query register in the digital Modbus installation display. The front of the installation display is protected according to IP 65.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Digital Modbus installation display PCE-N50B
- 2 x fixing clips
- 1x user manual
