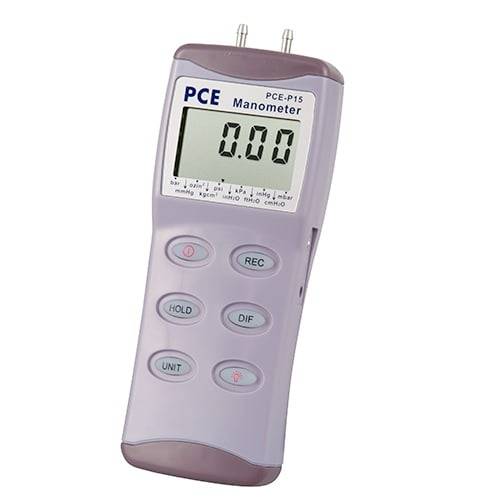

Handheld PCE manometer showing a 0.00 pressure reading, with two top sensor ports and buttons for REC, HOLD, DIF, and UNIT.

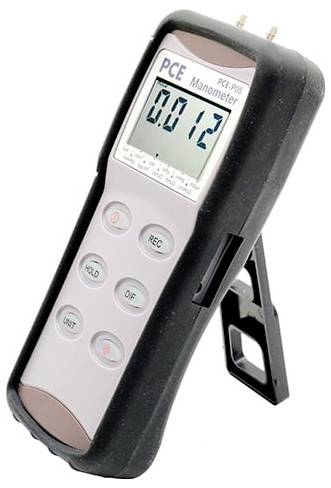

Handheld PCE manometer with digital display reading 0.012, shown in a black protective case with buttons and a stand.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Pressure METER PCE-P15

9 selectable units
Digital display of over-, under- (vacuum) or differential pressure
Min/max memory
Data-hold function Data-hold function
LCD-display with background lighting
Shock-resistant ABS housing
Auto power-off function
Other areas of application

Technical specifications

Pressure gauge parameter PCE-P15 Max. Pressure positive / negative or overpressure / vacuum 30 psi PSI Range 0...±15 Resolution 0.01 Mbar Range 0...±1000 Resolution 1 INH 2 0 Range 0...±415 Resolution 0.3 InHg Range 0...±30.5 Resolution 0.005 MmHg Range 0...±750 Resolution 0.5 KPa range 0...±100 resolution 0.1 CmH 2 0 Range 0...±1050 Resolution 1 Kg/cm² Range 0...±1.05 Resolution 0.001 Data format Baud rate: 2400 baud, 1 stop bit, 8 data bits Accuracy ±0.3 % (full range, @ +25°C) Repeatability ±0.2 % (max. ±0.5 % of final value) Duration 0.3 ms Ambient temperature max. +50 °C Battery 1 x 9 V - block battery PP3 Dimensions 182 x 72 x 30 mm Weight 150 g.

Product type: Pressure gauge

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452546 PCE Instruments PCE-P15 Pressure gauge

User & Safety Instructions

User & Safety Instructions 2452546 PCE Instruments PCE-P15 Pressure gauge

Description

PPCE-P15 pressure gauge with RS232 interface and software, for overpressure, vacuum, differential pressure, suitable for air and gases Here you can see a professional differential manometer with highest accuracy and best performance. With this differential manometer, you can not only measure. The pressure readings can be easily transferred online to a PC or laptop. The differential manometer is ideal for use in industry, service and in the laboratory. The device is especially suitable for measuring non-corrosive media. The overload protection is equal to double the measuring range. The 9 units that can be displayed make this differential manometer universally applicable for the practitioner on site and saves the tedious conversion of the measurement results (conversion table of the pressure units). If you want to transfer the measured data from the differential manometer to the computer, you need the optional software and the RS-232 interface cable. The software runs in conjunction with Windows® versions `95, `98, `2000 and ME/XP (brief info: Pressure measuring device with interface). The principle of absolute and differential pressure measurement is explained if you follow the link below: Principle of absolute and differential pressure measurement. DIN ISO 9000 calibration certificates of the pressure gauges as well as corresponding accessories are also available. Software, the software for data transfer and the interface cable can be ordered as an option in the package. The differential manometer is connected to the PC with the RS-232 cable. The installation of the software is performed from the CD. The images below give you an optical impression of the software. The differential manometer transmits the respective measured values online to the PC. The values determined on the differential manometer are applied directly to the y-axis. The differential pressure values are indicated by "-" in a field below the graphic (visible on the top left image (in the red circle). The measuring units can be changed to the desired unit both on the differential manometer and in the software. All measured values are written to a data file and can be saved under any name on the hard disk of the computer. Many customers also transfer the values to e.g. MS Excel for further analysis.
