Buy PCE Instruments PCE-P17PT-1 PT-100 converter PCE-P17PT-1

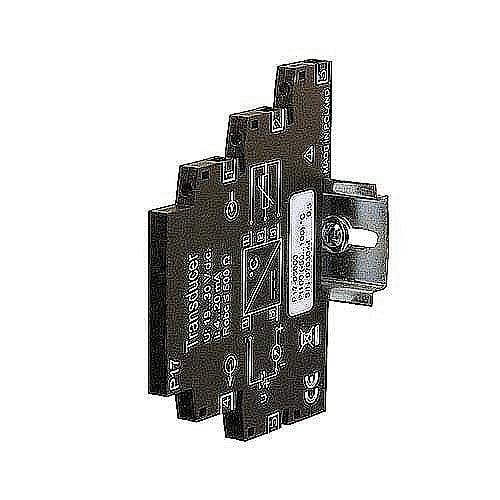

Black DIN-rail style electrical module labeled 'Transducer' with terminals and side mounting clip on a white background.

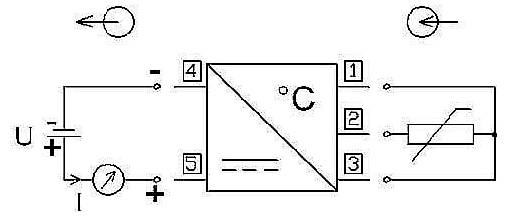

Electrical measurement diagram showing a device with four terminals, labeled 1 to 5, with voltage U and current I connections and arrows indicating direction.

1/2

Type

PCE-P17PT-1

Manufacturer part #

PCE-P17PT-1

Calibrated to

Manufacturer's standards (no certificate)

Product type

ATA

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PT-100 converter

Signal converter for thermocouples
Power supply via current loop
Small installation width
Mounting on DIN rail
Output 4 ... 20 mA
Easy to set up

Technical specifications

Type: PCE-P17PT-1

Manufacturer part #: PCE-P17PT-1

: Manufacturer's standards (no certificate)

Product type: ATA

Documents & Downloads

Datasheet

Datasheet 2452547 PCE Instruments PCE-P17PT-1 PT-100 converter PCE-P17PT-1

User & Safety Instructions

User & Safety Instructions 2452547 PCE Instruments PCE-P17PT-1 PT-100 converter PCE-P17PT-1

Description

PT-100 converter for resistance thermometers / conversion to 4 ... 20 mA / only 6.2 mm wide / DIN rail mounting / Power supply 19 ... 30 V DC of the PT-100 converter PCE-P17PT converts the output signal from a PT100. The PT-100 converter PCE-P17PT gives the temperature signal as 4 ... 20 mA standard signal off. This standardized signal enables easy further processing. The PT-100 converter PCE-P17PT impresses with its simplicity. The PT-100 PCE-P17PT converter is supplied via a current loop. No special power supply is required for the PT-100 PCE-P17PT converter.

This text is machine translated.

Scope of delivery

Supplied with PT-100 converter PCE-P17PT
1 x PT-100 converter PCE-P17PT-1
1x user manual
