Buy PCE Instruments PCE-P17PT-2 PT-100 CONVERTER PCE-P17PT

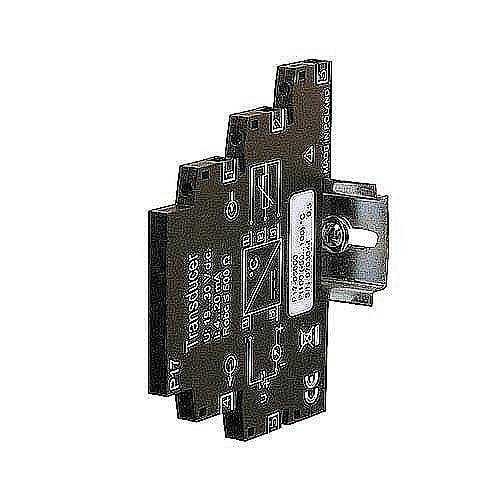

Black DIN-rail signal conditioner module with printed wiring symbols and side screw terminal on a white background.

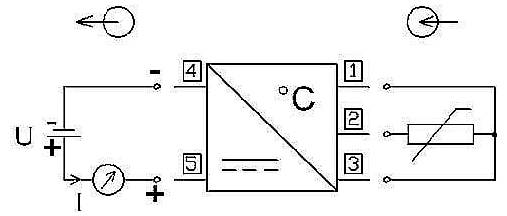

Electrical circuit diagram showing a Celsius-to-resistance style sensor block with four terminals, connected to voltage input, current meter, and output/load wiring.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PT-100 CONVERTER PCE-P17PT

PT-100 converter for resistance thermometersConversion to 4 ... 20 mAOnly 6.2 mm wideTop hat DIN rail mountingFeed 19 ... 30 V DC

Technical specifications

Technical data PT-100 converter PCE-P17PTInput signal PT100Measurement range -50 °C ... 400 °C.Output signal 4 ... 20 mALoad (rLoad) max. 500 ΩConductor cross-section 0.2 mm² ... 2.5 mm² (AWG24-12)Mounting width 6.2 mmPower supply 19 ... 30 V DCWeight 80 gAmbient temperature - 20 °C ... 65 °CAmbient humidity < 95% non-condensingDimensions 77.5 x 6.2 x 100 mm

Dim: (L x W x H) 77.5 x 6.2 x 100 mm

Width: 6.2 mm

Height: 100 mm

Length: 77.5 mm

Documents & Downloads

Datasheet

Datasheet 2813619 PCE Instruments PCE-P17PT-2 PT-100 CONVERTER PCE-P17PT

User & Safety Instructions

User & Safety Instructions 2813619 PCE Instruments PCE-P17PT-2 PT-100 CONVERTER PCE-P17PT

Description

The PT-100 converter PCE-P17PT converts the output signal from a PT100. The PT-100 converter PCE-P17PT gives the temperature signal as 4 ... 20 mA standard signal off. This standardized signal enables simple further processing. The PT-100 converter PCE-P17PT impresses with its simplicity. The PT-100 converter PCE-P17PT is powered by a current loop. No special power supply is required for the PT-100 converter PCE-P17PT.
