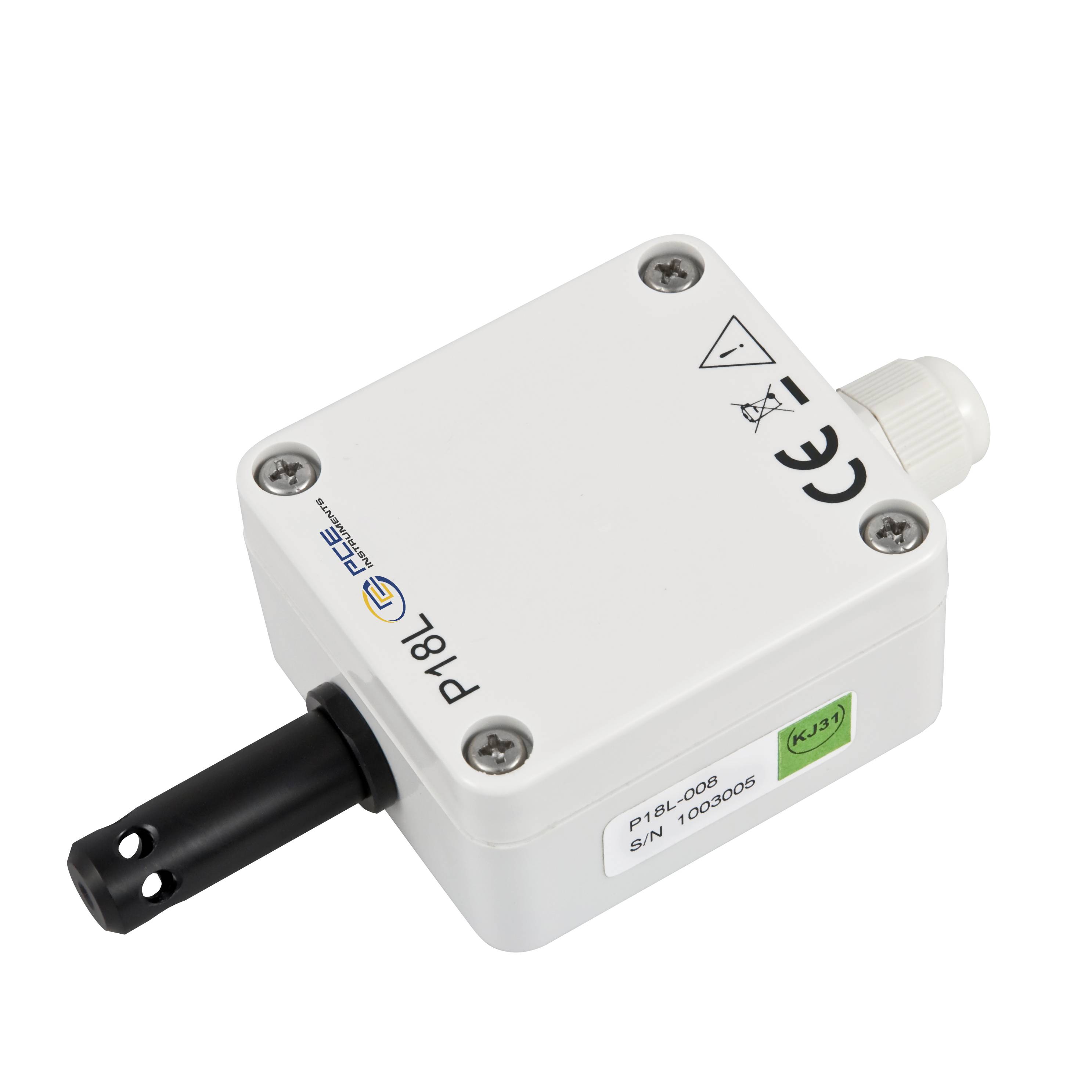

PCE Instruments PCE-P18L Humidity transducer 0 RH 100 RH
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Air humidity<>br Measuring range: 0 ... 100 % RH
- Accuracy: ± 2 % (in the range 10 % .... 90 % rF) ± 3 % (remaining range) <>br Hysteresis: ± 1 % rF
- <><><><>br b Temperature /b br Range: - 20 ... 60 °C
- Accuracy: ±0.7 % of measurement range
- Temperature influence: ± 25 % / 10 °C
- <><><>
- Output Current: 4 ... 20 mAmax. connectable resistance at output: 500
- Supply voltage: 19 V ... 30 V DC
- Power: < 1.5 W
- Output variable adjustment: Via DIP switch
- Ambient temperature: - 30 °C ... 85 °C<>max. Humidity: 95 % r.h.
- Pre-heating time: 15 minutes<>
- : IP 65 br Mounting: Wall mounting
- Dimensions (b x h x t): 35 x 58 x 118 mm<>Weight 125 g
- Product type
Humidity transducer
- Max. temperature
+60 °C
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 118 x 35 x 58 mm
- Weight
125 g
- Basic accuracy
2 %
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Width
35 mm
- Height
58 mm
- Length
118 mm
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3192933 PCE Instruments PCE-P18L Humidity transducer 0 RH 100 RH
User & Safety Instructions
User & Safety Instructions 3192933 PCE Instruments PCE-P18L Humidity transducer 0 RH 100 RH
Description
The HVAC meter converts temperature or humidity into a 4 ... 20 mA signal / high-precision supply via current loop / wall mounting<>
The humidity converter PCE-P18L was developed and designed for permanent monitoring of temperature or humidity. The compact dimensions of the temperature converter distinguish this device. The temperature and air humidity are measured with a semiconductor device. Internally, the measured physical quantities are stored in a 4 ... 20 mA standard signal converted. The supply of this measuring instrument with a DC voltage in a current loop is therefore best suited for displays with transmitter supply. It can also be connected to screen recorders for permanent monitoring of the environmental conditions.
<>- Temperature and humidity sensor
- 4 ... 20 mA output
- simple wall mounting
- for permanent monitoring
- small dimensions br<>
This text is machine translated.
The humidity converter PCE-P18L was developed and designed for permanent monitoring of temperature or humidity. The compact dimensions of the temperature converter distinguish this device. The temperature and air humidity are measured with a semiconductor device. Internally, the measured physical quantities are stored in a 4 ... 20 mA standard signal converted. The supply of this measuring instrument with a DC voltage in a current loop is therefore best suited for displays with transmitter supply. It can also be connected to screen recorders for permanent monitoring of the environmental conditions.
<>- Temperature and humidity sensor
- 4 ... 20 mA output
- simple wall mounting
- for permanent monitoring
- small dimensions br<>
This text is machine translated.
Scope of delivery
- 1 x humidity converter PCE-P18L
1 x manual
