PCE Instruments PCE-PA 8000 Network diagnostics Data logger, Clamp meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Power meter PCE-PA 8000
- 3 Phase power analysis in 3Phasen/4Leiter, 3Phasen/3Leiter, 1Phase/2Leiter, 1Phase/3Leiter networks
- True RMS Measurement of current and voltage
- Measurement of active, apparent and reactive power
- Determination of phase angle and power factor
Technical specifications
- Voltage measurement (AC V) Measurement range 10 V ... 600 V (phase to neutral) 10 V ... 600 V (phase to phase ) Resolution 0.1 V. Accuracy ± (0.5 % + 0.5 V) Current measurement (AC A) Measurement range 20 A Resolution 0.001 A (< 10 A) 0.01 A (=10 A) Accuracy ± (0.5 % + 0.1 A) Measurement range 200 A Resolution 0.01 A (< 100 A) 0.1 A (= 100 A) Accuracy ± (0.5 % + 0.5 A) Measurement range 1200 A Resolution 0.1 A (< 1000 A) 1 A (= 1000 A) Accuracy ± (0.5 A + 5 A) Active power Measuring range Resolution Accuracy 0 KW ... 9,999 KW 10 KW ... 99.99 KW 100 KW ... 999.9 KW 1 MW ... 9.999 MW 0.001 KW 0.01 KW 0.1 KW 0.001 MW ± (1 % + 0.008 KW) ± (1 % + 0.008 KW) ± (1 % + 0.8 KW) ± (1 % + 0.008 MW) Apparent power Measuring range Resolution Accuracy 0 KVA ... 9,999 KVA 10 KVA ... 99.99 KVA 100 KVA ... 999.9 KVA 1 MVA ... 9.999 MVA 0.001 KVAR 0.01 KVAR 0.1 KVAR 0.001 MVAR ± (1 % + 0.008 KVAR) ± (1 % + 0.08 KVAR) ± (1 % + 0.8 KVAR) ± (1 % + 0.008 MVAR) Reactive power Measuring range Resolution Accuracy 0 KVAR ... 9.999 KVAR 10 KVAR ... 99.99 KVAR 100 KVAR ... 999.9 KVAR 1 MVAR ... 9.999 MVAR 0.001 KVAR 0.01 KVAR 0.1 KVAR 0.001 MVAR ± (1 % + 0.008 KVAR) ± (1 % + 0.08 KVAR) ± (1 % + 0.8 KVAR) ± (1 % + 0.008 MVAR) Active energy Measuring range Resolution Accuracy 0 KWH ... 9,999 KWH 10,00 KWH ... 99.99 KWH 100.0 KWH ... 999.9 KWH 1 MWH ... 9.999 MWH 0.001 kWh 0.01 kWh 0.01 kWh 0.001 MMH ± (2% + 0.008 kWh) ± (2% + 0.08 kWh) ± (2% + 0.8 kWh) ± (2% + 0.008 MWh) Apparent energy Measuring range Resolution Accuracy 0 KVAH ... 9.999 KVAH 10.00 KVAH ... 99.99 KVAH 100.0 KVAH ... 999.9 KVAH 1 MVAH ... 9.999 MVAH 0.001 kVAh 0.01 kVAh 0.01 kVAh 0.001 MVAh ± (2 % + 0.008 kVAh) ± (2 % + 0.08 kVAh) ± (2 % + 0.8 kVAh) ± (2% + 0.008 MVAh) Reactive energy Measuring range Resolution Accuracy 0 KVARH ... 9.999 KVARH 10.00 KVARH ... 99.99 KVARH 100.0 KVARH ... 999.9 KVARH 1 MVARH ... 9.999 MVARH 0.001 kVARh 0.01 kVARh 0.01 kVARh 0.001 MVARh ± (2 % + 0.008KVARh) ± (2 % + 0.08 kVARh) ± (2 % + 0.8 kVARh) ± (2 % + 0.008 MVARh) Power factor measuring range 0 ... 1 Resolution 0.01 Accuracy ± 0.04 Phase angle Measurement range -180° ... 180° Resolution 0.1° Accuracy ± 1° Frequency measuring range 45 Hz ... 65 Hz Resolution 0.1 Hz Accuracy 0.1 Hz General specifications Display 3.7 " dot matrix LCD (320 * 240 pixels) with LED background lighting Measurable electrical variables AC V, AC A, active power, apparent power, active power, Power factor, phase angle, line frequency Voltage measuring ranges 10 V ... 600V AC, automatic range selection Current measuring range 0.2 A ... 1200A AC, automatic / manual range selection SAFETY STANDARD IEC1010CAT III 600V Input resistance AC V 10 MOhm Working frequency Current clamps 40 Hz ... 1 kHz tested working frequency Current clamps 45 Hz ... 65 Hz Overload protection AC A AC V 720 V RMS 1300A with clip-on ammeter Data memory SD card Recording interval 2 seconds ... 7200 seconds Data logger function Real-time storage on SD card Data output via USB or RS232 depending on the connection cable Operating temperature 0 °C ... 50 °C Ambient humidity< 80 % RH Power supply 8 x 1.5 V AA batteries, 9V power supply Current consumption meter: 300 mA DC Clamp-on ammeter 34 mA DC Maximum cable diameter 50 mm Weight Measuring device: 948 g (incl. batteries) Clamp-on ammeter 467 g (incl. cable) Dimensions Meter 225 x 125 x 64 mm Current Clamp 210 x 64 x 33 mm Clamping jaw 86 mm (outer)
- Product type
Network diagnostics
- Reading category
CAT III 600 V
- Phase detection
Yes (built-in)
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 225 x 125 x 64 mm
- Weight
948 g
- Features
Data logger
Clamp meter
- Width
125 mm
- Height
64 mm
- Length
225 mm
Documents & Downloads
Datasheet
Datasheet 2452550 PCE Instruments PCE-PA 8000 Network diagnostics Data logger, Clamp meter
User & Safety Instructions
User & Safety Instructions 2452550 PCE Instruments PCE-PA 8000 Network diagnostics Data logger, Clamp meter
Description

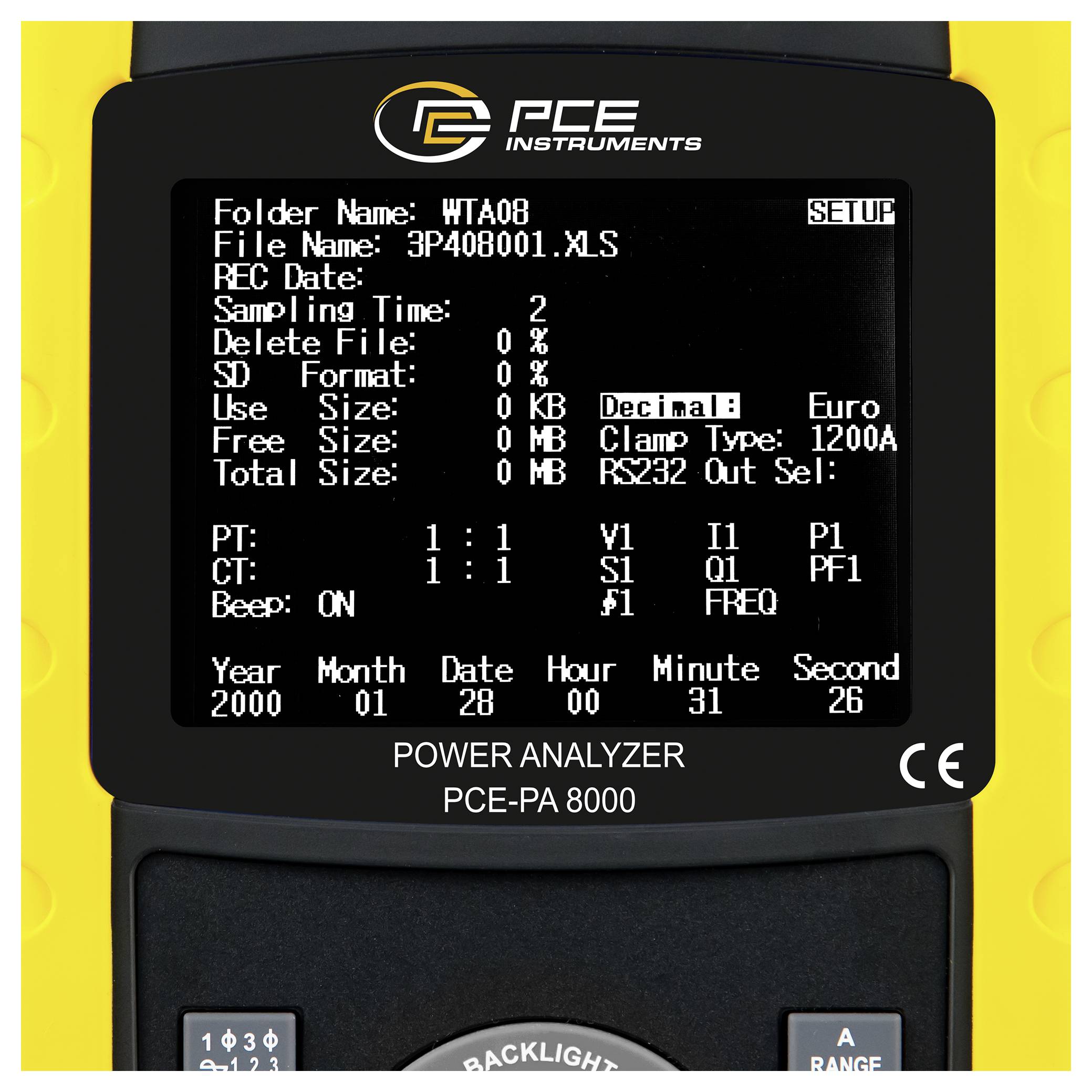

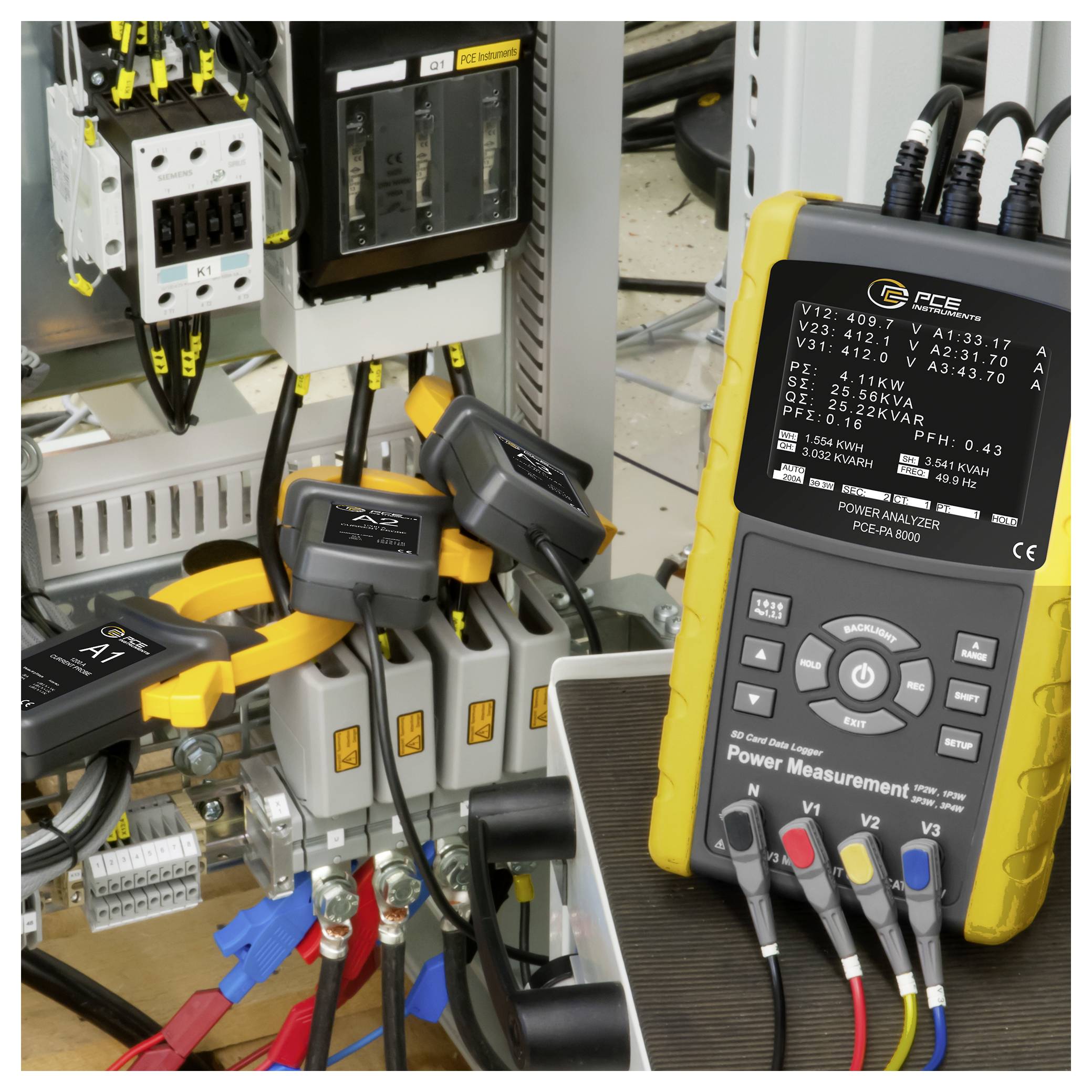

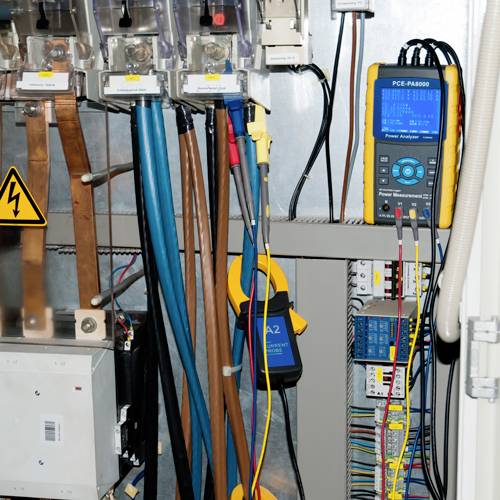

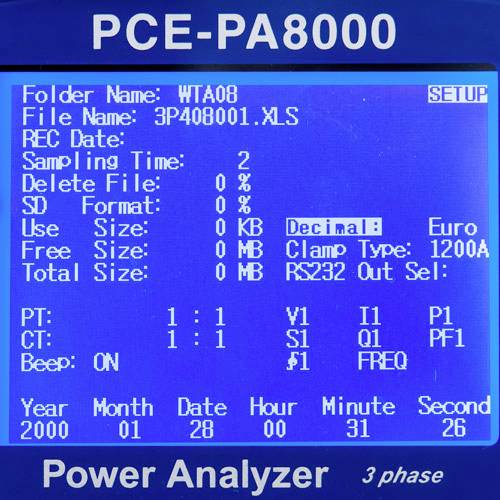

HVAC meter PCE-PA 8000 with data memory on SD card, PC interface with the ammeter with PCE-PA 8000 clamp meter, it is possible to measure and record the power in a single and three phase circuit. Long-term measurements can be made with the ammeter PCE-PA 8000. The measuring data is stored on a pluggable SD card in XLS format. This allows the measurement data to be conveniently evaluated on the computer. The interval of the recording can be freely selected from 2 to 7200 seconds. The energy meter is able to carry out energy measurements as well as to determine the power factor and the phase angle. The current clamps of the PCE-PA 8000 power analyzer can be used for conductor diameters up to 50mm. Thus, the measuring device is best suitable for use in the power supply network. All measured values can be read at a glance through the large 3.7" display. This enables a quick analysis of the current measured values and provides an overview of the current, voltage and the power consumed.
This text is machine translated.
This text is machine translated.

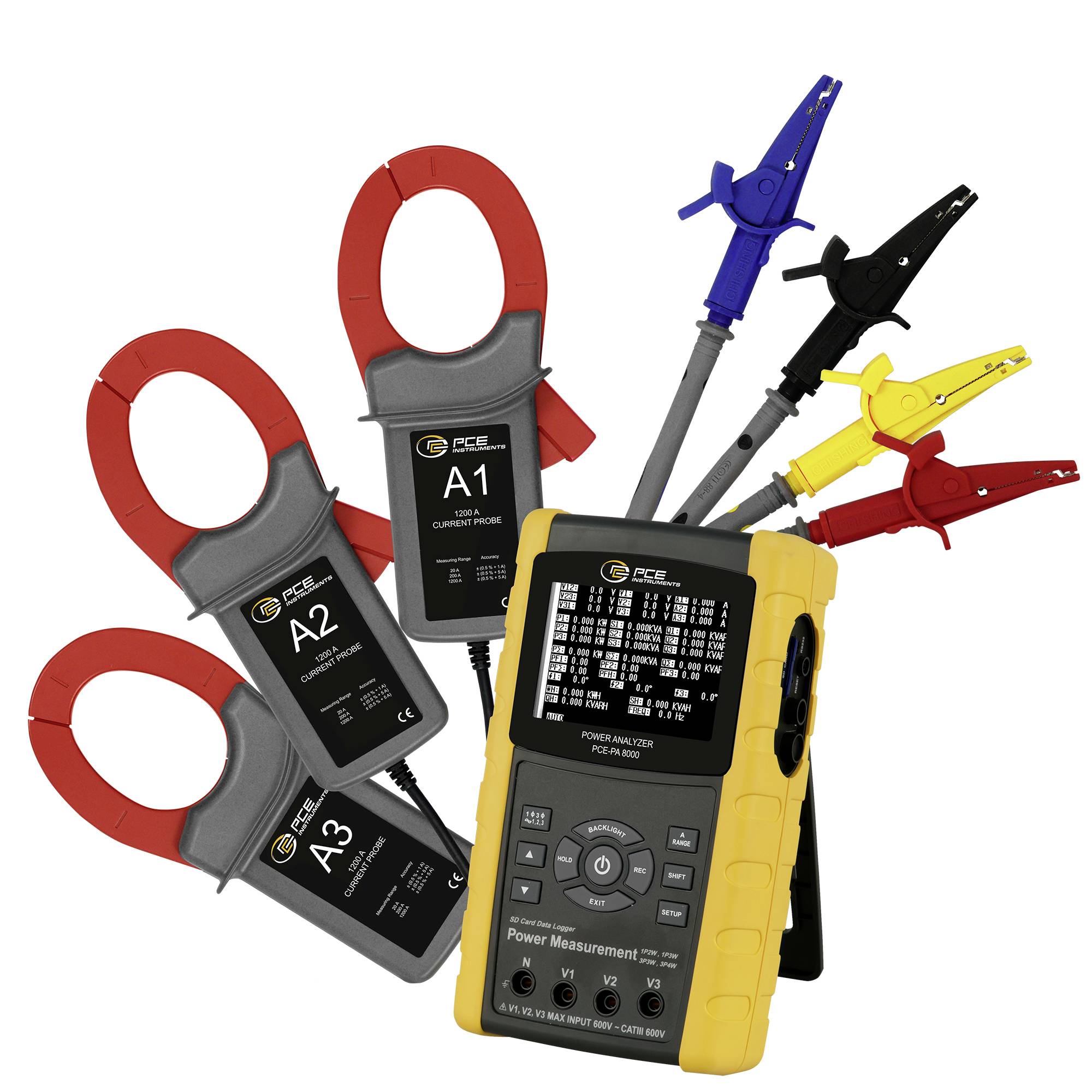

Scope of delivery
- 1 x PCE-PA 8000 power meter

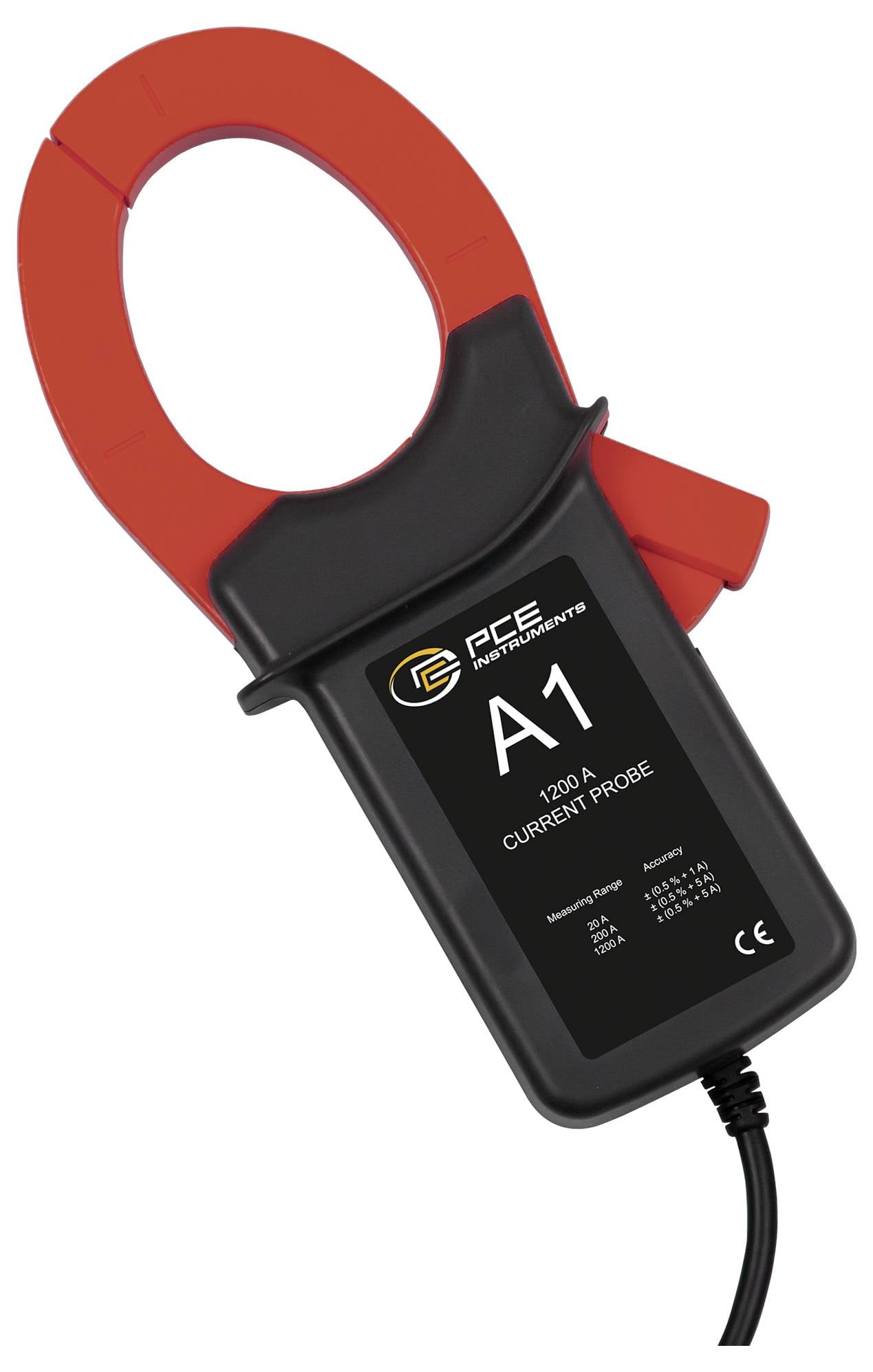

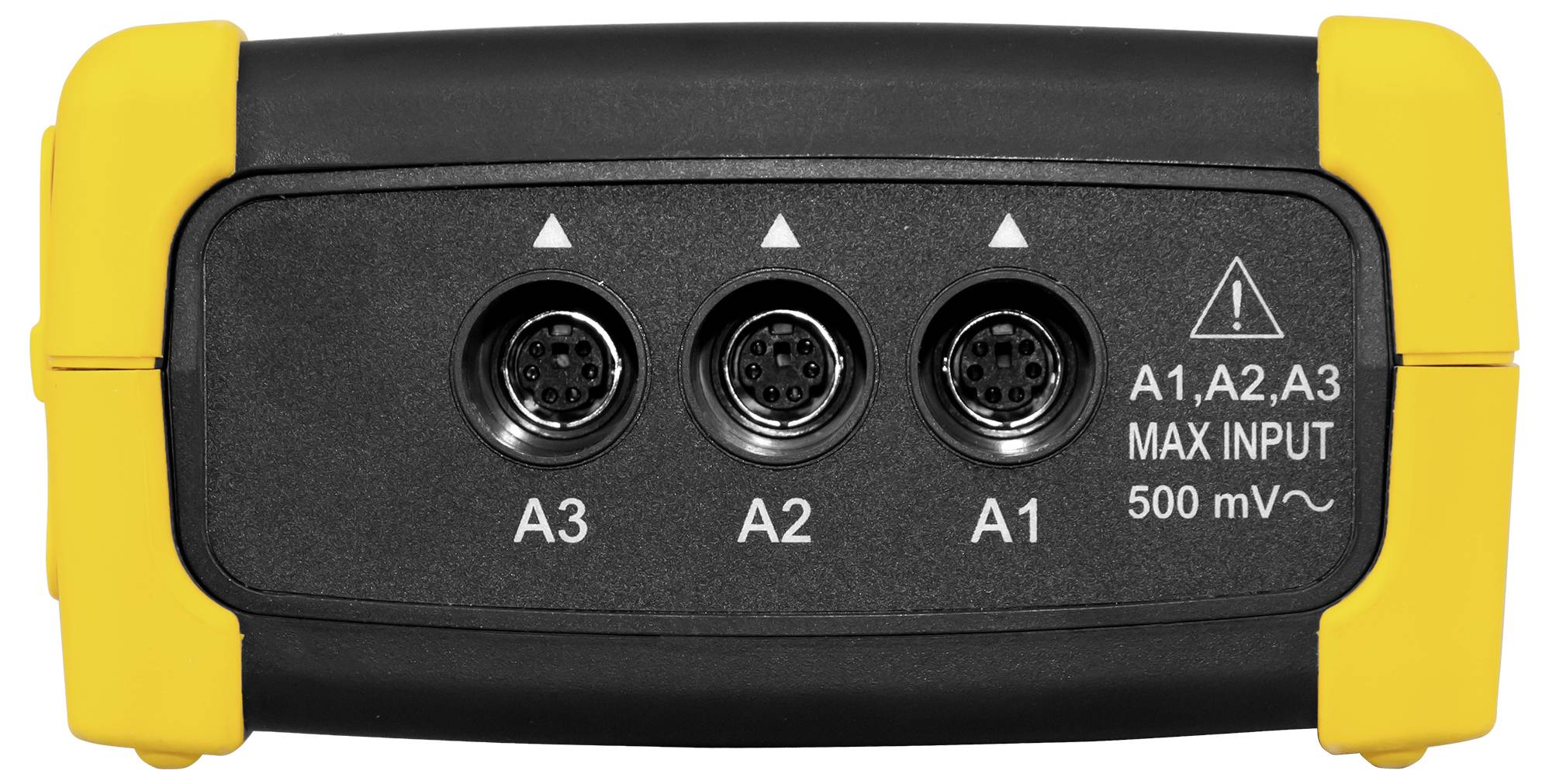

- 3 x clamp-on ammeter
- 4 x test leads
- 4 x alligator clips
- 1 x SD memory card 2 GB
- 1 x power supply 9V DC
- 8 x 1.5 V AA batteries
