Name: PCE Instruments PCE-PA 8300-1-ICA Network diagnostics Calibrated to (ISO standards) 3-phase Data logger, Clamp meter, Po
Brand: PCE Instruments
SKU: 3812651

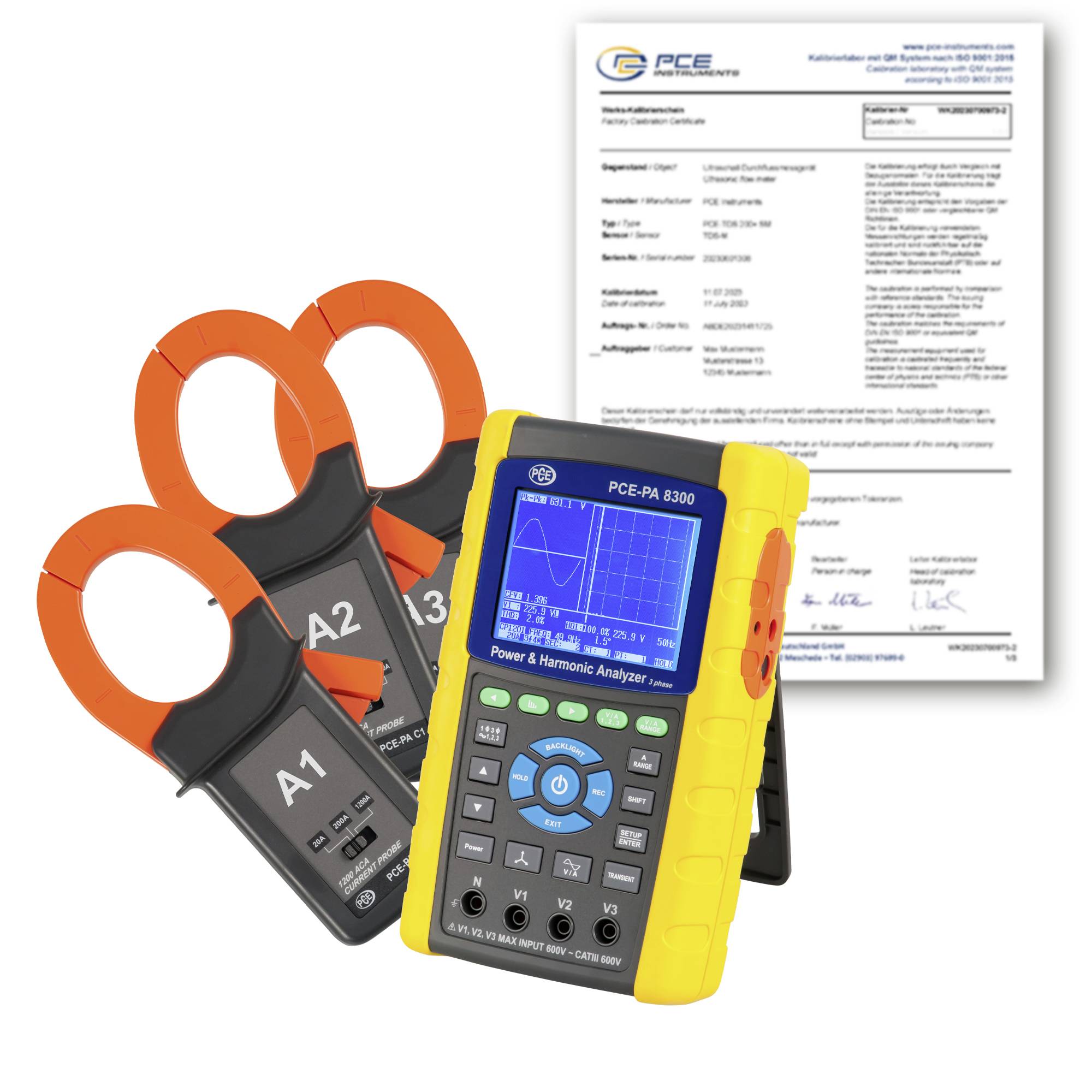

Power and harmonic analyzer with three clamp sensors in front of a calibration certificate document.

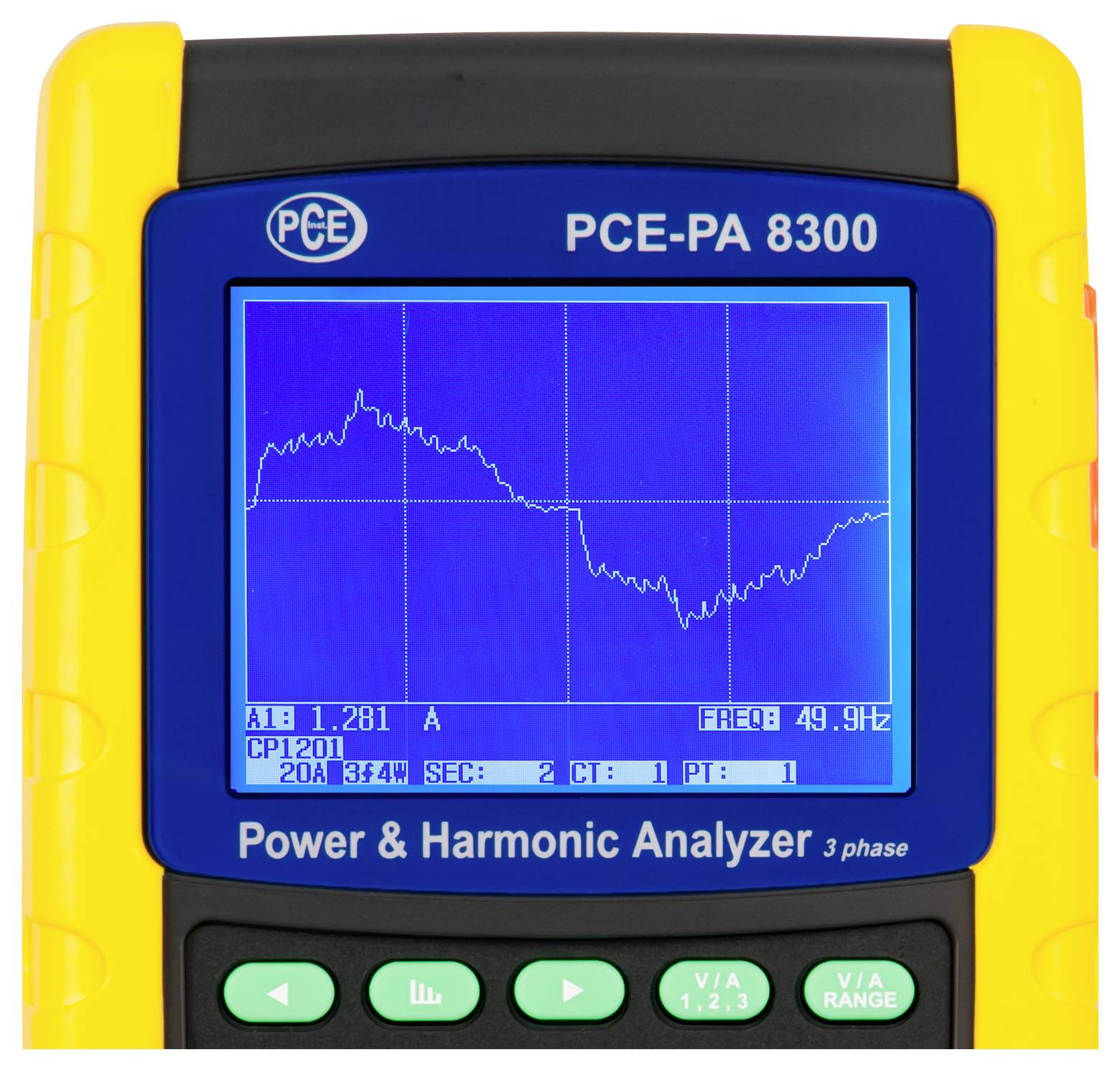

Handheld PCE-PA 8300 power and harmonic analyzer showing a blue screen with a fluctuating waveform and frequency reading of 49.9 Hz.

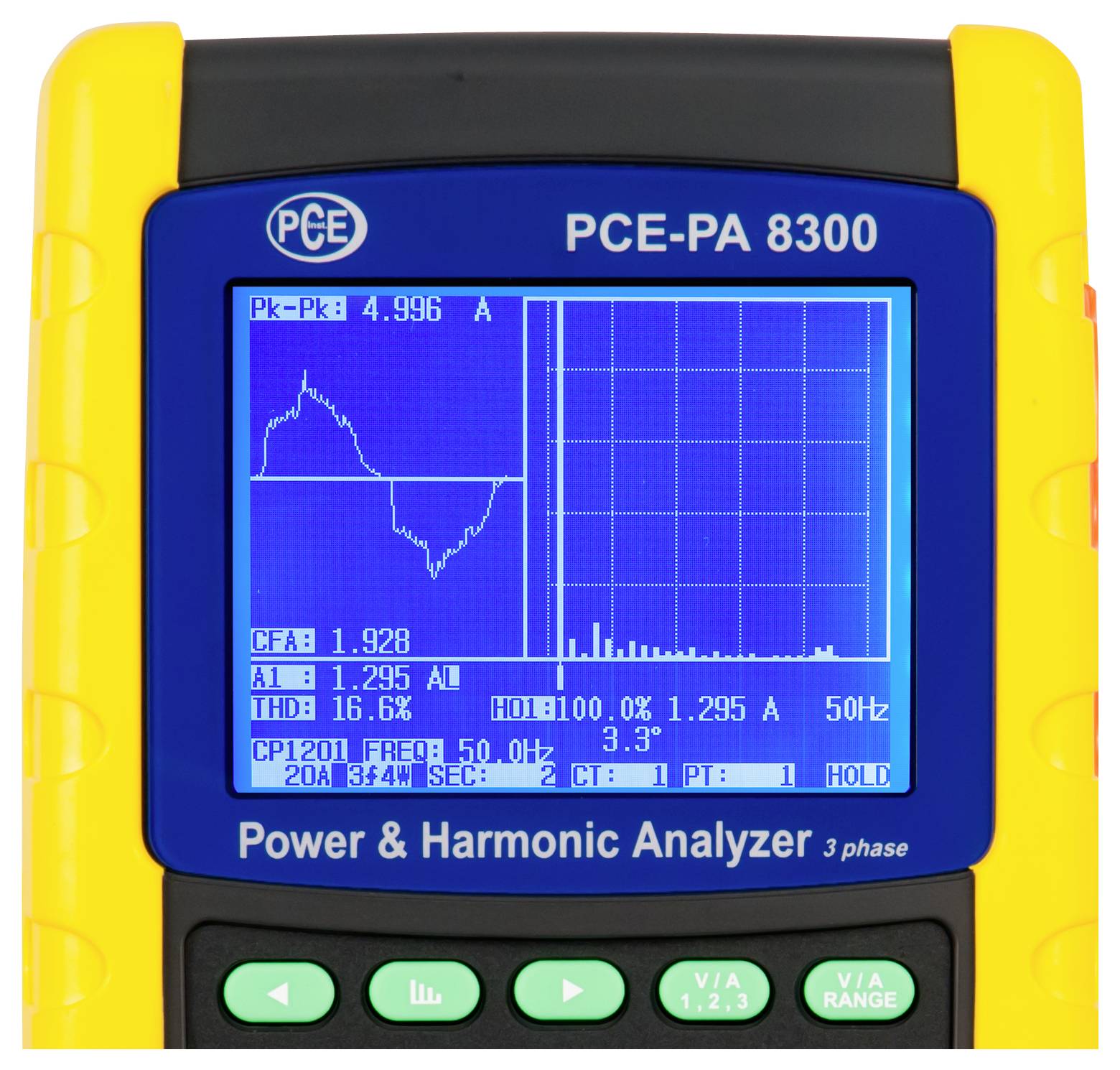

Handheld PCE-PA 8300 power and harmonic analyzer showing waveform and spectrum readings on a blue display.

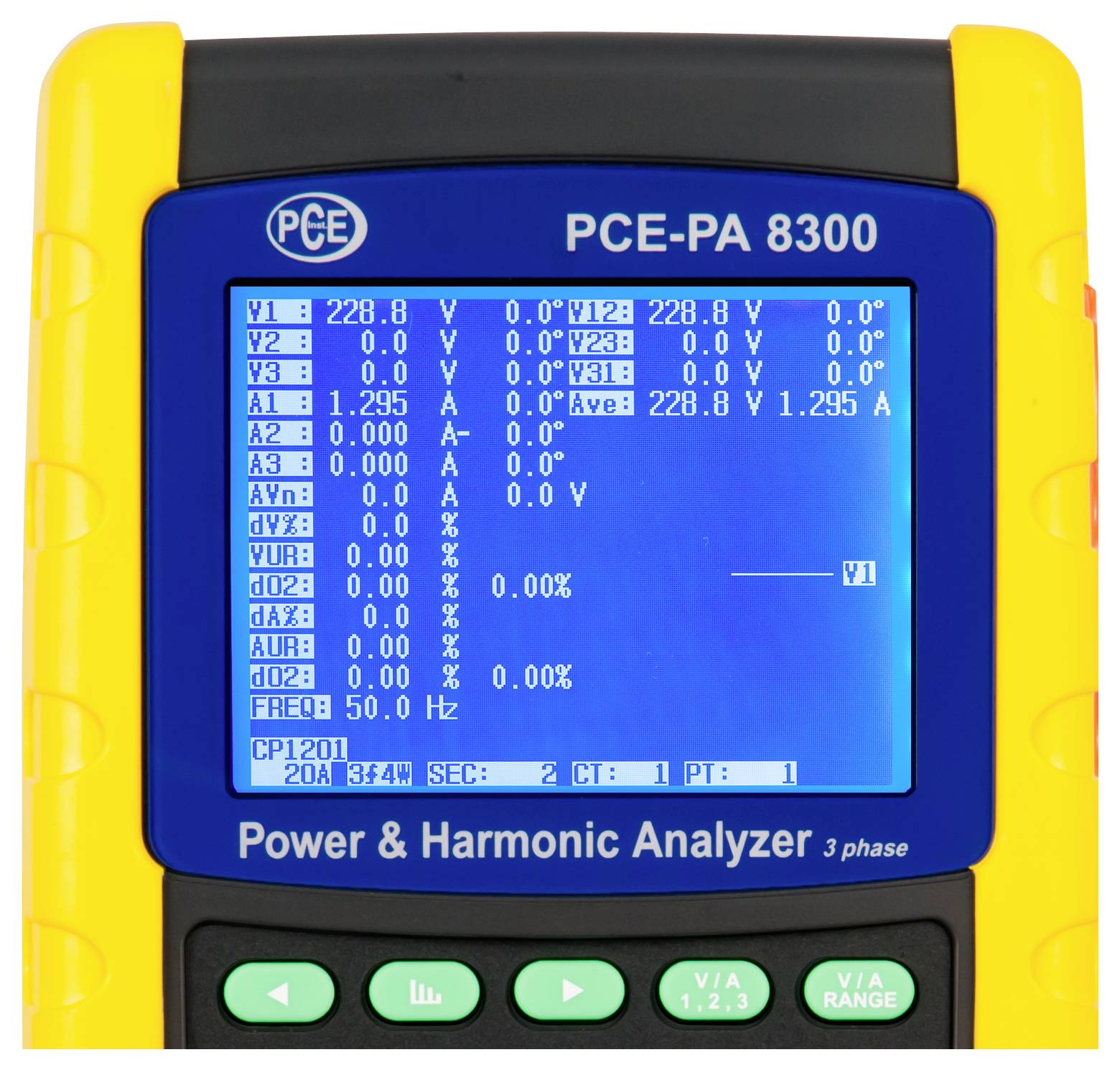

PCE-PA 8300 three-phase power and harmonic analyzer displaying voltage, current, and frequency readings on its screen.

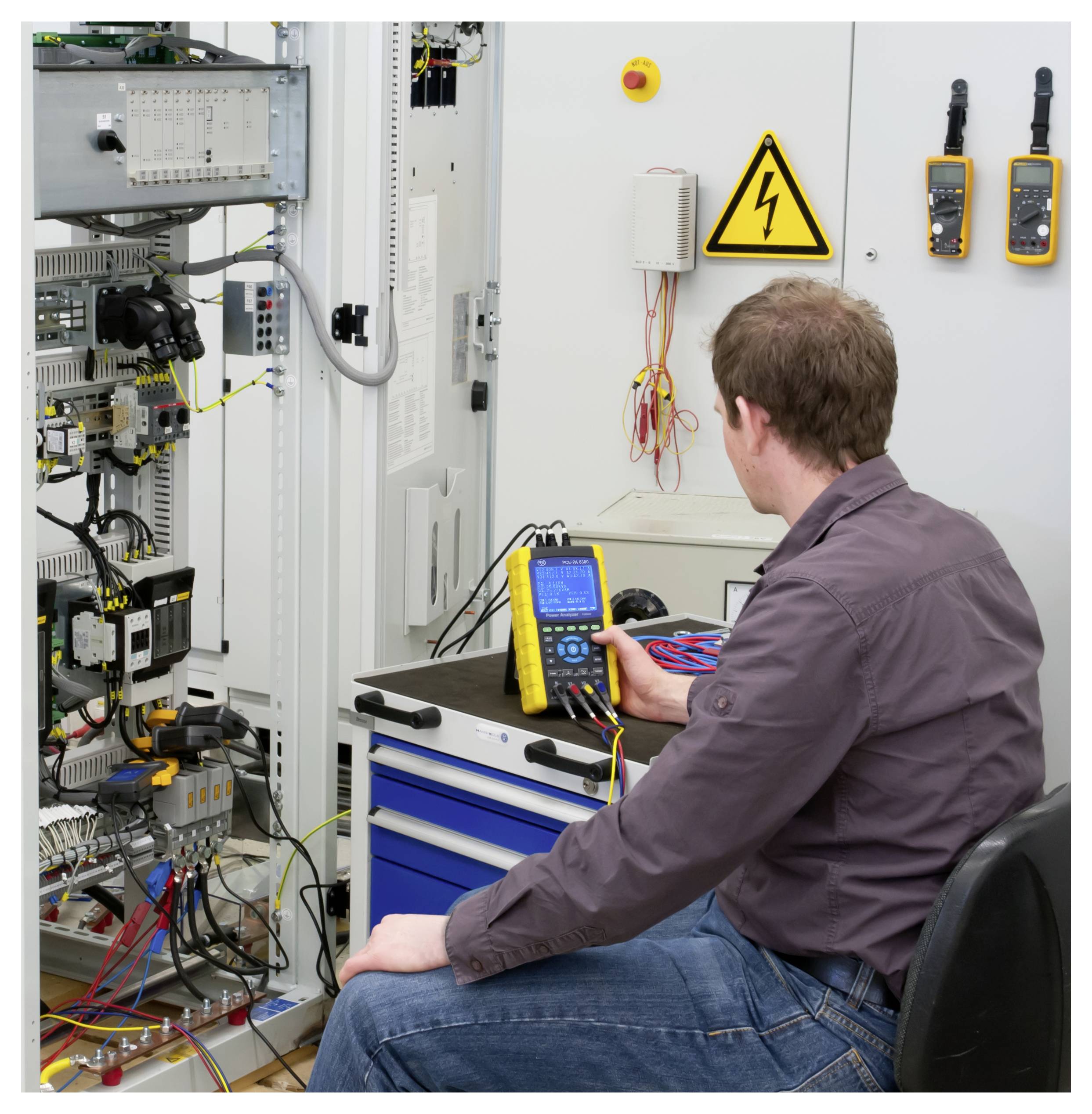

Technician testing electrical control panel wiring with a handheld meter in a workshop, near a high-voltage warning sign.<br>

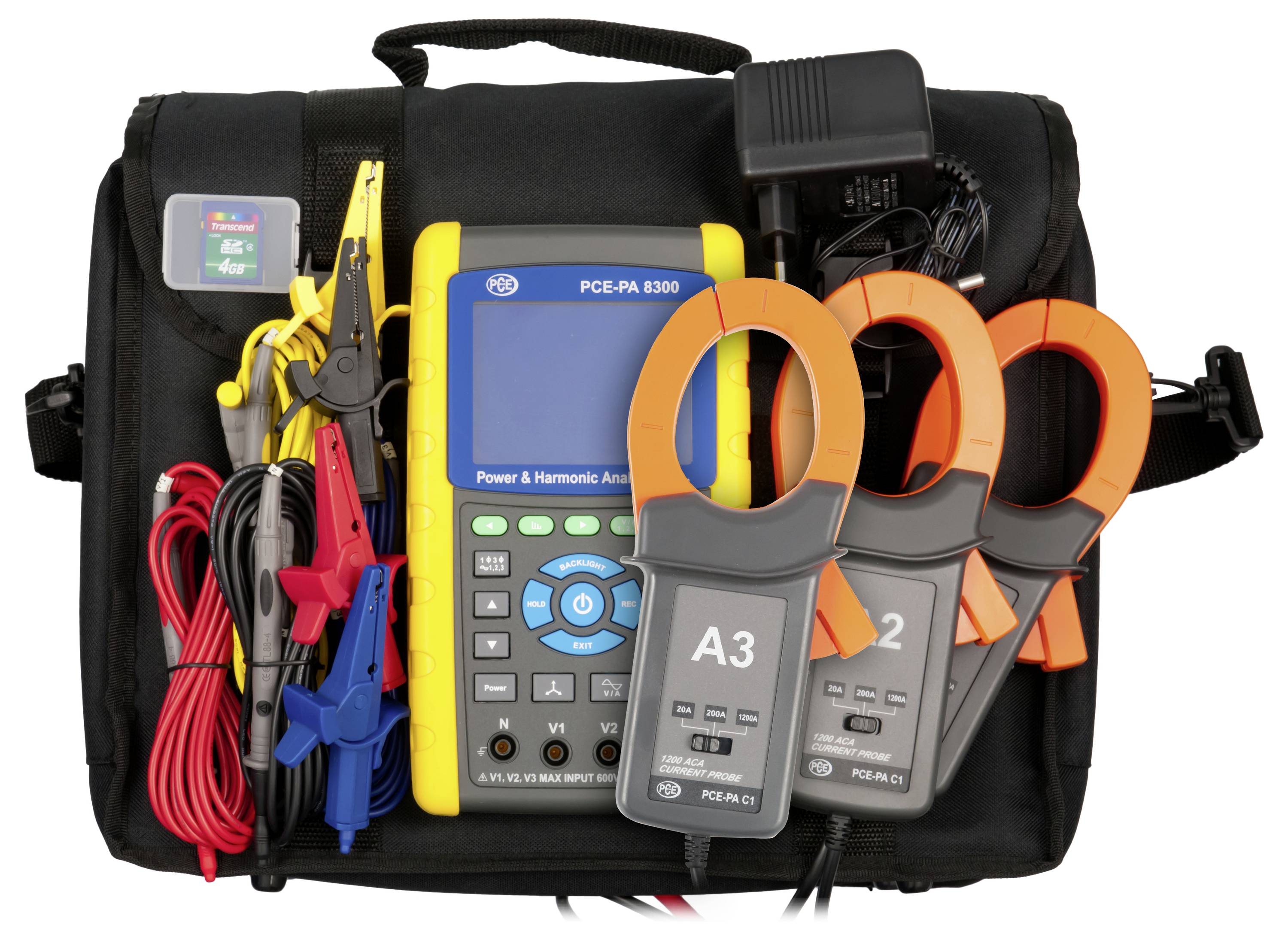

Portable power analyzer kit in a black carry case, including test leads, clips, a yellow handheld meter, and three clamp sensors labeled A3, 2, and 3.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments performance meter PCE-PA 8300-1-ICA

3-phase power and mains interference analyzer
Measures up to 1200 A AC
Harmonics and harmonic analysis
Measurement of apparent, effect, reactive power
Power factor measurement
Various clamp-on ammeters Manufacturer can be connected
SD-card memory
Adjustable storage intervals
Up to 600 V AC can be measured
Measurement of phase angle / frequency
Graphic display with harmonic display
Robust housing
Automatic measuring range selection (AC V)
Incl. ISO calibration certificate

Technical specifications

Alternating voltage AC
Measuring range 10 ... 600 V
Accuracy ±(0.5 % +0.5 V)
Overload 720 V RMS
Alternating current (AC)
Measuring range 0.2 ... 10 A
Resolution: 0.001 A
Accuracy ±(0.5% +0.1 A)
Overload 1300 A with current clamp
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 10 ... 20 A
Resolution: 0.01 A
Accuracy ±(0.5% +0.1 A)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 0.2 ... 100 A
Resolution 0.01 mA
Accuracy ±(0.5 % +0.5 A)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 100 ... 200 A
Resolution: 0.1 A
Accuracy ±(0.5 % +0.5 A)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 0.2 ... 1000 A
Resolution 0.1 mA
Accuracy ±(0.5% +5 A)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 1000 ... 1200 A
Resolution: 1 A
Accuracy ±(0.5% +5 A)
Frequency range 40 ... 1000 Hz
(Active power:
Measuring range 0 ... 9.999 kW
Resolution 0.001 W
Accuracy ±(1 % +0.008 kW)
(Active power:
Measurement range 10 kW
Measuring range of. 99.99 kW
Resolution 0.01 kvar
Accuracy ±(1 % +0.08 kW) W.
(Active power:
Measuring range 100 ... 999.9 kW
Resolution 0.1 kW
Accuracy ±(1% +0.8 kW)
(Active power:
Measuring range 1 ... 9.999 MW
Resolution 0.001 MW
Accuracy ±(1% +0.008 MW)
Reactive power
Measuring range 0 ... 9.999 kvar
Resolution 0.001 kvar
Accuracy ±(1% +0.008 kVAR)
Reactive power
Measuring range 10 ... 99.99 kvar
Resolution 0.01 kvar
Accuracy ±(1% +0.08 kVAR)
Reactive power
Measuring range 100 ... 999.9 kvar
Resolution 0.1 kvar
Accuracy ±(1% +0.8 kVAR)
Reactive power
Measuring range 1 ... 9.999 MVAR
Resolution 0.001 MVAR
Accuracy ±(1% +0.008 MVAR),
Phase angle
Measuring range -180 ... +180 °
Resolution 0.1 °
Accuracy ±1 °
Apparent power
Measuring range 0 ... 9.999 kVA
Resolution 0.001 kVA
Accuracy ±(1% +0.008 kVA)
Apparent power
Measuring range 10 ... 99.99 kVA
Resolution 0.01 kW
Accuracy ±(1% +0.08 kVA),
Apparent power
Measuring range 100 ... 999.9 kVA
Resolution 0.1 kVA
Accuracy ±(1% +0.8 kVA)
Apparent power
Measuring range 1 ... 9.999 MVA
Resolution 0.001 MVA
Accuracy ±(1% +0.008 MVA)
Power factor
Measuring range 0 ... 1
Resolution 0.01
Accuracy ±0.04
Active energy
Measuring range 0 ... 9.999 kWh
Resolution 0.001 kVAh
Accuracy ±(2 % +0.008 kWh)
Active energy
Measuring range 10 ... 99.99 kWh
Resolution 0.01 kWh
Accuracy ±(2 % +0.08 kWh)
Active energy
Measuring range 100 ... 999.9 kWh
Resolution 0.1 kWh
Accuracy ±(2% +0.8 kWh)
Active energy
Measuring range 1 ... 9.999 mWh
Resolution 0.001 mWh
Accuracy ±(2 % +0.008 MWh)
Apparent energy
Measuring range 0 ... 9.999 kVAh
Resolution 0.001 kVAh
Accuracy ±(2% +0.008 kVAh)
Apparent energy
Measuring range 10 ... 99.99 kVAh
Resolution 0.01 kVAh
Accuracy ±(2% +0.08 kVAh)
Apparent energy
Measuring range 100 ... 999.9 kVAh
Resolution 0.1 kVAh
Accuracy ±(2% +0.8 kVAh)
Apparent energy
Measuring range 1 ... 9.999 MVAH
Resolution 0.001 MVAH
Accuracy ±(2% +0.008 MVAh)
Reactive energy
Measuring range 0 ... 9.999 kvarh
Resolution 0.001 kvarh
Accuracy ±(2% +0.008 kVARh)
Reactive energy
Measuring range 10 ... 99.99 kvarh
Resolution 0.01 kvarh
Accuracy ±(2% +0.08 kVARh)
Reactive energy
Measuring range 100 ... 999.9 kvarh
Resolution 0.1 kvarh
Accuracy ±(2% +0.8 kVARh)
Reactive energy
Measuring range 1 ... 9.999 MVARh
Resolution 0.001 MVARh
Accuracy ±(2% +0.008 MVARh)
Frequency
Measuring range 45 ... 65 Hz
Resolution 0.1 Hz
Accuracy ±0.1 Hz
Harmonic measurement (harmonic)
Measuring range 1 ... 50 Ordinal number
Current range 0.2 ... 1200 A
Voltage range 10 ... 600 V
General Technical Data
Measuring functions HOLD
Frequency 40 ... 1000 Hz
Display type LCD with lighting
Display size 3.7 inches
Storage medium: SD-card,
Storage capacity: 4 GB
Storage intervals of 2 s.
Storage intervals of up to 120 min.
Interface RS232
Standard(s) IEC 1010
Current consumption of the measuring device 500 mA DC
Current consumption clamp-on ammeter 34 mA DC
Maximum cable diameter 50 mm
Safety standard CAT III 600 V
Dimensions of clamp-on ammeter 210 x 64 x 33 mm, clamping jaw 86 mm (external)
Measuring range selection automatic, manual
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply 9V
Connector type for device Euro plug
Battery 8 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions 0 ... 50 °C , 10 ... 80 % r.F.
Storage conditions 0 ... 50 °C , 10 ... 80 % r.F.
Dimensions ( L x W x H ) 225 x 125 x 64 mm
Weight 1010 g.

Product type: Network diagnostics

Reading category: CAT III 600 V

Display (details): LCD

Phase detection: Yes / Yes

: ISO standards

Power supply (details): 9 V

Dim: (L x W x H) 225 x 125 x 64 mm

Weight: 1010 g

Calibration service: Incl. ISO calibration certificate

Measurement type: 3-phase

Features: Data logger
Clamp meter
Power testing

Width: 125 mm

Height: 64 mm

Length: 225 mm

Interfaces: RS232

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812651 PCE Instruments PCE-PA 8300-1-ICA Network diagnostics Calibrated to (ISO standards) 3-phase Data logger, Clamp meter, Po

User & Safety Instructions

User & Safety Instructions 3812651 PCE Instruments PCE-PA 8300-1-ICA Network diagnostics Calibrated to (ISO standards) 3-phase Data logger, Clamp meter, Po

Description

The wattmeter are for its simple handling. The power meter stores all measured values on an SD card. The power meter can be used for power measurement and mains analysis. Power can be measured from the power meter up to 9999 MW. For network analysis, the power meter can exactly determine harmonics and harmonics up to 50th order.

All measured values are displayed on the graphic LCD. Thus, it is no problem to show the mains distortions with the power meter. For an exact analysis of power and performance, the measured data can be stored in a freely adjustable storage interval on an SD-memory card. This enables long-term recordings with the power meter.
