PCE Instruments PCE-PA 8300-2 Clamp meter Digital Data logger, Graphics display CAT III 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ampere meter PCE-PA 8300-2
- CAT III 600 V
Technical specifications
- Electrical specifications
- Voltage measurement (AC V)
- Measuring range: 10 V ... 600 V (Phase to neutral)<>Resolution: 0.1 V
- Accuracy: ±(0.5 % + 0.5 V)
- <>Current measurement (AC A) Set 1
- Measurement range: 20 A<(>br) Resolution: 0.001 A(lt; 10 A(<>0.5 A), 0.01 A(10 A), br ±<><><><>±<><><><>±<><><><><><><>± Accuracy: 200 A(0.01 A) Bt: 100 1200 1 5 0.001 10 A(A) Measurement range: 0.1 100 0.5 0.1 1000 2 10 0.5 A), Bt: 0.1 0.5 1000 0.5 30 0.01 0.1 A) Measurement range<><>300 A
- Resolution: 0.01 A (< 100 A), 0.1 A (>= 100 A)
- accuracy: ±(0.5 % + 0.5 A)<>Measuring range: 3000 A
- Resolution: 0.1 A (< 1000 A), 1 A (>= 1000 A)
- Accuracy: ±(0.5 A + 5 A)
- <>Effective power
- Measuring range: 0 ... 9.999 kW
- Resolution: 0.001 kW
- Accuracy: ±(1 % + 0.008 kW)
- <>Measuring range: 10 ... 99.99 kW
- Resolution: 0.01 kW
- Accuracy: ±(1 % + 0.008 kW)
- <>Measuring range: 100 ... 999.9 kW
- Resolution: 0.1 kW
- Accuracy: ±(1 % + 0.8 kW)
- <>Measuring range: 1 ... 9.999 MW
- Resolution: 0.001 MW
- Accuracy: ±(1 % + 0.008 MW)
- <>apparent power
- Measurement range: 0 ... 9.999 kVA
- Resolution: 0.001 kVA
- Accuracy: ±(1% + 0.008 kVA)
- <>Measuring range: 10 ... 99.99 kVA
- Resolution: 0.01 kVA
- Accuracy: ±(1% + 0.08 kVA)
- <>Measuring range: 100 ... 999.9 kVA
- Resolution: 0.1 kVA
- Accuracy: ±(1% + 0.8 kVA)
- <>Measuring range: 1 ... 9.999 MVA
- Resolution: 0.001 MVA
- Accuracy: ±(1% + 0.008 MVA)
- <>Reactive power
- Measuring range: 0 ... 9.999 kVAR
- Resolution: 0.001 kVAR
- Accuracy: ±(1% + 0.008 kVAR)
- <>Measurement range: 10 ... 99.99 kVAR
- Resolution: 0.01 kVAR
- Accuracy: ±(1% + 0.08 kVAR)
- <>Measurement range: 100 ... 999.9 kVAR
- Resolution: 0.1 kVAR
- Accuracy: ±(1% + 0.8 kVAR)
- <>Measurement range: 1 ... 9.999 MVAR
- Resolution: 0.001 MVAR
- Accuracy: ±(1% + 0.008 MVAR)
- <>Active energy
- Measuring range: 0 ... 9.999 kWh
- Resolution: 0.001 kWh
- Accuracy: ±(2 % + 0.008 kWh)
- <>Measuring range: 10 ... 99.99 kWh
- Resolution: 0.01 kWh
- Accuracy: ±(2 % + 0.08 kWh)
- <>Measuring range: 100 ... 999.9 kWh
- Resolution: 0.01 kWh
- Accuracy: ±(2 % + 0.8 kWh)
- <>Measuring range: 1 ... 9.999 mWh
- Resolution: 0.001 mWh
- Accuracy: ±(2 % + 0.008 mWh)
- <>apparent energy
- Measurement range: 0 ... 9.999 kVAh
- Resolution: 0.001 kVAh
- Accuracy: ±(2% + 0.008 kVAh)
- <>Measurement range: 10 ... 99.99 kVAh
- Resolution: 0.01 kVAh
- Accuracy: ±(2% + 0.08 kVAh)
- <>Measurement range: 100 ... 999.9 kVAh
- Resolution: 0.01 kVAh
- Accuracy: ±(2% + 0.8 kVAh)
- <>Measurement range: 1 ... 9.999 MVAh
- Resolution: 0.001 MVAh
- Accuracy: ±(2% + 0.008 MVAh)
- <>Reactive energy
- Measuring range: 0 ... 9.999 kVarh
- Resolution: 0.001 kVarh
- Accuracy: ±(2% + 0.008 kVarh)
- <>Measuring range: 10 ... 99.99 kVarh
- Resolution: 0.01 kVarh
- Accuracy: ±(2% + 0.08 kVarh)
- <>Measuring range: 100 ... 999.9 kVarh
- Resolution: 0.01 kVarh
- Accuracy: ±(2% + 0.8 kVarh)
- <>Measuring range: 1 ... 9.999 MVARh
- Resolution: 0.001 MVARh
- Accuracy: ±(2% + 0.008 MVARh)
- <>Power factor
- Measuring range: 0 ... 1
- Resolution: 0.01
- Accuracy: ± 0.04
- <>Phase angle
- Measuring range: -180° ... 180°
- Resolution: 0.1°
- Accuracy: ± 1°
- <>Frequency
- Measuring range: 45 ... 65 Hz
- Resolution: 0.1 Hz
- Accuracy: ± 0.1 Hz
- <>Harmonic of the alternating voltage at 50/60 Hz
- Measuring range: 1 ... 20st order
- Resolution: 0.1 V
- Accuracy: 0.1%, ± (2% + 0.5 V), ± (2% + 10 digits)
- <>Measuring range: 21 ... 30st order
- Resolution: 0.1 V
- Accuracy: 0.1%, ± (2% + 0.5 V), ± (2% + 20 digits)
- <>Measuring range: 31 ... 50th order
- Resolution: 0.1 V
- Accuracy: 0.1 %, not specified
- <>Harmonic of the alternating current at 50/60 Hz
- Measuring range: 1 ... 20st order
- Resolution: 0.001 ... 1 A
- Accuracy: 0.1%, ± (2% + 0.5 A), ± (2% + 10 digits)
- <>Measurement range: 21 ... 30th order
- Resolution: 0.001 ... 1 A
- Accuracy: 0.1%, ± (2% + 0.5 A), ± (2% + 20 digits)
- <>Measurement range: 31 ... 50th order
- Resolution: 0.001 ... 1 A
- Accuracy: 0.1%, not specified
- <>General technical specifications

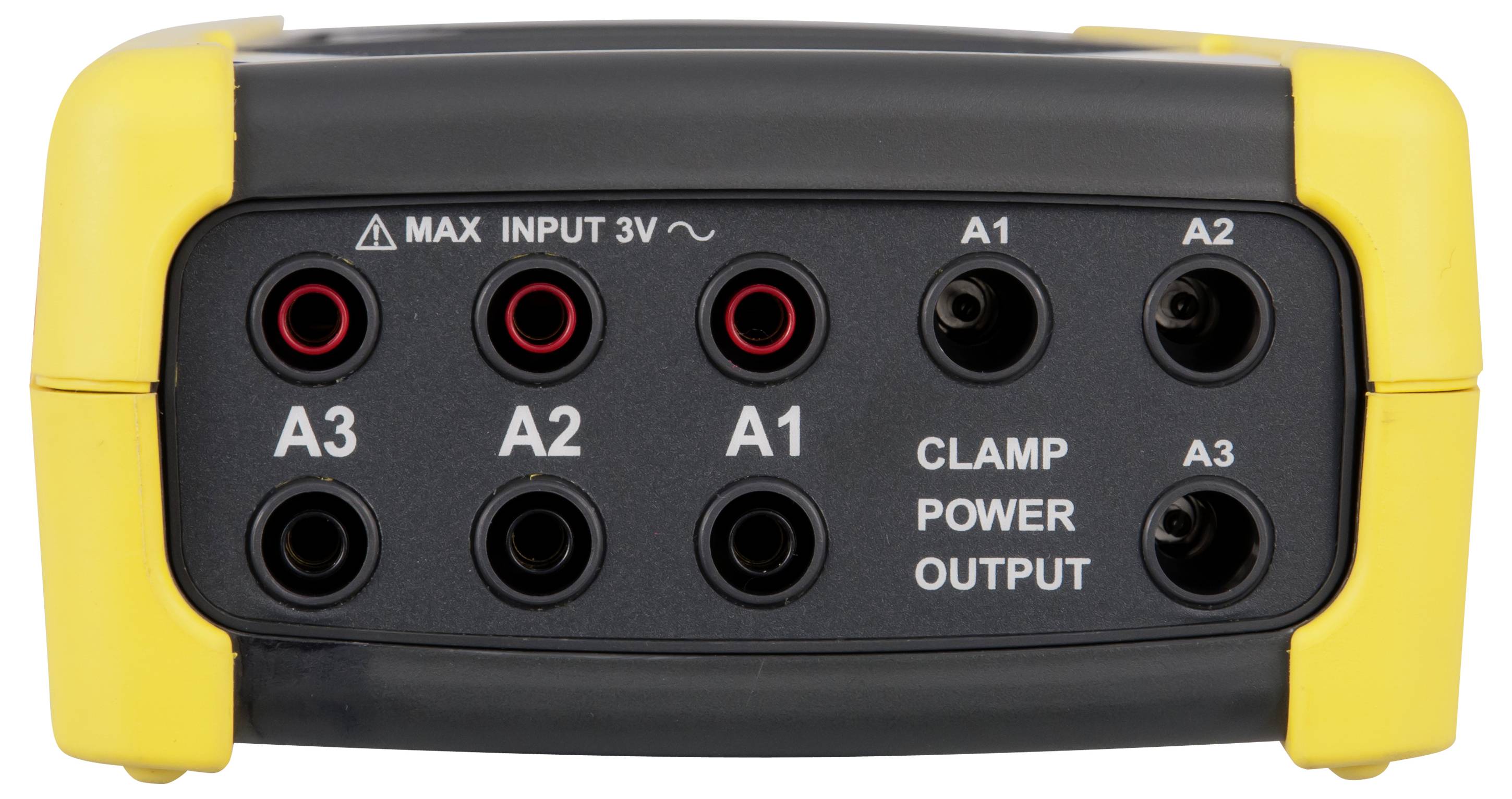

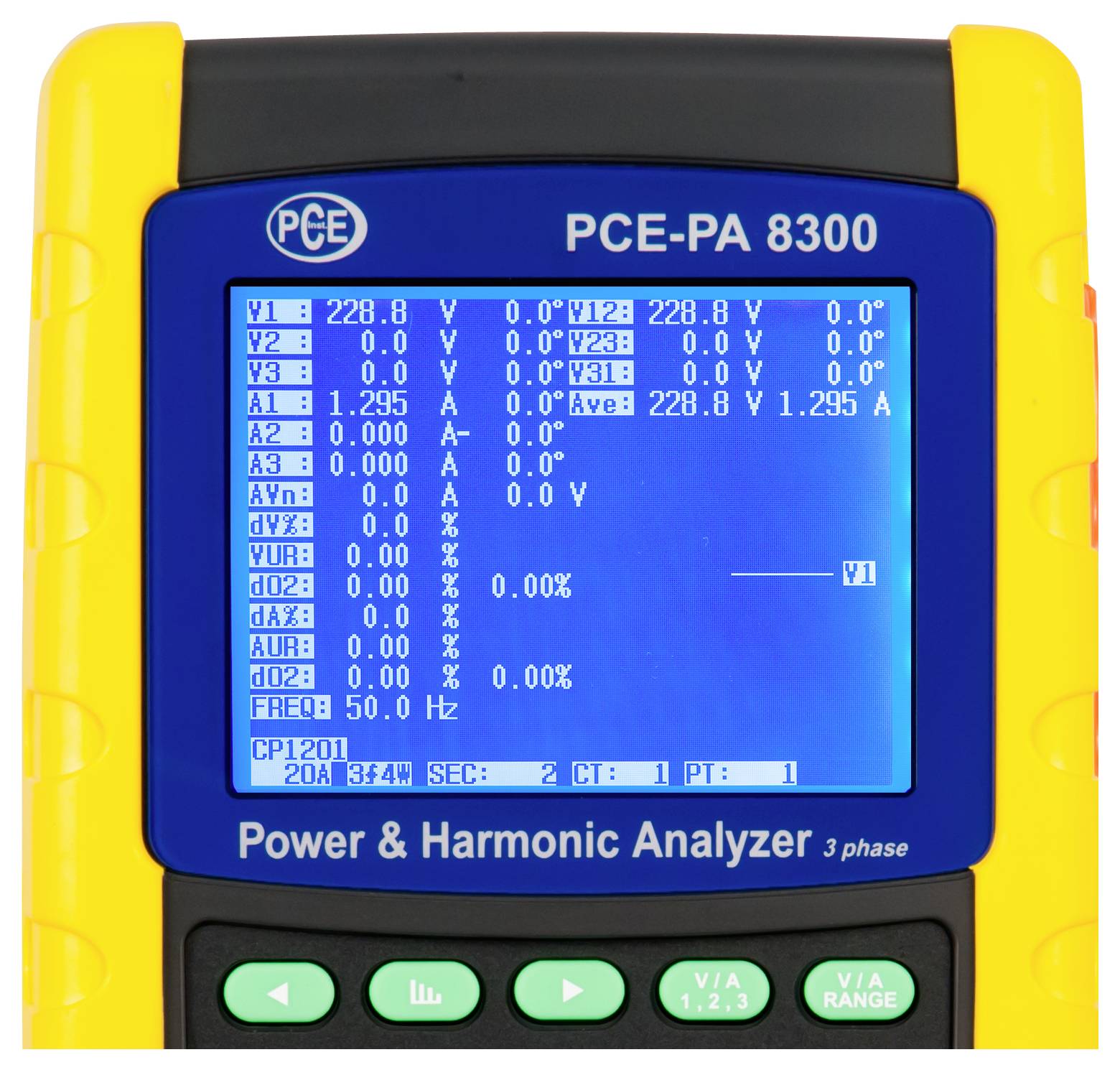

- Display: 3.7 " Dot matrix LCD (320 x 240 pixels) with LED backlight
- Safety standard: IEC1010CAT III 600 V
- Input resistance AC V: 10 MOhm
- Working frequency Current clamp: 40 Hz ... 1 kHz
- tested operating frequency Current clamps: 45 Hz ... 65 Hz
- Overload protection: AC V: 720 V RMS, AC A: 1300 A with current clamp
- Data storage: SD card
- Recording interval: 1 second
- Data logger function: Real-time storage on SD card
- Storage interval: 2 seconds ... 7200 seconds
- Data output (only for live display on PC): Via USB or RS-232 depending on connection cable
- Operating temperature: 0 ... +50 °C
- Ambient humidity: ≪ 80 % r.h.
- Power supply: 8 x 1.5 V AA batteries, 9 V power supply
- Power consumption: Measuring device: 300 mA DC, current clamp: 34 mA DC
- Maximum lead diameter: 50 mm
- Dimensions: Measuring device: 225 x 125 x 64 mm, clamp clamp: 210 x 64 x 33 mm, clamp jaws: 86 mm (external)
- Weight: Measuring device: 948 g (Inc. Batteries), clip-on ammeter: 467 g (incl. Cable)
- Product type
Clamp meter
- V AC reading range (min.)
10 V
- V AC reading range (max.)
600 V
- A AC reading range (min.)
0.2 A
- Amperage reading range AC (max.)
3000 A
- Basic accuracy
0.5 %
- Interfaces
RS232
USB
- Height
225 mm
- Width
64 mm
- Length
125 mm
- Weight
948 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Current reading
AC
- Type
PCE-PA 8300-2
- Display
Digital
- Dim
(L x W x H) 125 x 64 x 225 mm
- Features
Data logger
Graphics display
- Opening range of current clamps
175 mm
Documents & Downloads
Datasheet
Datasheet 2813622 PCE Instruments PCE-PA 8300-2 Clamp meter Digital Data logger, Graphics display CAT III 600 V
User & Safety Instructions
User & Safety Instructions 2813622 PCE Instruments PCE-PA 8300-2 Clamp meter Digital Data logger, Graphics display CAT III 600 V
Description

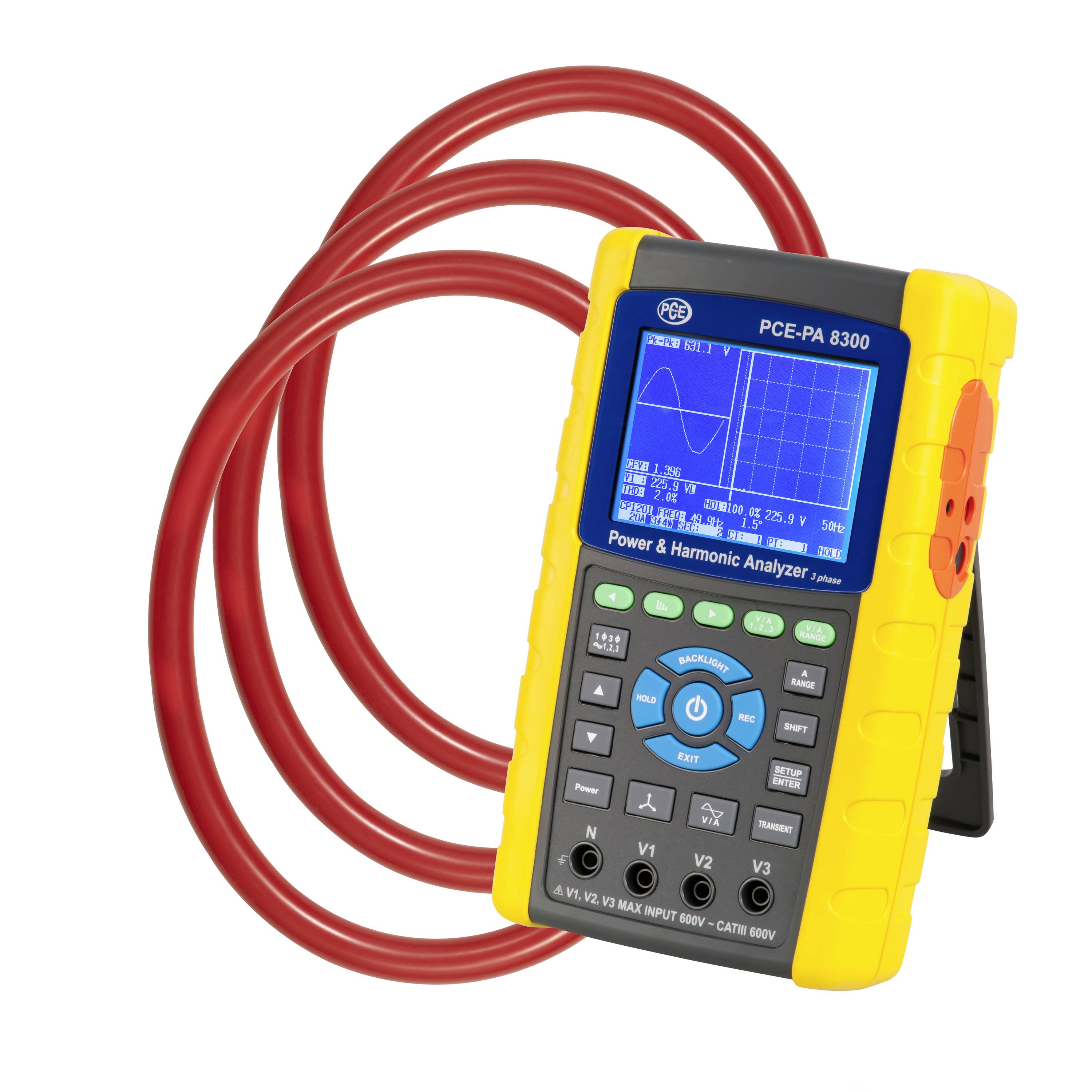

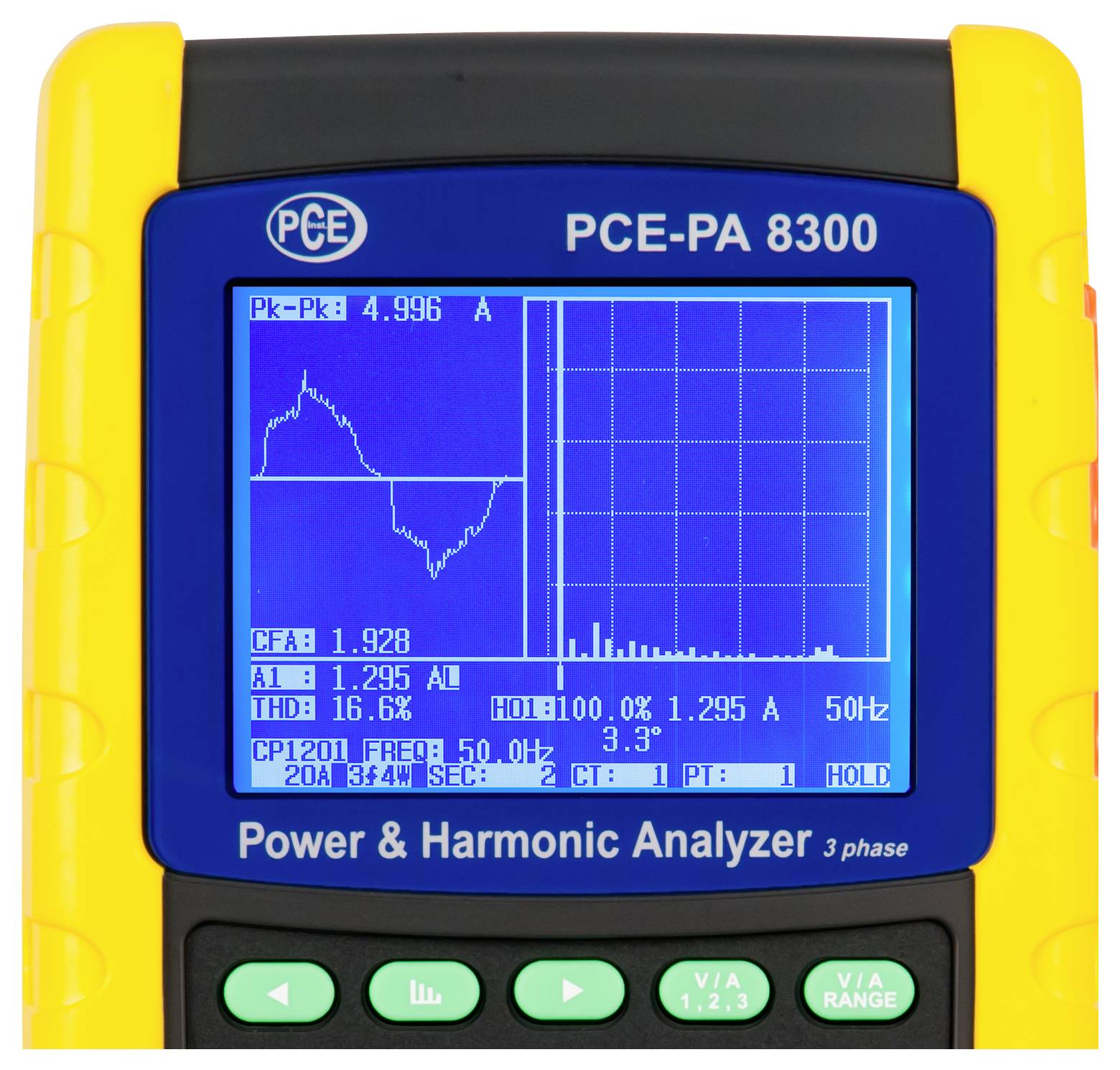

3-phase power and mains interference analyzer/harmonic analyzer/ up to 3000 A AC / with SD data storage / graphic display / various current clamps The power analyzer PCE-PA 8300 impresses with its simple handling. The mains analyzer stores all measured values on an SD card. The PCE-PA 8300 mains analyzer can be used for power measurement and mains analysis. The power can be measured by the mains analyzer up to 9999 MW. For mains analysis, the PCE-PA 8300 mains analyzer can accurately determine harmonics and harmonics up to the 50th order. All measured values are displayed on the graphic LCD. Thus, it is no problem to show the network distortions with the network analyzer. For an exact analysis of power and performance, the measured data can be stored in a freely adjustable storage interval on an SD-memory card. This allows long-term recording with the PCE-PA 8300 power analyzer. The mains analyzer is available in two different sets. The PCE-PA 8300 can be supplied once with clamp-on ammeters and once with flexible Rogowski coils.
This text is machine translated.
This text is machine translated.
Scope of delivery

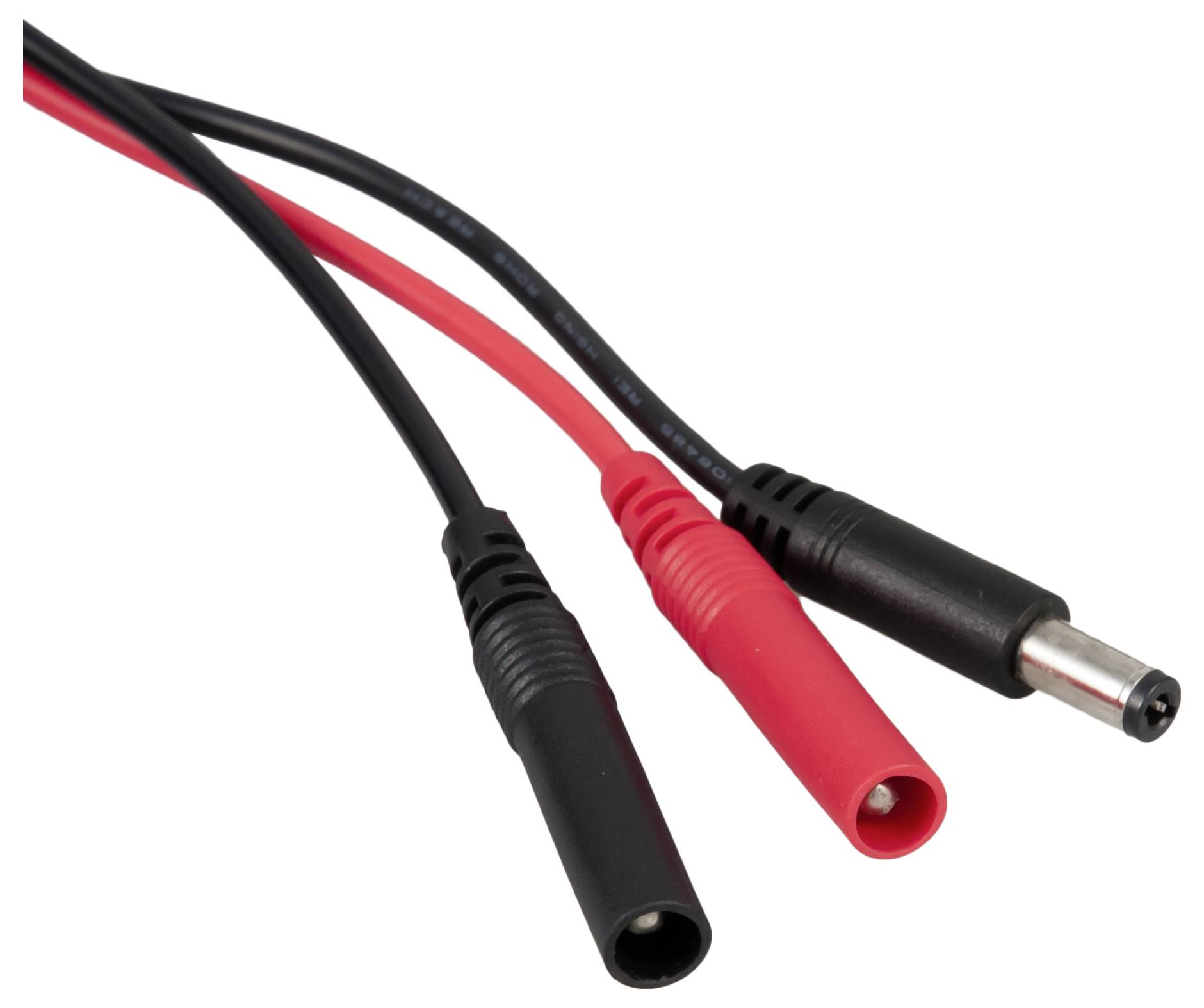

- 1 x mains analyzer PCE-PA 83003 x clip-on ammeter for measurements up to 3,000 A4 x insulated alligator clamps 4 x safety-testing cables 6 x 1.5 V AA battery 1 x 9 V adapter 1 x carrying case 1 x 2 GB SD-storage card 1 x operating instructions
