PCE Instruments PCE-PB 60N Platform scales PCE-PB 60N Weight range 75 kg Readability 20 g battery-powered, mains-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

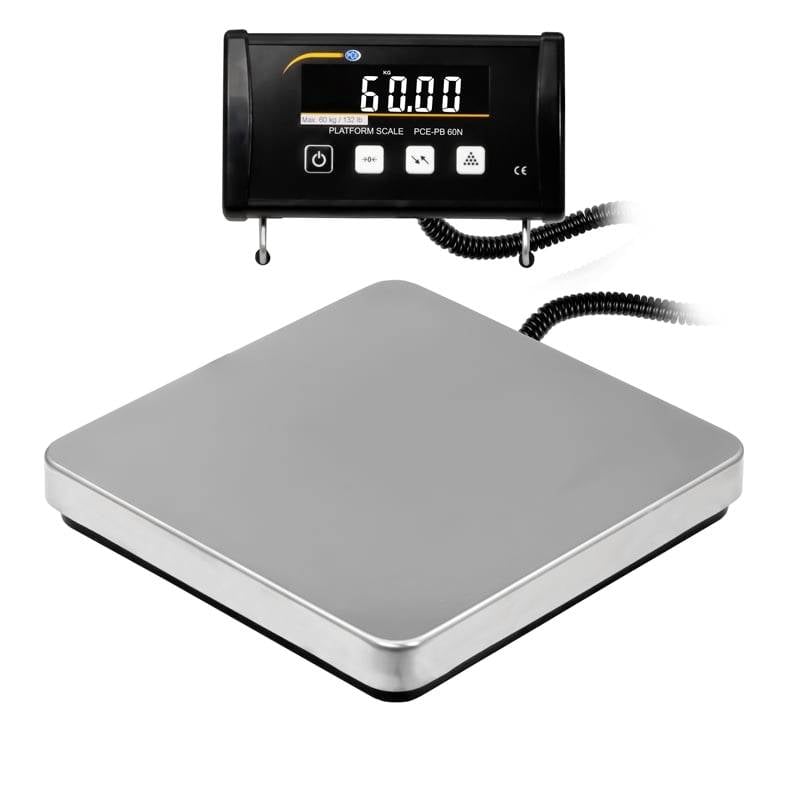

SHIPPING SCALES PCE-PB 60N
- Bildirectional USB interface
- Spiral cable extendable to approx. 1.5 m.
- Digit height 20 mm
- Stainless steel platform
- PEAK function (maximum value display)
- Piece counting function with reference piece number
- Multi-factara
- Function for checking the level
Technical specifications
- Weighing range (Max) 60 kg Minimum load (min) 60 g Readability d:20 g; Possible measurement tolerance ± 80 g. Weighing plate (L x W x H) 300 x 300 x 45 mm Display LCD 20 mm digit height (illuminated) Display cable 90 cm Spiral cable extendable to approx. 1.5 m (plug connection on the display) Measuring units kg / g / lb / N (Newton) Functions PEAK hold function (maximum value display)Multi-factara over the full measuring range Level control (Auto Tara OFF function)Counting function (min. 1 d)Weighing functionAdjustable filter for fast response timeAdjustable switch-off and lighting interface USB bidirectional (query with SX + CR + LF) Operating temperature +5 °C ... +35 °C / max. 85% r.h. Power supply DC9V / 200 mA power supply or 6 x AA 1.5V batteries Dead weight approx. 4 kg Recommended calibration weight: M1 class (freely selectable)
- Weight range
75 kg
- Product type
Platform scales
- Readability
20 g
- Display
Digital
- Power supply (LOV)
battery-powered
mains-powered
via USB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 300 x 300 x 45 mm
- Weight
4000 g
- Weight resolution
20 g
- Weighing plate
Stainless steel
- Width
300 mm
- Height
45 mm
- Length
300 mm
- Type
PCE-PB 60N
- Features
Counting
Calibratable
- Top plate (width)
300 mm
- Top plate (length)
300 mm
Documents & Downloads
Datasheet
Datasheet 2452553 PCE Instruments PCE-PB 60N Platform scales PCE-PB 60N Weight range 75 kg Readability 20 g battery-powered, mains-powered
User & Safety Instructions
User & Safety Instructions 2452553 PCE Instruments PCE-PB 60N Platform scales PCE-PB 60N Weight range 75 kg Readability 20 g battery-powered, mains-powered
Description
Shipping scales up to 60 kg, bidirectional USB interface, PEAK hold function, counting function, mains and battery operation incl. USB interface cable the USB shipping scales of the PCE-PB N series, is a versatile platform - dispatch scales. The functions of the USB shipping scales are very extensive but a function is particularly interesting for dispatch. It is the bi-directional USB interface of the shipping scale, which enables a control through the PC. However, the USB shipping scale of the PCE-PB N series can be used with the optional, economical "ProCell" software. This software simulates keyboard input, similar to a scanner. With the help of this software, the shipping scale can then transfer the weight value to active fields. Another advantage of this shipping scale is the wired display. The display comes with a stand, but it is also suitable for wall mounting. Other interesting functions of the shipping scale are the piece counting function, PEAK hold function, function for level control, measuring units such as kg / lb / N (Newton) / g, adjustable background lighting, adjustable automatic switch-off and the possibility to operate the scales with power supply or batteries.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x shipping scales PCE-PB 60N

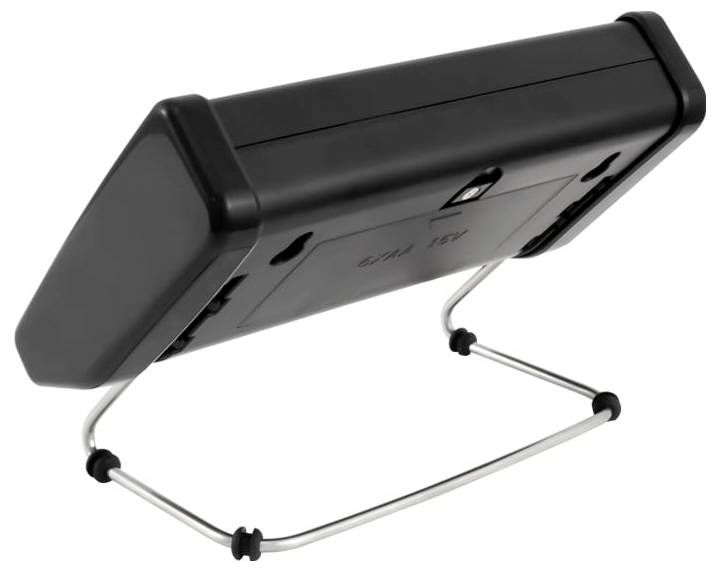

- 1 x display stand
- 1 x USB interface cable (approx. 1.5 m)
- 1 x power supply and instructions
