Buy PCE Instruments PCE-PCS 30 Counting scales PCE-PCS 30 Weight range 30 kg Readability 0.5 g mains-powered, rechargeable

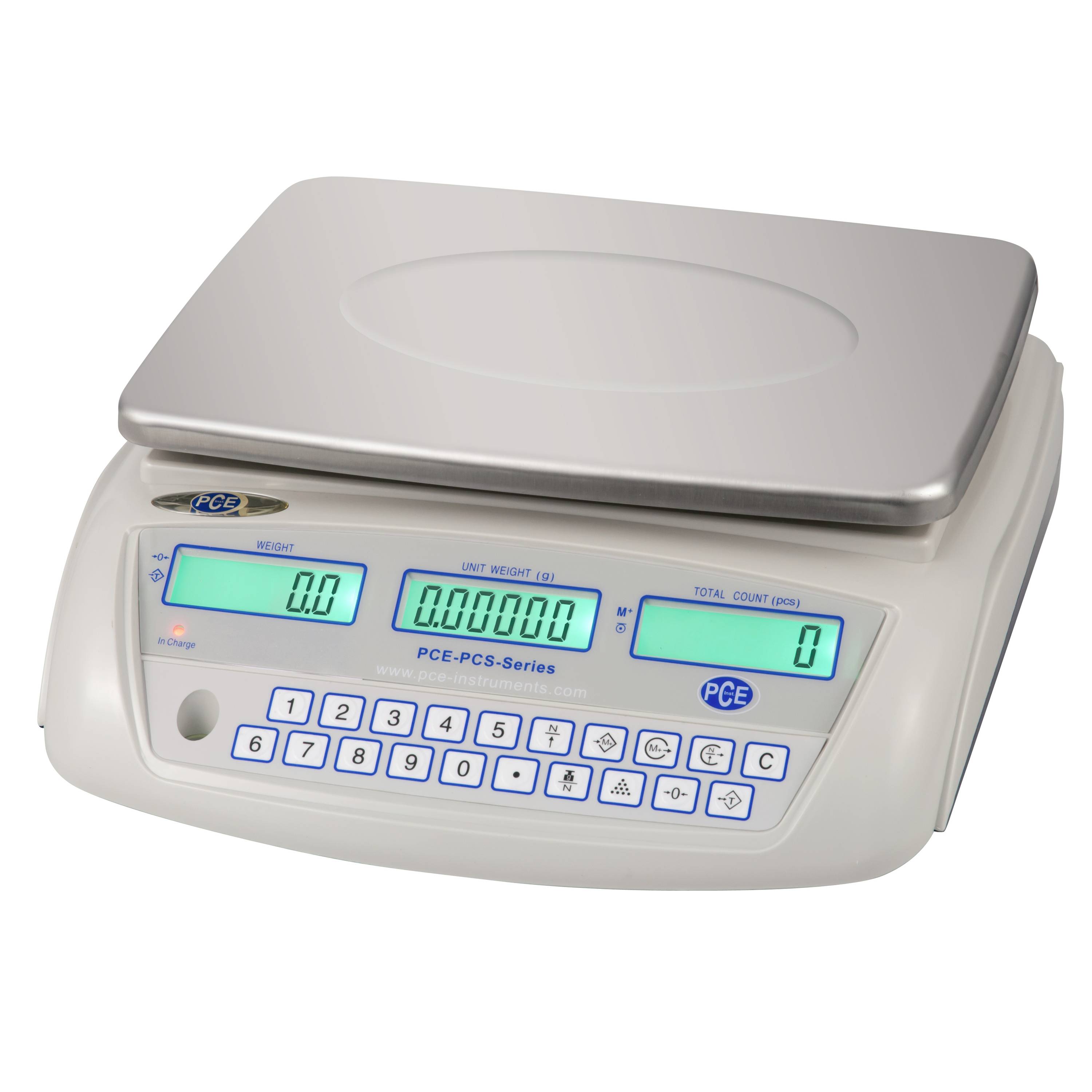

Digital counting scale with platform, three backlit LCD displays showing zero, and keypad for weighing small items.

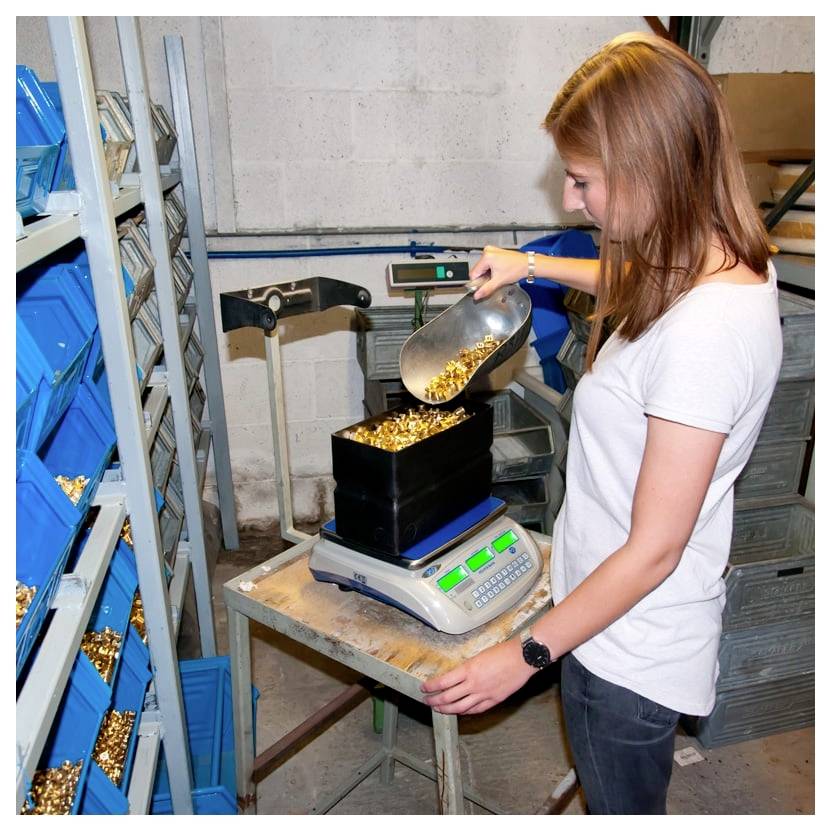

Woman pours gold-colored coins from a scoop into a scale-filled container in a storage room with shelves of blue bins.<br>

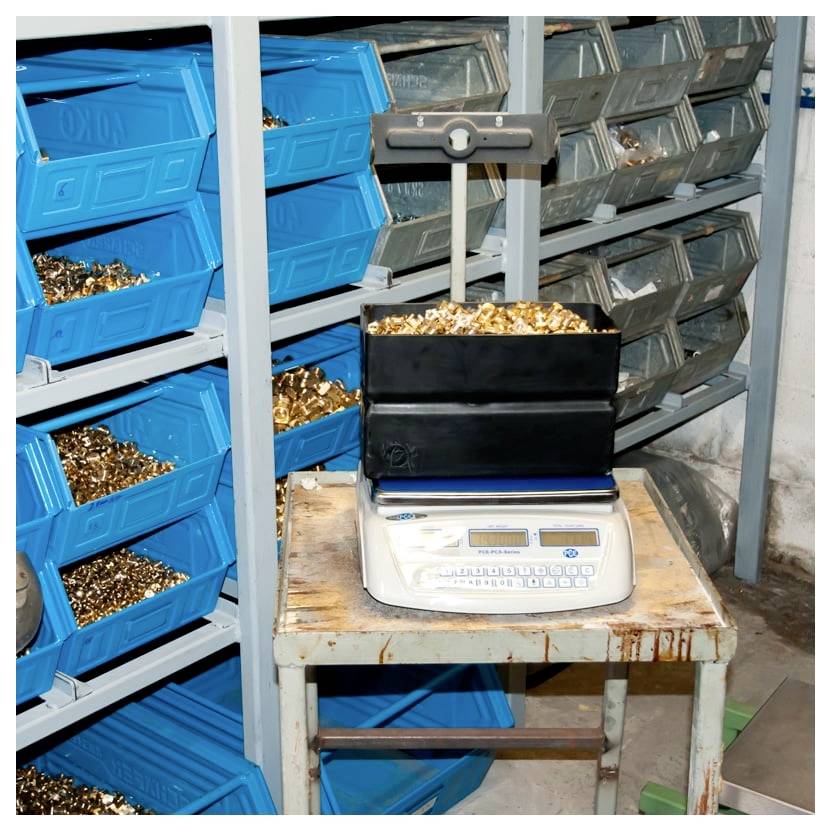

Digital scale with a tray of brass-colored parts in a workshop storage area, surrounded by labeled bins and drawers of small metal components.

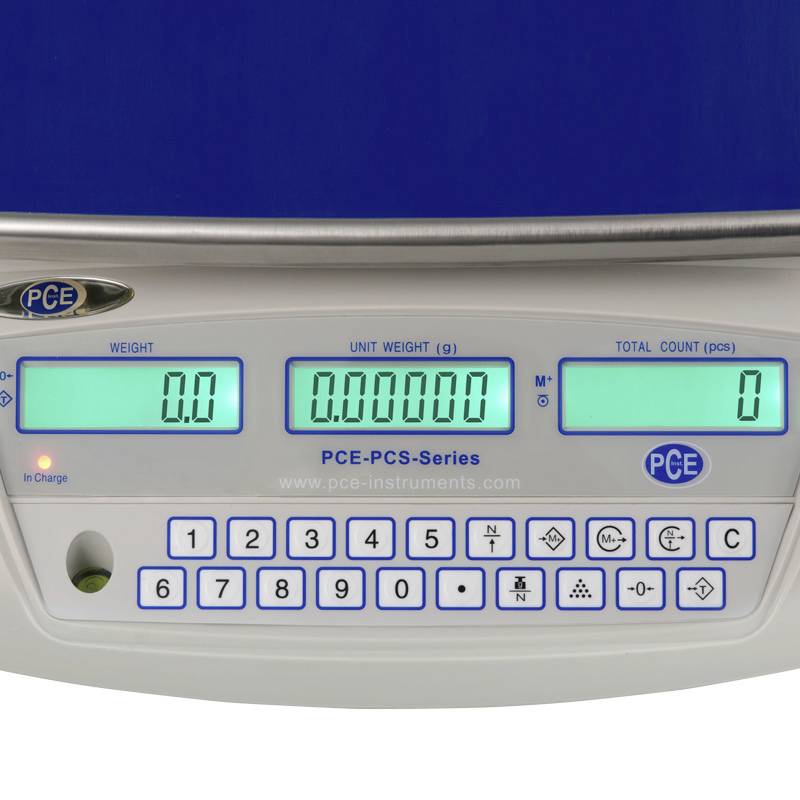

Digital counting scale with keyboard and display for weight, quantity, and unit. Screen shows '0.0' for weight and piece count.

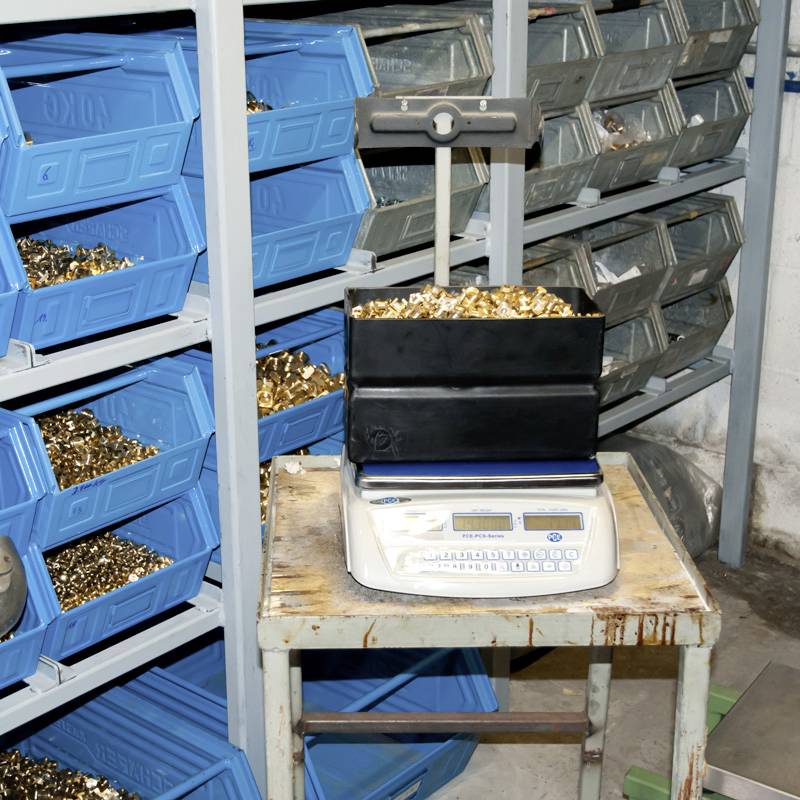

Metal parts in blue crates on shelves. Foreground: Scales with a filled plastic container. Working in a workshop or storage environment.

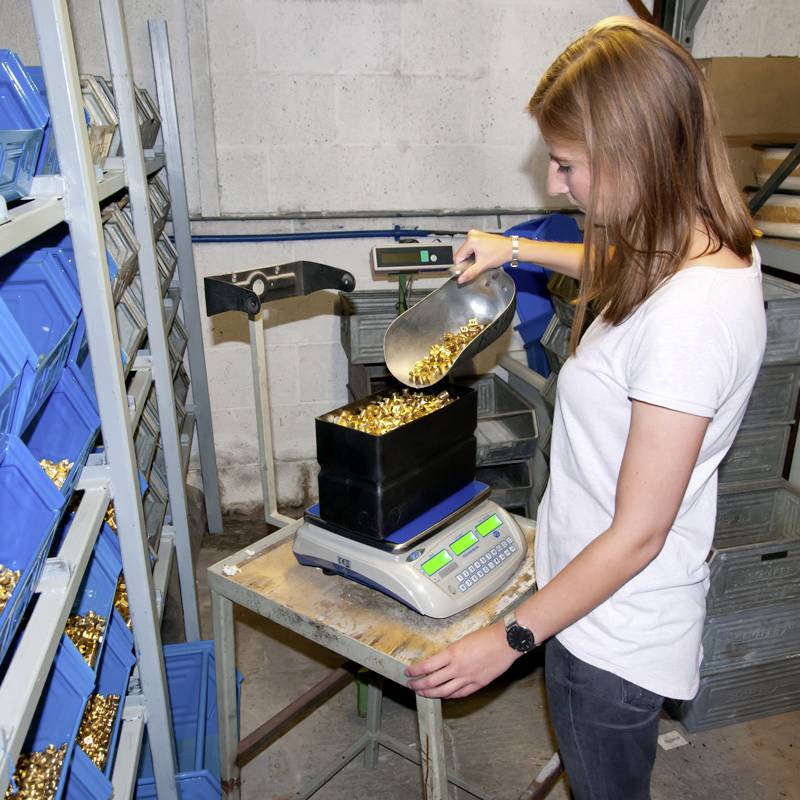

A woman is weighing a large quantity of golden cartridge cases on a digital scale in an industrial setting.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Inventory scales PCE-PCS 30

Separate display for weight, quantity and reference weight
Counting
Tare weighing of counting scales
Enter tara preprint, reference number and reference weight
Operation via accumulators
Mains adapter for 230 V.
Programmable (99 memory slots)

Technical specifications

Weighing range 0 ... 30 kg. Readability 0.5 g Reproducibility ±0.5 g. Minimum load 0.5 g. Minimum unit weight/counting 0.5 g memory slots 99 Settling time approx. 3 s. Range 100% Weighing unit grams Display 3 x 6-digit LCD Calibration using external test weight Weighing plate made of stainless steel 230 x 310 mm Operating temperature range 0 ... +40 °C). Power supply 230 V / 50 Hz (via included adapter) or internal rechargeable battery (6V / 4Ah / approx. 80 hours) ABS plastic casing Interface RS-232 Software kit optional accessories Dimensions approx. 320 x 320 x 125 mm Net weight approx. 2.8 kg

Weight range: 30 kg

Product type: Counting scales

Readability: 0.5 g

Display: Digital

Power supply (LOV): mains-powered
rechargeable

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 320 x 320 x 125 mm

Weight: 2.8 kg

Weighing plate: Stainless steel

Width: 320 mm

Height: 125 mm

Length: 320 mm

Reproducibility: 0.5 g

Type: PCE-PCS 30

Features: Counting

Top plate (width): 320 mm

Top plate (length): 320 mm

Weighing plate dimensions: 230

Documents & Downloads

Datasheet

Datasheet 2452557 PCE Instruments PCE-PCS 30 Counting scales PCE-PCS 30 Weight range 30 kg Readability 0.5 g mains-powered, rechargeable

User & Safety Instructions

User & Safety Instructions 2452557 PCE Instruments PCE-PCS 30 Counting scales PCE-PCS 30 Weight range 30 kg Readability 0.5 g mains-powered, rechargeable

Description

Programmable inventory balance for counting parts with high accuracy / RS-232 interface / operation with power supply or internal battery Inventory balance for professional counting and weighing. The storage places of the inventory scale and the possible battery operation make it an indispensable helper in operation. This counting scale is the optimal tool when it comes to the exact determination of quantities, e.g. during inventory. In the case of unit counting, the individual unit weight is first determined via a defined quantity using this counting scale, if known, it can be entered via the key block. After an unknown quantity has been placed, the counting scale displays the weight, the reference weight and the quantity. The results such as weight and quantity can be printed directly via the optionally available label printer. The printout occurs automatically when the value in the display has stabilized. The keypad can be used to enter a tara deduction, the reference piece number and also the reference piece weight. The counting scale has an RS-232 interface. Using the optional software kit, the weighing data can thus be transferred to a PC.
