Name: PCE Instruments PCE-PCS 6-ICA Counting scales PCE-PCS 6-ICA Calibrated to (ISO standards) Weight range 6 kg Readability
Brand: PCE Instruments
SKU: 3812662

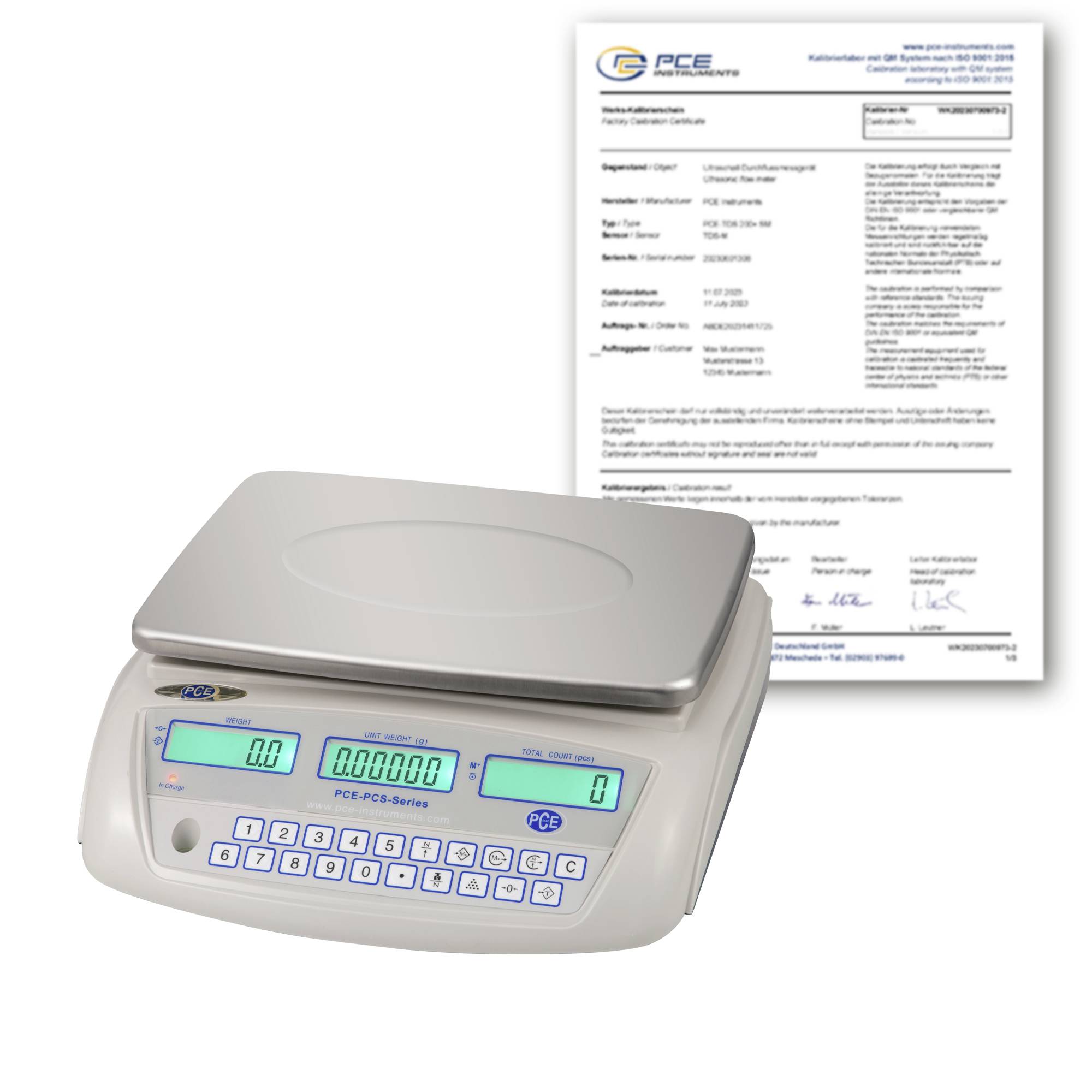

Digital precision scale with blue-lit display shown in front of a calibration certificate, indicating certified weighing equipment.

Woman pours small gold-colored parts from a scoop into a weighing container on a digital scale in a workshop or storage room.<br>

Digital scale weighing a tray of small metal parts in a storage room with labeled bins and shelves of loose hardware.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments inventory scales PCE-PCS 6-ICA

Separate display for weight, quantity and reference weight
Counting
Tare weighing of the inventory scale
Input of Tara deduction, reference number and reference weight
Operation via accumulators
Mains and battery operation
Totalising function (99 storage places)
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 6 kg
Resolution [d] 0.1 g
Accuracy ±0.1 g
General Technical Data
Measurement functions (additional information) Piece counting, Summing function
Unit(s) g
Display type LCD
Memory capacity: 99 values
Interface RS232
ABS casing (acrylonitrile-butadiene-styrene copolymers)
Reproducibility ±0.1 g
Minimum load [Min] 0.1 g
Tare range 100 %
Calibration By means of external test weight
Start-up time 3 s.
Protection class (device) IP20
Power supply unit 230 V / 50 Hz
Connector type for device Euro plug
Battery/Battery 1 x 6 V internal , Lead-gel rechargeable battery
4500 mAh capacity
Operating conditions 0 ... 40 °C , 10 ... 90 % r.F.
Storage conditions 0 ... 40 °C , -10 ... 60 % r.F.
Dimensions ( L x W x H ) 320 x 320 x 125 mm
Weighs 2800 g.

Weight range: 6 kg

Product type: Counting scales

Readability: 0.1 g

Display: Digital

Power supply (LOV): mains-powered
rechargeable

: ISO standards

Power supply (details): 230 V/50 Hz

Dim: (L x W x H) 320 x 320 x 125 mm (approx.)

Weight: 2.8 kg

Weight resolution: 0,1 g

Type: Programmable scales from industrial weighing technology for piece counting with high accuracy

Calibration service: Incl. ISO calibration certificate

Weighing plate: Stainless steel

Dim. (add. text): approx.

Width: 320 mm

Height: 125 mm

Length: 320 mm

Reproducibility: 0.1 g

Type: PCE-PCS 6-ICA

Features: Counting

Top plate (width): 320 mm

Top plate (length): 320 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812662 PCE Instruments PCE-PCS 6-ICA Counting scales PCE-PCS 6-ICA Calibrated to (ISO standards) Weight range 6 kg Readability

User & Safety Instructions

User & Safety Instructions 3812662 PCE Instruments PCE-PCS 6-ICA Counting scales PCE-PCS 6-ICA Calibrated to (ISO standards) Weight range 6 kg Readability

Description

Inventory scales for professional counting and weighing. The storage places of the inventory balance and the possible battery operation make them an indispensable tool in the operation. This inventory scale is the ideal tool for determining the exact quantities, e.g. in inventory. When counting parts, the unit weight is determined first by means of a defined quantity using this inventory balance, if known, it can be entered via the key block.

After placing an unknown quantity, the inventory scale displays the weight, the reference weight and the number of units. Via the optionally available label printer the results like weight and quantity can be printed directly. The expression is done automatically when the value in the display has stabilized. The key block can be used to enter a tare, the reference quantity and also the reference piece weight. The inventory scale has an RS-232 interface, so the weighing data can be transferred to a PC.
