PCE Instruments PCE-PDA 01L-ICA Differential pressure gauge Calibrated to (ISO standards) Non-corrosive gas, Air pressur
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

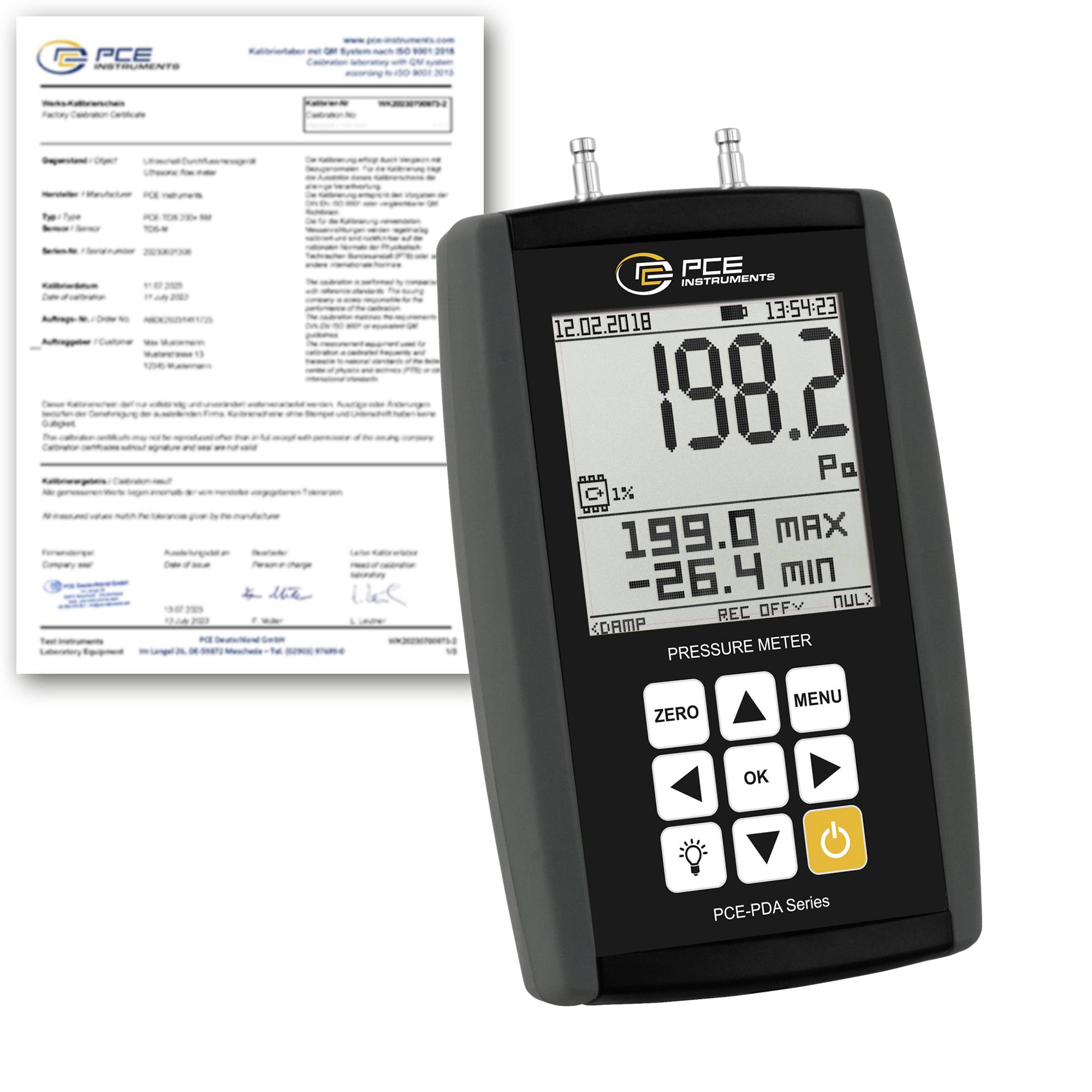

PCE instruments pressure meter with data logger PCE-PDA 01L-ICA
- Graphic display with lighting
- Min. Max. Value memory
- Data logger and leakage test
- Quick coupling connection
- Temperature, flow & leakage measurement
- High precision measuring mode
- Simple operation (language-controlled)
- Units can be switched (Pa, kPa, hPa, ...)
- Incl. ISO calibration certificate
Technical specifications
- Differential pressure
- Measuring range -200 ... +200 Pa
- Resolution: 0.01 Pa
- Accuracy ±1 % from r.h.
- Temperature
- Measuring range 0 ... 50 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- General Technical Data
- Measurement functions MIN, MAX, HOLD, ALARM, average value
- Unit(s) kPa, MPa, Pa, PSF, PSI, Torr, inHg, mmHg, inHINT O, cmHDOS O, mmHGUI O, kg/cm2, ATM, bar, mbar, hPa
- Connections 5 mm nipple for quick connectors
- Display type LCD graphic display with lighting
- Display size 3 inches
- Display update rate 5 x per second
- Measurement rate 10 Hz
- Storage medium Internal memory
- Memory capacity: 1024 values
- Storage intervals of 1 s.
- Storage intervals of up to 255 h
- Interface Micro-USB
- Current consumption of the measuring device 50 mA DC
- Measuring medium, non-explosive gases, air
- Operating time 100 h
- Automatically switches off approx. 255 min.
- ABS casing (acrylonitrile-butadiene-styrene copolymers)
- Over-pressure 1 kPa
- Menu language English (US), English (GB), German, Czech
- Protection class (device) IP41
- Power supply 5 V, 500 mA
- Connector type for device Euro plug
- Battery/Battery 2 x 1.2 V AA-Battery , Nickel-metal hydride rechargeable battery
- Capacity 2000 mAh
- Operating conditions 0 ... 50 °C , 0 ... 90 % r.F.
- Storage conditions 10 ... 55 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 170 x 100 x 30 mm
- Weight 230 g
- Power supply (details)
5 V/500 mA
- Product type
Differential pressure gauge
- Reading range
0, -200 - 50, 200 °C, Pa
- Unit of measurement
Non-corrosive gas
Air pressure
- Operating voltage
5 V
- Pneumatic connection
5 mm nipple for quick connectors
- Reading range
-200 - +200 Pa, 0 - 50 °C
- Reading range - air pressure
-200 - +200 Pa
- Pick-up time (details)
0.1 s
ISO standards
- Display range
-200 to +200 Pa
- Print resolution
0.01 Pa
- Basic accuracy
1 %
- Sensor
Piezoresistive pressure sensor
- Temp.
0 °C
- Accuracy
1 °C
- Excess pressure resistance
0.01 mbar
IP41
- Type
Differential pressure meter with data logger
- Dim
(L x W x H) 170 x 100 x 30 mm
- Weight
230 g
- Resolution
0.1 g
- Stream resolution
0.01 m/s
- Features
Datalogger function
USB interface
- Accuracy
1 °C
- Calibration service
Incl. ISO calibration certificate
- Reading range (max.)
50 °C
200 Pa
- Reading range (min.)
0 °C
-200 Pa
- Width
100 mm
- Height
30 mm
- Length
170 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812663 PCE Instruments PCE-PDA 01L-ICA Differential pressure gauge Calibrated to (ISO standards) Non-corrosive gas, Air pressur
User & Safety Instructions
User & Safety Instructions 3812663 PCE Instruments PCE-PDA 01L-ICA Differential pressure gauge Calibrated to (ISO standards) Non-corrosive gas, Air pressur
Description
The pressure measuring devices with data logger are reliable pressure measuring devices for measuring the pressure of gases in the range of ±200 Pa. The pressure measuring device with data logger has many different pressure measuring functions. This means that more than 16 units are available to the user. In addition to the differential pressure, the pressure gauge with data logger measures temperature, flow speed and volume flow. Moreover, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can be switched optionally. A high-precision mode is integrated in the pressure meter with data logger, which increases the resolution by ten times.
The pressure gauge with data logger has a data logger function. This allows, in addition to the continuous storage of the measured values, a leak test on pressure lines to be carried out. In data logger mode, it is possible to set a duration on the pressure gauge in which the data is saved with a previously selected interval. In the leakage measurement mode, the measuring time and the differential pressure level must be specified by the user. After the measurement, the pressure gauge with data logger then indicates the deviation from the setpoint. In addition to these two functions, the pressure gauge, with optionally available pitot tailpipes, can determine the flow speed or volume flow in lines.
This text is machine translated.
The pressure gauge with data logger has a data logger function. This allows, in addition to the continuous storage of the measured values, a leak test on pressure lines to be carried out. In data logger mode, it is possible to set a duration on the pressure gauge in which the data is saved with a previously selected interval. In the leakage measurement mode, the measuring time and the differential pressure level must be specified by the user. After the measurement, the pressure gauge with data logger then indicates the deviation from the setpoint. In addition to these two functions, the pressure gauge, with optionally available pitot tailpipes, can determine the flow speed or volume flow in lines.
This text is machine translated.
Scope of delivery
- 1 x pressure gauge with data logger PCE-PDA 01L-ICA
- 2 x 1.2 V AA NiMh batteries
- 1 x USB power supply
- 1 x micro USB cable
- 1 x software
- 1x user manual
- 1 x ISO calibration certificate
