PCE Instruments PCE-PDA 1000L-ICA Pressure gauge Calibrated to (ISO standards) Gas, Air pressure 0 - 50 °C Datalogger fu
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments pressure meter with data logger PCE-PDA 1000L-ICA
- Graphic LCD
- USB interface
- Data logger
- Relative pressure and vacuum measurement
- Various units
- MAX MIN HOLD function
- Smoothing measurement values
- Integrated temperature measurement

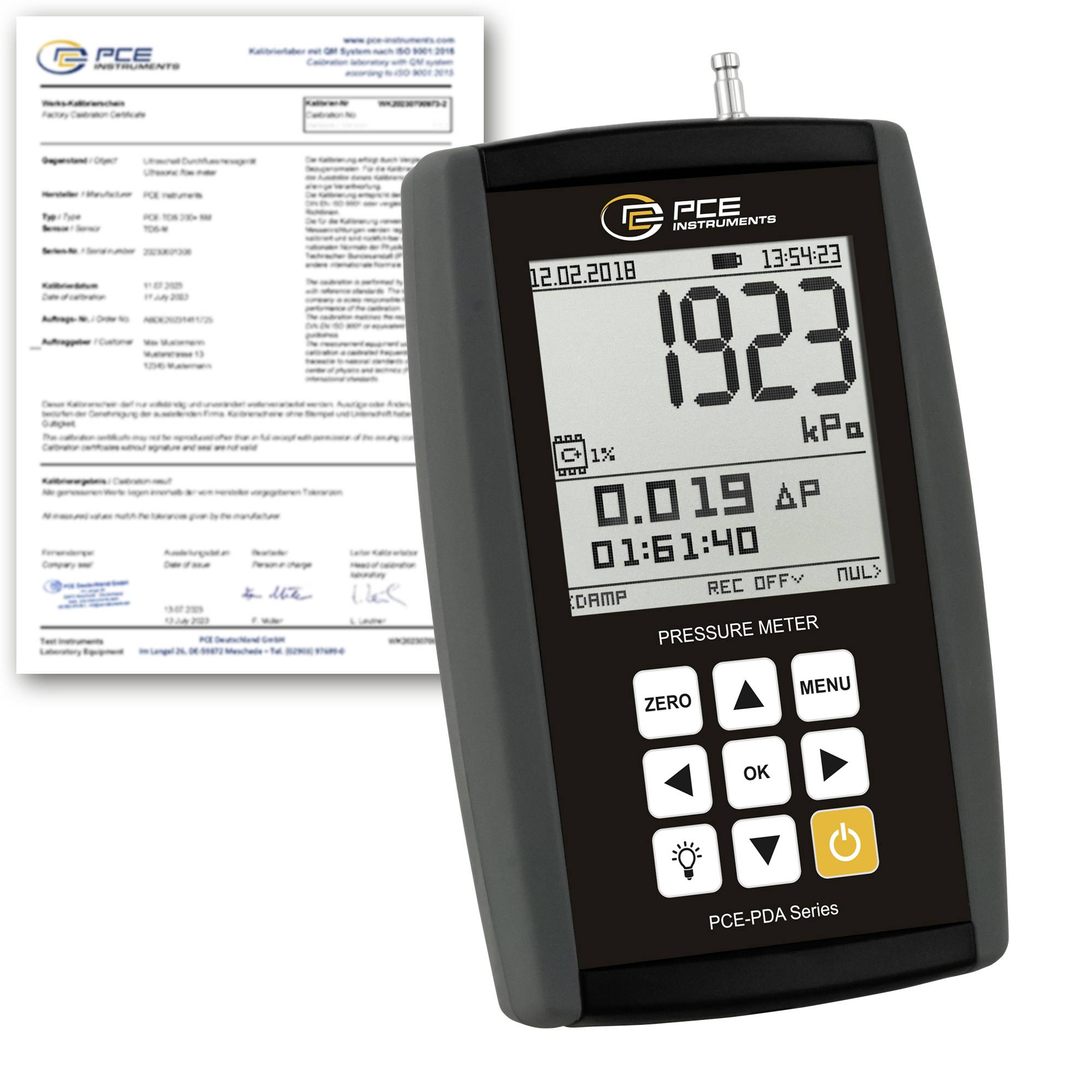

- Incl. ISO calibration certificate
Technical specifications
- Pressure
- Measuring range -100:2000 kPa
- Resolution: 0.01 kPa
- Accuracy less than ±0.5 % of MW.
- Temperature
- Measurement range 0:50 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Measurement functions ALARM, HOLD, MAX, MIN, average value
- Units kPa, MPa, Pa, PSF, PSI, Torr, inHg, mmHg, inHINT O, cmHDOS O, mmHGUI O, kg/cm2, ATM, bar, mbar, hPa

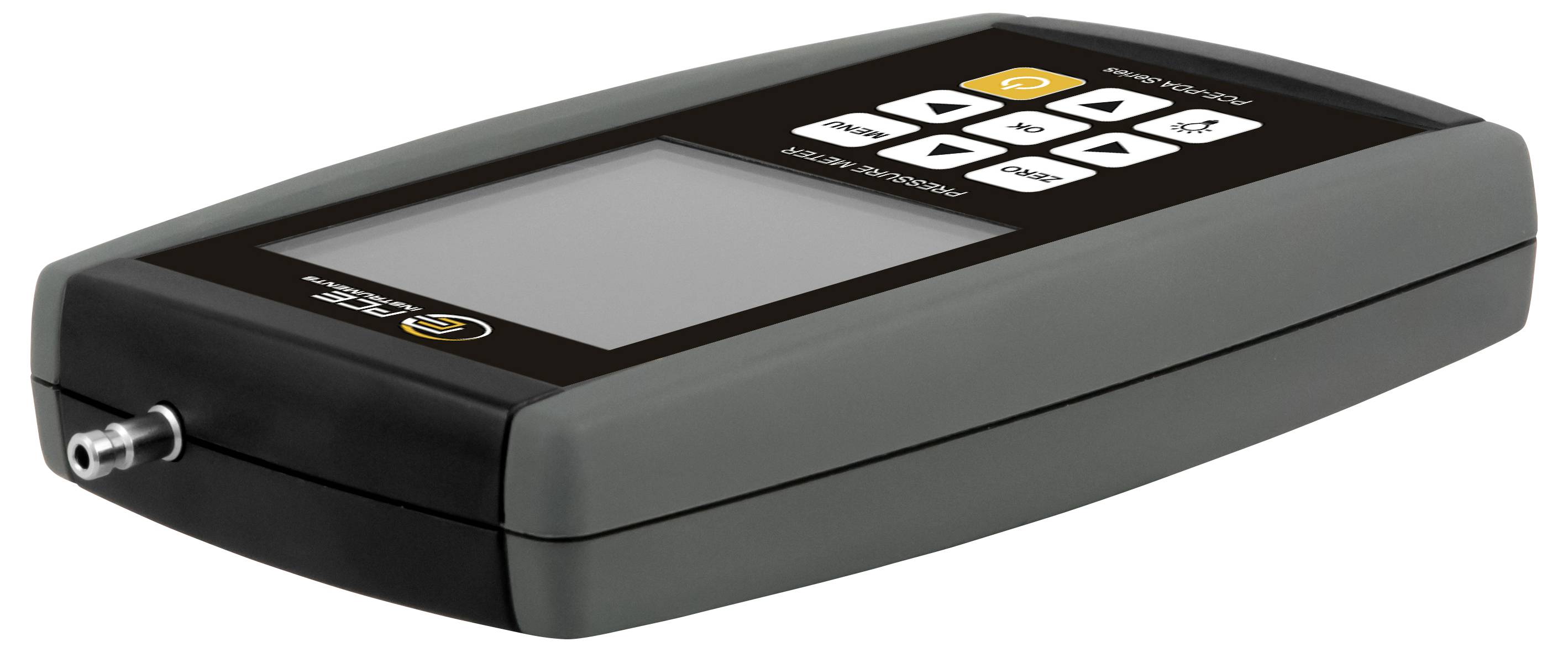

- Connections 5 mm nipple for quick connectors
- Display type LCD graphic display with lighting
- Display size 3 inches
- Display update rate 5 x per second
- Measurement rate 10 Hz
- Storage medium Internal memory
- Memory capacity: 1024 values
- Storage intervals of 1 s.
- Storage intervals of up to 255 h

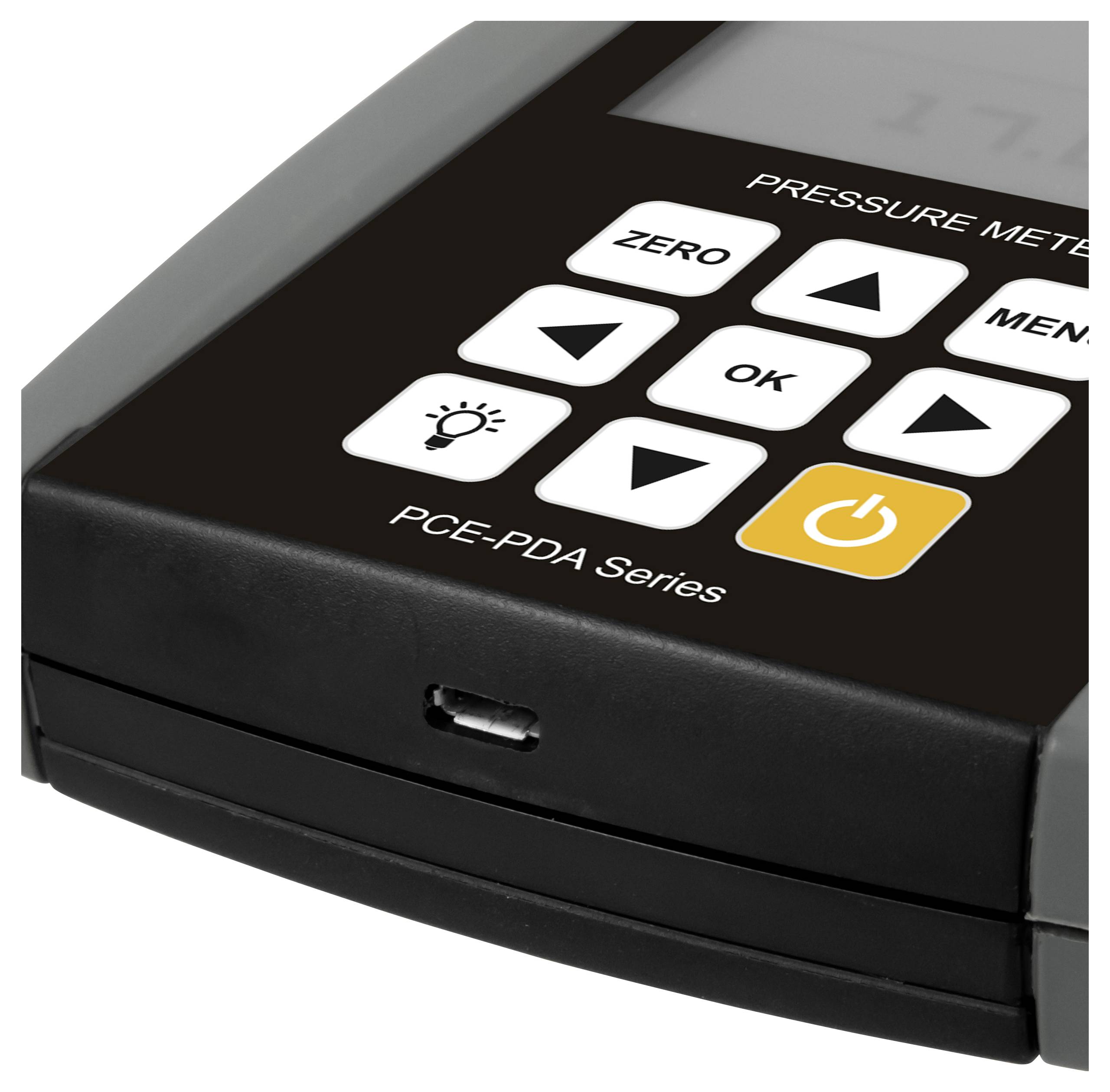

- Interface Micro-USB
- Current consumption of the measuring device 50 mA DC
- Measuring medium, non-explosive gases, air
- Operating time 100 h
- Automatically switches off approx. 255 min.
- ABS casing
- Over-pressure 2000 kPa
- Menu language English US, English GB, German, Czech
- Protection class device IP41
- Power supply 5 V, 500 mA
- Connector type for device Euro plug
- Battery/Battery 2 x 1.2 V AA Nickel-metal hydride rechargeable battery
- Capacity 2000 mAh
- Operating conditions 0:50 °C, 0:90 % r.h.
- Storage conditions 10:55 °C, 0:80 % r.h.
- Dimensions L x W x H 170 x 100 x 30 mm
- Weight 230 g
- Power supply (details)
5 V/500 mA
- Product type
Pressure gauge
- Reading range
0 - 50 °C
- Unit of measurement
Gas
Air pressure
- Pneumatic connection
5 mm nipple for quick connectors
- Reading range
-100 - +2000 kPa, 0 - 50 °C
- Reading range - air pressure
-100 - +2000 kPa
- Pick-up time (details)
0.1 s
ISO standards
- Display range
3 inch LCD graphic display with lighting -100 - +2000 kPa
- Print resolution
0.0001 bar
- Basic accuracy
0.5 %
- Sensor
Piezoresistive pressure sensor
- Temp.
0 - 50 °C
- Accuracy
0.5 %
- Excess pressure resistance
20 bar
IP41
- Type
Digital manometer for relative pressure between -100 - +2000 kPa
- Dim
(L x W x H) 30 x 100 x 170 mm
- Weight
230 g
- Resolution
0.1 kPa
- Features
Datalogger function
USB interface
Thermometer
- Accuracy
0.5 %
- Calibration service
Incl. ISO calibration certificate
- Reading range (max.)
50 °C
- Reading range (min.)
0 °C
- Width
100 mm
- Height
170 mm
- Length
30 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812664 PCE Instruments PCE-PDA 1000L-ICA Pressure gauge Calibrated to (ISO standards) Gas, Air pressure 0 - 50 °C Datalogger fu
User & Safety Instructions
User & Safety Instructions 3812664 PCE Instruments PCE-PDA 1000L-ICA Pressure gauge Calibrated to (ISO standards) Gas, Air pressure 0 - 50 °C Datalogger fu
Description

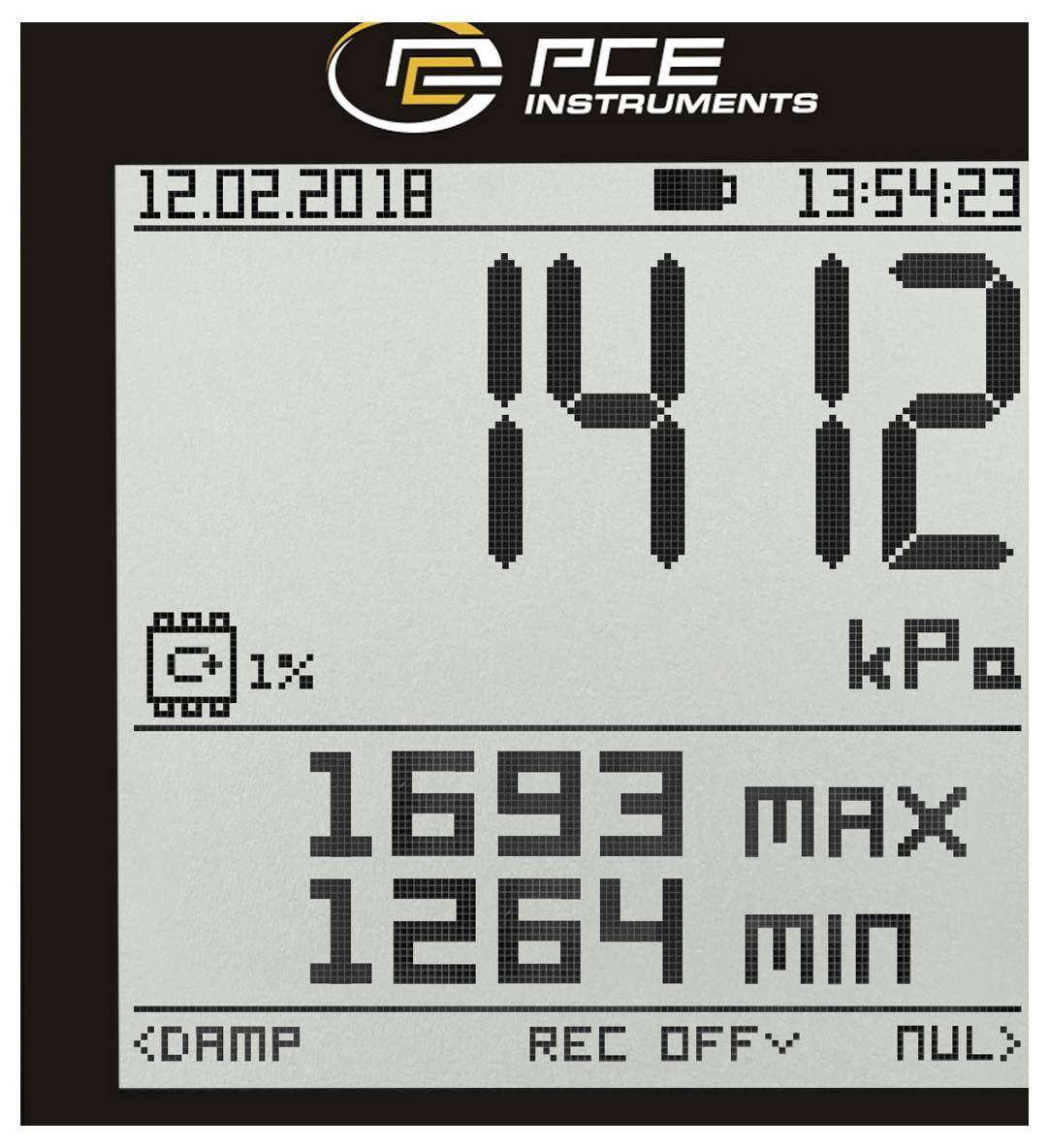

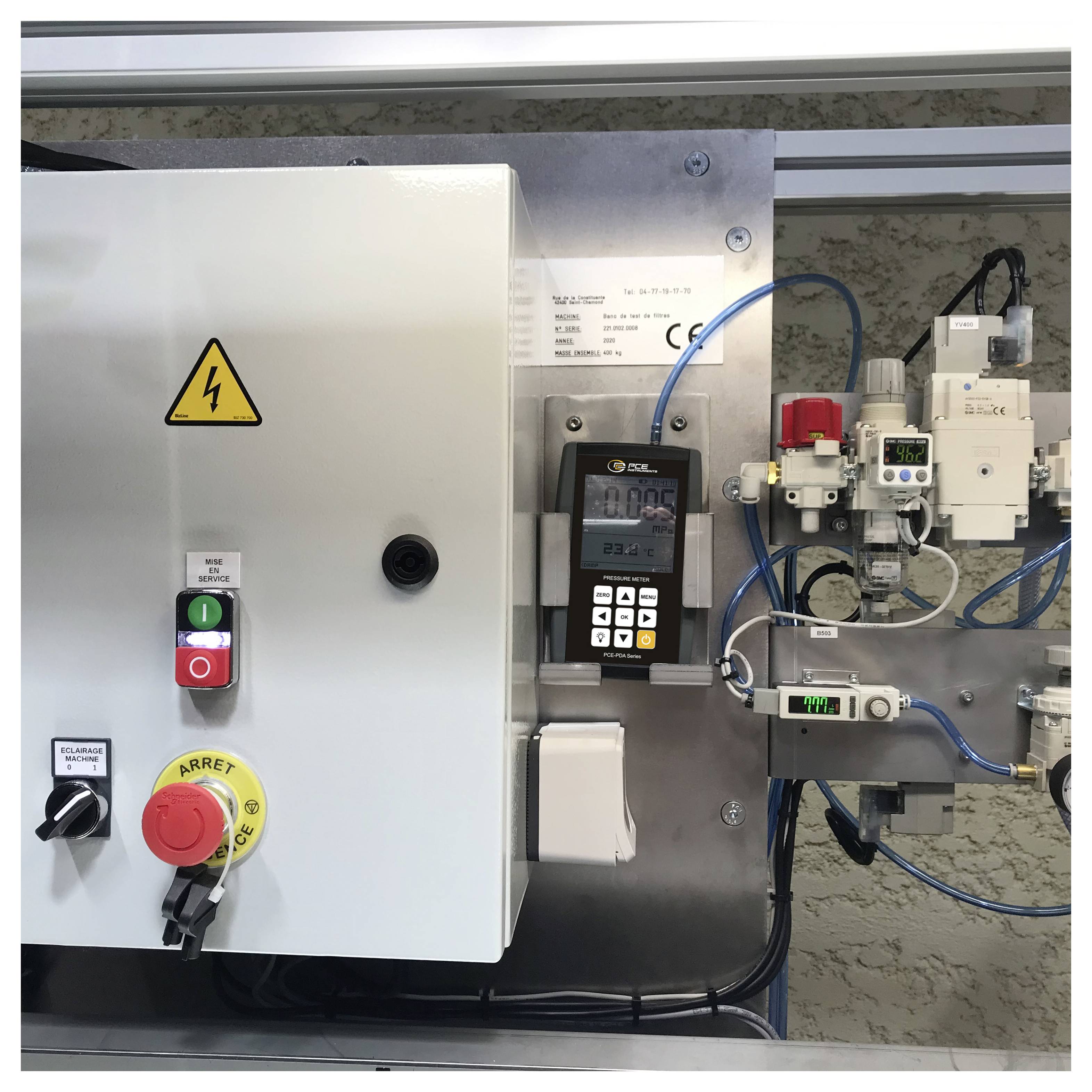

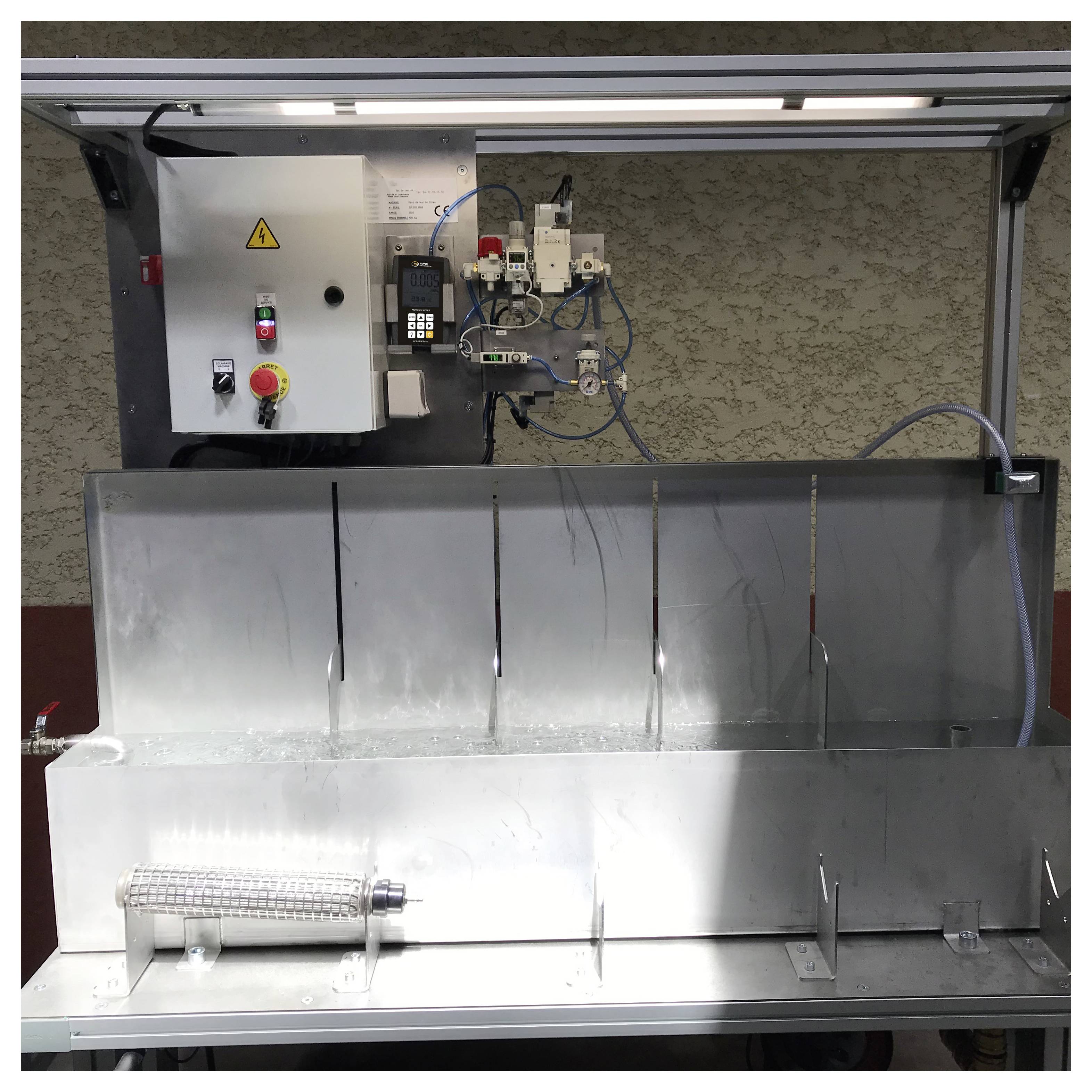

The pressure meter with data logger measures the relative pressure at machines and systems. The relative pressure is measured by this pressure gauge in the range between -100 ... +2000 kPa. The pressure measuring device with data logger has a quick-coupling connection with which the air pressure or water pressure can be delivered directly to the device. In addition to the measurement in kPa, many other pressure units are also available to the user. The large LCD on the pressure gauge with data logger continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measurement value in the display using the Max-Min-Hold function. The pressure measuring device with data logger in the second display area either shows the system temperature or a pressure difference, if a leak test has been carried out.
The pressure measuring device has a data logger. The memory has 1024 memory slots. In each storage place, recordings of up to 255h can be stored. A software is available for evaluating the stored measured values to the pressure meter with data logger. The pressure gauge is powered by 2 x AA batteries. Here, the user can use batteries or rechargeable batteries. On battery operation, the pressure gauge can be charged with a data logger via micro-USB port.
This text is machine translated.
The pressure measuring device has a data logger. The memory has 1024 memory slots. In each storage place, recordings of up to 255h can be stored. A software is available for evaluating the stored measured values to the pressure meter with data logger. The pressure gauge is powered by 2 x AA batteries. Here, the user can use batteries or rechargeable batteries. On battery operation, the pressure gauge can be charged with a data logger via micro-USB port.
This text is machine translated.

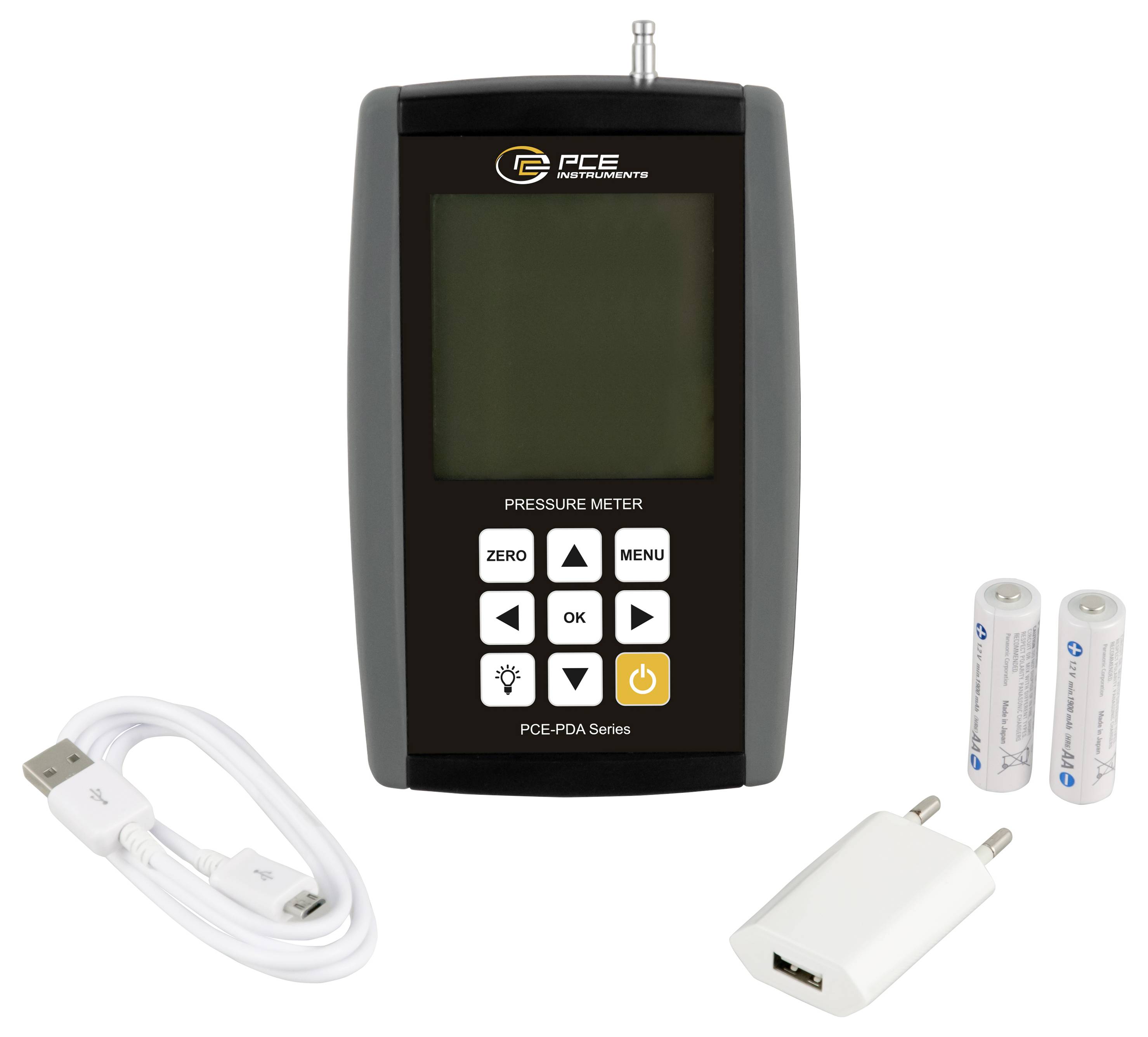

Scope of delivery
- 1 x pressure gauge with data logger PCE-PDA 1000L-ICA
- 2 x 1.2 V AA NiMh batteries
- 1 x USB power supply
- 1 x micro USB cable
- 1 x software
- 1x user manual
- 1 x ISO calibration certificate
