PCE Instruments PCE-PDA 1000L Relative pressure gauge
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Relative pressure measuring device PCE-PDA 1000L
- Graphic LCD
- USB interface
- Data Loggers
- Relative pressure and vacuum measurement
- Different units
- MAX MIN HOLD function
- Measurement smoothing
- Integrated temperature measurement
Technical specifications
- Reading range Pressure -100 ... 2000 kPa relative Resolution 0.01 kPa, 0.1 kPa Accuracy< ±0.5 % of the measuring range Rated pressure 2000 kPa Excess pressure 2000 kPa Burst pressure 3000 kPa Media Fluidity Air Non-aggressive gases Measurement rate 10 Hz Measuring units Pa, hPa, kPa, MPa, mbar, Bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF Pressure type relative pressure Pressure connections 5 mm nipple for quick connector Max, min and hold function Yes Data logger 1024 Memory slots 1 s ... 255 hrs Recording time per storage space 1 s ... 24h recording interval medium for air and non-explosive gases Zero correction Yes, by means of zero key Averaging Yes, between 0.1 ... 9.9 s Display graphic LCD with background lighting Protection class: IP41 Power supply 2 x 1.5 V AA batteries / 1.2 V NiMH rechargeable batteries 5 V / 500 mA USB power supply Current consumption 50 mA (with backlight) 10 mA (without backlight) Operating temperature 0 ... 50 °C Storage temperature 10 ... 55 °C Dimensions 145 x 85 x 35 mm Weight approx. 285 g
- Product type
Relative pressure gauge
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452850 PCE Instruments PCE-PDA 1000L Relative pressure gauge
User & Safety Instructions
User & Safety Instructions 2452850 PCE Instruments PCE-PDA 1000L Relative pressure gauge
Description

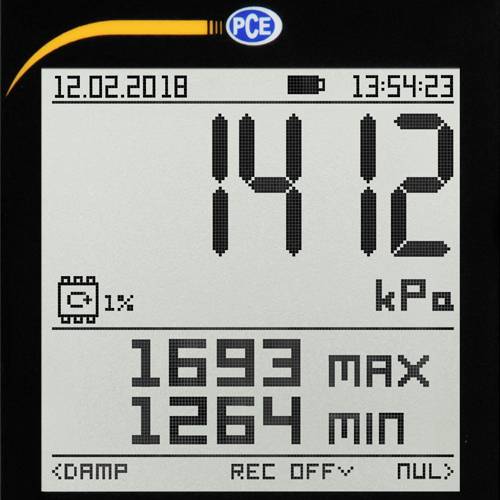

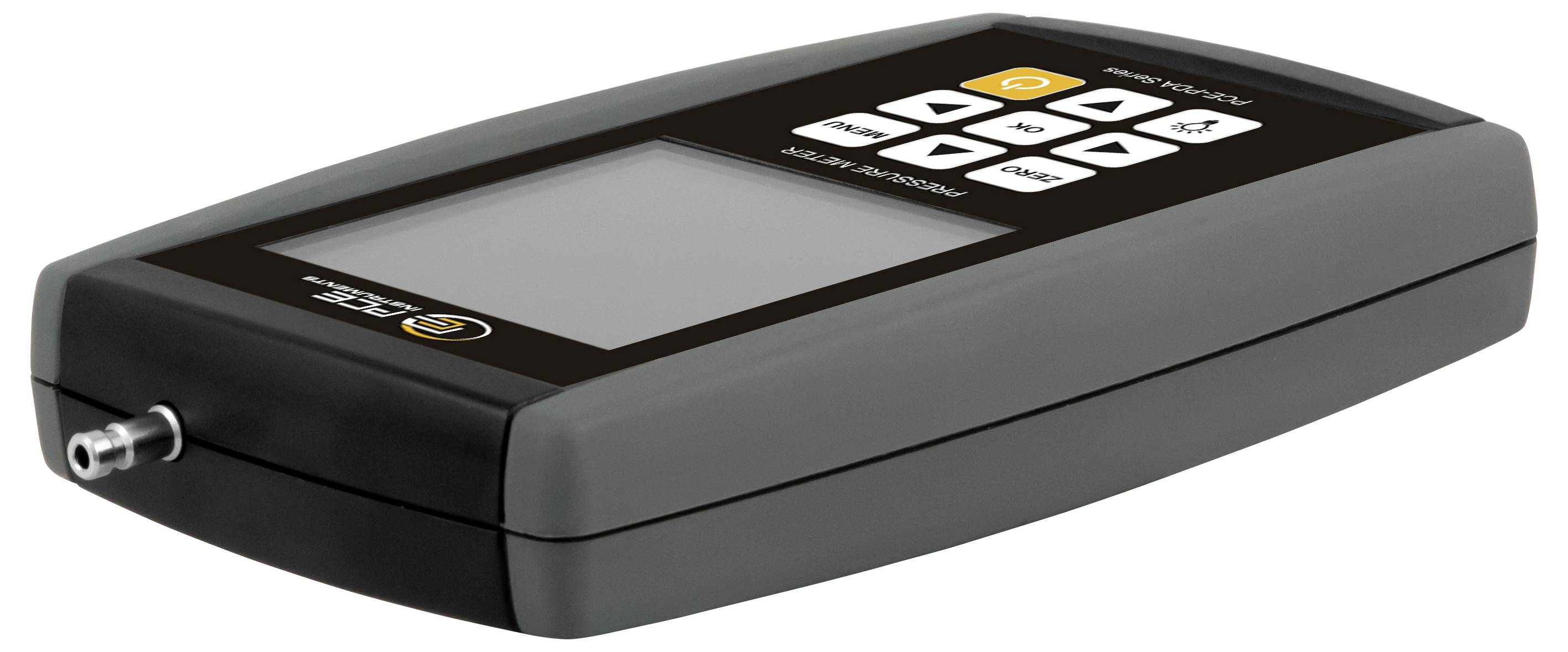

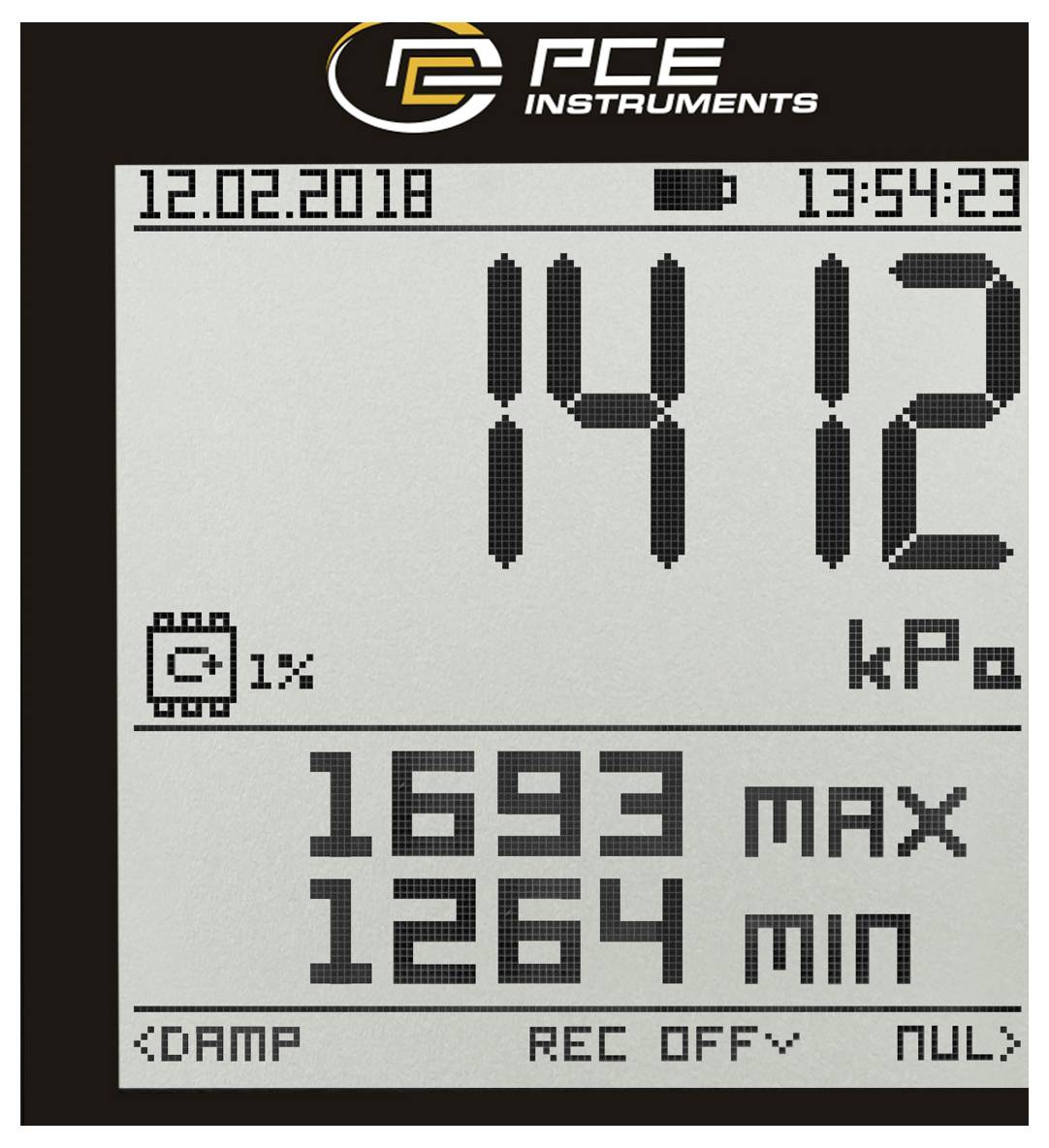

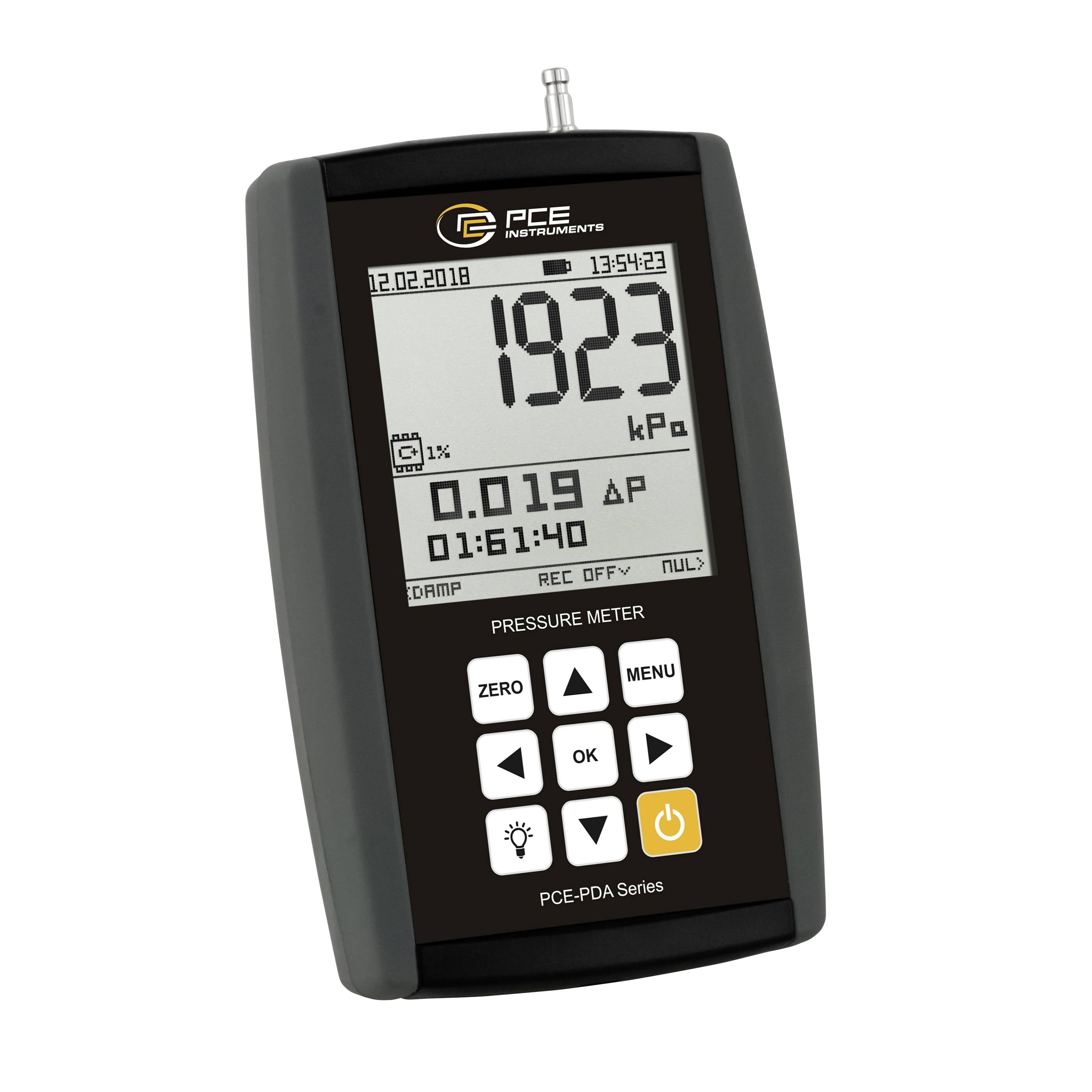

Relative pressure meter PCE-PDA 1000L Measuring instrument for relative pressure between -100 .... 2000 kPa / data logger / graphic LCD / with USB interface / MAX MIN HOLD function The relative pressure measuring device PCE-PDA 1000L measures the relative pressure of machines and systems. The relative pressure is determined by this pressure gauge in the range between -100 ... 2000 kPa. The relative pressure gauge has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa, many other pressure units are available to the user. The large LCD on the relative pressure meter continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function. In the second display area, the relative pressure gauge also indicates either the system temperature or a pressure difference if a leak test has been performed. The PCE-PDA 1000L relative pressure meter has a data logger. The memory has 1024 memory slots. Recordings of up to 255h can be stored in any storage space. A software is available for evaluating the stored measured values. The pressure gauge is supplied with 2 AA batteries for relative pressure. The user can use either batteries or rechargeable batteries here. In battery mode, the relative pressure measuring device PCE-PDA 1000L can be charged via micro-USB socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Relative pressure measuring device PCE-PDA 1000L
- 2 x 1.2 V AA NiMH batteries
- 1 x USB power supply
- 1 x Micro USB cable
- 1 x software
- 1x user manual
