Buy PCE Instruments PCE-PDA 10L Pressure gauge

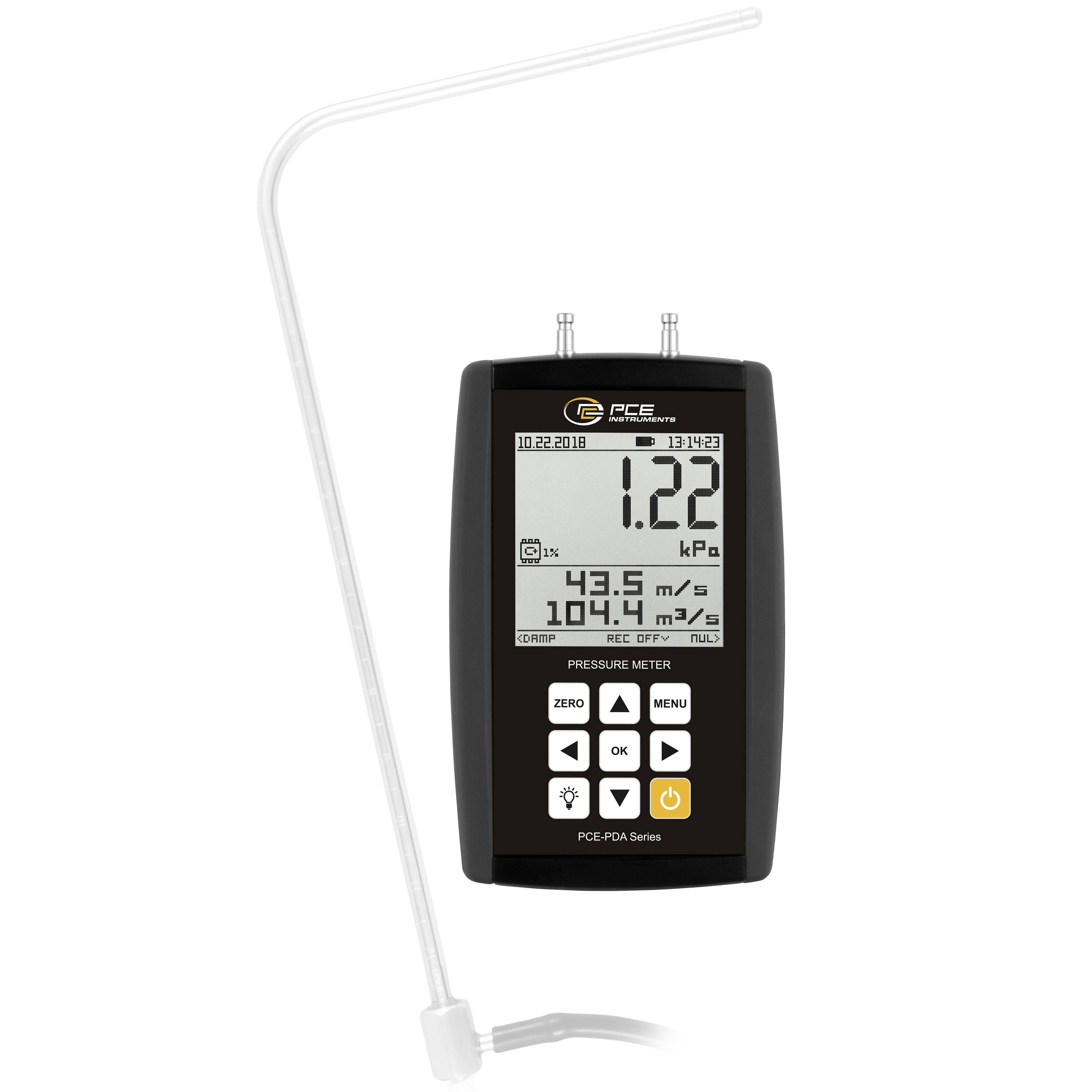

Handheld digital pressure meter with attached clear tube probe, showing 1.22 kPa and airflow readings on the display.

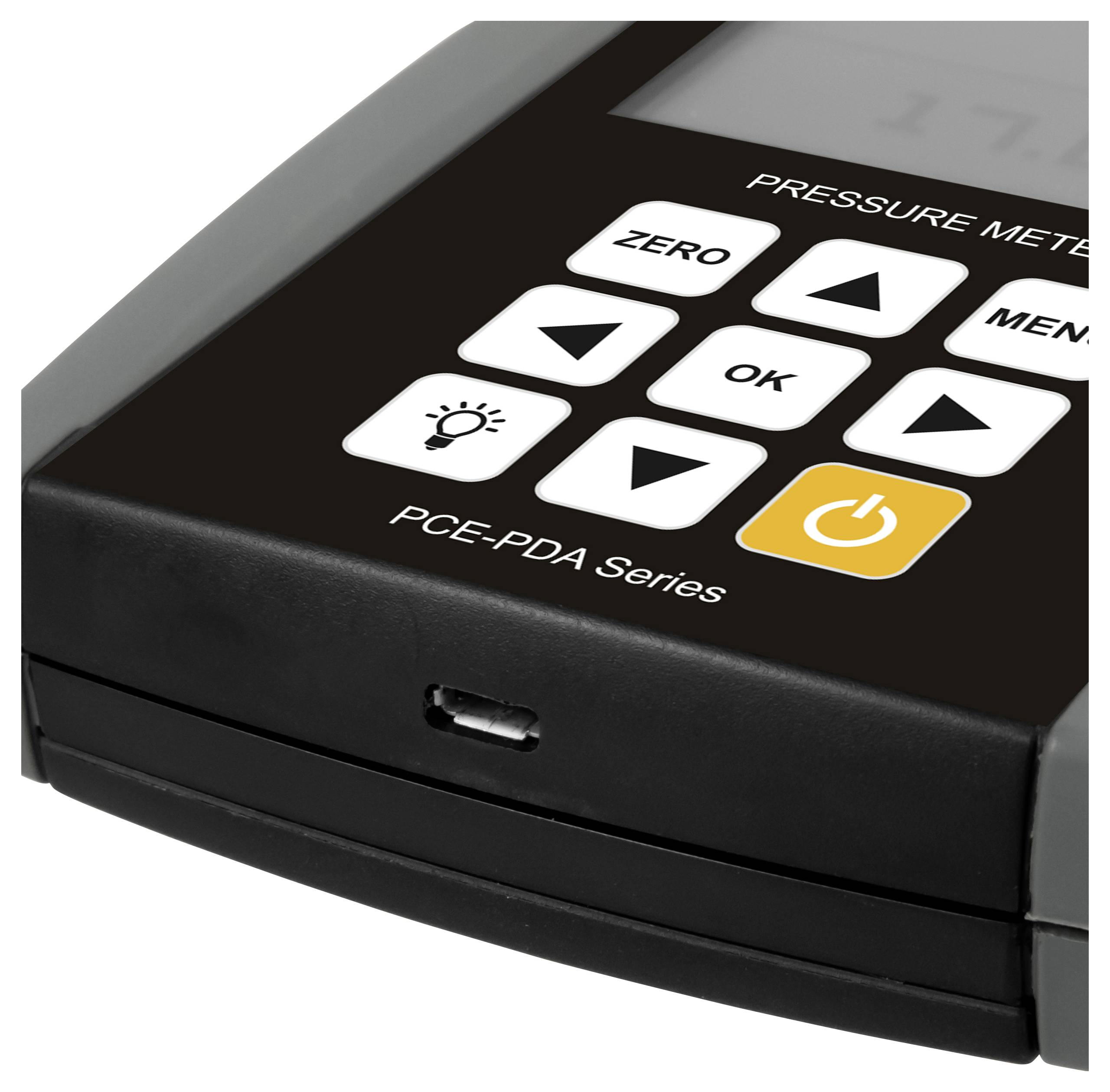

Close-up of a PCE-PDA Series pressure meter control panel with labeled buttons for zero, menu, OK, arrows, backlight, and power.

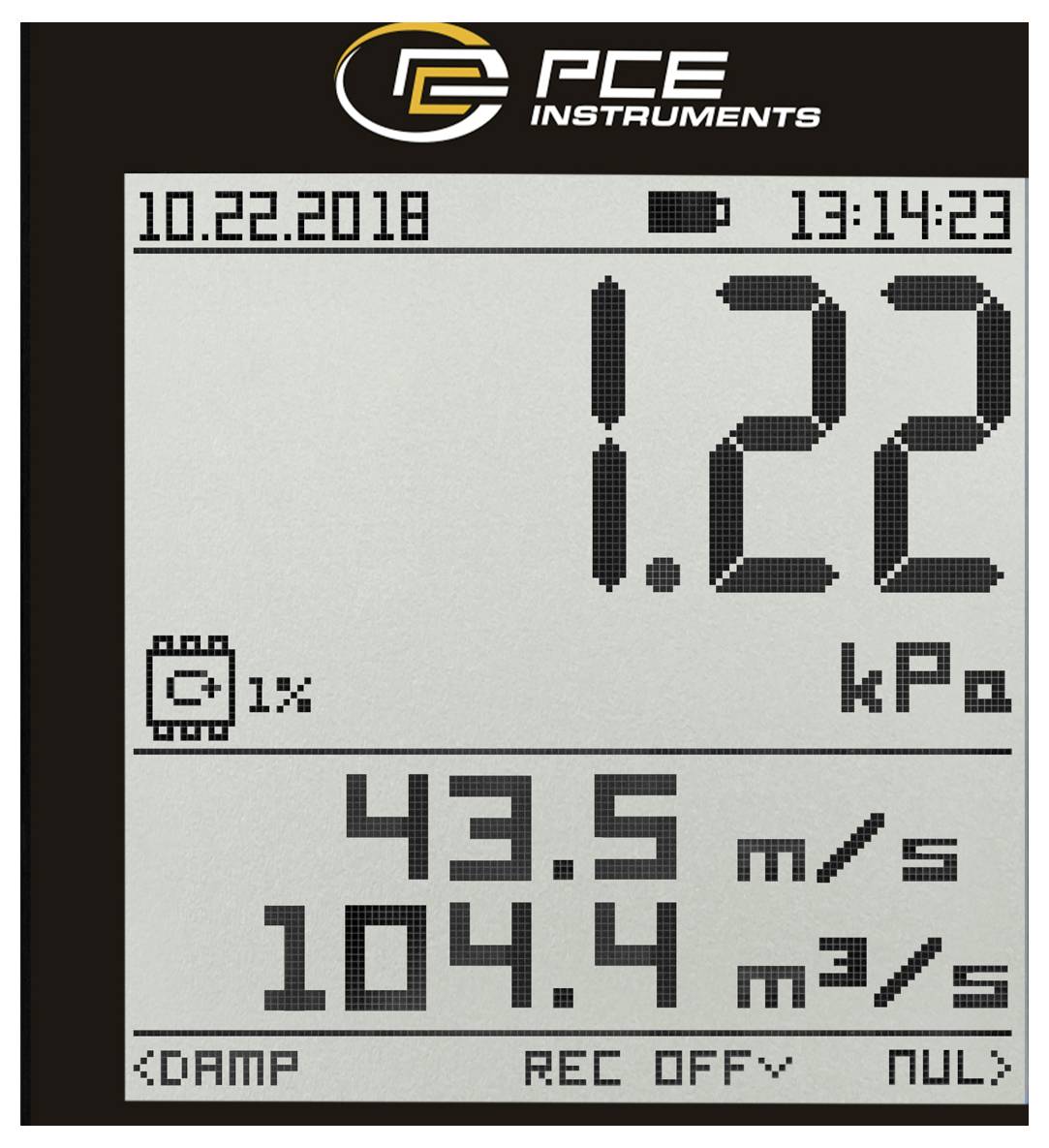

PCE Instruments handheld meter display showing 1.22 kPa, air speed 43.5 m/s, and flow 104.4 m³/s, with date 10.22.2018 and time 13:14:23.

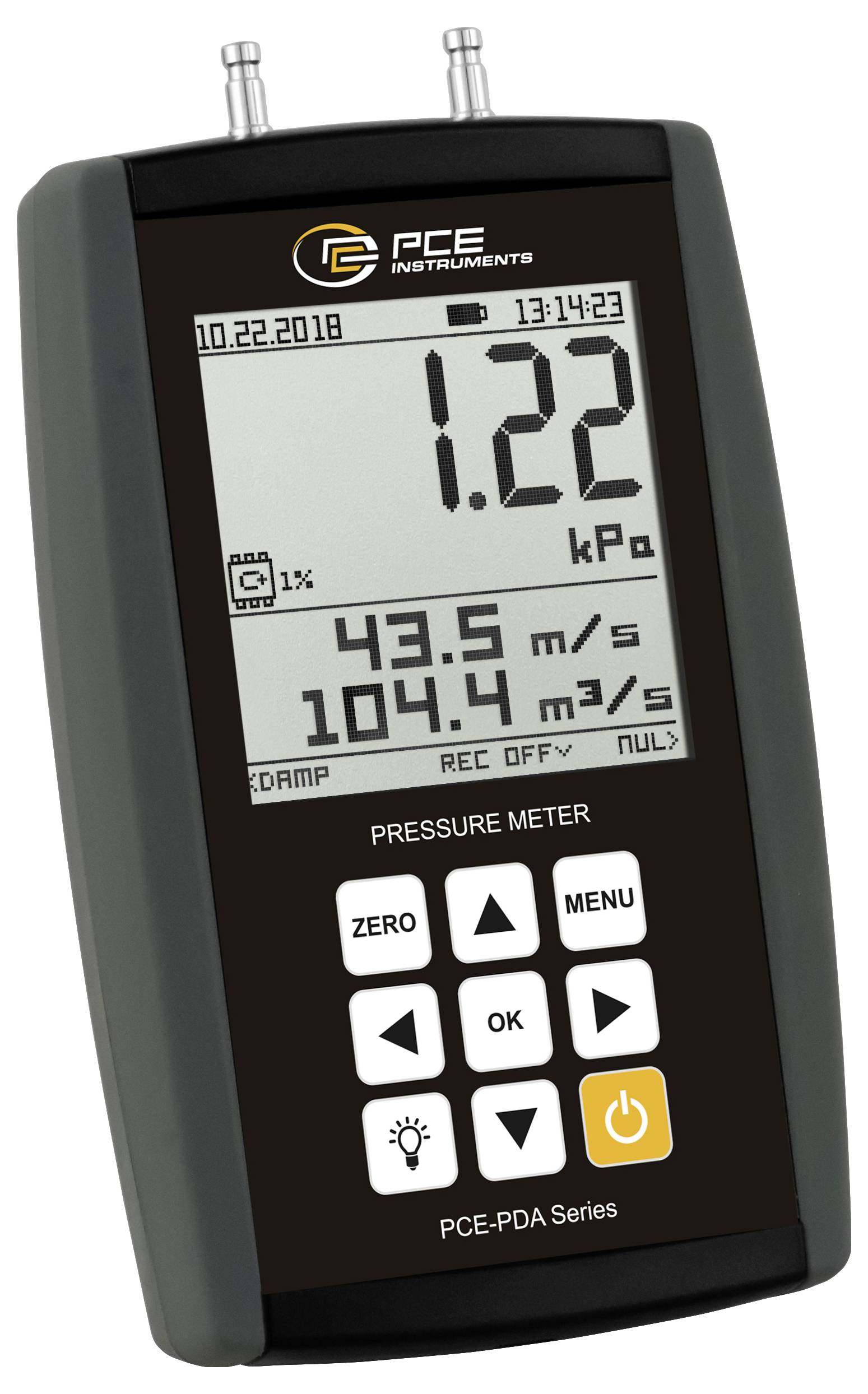

Handheld PCE Instruments pressure meter showing 1.22 kPa, temperature 43.5 m/s and 104.4 m/s on the display, with keypad and probes on top.

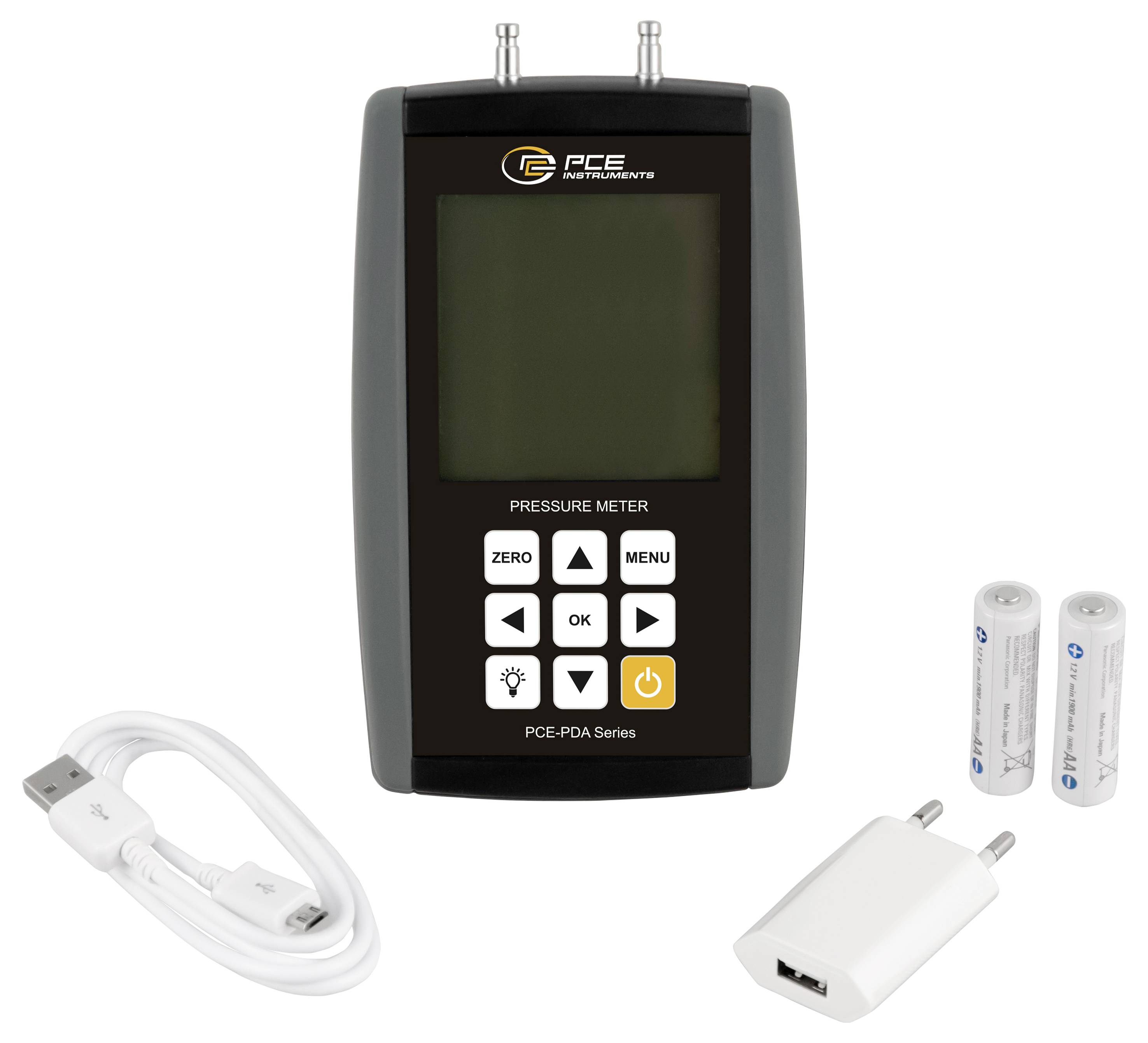

PCE pressure meter with screen and control buttons, shown with USB cable, charger adapter, and two batteries.

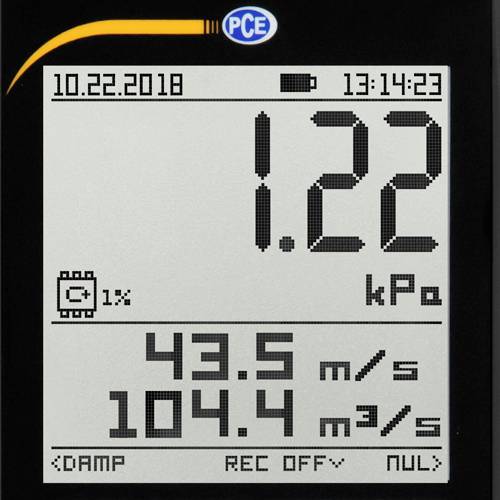

Digital display shows date '22/10/2018', time '13:14:23', pressure '1.22 kPa', charge status '1%', speed '43.5 m/s', volume flow rate '104.4 m³/s'.

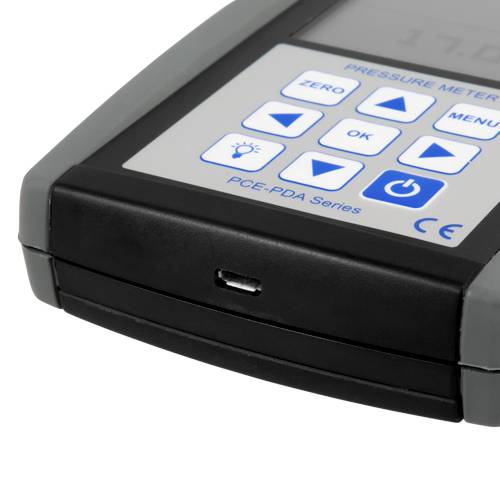

Hand-held pressure measuring device with display and buttons. A small, portable device with grey and black accents.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DIFFERENTIAL PRESSURE MANOMETER PCE-PDA 10L

Graphic display with lighting
Min and max value memory
Data logger and leak test
Quick coupling connection
Temperature measurement, flow measurement
High precision measurement mode
Easy operation (voice-guided)

Technical specifications

Measurement range temperature 0 ... +50 °C Resolution 0.1 °C Accuracy +/1 °C Pressure reading range ±20 kPa Resolution 1/ 10 Pa. Accuracy ±0.5 % of E.. Nominal pressure 20 kPa Excess pressure 40 kPa Bursting pressure 100 kPa Media Liquids / air Measurement rate 10 Hz Measuring units Pa, hPa, kPa, MPa, mbar, Bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF Print type Differential pressure Relative pressure (if neg. Pressure connection open) Pressure connections 5 mm nipple for quick connector Max, min and hold function Yes Data logger 1024 memory slots 1 s ... 255 h recording time per storage space 1 s ... 24h recording interval medium for air and non-explosive gases Zero correction Yes, by means of zero key Averaging Yes, between 0.1 ... 9.9 s Display graphic LCD with background lighting Protection class: IP41 Power supply 2 x 1.5 V AA batteries / 1.2 V NiMH rechargeable battery 5 V / 500 mA USB power supply Current consumption 50 mA (with backlight) 10 mA (without backlight) Operating temperature 0 ... 50 °C Storage temperature 10 ... 55 °C Dimensions 145 x 85 x 35 mm Weight approx. 285 g

Product type: Pressure gauge

Width: 100 mm

Connector: Bottom

Operating medium: Compressed air
Fluids

Min. operating temperature: 0 °C

Min. display range: 0 bar

Documents & Downloads

Datasheet

Datasheet 2452859 PCE Instruments PCE-PDA 10L Pressure gauge

User & Safety Instructions

User & Safety Instructions 2452859 PCE Instruments PCE-PDA 10L Pressure gauge

Description

Differential pressure manometer PCE-PDA 10L Differential pressure manometer for relative and differential pressure / Pitot tube can be adapted to differential pressure manometer / MAX MIN function / Data logger The differential pressure gauges of the PCE-PDA series are reliable differential pressure gauges for the pressure measurement of gases in the range of ±200 Pa, ± 2kPa or 20 kPa depending on the model. The differential pressure gauge has many different pressure measurement functions. This means that the user has over 16 units. Furthermore, the differential pressure gauge measures the temperature, flow rate and flow rate in addition to the differential pressure. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can be switched optionally. A high-precision mode is integrated in the differential pressure gauge, which increases the resolution by ten times. The PCE-PDA differential pressure manometer has a data logger function. In addition to the continuous storage of the measured values, this enables a leak test to be carried out on pressure lines. In data logger mode, it is possible to set a time period on the differential pressure gauge in which the data is stored at a previously selected interval. In leakage measurement mode, the user must specify the measuring duration and the differential pressure level. After the measurement, the differential pressure gauge then indicates the deviation from the setpoint. In addition to these two functions, the differential pressure gauge can determine the flow velocity or the volume flow in lines with optionally available pilot tubes.
